Quality Since 1976!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • SS-A1001
    Stainless Steel Dry Slide Model SS-A1001
  • SS-A1002
    Stainless Steel Dry Slide Model SS-A1002
  • SS-A1003
    Stainless Steel Dry Slide Model SS-A1003
  • SS-A1004
    Custom Indoor Dry Slide Model SS-A1004
  • SS-A1005
    Stainless Steel Dry Slide Model SS-A1005
  • SS-A1006
    Stainless Steel Dry Slide Model SS-A1006
  • SS-A1007
    Stainless Steel Dry Slide Model SS-A1007
  • SS-A1009
    Stainless Steel Dry Slide Model SS-A1009
  • SS-A1011

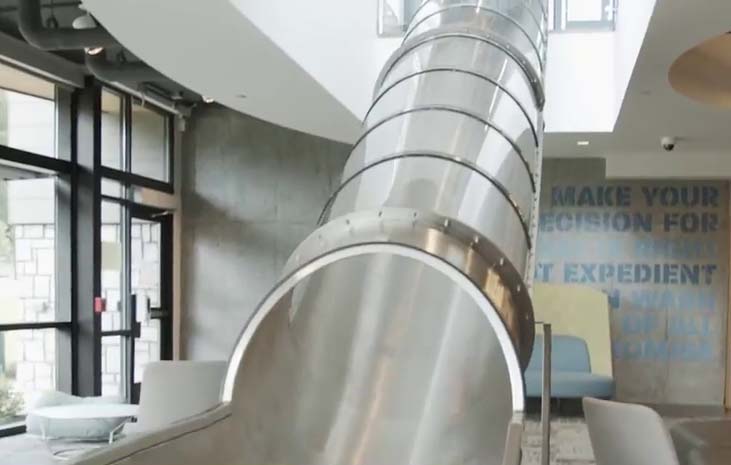

    Stainless Steel Slide with Clear Top Model SS-A1011
  • SS-A1012
    Stainless Steel Dry Slide Model SS-A1012
  • SS-A1013
    Stainless Steel Dry Slide Model SS-A1013
  • SS-A1014
    Stainless Steel Slide with Clear Top Model SS-A1014

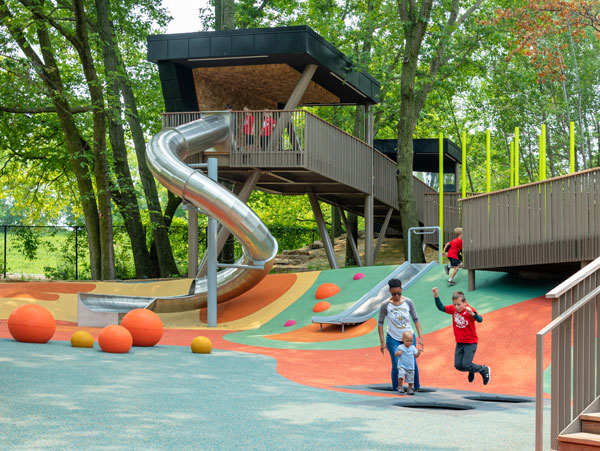

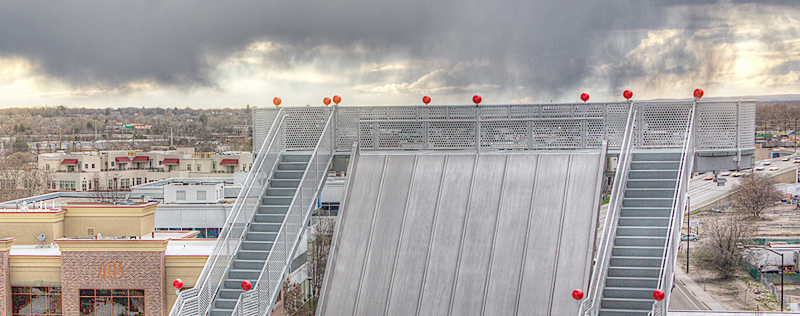

  • SS-A1015

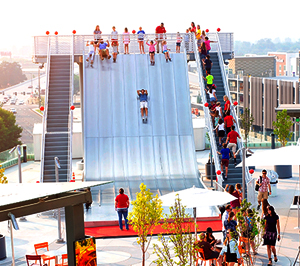

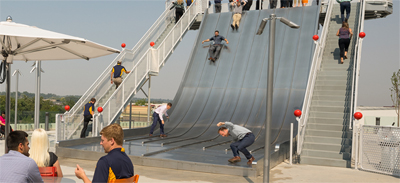

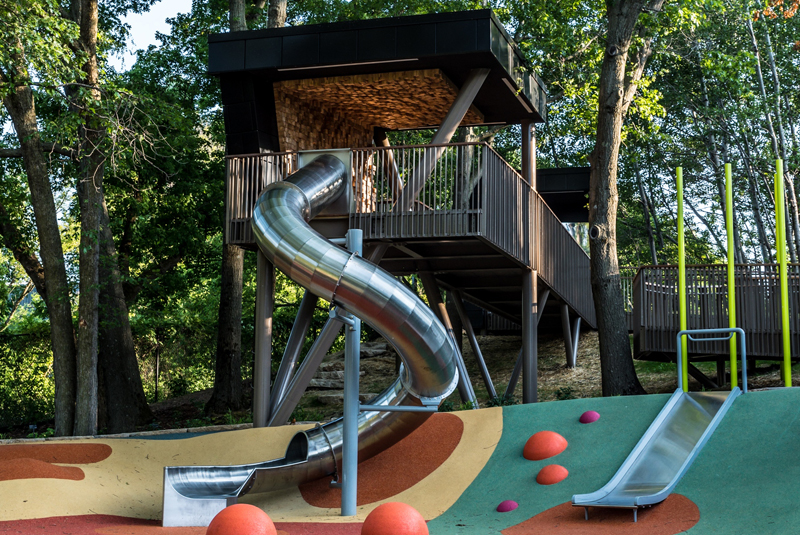

    8-Lane Custom Stainless Steel Outdoor Slide Model SS-A1015

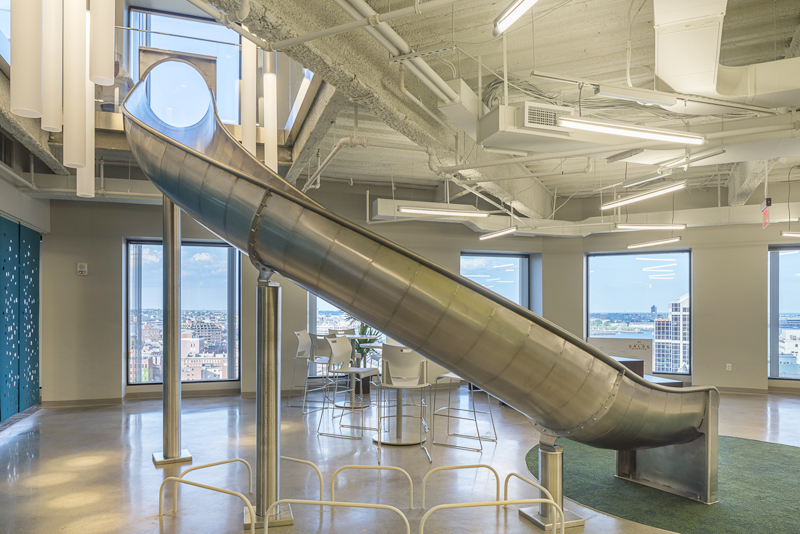

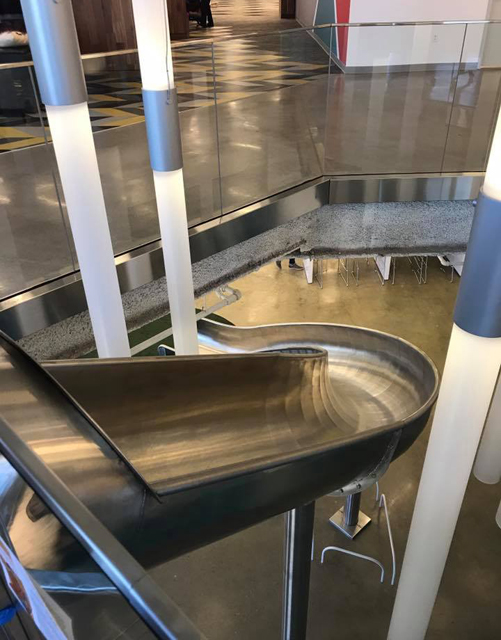

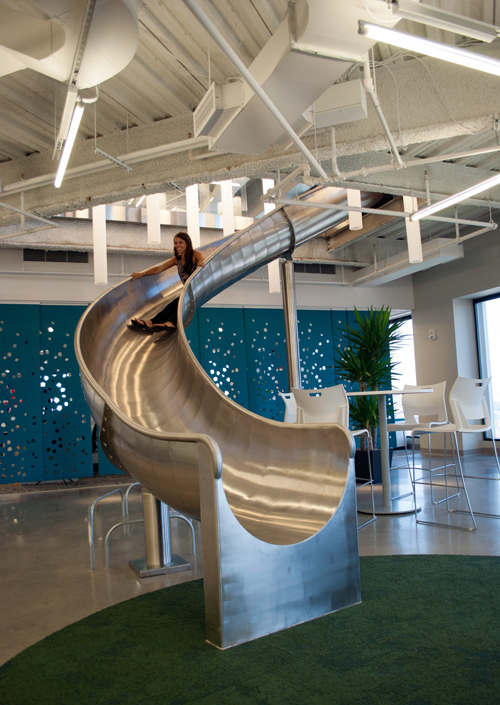

  • SS-A1016
    Stainless Steel Indoor Slide Model SS-A1016
  • SS-A1017
    Stainless Steel Indoor Slide Model SS-A1017
  • SS-A1018
    Stainless Steel Wave Slide Model SS-A1018
  • SS-A1019
    Stainless Steel Slide with Clear Top Model SS-A1019

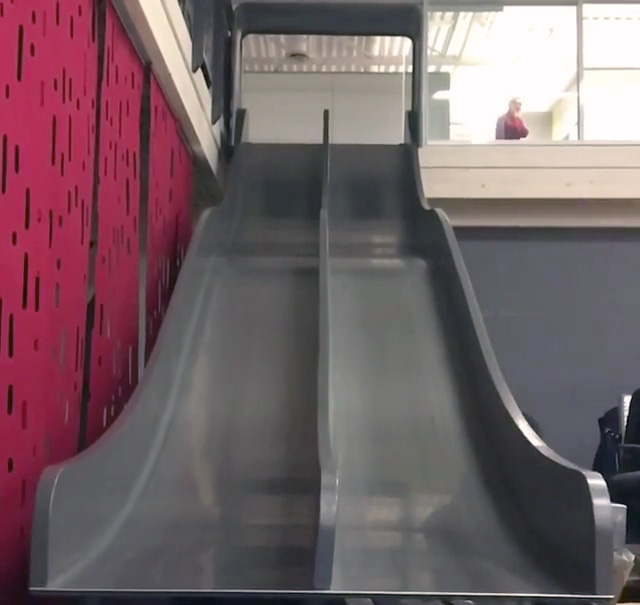

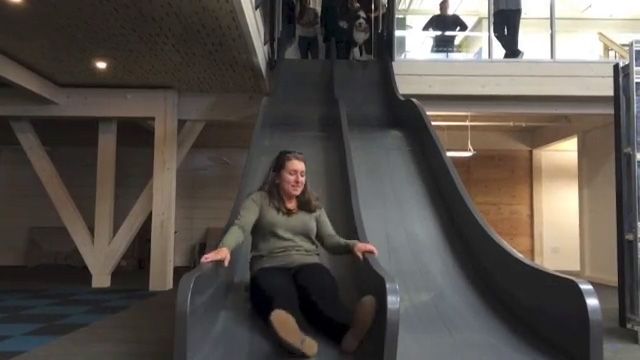

  • SS-A1020
    Double Divided Open Flume Stainless Steel Wave Slide Model SS-A1020

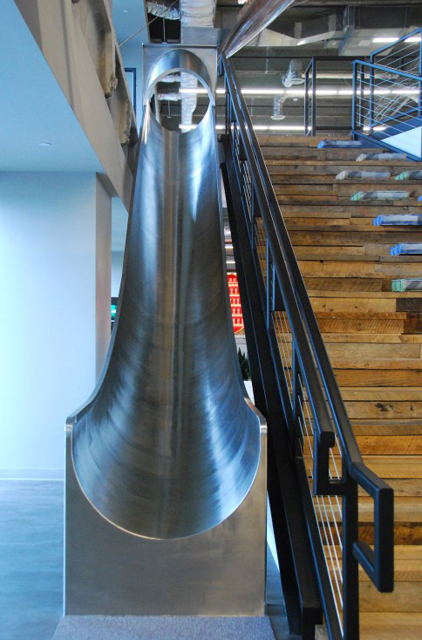

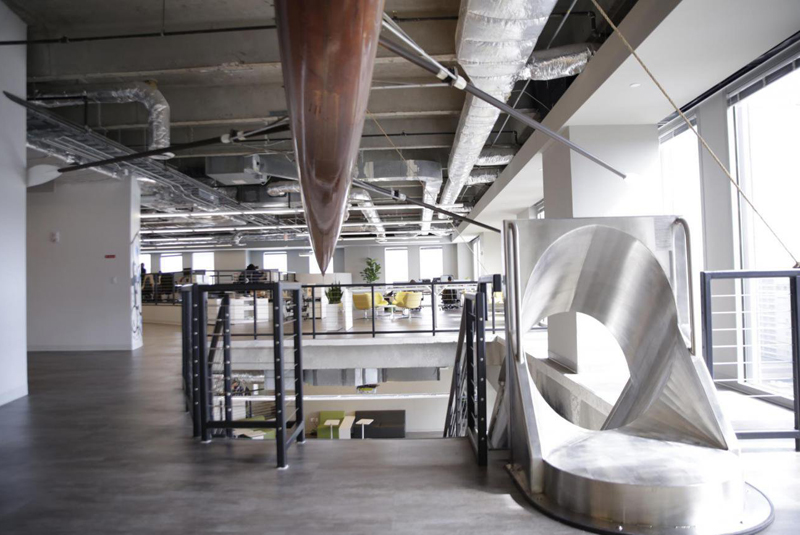

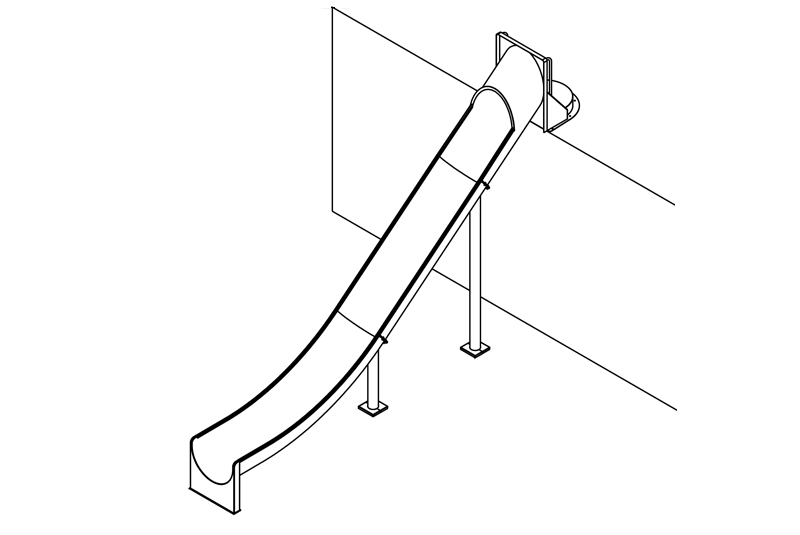

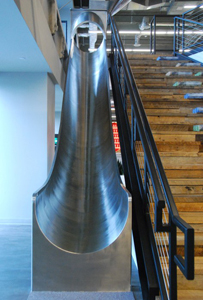

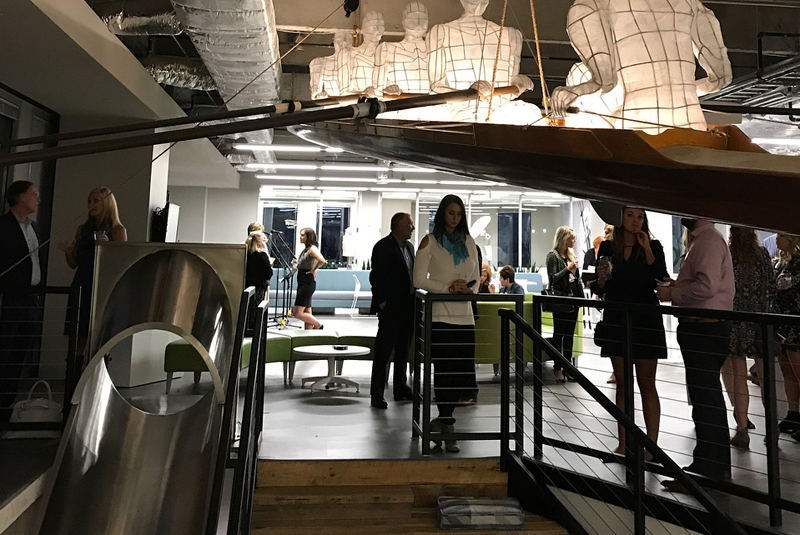

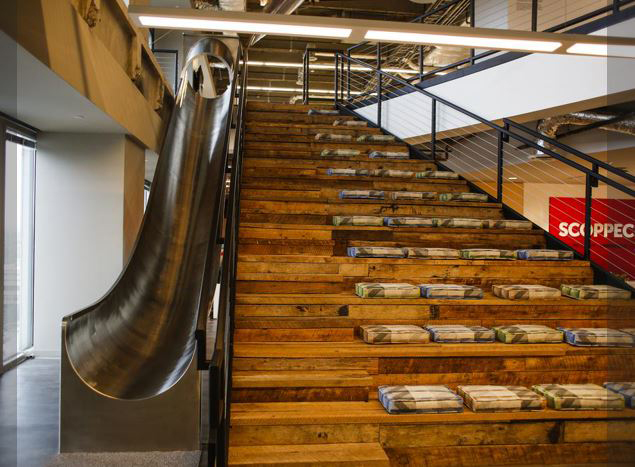

  • SS-A1021

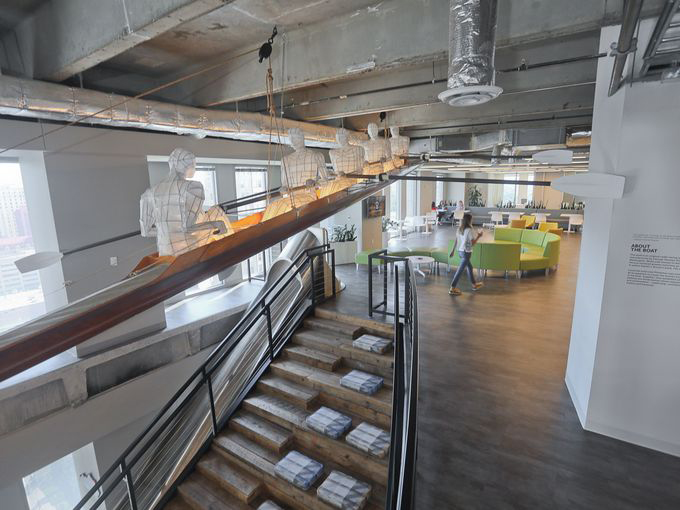

    Stainless Steel Dry Slide Model SS-A1021

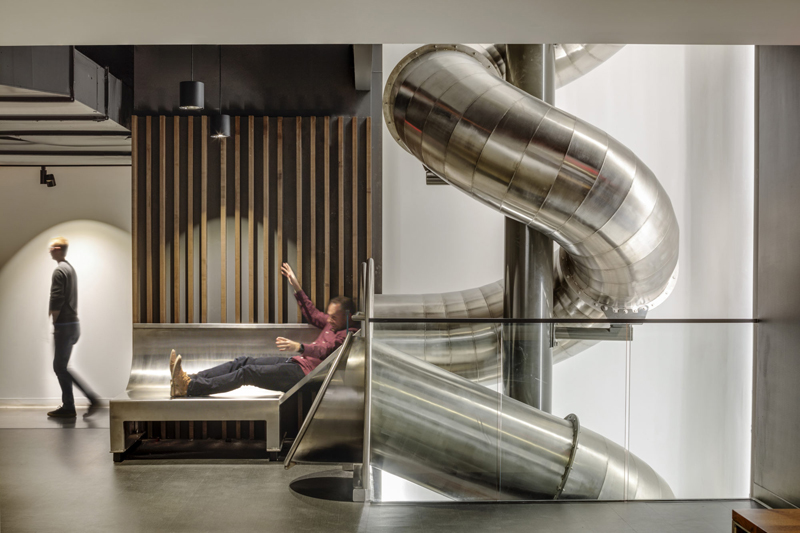

  • SS-A1022

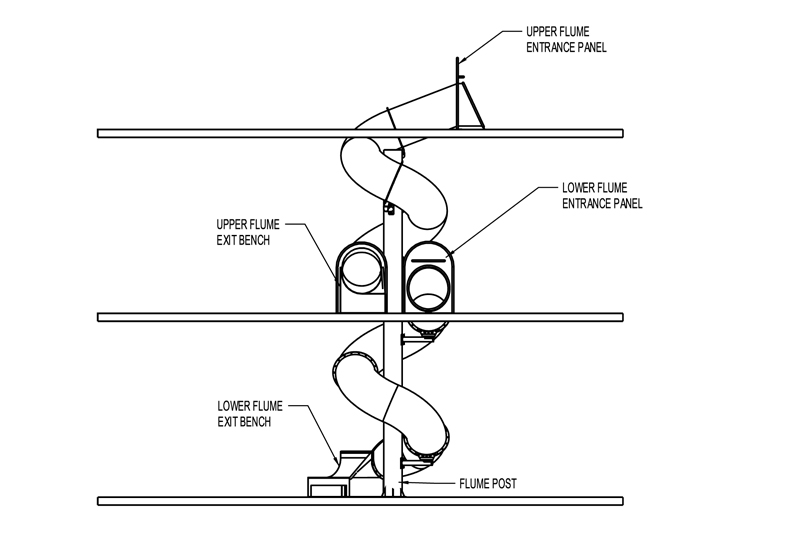

    2 Closed Flume Stainless Steel Slides Model SS-A1022

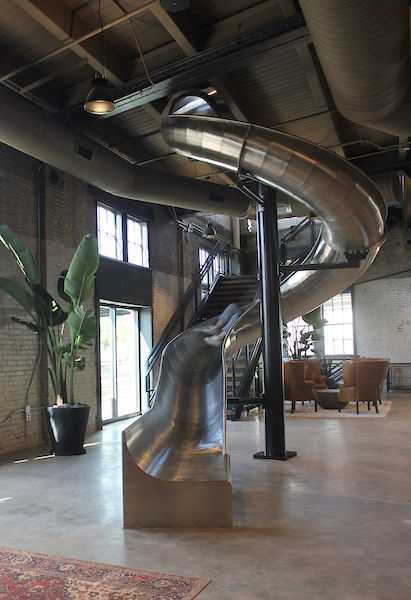

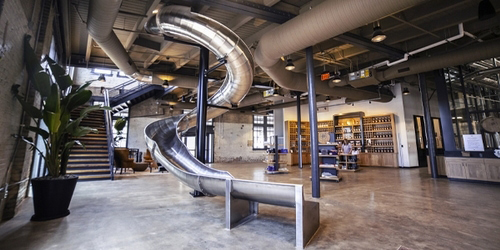

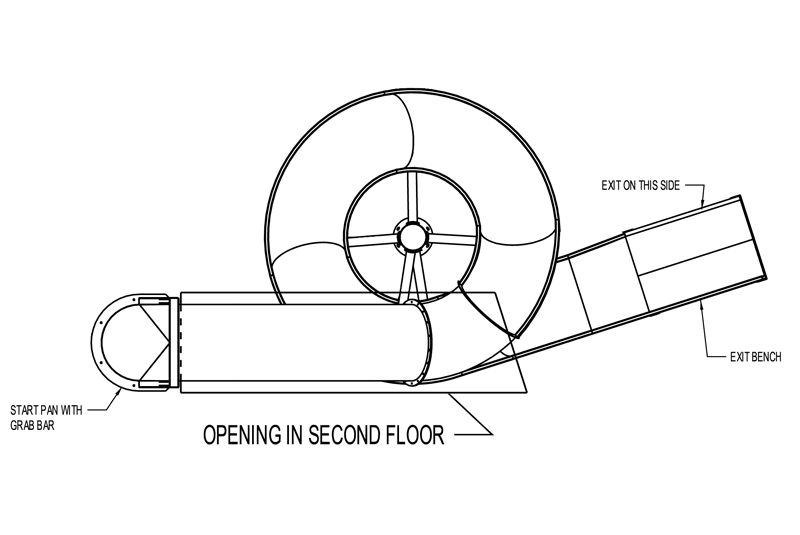

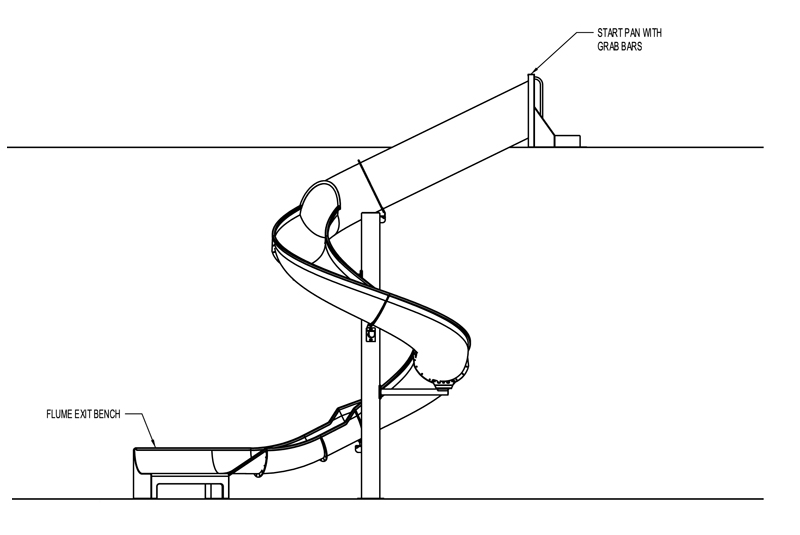

  • SS-A1023

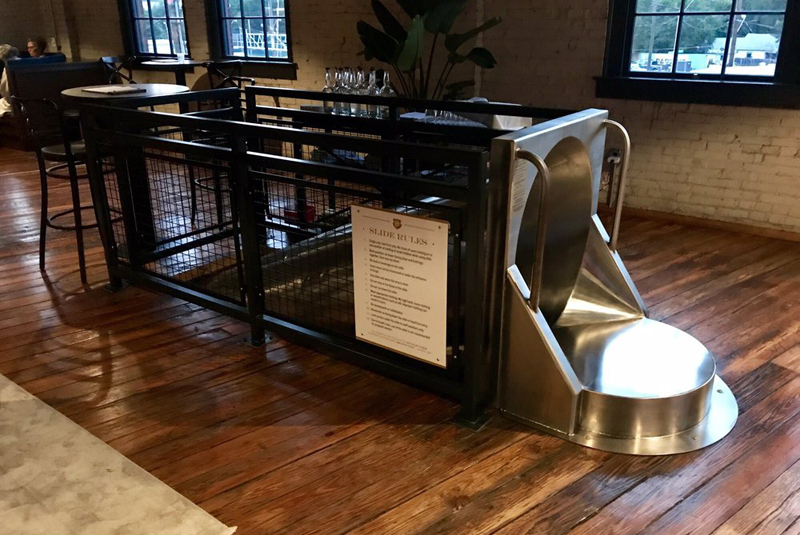

    Stainless Steel Indoor Slide Model SS-A1023
  • SS-A1024
    Closed Flume Indoor Architectural Slide Model SS-A1024

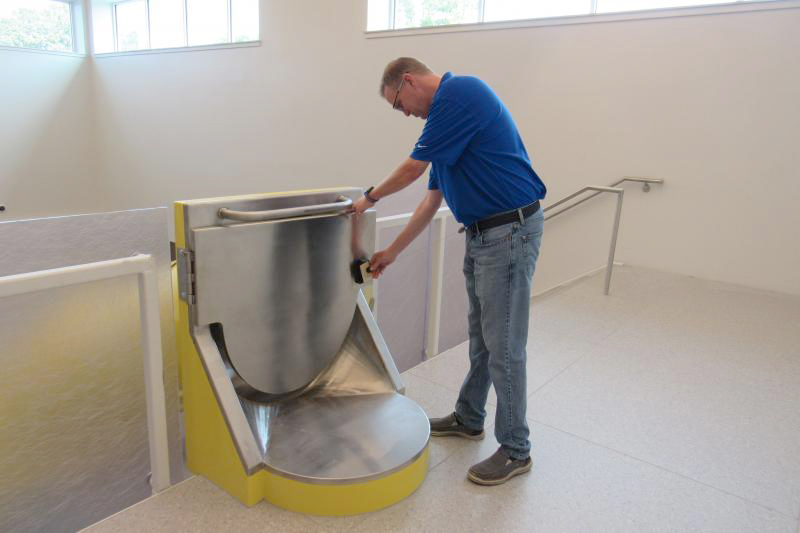

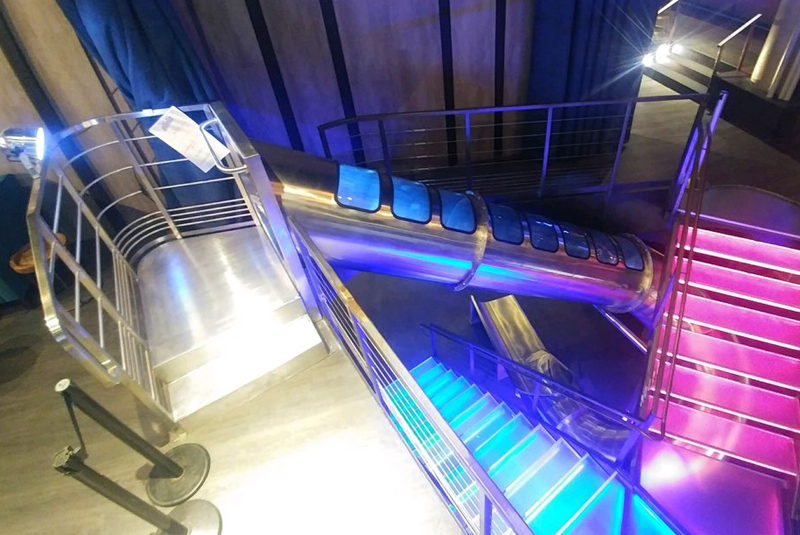

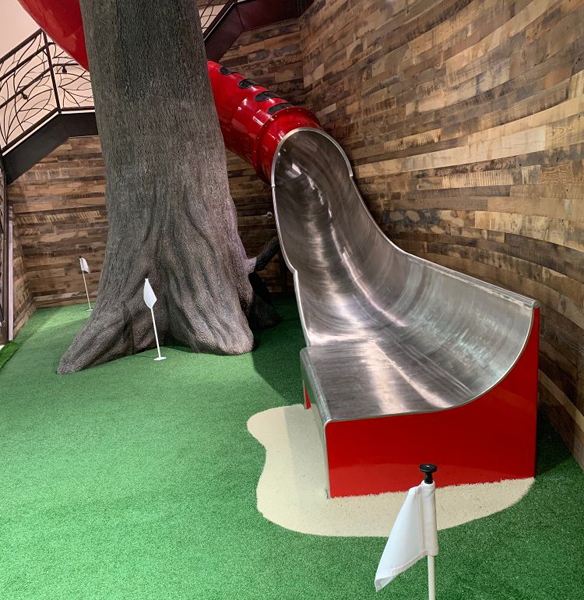

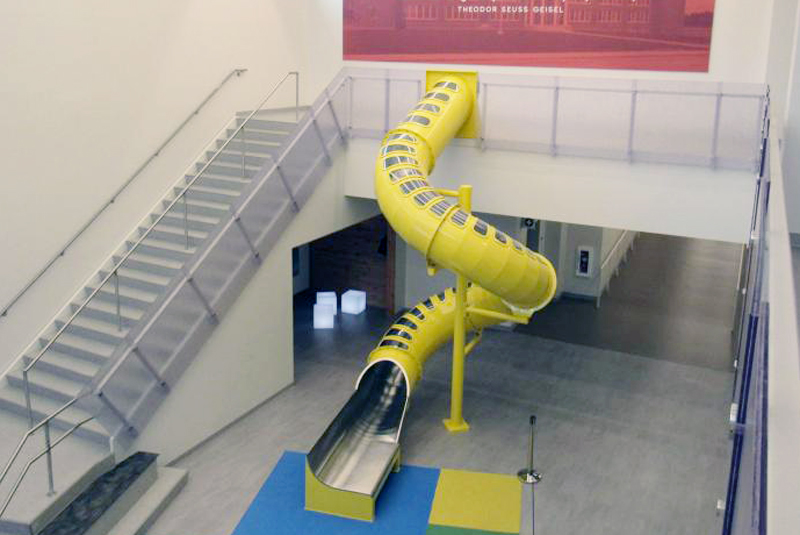

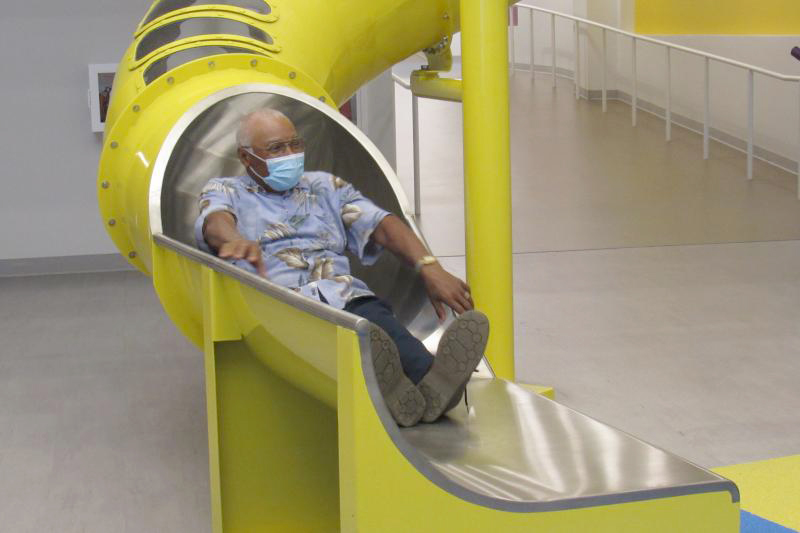

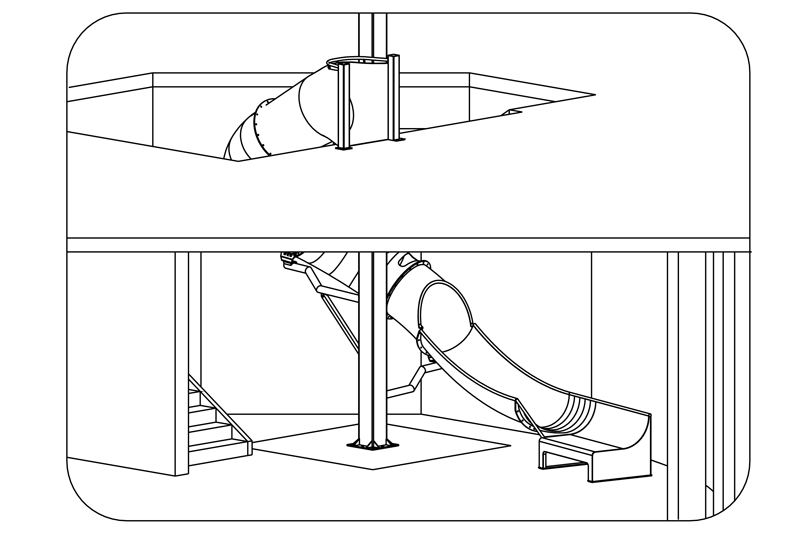

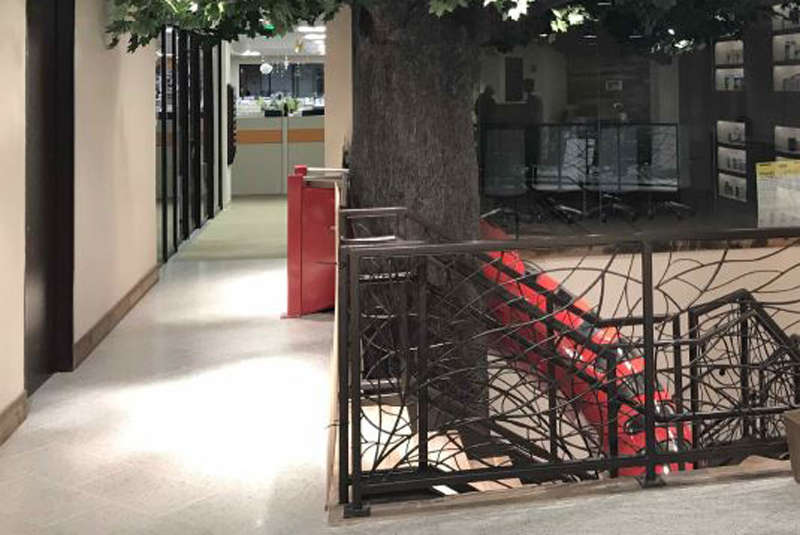

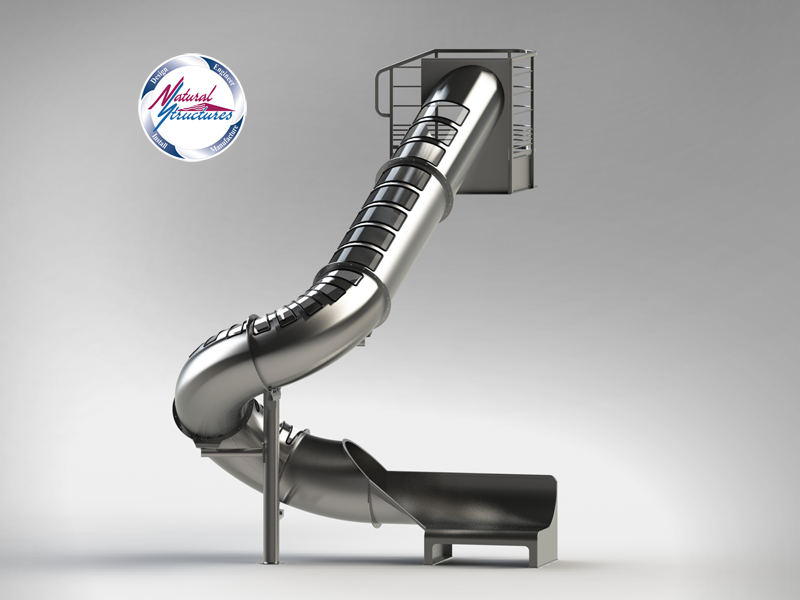

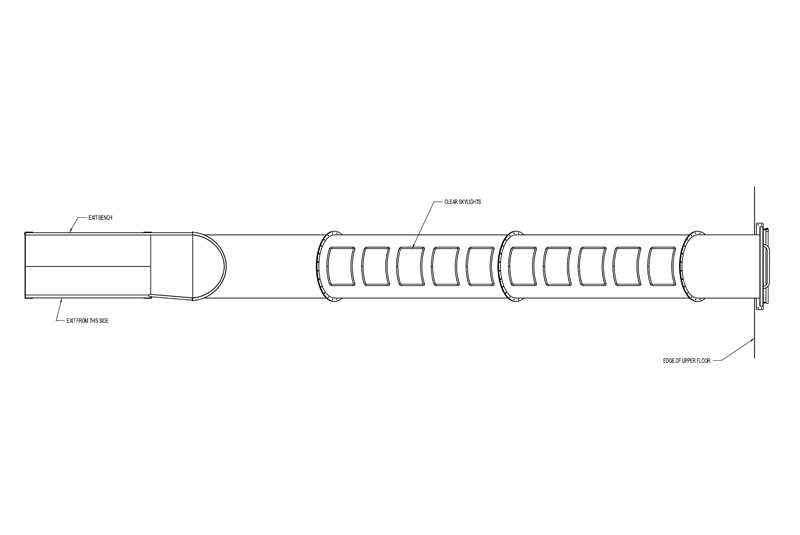

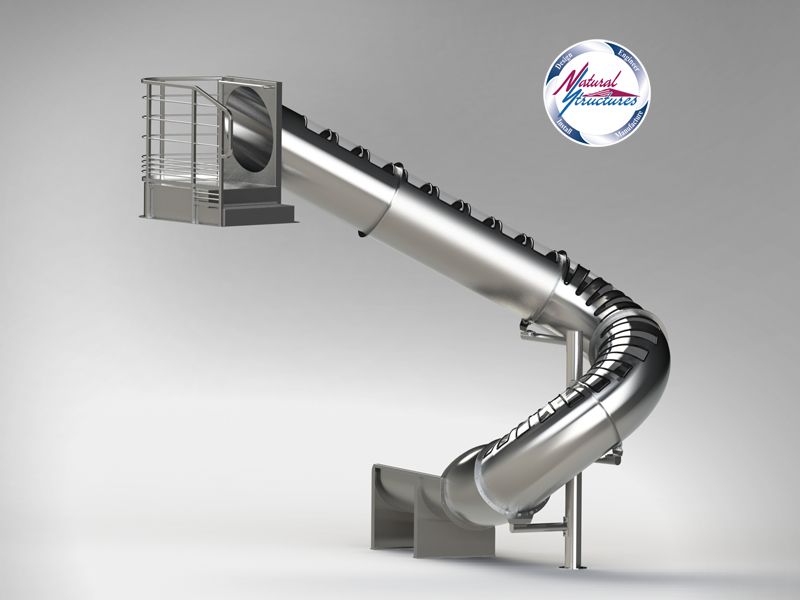

  • SS-A1025

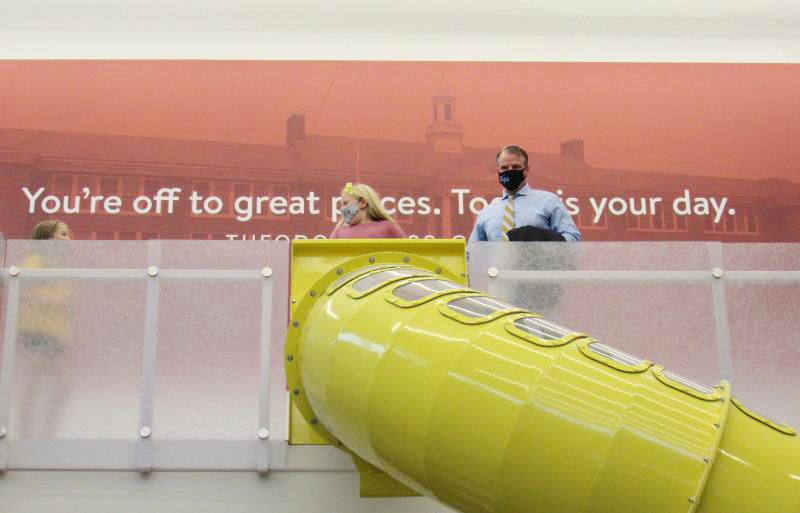

    Stainless Steel Slide with Skylights Model SS-A1025
  • SS-A1026

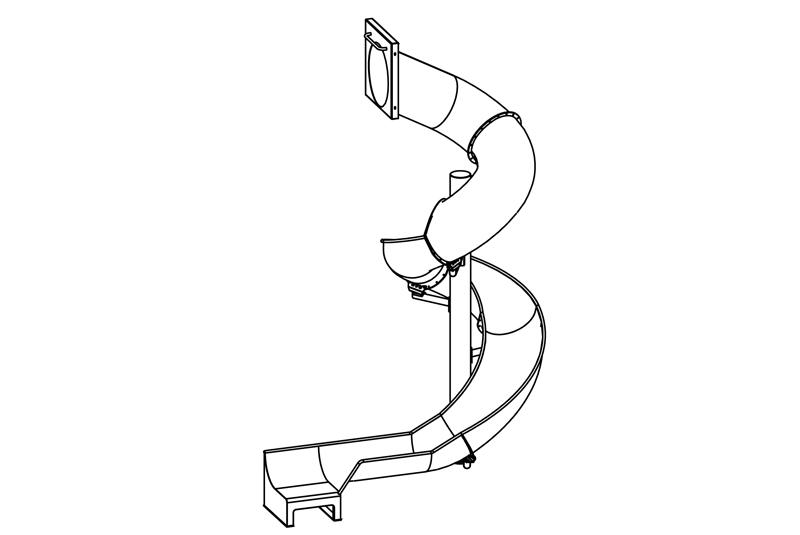

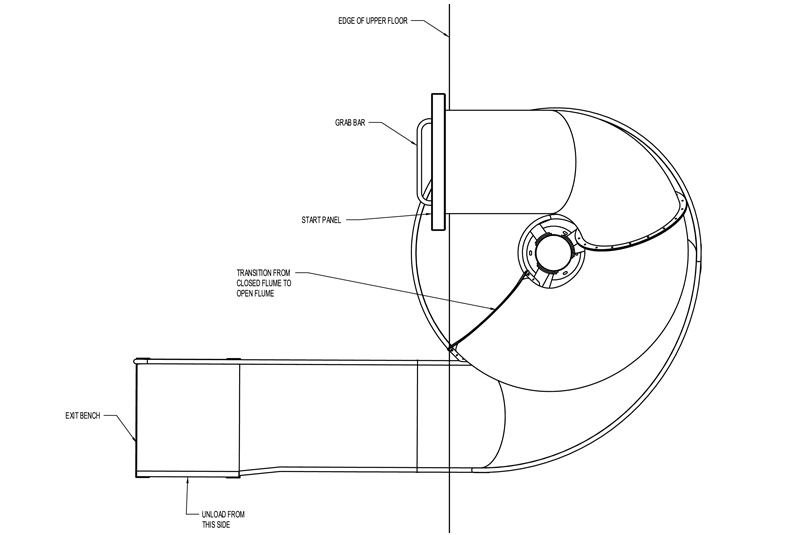

    Indoor Architectural Slide Model SS-A1026

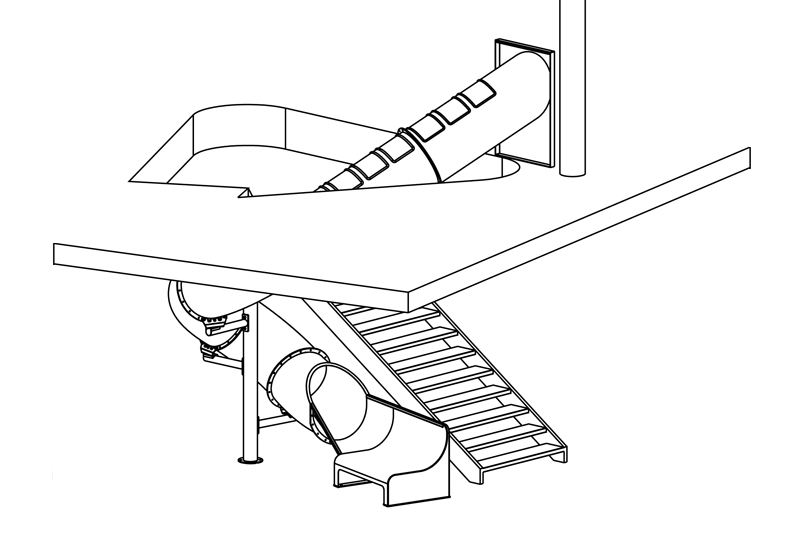

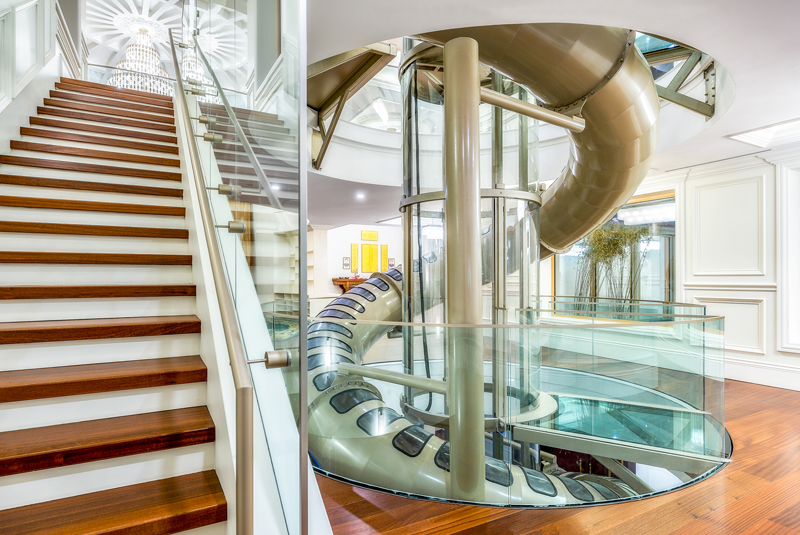

  • SS-A1027
    Stainless Steel Slide with Skylights Model SS-A1027

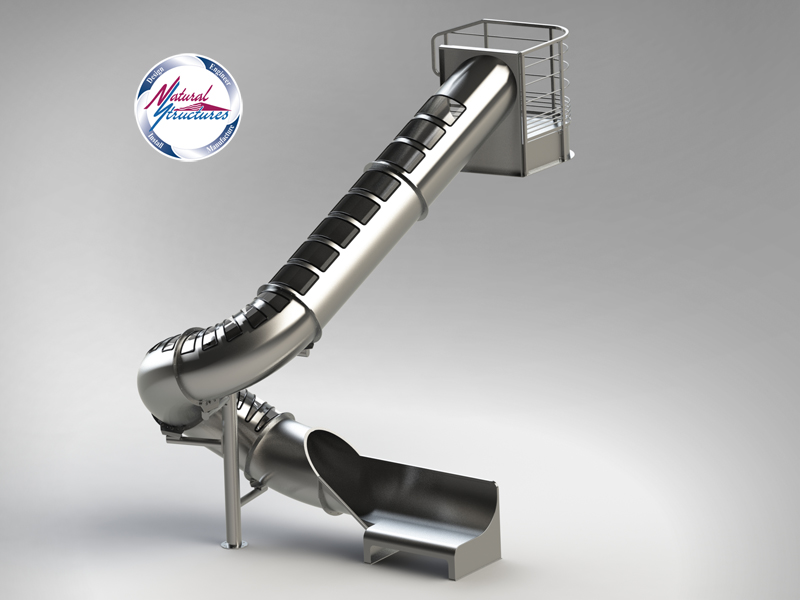

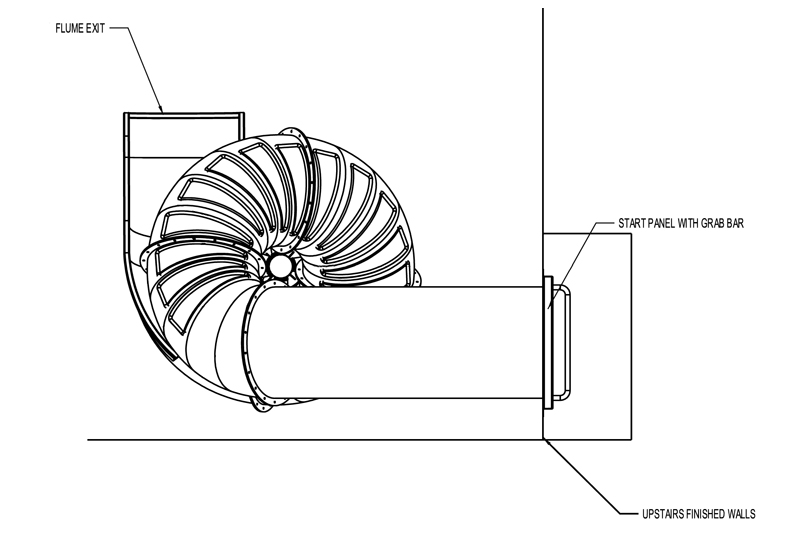

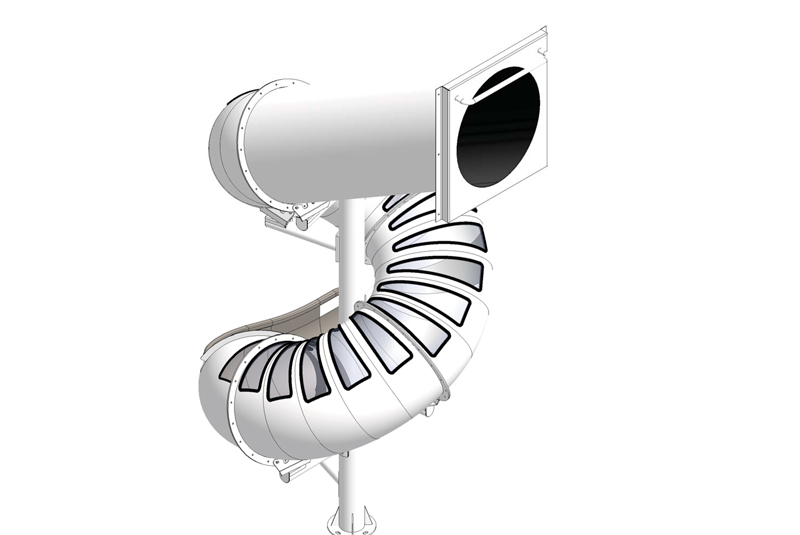

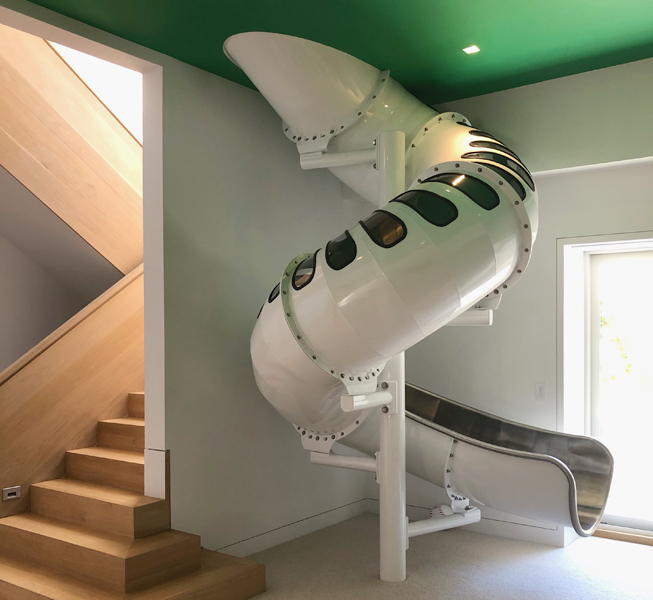

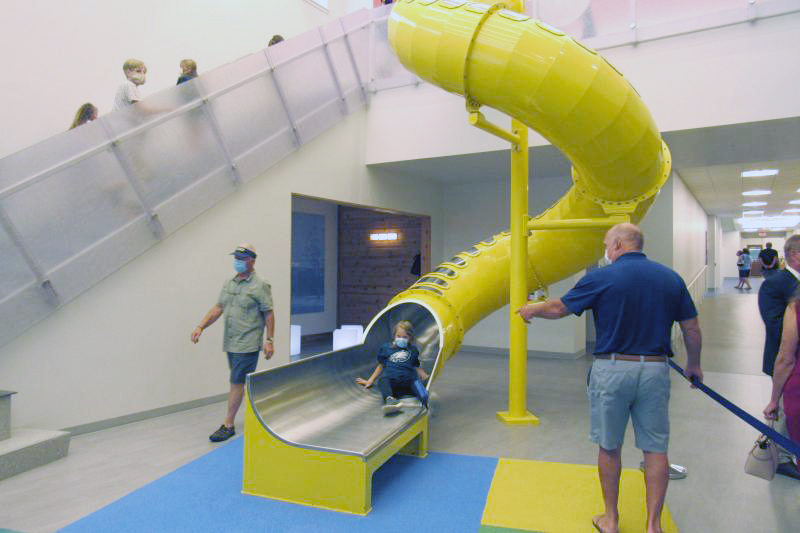

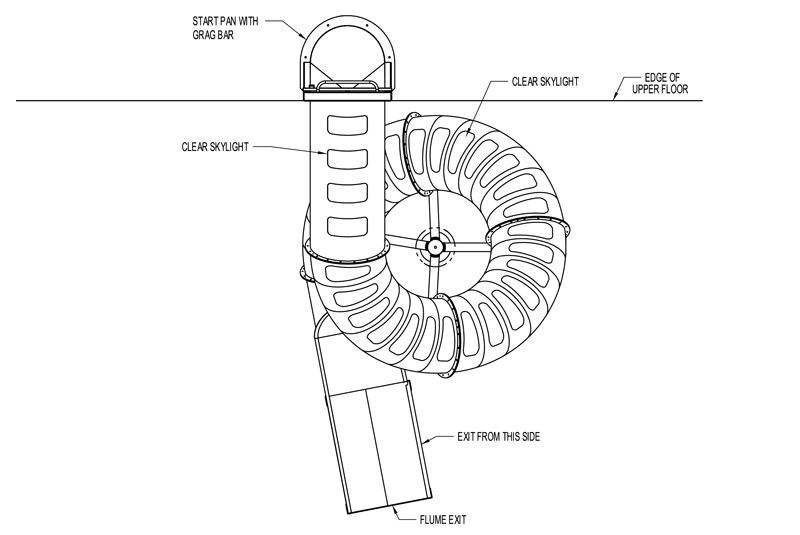

  • SS-A1028

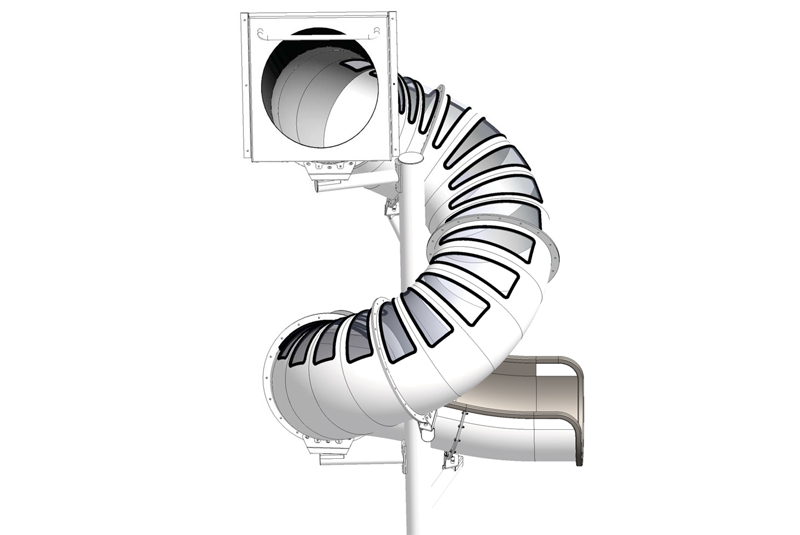

    Stainless Steel Slide with Skylights Model SS-A1028

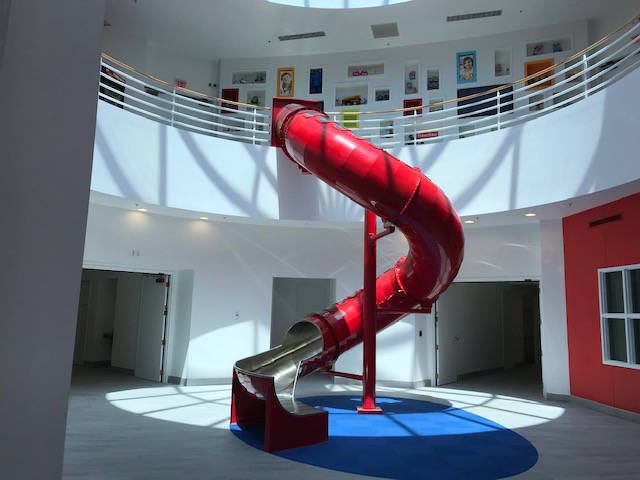

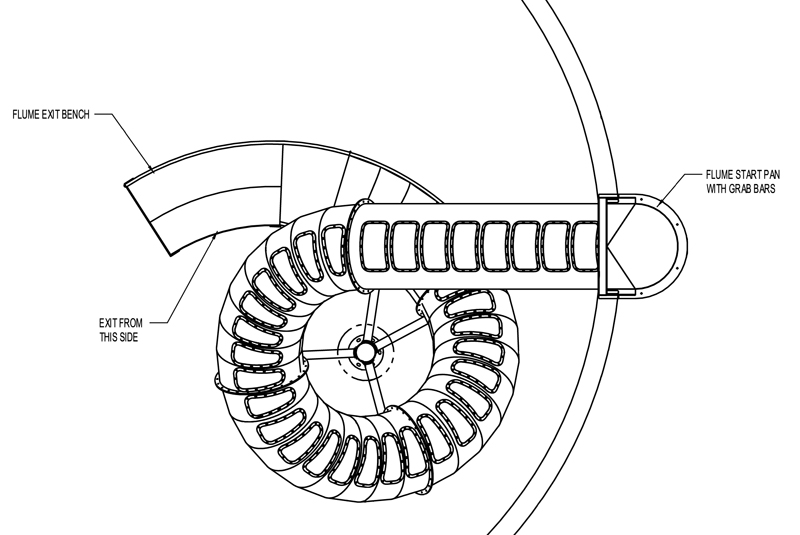

  • SS-1029
    Stainless Steel Slide with Skylights Model SS-A1028

Stainless Steel Dry Slide Model SS-A1001Custom Stainless Steel Dry Slide
Model: SS-A1001

Description: Custom all stainless steel slide spiraling off 2nd floor observation balcony to 1st floor entrance area.
Centerline Run: 47’ 1”
Entry Height:19' 2"
Entry: Grab bar above slide entrance

Features

  • 30” inside diameter closed stainless steel flume
  • 30” inside diameter open stainless steel flume
  • Entrance:Grab bar above slide entrance
  • Exit: Rolled exit floor mount
  • Stainless: Minimum 12 gauge stainless steel
  • Steel: All components TIG welded
  • Exterior Finish: Polished stainless
  • USA Made

click on images to enlarge

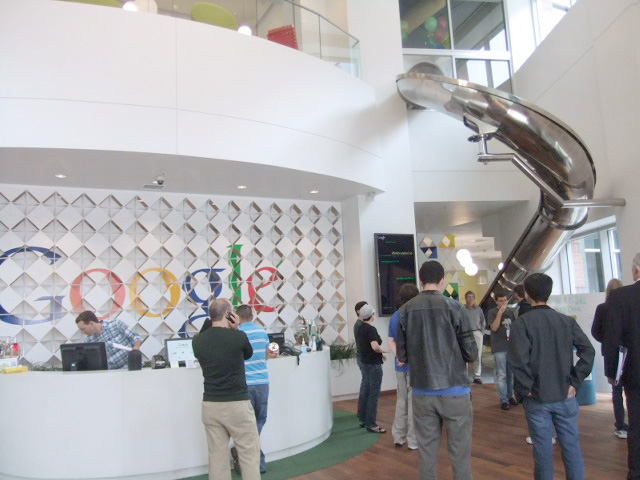

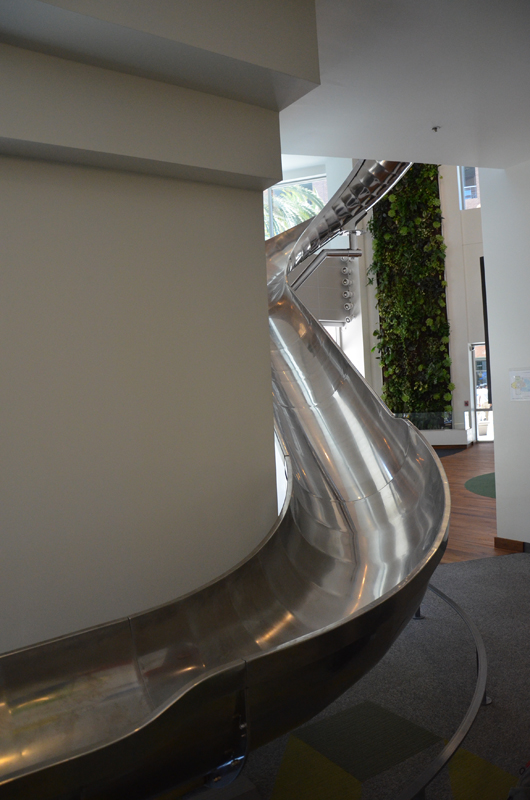

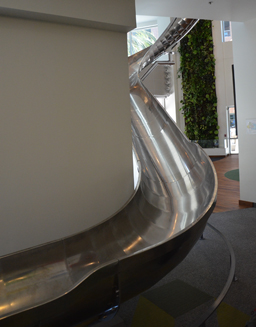

Stainless Steel Dry Slide Model SS-A1001 Stainless Steel Dry Slide Model SS-A1001 Stainless Steel Dry Slide Model SS-A1001 Stainless Steel Dry Slide Model SS-A1001 Stainless Steel Dry Slide Model SS-A1001
(©Robert Nyman Source)

DownloadDownload Spec Sheet
Requires Adobe Acrobat

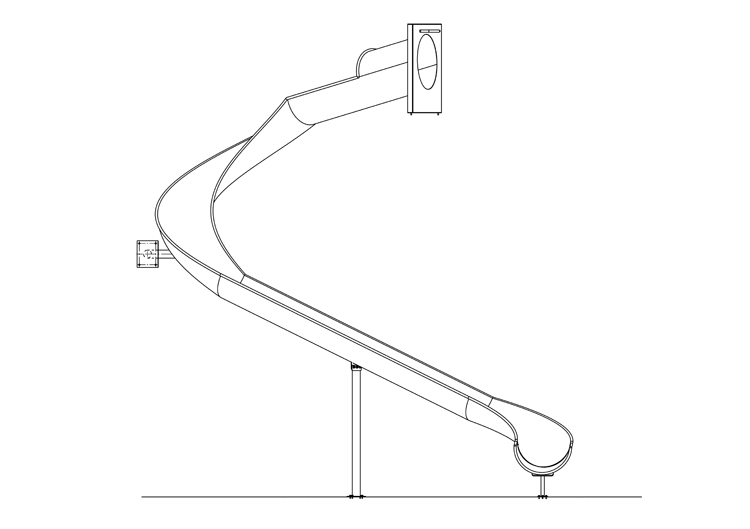

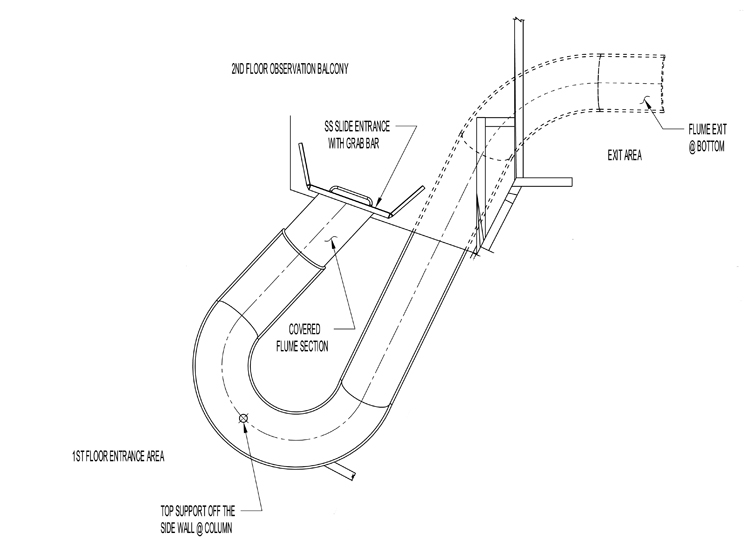

Stainless Steel Dry Slide Model SS-A1001 plan viewStainless Steel Dry Slide Model SS-A1001 plan view

Stainless Steel Dry Slide Model SS-A1002Custom Stainless Steel Dry Slide
Model: SS-A1002

Description: Custom all stainless steel slide spiraling off upper floor to first floor.
Centerline Run: 41’ 6-1/8”
Entry Height: 18' 8"
Entry: Start bench with grab bar

Features

  • 30” inside diameter closed stainless steel flume
  • 30” inside diameter open stainless steel flume
  • Entrance: Start bench with grab bar
  • Exit: 1' 2-1/2" drop exit floor mount
  • Stainless: Minimum 12 gauge stainless steel
  • Steel: All components TIG welded
  • Exterior Finish: Brushed stainless with blended welds
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

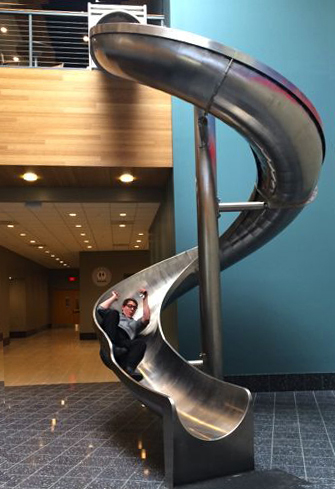

Stainless Steel Dry Slide Model SS-A1002 Stainless Steel Dry Slide Model SS-A1002 Stainless Steel Dry Slide Model SS-A1002 Stainless Steel Dry Slide Model SS-A1002 installation view

DownloadDownload Spec Sheet
Requires Adobe Acrobat

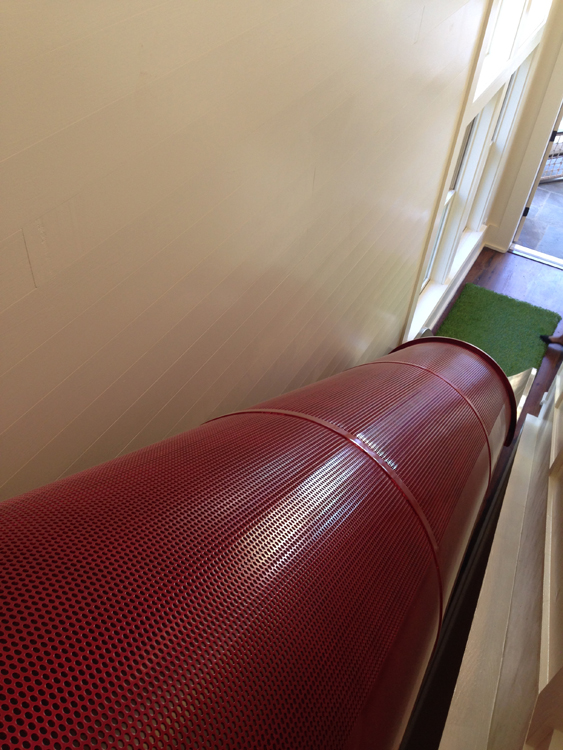

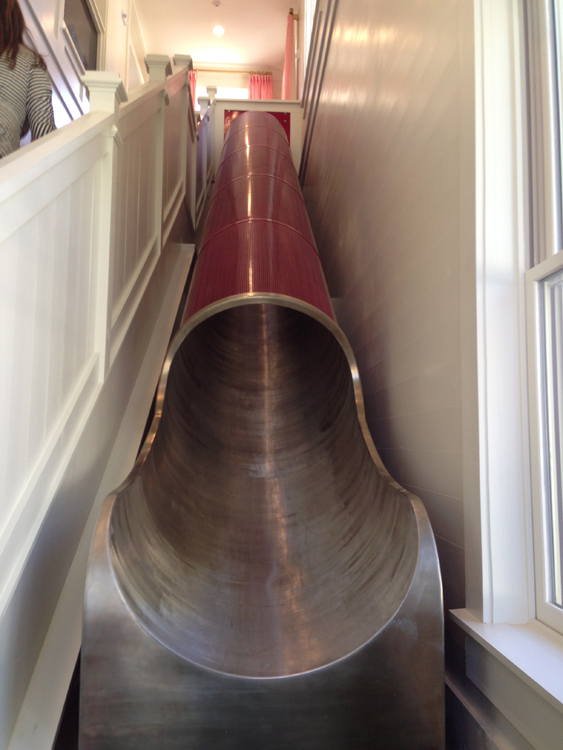

Stainless Steel Dry Slide Model SS-A1003Stainless Steel Dry Slide
Model: SS-A1003*

Description: Custom stainless steel slide with polyester powder coat finish and perforated upper section.
Centerline Run: 26’ 6 1/2"
Entry Height: 13’11 1/2”
Entry: Transition ramp with grab bar above slide entrance

Features

  • 30” inside diameter closed stainless steel flume
  • 30” inside diameter open stainless steel flume
  • Perforated 1/4” diameter holes in upper section of flume
  • Entrance: Transition ramp with grab bar above slide entrance
  • Exit: Rolled exit floor mount
  • Stainless: 12 gauge stainless steel
  • Steel: All components TIG welded
  • Exterior Finish: Polyester powder coat
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

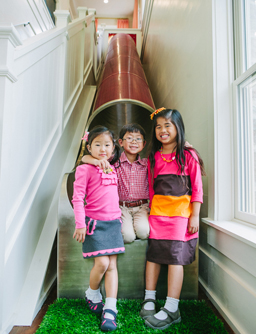

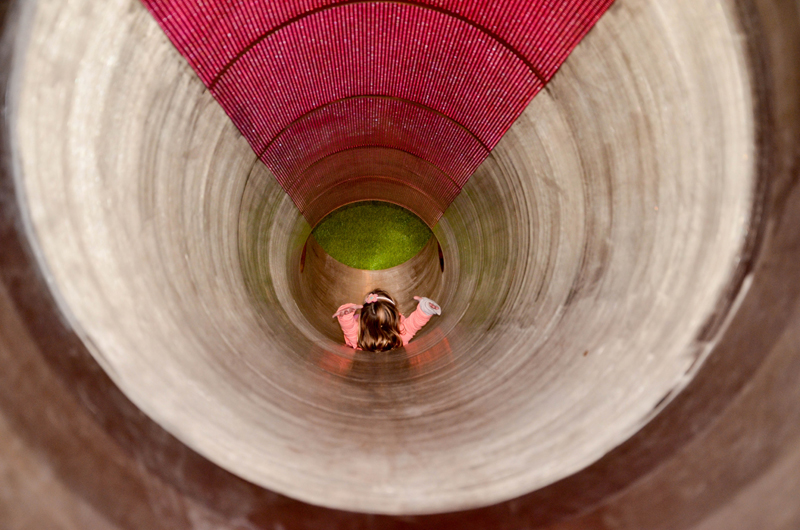

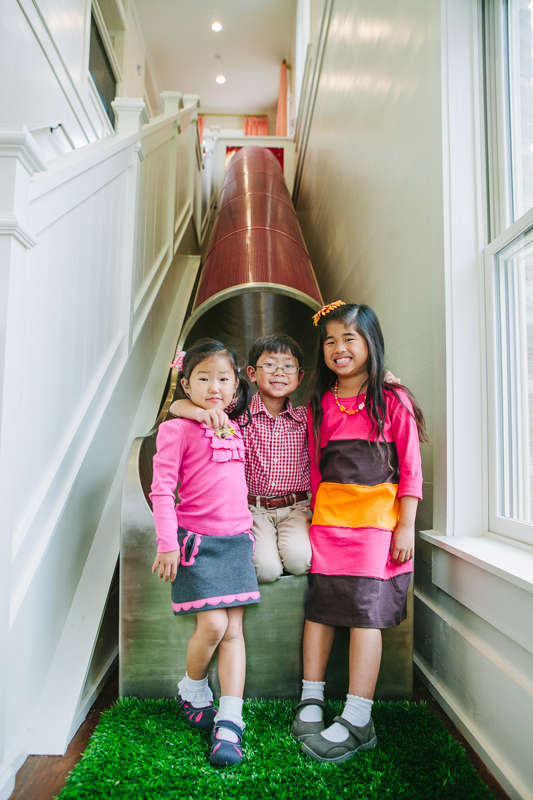

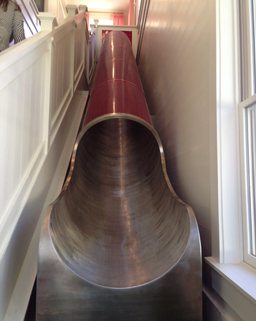

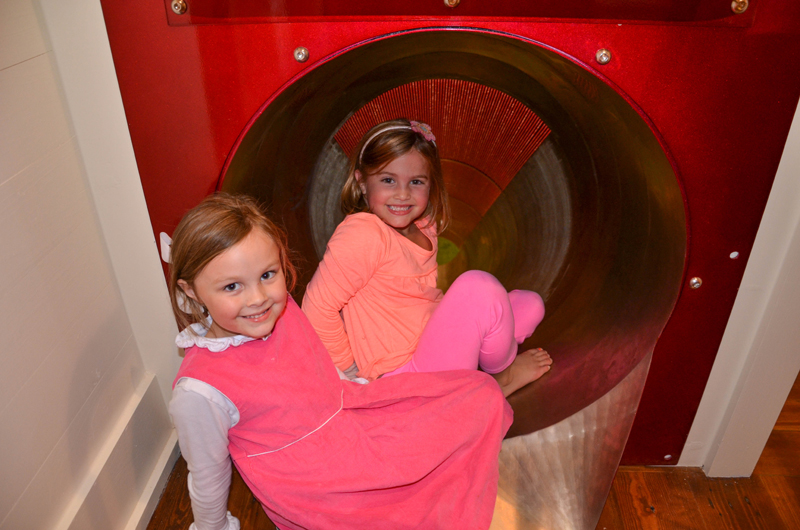

Stainless Steel Dry Slide Model SS-A1003Stainless Steel Dry Slide Model SS-A1003 Stainless Steel Dry Slide Model SS-A1003 Stainless Steel Dry Slide Model SS-A1003

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Dry Slide Model SS-A1003

*Swallowtail Flats, Apartments at Old Town a Southern Living Inspired Community, Columbus, GA developer Woodruff Development, managed by Woodruff Property Management Company

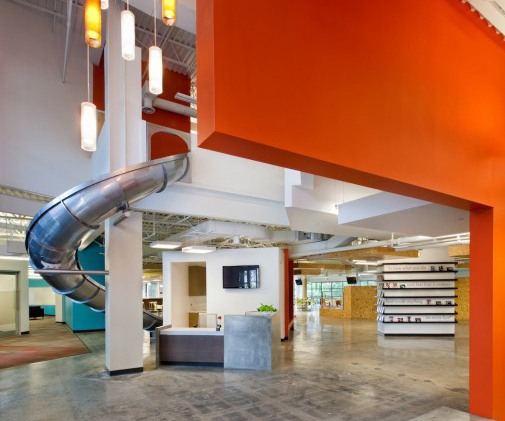

Custom Indoor Dry Slide Model SS-A1004Custom Indoor Dry Slide
Model: SS-A1004

Description: Custom indoor slide spiraling off upper floor to lower floor.
Centerline Run: 30’ 10"
Entry Height: 13’ 4”
Entry: Grab bar above slide entrance

Features

  • 30” inside diameter open flume
  • Entrance: Grab bar above slide entrance
  • Exit: 1'-1 3/4" drop exit floor mount
  • Exterior Finish: Polyester powder coat with blended welds
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

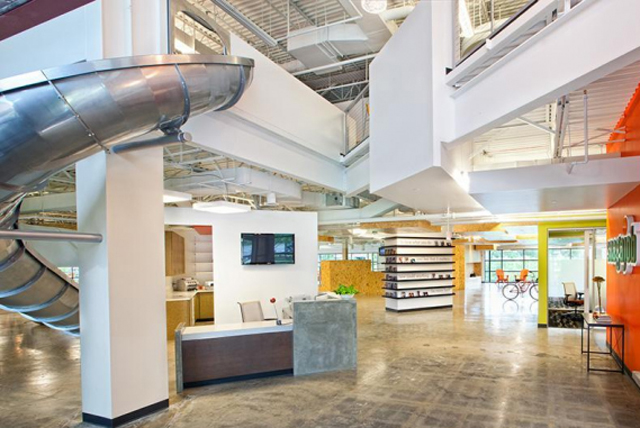

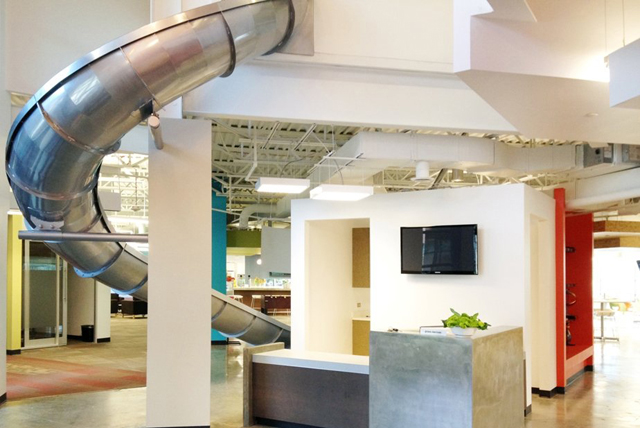

Custom Indoor Dry Slide Model SS-A1004 Custom Indoor Dry Slide Model SS-A1004 Custom Indoor Dry Slide Model SS-A1004

Photo Credits – Chris Cunningham

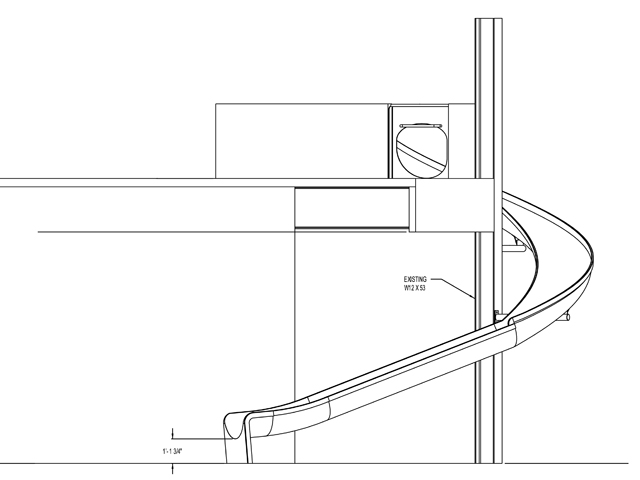

Custom Indoor Dry Slide Model SS-A1004 plan view Custom Indoor Dry Slide Model SS-A1004 plan view

Stainless Steel Dry Slide Model SS-A1005Stainless Steel Dry Slide
Model: SS-A1005

Description: Custom brushed all stainless steel slide spiraling off upper floor to lower floor.
Centerline Run: 19’ 6-3/4”

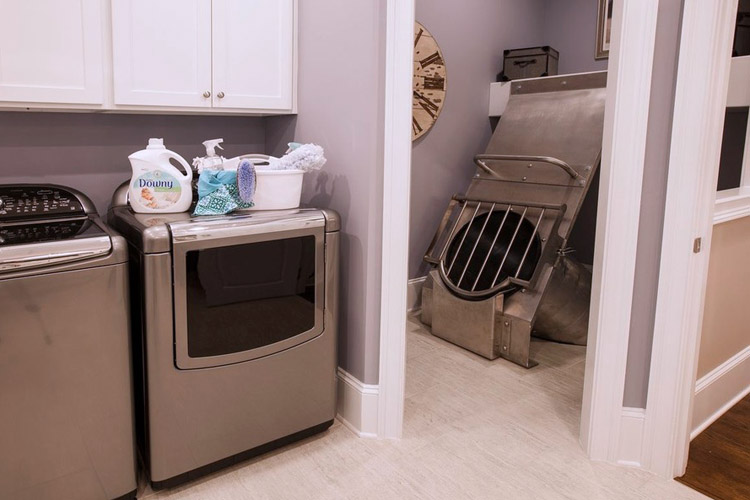

Entry: Panel secured to floor & wall with grab bar above slide entrance.

Features

  • 24” inside diameter closed stainless steel flume
  • 24” inside diameter open stainless steel flume
  • Entrance: Panel secured to floor & wall with grab bar above slide entrance
  • Exit: Rolled exit floor mount
  • Stainless: Minimum 12 gauge stainless steel
    with reinforcement ribs
  • Steel: All components TIG welded
  • USA Made

click on images to enlarge

Stainless Steel Dry Slide Model SS-A1005

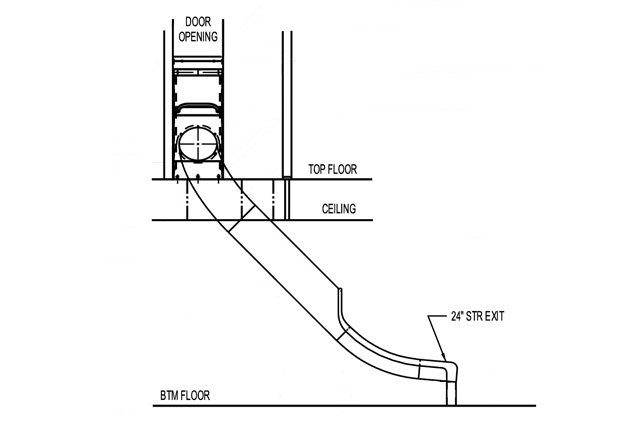

Stainless Steel Dry Slide Model SS-A1005 - plan view

DownloadDownload Spec Sheet
Requires Adobe Acrobat

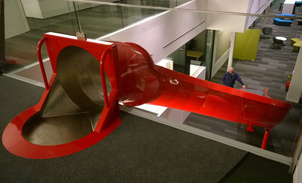

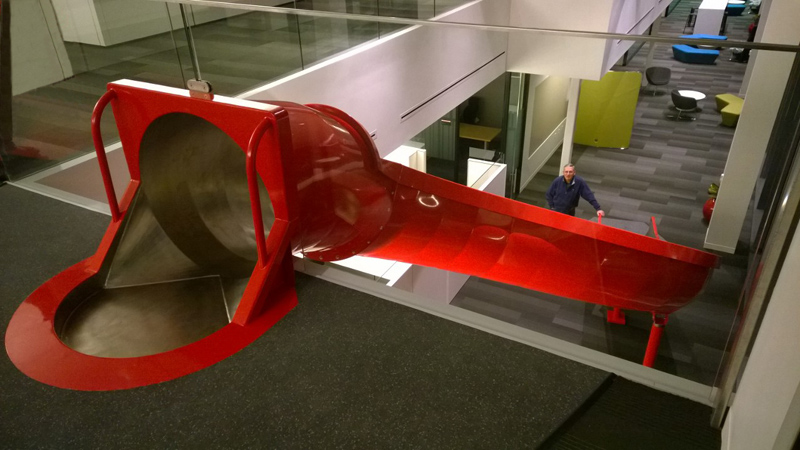

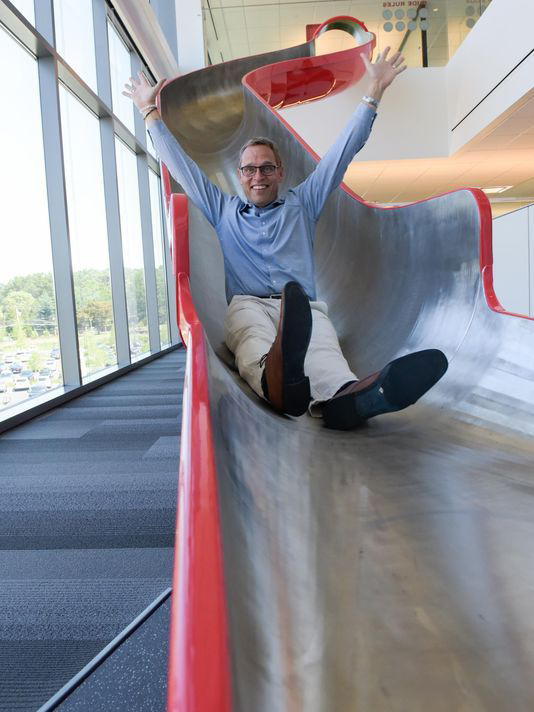

Stainless Steel Dry Slide Model SS-A1006Stainless Steel Dry Slide
Model: SS-A1006

Description: Custom stainless steel slide with powder coat finish.
Centerline Run: 31’ 11"
Entry Height: 13’ 2-1/4”
Entry: Start pan

Features

  • 30” inside diameter closed stainless steel flume
  • 30” inside diameter open stainless steel flume
  • Entrance: Start pan with (2) grab bars
  • Stainless: Minimum 12 gauge stainless
  • Steel: All components TIG welded
  • Exterior Finish: Polyester powder coat
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

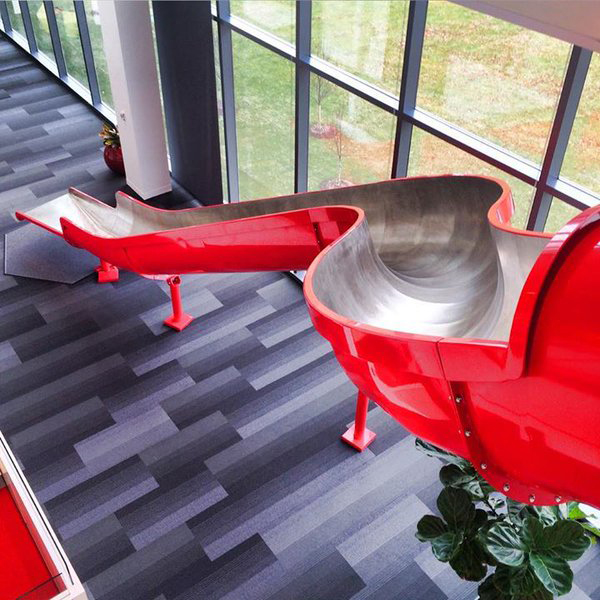

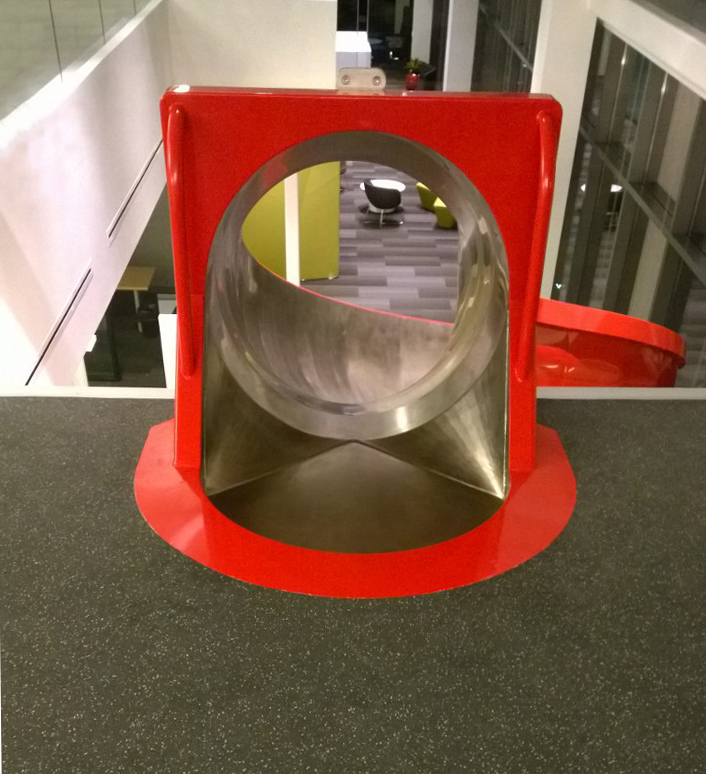

Stainless Steel Dry Slide Model SS-A1006 Stainless Steel Dry Slide Model SS-A1006 Stainless Steel Dry Slide Model SS-A1006

DownloadDownload Spec Sheet
Requires Adobe Acrobat

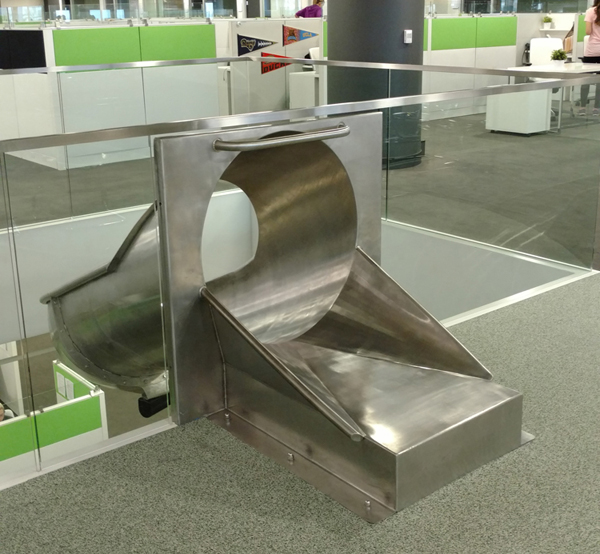

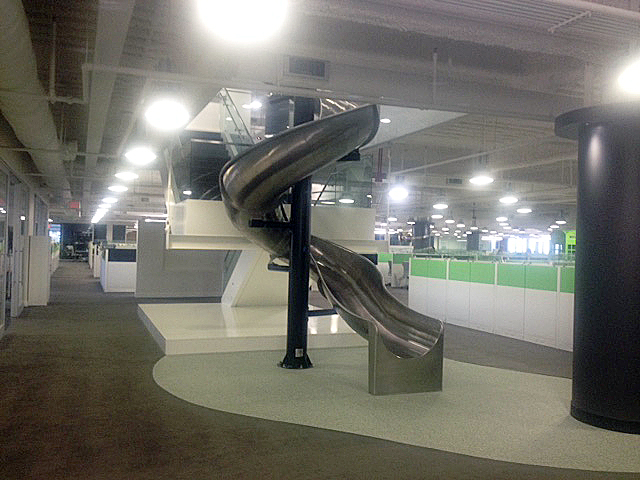

Stainless Steel Dry Slide Model SS-A1007Custom Stainless Steel Dry Slide
Model: SS-A1007

Description: Custom all stainless steel slide spiraling off upper floor to first floor.
Centerline Run: 30’ 3”
Entry Height: 14' 1"
Entry: Sit down start pan with grab bar

Features

  • 30” inside diameter closed stainless steel flume
  • 30” inside diameter open stainless steel flume
  • Entrance: Start bench with grab bar
  • Exit: 1' 3" drop exit floor mount
  • Stainless: Minimum 12 gauge stainless steel
  • Steel: All components TIG welded
  • Exterior Finish: Brushed stainless with blended welds
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Stainless Steel Dry Slide Model SS-A1007

Stainless Steel Dry Slide Model SS-A1007 Stainless Steel Dry Slide Model SS-A1007Stainless Steel Dry Slide Model SS-A1007

DownloadDownload Spec Sheet
Requires Adobe Acrobat

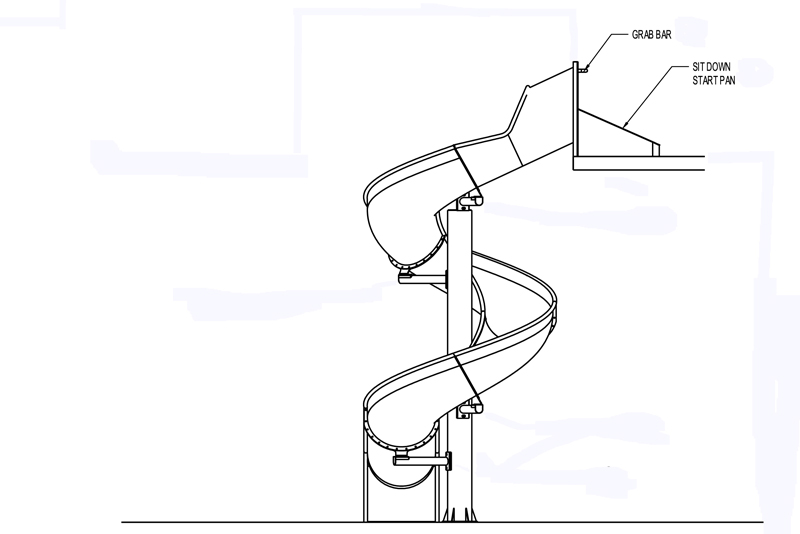

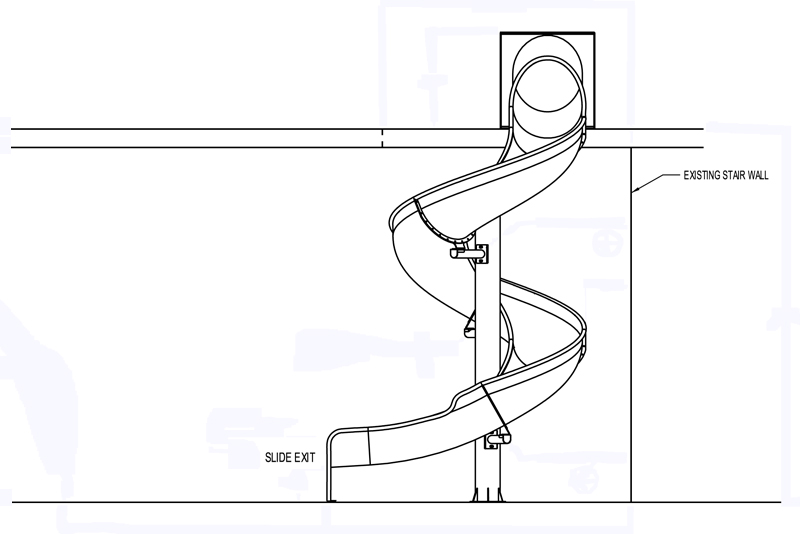

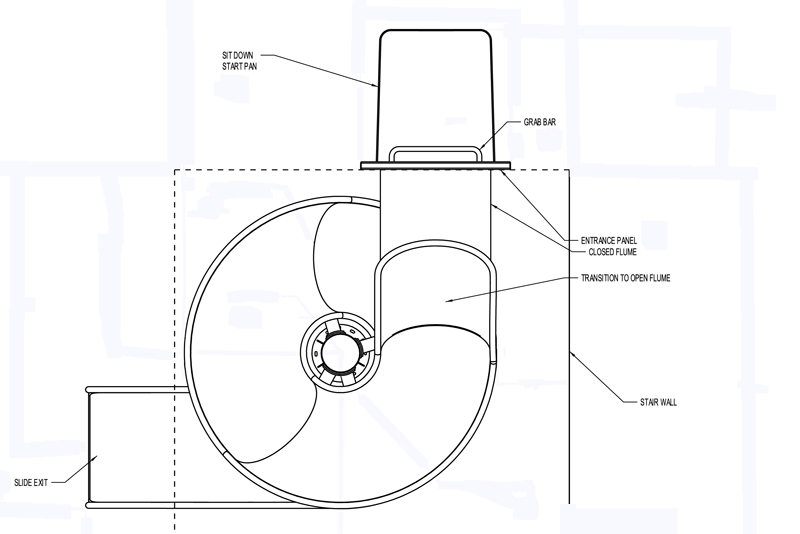

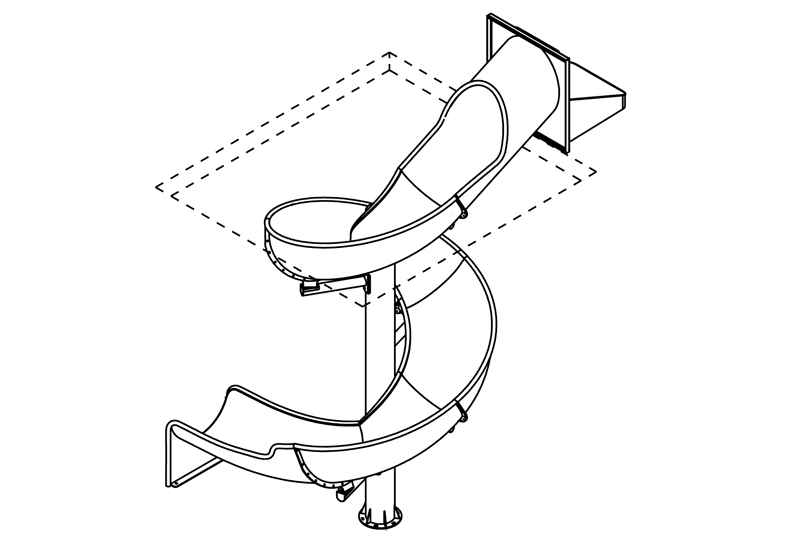

Stainless Steel Dry Slide Model SS-A1007 plan view Stainless Steel Dry Slide Model SS-A1007 plan view Stainless Steel Dry Slide Model SS-A1007 plan view Stainless Steel Dry Slide Model SS-A1007 plan view

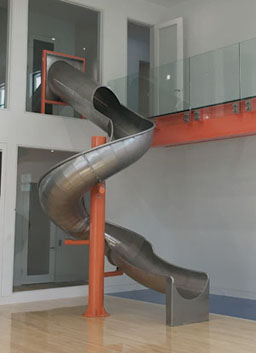

Stainless Steel Dry Slide Model SS-A1009 Stainless Steel Dry Slide
Model: SS-A1009

Description: Custom all stainless steel slide spiraling off upper floor to first floor.
Centerline Run: 30’0"
Entry Height: 14’ 4”
Entry: Grab bar above slide entrance

Features

  • 30” inside diameter closed stainless steel flume
  • 30” inside diameter open stainless steel flume
  • Entrance: Grab bar above slide entrance
  • Exit: 1'-2 3/8" drop exit floor mount
  • Interior: Polished finish, welds ground completely smooth
  • Exterior: Brush finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

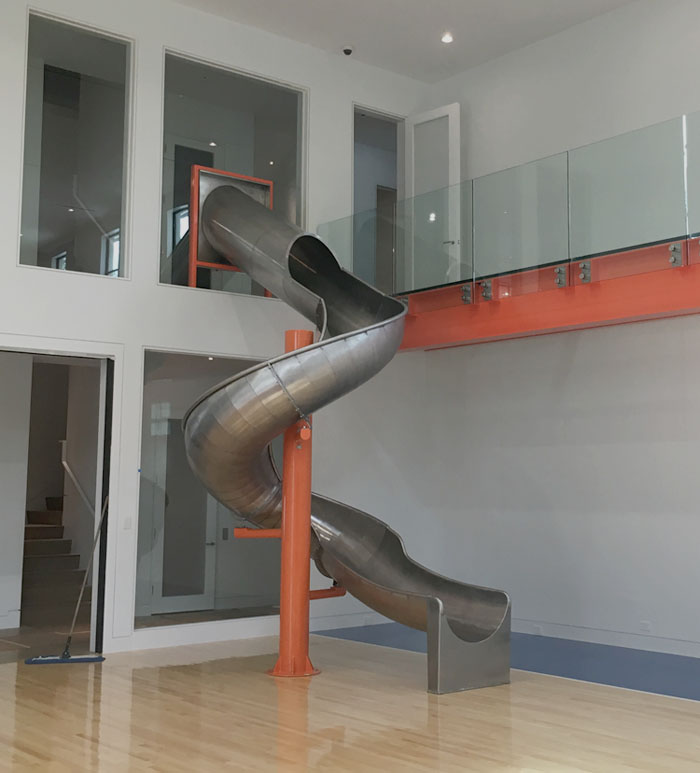

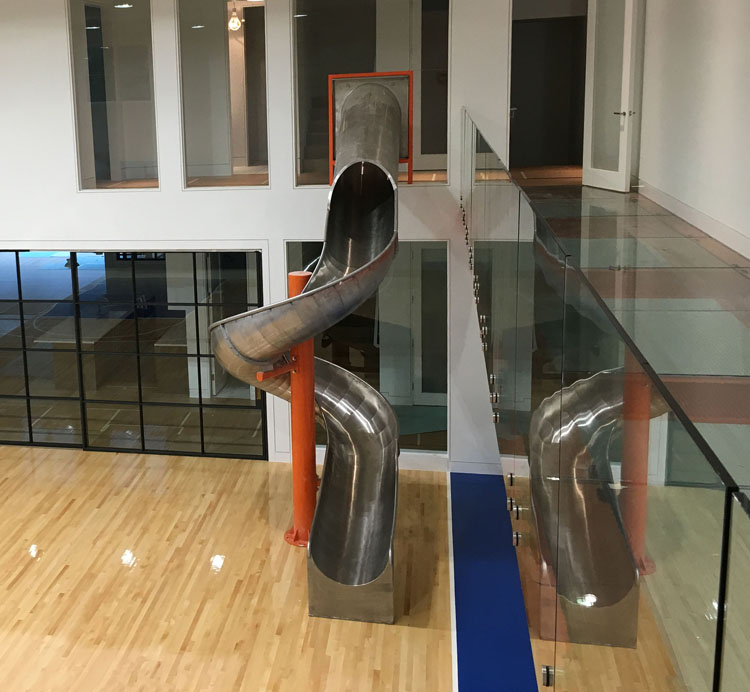

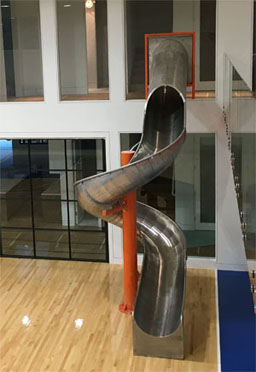

Stainless Steel Dry Slide Model SS-A1009

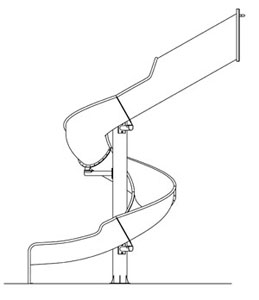

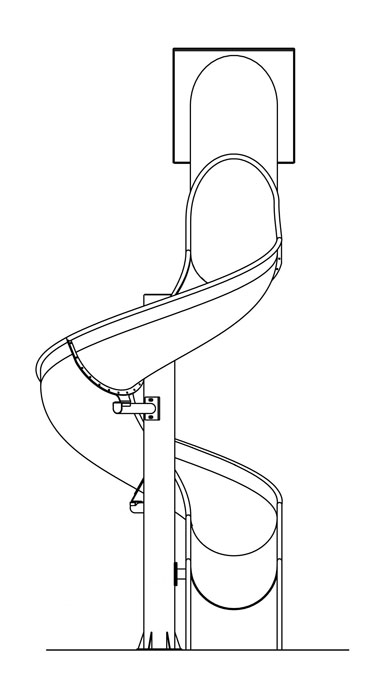

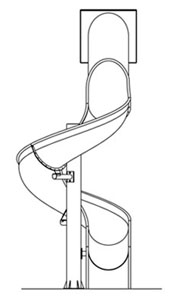

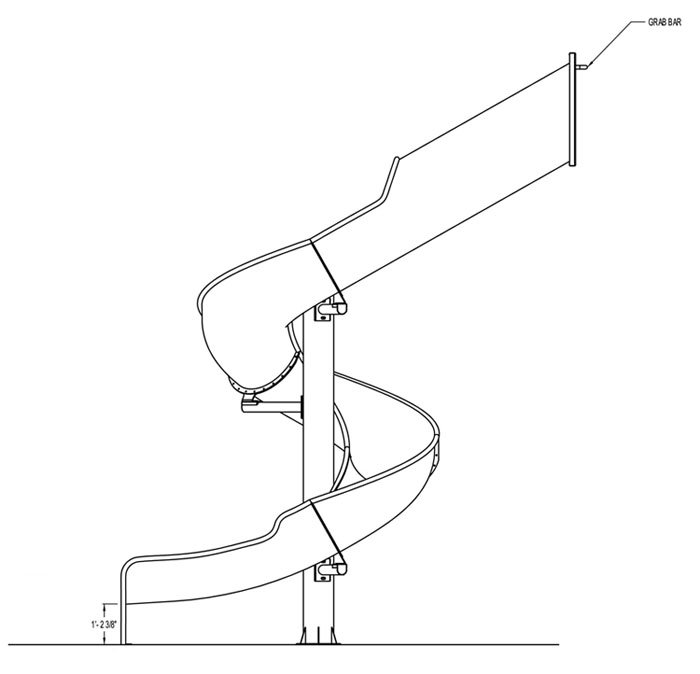

Stainless Steel Dry Slide Model SS-A1009 plan view Stainless Steel Dry Slide Model SS-A1009 plan view

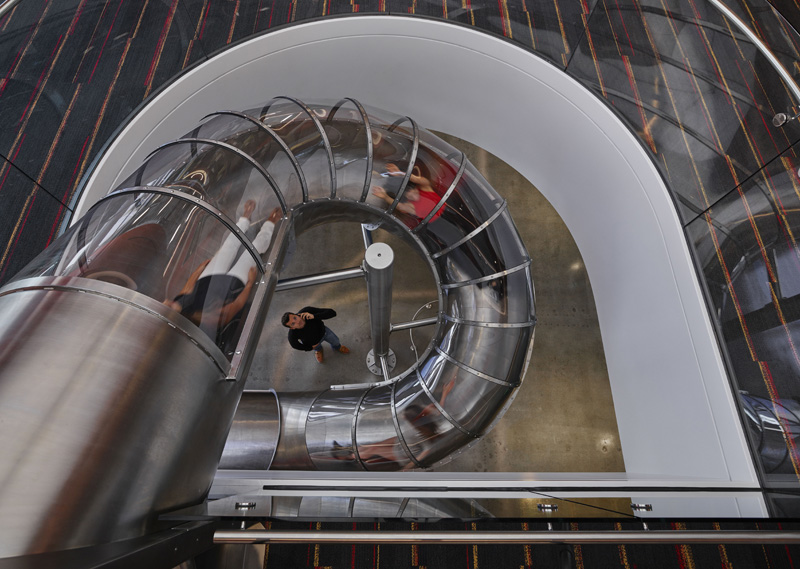

Stainless Steel Slide with Clear Top Model SS-A1011Stainless Steel Slide with Clear Top
Model: SS-A1011

Description: Custom all stainless steel slide spiraling off upper floor to first floor.
Centerline Run: 32’4"
Entry Height: 14’ 6”
Entry: Grab bar above start pan

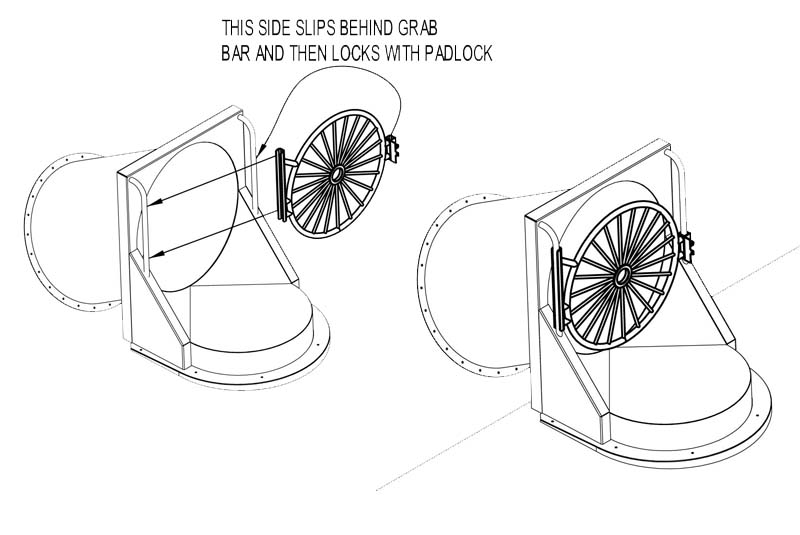

*Full polycarbonite top on radial slides NO longer available. Replacement: new skylight system shown on Model SS-A1017.

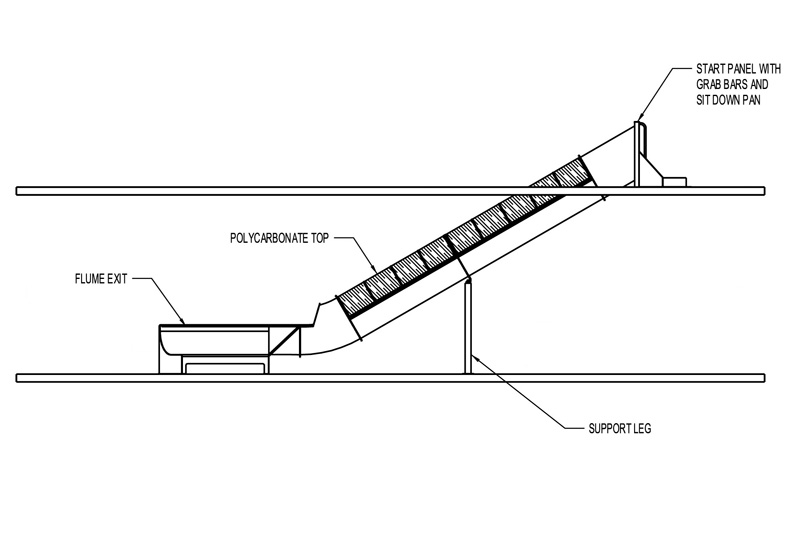

*Full polycarbonite top ONLY AVAILABLE on straight slides. See Model SS-A1019.

Features

  • 36” inside diameter open flume with clear top
  • Entrance: Grab bar above start pan
  • Exit: 1’-3” drop exit floor mount
  • Interior: Brush finish, all ride paths ground completely
    smooth
  • Exterior: Brush finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

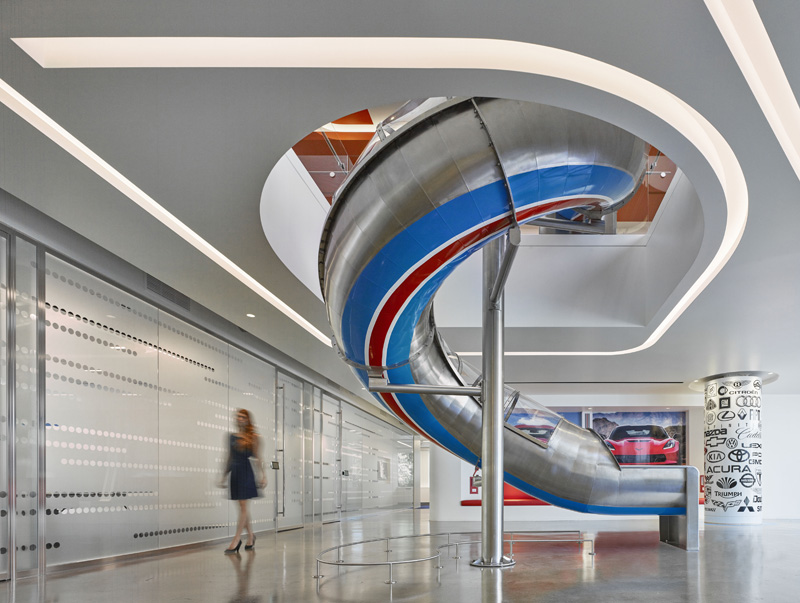

Stainless Steel Slide with Clear Top Model SS-A1011 Stainless Steel Slide with Clear Top Model SS-A1011

DownloadDownload Spec Sheet
Requires Adobe Acrobat

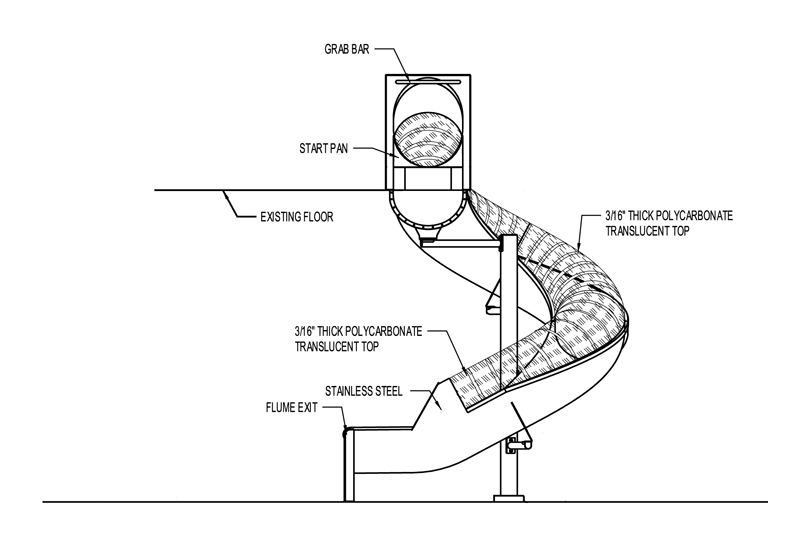

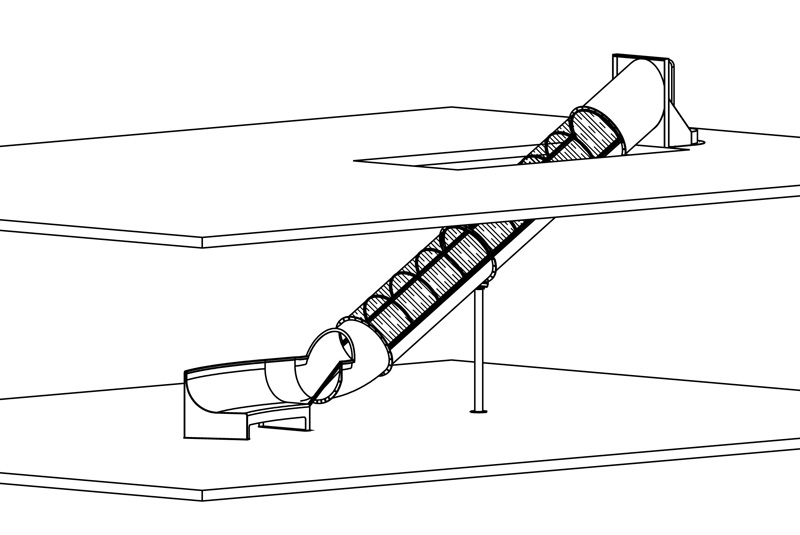

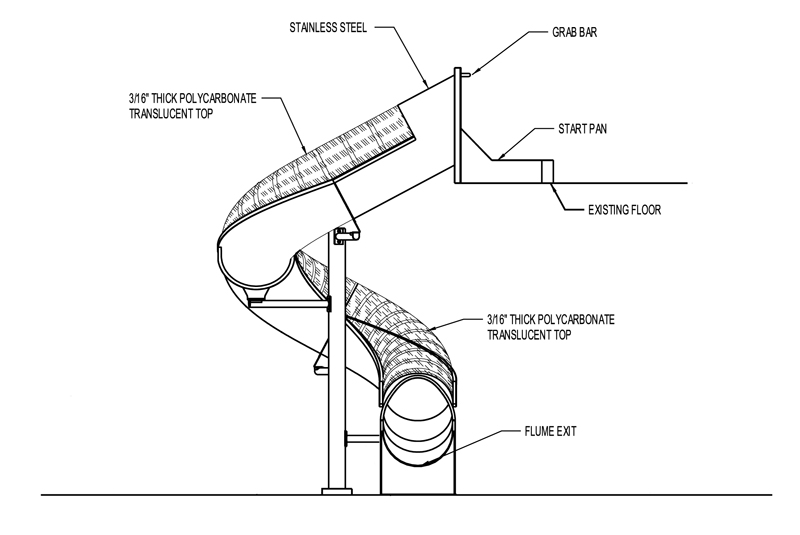

Stainless Steel Slide with Clear Top Model SS-A1011 plan viewStainless Steel Slide with Clear Top Model SS-A1011 plan view Stainless Steel Slide with Clear Top Model SS-A1011 plan view

DownloadDownload Spec Sheet
Requires Adobe Acrobat


Slide is shown at 0:50 seconds in video

Stainless Steel Dry Slide Model SS-A1012Custom Stainless Steel Dry Slide
Model: SS-A1012

Description: Custom all stainless steel slide spiraling off upper floor to first floor.
Centerline Run: 30’ 3”
Entry Height: 14' 1"
Entry: Sit down start pan with grab bar

Features

  • 30” inside diameter closed stainless steel flume
  • 30” inside diameter open stainless steel flume
  • Entrance: Start bench with grab bar
  • Exit: 1' 3" drop exit floor mount
  • Stainless: Minimum 12 gauge stainless steel
  • Steel: All components TIG welded
  • Exterior Finish: Brushed stainless with blended welds
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

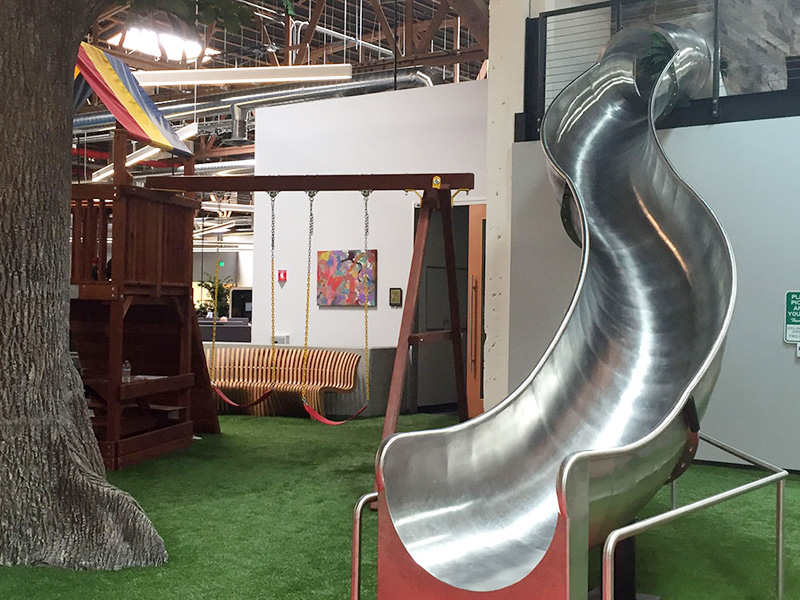

Stainless Steel Dry Slide Model SS-A1012
Photos: Tekla Perry

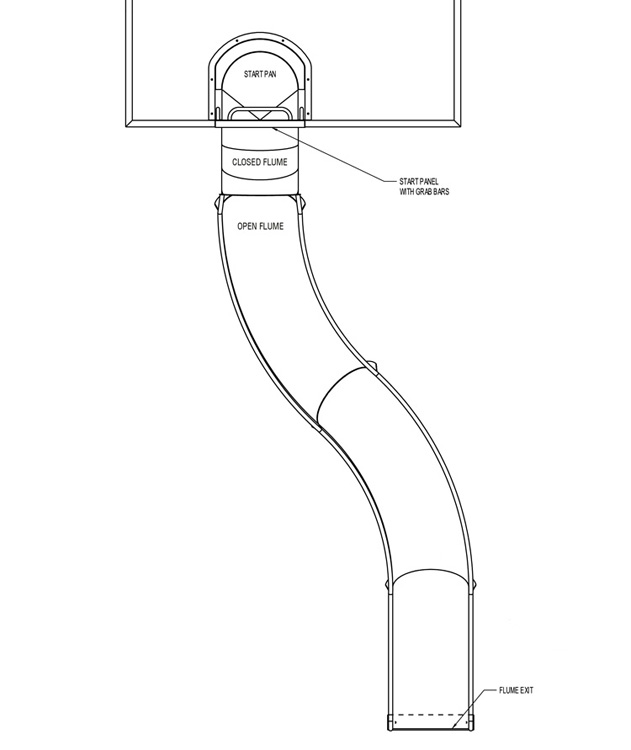

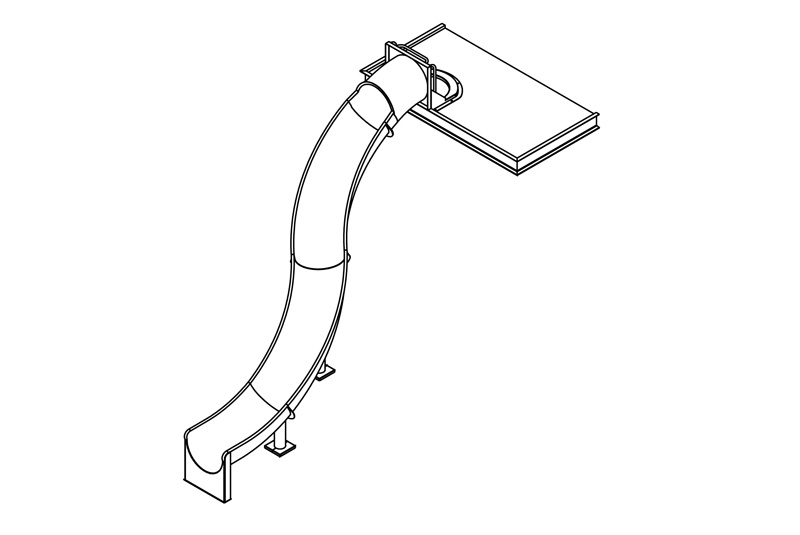

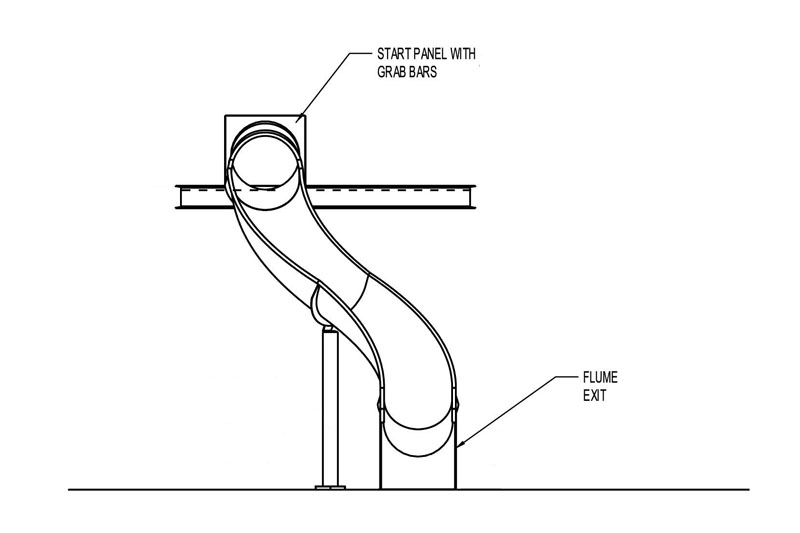

Stainless Steel Dry Slide Model SS-A1012 plan view Stainless Steel Dry Slide Model SS-A1012 plan viewStainless Steel Dry Slide Model SS-A1012 plan viewStainless Steel Dry Slide Model SS-A1012 plan view

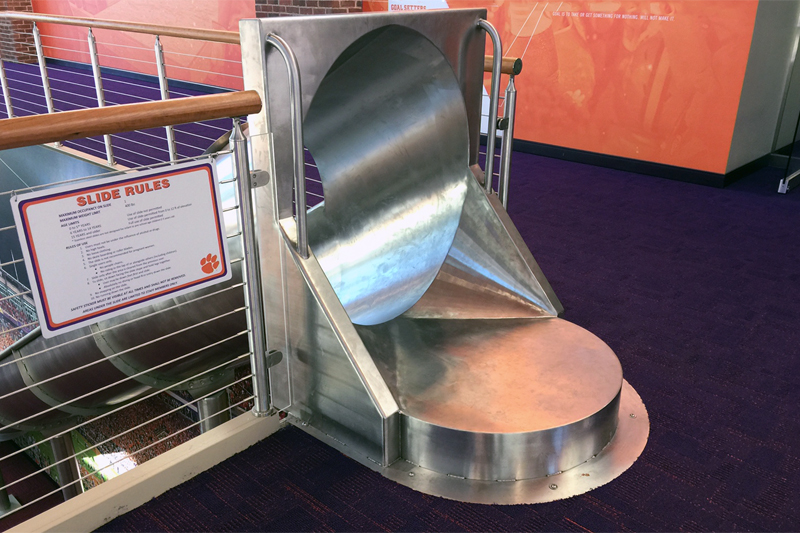

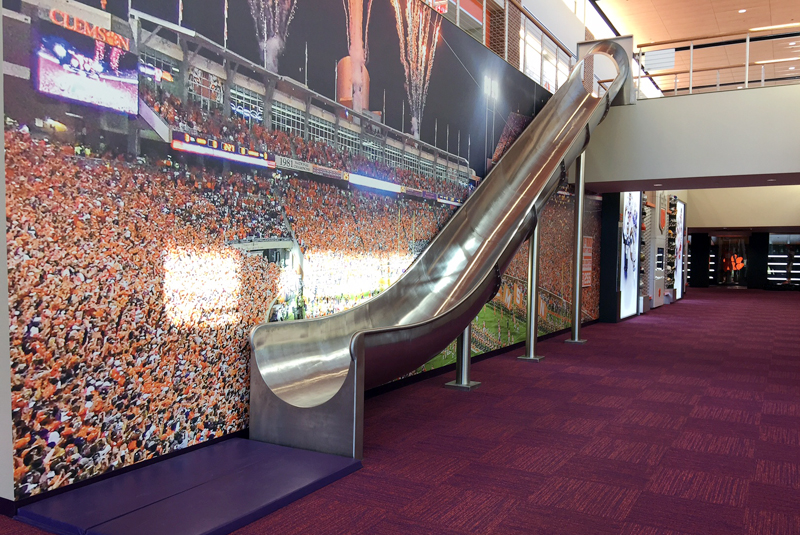

Stainless Steel Dry Slide Model SS-A1013Custom Stainless Steel Dry Slide
Model: SS-A1013

Description: Custom all stainless steel slide connnecting upper floor to main floor.
Centerline Run: 34’ 4”
Entry Height: 15' 2"
Entry: Start panel with grab bars & start pan

Features

  • 36” inside diameter closed & open stainless steel flume
  • Entrance: Start panel with (2) grab bars & start pan
  • Rider Point Load: 400 lbs.
  • Exit: 1’ 3” drop exit floor mount
  • Stainless: Minimum 12 gauge stainless
  • Steel: All components TIG welded
  • Interior: Polished finish, welds ground completely smooth
  • Exterior: Brush finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Stainless Steel Dry Slide Model SS-A1013 Stainless Steel Dry Slide Model SS-A1013 Stainless Steel Dry Slide Model SS-A1013 plan view Stainless Steel Dry Slide Model SS-A1013 plan view

DownloadDownload Spec Sheet
Requires Adobe Acrobat

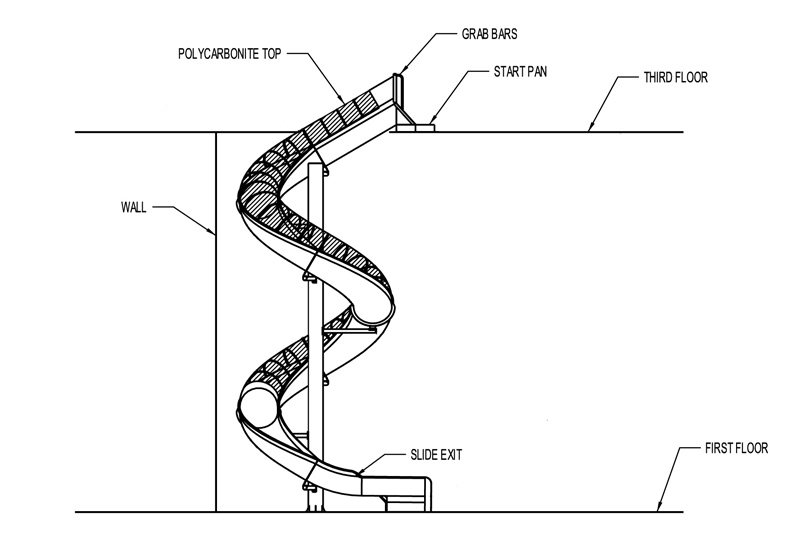

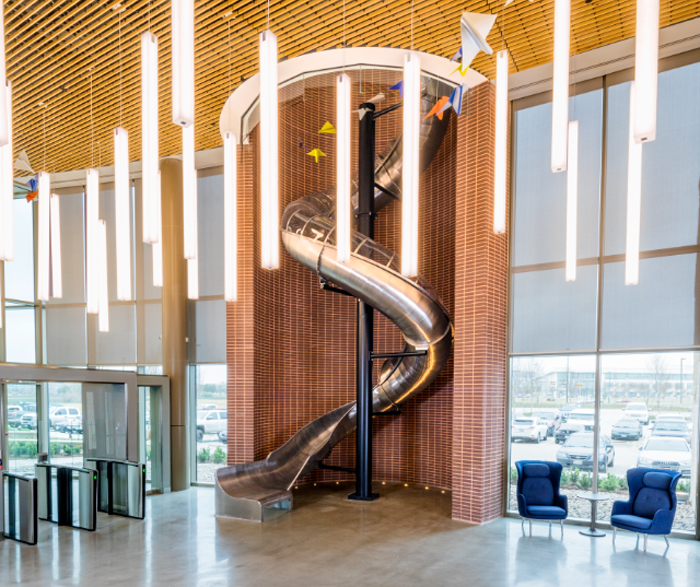

Stainless Steel Slide with Clear Top Model SS-A1014Stainless Steel Slide with Clear Top
Model: SS-A1014

Description: Custom all stainless steel slide spiraling off 3rd floor to first floor.
Centerline Run: 62’ 8"
Entry Height: 30’ 7”
Entry: Start pan with (2) grab bars

*Full polycarbonite top on radial slides NO longer available. Replacement: new skylight system shown on Model SS-A1017.

*Full polycarbonite top ONLY AVAILABLE on straight slides. See Model SS-A1019.

Features

  • 36” inside diameter closed and open flume with clear top
  • Entrance: Start pan with (2) grab bars
  • Exit: 1’-3” drop exit floor mount
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Brush finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Stainless Steel Slide with Clear Top Model SS-A1014 Stainless Steel Slide with Clear Top Model SS-A1014 Stainless Steel Slide with Clear Top Model SS-A1014

DownloadDownload Spec Sheet
Requires Adobe Acrobat

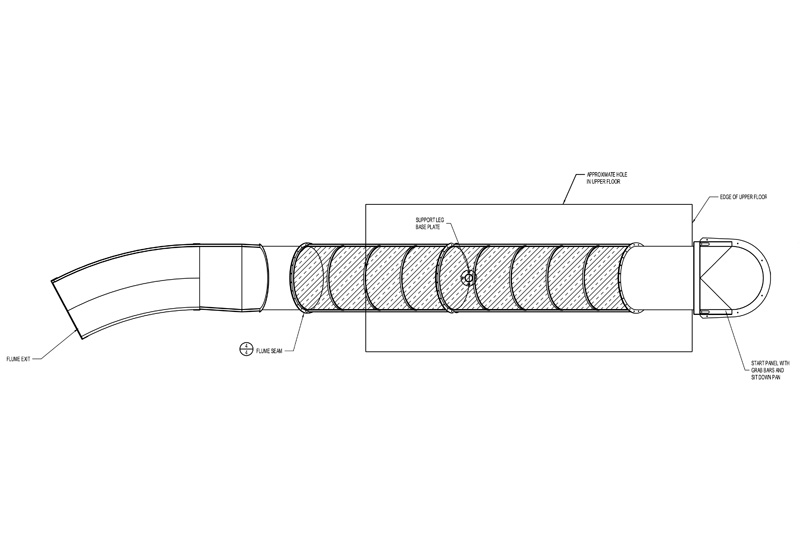

Stainless Steel Slide with Clear Top Model SS-A1014 plan viewStainless Steel Slide with Clear Top Model SS-A1014 plan view Stainless Steel Slide with Clear Top Model SS-A1014 plan view

Eight-Lane Stainless Steel Outdoor Slide SS-10158-Lane Stainless Steel Outdoor "Team" Slide
Model: SS-A1015

Description: Custom eight-lane stainless steel outdoor “team” slide with exit lane
Centerline Run: 44' 7"
Entry Height: 21’0” & 21' 7"
Platform Size: 37' 1" x 9' 5"

Features

  • 18’ 4” wide, eight-lane, stainless steel open flume outdoor “team” slide with exit lane.
  • Platform: Powder coated aluminum.
  • Stairs: 7” rise, 11” tread, 48” wide; Powder coated aluminium; closed risers.
  • Stainless: Minimum 12 gauge stainless
  • Steel: All components TIG welded
  • Interior: Polished finish, welds ground completely smooth
  • Exterior: #4 Brush finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Eight-Lane Stainless Steel Outdoor Slide SS-1015 Eight-Lane Stainless Steel Outdoor Slide SS-1015

Stainless Steel Dry Slide Model SS-A1016Custom Stainless Steel Dry Slide
Model: SS-A1016

Description: Custom all stainless steel slide spiraling off upper floor to lower floor.
Centerline Run: 26’ 6”
Entry Height: 12' 2½"
Entry: Sit down start pan with grab bar

Features

  • 30” inside diameter closed stainless steel flume
  • 30” inside diameter open stainless steel flume
  • Entrance: Start pan with grab bar
  • Exit: 1' 3" drop exit floor mount
  • Stainless: Minimum 12 gauge stainless steel
  • Steel: All components TIG welded
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Brush finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Stainless Steel Dry Slide Model SS-A1016 Stainless Steel Dry Slide Model SS-A1016 Stainless Steel Dry Slide Model SS-A1016

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Dry Slide Model SS-A1016 plan view Stainless Steel Dry Slide Model SS-A1016 plan view Stainless Steel Dry Slide Model SS-A1016 plan view

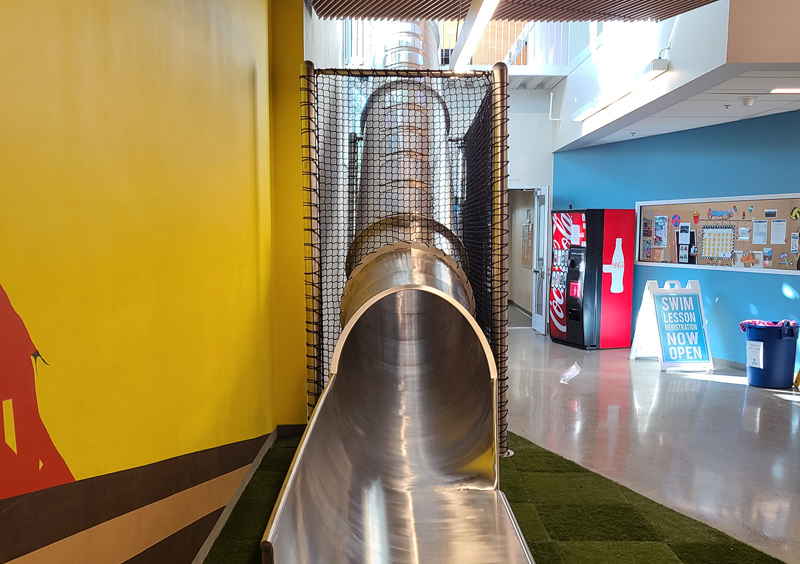

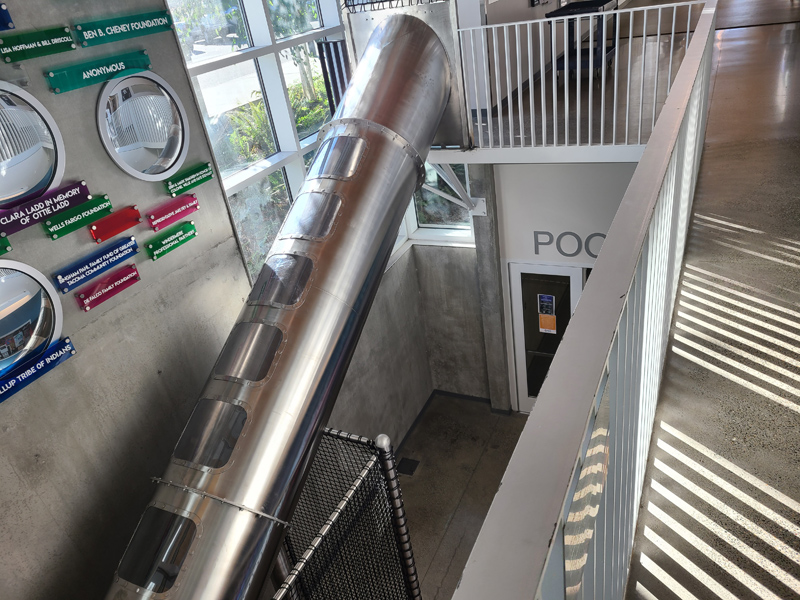

Stainless Steel Slide with Clear Skylights Model SS-A1017Stainless Steel Slide with Clear Skylights
Model: SS-A1017

Description: Custom all stainless steel slide with clear polycarbonite skylights, spiraling off upper floor to lower floor.
Centerline Run: 28’ 11"
Entry Height: 13’4”
Entry: Custom platform enterance. Start panel with grab bar

Features

  • 30” inside diameter closed and open flume with clear polycarbonite skylights
  • Entrance: Start panel with grab bar
  • Exit: 1’-3” drop exit floor bench
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Brush finish
  • USA Made

Options Shown: Custom elevated entrance platform

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

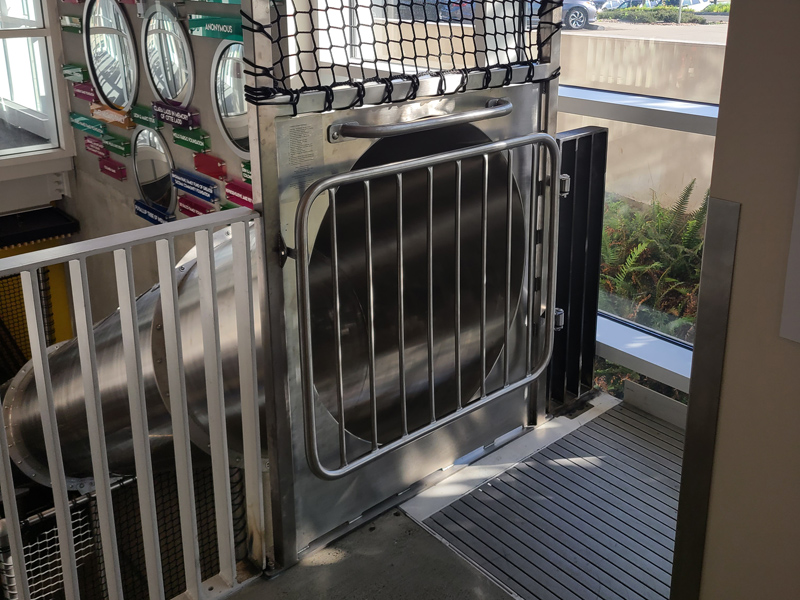

Stainless Steel Slide with Clear Skylights Model SS-A1017

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Slide with Clear Skylights Model SS-A1017 Stainless Steel Slide with Clear Skylights Model SS-A1017

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Slide with Clear Skylights Model SS-A1017Stainless Steel Slide with Clear Skylights Model SS-A1017Stainless Steel Slide with Clear Skylights Model SS-A1017

DownloadDownload Spec Sheet
Requires Adobe Acrobat

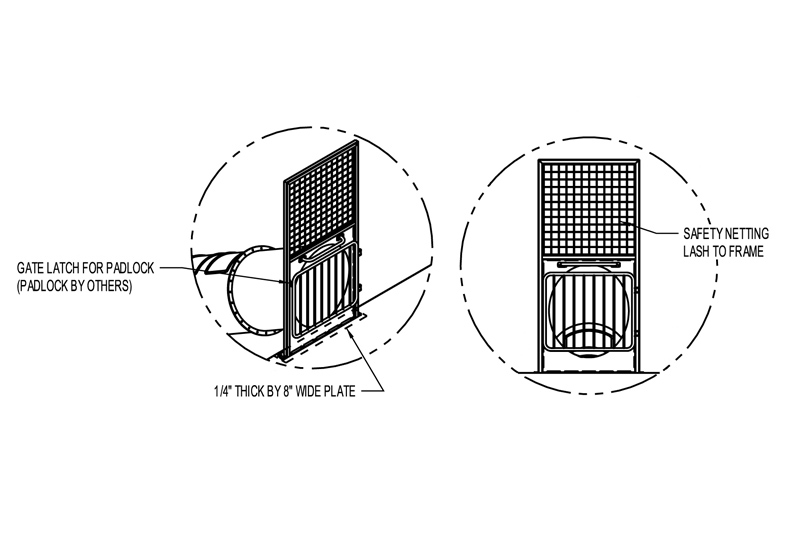

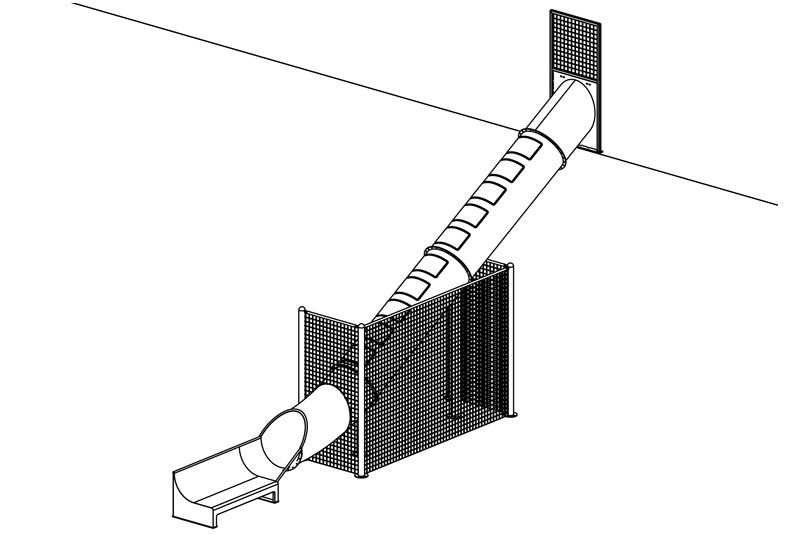

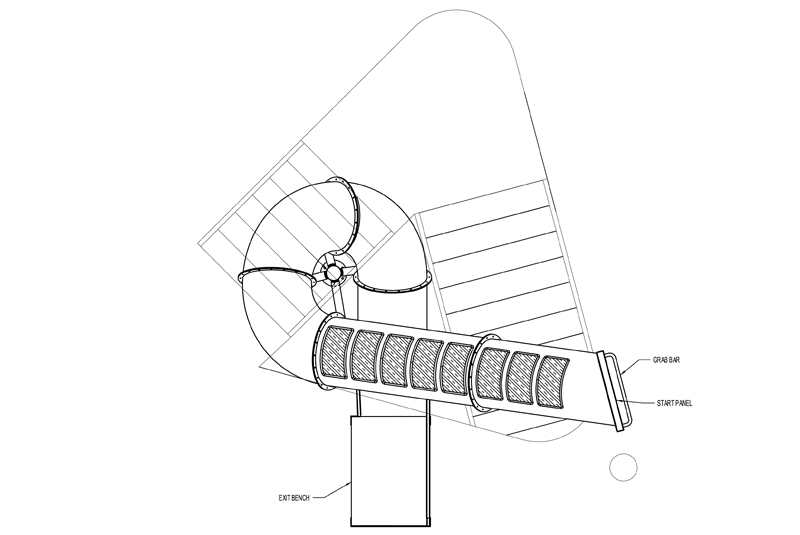

Stainless Steel Slide with Clear Skylights Model SS-A1017 plan view Stainless Steel Slide with Clear Skylights Model SS-A1017 plan view

Stainless Steel Wave Slide Model SS-A1018Custom Stainless Steel Wave Slide
Model: SS-A1018

Description: Custom all stainless steel slide connnecting upper floor to main floor.
Centerline Run: 26’ 7”
Entry Height: 14' 0"
Entry: Entry panel with grab bar & safety gate

Features

  • 36” inside diameter open stainless steel flume
  • Entrance: Entry panel with grab bar & safety gate
  • Entrance canopy
  • Bench Exit, Height: 1’-3”
  • Stainless: Minimum 12 gauge stainless
  • Steel: All components TIG welded
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Brush finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Stainless Steel Wave Slide Model SS-A1018

Stainless Steel Wave Slide Model SS-A1018

Stainless Steel Wave Slide Model SS-A1018

Stainless Steel Wave Slide Model SS-A1018Stainless Steel Wave Slide Model SS-A1018 Stainless Steel Wave Slide Model SS-A1018 plan view

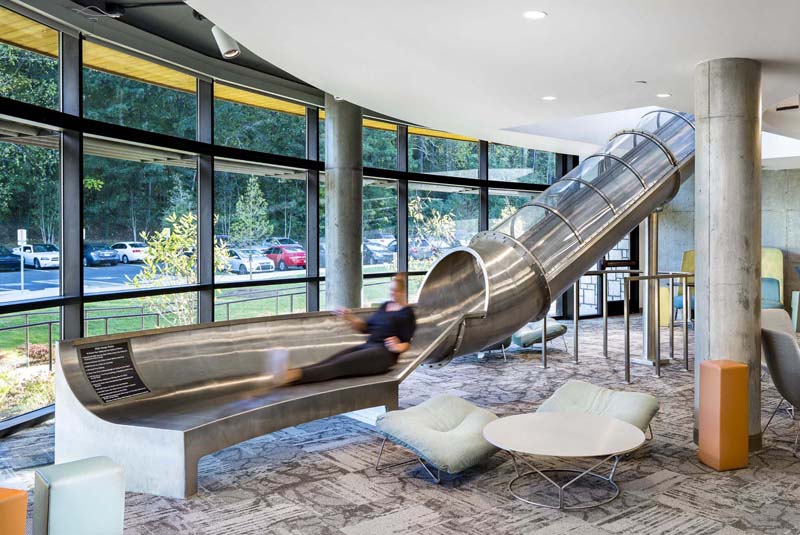

Stainless Steel Slide with Clear Top Model SS-A1019Stainless Steel Slide with Clear Top
Model: SS-A1019

Description: Custom all stainless steel slide with clear top.
Centerline Run: 28’ 8"
Entry Height: 15’ 4”
Entry: Start panel with grab bar

Features

  • 30” inside diameter closed and open flume with full polycarbonite top
  • Entrance: Start panel with grab bar
  • Exit bench: 1’-3” drop exit floor mount
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Brush finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Stainless Steel Slide with Clear Top Model SS-A1019

Double Divided Open Flume Stainless Steel Wave Slide Model SS-A1020Custom Stainless Steel Wave Slide
Model: SS-A1020

Description:Custom double divided open flume stainless steel wave slide.
Centerline Run: 23’ 5”
Entry Height: 10' 10"
Entry: Dimpled non-slip slide entrance plate.

Features

  • 60” inside diameter open stainless steel flume
  • Entrance: Dimpled non-slip slide entrance plate
  • Closed shroud entrance
  • Bench Exit, Height: 1’-3”
  • Entrance Shroud: Polyester powder coat
  • Slide Rails: Polyester powder coat
  • Slide support legs: Polyester powder coat
  • Stainless: Minimum 12 gauge stainless
  • Steel: All components TIG welded
  • Interior: Polished finish, all welds ground smooth
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

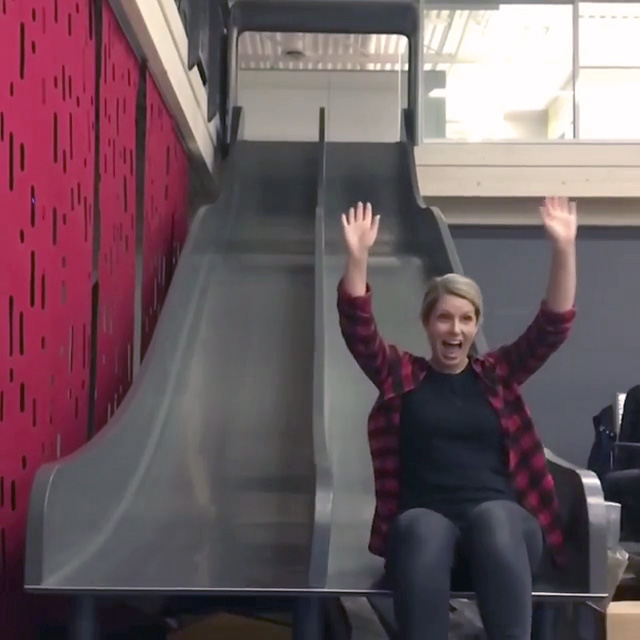

Double Divided Open Flume Stainless Steel Wave Slide Model SS-A1020 Double Divided Open Flume Stainless Steel Wave Slide Model SS-A1020

DownloadDownload Spec Sheet
Requires Adobe Acrobat

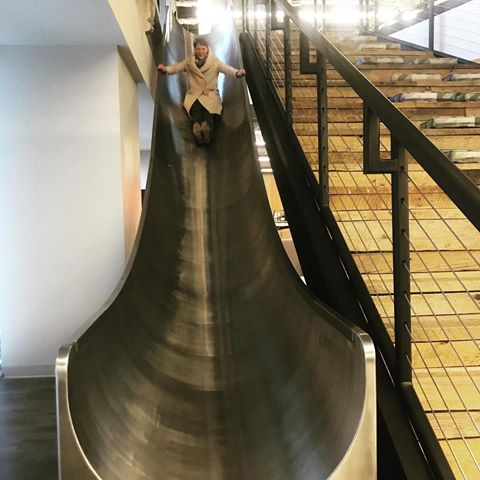

Stainless Steel Dry Slide Model SS-A1021Custom Stainless Steel Dry Slide
Model: SS-A1021

Description: Custom all stainless steel slide connecting 15th floor to 14th floor.
Centerline Run: 26’ 10”
Entry Height: 13 7"
Entry: Start panel with grab bars and start pan

Features

  • 36” inside diameter closed & open stainless steel flume
  • Entrance:Start panel with (2) grab bars & start pan
  • Rider point load: 350 lb
  • Exit: 1' 3" drop exit floor mount
  • Flume: Minimum 12 gauge 304 stainless steel
  • Steel: All components TIG welded
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Brush finishs
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Stainless Steel Dry Slide Model SS-A1021 Stainless Steel Dry Slide Model SS-A1021 Stainless Steel Dry Slide Model SS-A1021

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Dry Slide Model SS-A1021 Stainless Steel Dry Slide Model SS-A1021 Stainless Steel Dry Slide Model SS-A1021

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Dry Slide Model SS-A1021 plan view Stainless Steel Dry Slide Model SS-A1021 plan view

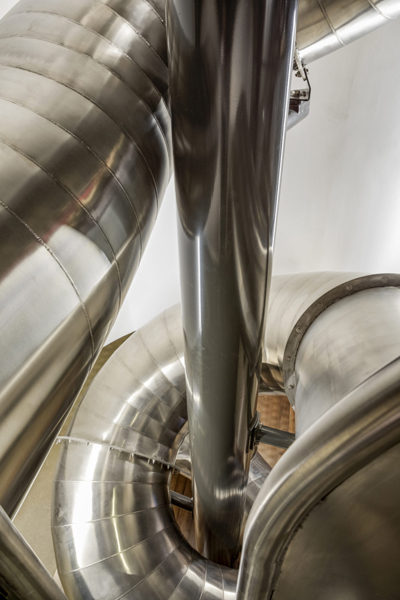

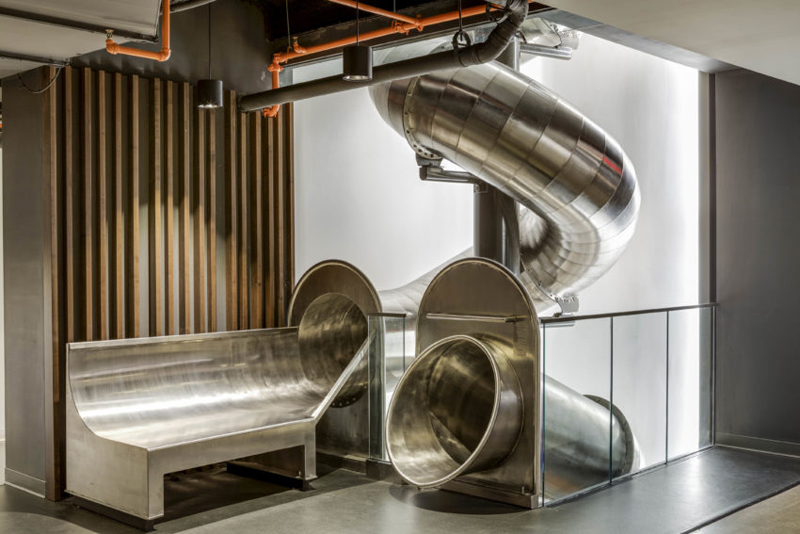

2 Closed Flume Stainless Steel Slides Model SS-A10222 Closed Flume Stainless Steel Slides
Model: SS-A1022

Description: 2 Custom closed flume stainless steel slides connecting 3 floors.
Centerline Run: Upper Flume: 25’ 9”; Lower Flume: 24' 9"
Entry Height: 13 7"
Entry: Start panel with grab bar

Features

  • (2) 30” inside diameter closed flume stainless steel slides
  • Entrance (2): Grab bar above slide entrance
  • Exit benches (2): Height: 1’ 3”
  • Flumes (2): Minimum 12 gauge 304 stainless steel
  • Steel: All components TIG welded
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Brush finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

2 Closed Flume Stainless Steel Slides Model SS-A1022
Photo by: Greg Premru

2 Closed Flume Stainless Steel Slides Model SS-A1022
Photo by: Greg Premru

DownloadDownload Spec Sheet
Requires Adobe Acrobat

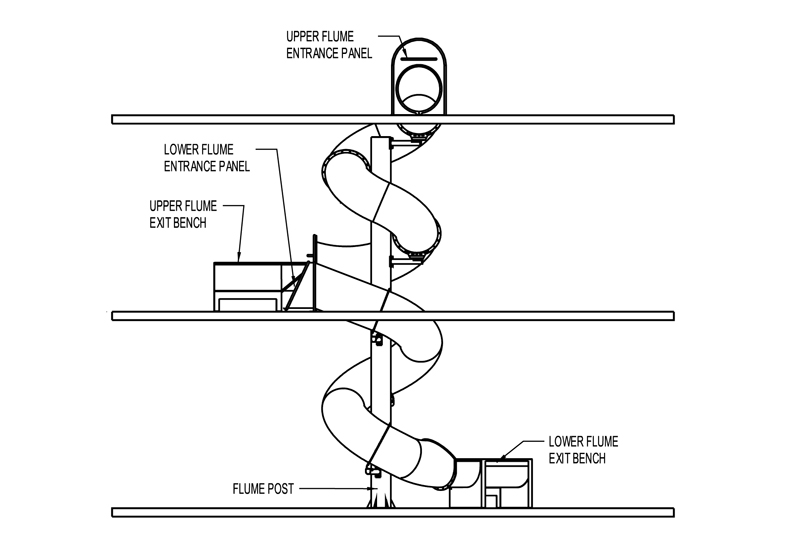

2 Closed Flume Stainless Steel Slides Model SS-A1022 plan view 2 Closed Flume Stainless Steel Slides Model SS-A1022 plan view 2 Closed Flume Stainless Steel Slides Model SS-A1022 plan view

Stainless Steel Indoor Slide Model SS-A1023Custom Stainless Steel Indoor Slide
Model: SS-A1023

Description: Custom all stainless steel slide spiraling off upper floor to first floor.
Centerline Run: 39’ 6”
Entry Height: 17' 10"
Entry: Elevated start pan with 2 grab bars

Features

  • 30” inside diameter closed & open stainless steel flume
  • Entrance: Elevated start pan with (2) grab bars
  • Rider point load: 300 lbs.
  • Exit bench: Height: 1’ 3” ; Length: 4’ 0”
  • Flume: Minimum 12 gauge 304 stainless steel
  • Steel: All components TIG welded
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Brush finishs
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

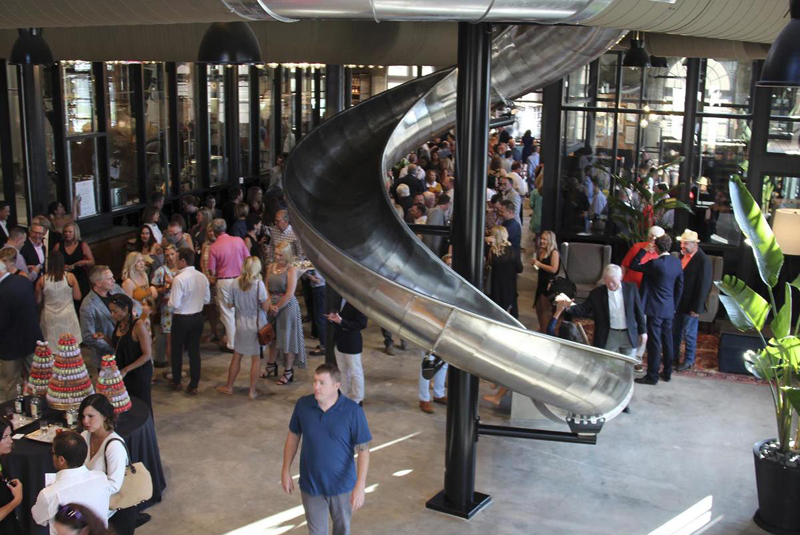

Stainless Steel Indoor Slide Model SS-A1023 Stainless Steel Indoor Slide Model SS-A1023

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Indoor Slide Model SS-A1023 Stainless Steel Indoor Slide Model SS-A1023

DownloadDownload Spec Sheet
Requires Adobe Acrobat

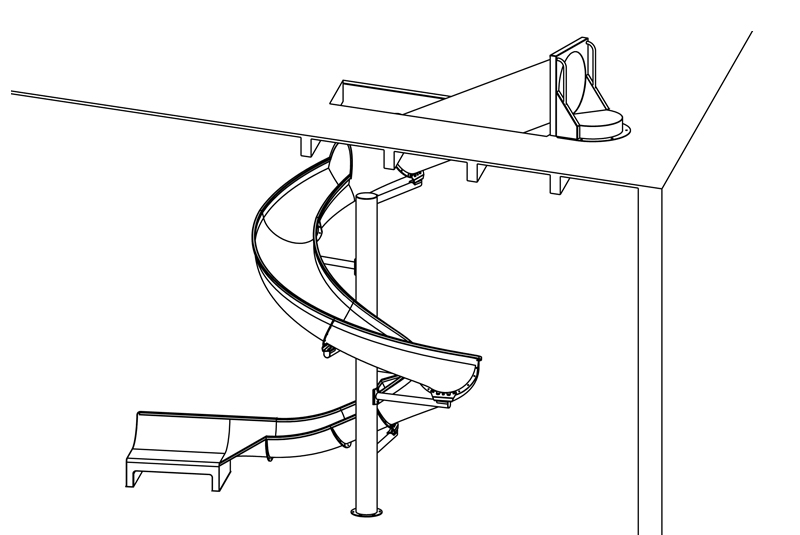

Stainless Steel Indoor Slide Model SS-A1023 plan view Stainless Steel Indoor Slide Model SS-A1023 plan view Stainless Steel Indoor Slide Model SS-A1023 plan view

Closed Flume Indoor Architectural Slide Model SS-A1024Closed Flume Indoor Architectural Slide
Model: SS-A1024

Description: Single 32” I.D. closed fiberglass flume slide with a 270° turn. Stainless steel entrance panel and exit bench.
Centerline Run: 27’ 10”
Centerline Run with Exit Bench: 27’ 10”
Entry Height: 14' 1"
Entry: Stainless steel start panel with grab bar
Exit: 4' 0" Stainless steel bench

Features

  • 32” inside diameter closed fiberglass flume.
  • Flume: Ultra violet stabilized gelcoat.
  • Entrance: 11 gauge stainless steel start panel with grab bar
  • Exit bench: Height: 1’ 3” ; Length: 4’ 0”
  • Stainless: All steel and hardware 304 stainless steel
  • Stainless steel base plates, hardware and anchor bolts
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Closed Flume Indoor Architectural Slide Model SS-A1024 Closed Flume Indoor Architectural Slide Model SS-A1024 Closed Flume Indoor Architectural Slide Model SS-A1024 Closed Flume Indoor Architectural Slide Model SS-A1024

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Closed Flume Indoor Architectural Slide Model SS-A1024 plan view

Stainless Steel Slide with Clear Skylights Model SS-A1025Stainless Steel Slide with Clear Skylights
Model: SS-A1025

Description: Custom all stainless steel slide with clear polycarbonite skylights, spiraling off upper floor to lower floor.
Centerline Run: 27’6"
Entry Height: 13’5”
Entry: Circular grab bar above slide enterance.

Features

  • 30” inside diameter closed and open flume with clear polycarbonite skylights
  • Entrance: Circular grab bar above slide enterance
  • Exit bench: Height: 1’ 3” ; Length: 4’ 0”
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Powder coat finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Stainless Steel Slide with Clear Skylights Model SS-A1025

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Slide with Clear Skylights Model SS-A1025Stainless Steel Slide with Clear Skylights Model SS-A1025Stainless Steel Slide with Clear Skylights Model SS-A1025

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Slide with Clear Skylights Model SS-A1025

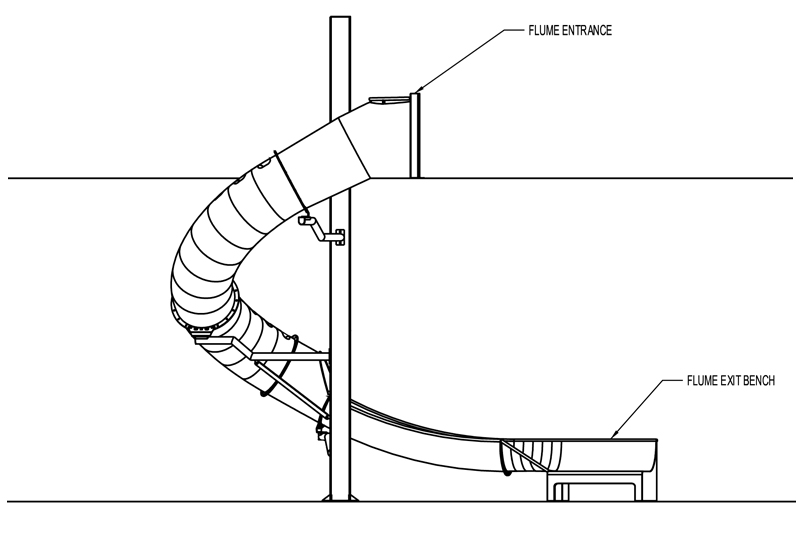

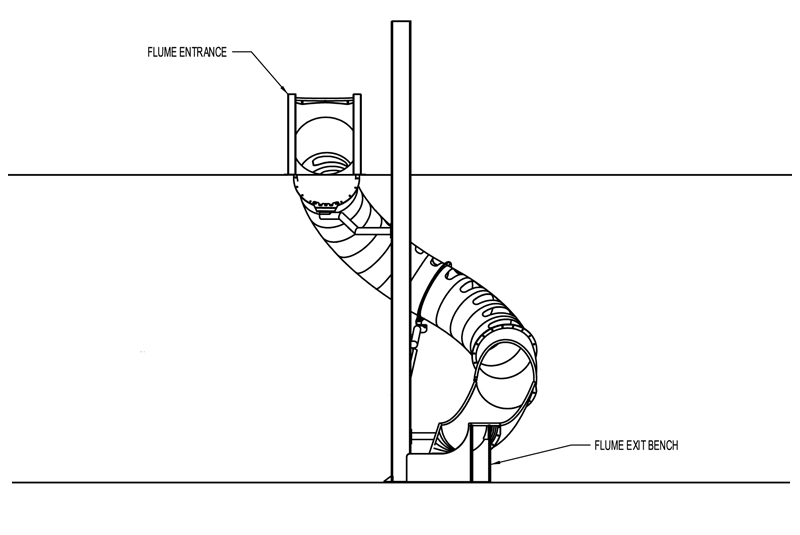

Stainless Steel Slide with Clear Skylights Model SS-A1025 plan view Stainless Steel Slide with Clear Skylights Model SS-A1025 plan view Stainless Steel Slide with Clear Skylights Model SS-A1025 plan view Stainless Steel Slide with Clear Skylights Model SS-A1025 plan view Stainless Steel Slide with Clear Skylights Model SS-A1017 plan view

Stainless Steel Indoor Slide Model SS-A1023Custom Stainless Steel Indoor Slide
Model: SS-A1026

Description: Custom all stainless steel slide spiraling off upper floor to first floor.
Centerline Run: 32' 11”
Entry Height: 15’ 11-¾"
Entry: Start panel with grab bar

Features

  • 30” inside diameter closed & open stainless steel flume
  • Entrance:start pan with grab bar
  • Rider point load: 300 lbs.
  • Exit bench: Height: 1’ 3” ; Length: 4’ 0”
  • Flume: Minimum 12 gauge 304 stainless steel
  • Steel: All components TIG welded
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Brush finishs
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

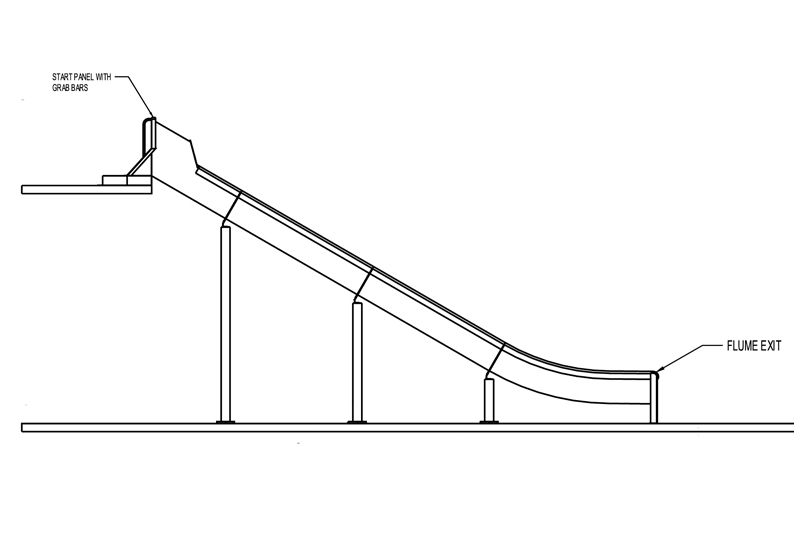

Stainless Steel Indoor Slide Model SS-A1026Stainless Steel Indoor Slide Model SS-A1026 plan view Stainless Steel Indoor Slide Model SS-A1026 plan view Stainless Steel Indoor Slide Model SS-A1026 plan view

Stainless Steel Slide with Clear Skylights Model SS-A1027Stainless Steel Slide with Clear Skylights
Model: SS-A1027

Description: Custom all stainless steel slide with clear polycarbonite skylights, spiraling off 3rd floor to first floor.
Centerline Run: 58' 1"
Entry Height: 25' 1-7/8”
Entry: Elevated start pan with (2) grab bars.

Features

  • 30” inside diameter closed stainless steel flume with clear polycarbonite skylights
  • Entrance: Elevated start pan with (2) grab bars
  • Exit bench: Height: 1’ 3” ; Length: 6’ 0” curved
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Powder coat finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

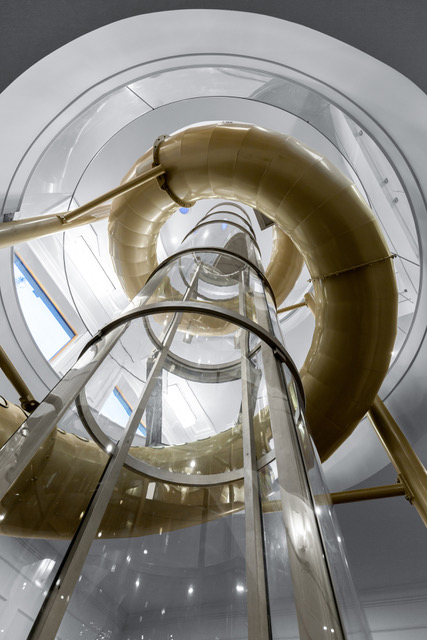

Stainless Steel Slide with Clear Skylights Model SS-A1027

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Slide with Clear Skylights Model SS-A1027

DownloadDownload Spec Sheet
Requires Adobe Acrobat

Stainless Steel Slide with Clear Skylights Model SS-A1027

Stainless Steel Slide with Clear Skylights Model SS-A1027 plan view

Stainless Steel Slide with Clear Skylights Model SS-A1028Stainless Steel Slide with Clear Skylights
Model: SS-A1028

Description: Custom all stainless steel slide with clear polycarbonite skylights, spiraling off upper floor to lower floor.
Centerline Run: 27' 1"
Entry Height: 12’ 11-¼”
Entry: Start panel with grab bar.

Features

  • 30” inside diameter closed stainless steel flume with clear polycarbonite skylights
  • Entrance:Start panel with grab bar
  • Exit Height: 1’ 3”
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Powder coat finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

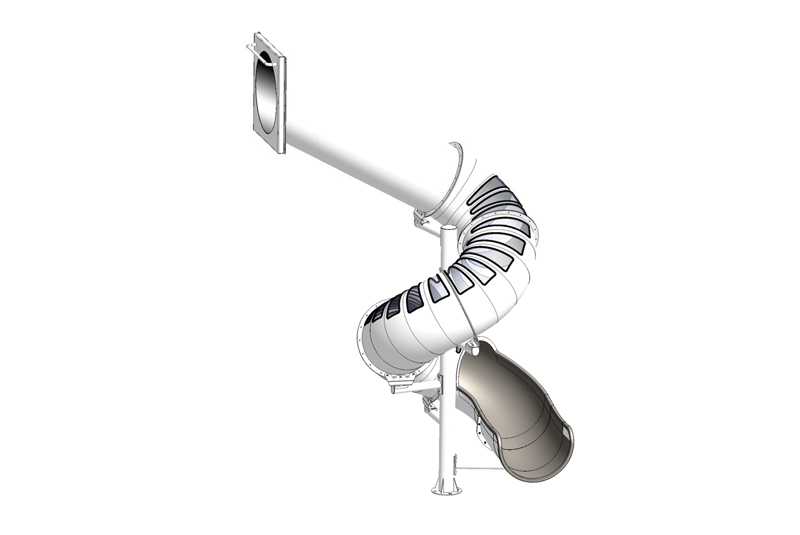

Stainless Steel Slide with Clear Skylights Model SS-A1028 3D Stainless Steel Slide with Clear Skylights Model SS-A1028 3D Stainless Steel Slide with Clear Skylights Model SS-A1028 3DStainless Steel Slide with Clear Skylights Model SS-A1028 plan view

Stainless Steel Slide with Clear Skylights Model SS-A1029Stainless Steel Slide with Clear Skylights
Model: SS-A1029

Description: Custom all stainless steel slide with clear polycarbonite skylights, spiraling off upper floor to lower floor.
Centerline Run: 39’6"
Entry Height: 17’ 7-¾”
Entry: Start pan with (2) grab bars

Features

  • 36” inside diameter closed and open flume with clear polycarbonite skylights
  • Entrance: Start pan with (2) grab bars
  • Exit bench: Height: 1’ 3” ; Length: 4’ 0”
  • Interior: Polished finish, all welds ground smooth
  • Exterior: Powder coat finish
  • USA Made

DownloadDownload Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Stainless Steel Slide with Clear Skylights Model SS-A1029 Stainless Steel Slide with Clear Skylights Model SS-A1029

DownloadDownload Spec Sheet
Requires Adobe Acrobat

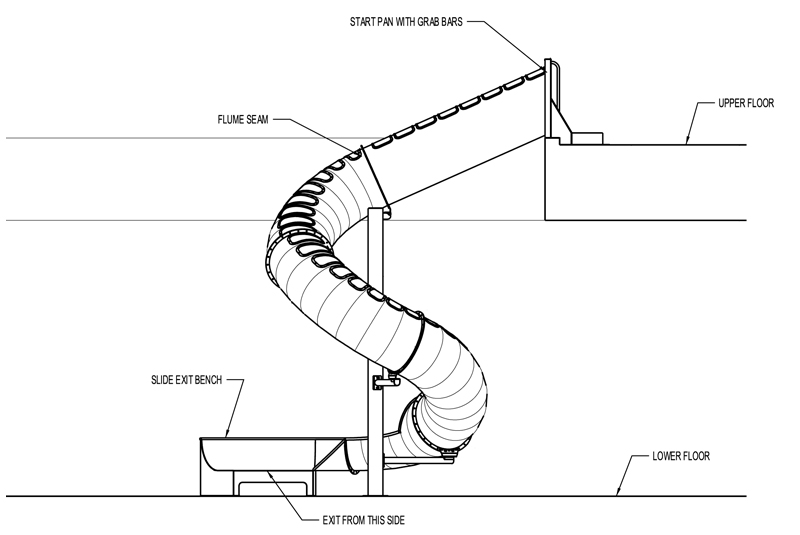

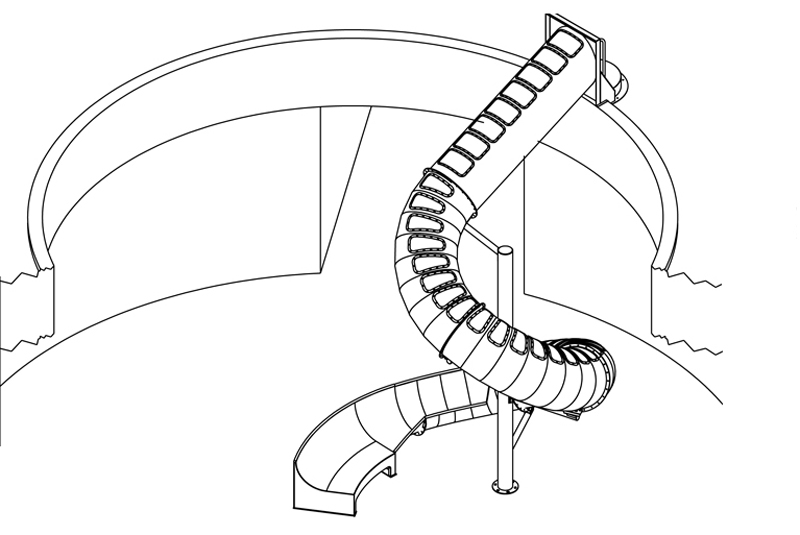

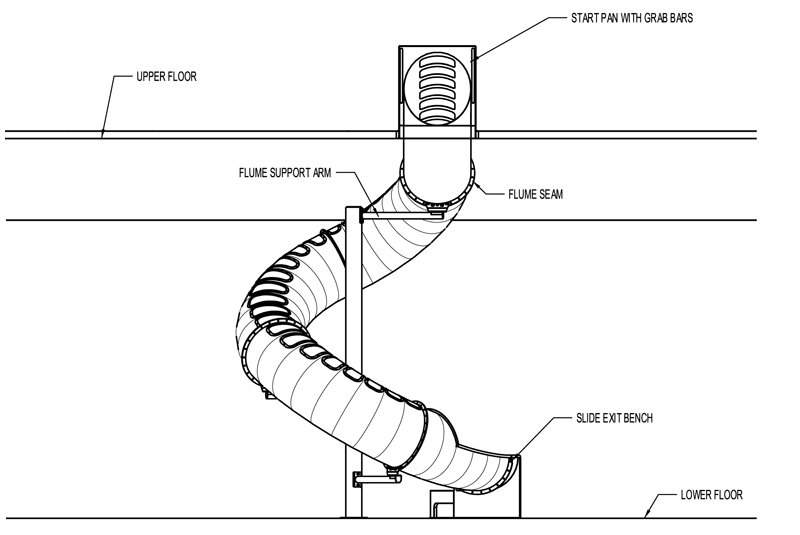

Stainless Steel Slide with Clear Skylights Model SS-A1029 plan view Stainless Steel Slide with Clear Skylights Model SS-A1029 plan view Stainless Steel Slide with Clear Skylights Model SS-A1029 plan view Stainless Steel Slide with Clear Skylights Model SS-A1029 plan view

USA flag   Manufactured with Pride in the U.S.A.
