Quality Since 1971!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • 1617
    Polyethylene Flume Water Slide Model 1617
  • 1631
    Polyethylene Flume Water Slide Model 1631
  • 1640
    Double Flume Water Slide Model 1640
  • 1645
    Double Flume Water Slide Model 1645
  • 1649
    Double Flume Water Slide Model 1649
  • 1649-32
    Double Fiberglass Flume Water Slide Model 1649-32
  • 1685
    Water Slide Model 1685

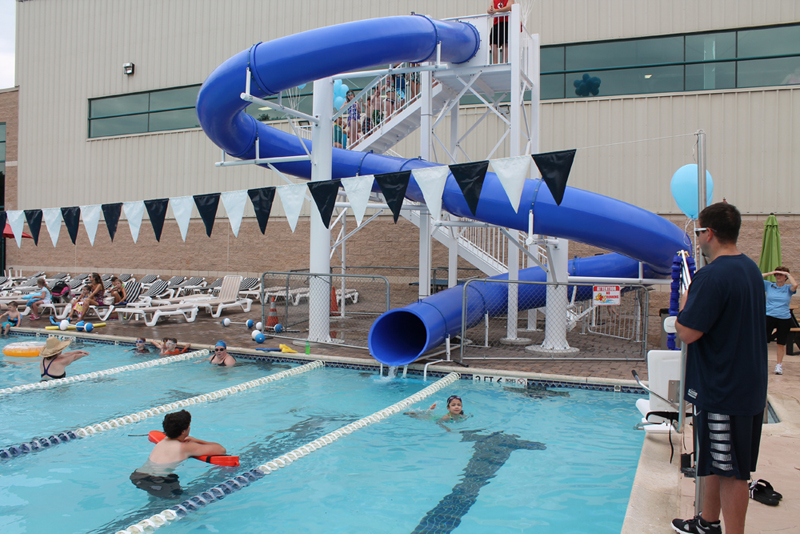

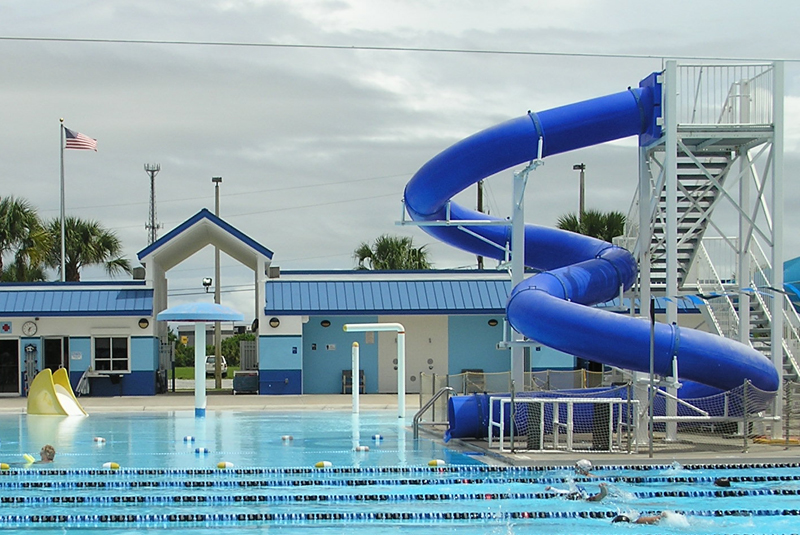

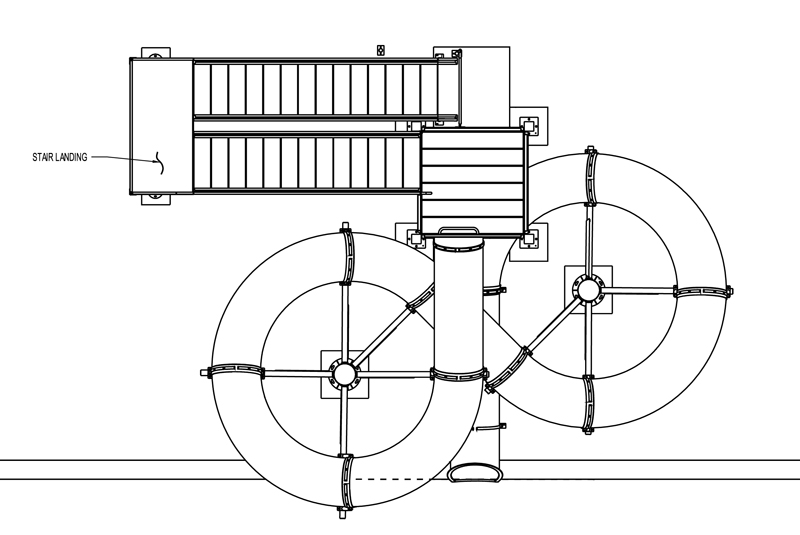

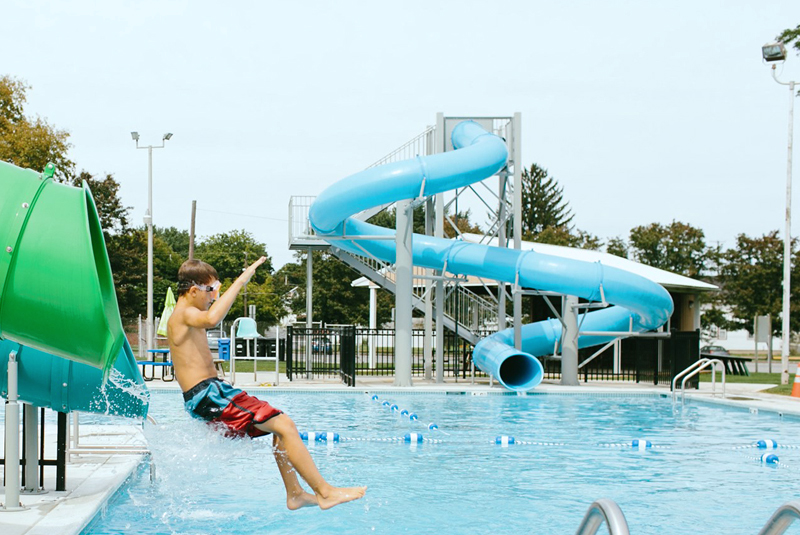

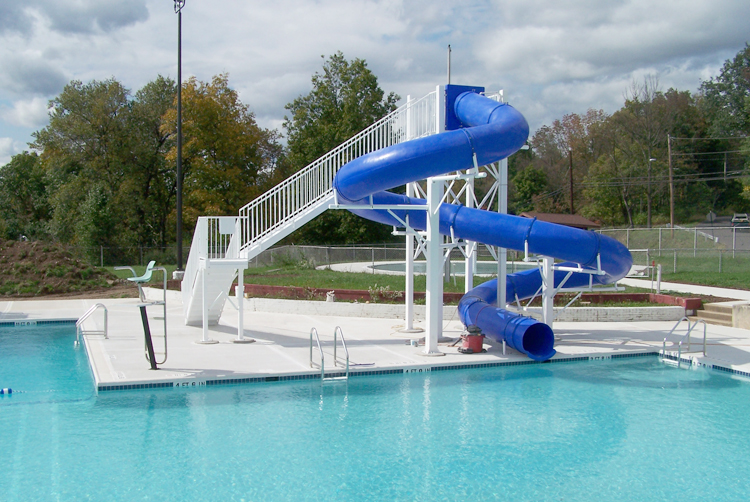

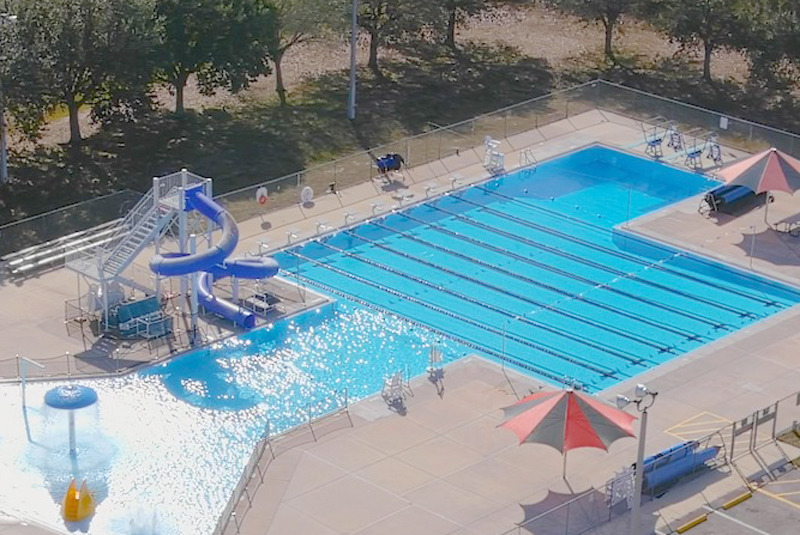

Polyethylene Flume Water Slide Model 1617 with Exit LaneThe Wizard Water Slide
Model 1617

Description : Single 30" I.D. flume water slide
in a figure 8.
Centerline Run : 90' 8"
Entry Height : 17'  5"
Platform Size : 6' x 6'
Space Requirements : Vary with options chosen.
    With Exit lane : 33' 0" x 41' 0"
    Pool Application : 32' 7" x 17' 5"

A favorite for those who love the excitement of the reverse curve.

  • 30" inside diameter polyethylene water slide flume
  • Water slide flume: color impregnated UV stabilized
  • 20 gpm water flow recommended; 20 to 40 gpm required
  • Splash down dimension 12' 6" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

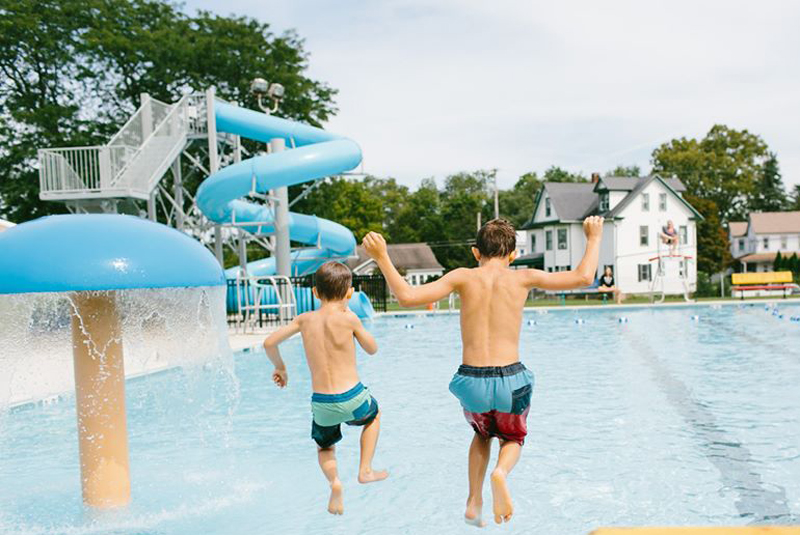

Polyethylene Flume Water Slide Model 1617

Polyethylene Flume Water Slide Model 1617

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Polyethylene Flume Water Slide Model 1617 Polyethylene Flume Water Slide Model 1617

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Polyethylene Flume Water Slide Model 1617

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Polyethylene Flume Water Slide Model 1617

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

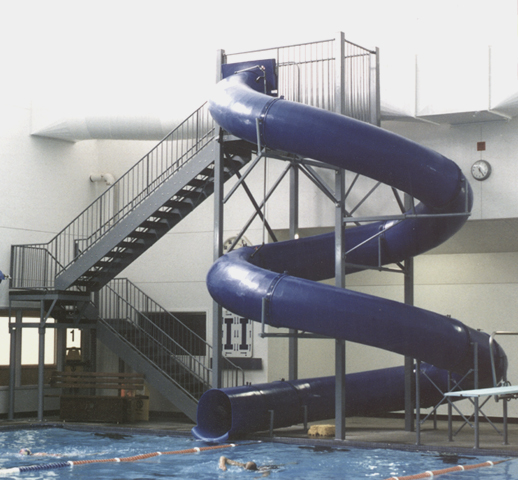

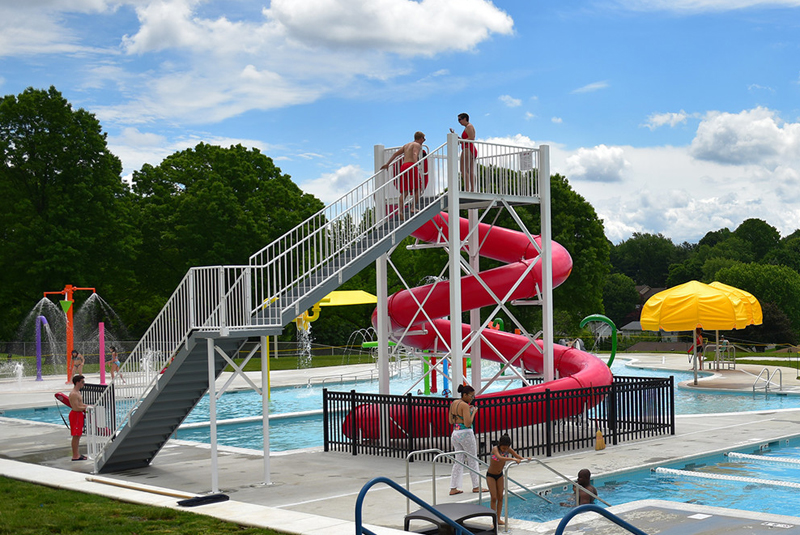

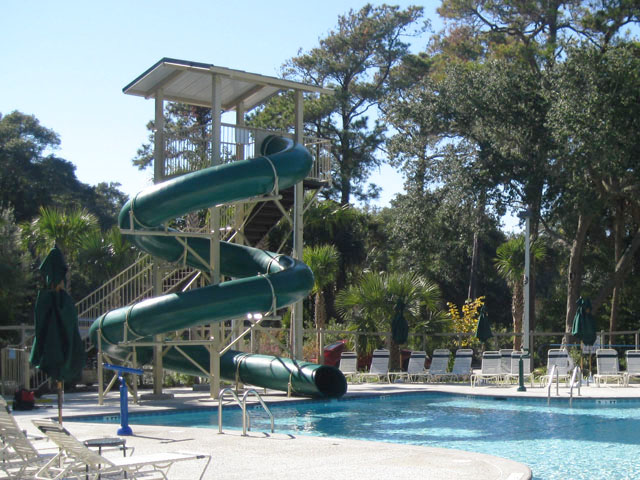

Polyethylene Flume Water Slide Model 1631Sea Swirl Water Slide
Model 1631

Description : Single 30" I.D. flume water slide with two complete turns (720°).
Centerline Run : 91' 1"
Entry Height : 17' 5"
Platform Size : 8' x 8'
Space Requirements : 19' 4" x 27' – Space requirements may vary with options chosen.

This 720° spiral water slide is an excellent choice for tight deck spaces.
  • 30" inside diameter polyethylene water slide flume
  • 20 gpm water flow recommended; 20 to 40 gpm required
  • Splash down dimension 12' 6" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

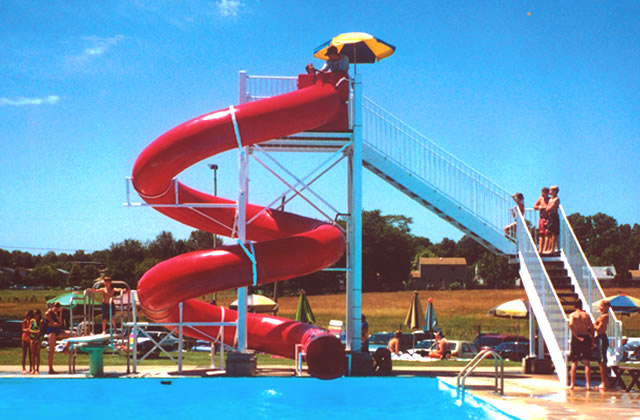

Polyethylene Flume Water Slide Model 1631

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

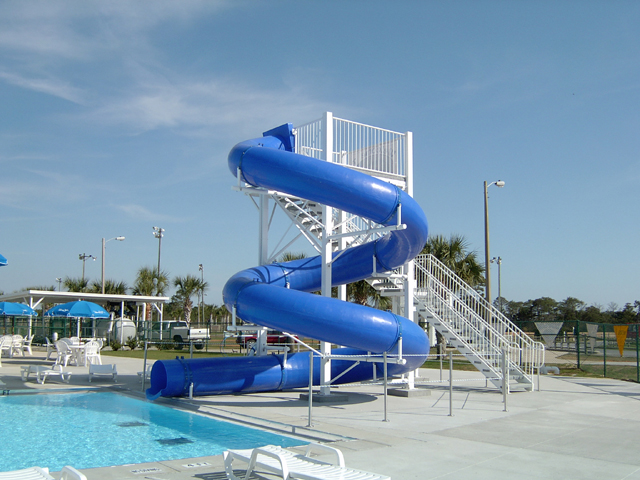

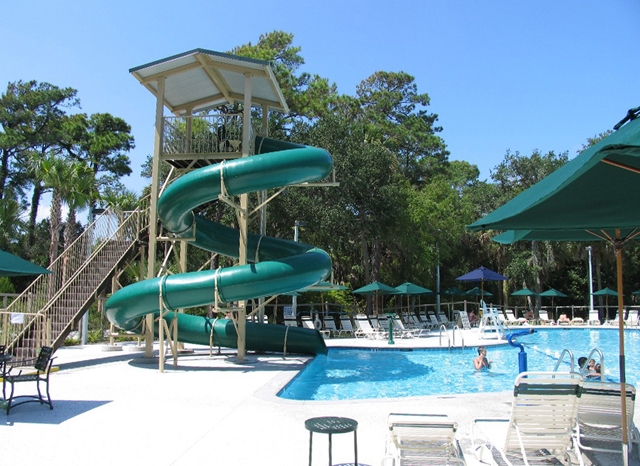

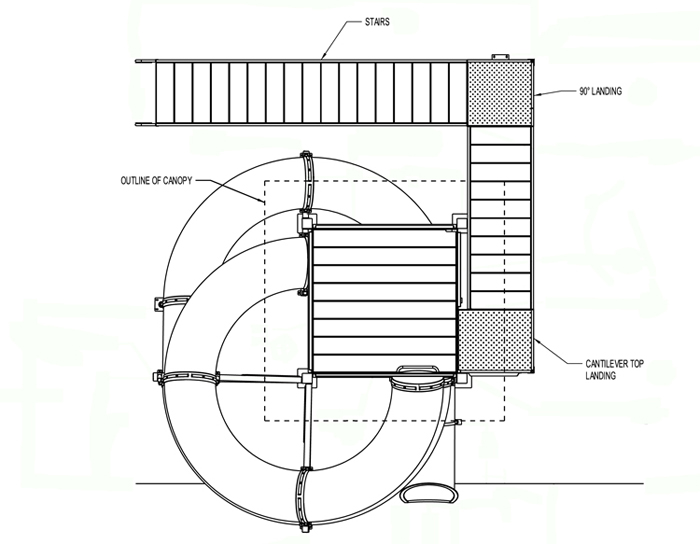

Polyethylene Flume Water Slide Model 1631 Polyethylene Flume Water Slide Model 1631 Polyethylene Flume Water Slide Model 1631 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Polyethylene Flume Water Slide Model 1631

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Polyethylene Flume Water Slide Model 1631

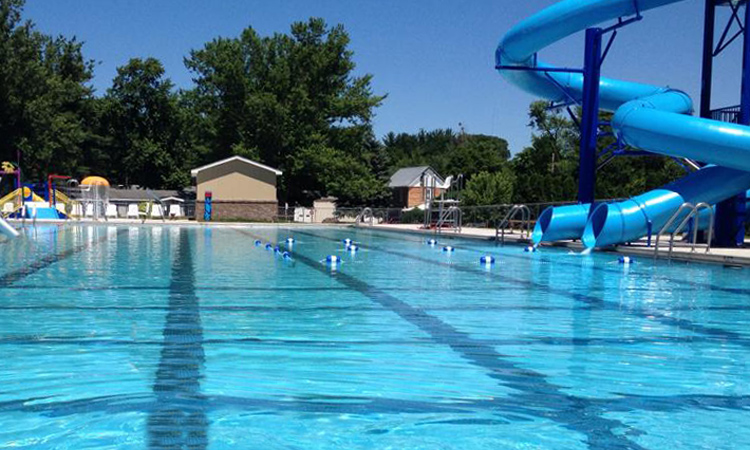

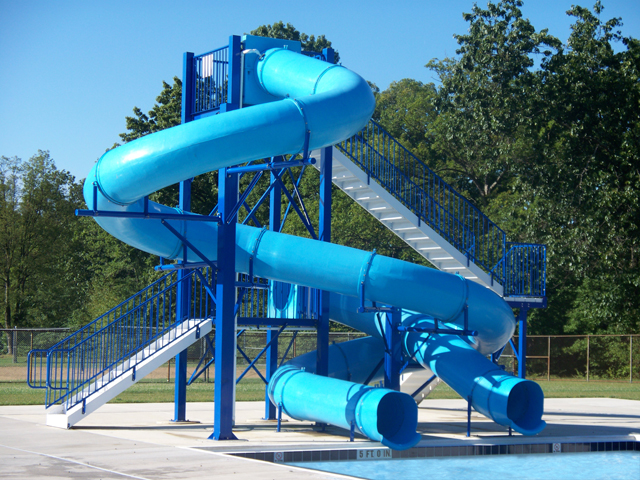

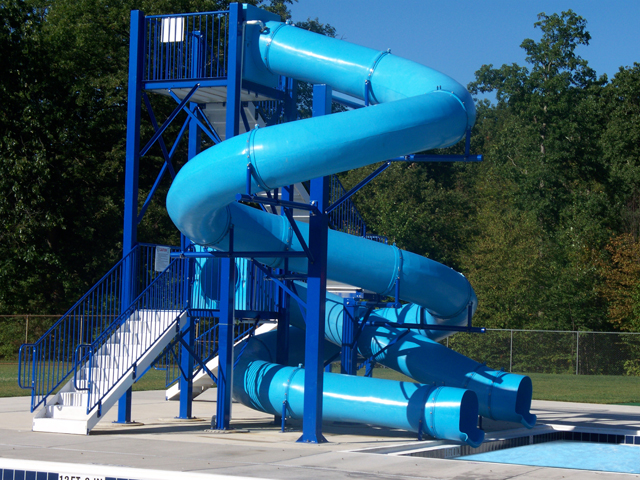

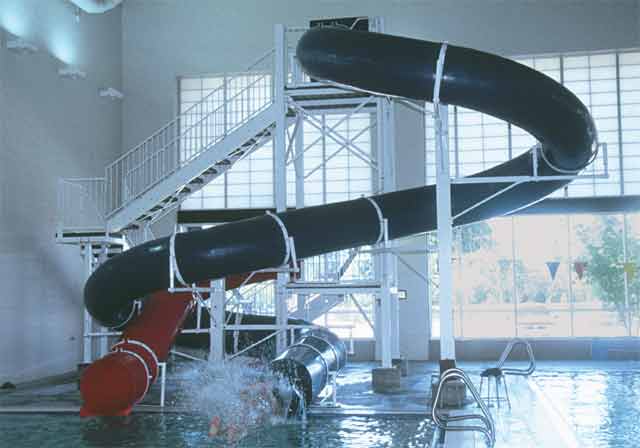

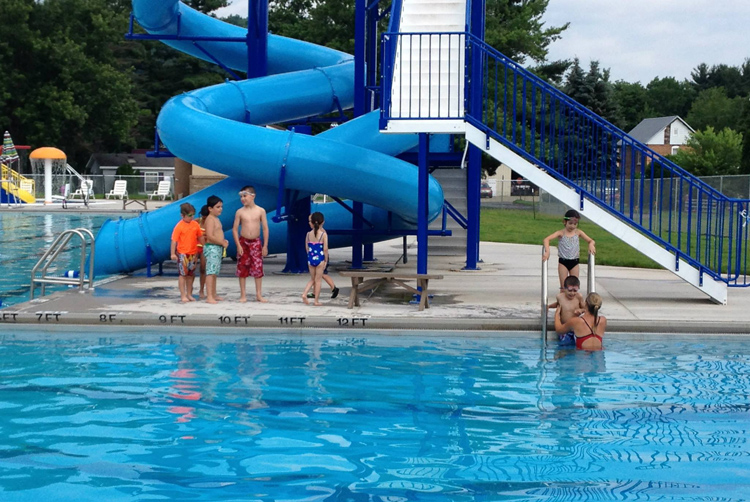

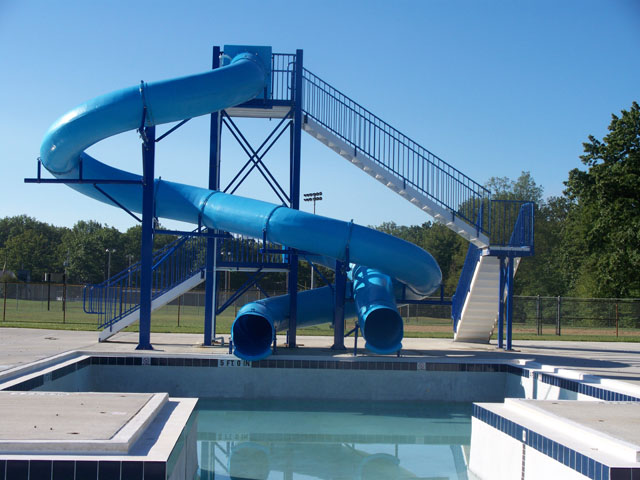

Double Polyethylene Flume Water Slide Model 1640Double Polyethylene Flume Water Slide
 Model 1640

Description : Double 30" I.D. flume water slide, one with two turns and one 90 ° curve flume.
Centerline Run : 90' 3" & 20' 11"
Entry Height : 17' 5" & 6' 5"
Platform Size : 6' x 6'
Space Requirements : 31' 11" x 26' 4" – Space requirements may vary with options chosen.

This double flume water slide provides a lower flume water slide for younger children, while providing more excitement for teenagers & adults.

  • 30" inside diameter polyethylene water slide flumes
  • 20 gpm water flow (each flume) recommended; 20 to 40 gpm required
  • Splash down dimension 23' x 20'
  • Minimum water depth: 3'

click on images to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

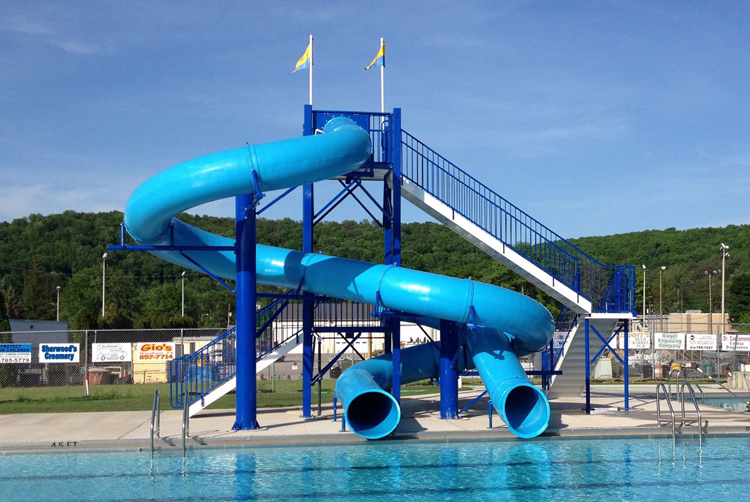

Double Polyethylene Flume Water Slide Model 1640 Double Polyethylene Flume Water Slide Model 1640

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Double Polyethylene Flume Water Slide Model 1640

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Double Polyethylene Flume Water Slide Model 1640 Double Polyethylene Flume Water Slide Model 1640 Double Polyethylene Flume Water Slide Model 1640

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

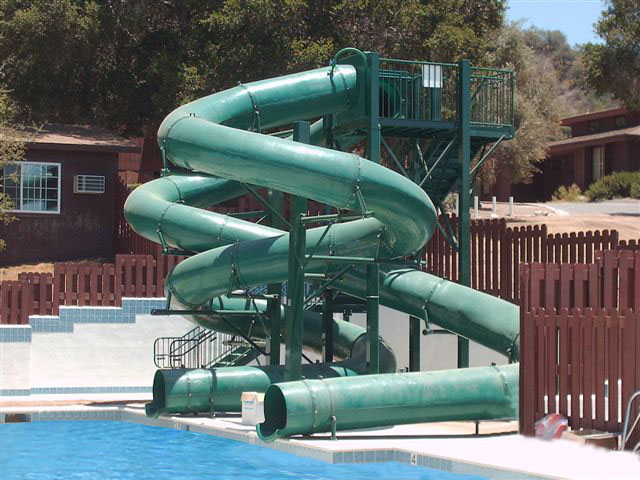

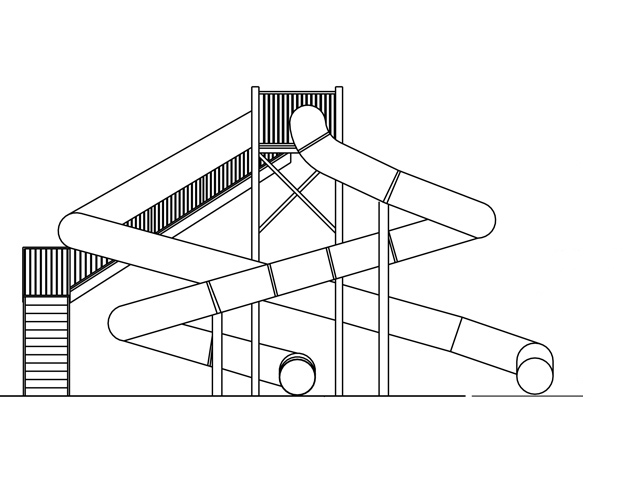

Double Polyethylene Flume Water Slide Model 1645Double Polyethylene Flume Water Slide
 Model 1645

Description : Double 30” I.D. flume slide, one with two turns and one in a figure 8
Centerline Run : 90' 3" and 75' 5"
Entry Height : 17' 5 "
Platform Size : 6' x 6'
Space Requirements : 37' 6" x 21' 0" – Space requirements may vary with options chosen.

A favorite for those who love the excitement of the reverse curve.

  • 30" inside diameter polyethylene water slide flumes
  • 20 gpm water flow (each flume) recommended; 20 to 40 gpm required
  • Splash down dimension 23' x 20'
  • Minimum water depth: 3'

click on images to enlarge

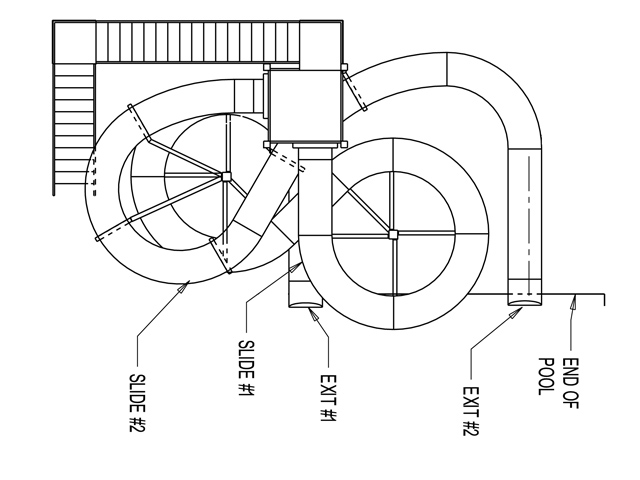

Double Polyethylene Flume Water Slide Model 1645 plan viewDouble Polyethylene Flume Water Slide Model 1645 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

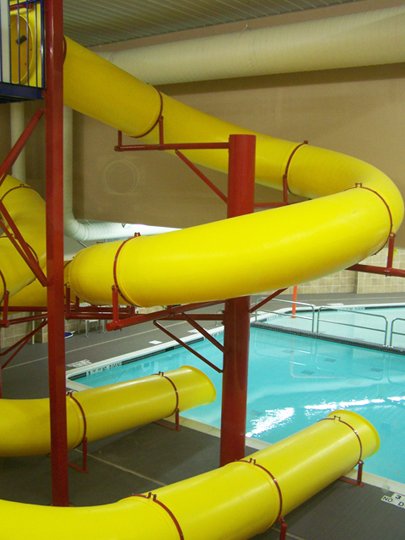

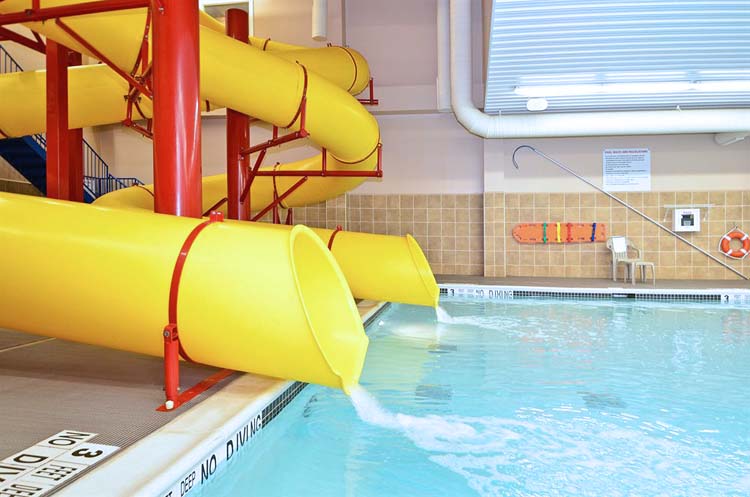

Double Polyethylene Flume Water Slide Model 1649Double Polyethylene Flume Water Slide
 Model 1649

Description : Double 30” I.D. flume water slide featuring one spiral and one figure 8.
Centerline Run : 90' 3" & 72' 5"
Entry Height : 17' 5"
Platform Size : 6' x 6'
Space Requirements : 32' 9" x 27' 1" – Space requirements may vary with options chosen.

Double flume water slide with indoor water park!

  • 30" inside diameter polyethylene water slide flumes
  • 20 gpm water flow (each flume) recommended; 20 to 40 gpm required
  • Splash down dimension 23' 8" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

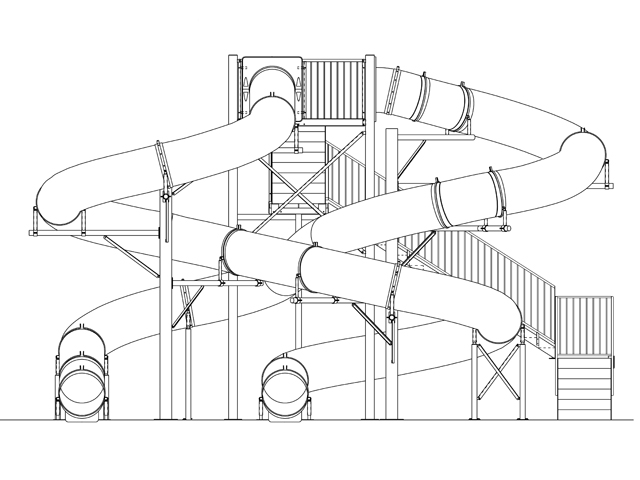

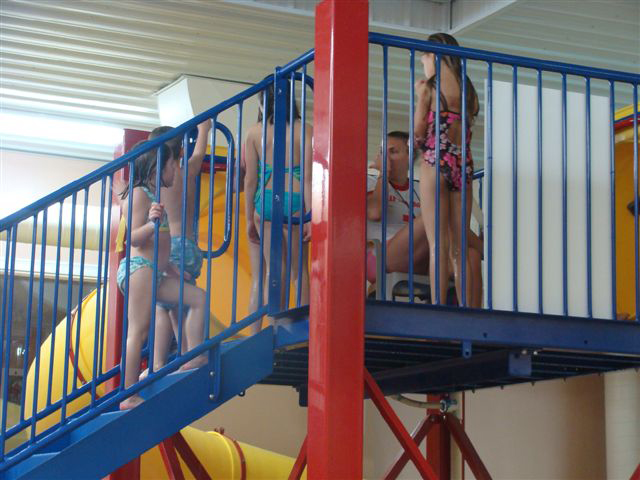

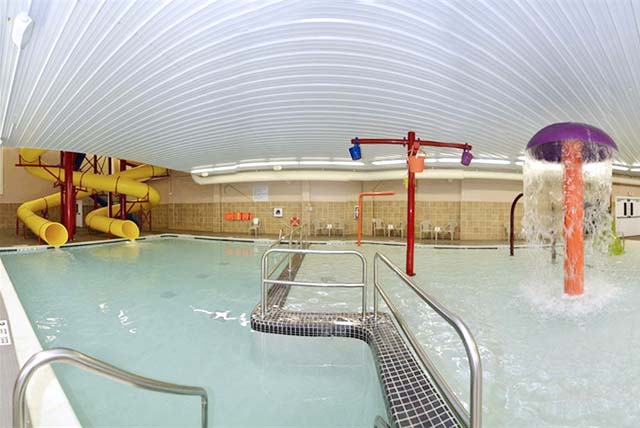

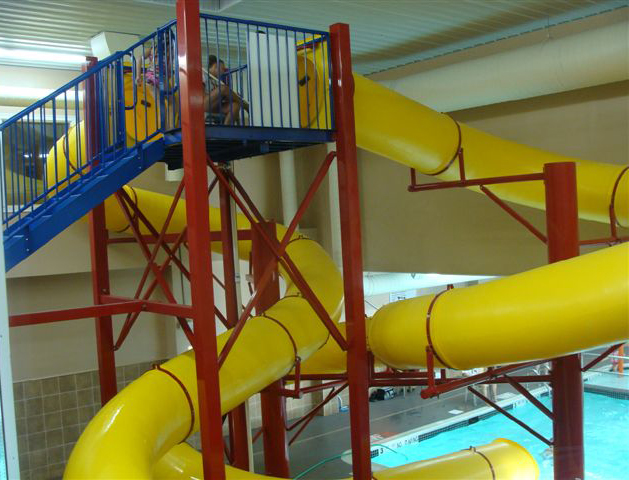

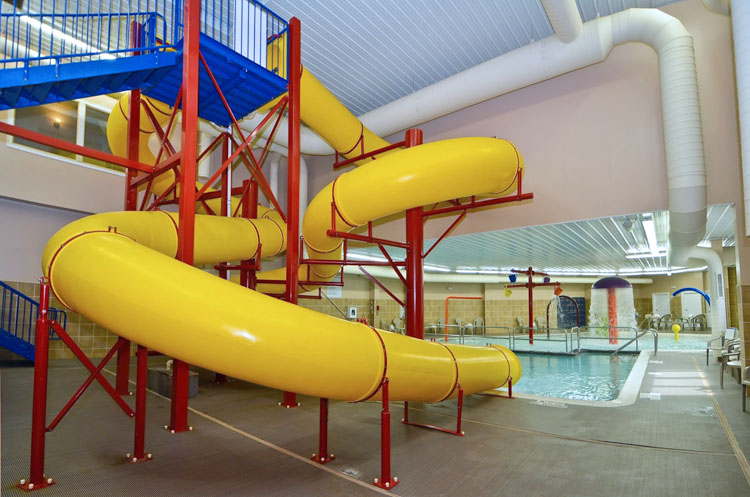

Double Polyethylene Flume Water Slide Model 1649 Double Polyethylene Flume Water Slide Model 1649 Double Polyethylene Flume Water Slide Model 1649 Double Polyethylene Flume Water Slide Model 1649 Double Polyethylene Flume Water Slide Model 1649 Double Polyethylene Flume Water Slide Model 1649 elevation plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

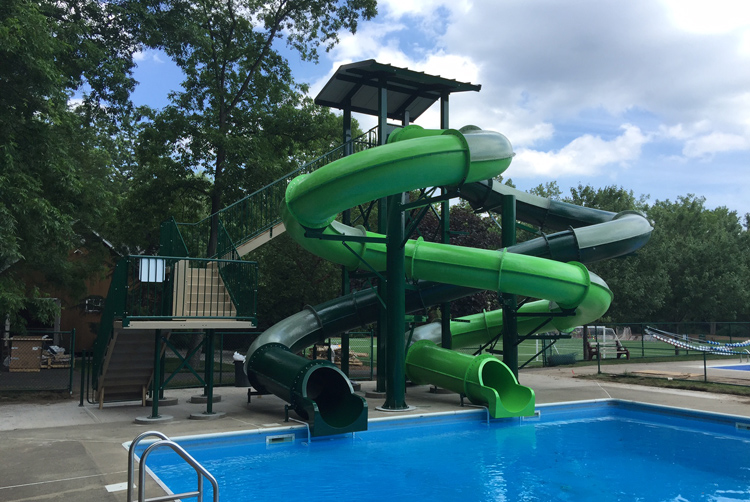

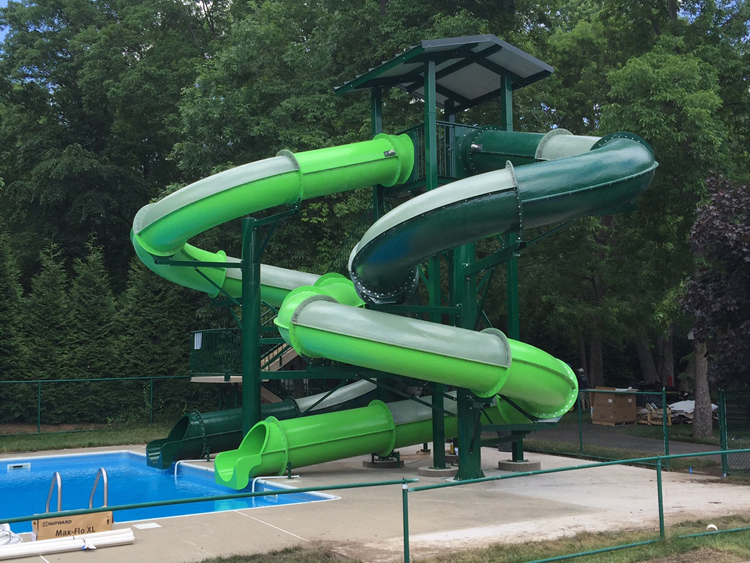

Double Closed Fiberglass Flume Water Slide Model 1649-32 Double Fiberglass Flume Water Slide
 Model 1649-32

Description : Double 32” I.D. closed fiberglass flume water slide featuring one spiral and one figure 8.
Centerline Run : 91' 3" & 71' 11"
Entry Height : 17' 5"
Platform Size : 6' x 6'
Space Requirements : 41' 8" x 16' 5" – Space requirements may vary with options chosen.

  • 32” inside diameter closed fiberglass flumes
  • 40-60 gpm water flow (each flume) required
  • Splash down dimension: 24' 4" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

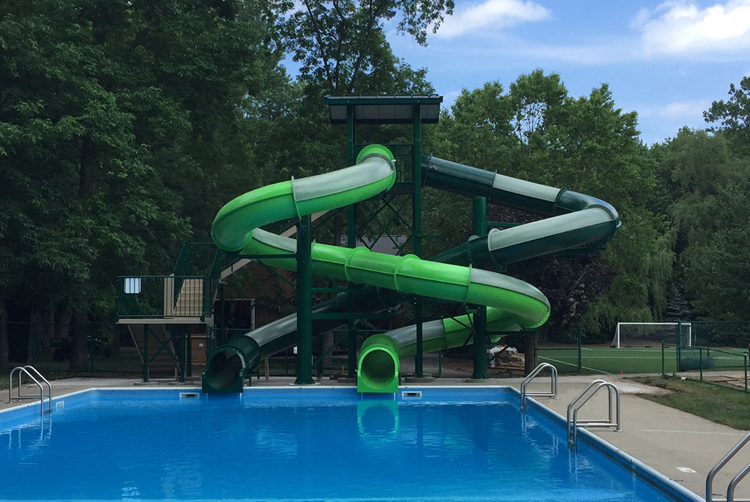

Double Closed Fiberglass Flume Water Slide Model 1649-32 Double Closed Fiberglass Flume Water Slide Model 1649-32

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

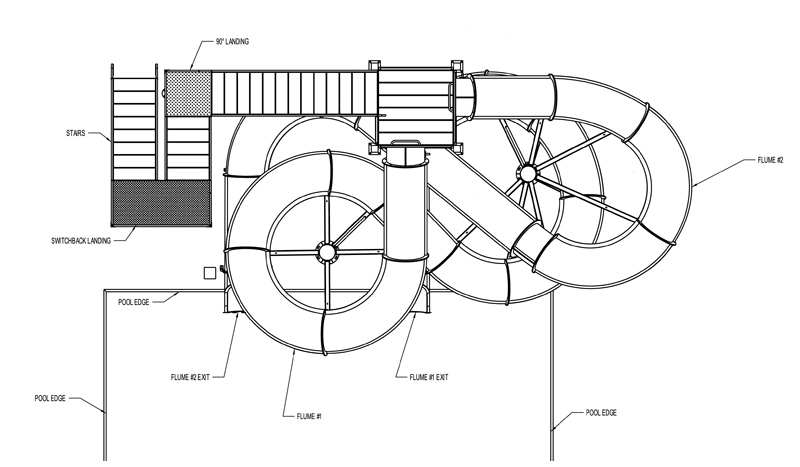

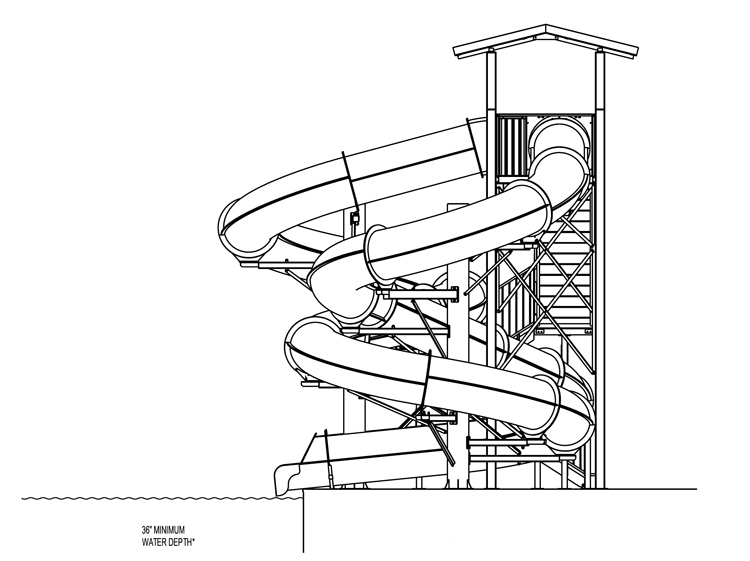

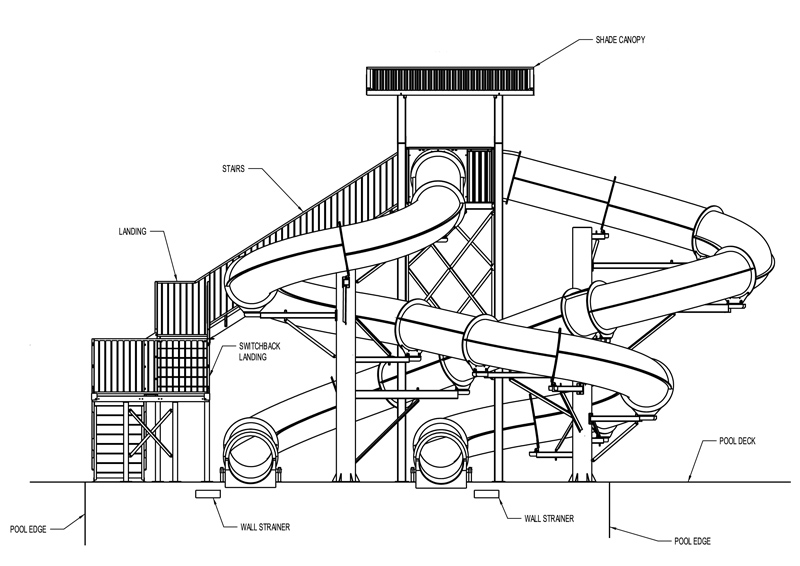

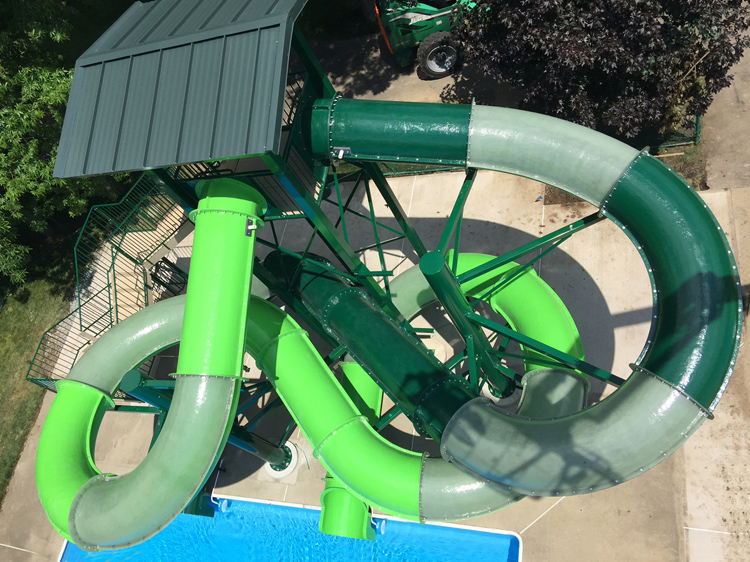

Double Closed Fiberglass Flume Water Slide Model 1649-32 Double Closed Fiberglass Flume Water Slide Model 1649-32 plan view Double Closed Fiberglass Flume Water Slide Model 1649-32 plan view Double Closed Fiberglass Flume Water Slide Model 1649-32 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

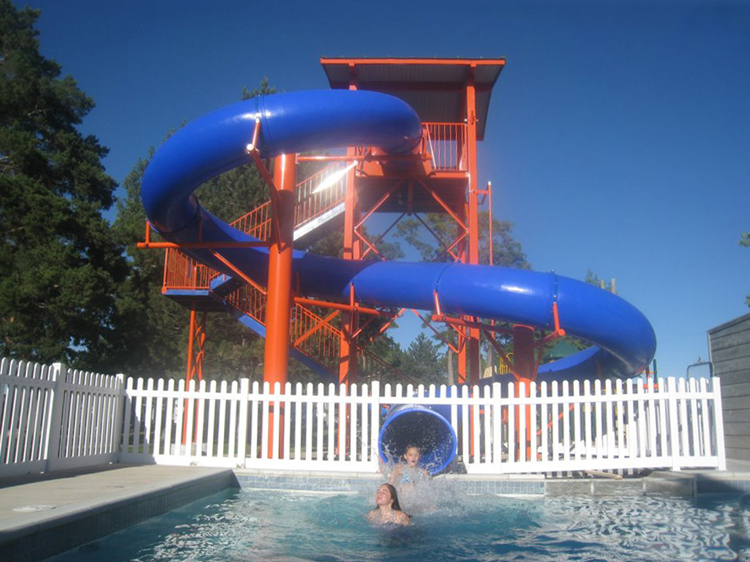

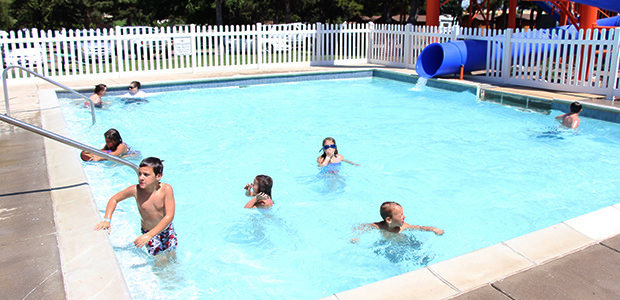

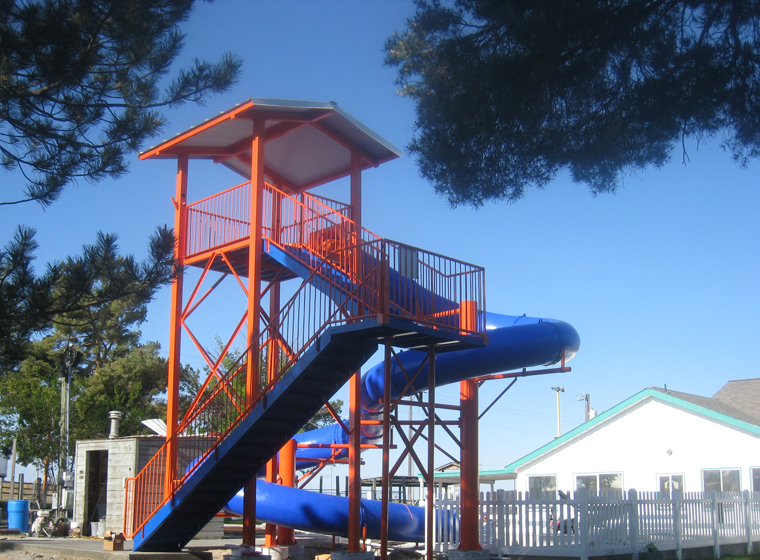

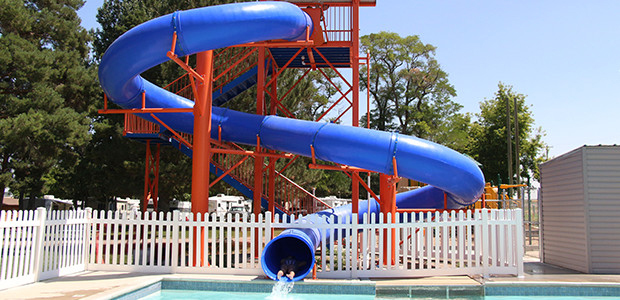

Water Slide Model 1685 Water Slide
Model 1685

Description : Single 30" I.D. flume water slide
in a figure 8.
Centerline Run : 93' 11"
Entry Height : 17' 6"
Platform Size : 8' x 8'
Space Requirements : 30' 8" x 24' 8" – Space requirements may vary with options chosen.

A favorite for those who love the excitement of the reverse curve.

  • 30" inside diameter polyethylene water slide flume
  • Water slide flume: color impregnated UV stabilized
  • 20 gpm water flow recommended; 20 to 40 gpm required
  • Splash down dimension 12' 6" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Water Slide Model 1685 Water Slide Model 1685 Water Slide Model 1685

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

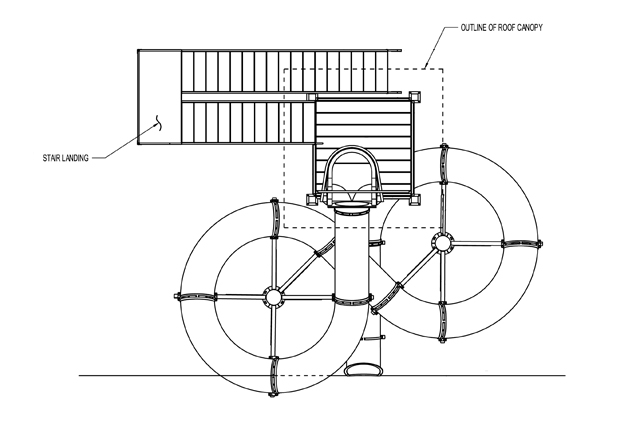

Water Slide Model 1685 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

USA flag   Manufactured with Pride in the U.S.A.

Related Links

Model List: Slides
Model List: Spray
Pool & Water Slide Reference Guide
Recent Aquatic Additions to Website

Color Charts
*Polyethelene Flume Colors
*Polyethelene Base Plate Escutcheon Cover Colors
*Fiberglass Flume Colors
*Aqua-Plast Colors
*Powder Coat Colors

*Requires Adobe Acrobat

Site Map

Water Slides:
Entry Height 17 feet

Now standard for all stairs:
  Closed risers
  Handrail vertical slats

Features:

  • 30" inside diameter polyethylene water slide flume
  • 32", 36", 42" and 54" inside diameter fiberglass water slide flume
  • Polyethylene Water Slide Flume: color impregnated UV stabilized
  • Fiberglass Water slide Flume: ultra violet stabilized gel coat
  • Body, speed, raft, drop & exit lane water slides
  • Single, double or triple flumes
  • Place in shallow or deep water
  • Water Depth: 3' minimum or deeper
  • 20-800 gpm water flow required
  • Platform: Aqua-Plast coated textured aluminum surface
  • Stairs: 7” rise, 11” tread, 36” wide; Aqua-Plast coated textured aluminum surface; closed risers.
  • Stainless steel base plates, hardware and anchor bolts
  • Low maintenance
  • Designed with flexibility to allow for sloping pool decks
  • Designs for your unique application and budget requirements.
  • Over 70 standard models available
  • Increase pool attendance
  • Variety of colors available
  • USA made

Options:

  • Deluxe Series: Stainless steel polyester powder coated except tower and flume posts which are mild steel with chemical resistant Aqua-Kote undercoating and polyester powder coat topcoat.
    Note: Platform and stair treads are textured Aqua-Plast coated aluminum
  • North Star Series: Mild steel with chemical resistant Aqua-Kote undercoating and polyester powder coat topcoat.
    Note: Platform and stair treads are textured Aqua-Plast coated aluminum.
  • Hot dipped galvanized available
  • Stairs: (a) 48” width; (b) Inner handrails (if applicable); (c) Spiral stairs
  • Stair Configurations: Many variations available
  • Narrow Deck Configurations
  • Gates: Locking gate to flume entrance.
  • Flag and banner holders.
  • Tower Roof: (a) Steel; (b) Wood; (c) Fabric; (d) Tongue & groove decking with the wood or steel roofs.
  • Water pumps & covers
  • Perimeter Fencing
  • Factory installation or on-site technical assistance.
