Natural Structures: Water Slides: Entry Height under 10 feet

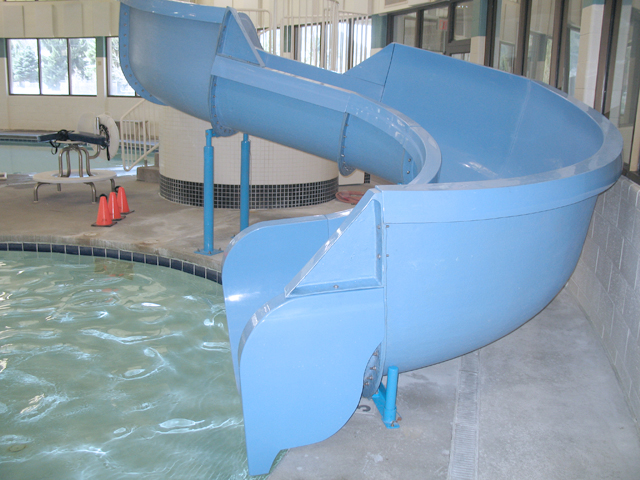

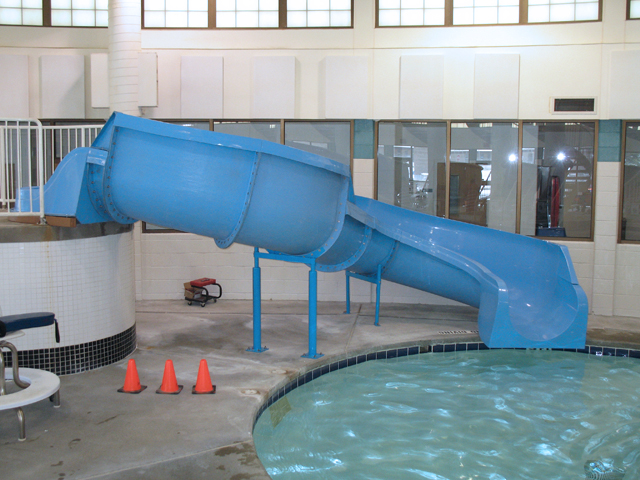

Fiberglass Water Slide
Model: 1917

Description : Single open flume fiberglass water slide.
Centerline Run : 28' 2"
Entry Height : 5' 3"
Platform Size: Platform and stairs done by others
Space Requirements : 16' 0 " x 16' 0" – Space requirements may vary with options chosen.

36" inside diameter fiberglass water slide flume
500-700 gpm water flow required
Splash down dimension: 13' x 20'
Minimum water depth: 3'
Designed with flexibility to allow for sloping pool decks

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

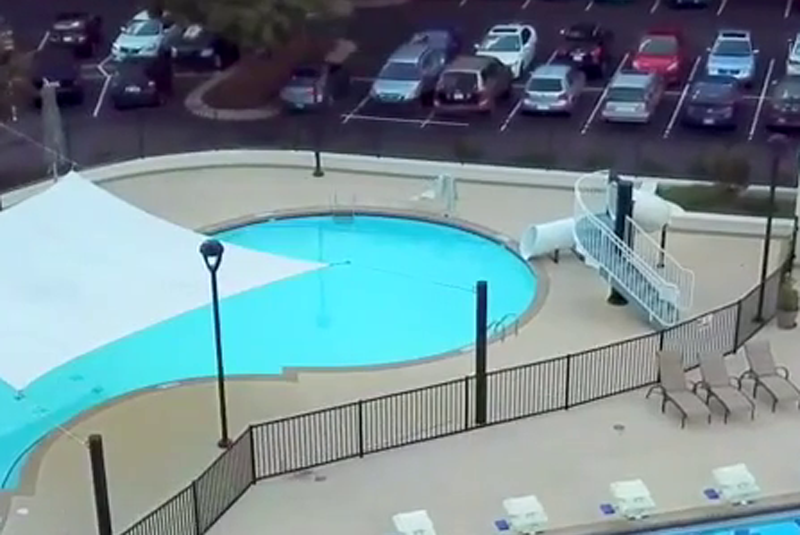

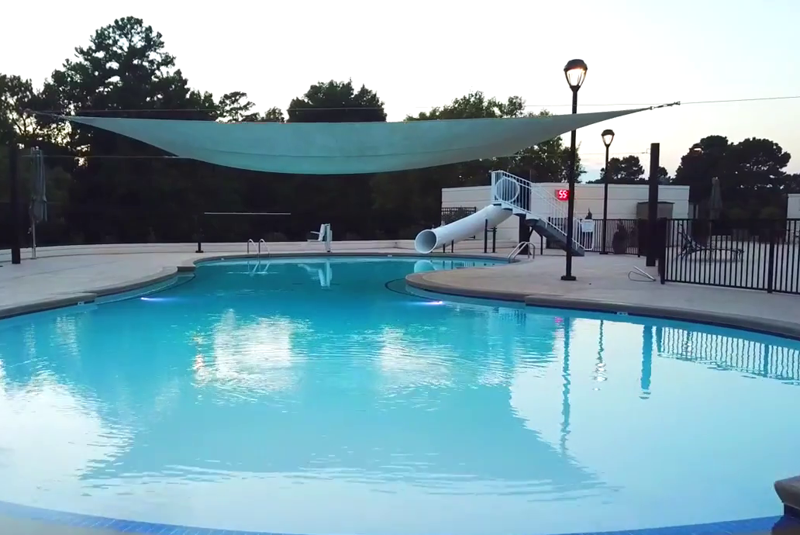

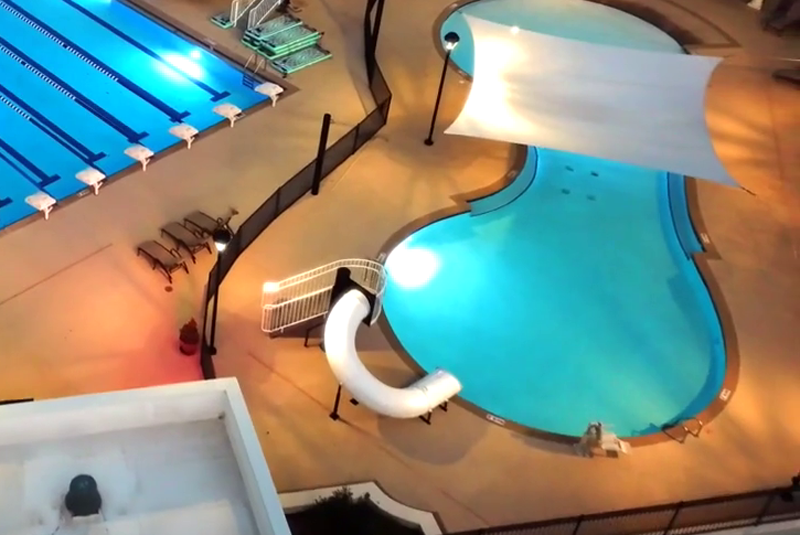

Water Slide
Model 1676

Description : Single 30" I.D. flume water slide with a 180° turn.
Centerline Run : 19’ 1”
Entry Height : 6' 0"
Platform : Integrated landing
Space Requirements : 19’ 3" x 10' 9" – Space requirements may vary with options chosen.

30" Inside diameter polyethylene water slide flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required.
Splash down dimension: 12' 6" x 20' 0"
Minimum water depth: 3'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

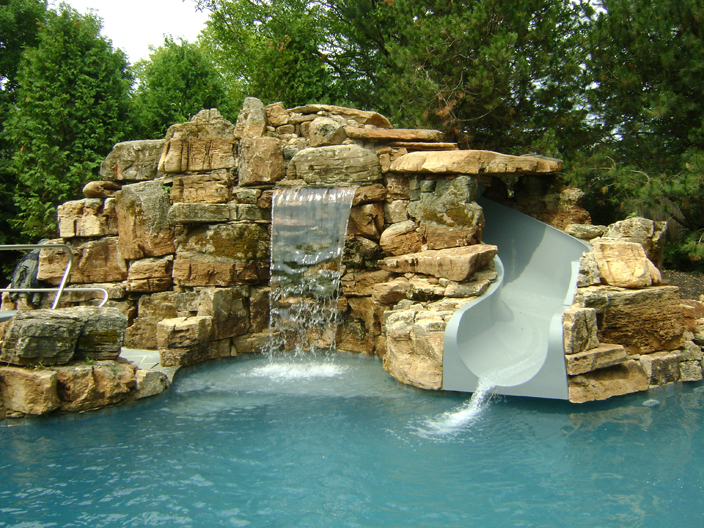

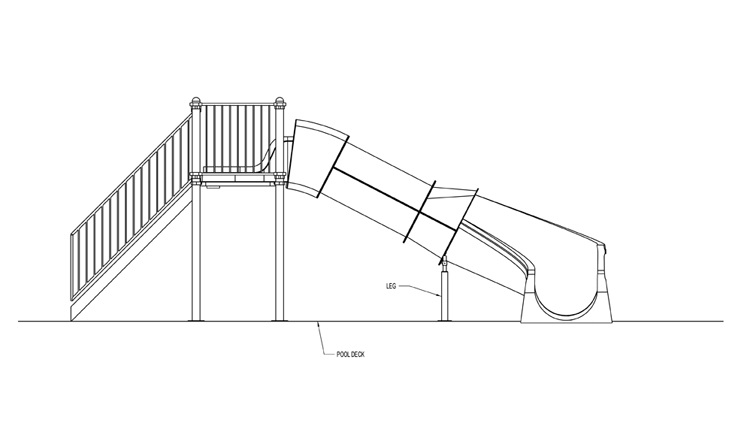

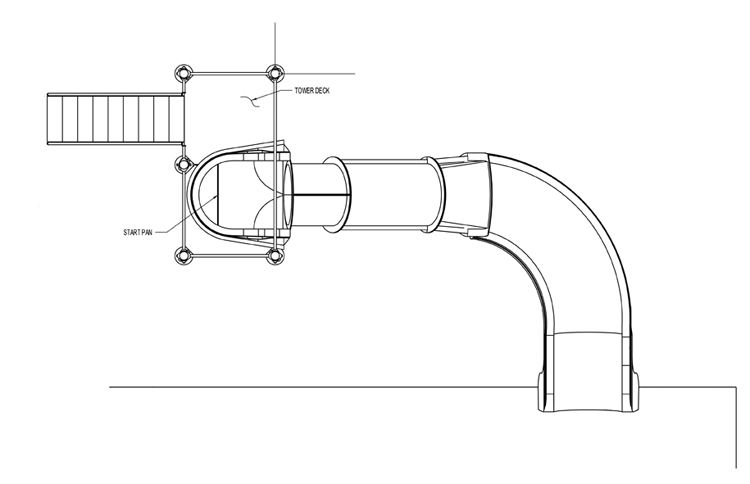

Closed & Open Flume Fiberglass Slide
Model 2200

Description: Single 32" I.D. closed flume & 36" I.D. open flume fiberglass water slide.
Centerline Run: 25' 1"
Entry Height: 6' 8"
Platform Size: 4' x 8'
Space Requirements: 25' 7-1/4" x 13' 9-3/16" – Space requirements may vary with options chosen.

32" inside diameter closed flume fiberglass
36" inside diameter open flume fiberglass
Stairs: 8" rise, 8" tread, 24" wide;
Aqua-Plast coated textured aluminum surface.
20-40 gpm water flow required
Splash down dimension: 12' 8" x 20' 0"
Minimum water depth: 3'

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

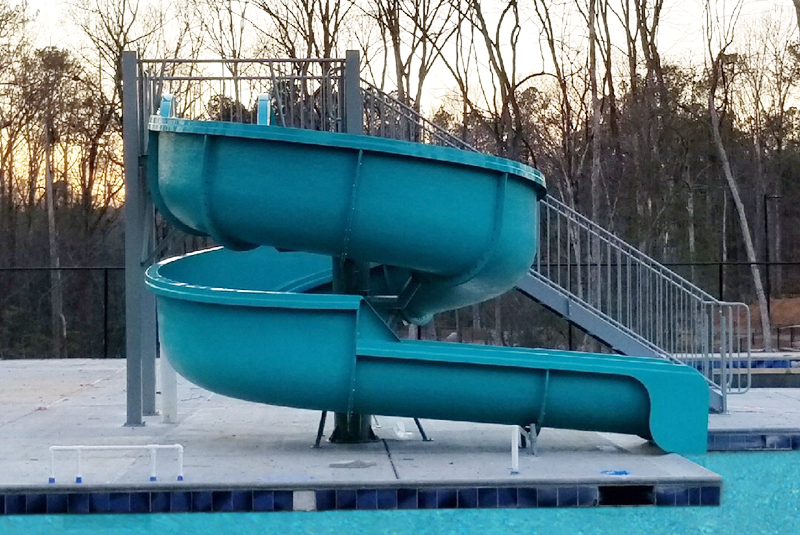

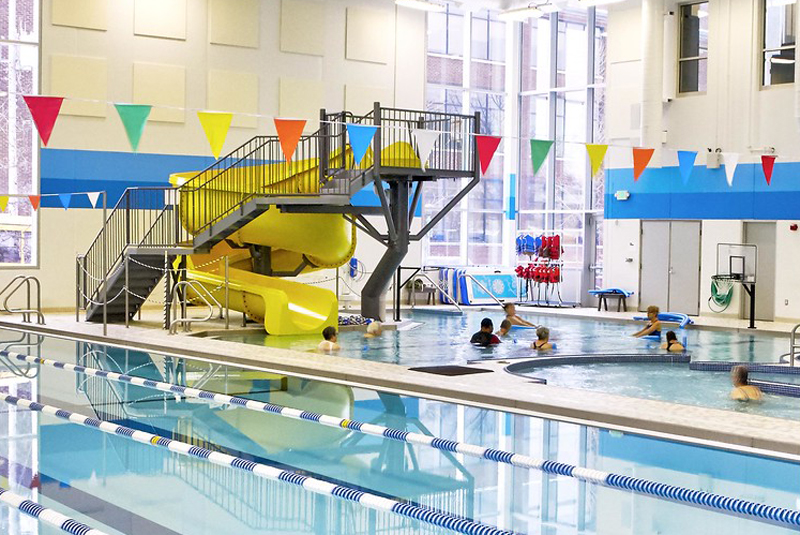

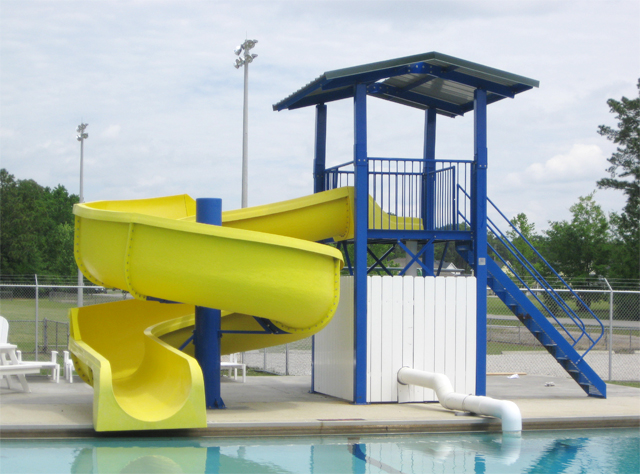

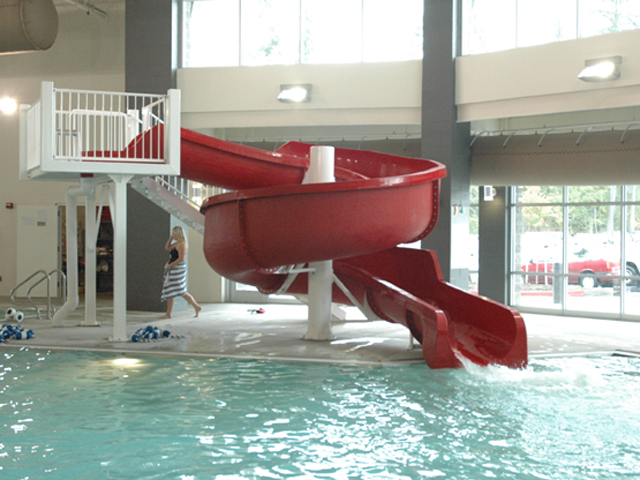

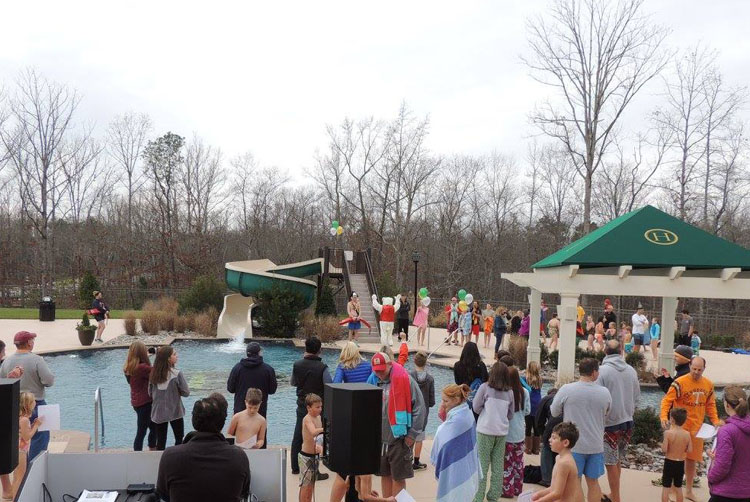

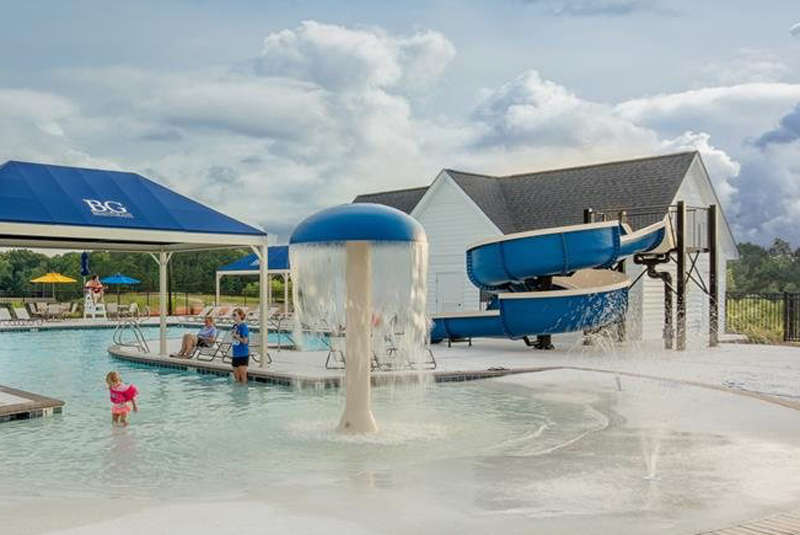

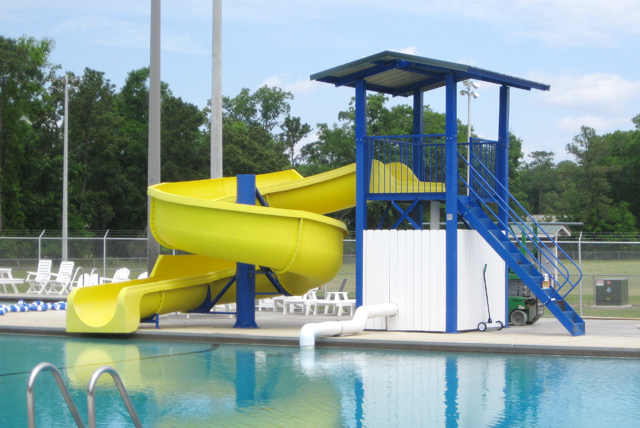

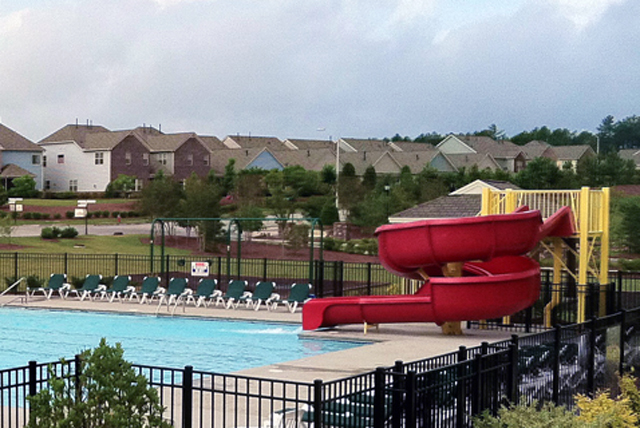

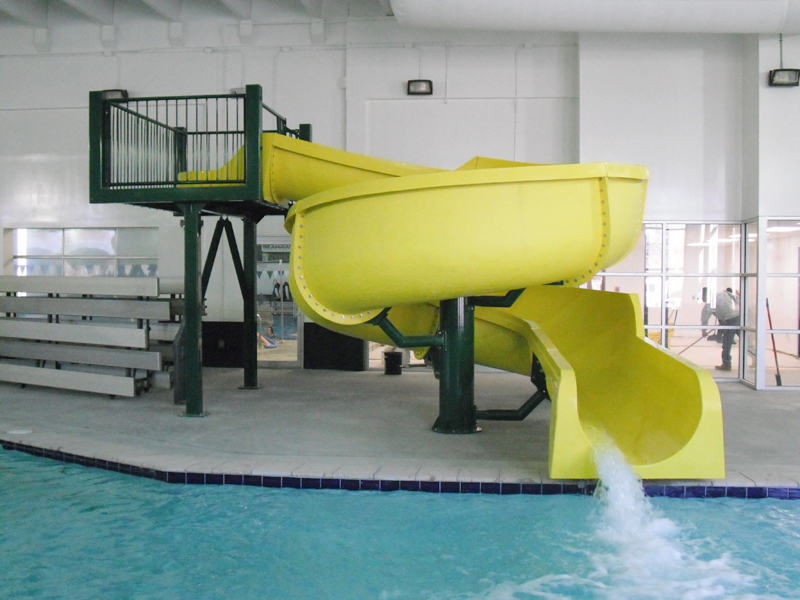

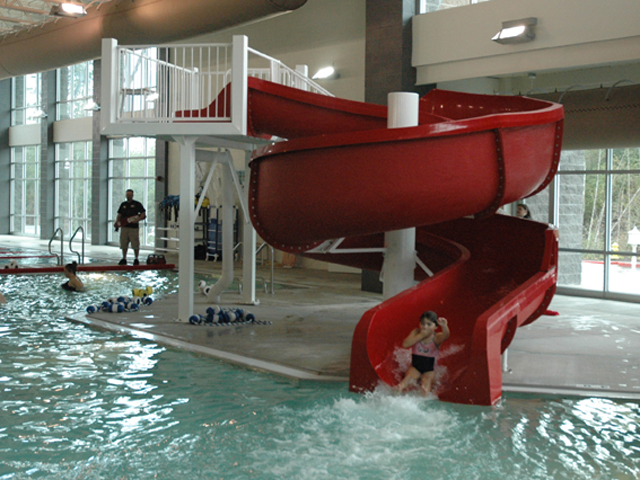

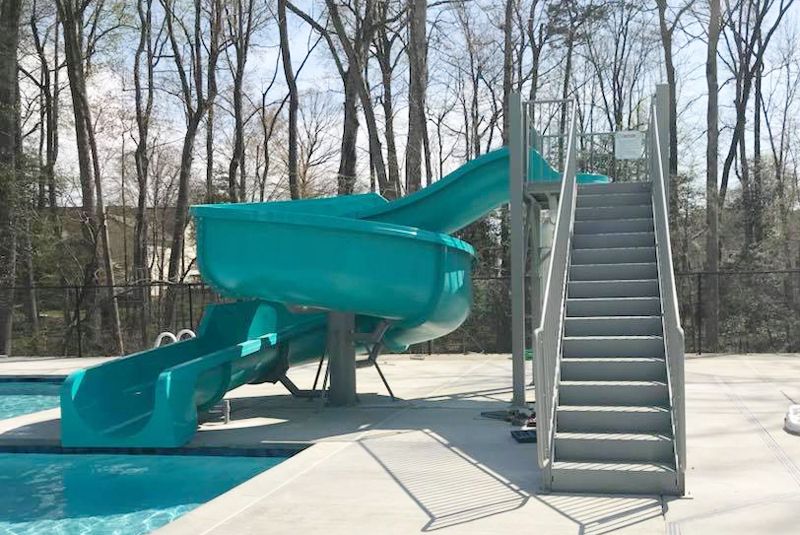

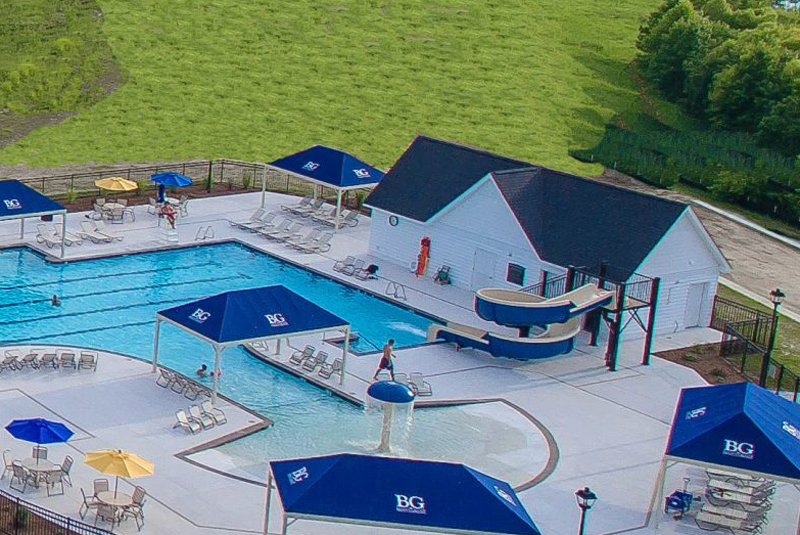

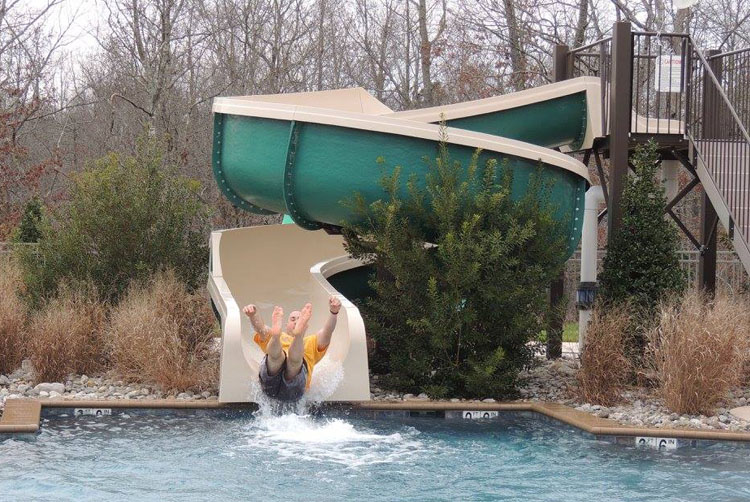

Fiberglass Water Slide
Model: 1815

Description : Single open flume fiberglass water slide with 1¼ spiral.
Centerline Run : 55' 3"
Entry Height : 8' 2 "
Platform Size : 6' x 10'
Space Requirements : 21' 2 " x 19' 4" – Space requirements may vary with options chosen.

Options Shown: 2 Post Tower

36" inside diameter fiberglass water slide flume
500-700 gpm water flow required
Splash down dimension: 13' x 20'
Minimum water depth: 3'
Designed with flexibility to allow for sloping pool decks

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

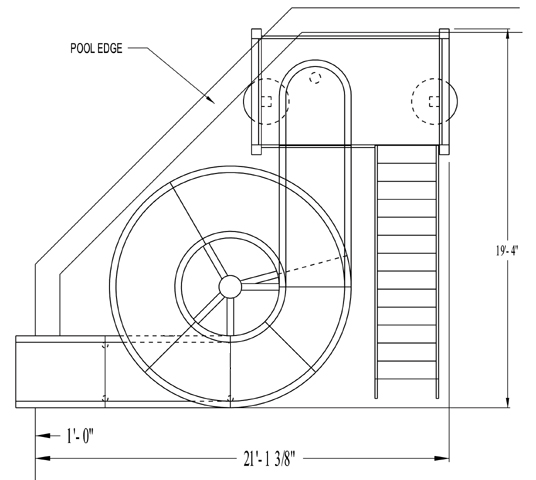

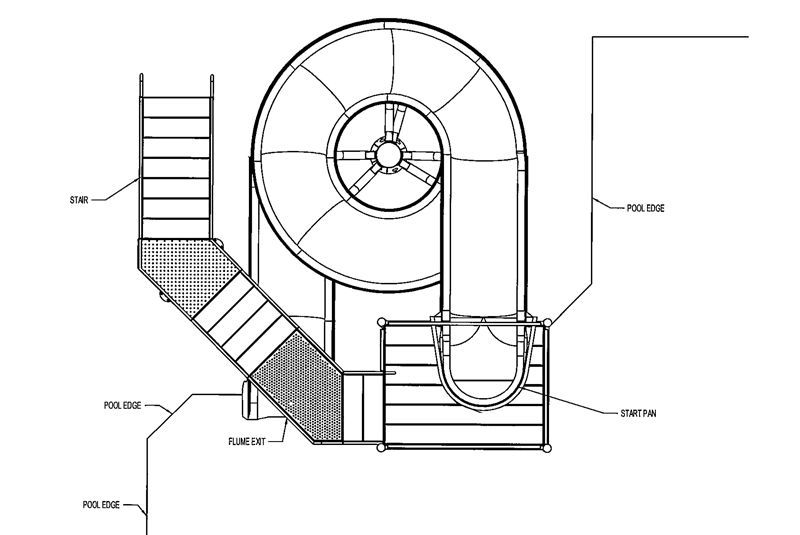

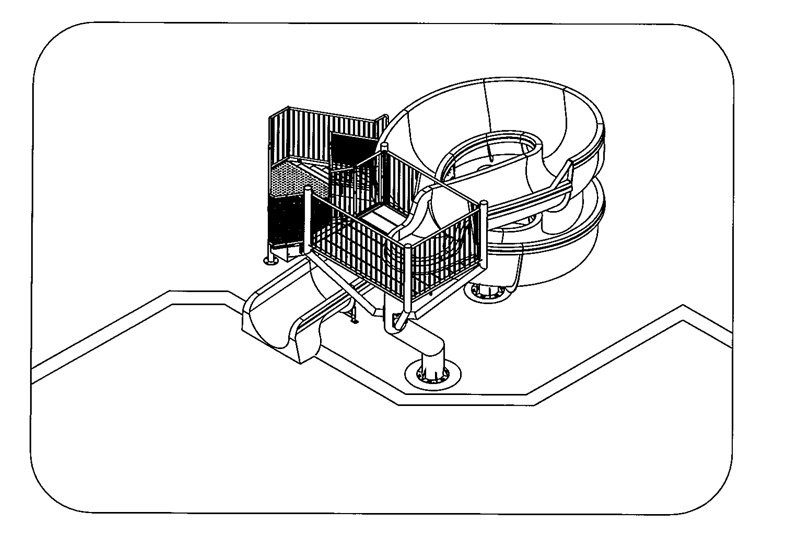

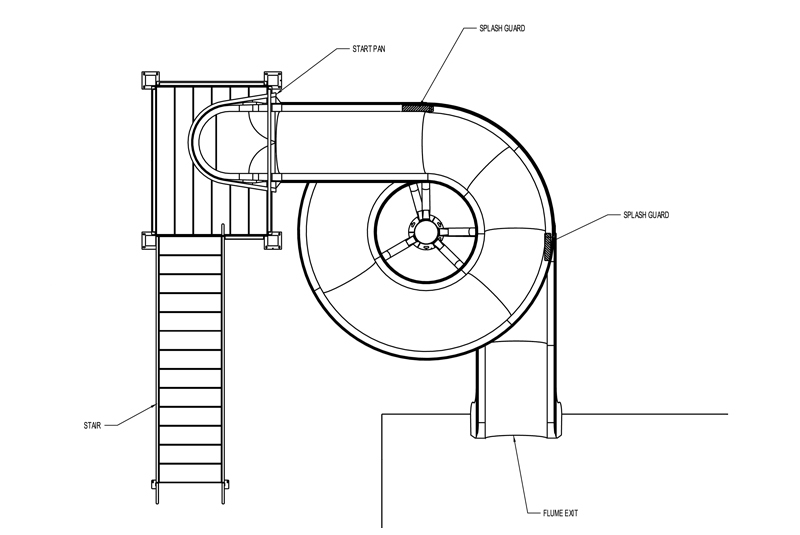

Fiberglass Water Slide Model 1815 plan view

Download Spec Sheet
Requires Adobe Acrobat

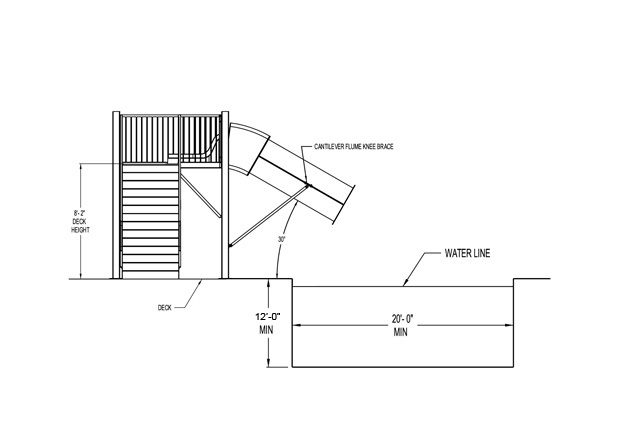

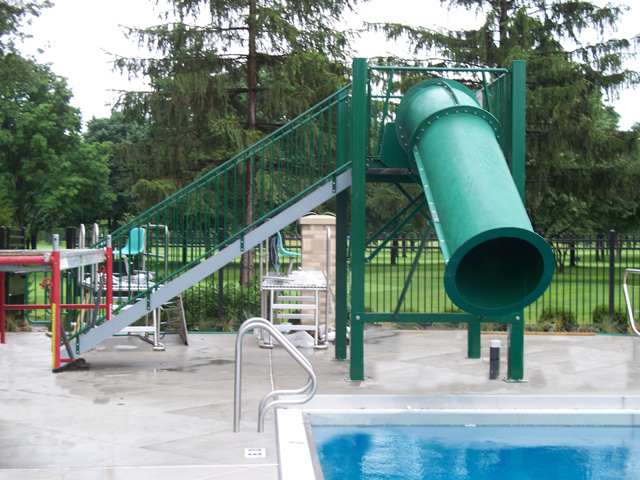

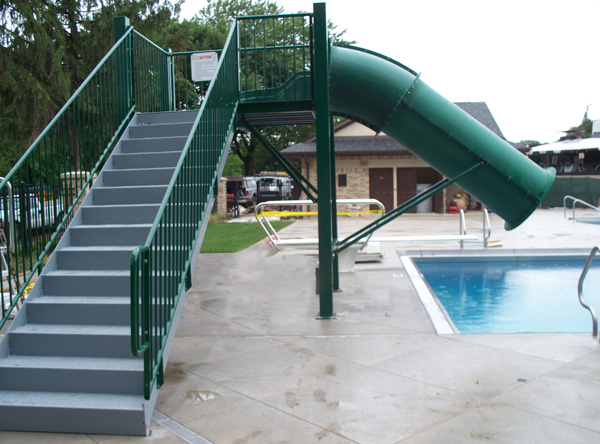

Closed Flume Fiberglass Plunge Water Slide
Model: 5020

Description : Single 32" I.D. closed flume fiberglass plunge slide.
Centerline Run: 12' 10"
Entry Height: 8' 2"
Platform Size: 6' x 8'
Space Requirements: 19' 0" x 13' 0" - Vary with options chosen.

32" inside diameter fiberglass water slide flume
20-40 gpm water flow required
Splash down dimension: 13' x 20'
Minimum water depth: 12'
Deep end required

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

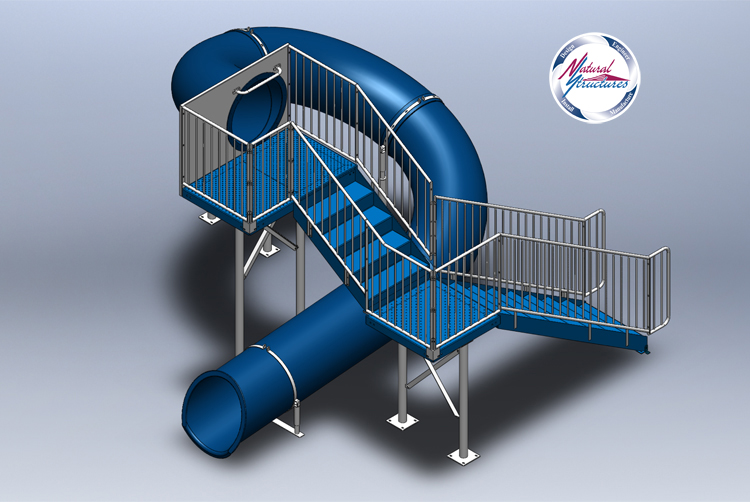

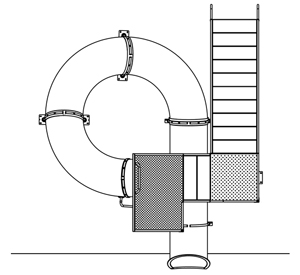

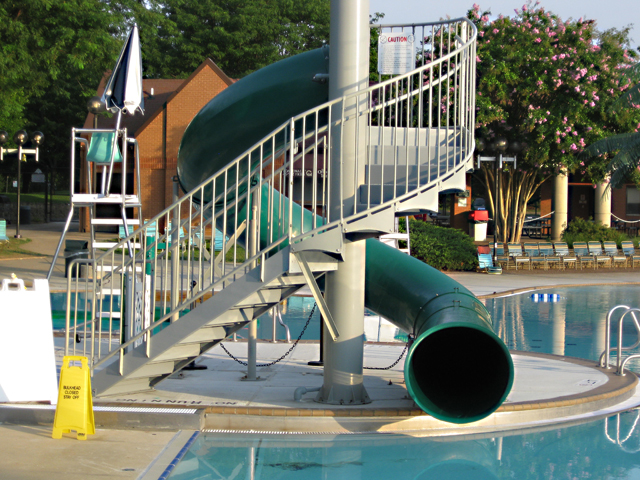

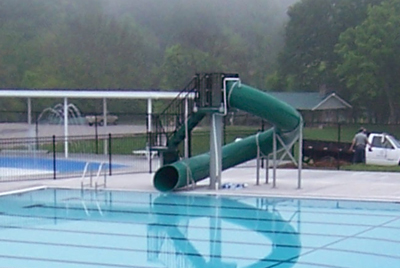

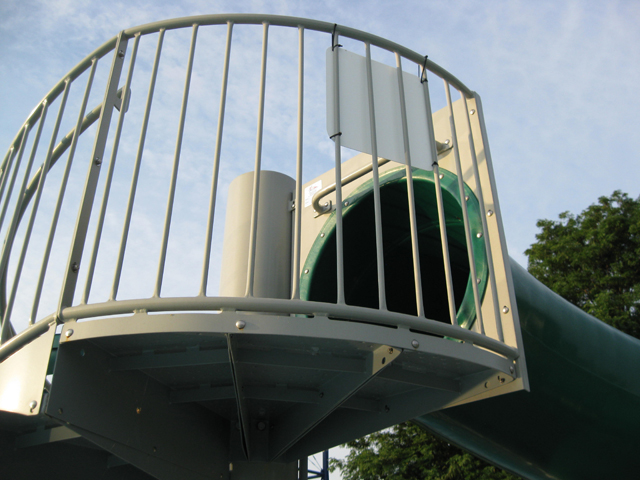

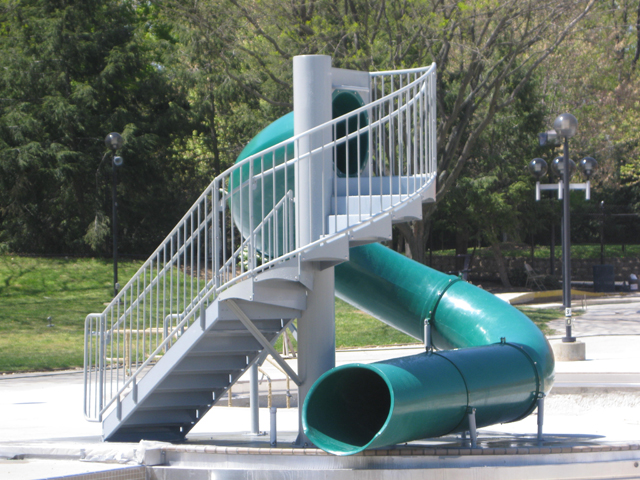

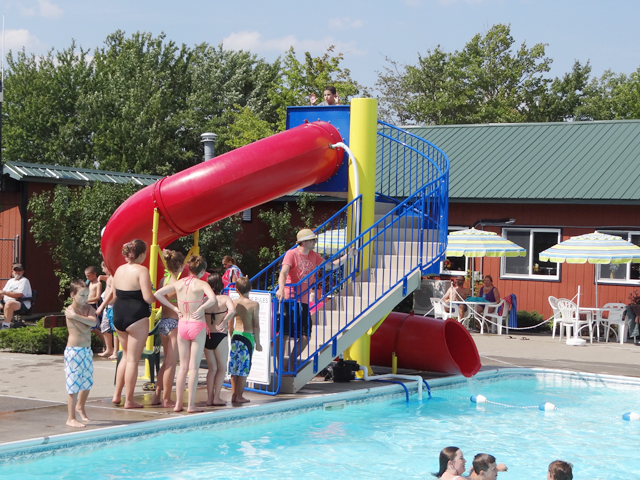

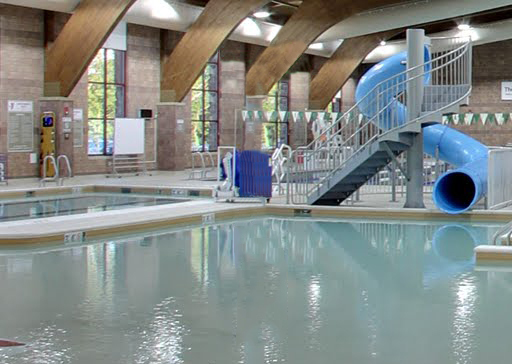

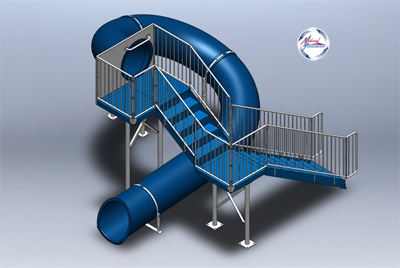

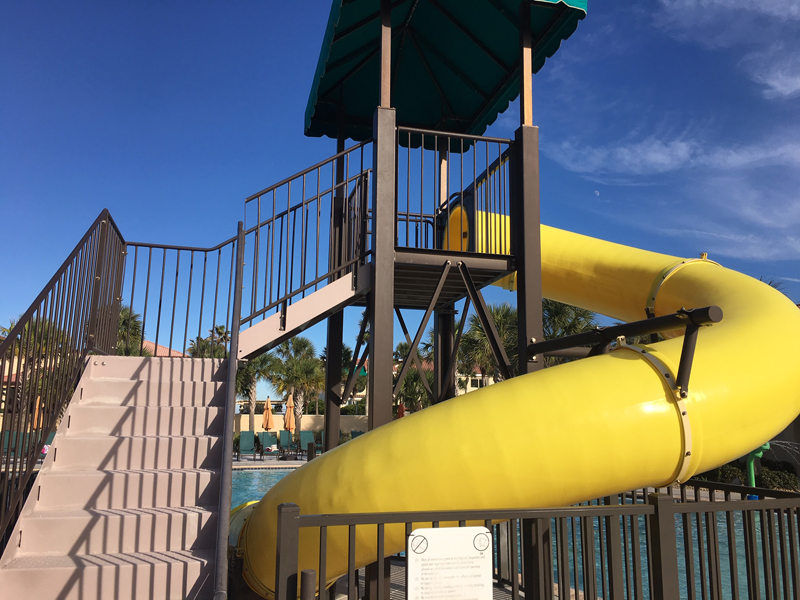

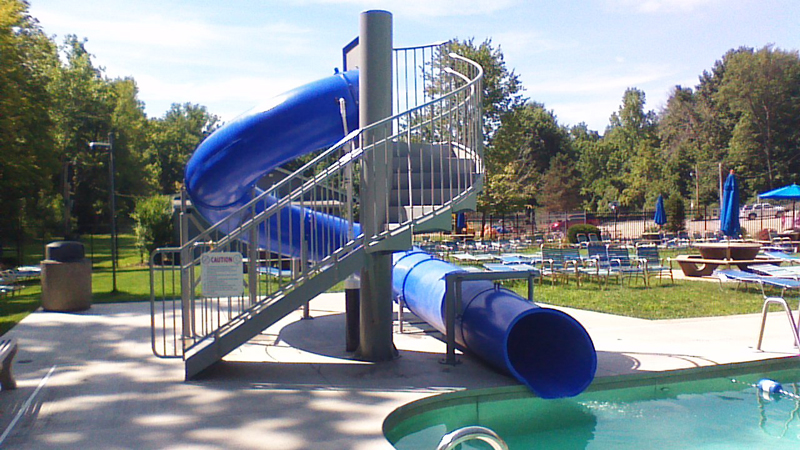

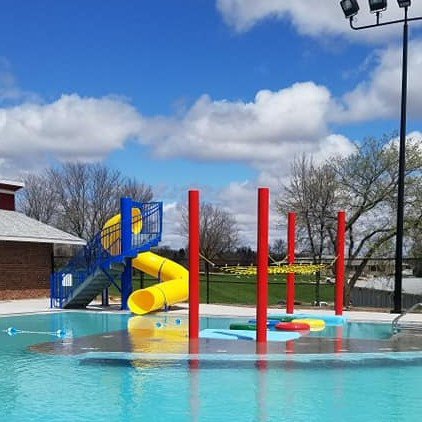

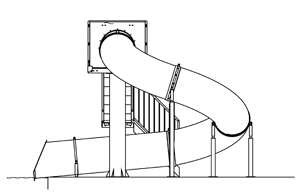

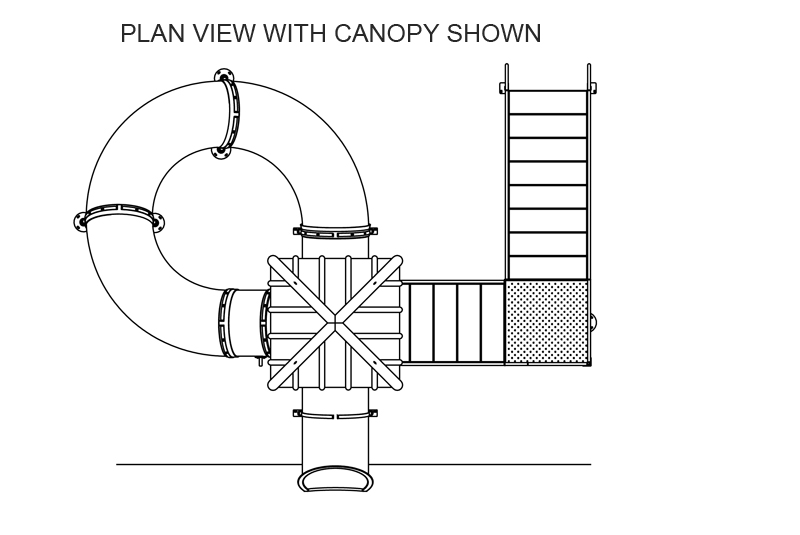

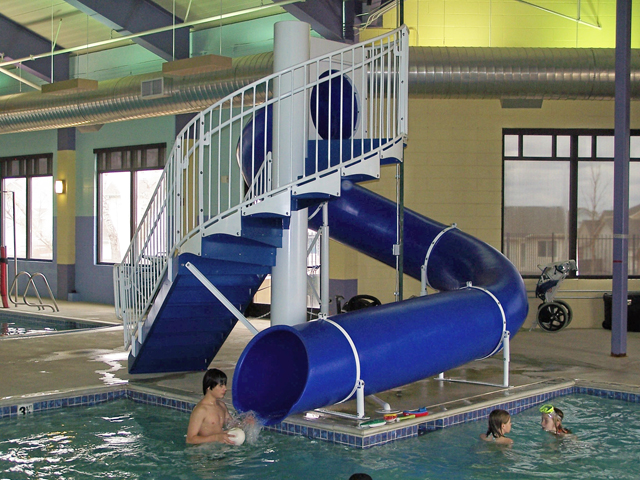

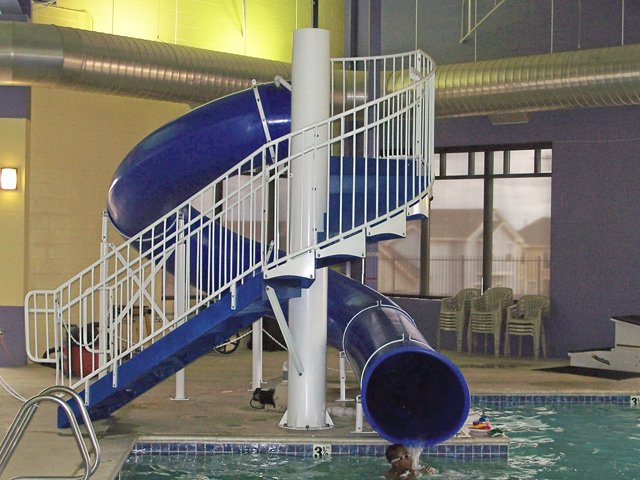

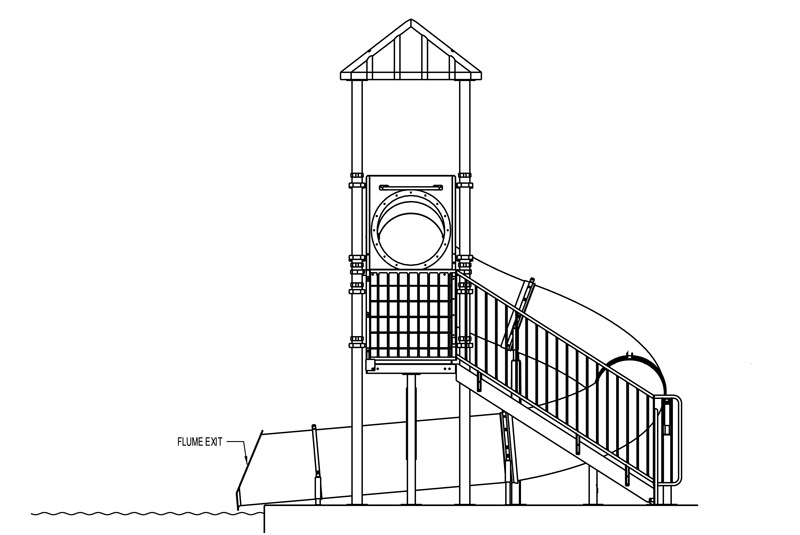

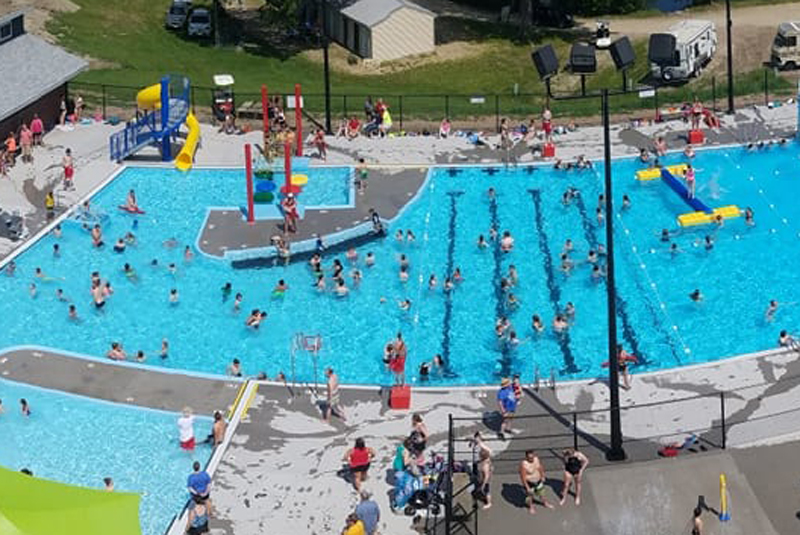

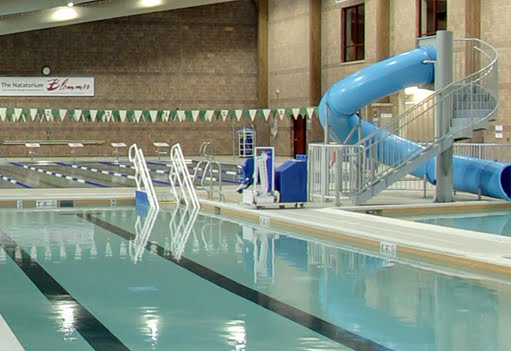

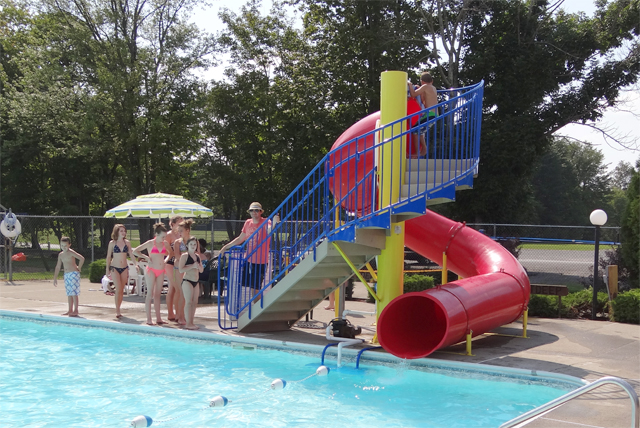

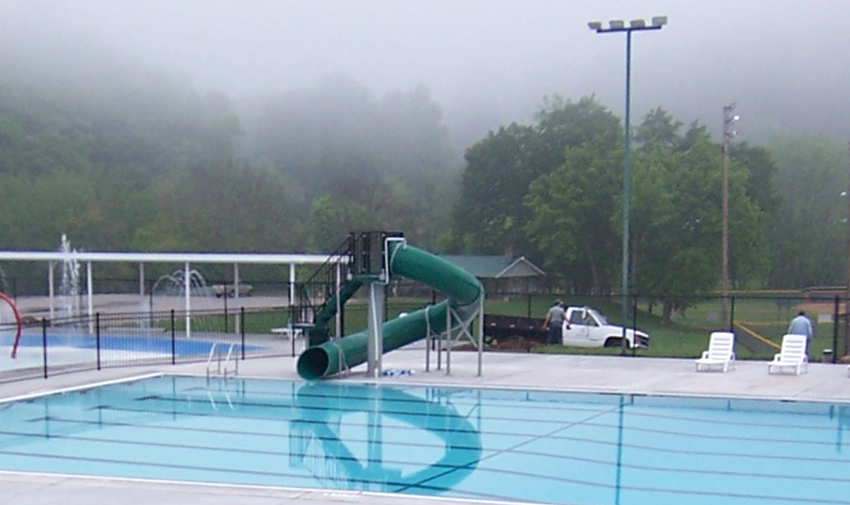

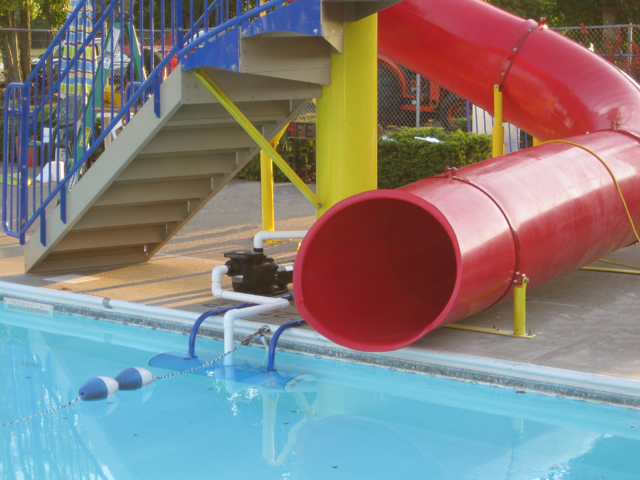

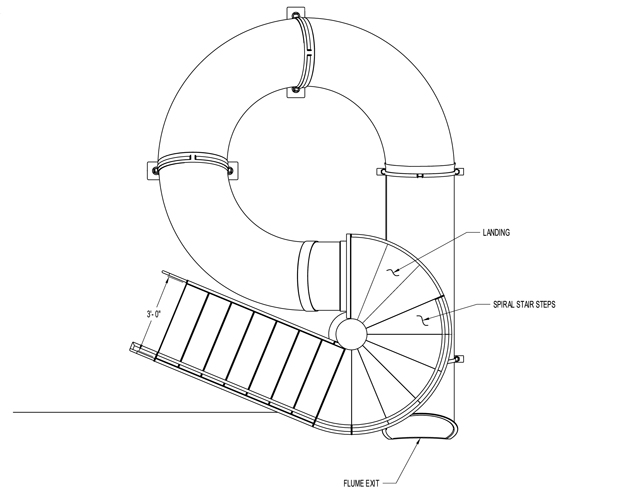

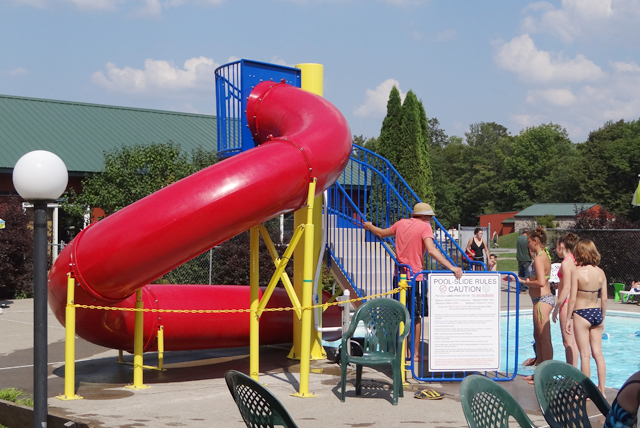

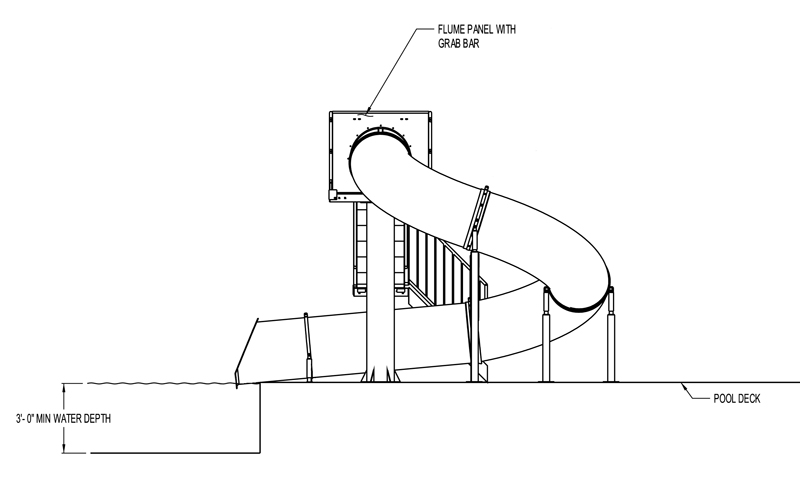

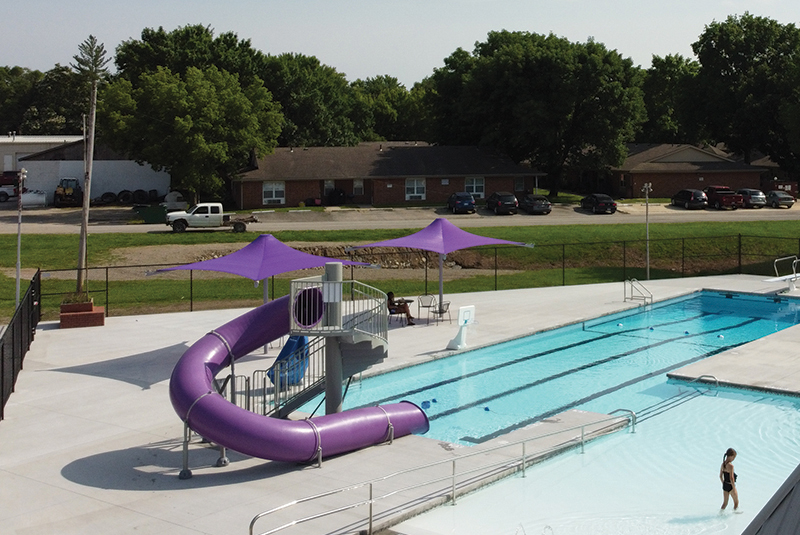

Water Slide
Model 1663

Description : Single 30" I.D. flume water slide
with a 270° turn.
Centerline Run : 31’ 7-7/16”
Entry Height : 8' 4"
Platform : Integrated Landing
Space Requirements : 13’ 8" x 15' 2" – Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20' 0"
Minimum water depth: 3' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

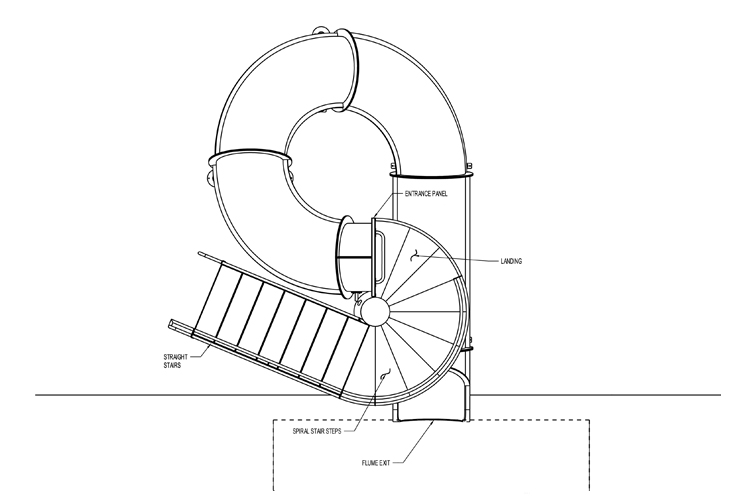

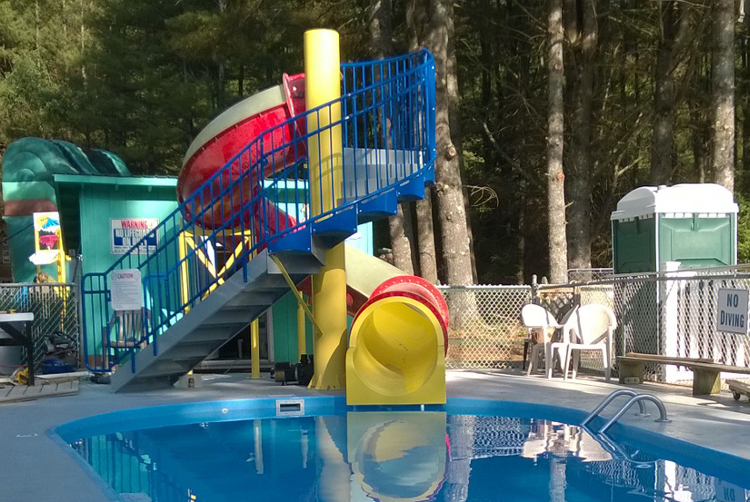

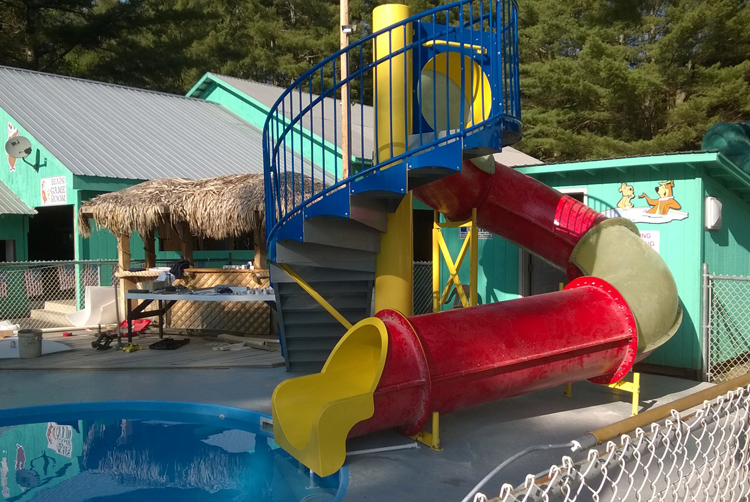

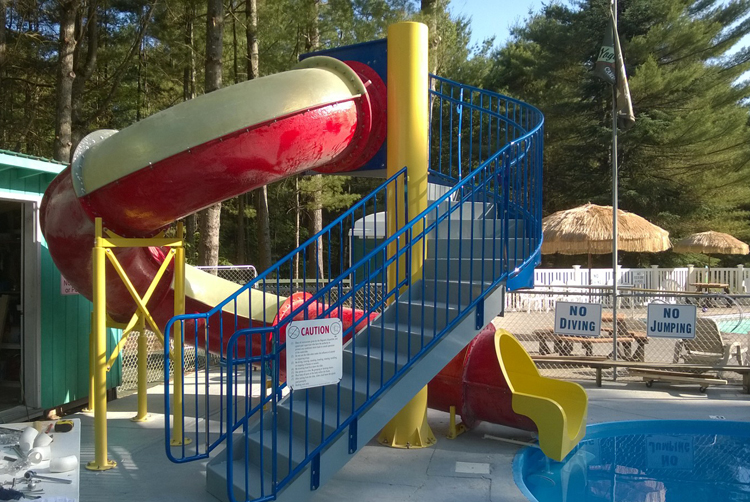

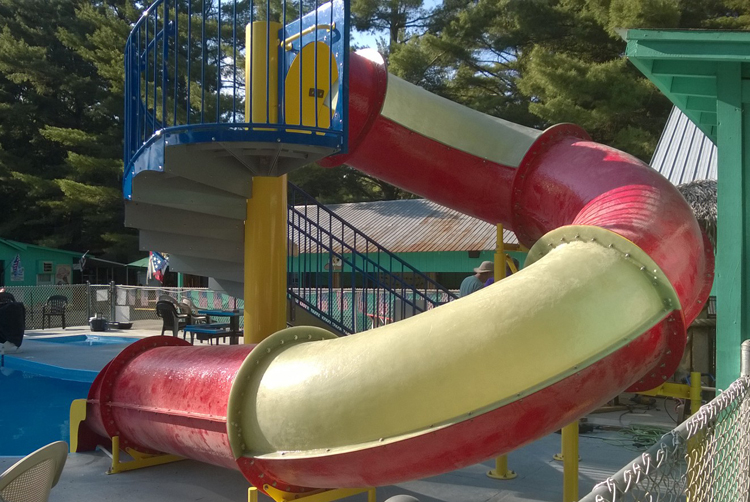

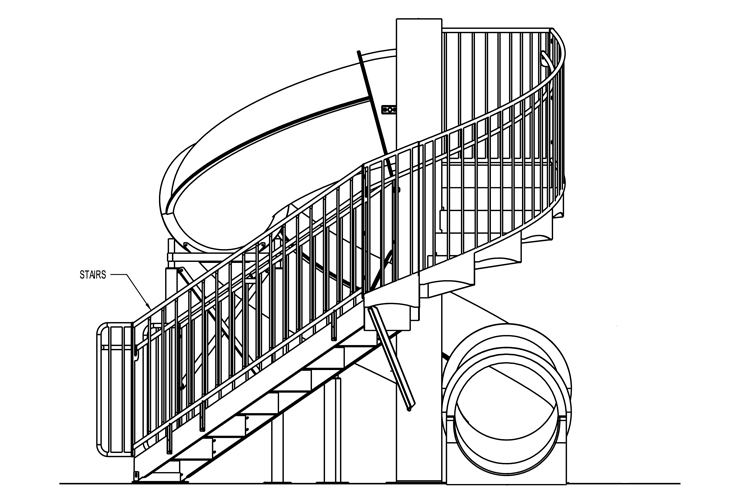

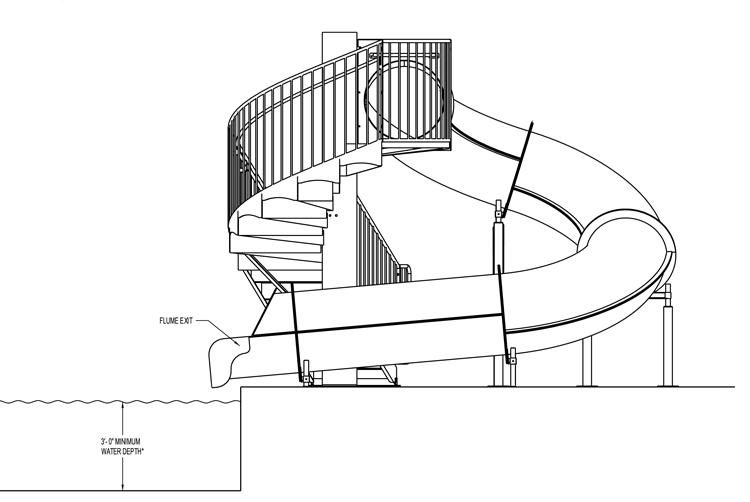

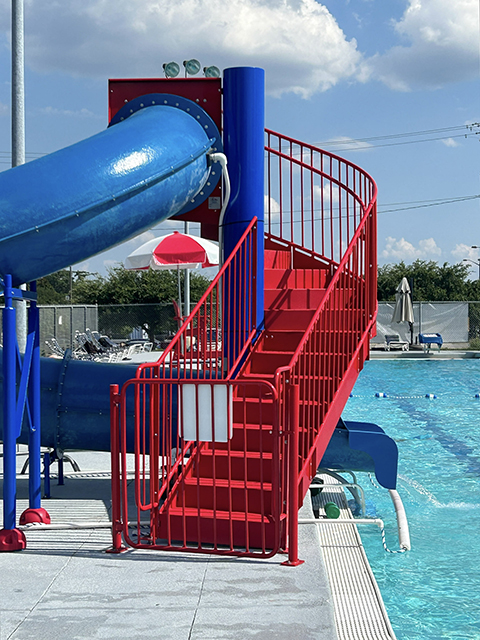

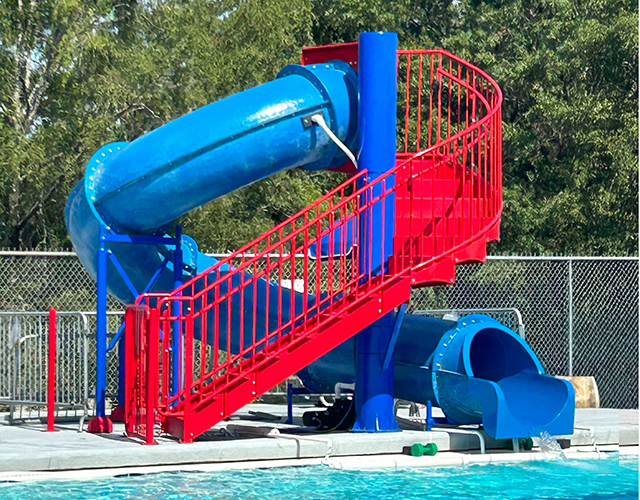

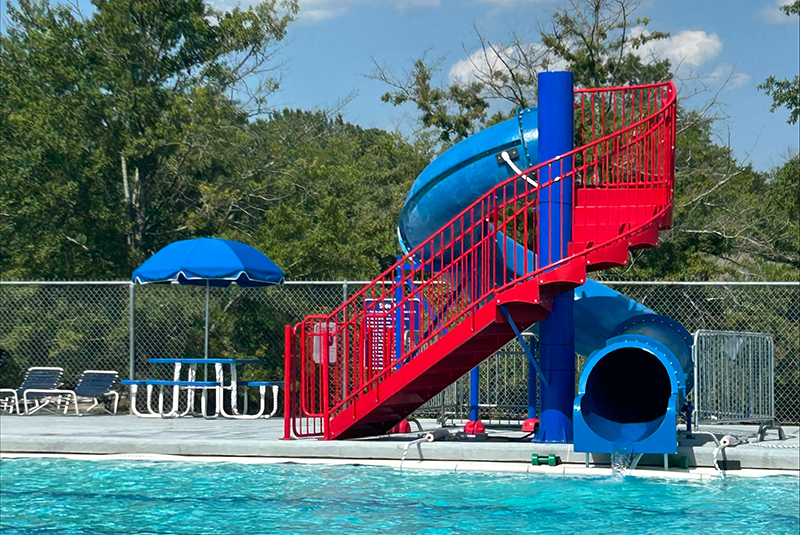

Closed Fiberglass Flume Water Slide
Model 1663-32

Description : 32" I.D. closed fiberglass flume water slide
with a 270° turn.
Centerline Run : 30’ 1”
Entry Height : 8' 4"
Platform : Integrated Landing
Space Requirements : 12’ 3" x 14' 10" – Space requirements may vary with options chosen.

32” inside diameter closed fiberglass flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 8" x 20' 0"
Minimum water depth: 3' 0"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

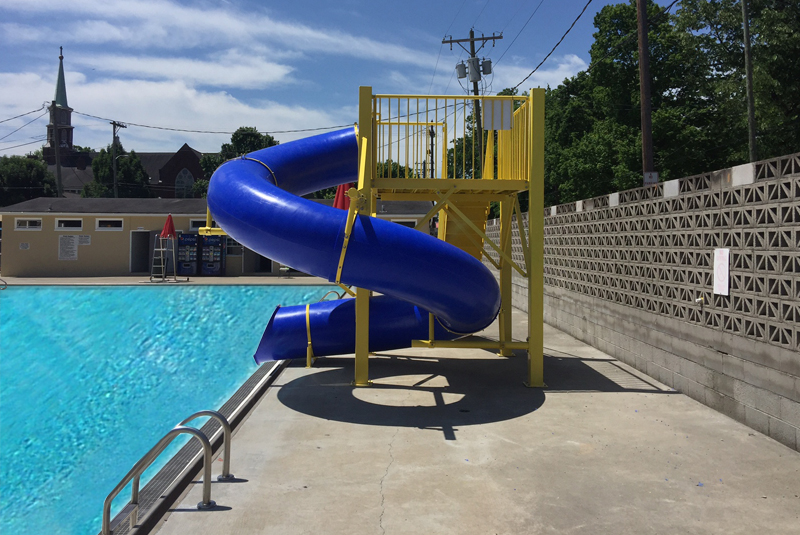

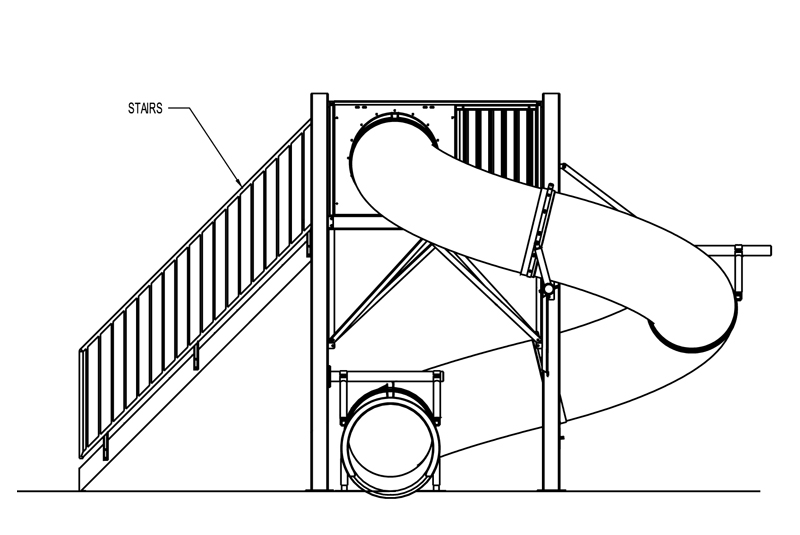

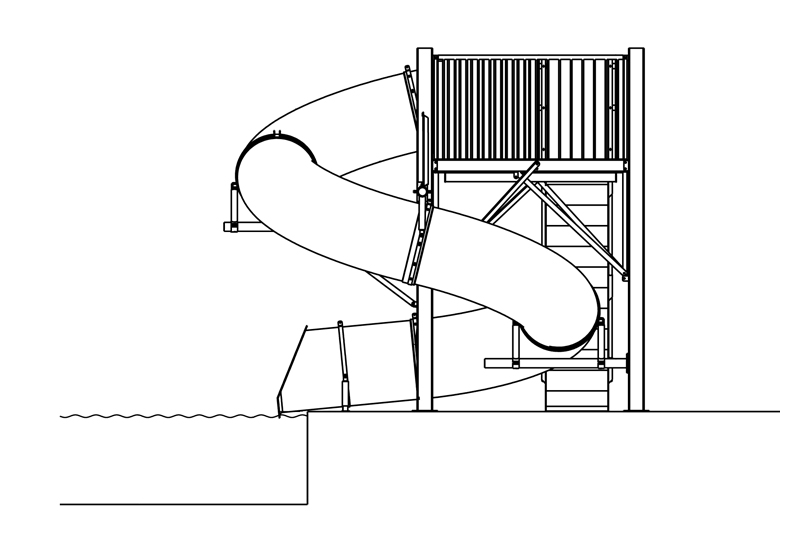

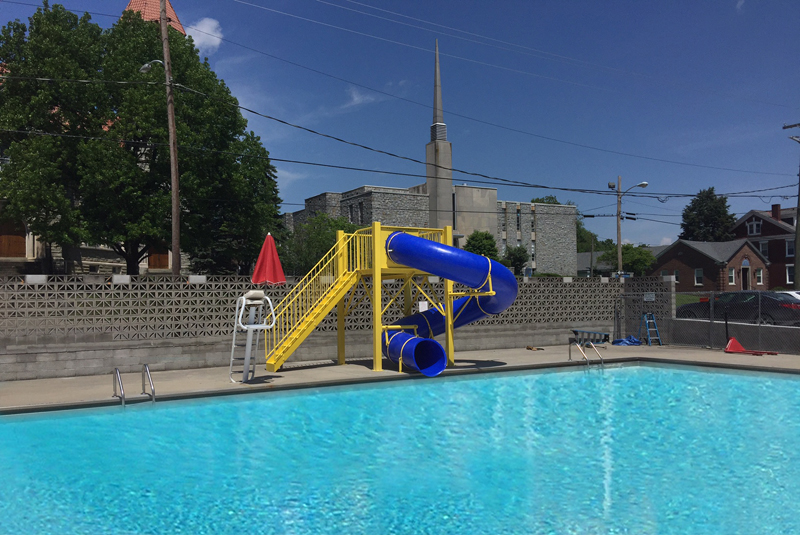

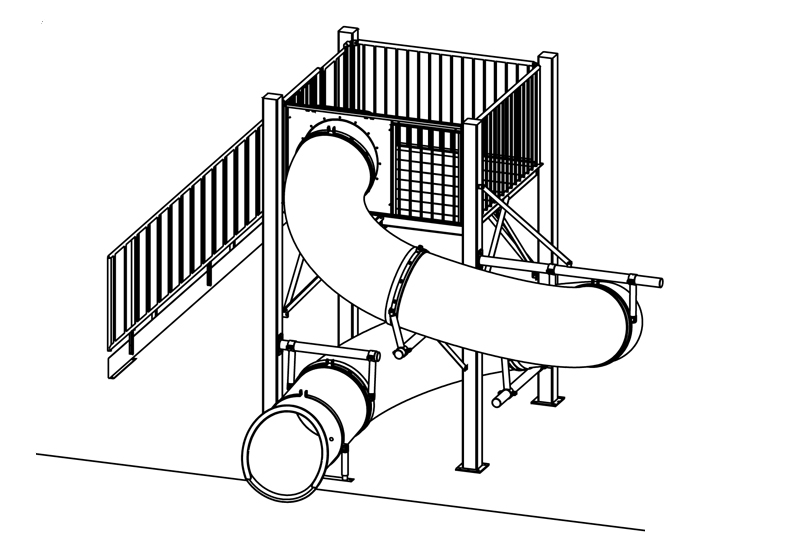

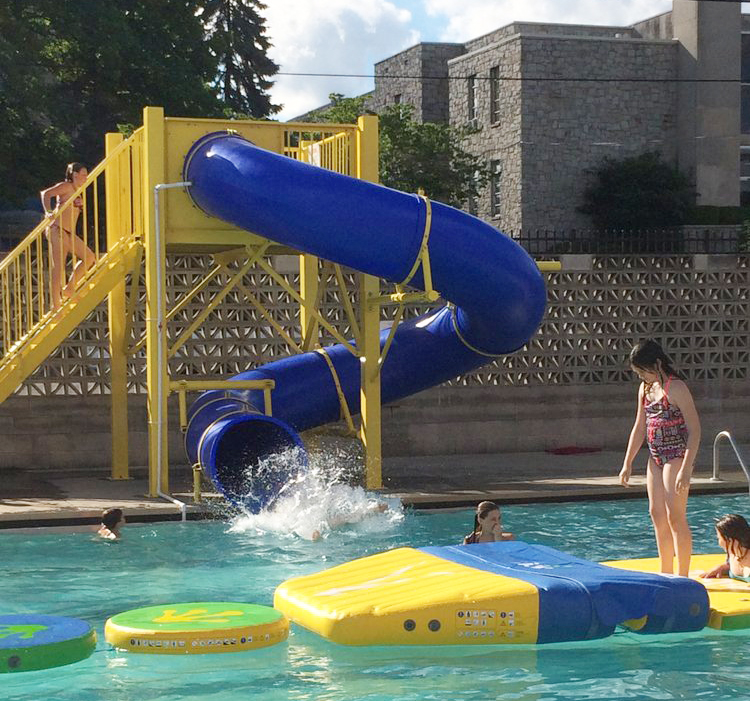

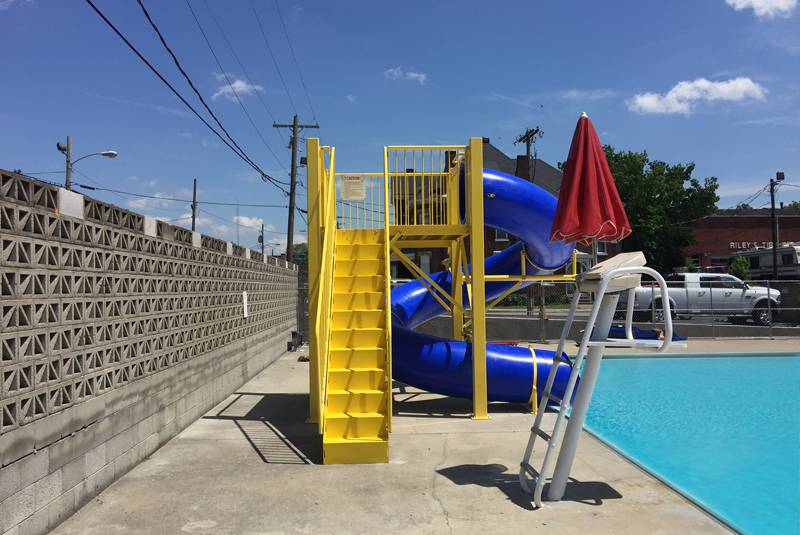

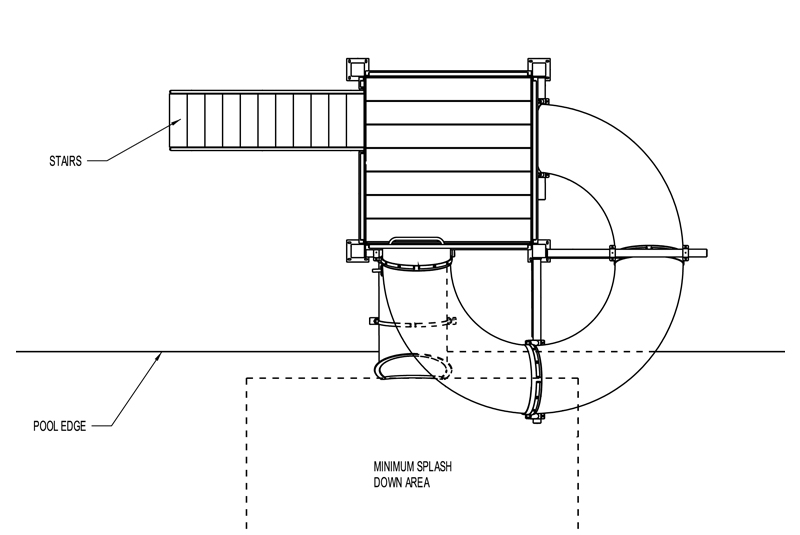

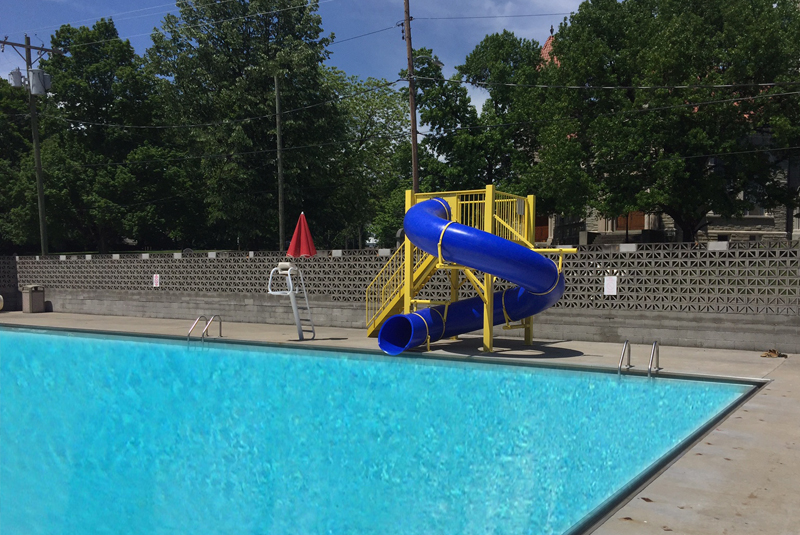

Water Slide
Model 1656

Description:Single 30” I.D. flume slide with one 360° turn.
Centerline Run: 33’ 9”
Entry Height: 8' 6"
Platform: 8" x 8"
Space Requirements: 20’3" x 11' 1" – Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flume
Deck top mounted
20 to 40 gpm required
Splash down dimension 12' 6" x 20' 0"
Minimum water depth: 3' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Closed Fiberglass Flume Water Slide
Model 1677-32

Description: Single 32" I.D. closed fiberglass flume water slide
with a 270° turn.
Centerline Run: 29’ 1”
Entry Height: 8' 6"
Platform: 4" x 4"
Space Requirements: 18’10" x 14' 2" – Space requirements may vary with options chosen.

32” inside diameter closed fiberglass flume
20 to 40 gpm required
Splash down dimension 12' 8" x 20' 0"
Minimum water depth: 3' 0"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

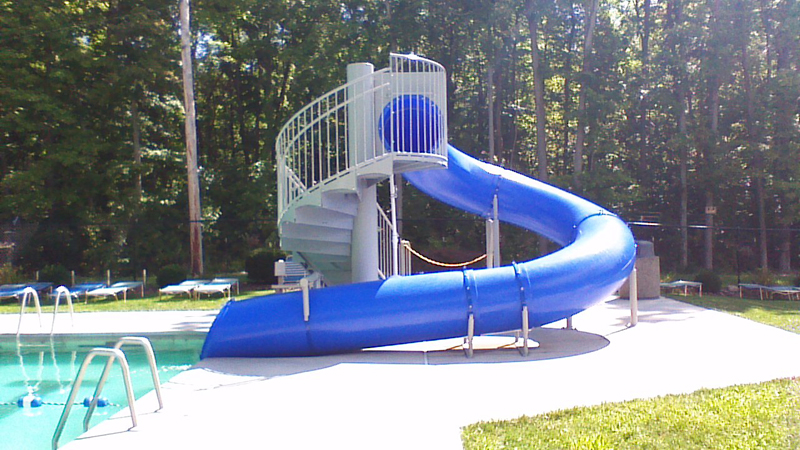

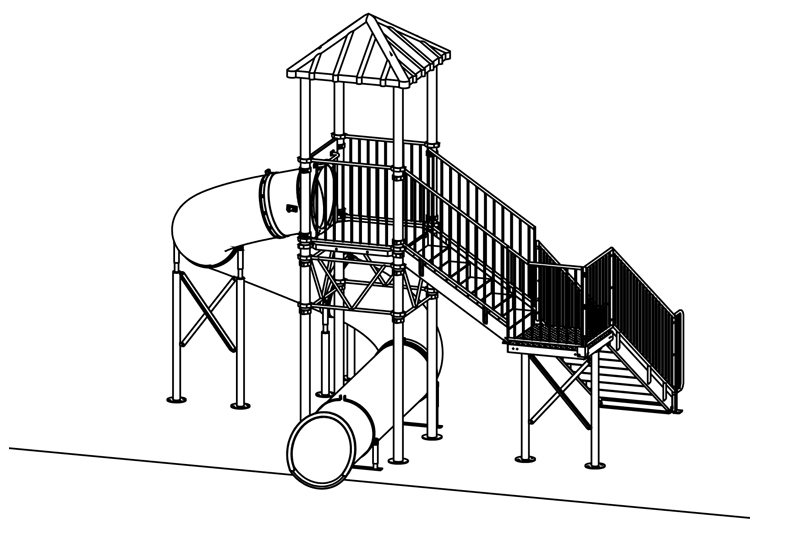

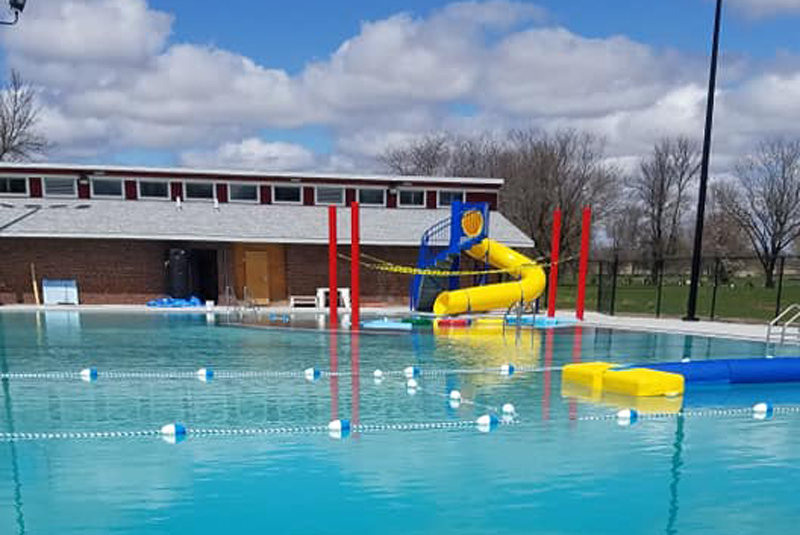

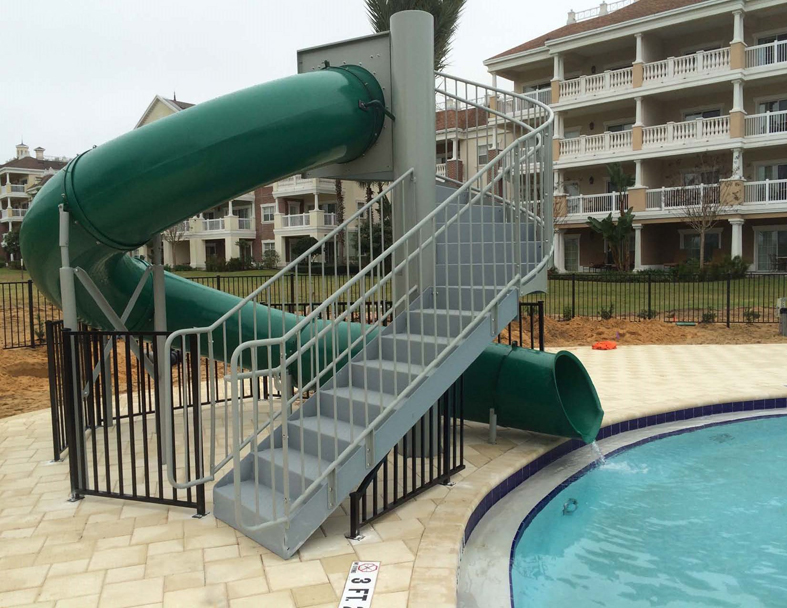

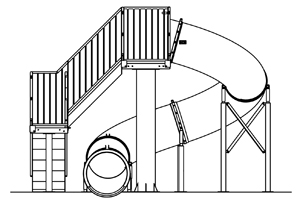

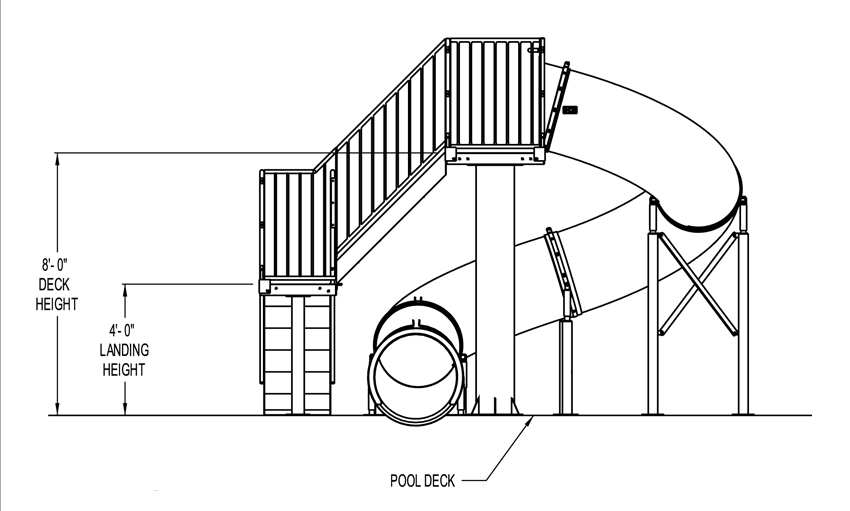

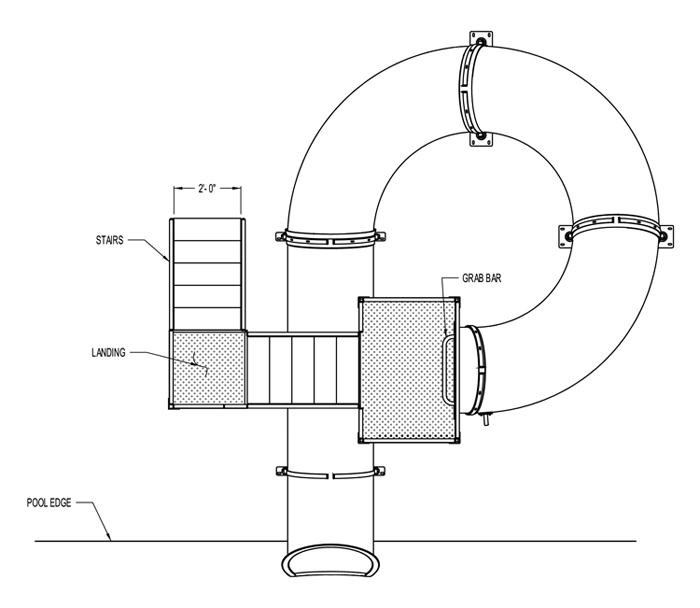

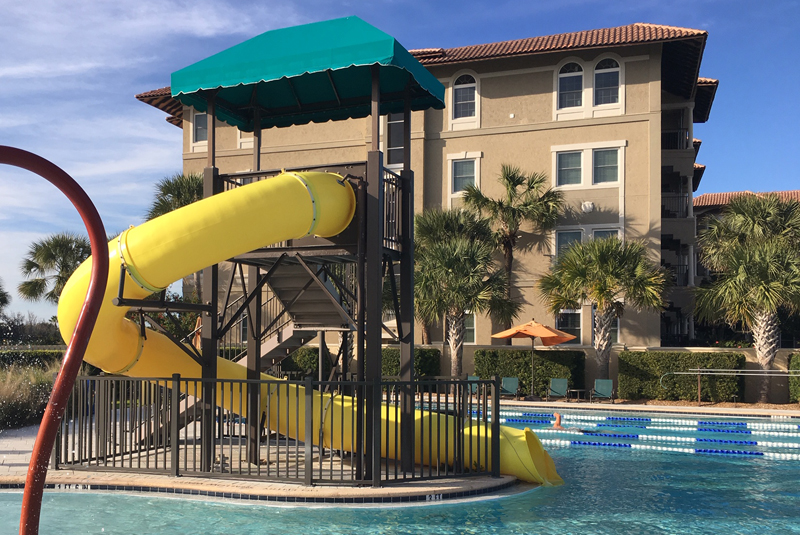

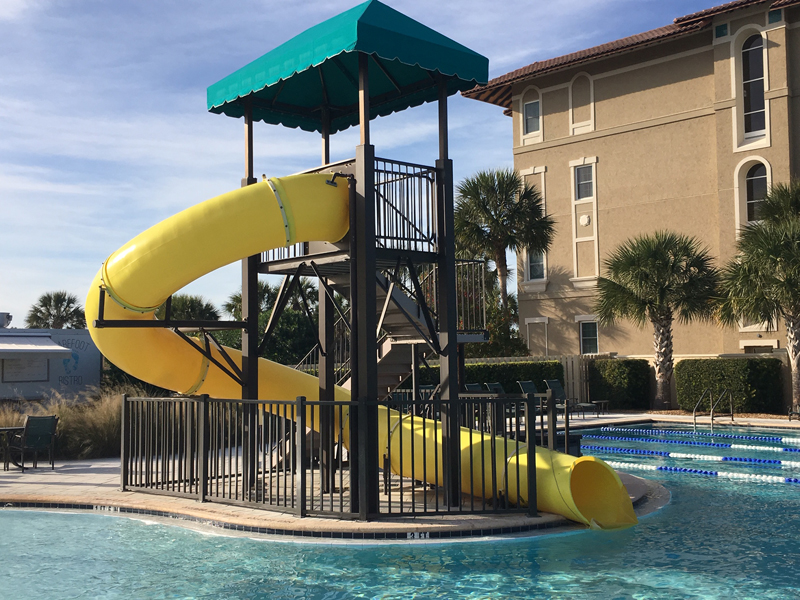

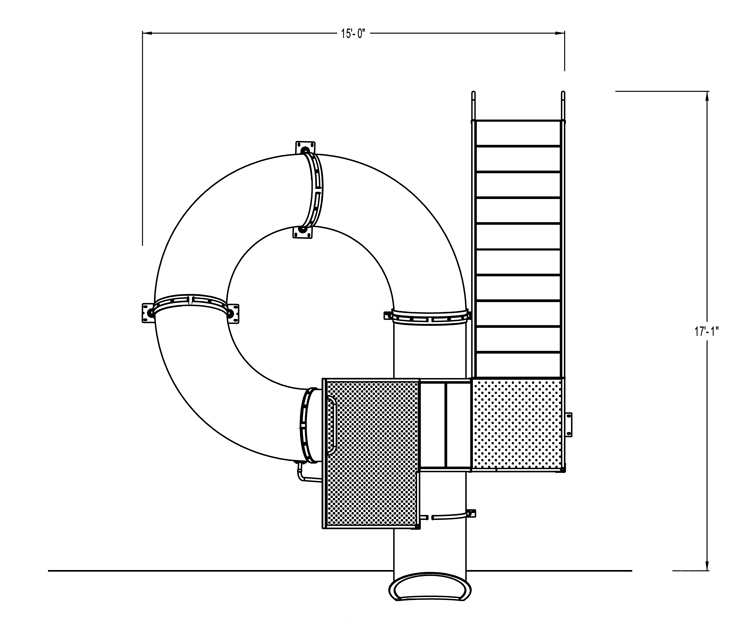

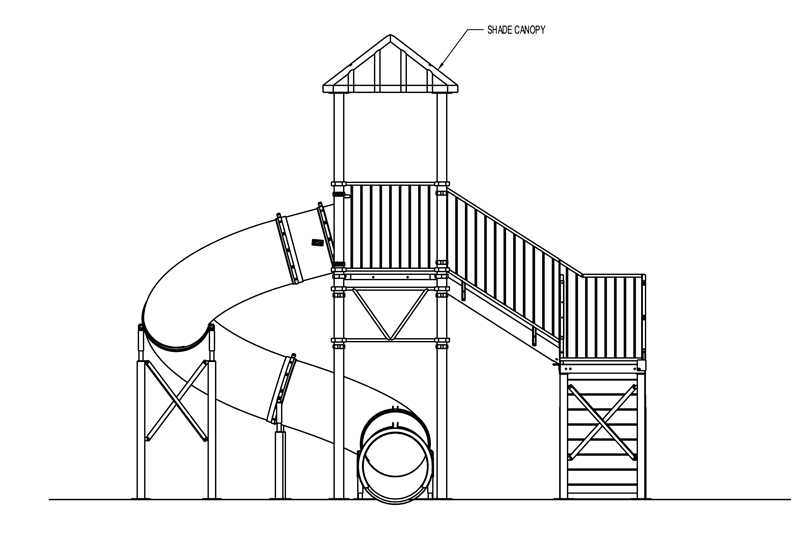

Water Slide
Model 1663 with platform

Description: Single 30" I.D. flume water slide
with a 270° turn.
Centerline Run: 31’ 7-7/16”
   3D: 32’ 4”
Entry Height: 8' 2"
   3D: 8' x 8'
Platform: 3' x 4'
   3D: 3' x 5' *
Space Requirements: Vary with options chosen.
   Green flume: 15’1" x 15' 3"
   3D: 15’0" x 17' 1 "

30" inside diameter polyethylene water slide flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20' 0"
Minimum water depth: 3' (within 6" of water level)

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

*Platform deck extended for Lifeguard

Download Spec Sheet
Requires Adobe Acrobat

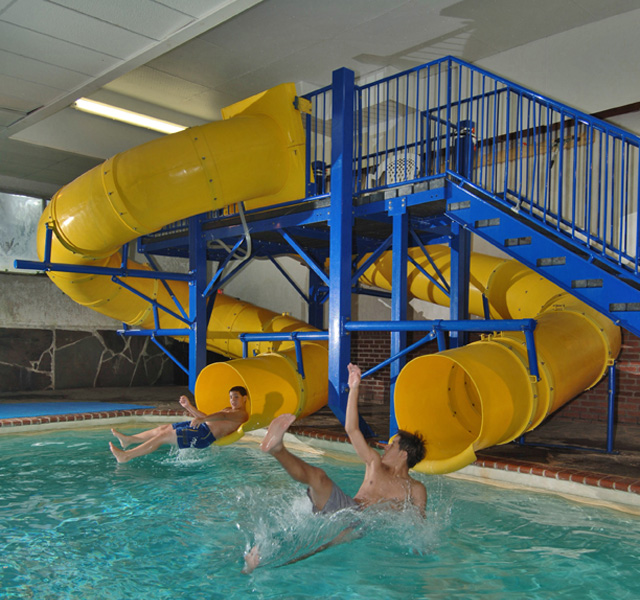

Double Flume Water Slide
Model 9425

Description : Double flume 30" I.D. polyethylene waterslides with two 360° turns.
Centerline Run : 29' 9" & 32' 10"
Entry Height : 8' 8"
Platform Size : 6' x 8'
Space Requirements : 27' 6" x 11' – Space requirements may vary with options chosen.

Double the flume - Double the action!

30" inside diameter polyethylene water slide flume
Deck top mounted
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Splash down dimension 21' x 23'
Minimum water depth: 3'

click on image to enlarge

Download Spec Sheet
Requires Adobe Acrobat

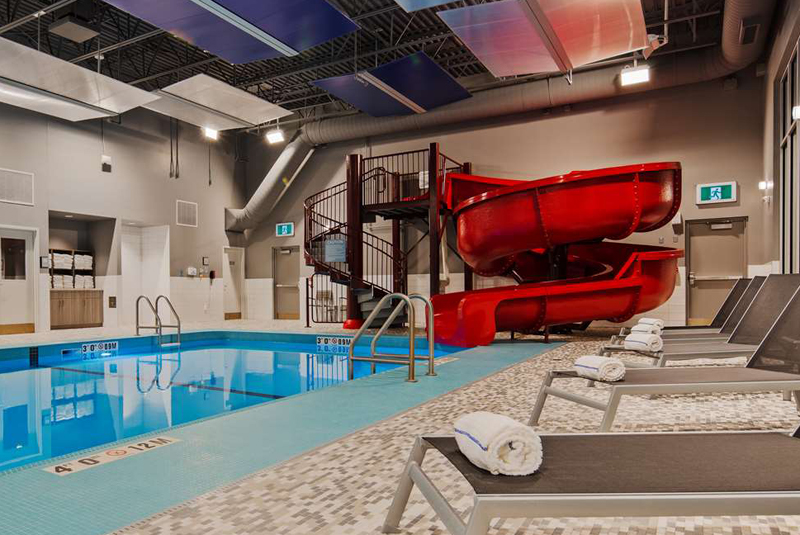

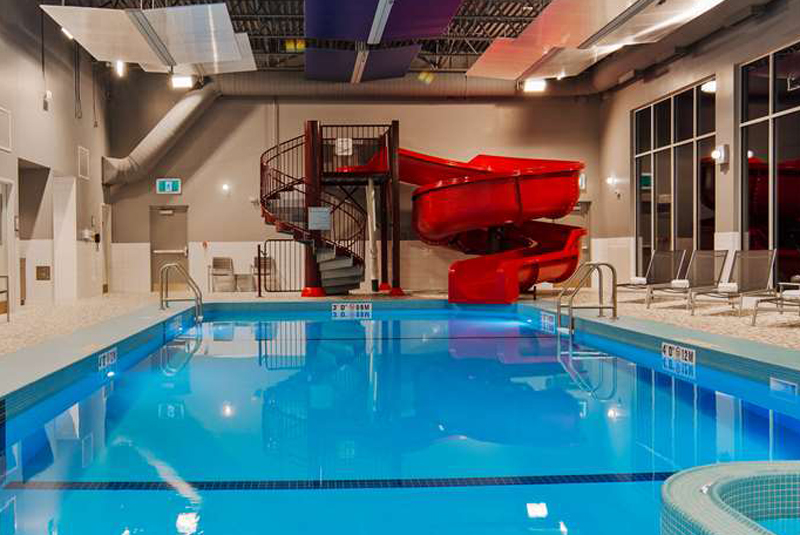

Fiberglass Water Slide
Model: 1952

Description : Single open flume fiberglass water slide with 1¼ spiral.
Centerline Run : 58' 8"
Entry Height : 8' 9 "
Platform Size : 6' x 8'
Space Requirements : 21' 7 " x 19' 8" – Space requirements may vary with options chosen.

36" inside diameter fiberglass water slide flume
500-700 gpm water flow required
Splash down dimension: 13' 0"x 20' 0"
Minimum water depth: 3' 0"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Water Slide
Model 1663 with platform

Description: Single 30" I.D. flume water slide
with a 270° turn.
Centerline Run: 33’ 4”
Entry Height: 8'11"
Platform: 4' x 4'
Space Requirements: 20' 3" x 15' 4"; Varies with options chosen.

30" inside diameter polyethylene water slide flume
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20' 0"
Minimum water depth: 3' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

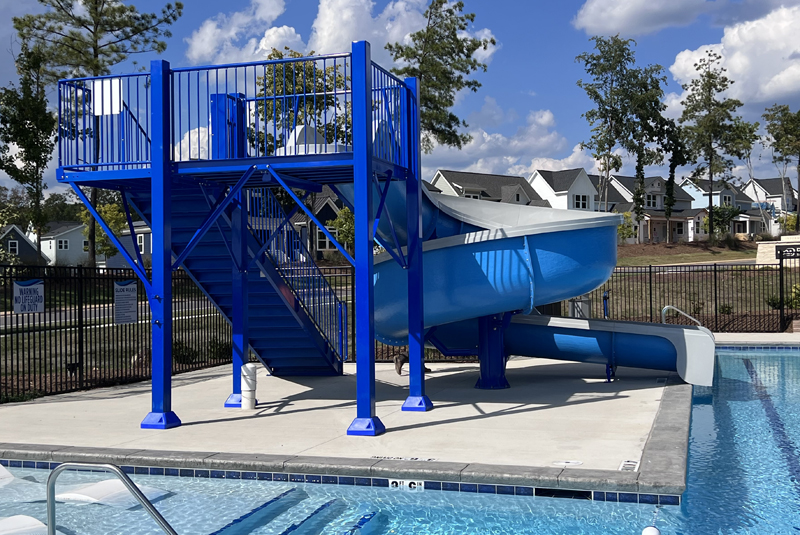

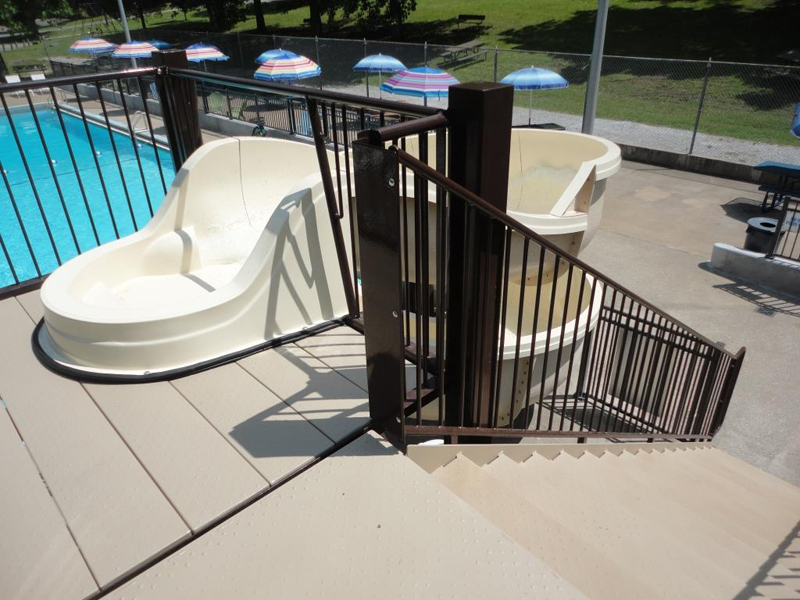

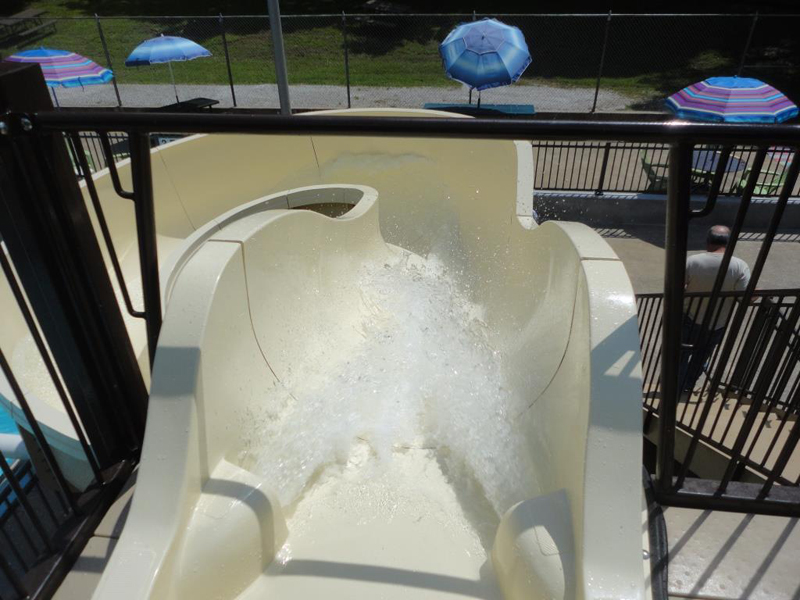

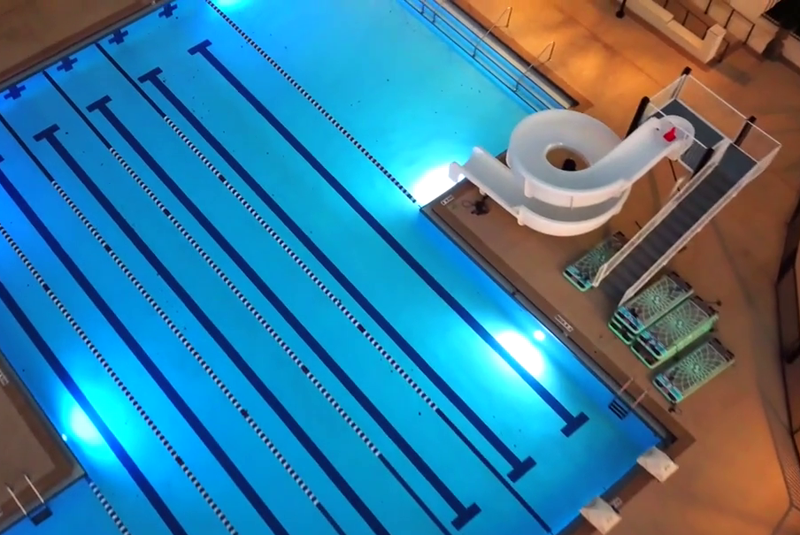

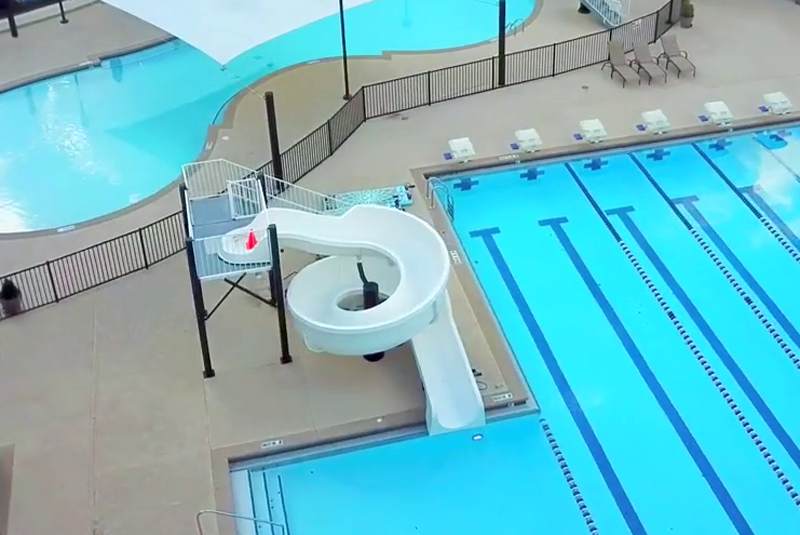

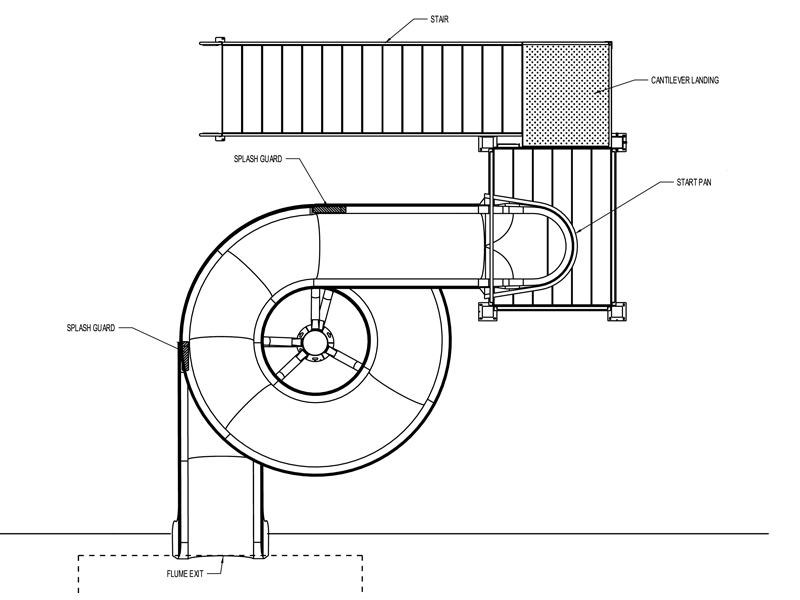

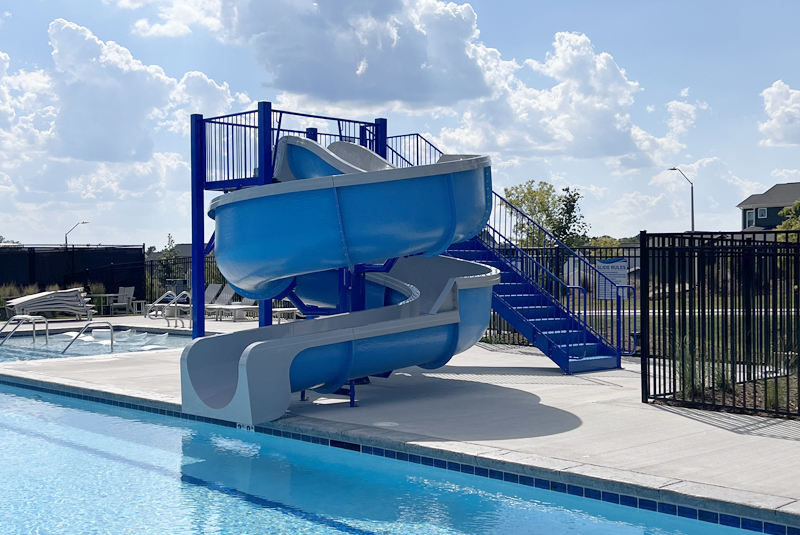

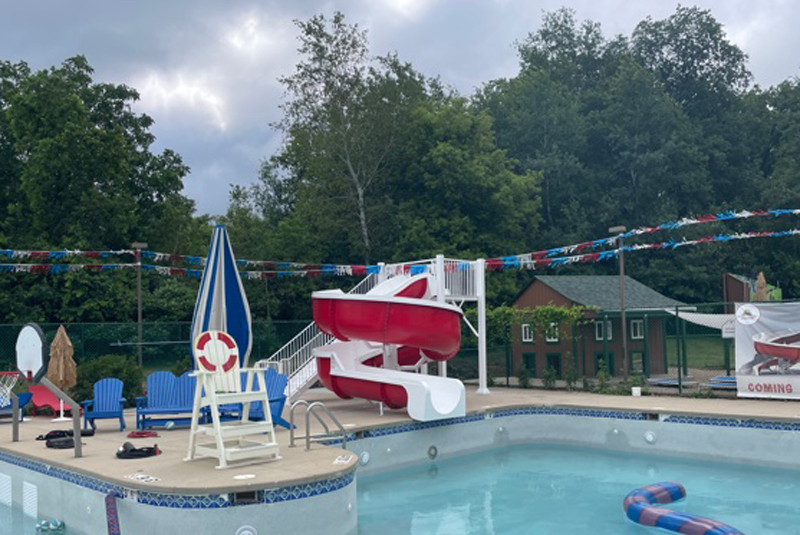

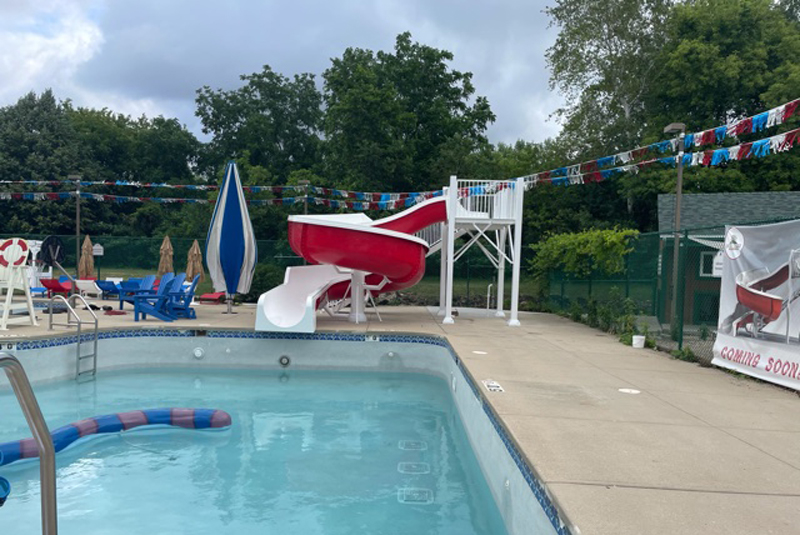

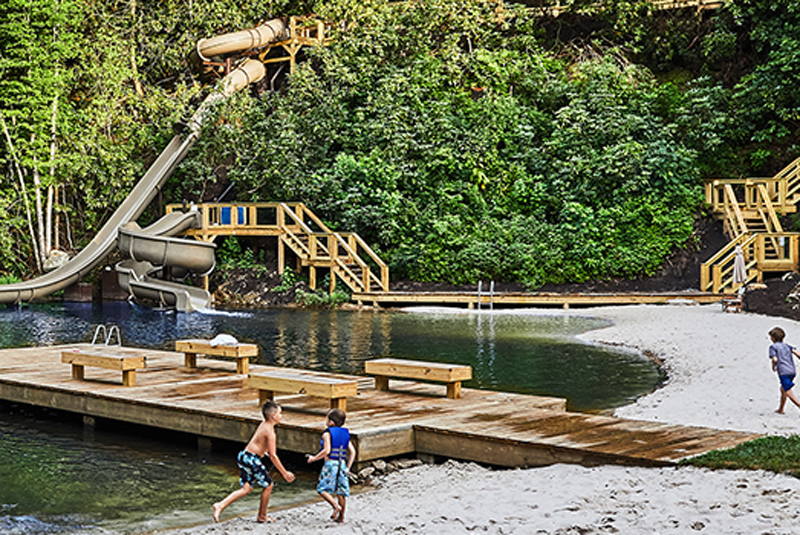

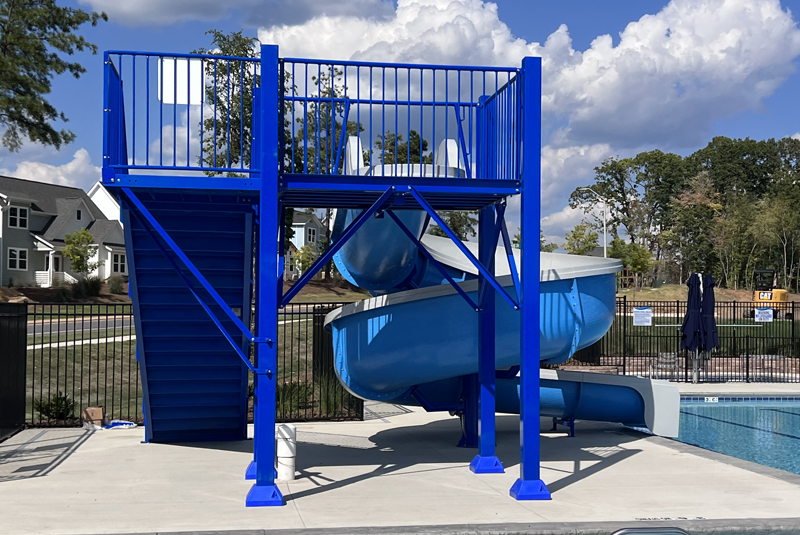

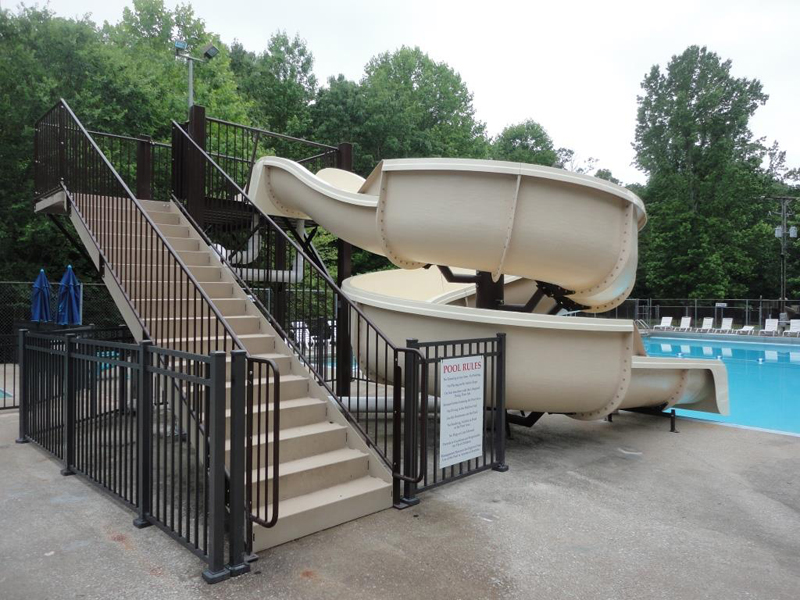

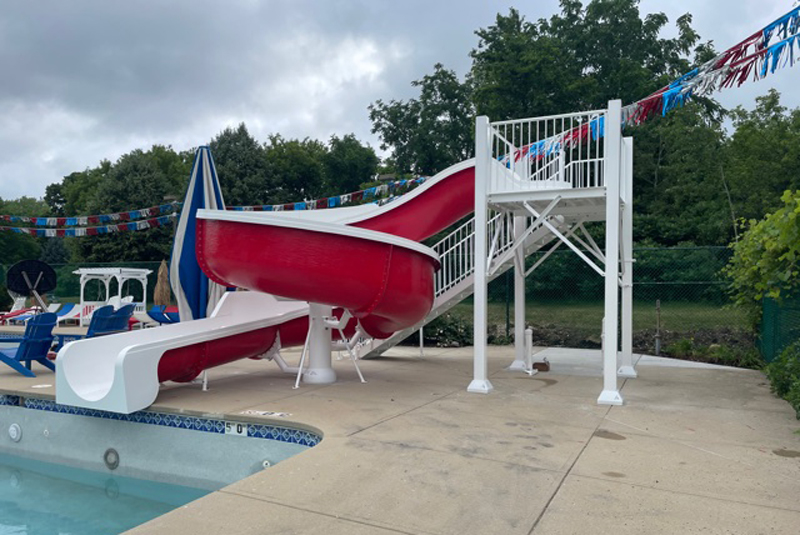

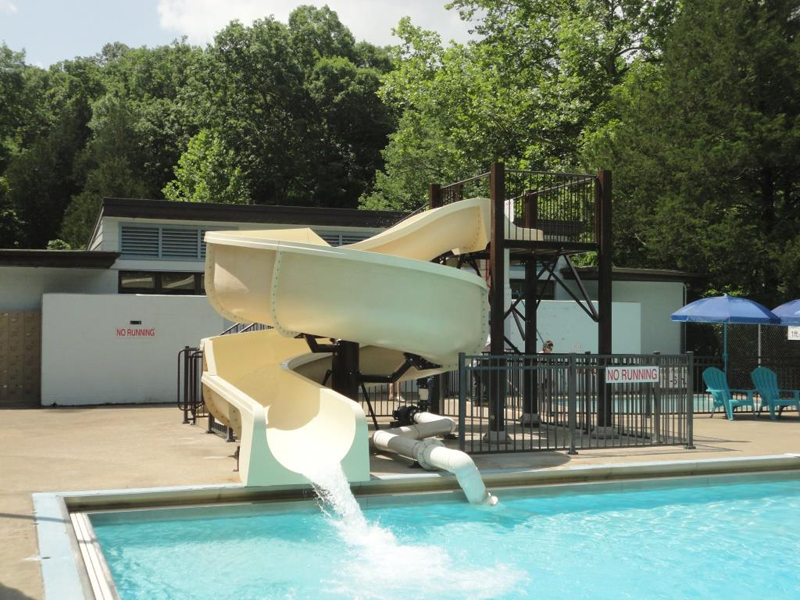

Fiberglass Water Slide
Model: 1948

Description : Single open flume fiberglass water slide with 1¼ spiral.
Centerline Run : 55' 3"
Entry Height : 9' 4"
Platform Size : 6' x 8'
Space Requirements : 19' 4 " x 22' 7" – Space requirements may vary with options chosen.

36" inside diameter fiberglass water slide flume
250-500 gpm water flow required
Splash down dimension: 13' 0" x 20' 0"
Minimum water depth: 3' 0"
Designed with flexibility to allow for sloping pool decks

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

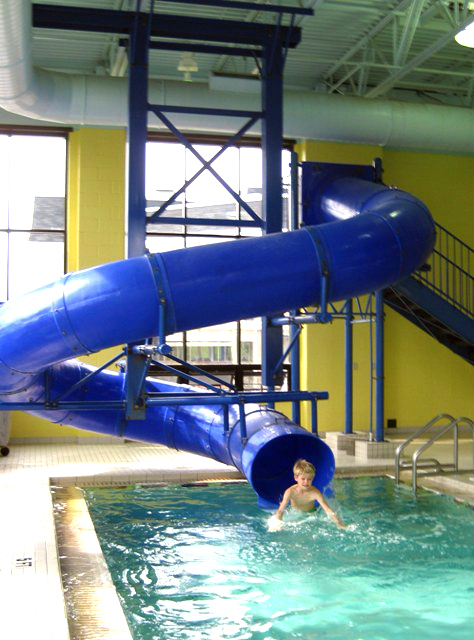

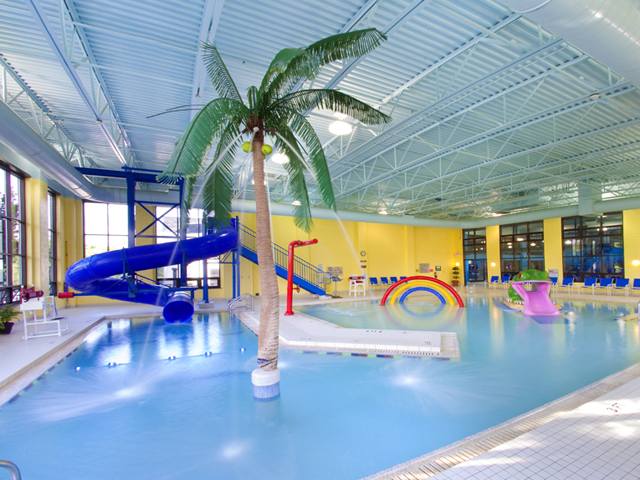

Water Slide
Model 1600 Series Custom Ceiling Mount

Description : Single 30" I.D flume water slide, ceiling mounted with 360 ° turn.
Slide Run : 54'
Entry Height : 9' 10"
Platform Size : 4' x 4'
Space Requirements: 16' 4 x 32' 7" – Space requirements may vary with options chosen.

Not enough deck space?
Hang your pool from the ceiling!

30" inside diameter polyethylene water slide flume
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20' 0"
Minimum water depth: 3' 0"

click on images to enlarge

Water Slide Model 1600 Custom Ceiling Mount

Download Spec Sheet
Requires Adobe Acrobat

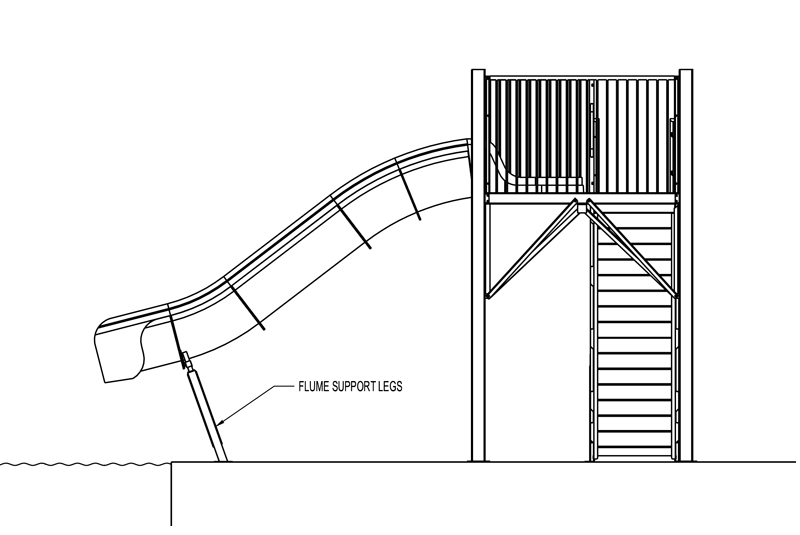

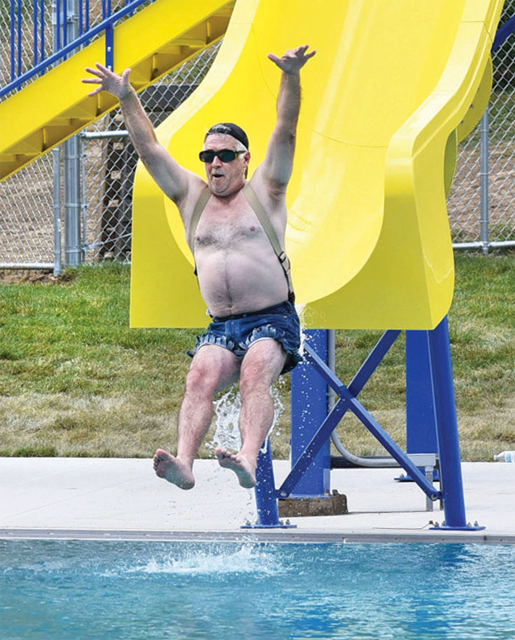

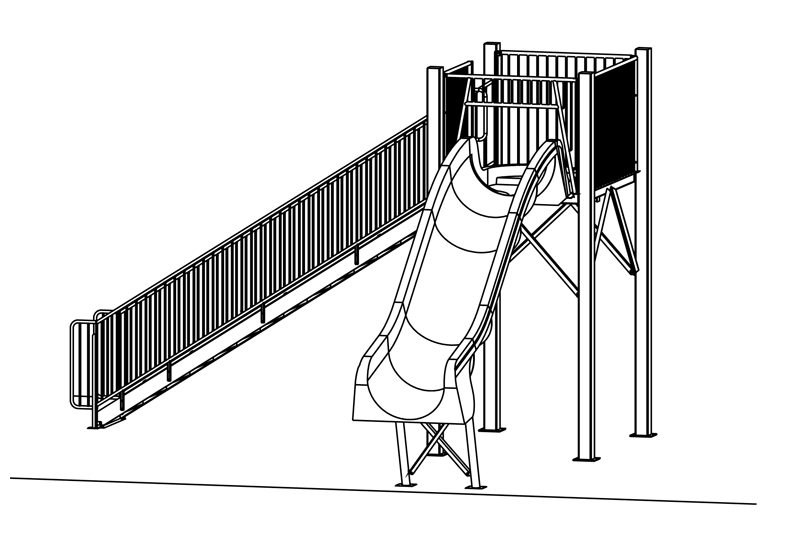

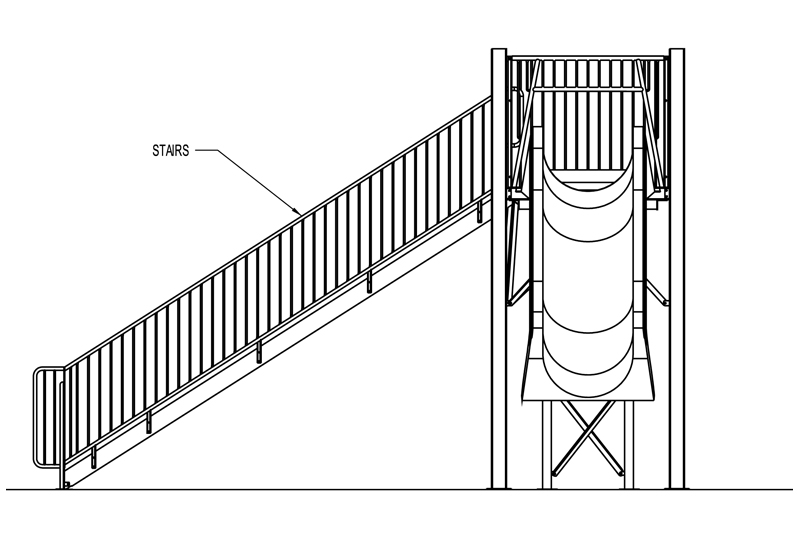

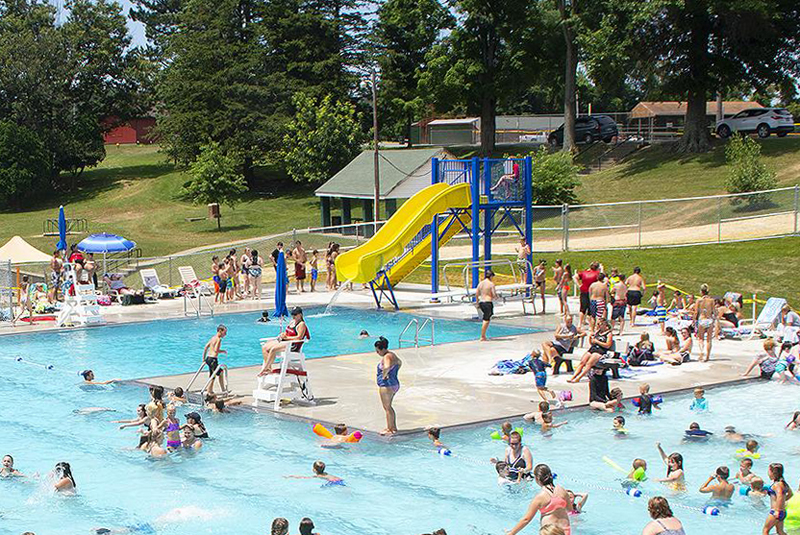

Open Flume Fiberglass Water Slide
Model: 1801

Description : Single 36" I.D. open flume fiberglass water slide.
Centerline Run: 19' 8"
Entry Height: 9' 11"
Platform Size: 6' x 8'
Space Requirements: 15' 5" x 19' 1½ " - Vary with options chosen.

36" inside diameter fiberglass water slide flume
Stairs: 8" rise, 8" tread, 24" wide; Aqua-Plast coated textured aluminum surface; closed risers.
20-40 gpm water flow required
Splash down dimension: 13' 0" x 20' 0"
Minimum water depth: 9' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge
