Click on thumbnails below to see specifications and photos of each model

  • 98-120
    Ruby Mountain Pavilion Series Model 98-120
  • 98-121
    Ruby Mountain Pavilion Series Model 98-121
  • 98-122
    Ruby Mountain Pavilion Series Model 98-122
  • 98-123
    Ruby Mountain Pavilion Series Model 98-123

Ruby Mountain Series Shelter

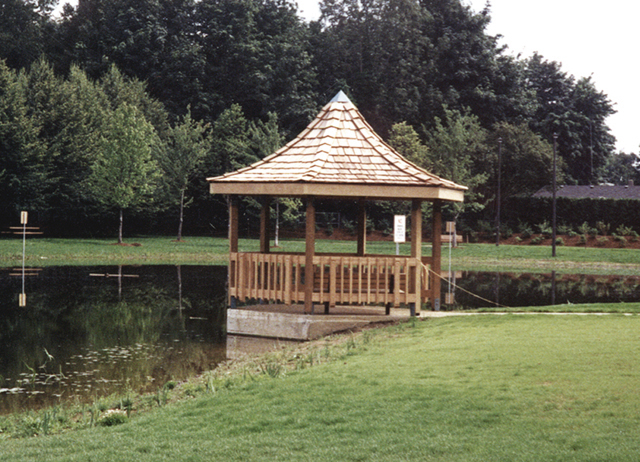

Model 98-120Ruby Mountain Pavilion Series Model 98-120

Description: 6 sided Gazebo
Roof Pitch: Curved beam is varied
Size Range: 16’
Roof Style: Hip

Options Shown

  • Cedar shake roof
  • Railing
  • 6x6 wood posts

click on image to enlarge



DownloadDownload Spec Sheet
 Requires Adobe Acrobat

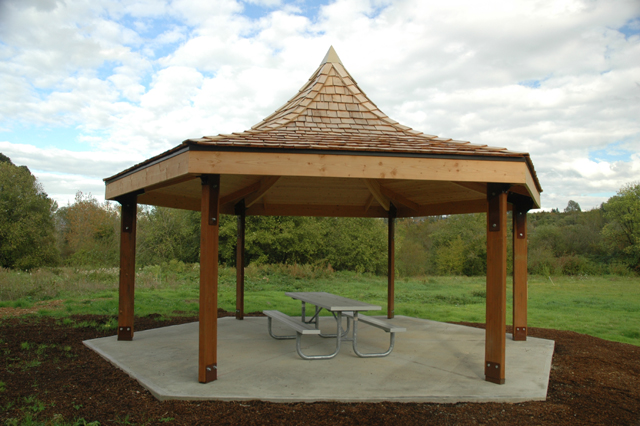

Ruby Mountain Pavilion Series Model 98-121Ruby Mountain Series Shelter
Model 98-121

Description: 6 sided Gazebo
Roof Pitch: Curved beam is varied
Size Range: 25’
Roof Style: Hip

Options Shown

  • Cedar shake roof
  • Rails
  • Benches
  • Wood Posts

click on images to enlarge

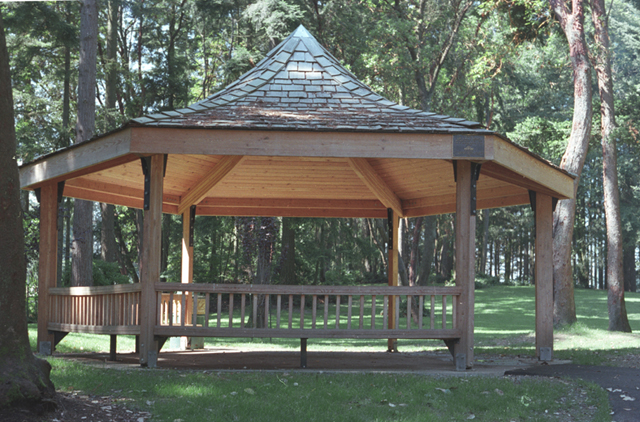

Ruby Mountain Pavilion Series Model 98-121

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

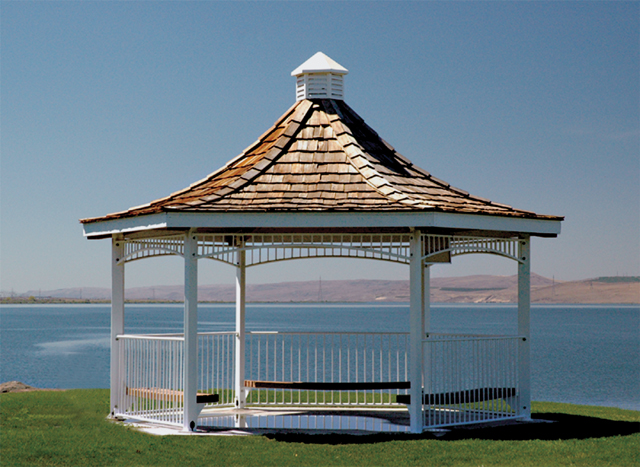

Ruby Mountain Pavilion Series Model 98-122Ruby Mountain Series Shelter
Model 98-122

Description: 6 sided Gazebo
Roof Pitch: Curved beam is varied
Size Range: 20’
Roof Style: Hip

Options Shown

  • Cedar shake roof
  • Cupola
  • Trim
  • Rails
  • Benches
  • Steel Posts

click on images to enlarge

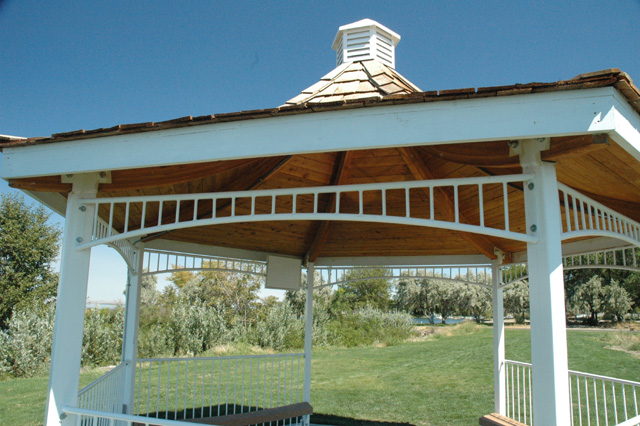

Ruby Mountain Pavilion Series Model 98-122 - Fretwork

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

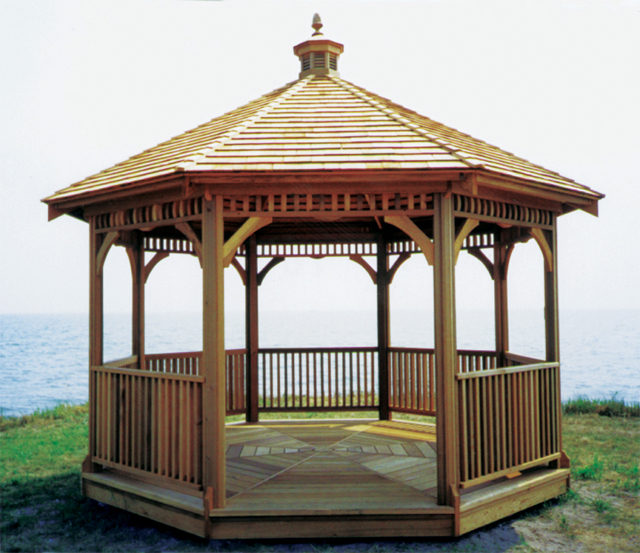

Ruby Mountain Series ShelterRuby Mountain Pavilion Series Model 98-123
Model 98-123

Description: 8 sided Gazebo
Roof Pitch: Straight beam is varied
Size Range: 15’
Roof Style: Hip

Options Shown

  • Cedar Shake Roof
  • Cupola
  • Floor
  • Rails

USA flag   Manufactured with Pride in the U.S.A.

Related Links

Model List
Recent Pavilion Additions to Website
Pavilion Options
 *Table
 *Description

Color Charts
*Powder Coat Colors
*Recycled Plastic Plank Colors
*Hi-Rib Metal Roof Colors
*Standing Seam Metal Roof Color

*Requires Adobe Acrobat

Site Map

Ruby Mountain Series

Add grace and beauty to your facilities with a Ruby Mountain gazebo. The hexagon gazebo is designed with elegant glu-laminated beams. All Ruby Mountain shelters feature non-bird nesting designs and are clear span for optimal space usage. Available with cupola.

  • Decorative gazebo style shelter
  • Hexagon or octagon shape
Solar Lighting Kits available

Features:

  • Clear spans
  • Wood or steel posts
  • Glu-laminated beams
  • Non-bird nesting or perch design
  • Wind load: 90 mph class C
  • Snow load: 30 lbs
  • Polyester powder coated
  • Custom designs available
  • USA Made

Options:

  • Hot dipped galvanized
  • Stain or clear sealer for wood members
  • Increased wind & snow load available
  • Variety of roof pitches available
  • Floors, benches, and railing available
  • Wood post options: square, rectangular, or round
  • Steel post options: square, rectangular, or round
  • Roof options: cedar, asphalt, tile, etc.
  • Cupolas, weather vanes, clerestory
  • Facades
  • 2x6 or 3x6 Tongue & groove roof decking
  • Gutters & downspouts
  • Wood wraps
  • On-site technical assistance available.

Download Ruby Mountain Series Spec Sheet
*Requires Adobe Acrobat
