Natural Structures: Water Slides: Entry Height 10' 0" to 10' 11"

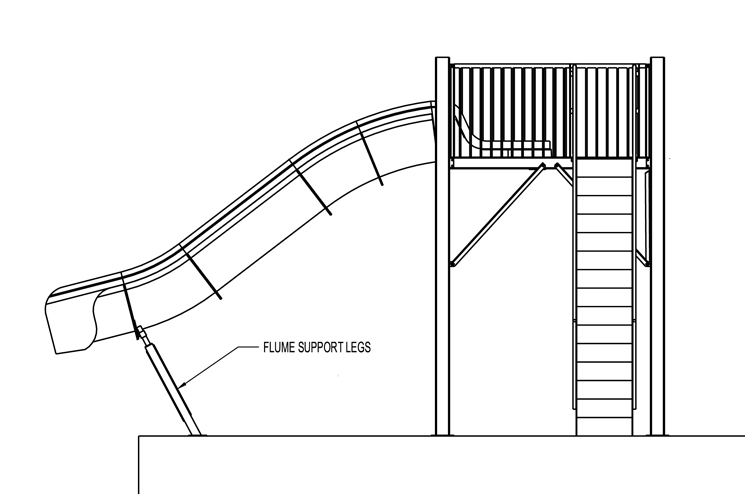

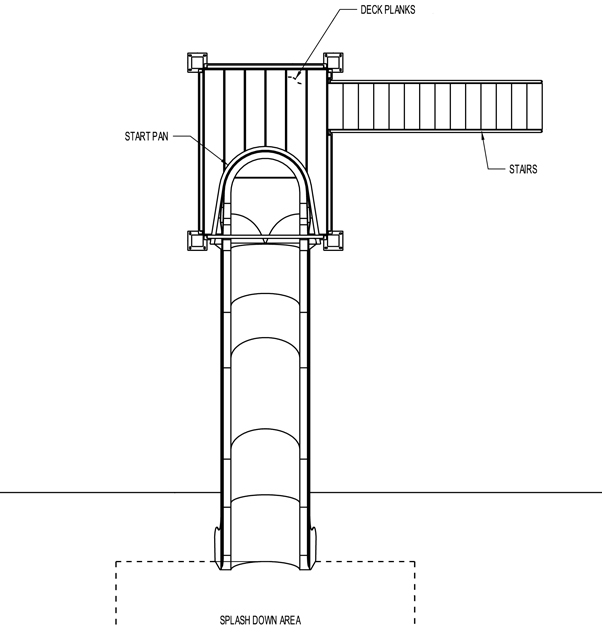

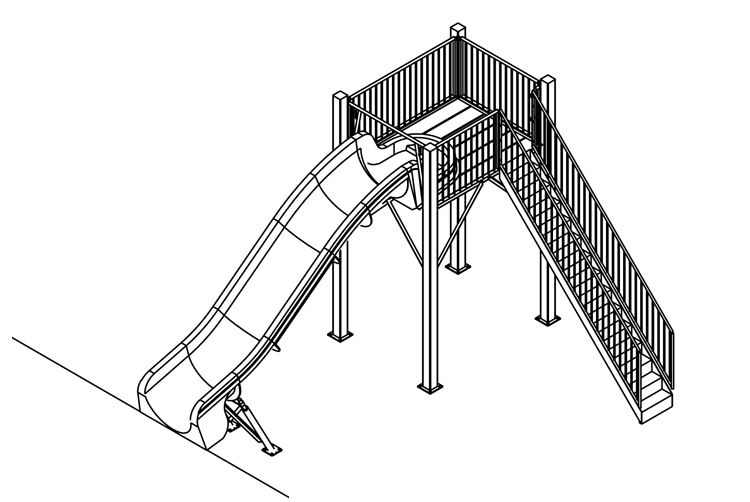

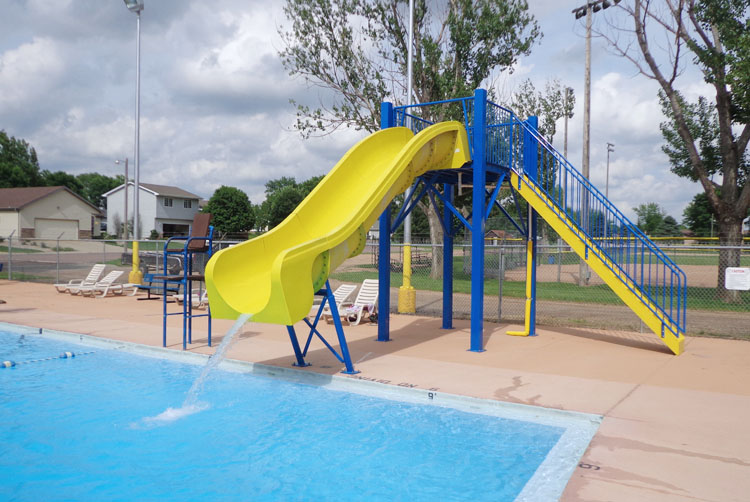

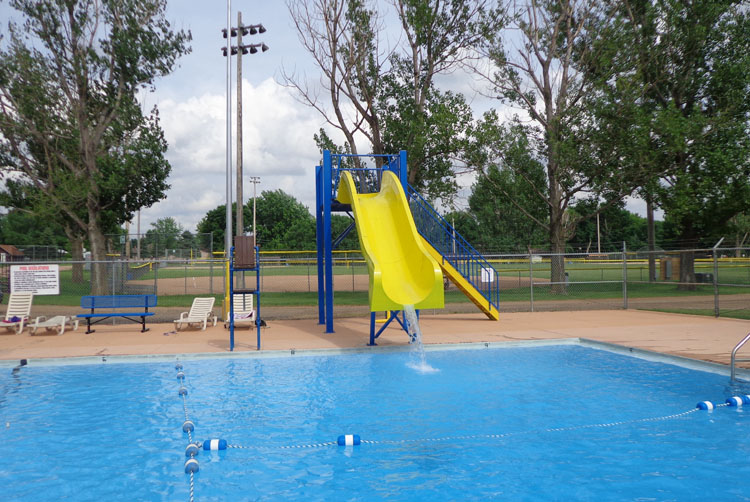

Open Flume Fiberglass Water Slide
Model: 1801

Description : Single 36" I.D. open flume fiberglass water slide.
Centerline Run: 19' 8"
Entry Height: 10' 0"
Platform Size: 6' x 8'
Space Requirements: 15' 5" x 19' 1½ " - Vary with options chosen.

36" inside diameter fiberglass water slide flume
Stairs: 8" rise, 8" tread, 24" wide; Aqua-Plast coated textured aluminum surface; closed risers.
20-40 gpm water flow required
Splash down dimension: 13' 0" x 20' 0"
Minimum water depth: 9' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

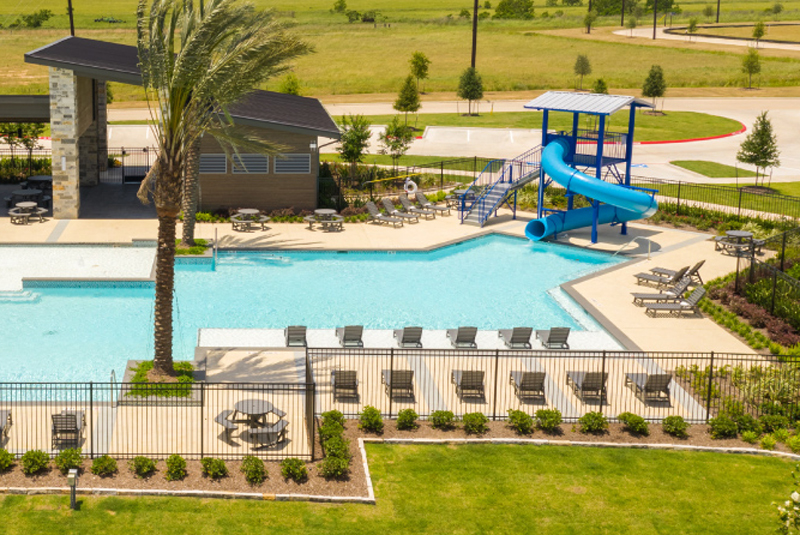

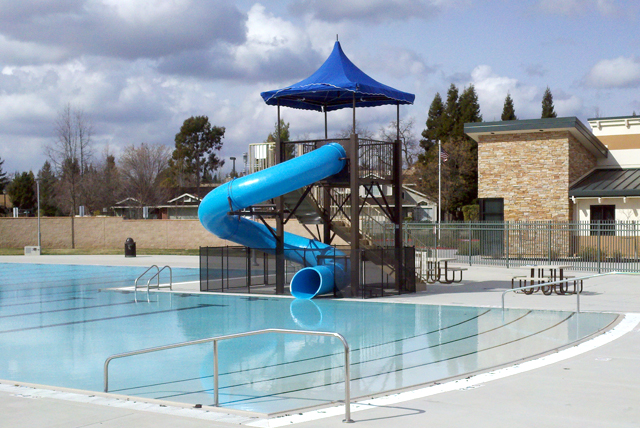

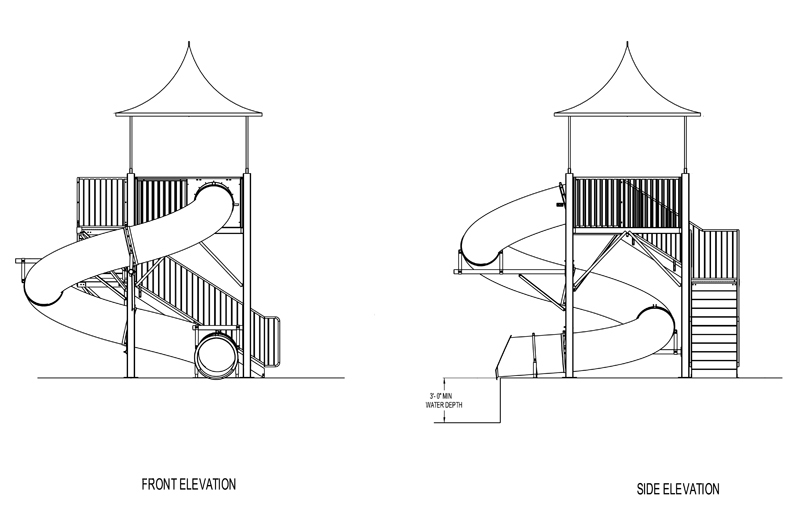

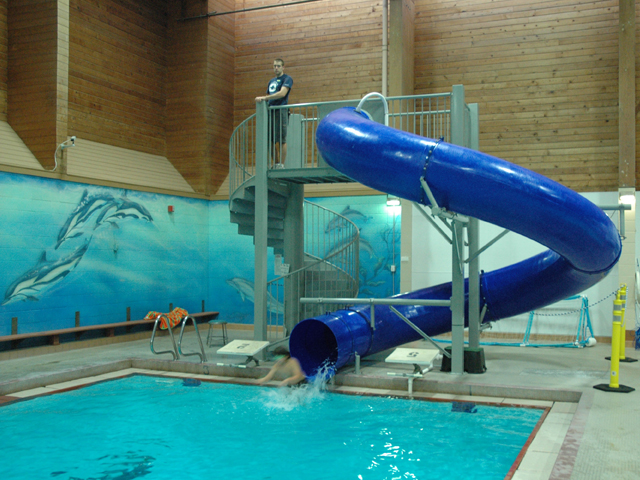

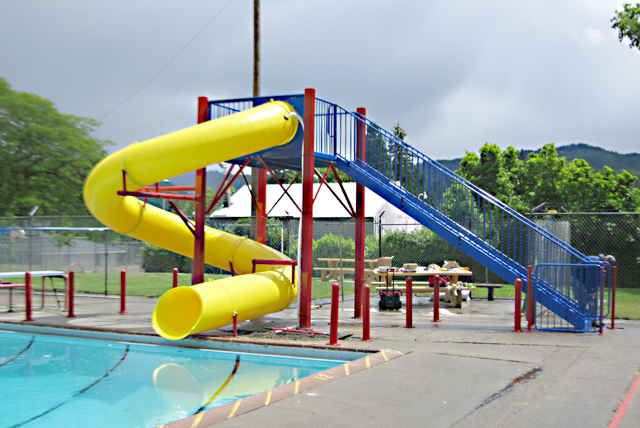

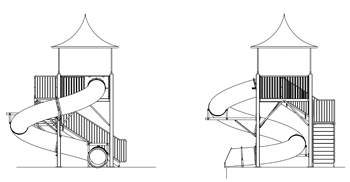

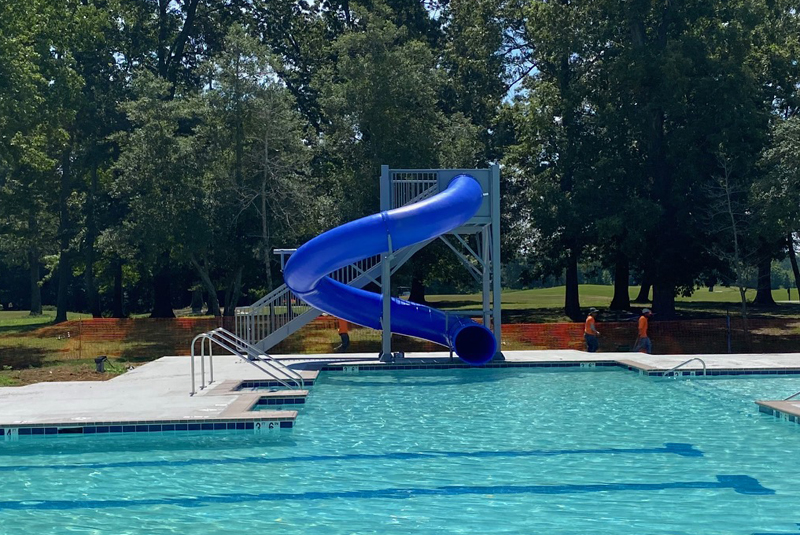

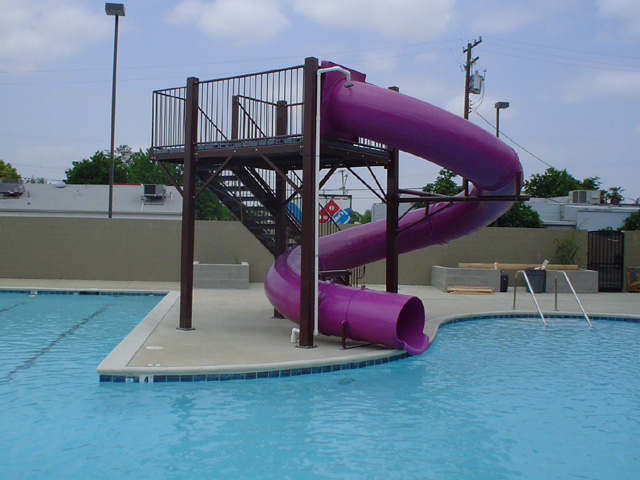

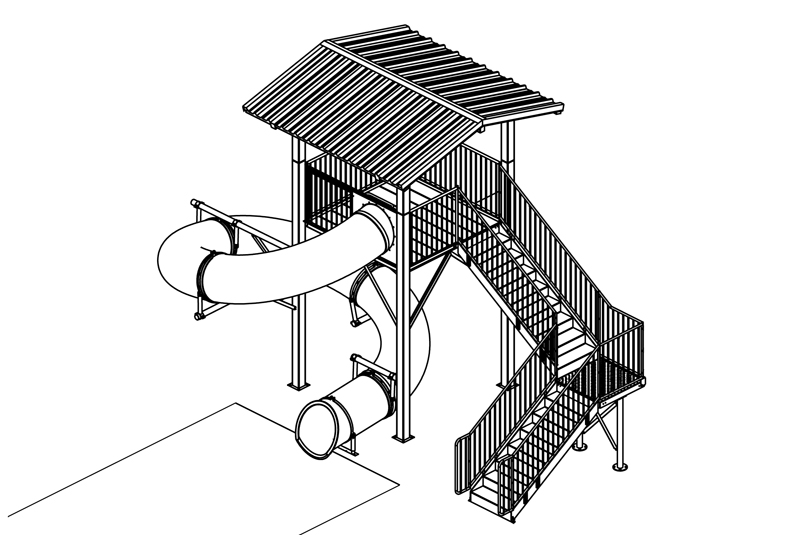

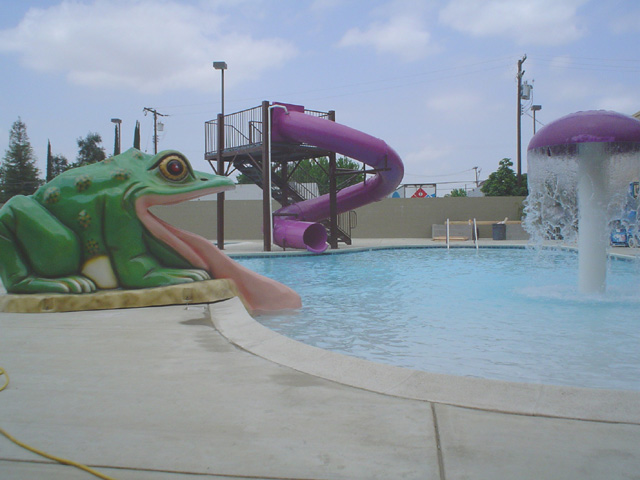

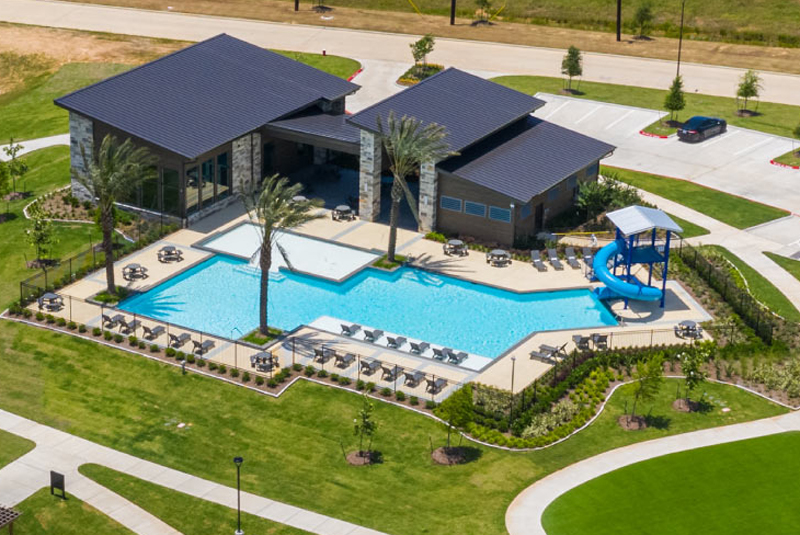

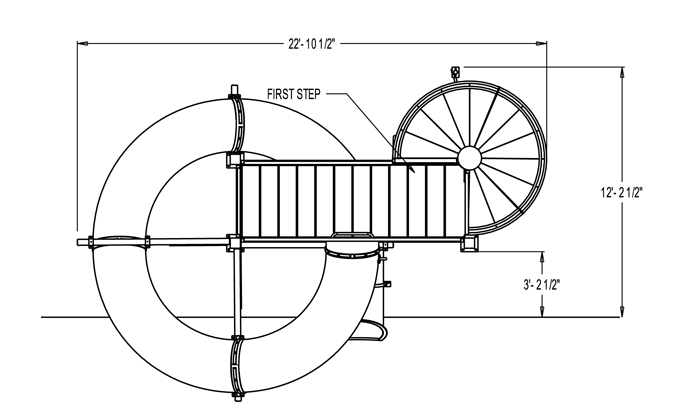

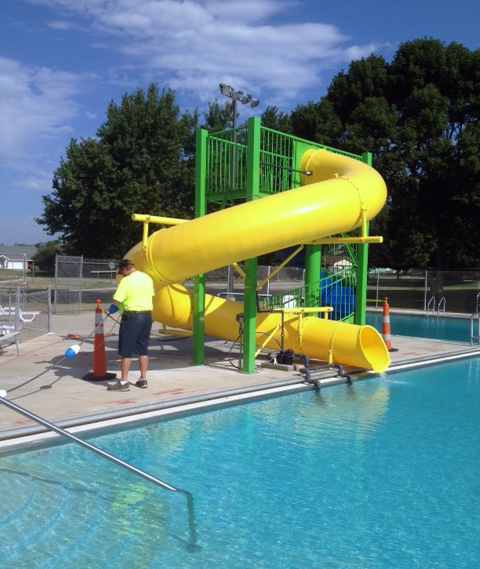

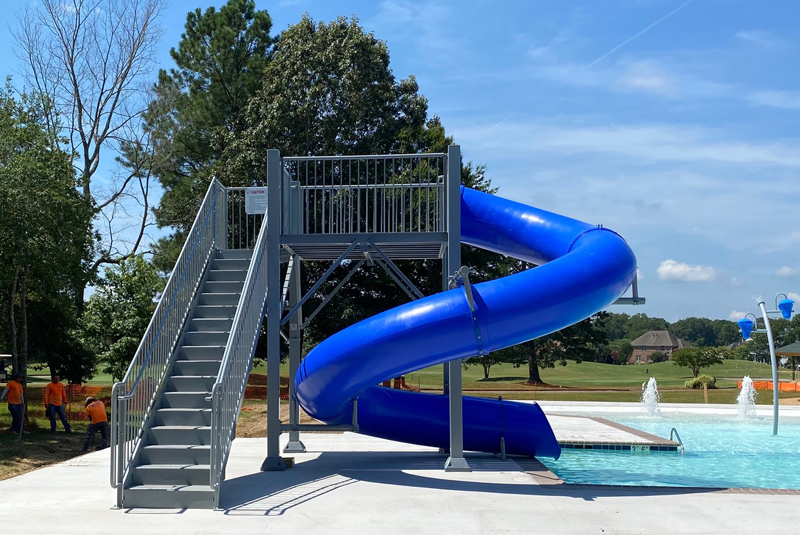

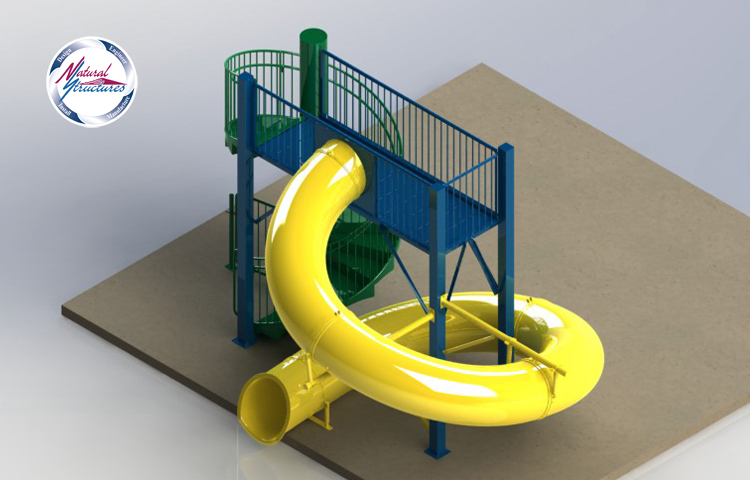

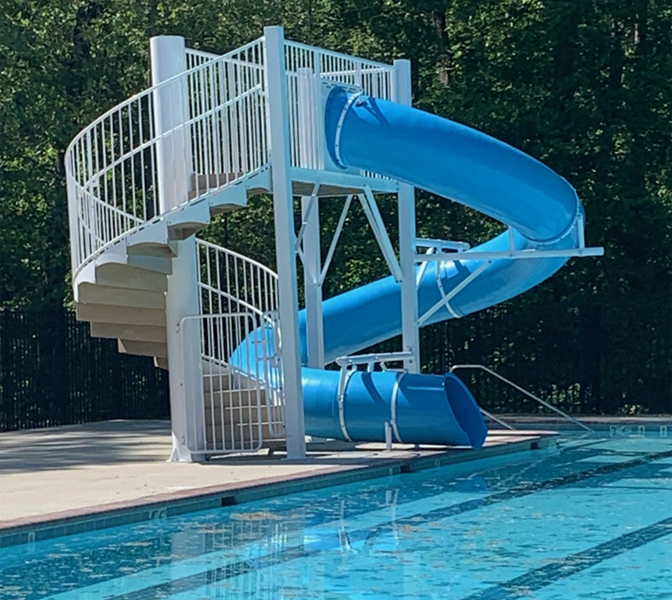

Water Slide

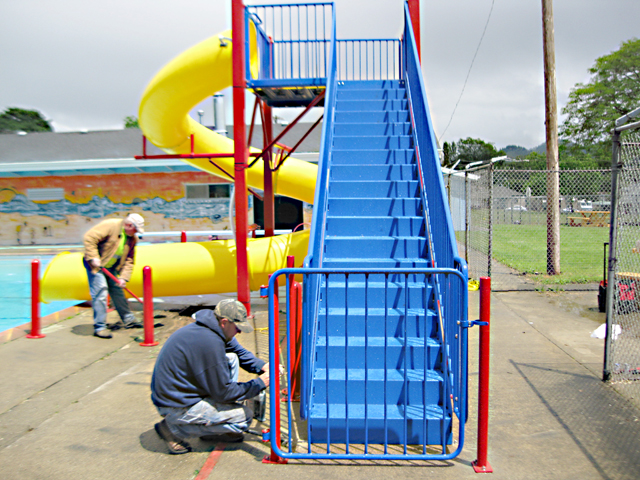

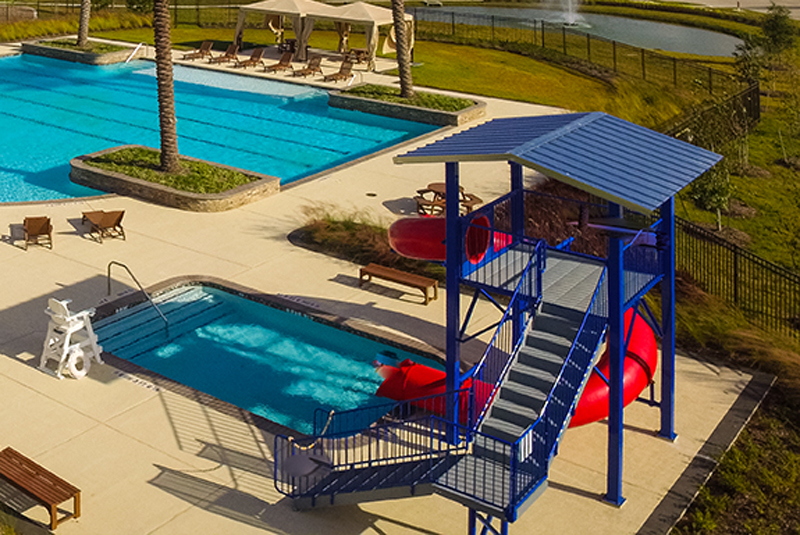

Model 1625

Our most popular water slide! This single flume water slide makes an excellent choice for limited deck space.

Description : Single 30" I.D. flume water slide with one 360° turn.
Centerline Run : 43' 1"
Entry Height : 10' 5"
Platform Size : 8' x 8'
    Spiral Stairs: 4' x 12'
Space Requirements : Vary with options chosen.
    Yellow flume: 31' x 11' 8"
    Blue flume (spiral stairs): 22' 9" x 11' 6"
    Purple flume: 19' 2" x 15' 2"
    Tower canopy: 17' 8" x 16' 0"

30" inside diameter polyethylene water slide flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20'
Minimum water depth: 3'

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

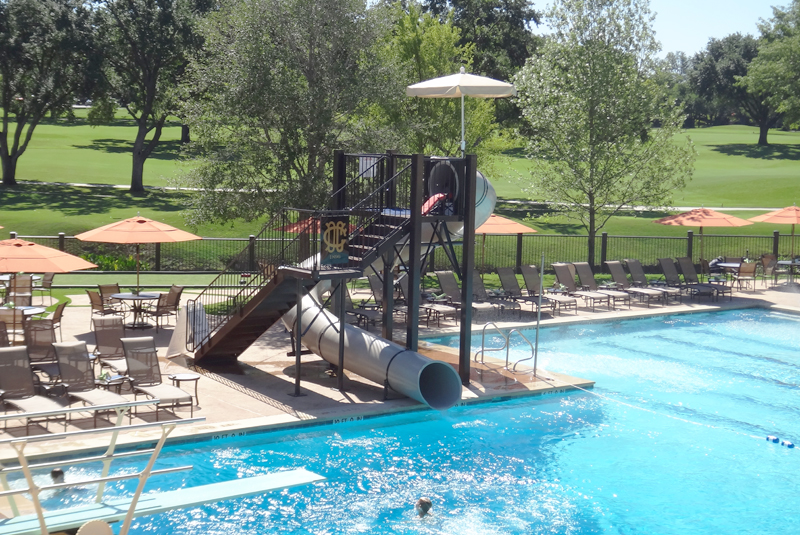

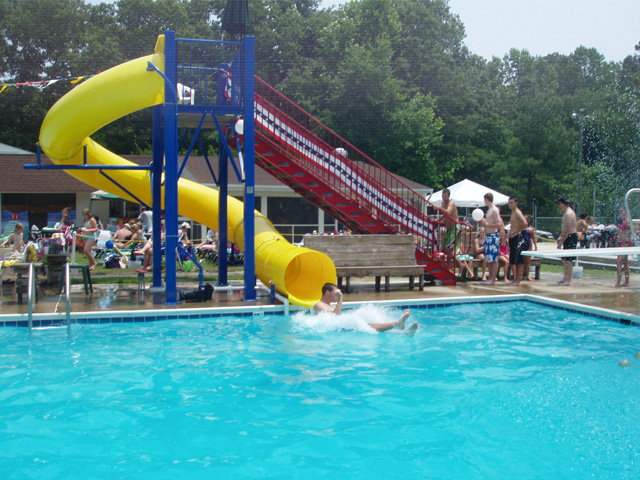

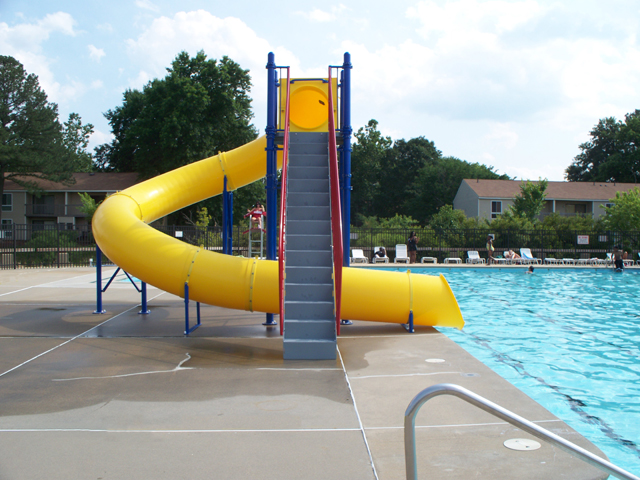

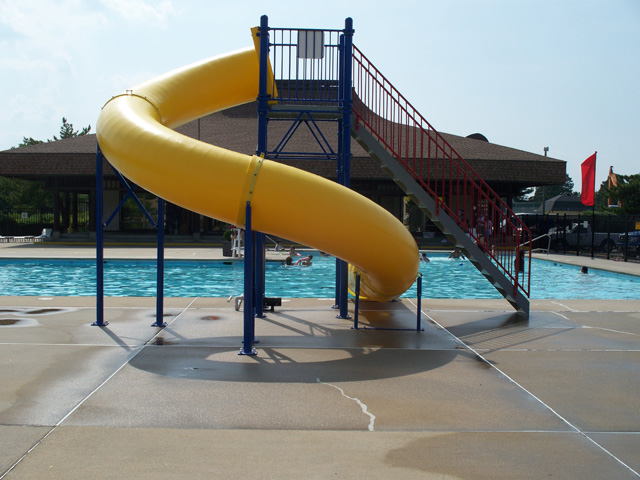

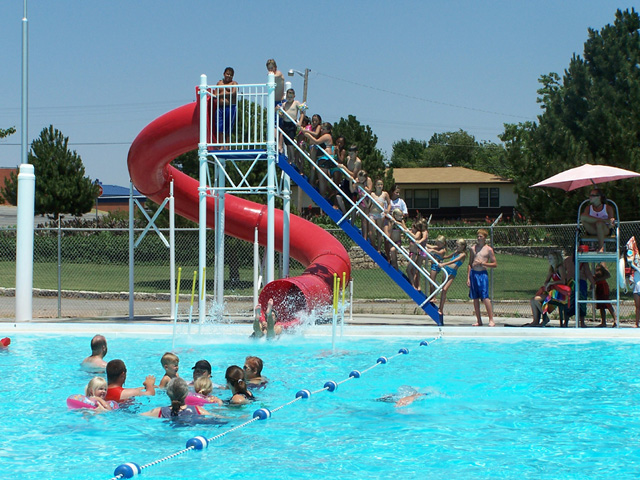

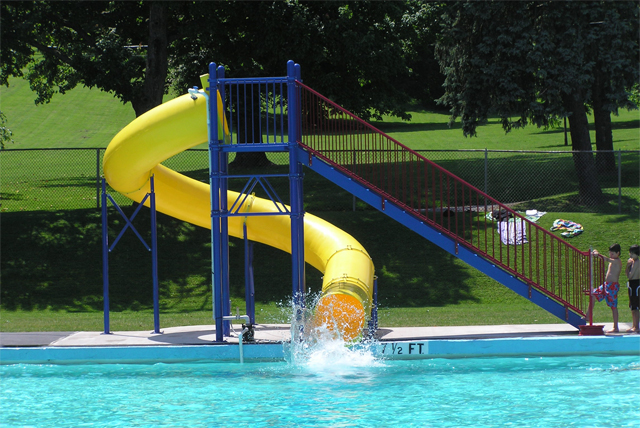

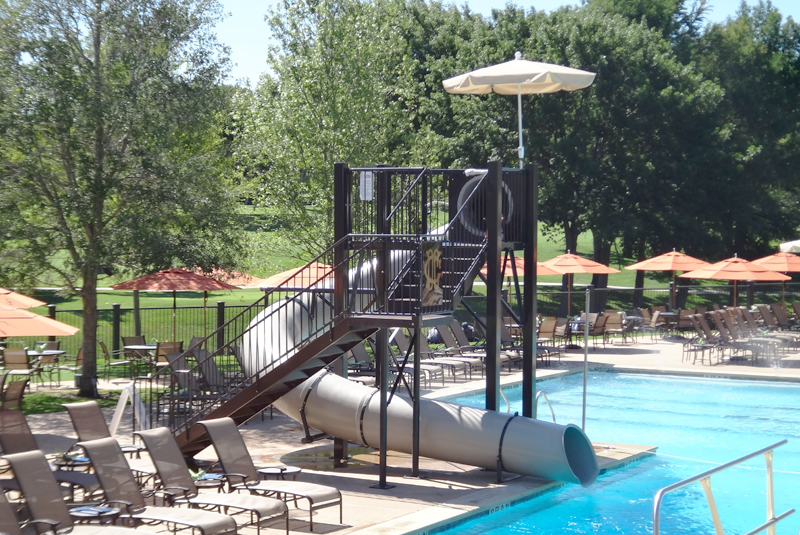

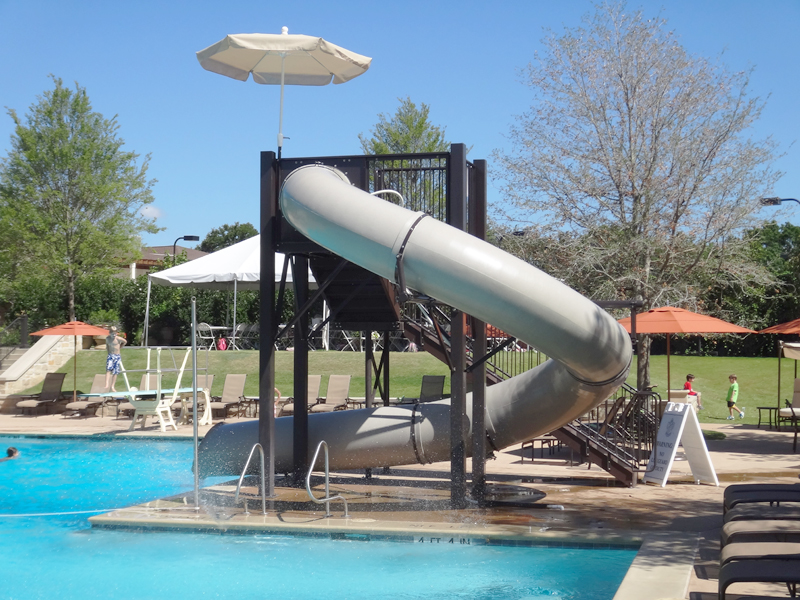

Water Slide

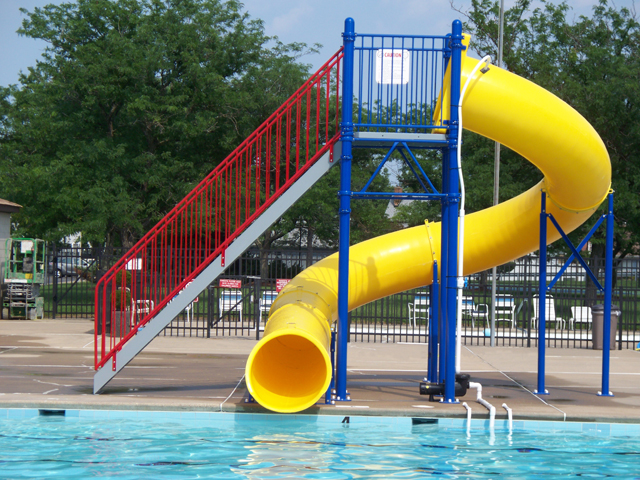

Model 1628

Description : Single 30" I.D. flume water slide
with a 270° turn.
Centerline Run : 40' 8"
Entry Height : 10' 5"
Platform Size : 4' x 4' or 8' x 8'
Space Requirements : Vary with options chosen.

30" inside diameter polyethylene water slide flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20'
Minimum water depth: 3'

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

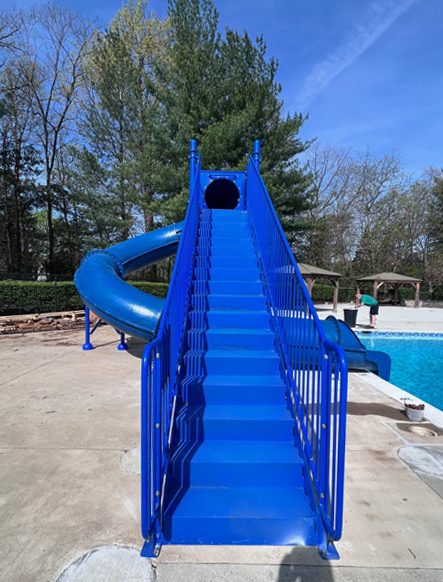

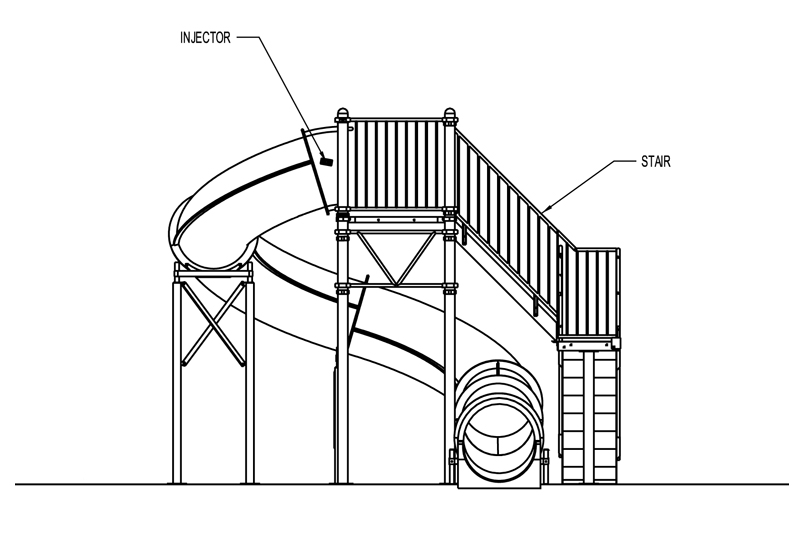

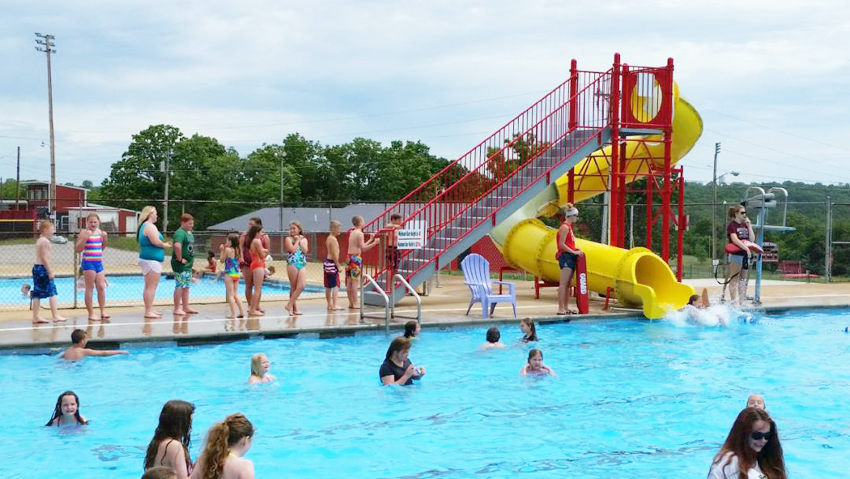

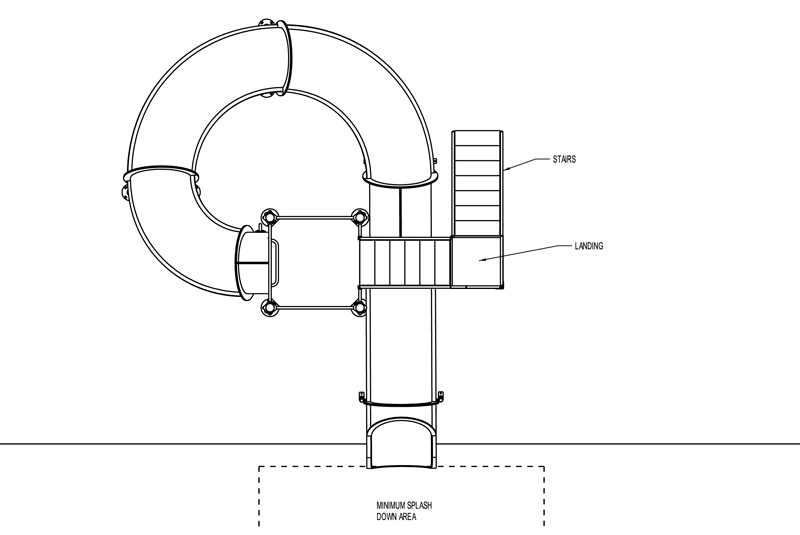

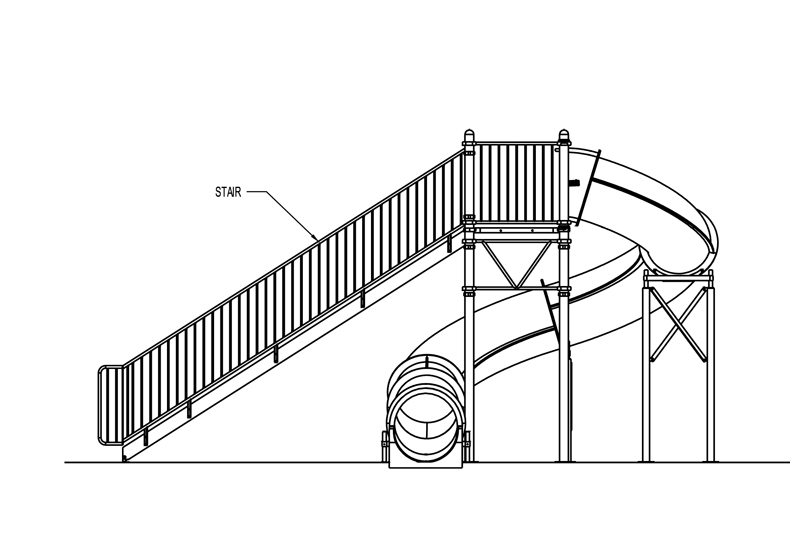

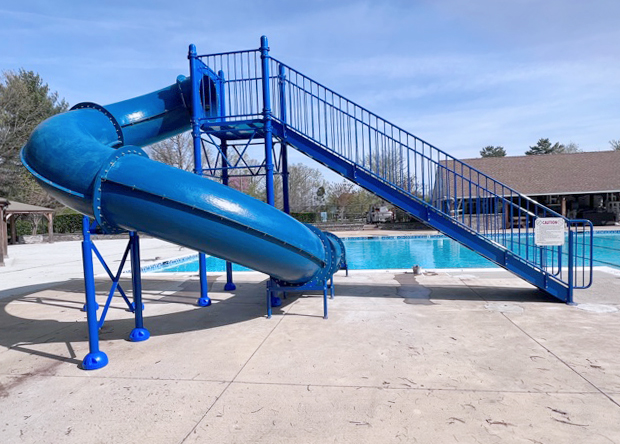

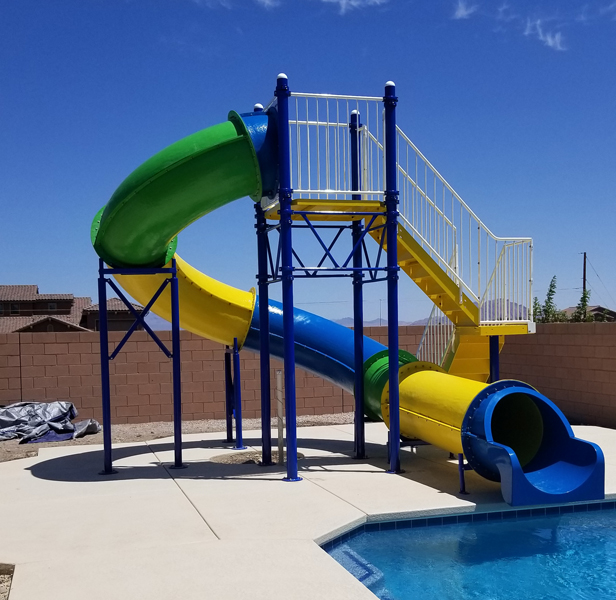

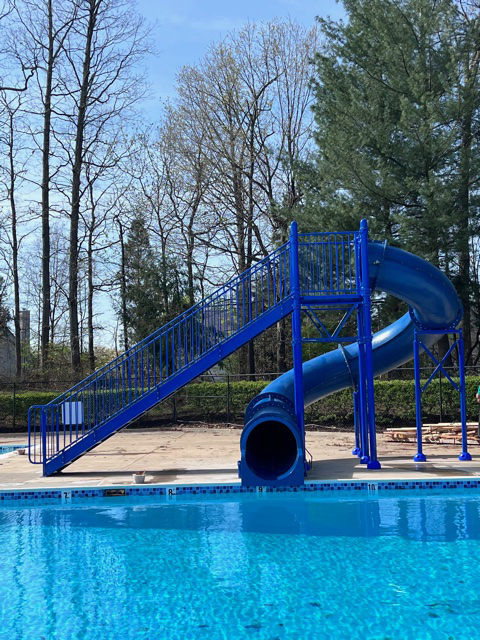

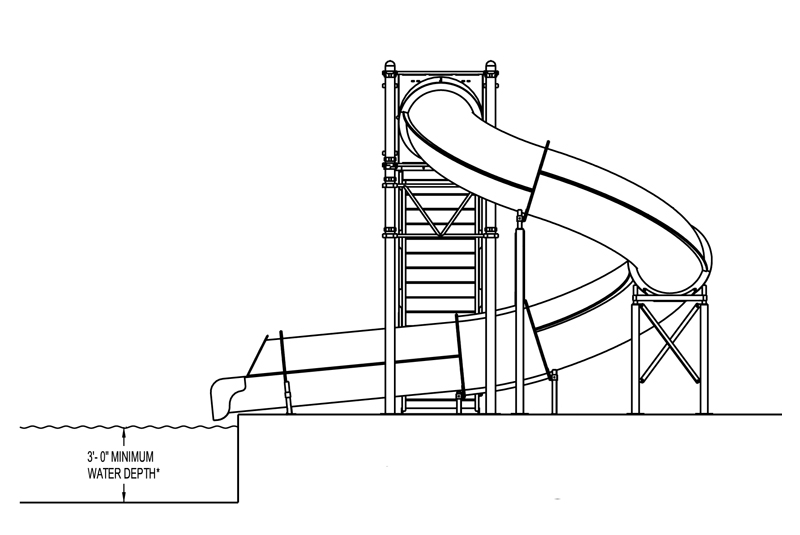

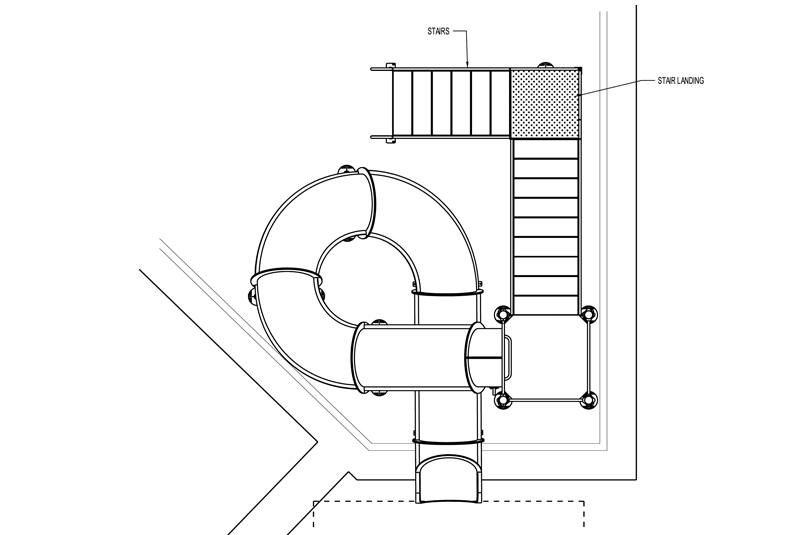

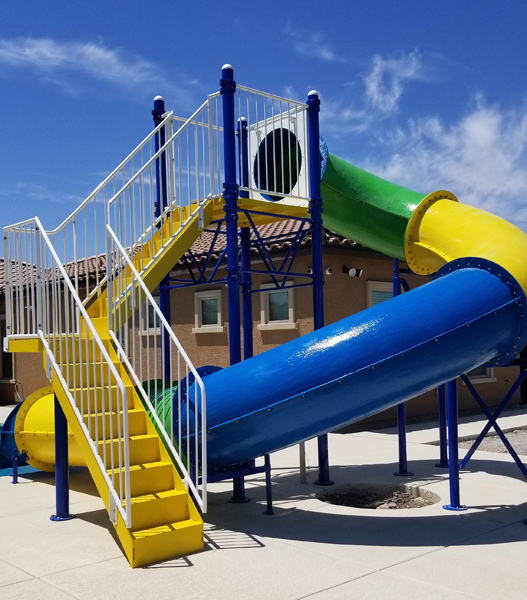

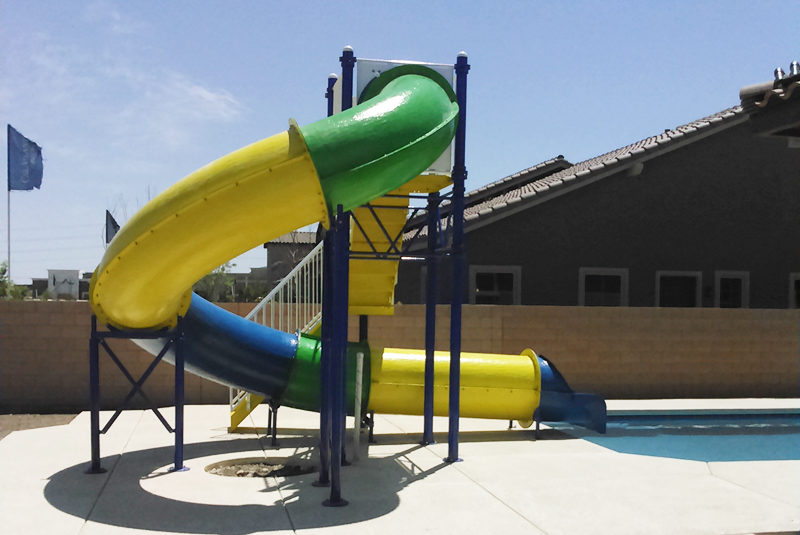

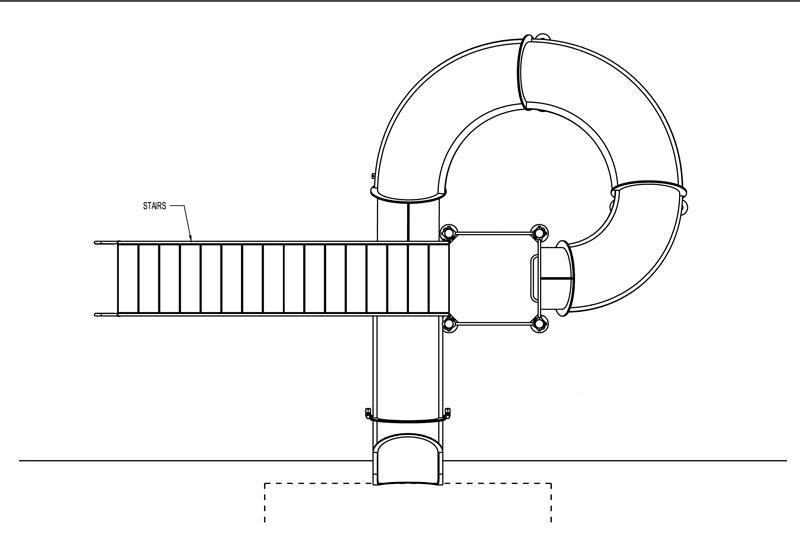

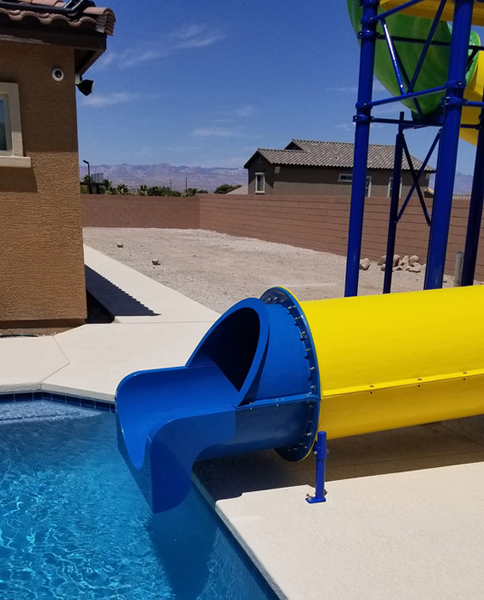

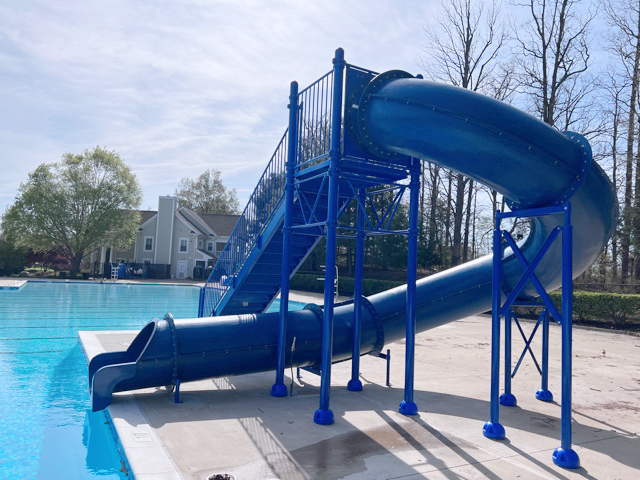

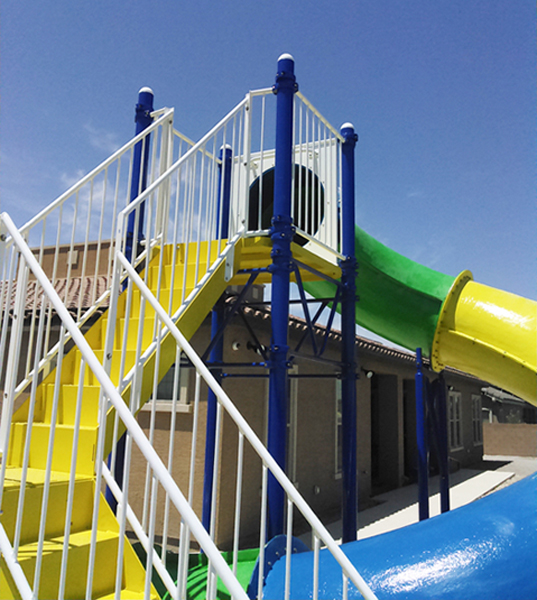

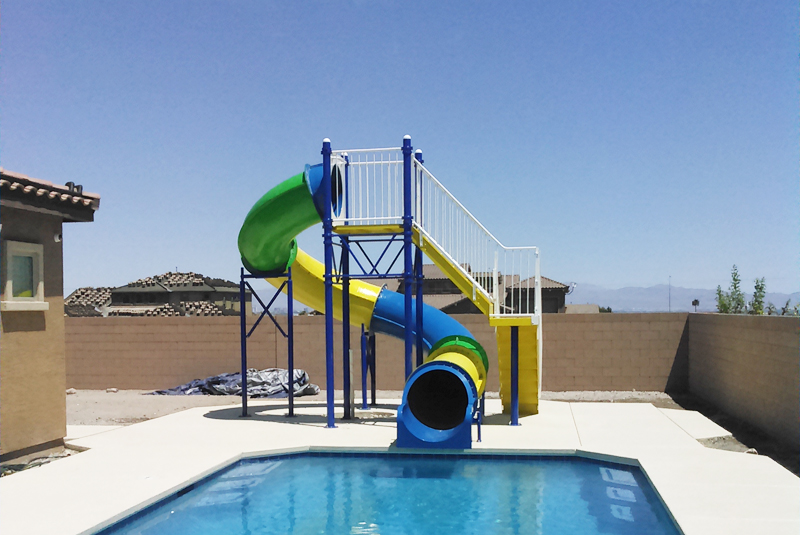

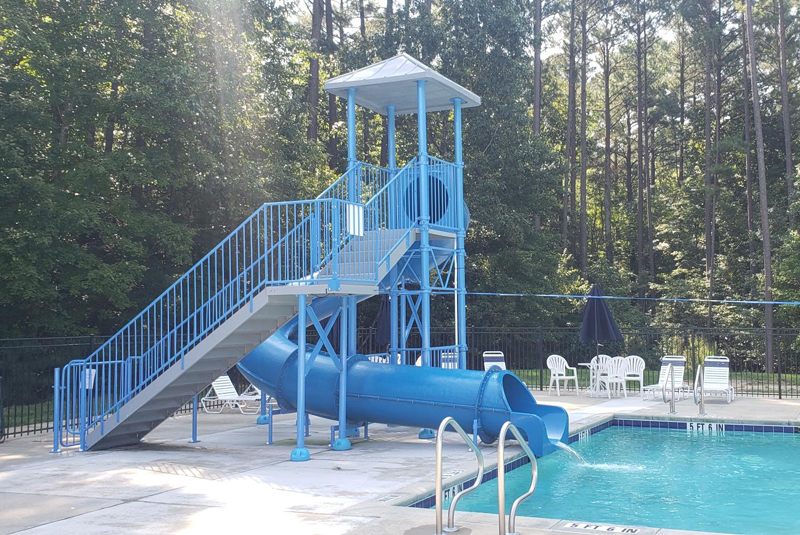

Closed Flume Fiberglass Water Slide
Model 1628-32

Description : 32” I.D. closed fiberglass flume slide with one 270° turn.
Centerline Run : 38' 4"
Entry Height : 10' 5"
Platform Size : 4' x 4'
Space Requirements : 26’ 3” x 18’ 11” - Varies with options chosen.

32” inside diameter closed fiberglass flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 8" x 20' 0
Minimum water depth: 3'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

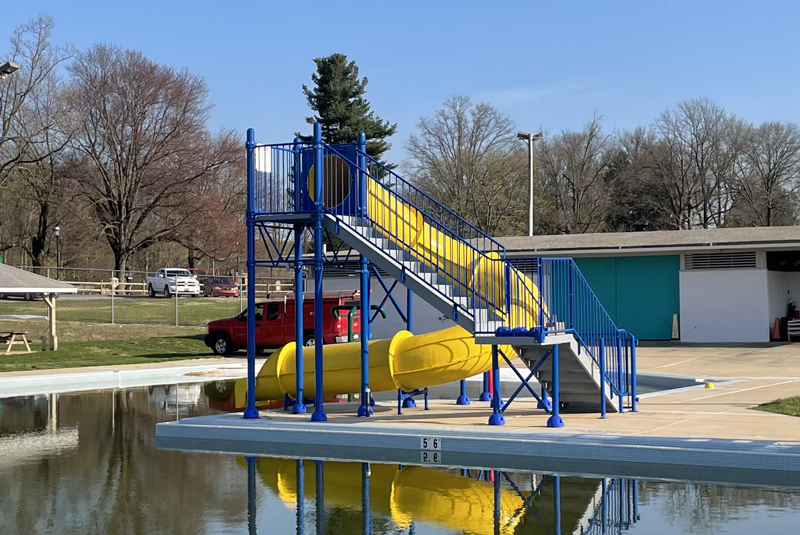

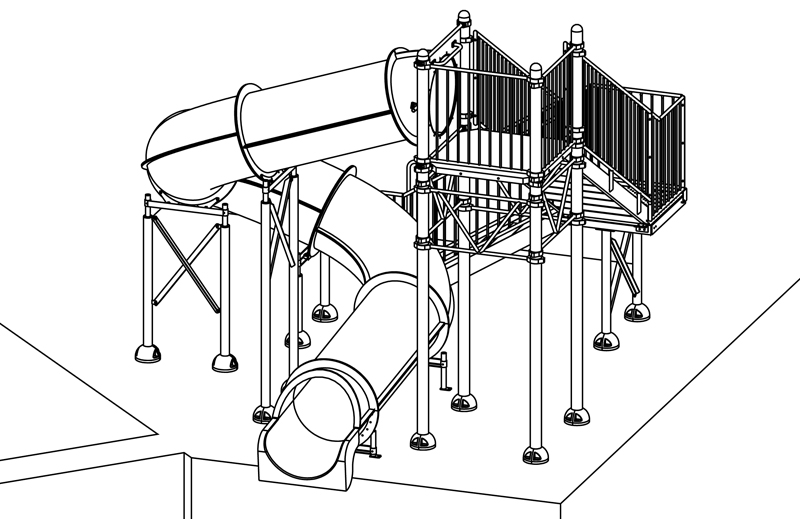

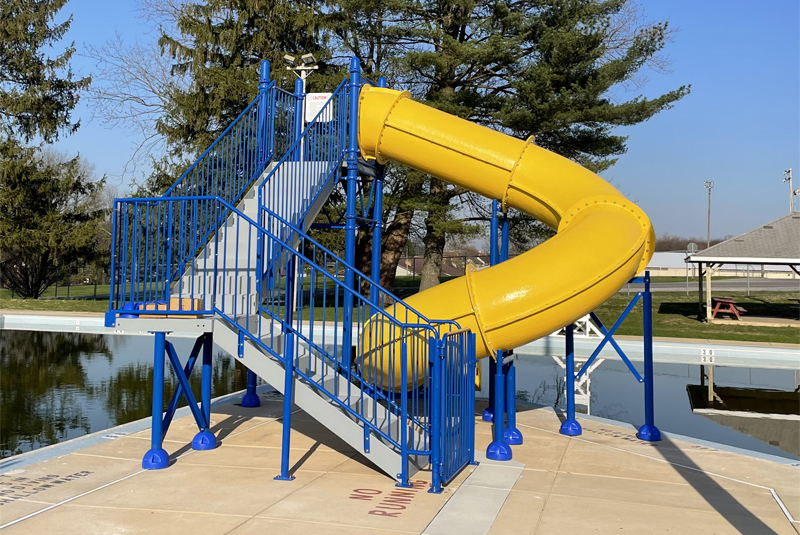

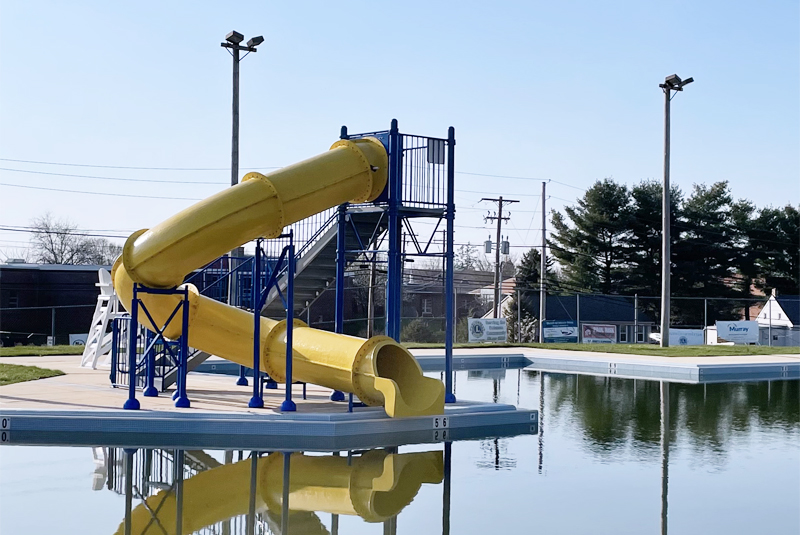

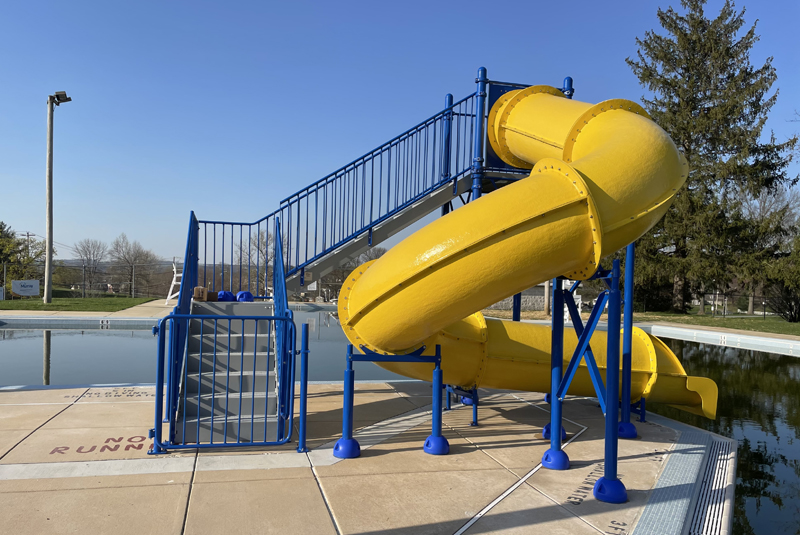

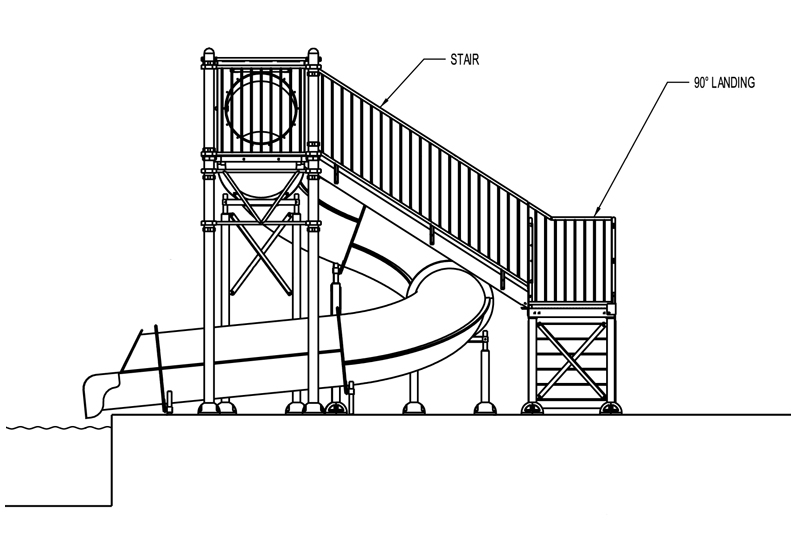

Closed Flume Fiberglass Water Slide

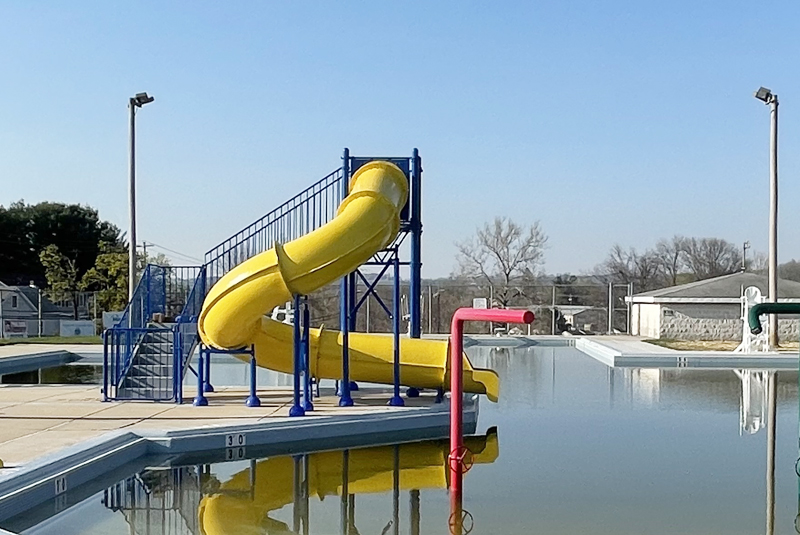

Model 1688-32

Description: 32” I.D. closed fiberglass flume slide with one 270° turn.
Centerline Run: 35' 8"
Entry Height: 10' 5"
Platform Size: 4' x 4'
Space Requirements: 16’ 5” x 19’ 7” - Varies with options chosen.

32” inside diameter closed fiberglass flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 8" x 20' 0
Minimum water depth: 3' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

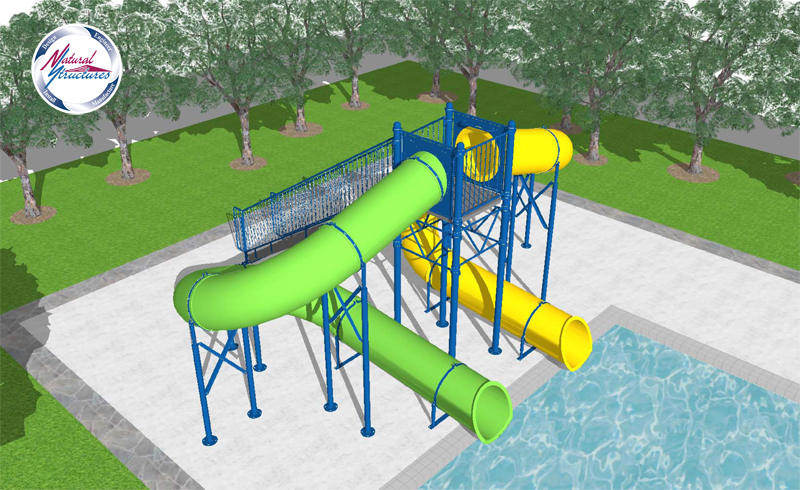

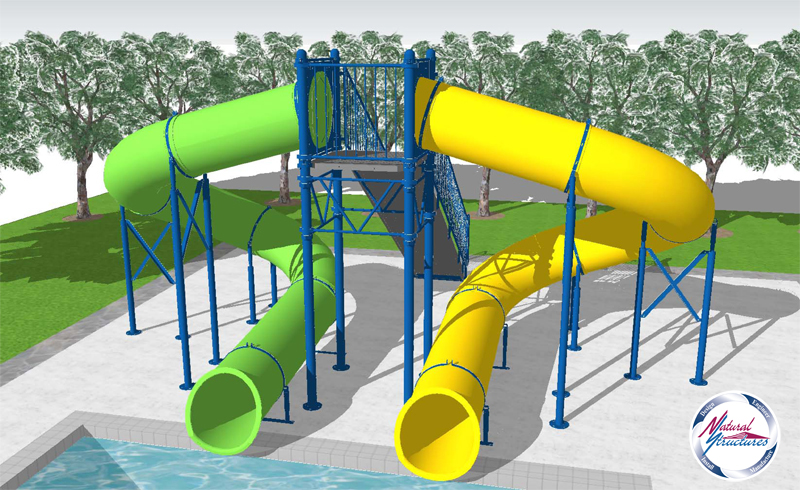

Double Flume Water Slide
Model 1689

Description : Double 30” I.D. flume slide with two (2) 270° turns.
Centerline Run (each flume) : 37' 3"
Entry Height : 10' 5"
Platform Size : 4' x 4'
Space Requirements : 28' 0" x 23' 2" – Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flumes
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Deck top mounted
Splash down dimension 20' 3" x 20' 0"
Minimum water depth: 3' 0" (within 6" of water level)

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Water Slide
Model 9409

Description: Double 30" I.D. flume water slide
with (1) 90° curve; (1) 180° curve.
Centerline Run: 31' 6" and 32' 6"
Entry Height: 10' 5"
Platform Size: 8' x 8'
Space Requirements: 45' 11" x 20' 0" – Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flumes.
Water flow required (each flume):
20 gpm recommended; 20 to 40 gpm required.
Splash down dimension 47' 9" x 20'
Minimum water depth: 3'

click on image to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Water Slide
Model 9410

Description: Double 30” I.D. polyethylene water slide with one (1) 90° curve and one (1) 360° turn.
Centerline Run: 31' 6" and 43' 1"
Entry Height: 10' 5"
Platform Size: 8' x 8'
Space Requirements: 33' 9" x 15' 2" – Space requirements may vary with options chosen.

30" inside diameter polyethylene flumes.
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Splash down dimension 41' 10" x 20'
Minimum water depth: 3'

click on image to enlarge

Download Spec Sheet
Requires Adobe Acrobat

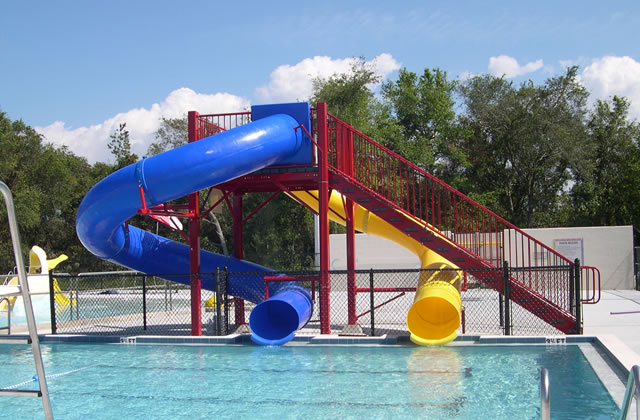

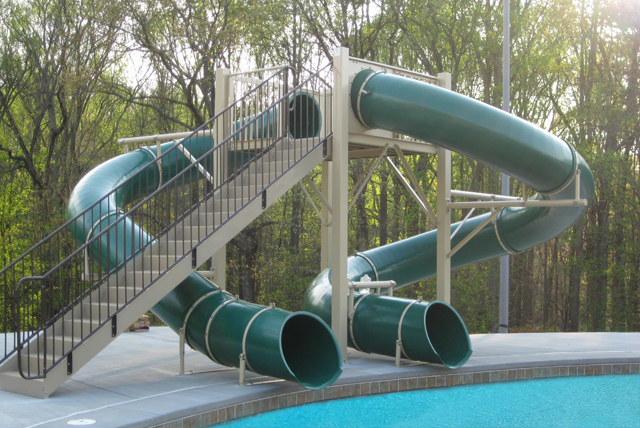

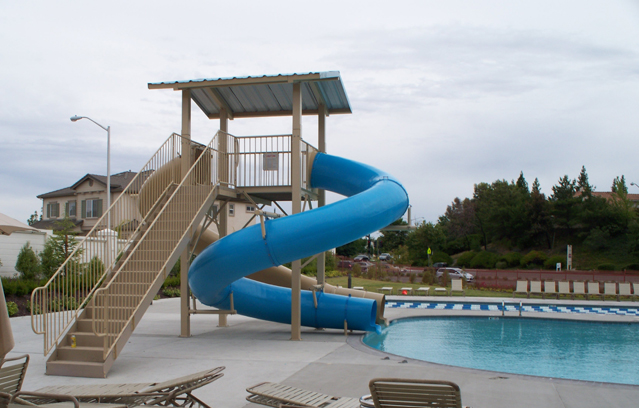

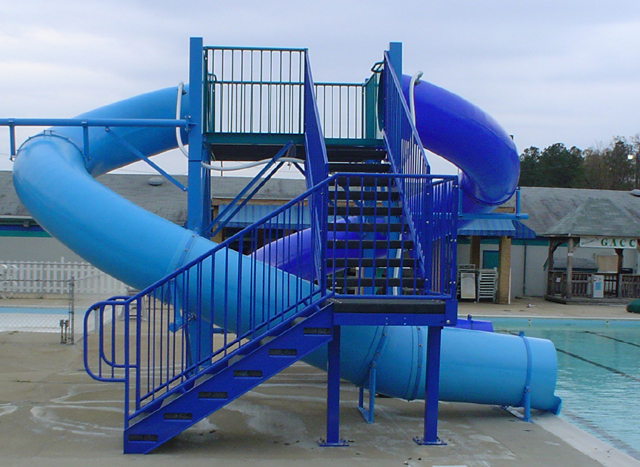

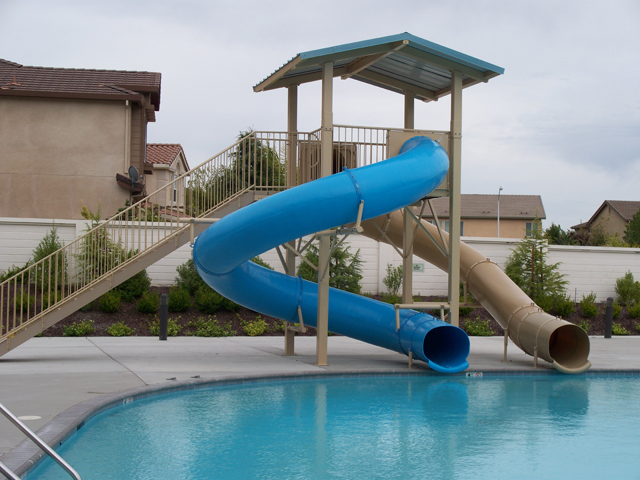

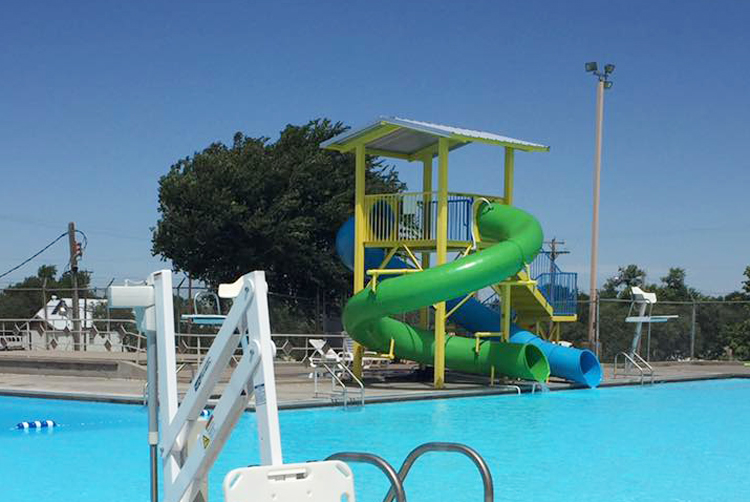

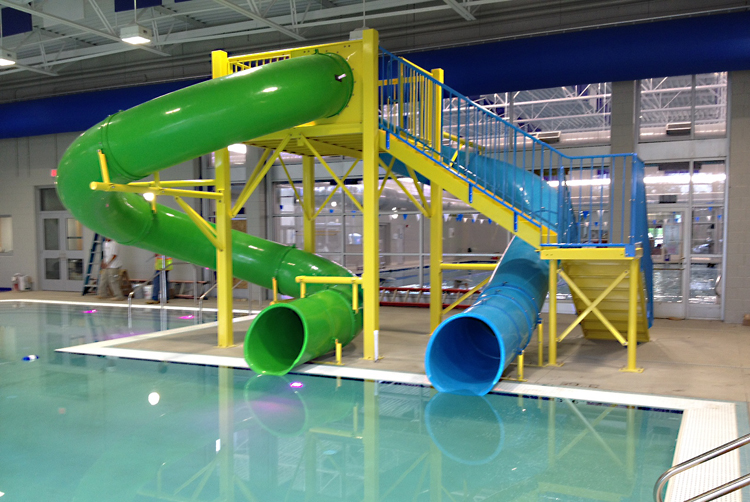

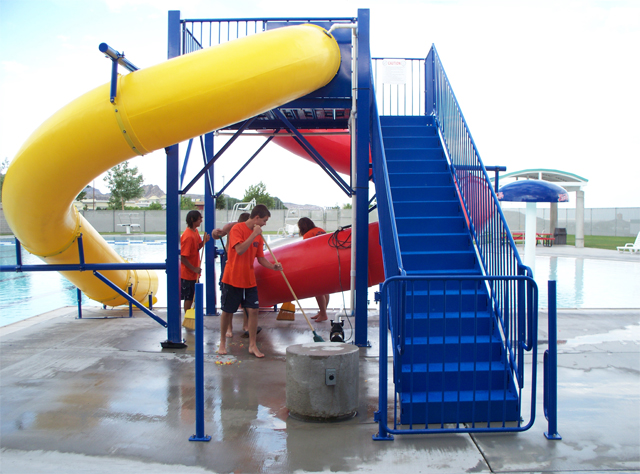

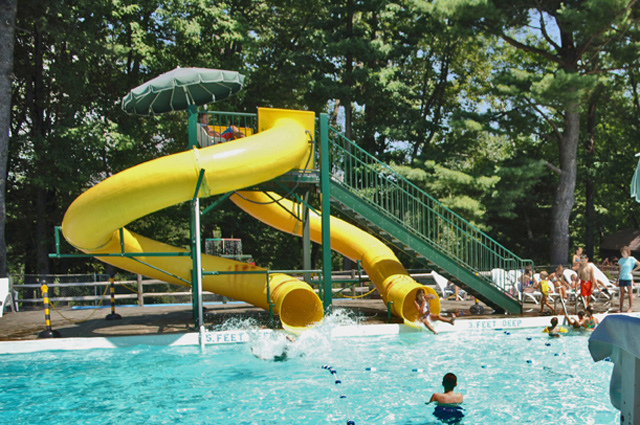

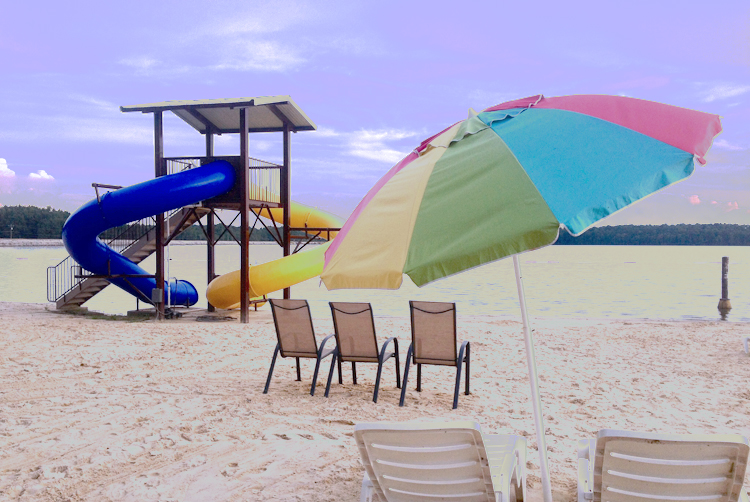

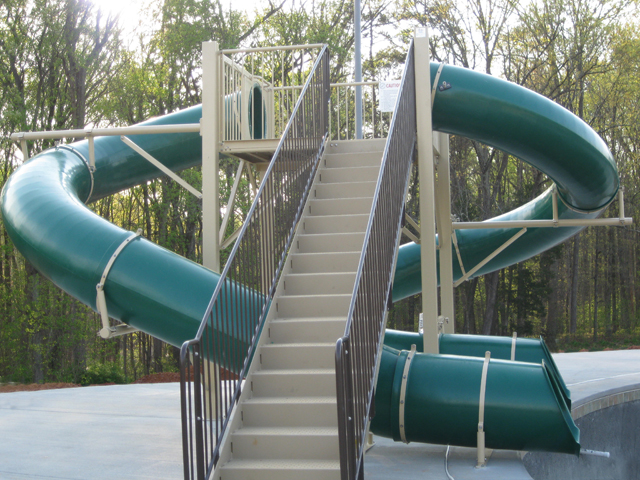

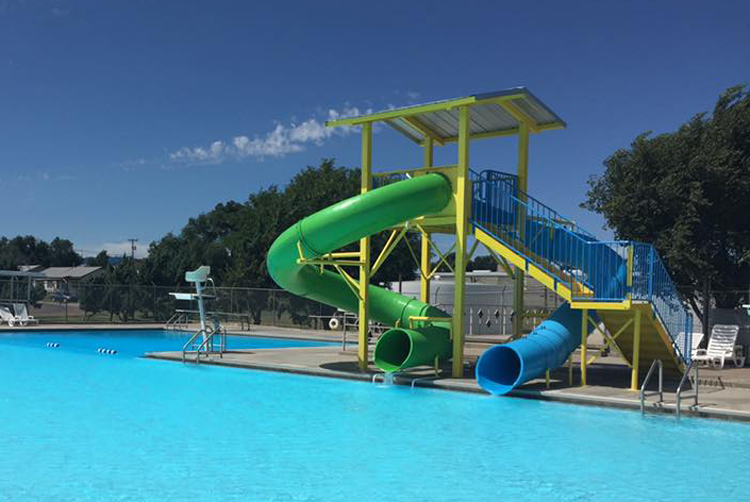

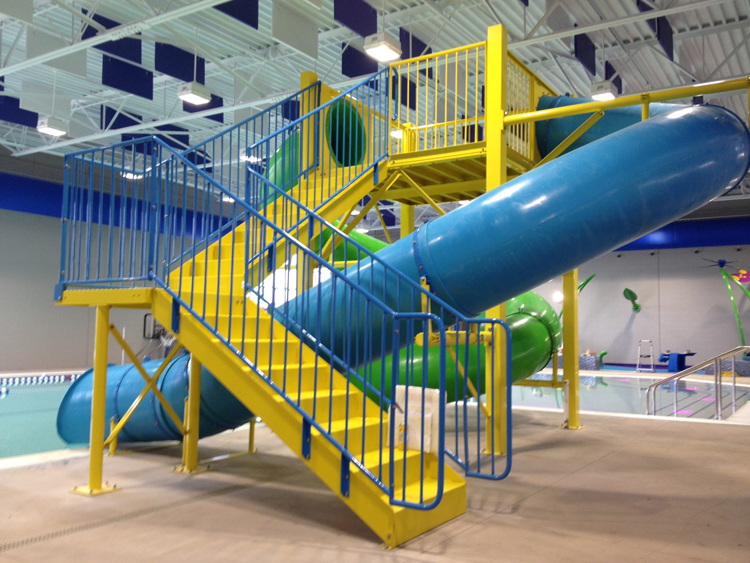

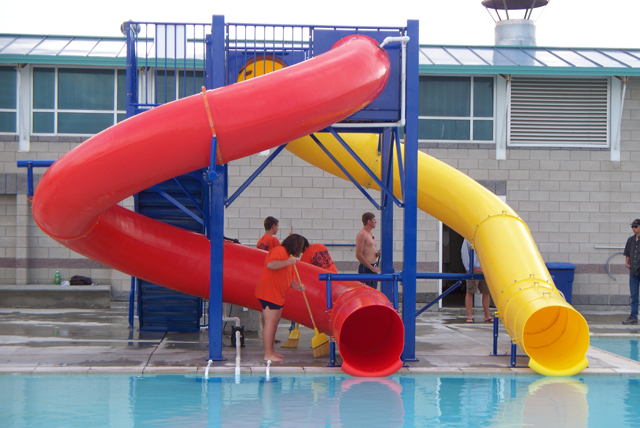

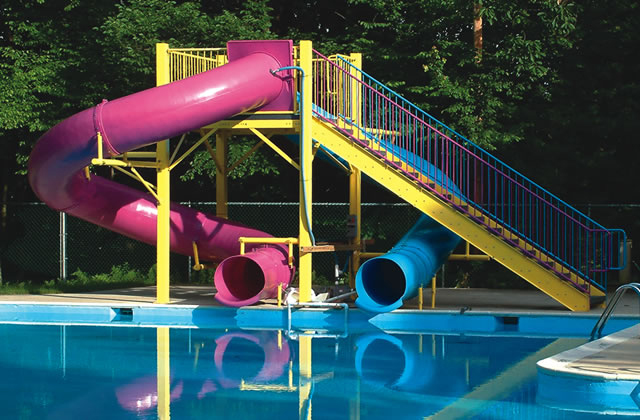

Double Flume Water Slide

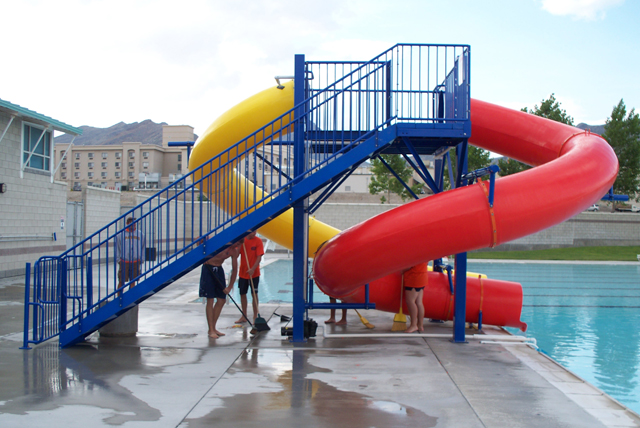

Model 9412

Description : Double 30" I.D. flume water slide, one 360 ° and one 180 ° turn.
Centerline Run : 43' 1" & 34' 0"
Entry Height : 10' 5"
Platform Size : 8' x 8'
Space Requirements : 25' 11" x 19' 2" – Space requirements may vary with options chosen.

2 different water slide rides, 2 different speeds!

30" inside diameter polyethylene water slide flumes
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Deck top mounted
Splash down dimension 22' 0" x 20' 0"
Minimum water depth: 3' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

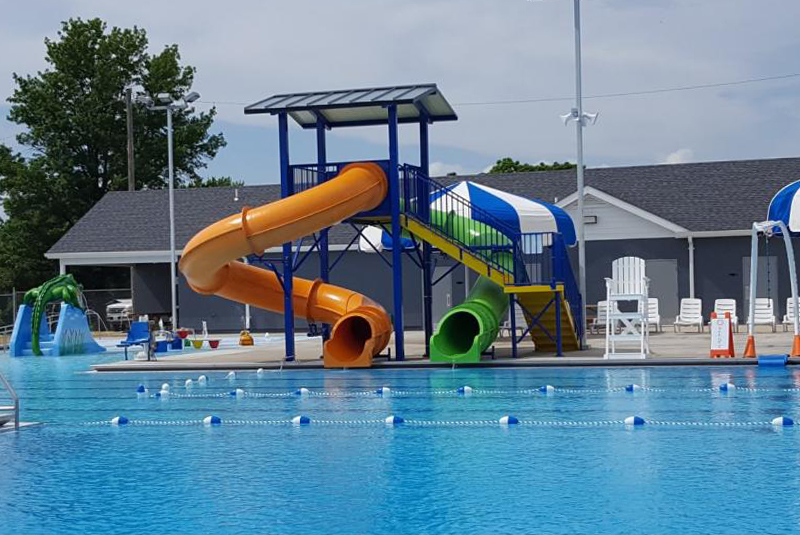

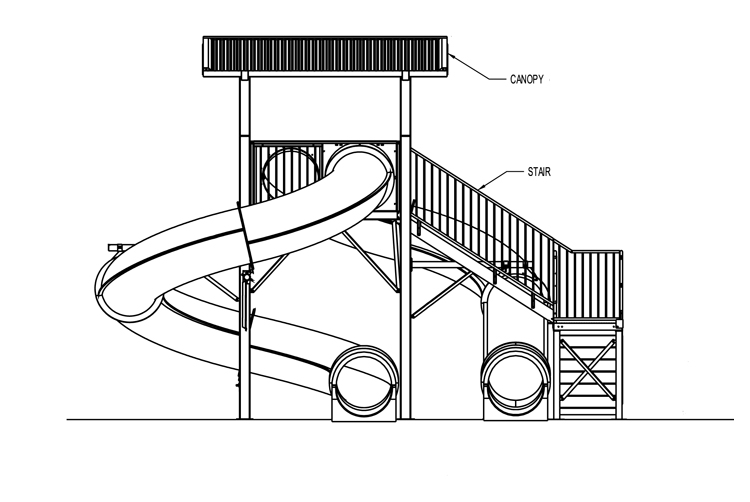

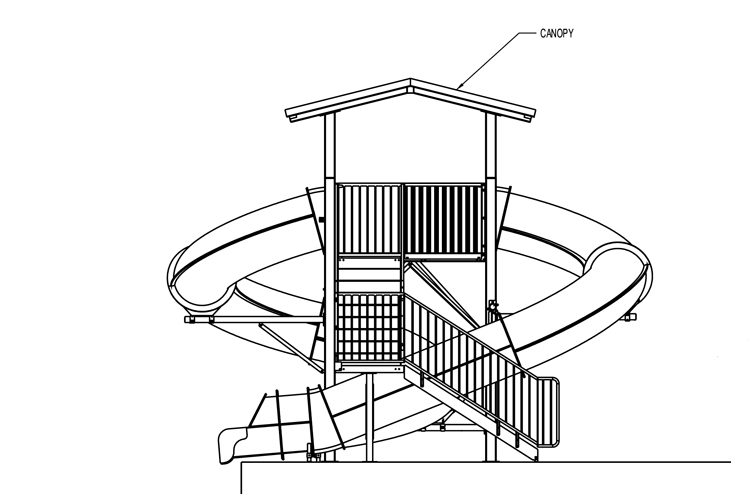

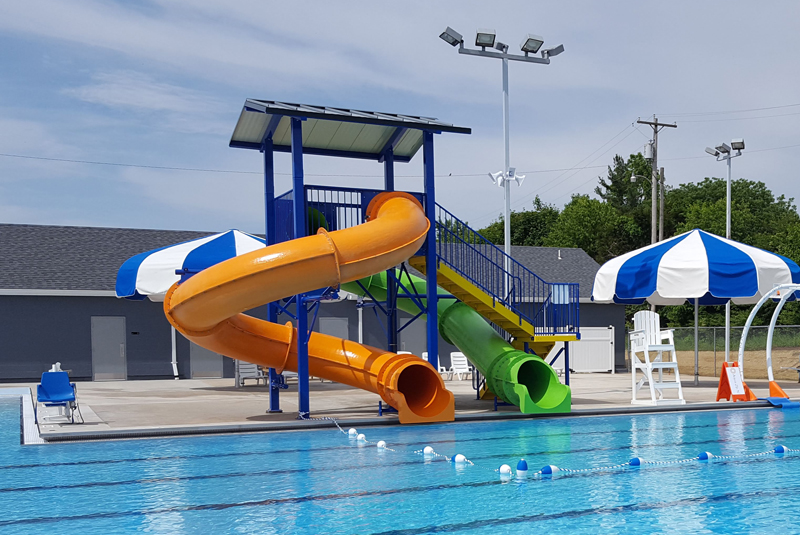

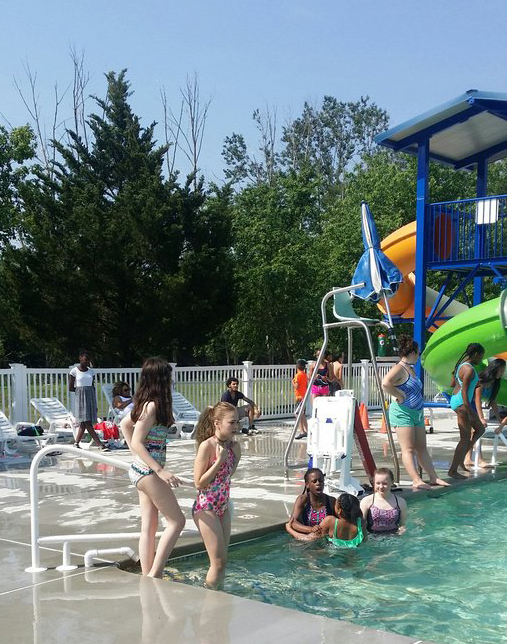

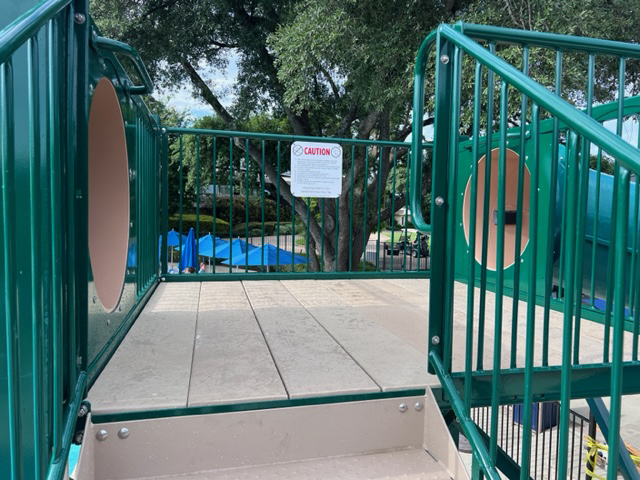

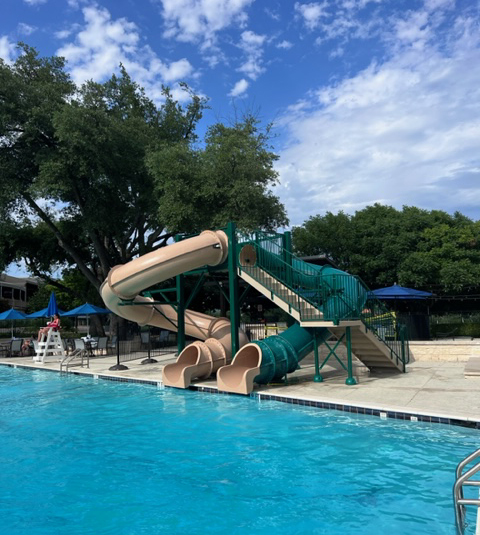

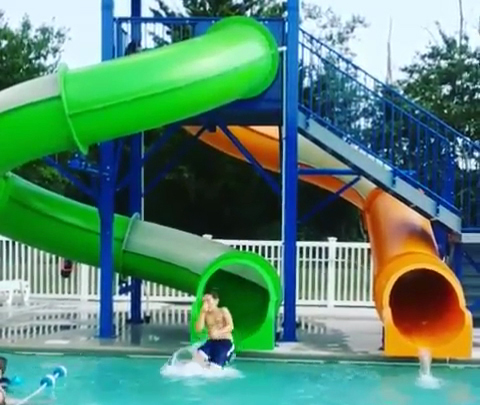

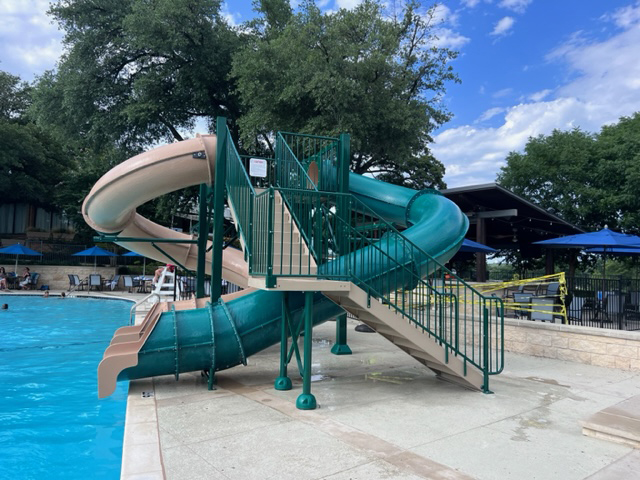

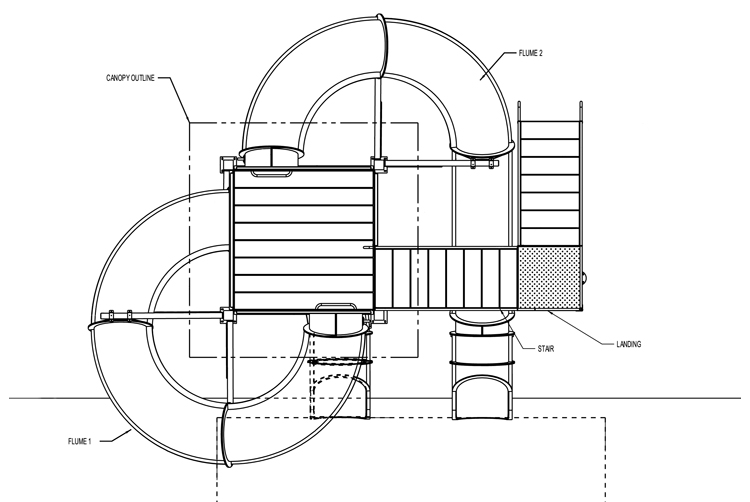

Double Flume Water Slide
Model 9412

Description : Double 32” I.D. closed fiberglass flume water slide, one 360 ° and one 180 ° turn.
Centerline Run : 41' 9" & 33' 9"
Entry Height : 10' 5"
Platform Size : 8' x 8
Space Requirements : 26’ 3” x 18’ 11” - Varies with options chosen.

32” inside diameter closed fiberglass flumes
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Pool deck mount
Splash down dimension 20' 0" x 20' 0"
Minimum water depth: 3' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

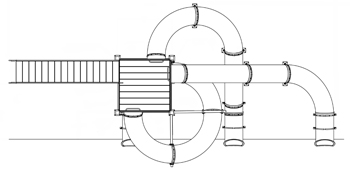

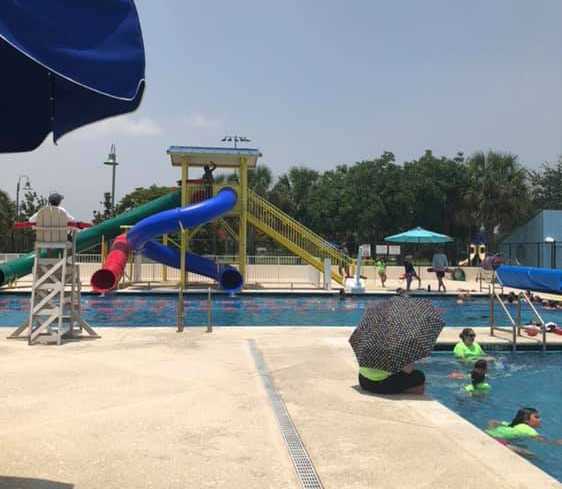

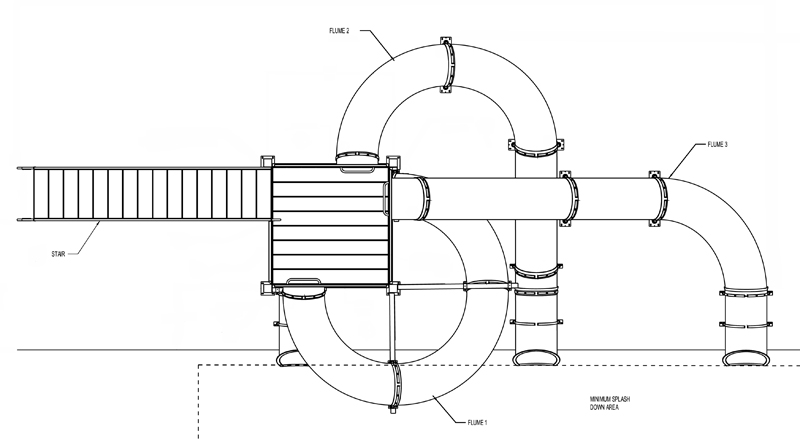

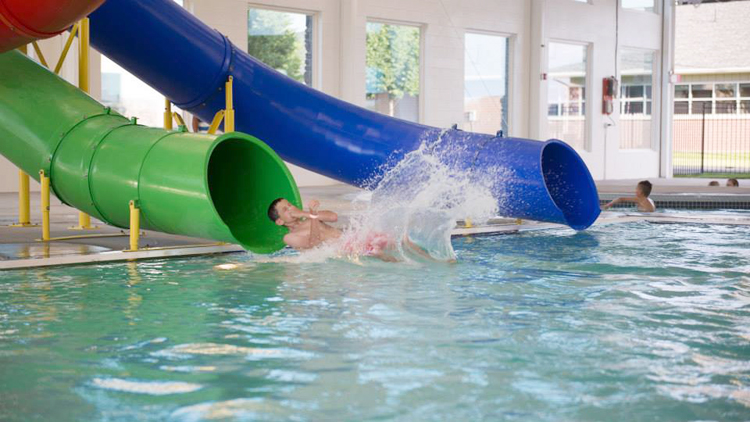

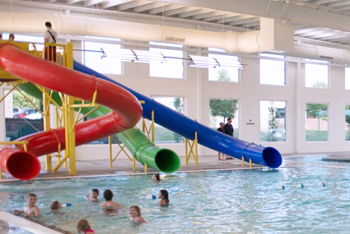

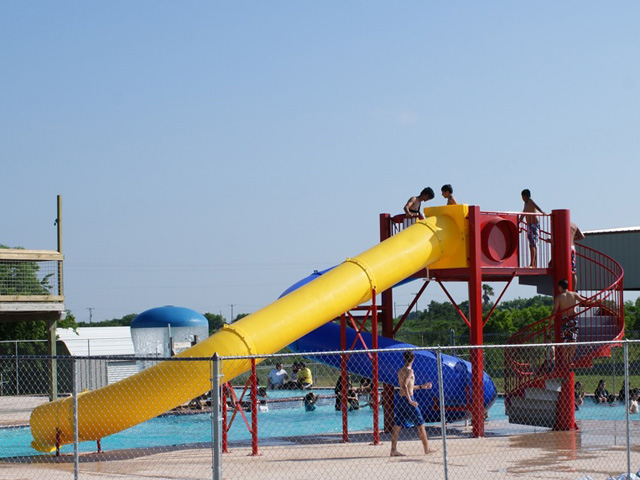

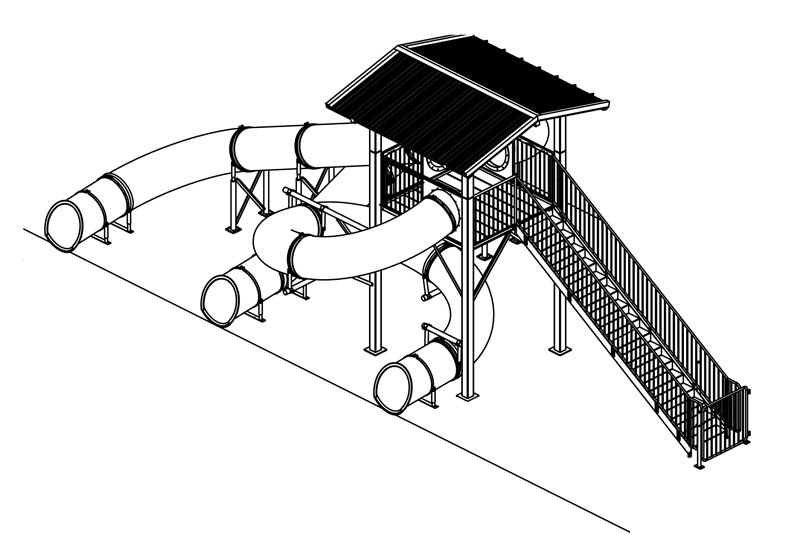

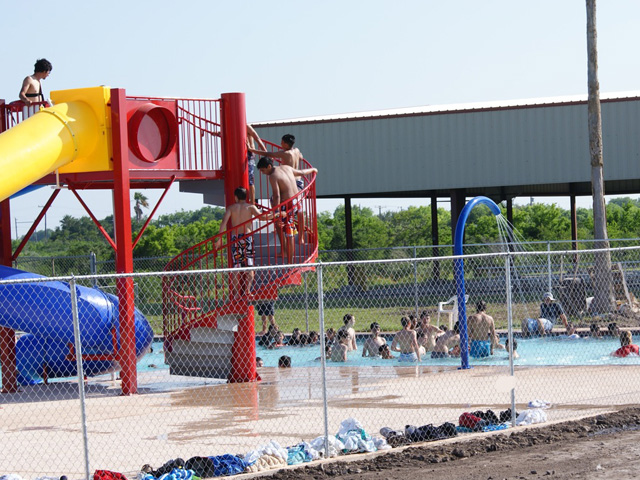

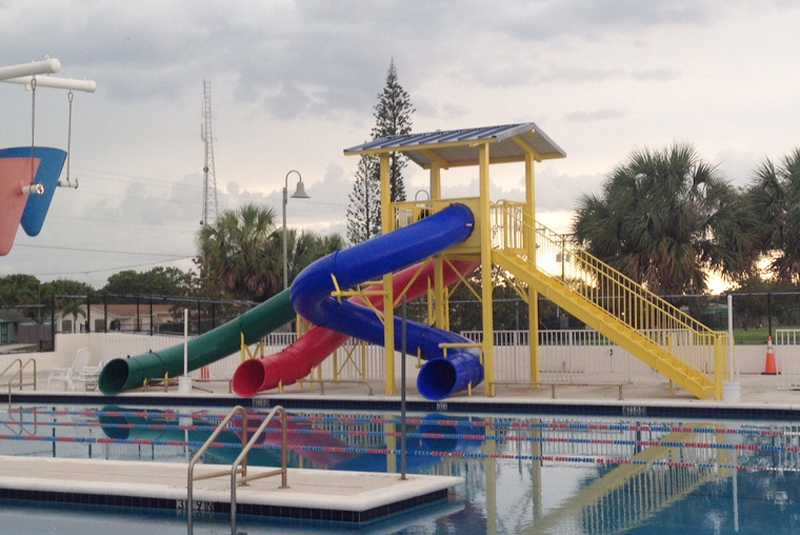

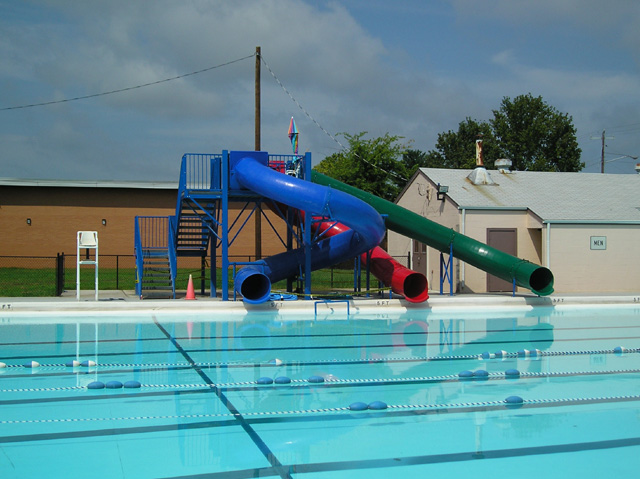

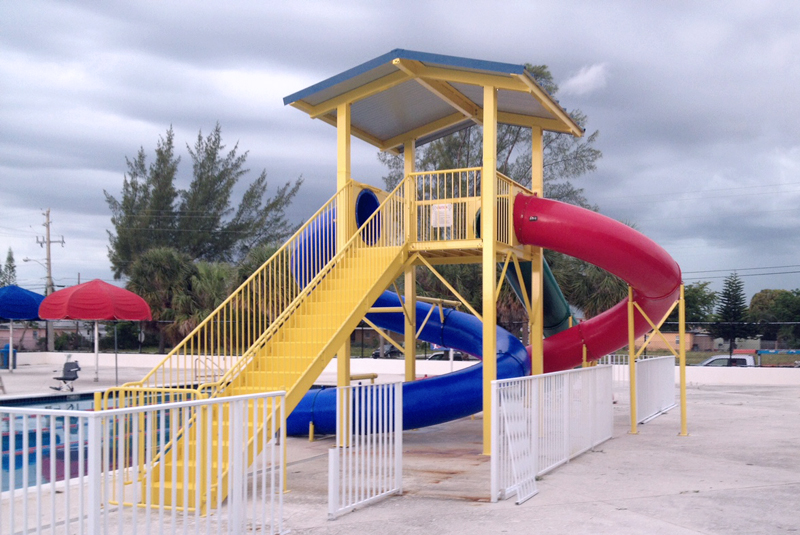

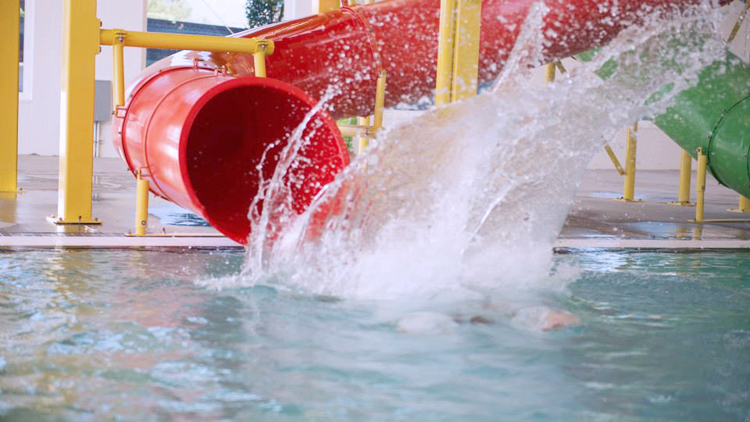

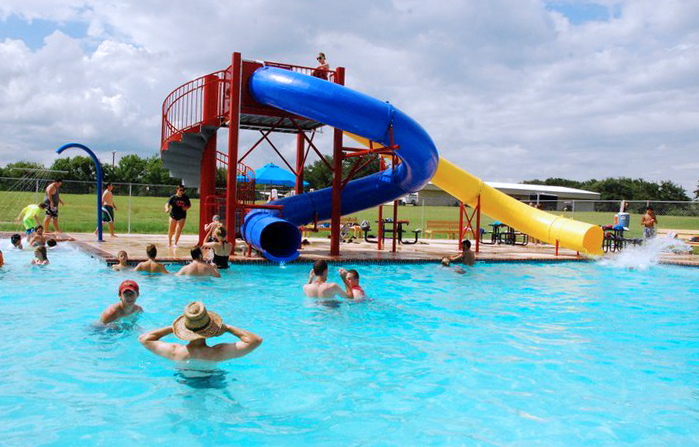

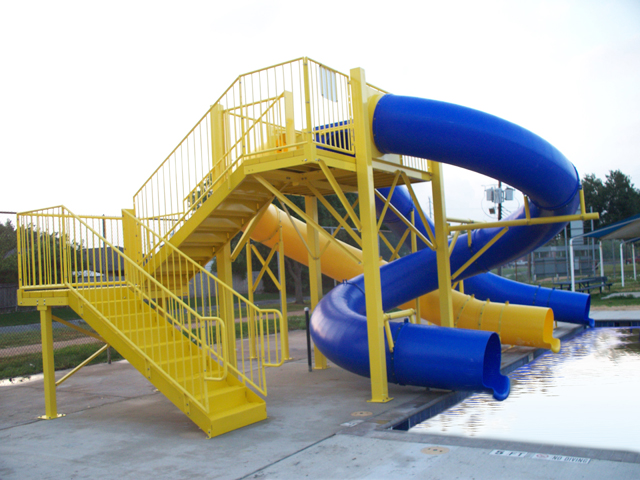

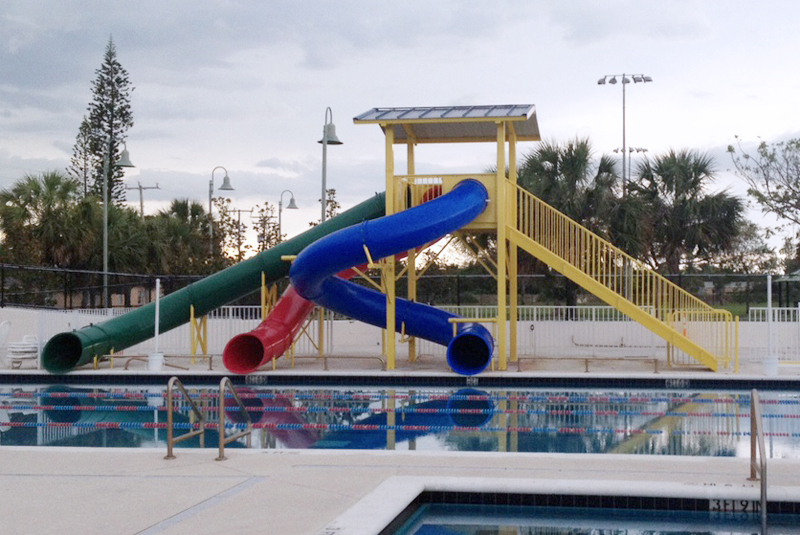

Triple Flume Water Slide

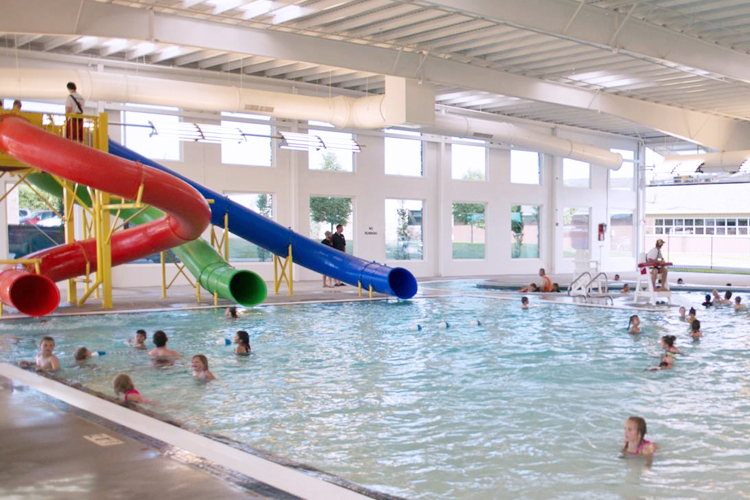

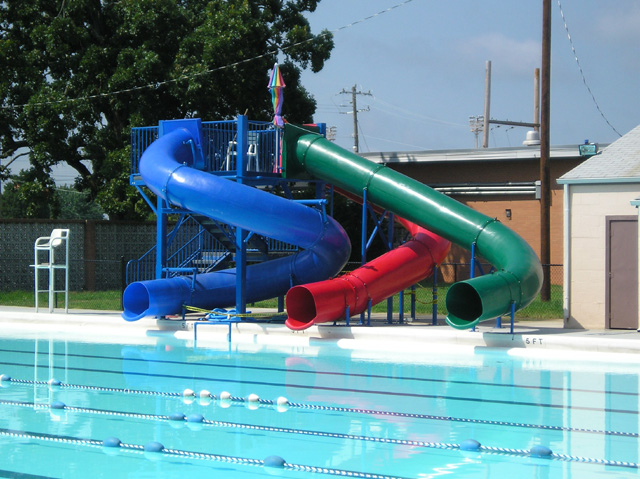

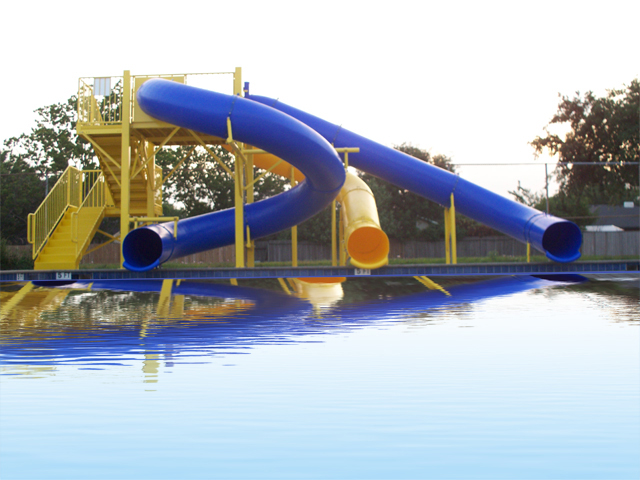

Model 9429

Description : Triple flume 30” I.D. polyethylene water slide, one 360°, one 180° and one 90° turn.
Centerline Run : 31’ 5", 32' 6" and 43’ 1"
Entry Height : 10' 5"
Platform Size : 8' x 8'
Space Requirements : 37' 9 " x 18' – Space requirements may vary with options chosen.

CAN BE INSTALLED IN 3 PHASES !

30" inside diameter polyethylene water slide flumes
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Deck top mounted
Splash down dimension 39' x 20'
Minimum water depth: 3'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Phase 2 of 3

Download Spec Sheet
Requires Adobe Acrobat

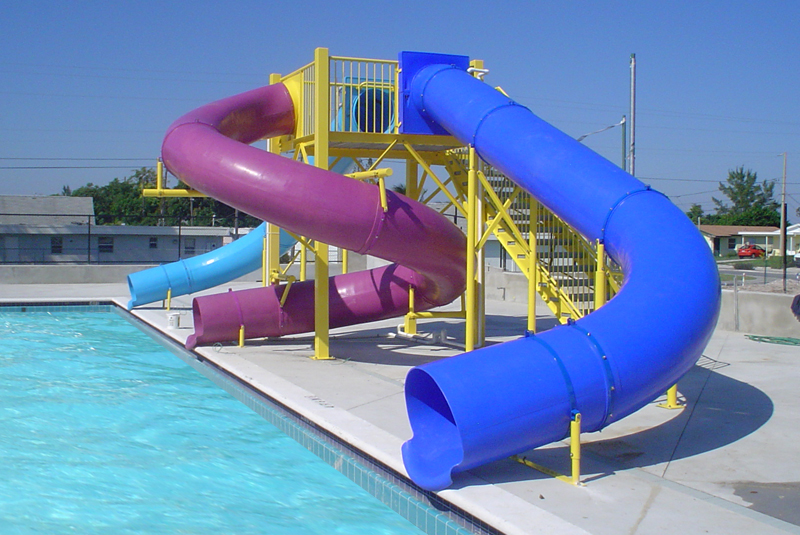

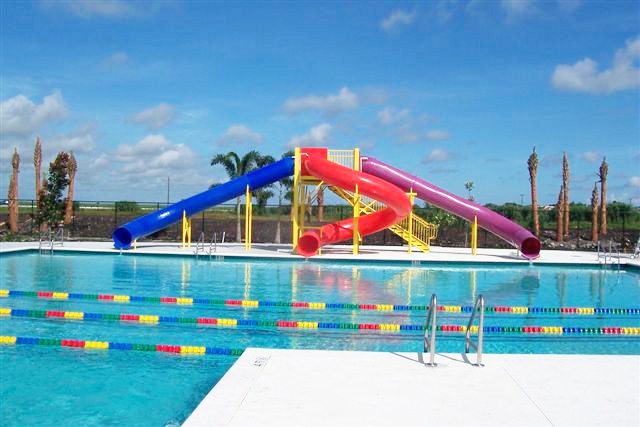

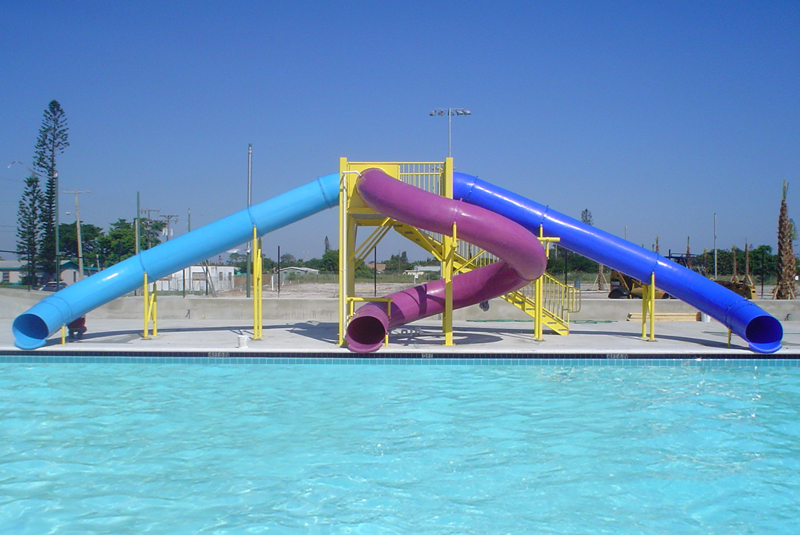

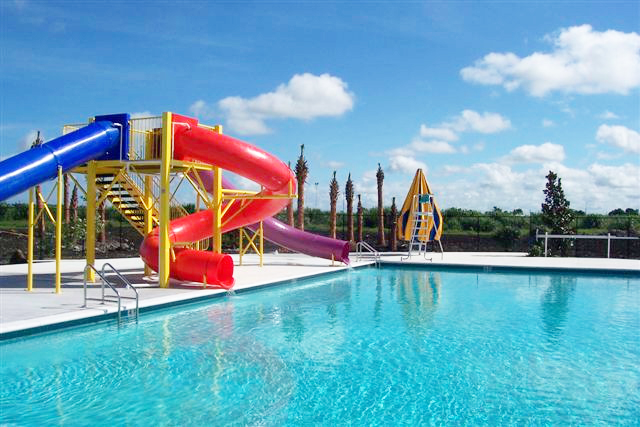

Triple Flume Water Slide
Model 9431

Description : Triple flume 30” I.D. polyethylene water slide with one (1) 360° and two (2) 90° turns.
Centerline Run: 31’ 5”, 31’ 5” and 43’ 1”
Entry Height: 10’ 5”
Platform Size: 8' x 8'
Space Requirements: 52' 4" x 16' 2" – Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flumes
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Deck top mounted
Splash down dimension 62' 4" " x 20' 0"
Minimum water depth: 3' 0"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

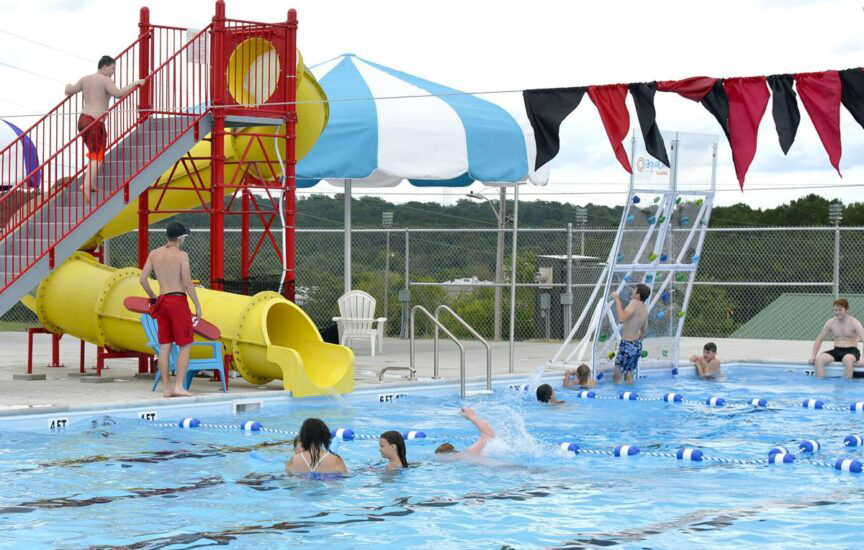

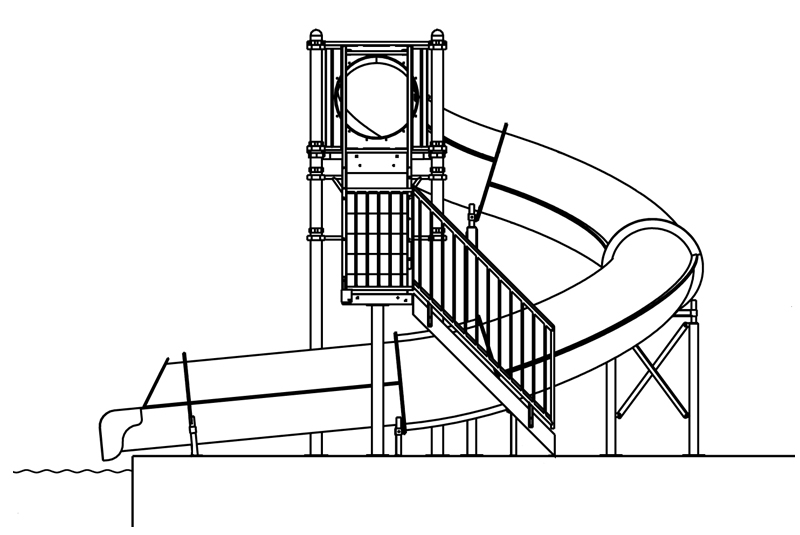

Closed Flume Fiberglass Water Slide
Model 1628-32

Description : 32” I.D. closed fiberglass flume slide with one 270° turn.
Centerline Run : 38' 4"
Entry Height : 10' 6"
Platform Size : 4' x 4'
Space Requirements : 17’ 0” x 18’ 11” - Varies with options chosen.
