Click on thumbnails below to see specifications and photos of each model

  • 1818
    Fiberglass Water Slide Model 1818
  • 1928
    Double Fiberglass Flume Water Slide Model 1928
  • 1954
    Fiberglass Flume Water Slide Model 1954
  • 1931
    Fiberglass Water Slide Model 1931

Fiberglass Water Slide Model 1818Fiberglass Water Slide
Model: 1818

Description : Single open flume fiberglass water slide featuring (2) 360° reverse curves.
Centerline Run: 99' 2"
Entry Height:14' 0"
Platform Size: 6' x 8'
Space Requirements: Vary with options chosen.
    Straight Stairs:
22' 7" x 35' 7"
    Spiral Stairs: 26' 5" x 32' 7 "

  • 36" inside diameter fiberglass water slide flume
  • 600-800 gpm water flow required
  • Splash down dimension: 13' x 20'
  • Minimum water depth: 3' 0"

click on images to enlarge

Fiberglass Water Slide Model 1818Fiberglass Water Slide Model 1818 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

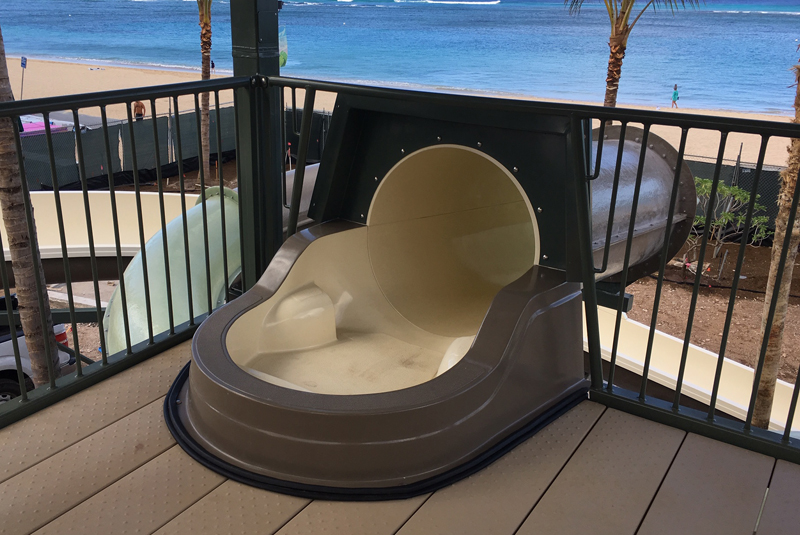

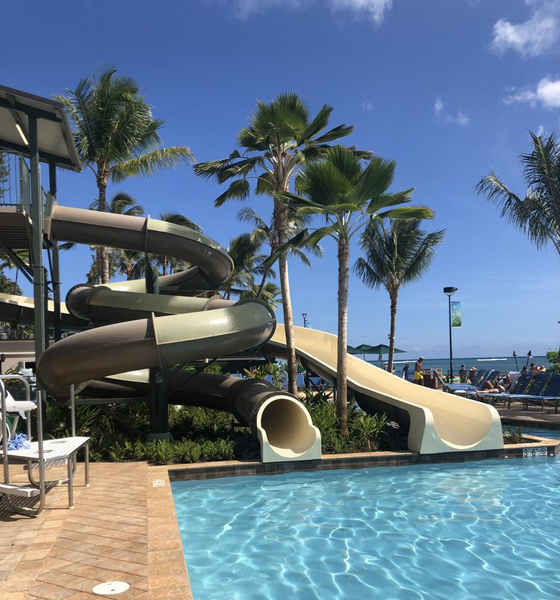

Double Fiberglass Flume Water Slide Model 1928Double Fiberglass Flume Water Slide
Model: 1928

Description: Double Fiberglass flume water slide featuring 32” I.D. closed fiberglass flume (Flume 1) and 42” I.D. open fiberglass flume (Flume 2).
Centerline Run: (1): 107’ 11” (2): 99’ 3”
Entry Height: 15' 2"
Platform Size: 9’ 7” x 9’ 7”
Space Requirements: 101’ 1” x 47’ 5”– Space requirements may vary with options chosen.

  • 42" inside diameter open fiberglass flume water slide
  • 32” inside diameter closed fiberglass flume water slide
  • Water flow required: 500-700 gpm.
  • Splash down dimension: 22' 7" x 20' 0" (each flume)
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

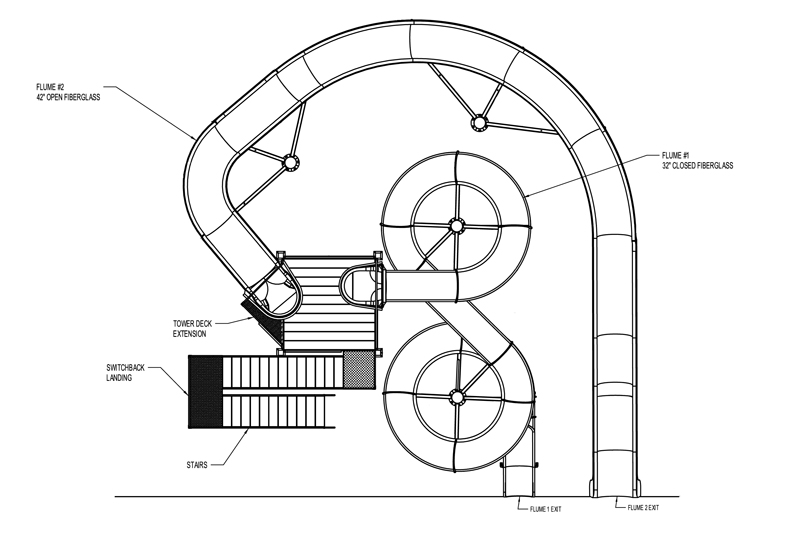

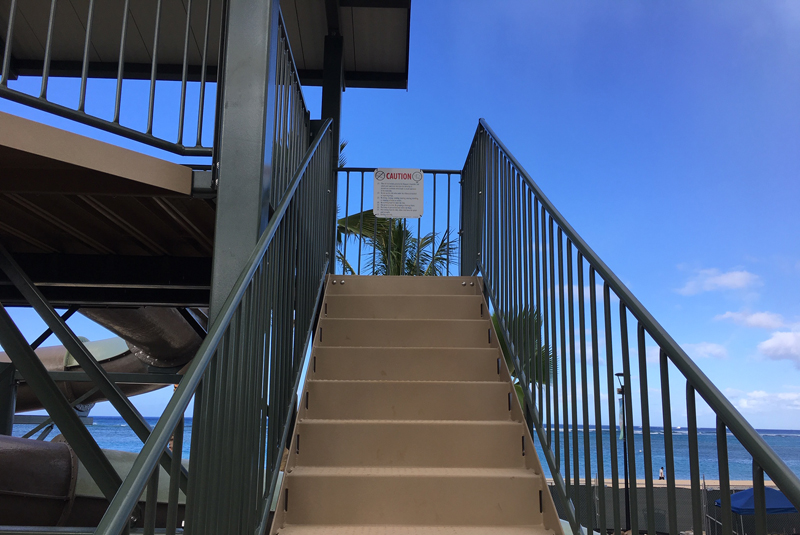

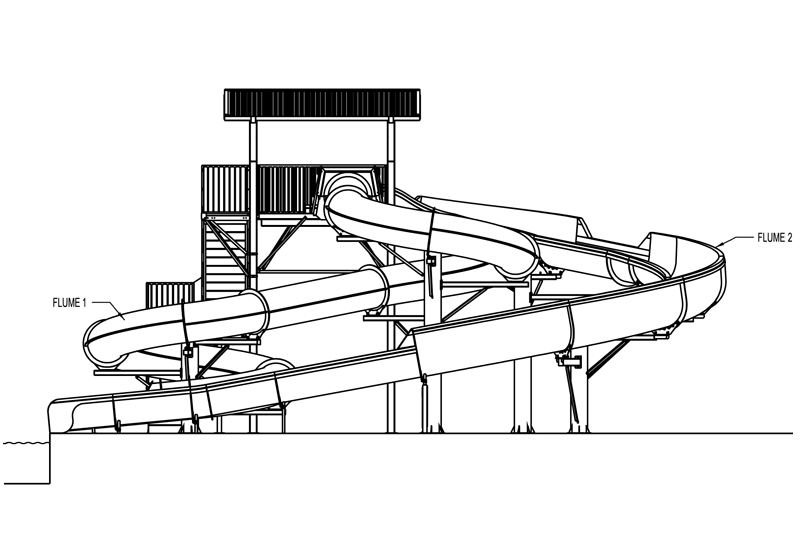

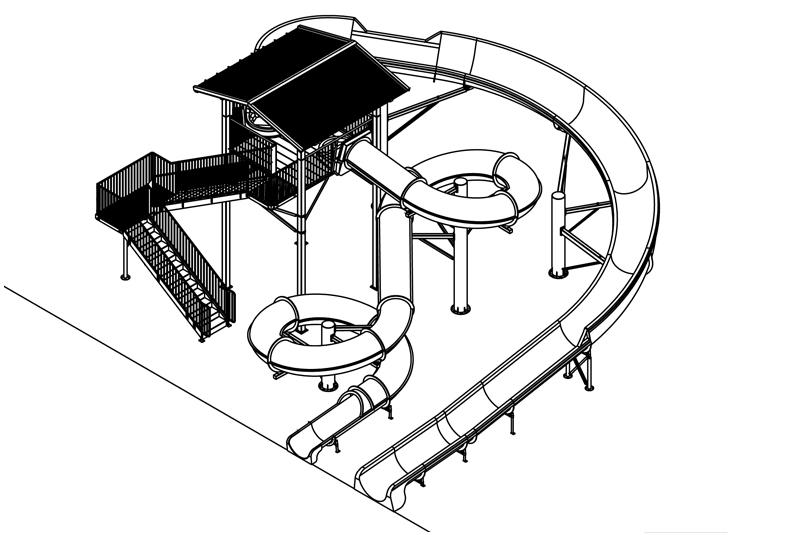

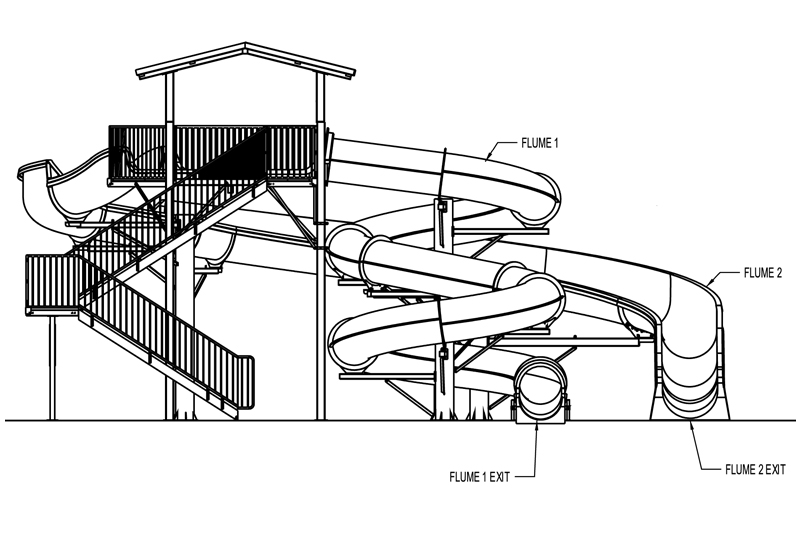

Double Fiberglass Flume Water Slide Model 1928Double Fiberglass Flume Water Slide Model 1928 Double Fiberglass Flume Water Slide Model 1928 plan view Double Fiberglass Flume Water Slide Model 1928 plan view Double Fiberglass Flume Water Slide Model 1928 plan view Double Fiberglass Flume Water Slide Model 1928 plan view

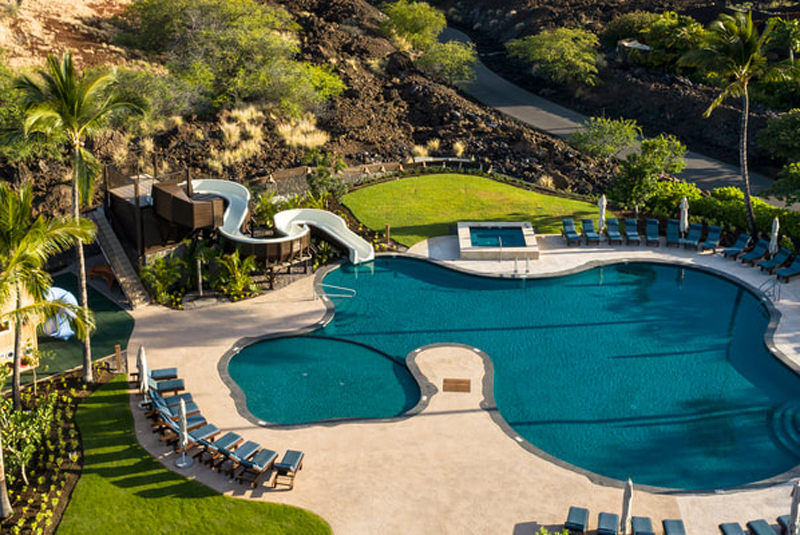

Fiberglass Flume Water Slide Model 1954Fiberglass Flume Water Slide
Model: 1954

Description: Fiberglass flume water slide featuring 32” I.D. closed fiberglass flume (Flume 1) and 42” I.D. open fiberglass flume (Flume 2).
Centerline Run: 112' 10”
Entry Height: 15' 2"
Platform Size: 10' x 12'
Space Requirements: 44' 2” x 31' 3”– Space requirements may vary with options chosen.

  • 36" inside diameter open fiberglass flume water slide
  • 32” inside diameter closed fiberglass flume water slide
  • Water flow required: 600-800 gpm.
  • Splash down dimension: 13' 0" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

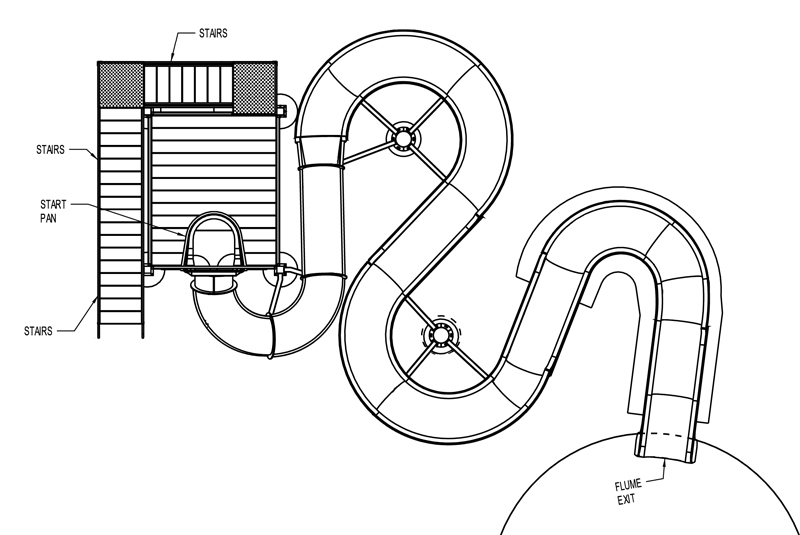

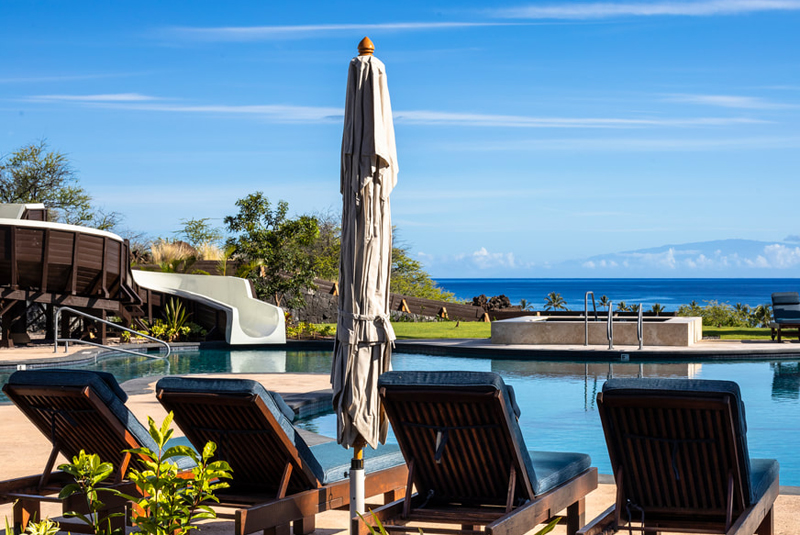

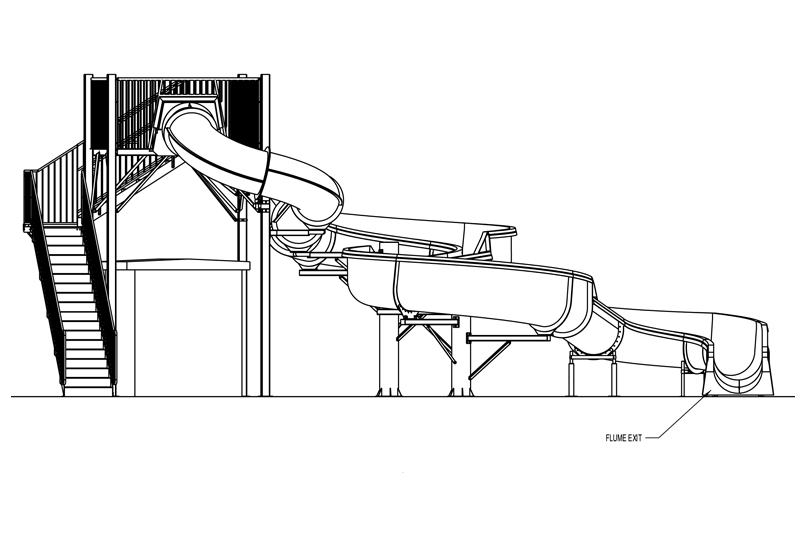

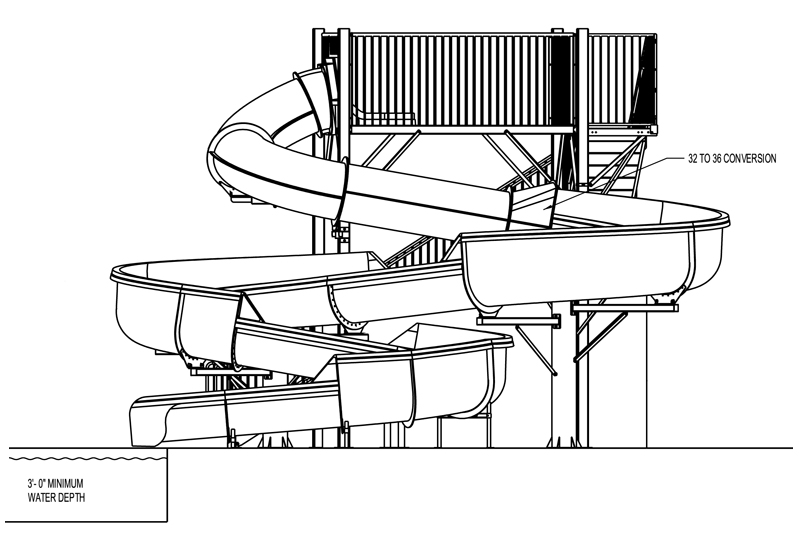

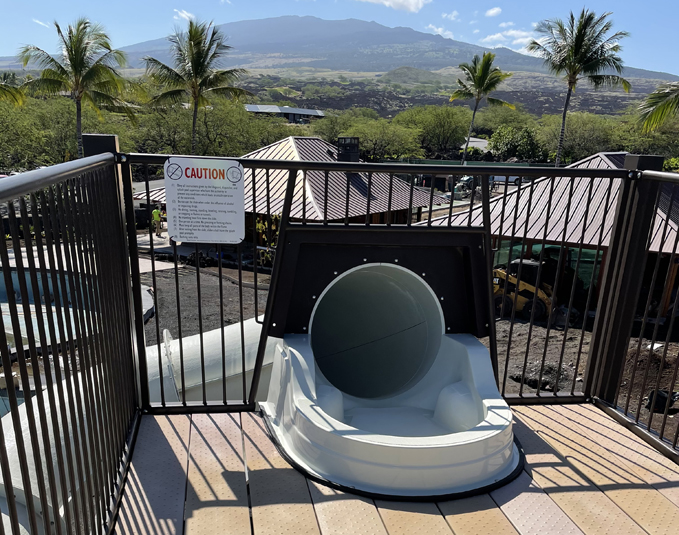

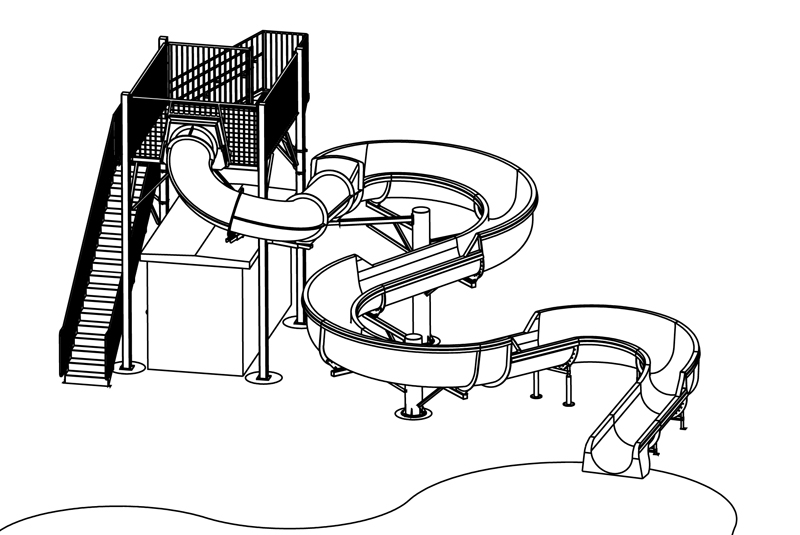

Fiberglass Flume Water Slide Model 1954 Fiberglass Flume Water Slide Model 1954 Fiberglass Flume Water Slide Model 1954 plan viewFiberglass Flume Water Slide Model 1954 plan viewFiberglass Flume Water Slide Model 1954 plan viewFiberglass Flume Water Slide Model 1954 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

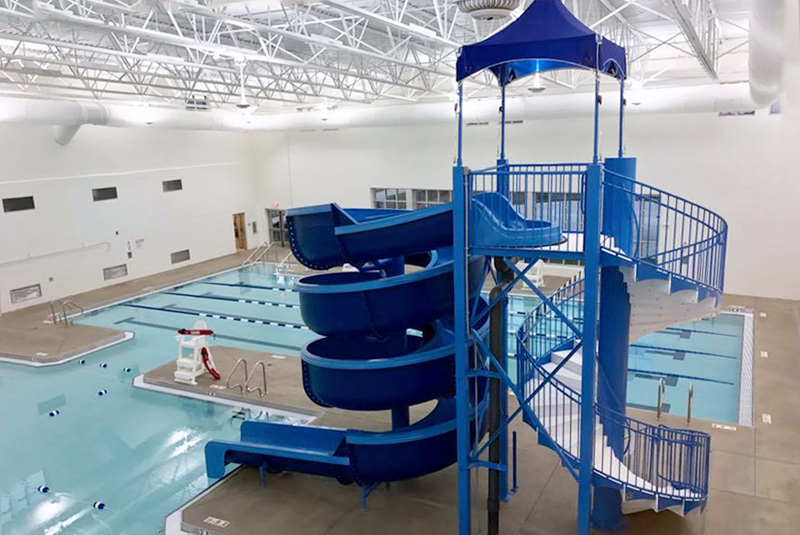

Fiberglass Water Slide Model 1931 Fiberglass Water Slide
Model: 1931

Description: Single open flume fiberglass slide withwith 3 complete spiral turns.
Centerline Run: 104' 2"
Entry Height: 15' 9"
Platform Size
: 6' x 6'
Space Requirements: 13' 11" x 28' 3" - Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • 500-700 gpm water flow required
  • Splash down dimension 13' 0" x 20' 0"
  • Minimum water depth: 3' 0"

click on images to enlarge

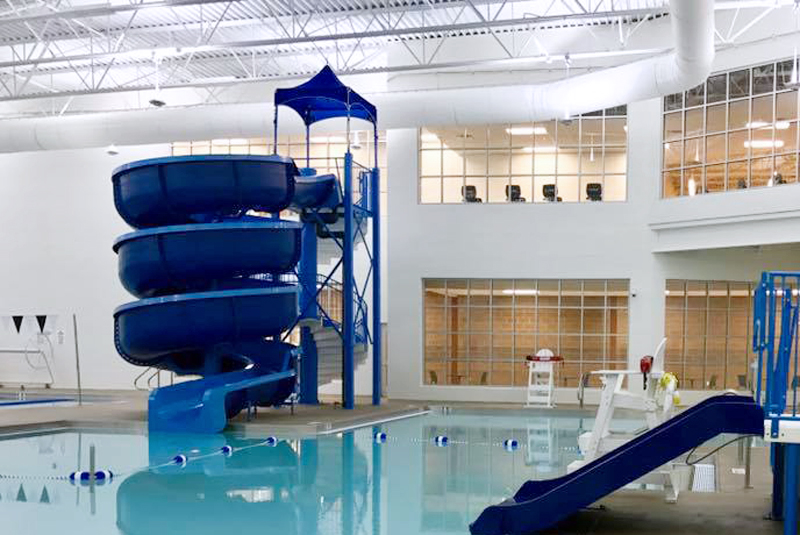

Fiberglass Water Slide Model 1931

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

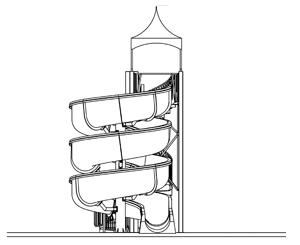

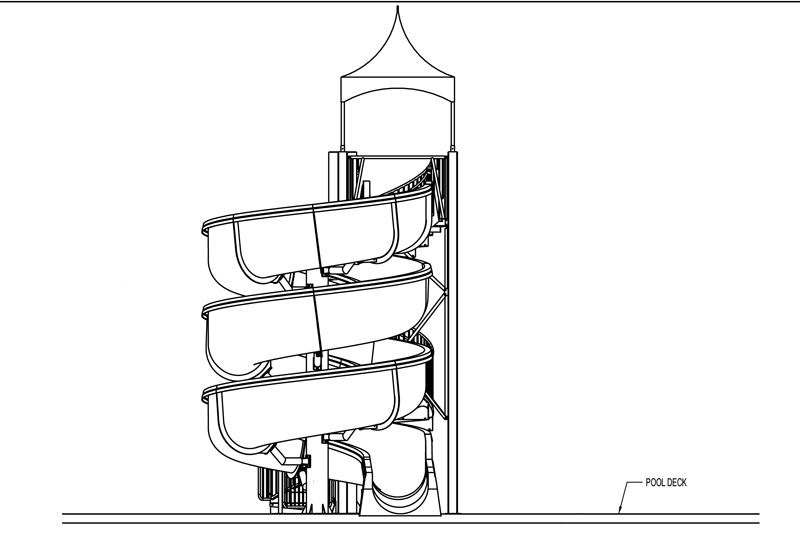

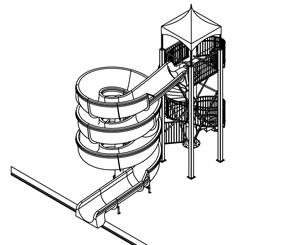

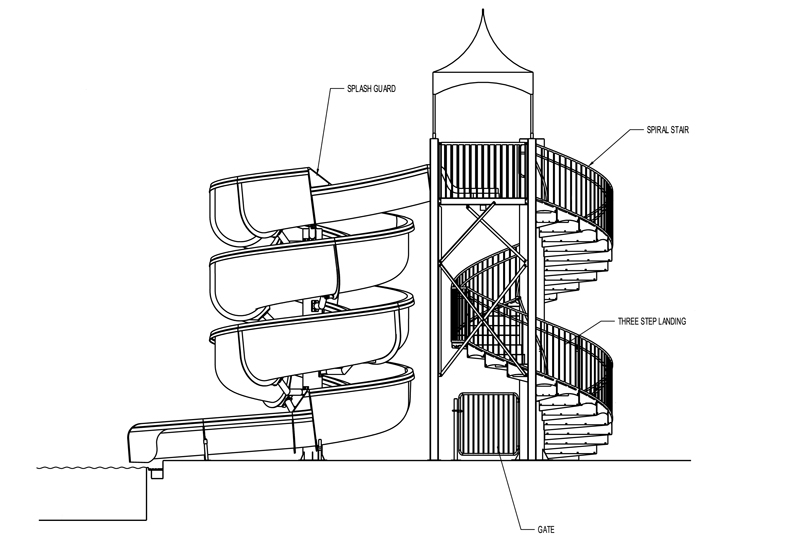

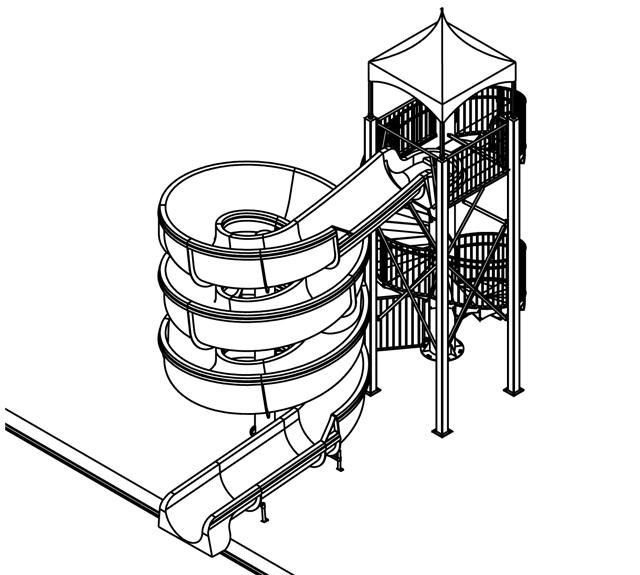

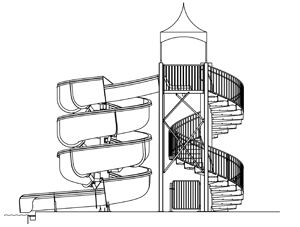

Fiberglass Water Slide Model 1931 plan view Fiberglass Water Slide Model 1931 plan view Fiberglass Water Slide Model 1931 plan view
