Quality Since 1971!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • Ceta Canyon
    Model: Ceta
  • Mountain Lake
    Model: Mountain Lake
  • Timber-lee
    Model: Timber-lee
  • Yogi Bear
    Model: Yogi Bear
  • 1682 & 1686
    Models: 1682 & 1686
  • 1683
    Model: 1683

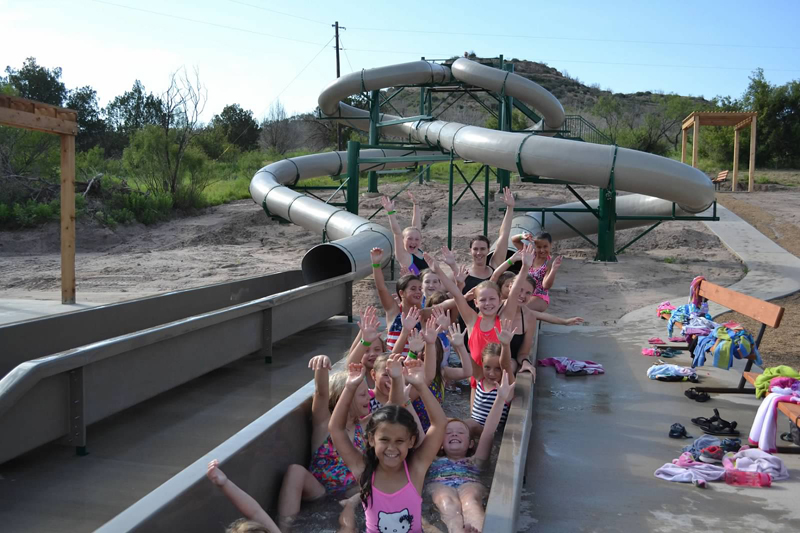

Double Flume Hillside Slide Model: Ceta CanyonPolyethylene Flume Hillside Slides with Exit Lanes
 Model: Ceta

Description: Polyethylene body slides with fiberglass exit lanes.
Centerline Runs: 156' 7" & 129' 2"
Slide Entrance Height: 25' 0"
Platform Size: Tower and stairs done by others
Space Requirements: 41' 2" & 135' 10"– Space requirements may vary with options chosen.

Recirculating System
NO POOL REQUIRED!

  • 30" inside diameter polyethylene flumes
  • Fiberglass exit lanes
  • Flume posts are required in accordance to the elevation
  • Stairs & platform: available.
  • 30 to 60 gpm water flow (each flume) required

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

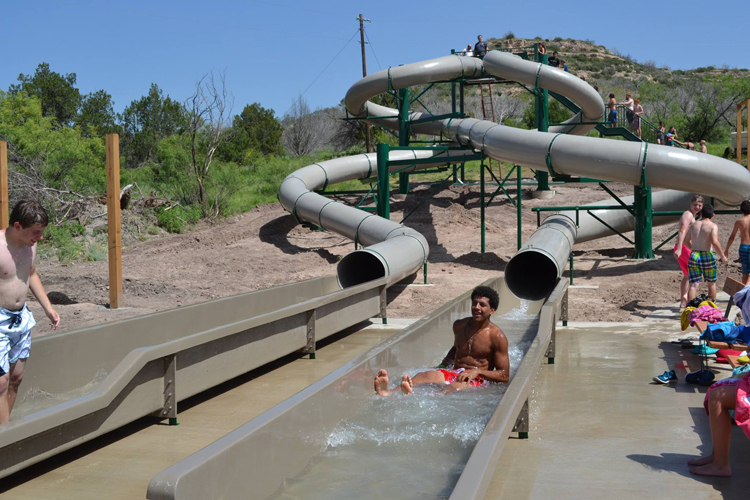

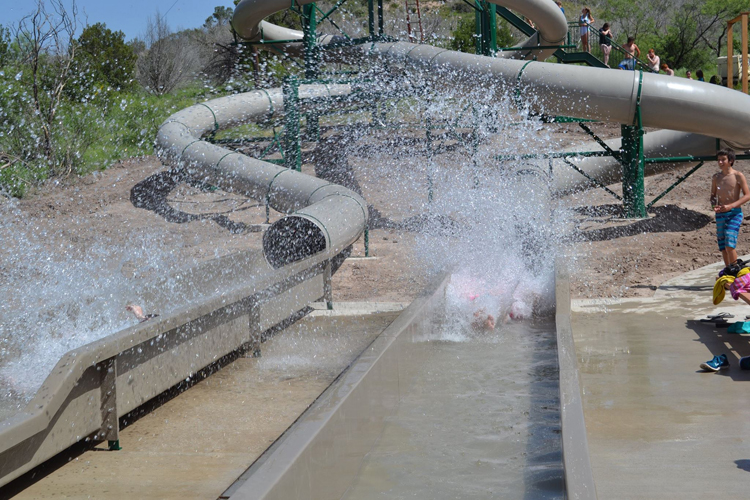

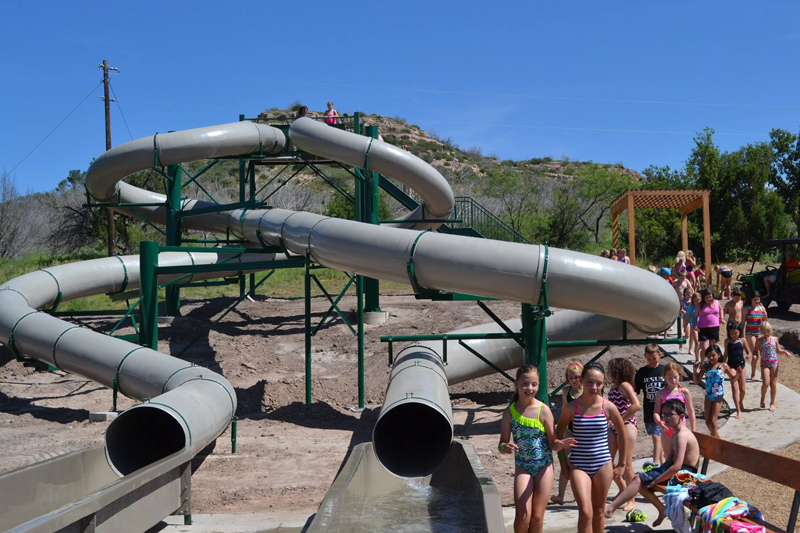

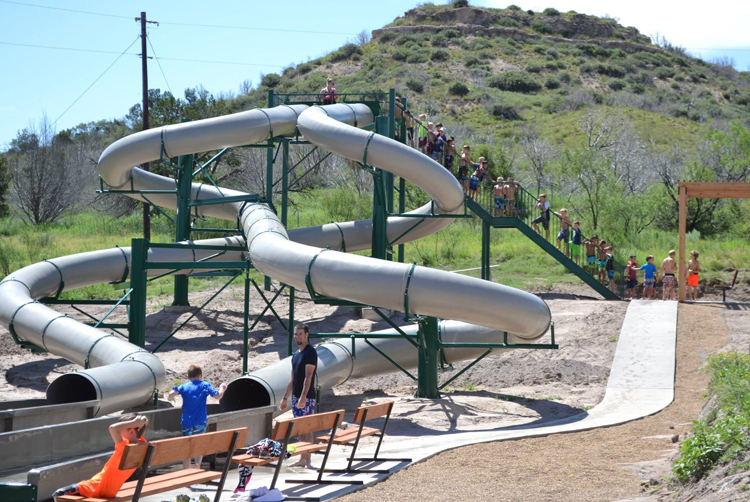

Double Flume Hillside Slide Model: Ceta Canyon Double Flume Hillside Slide Model: Ceta Canyon

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

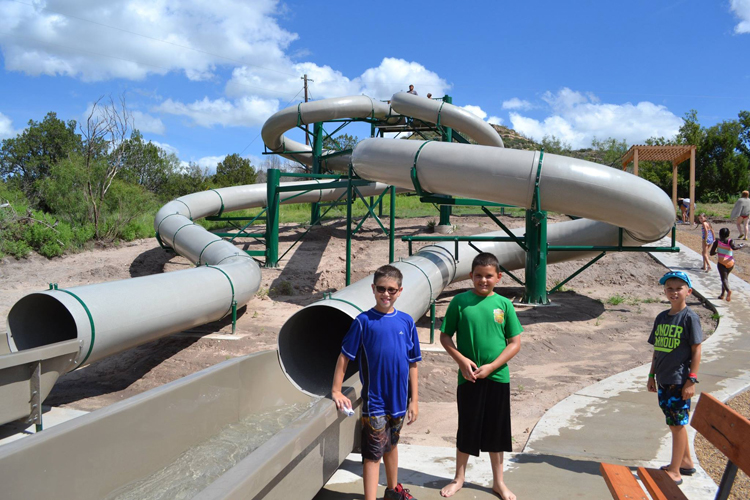

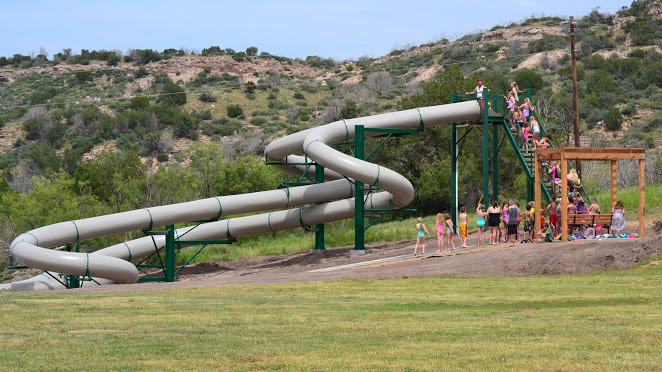

Double Flume Hillside Slide Model: Ceta Canyon Double Flume Hillside Slide Model: Ceta Canyon Double Flume Hillside Slide Model: Ceta Canyon

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

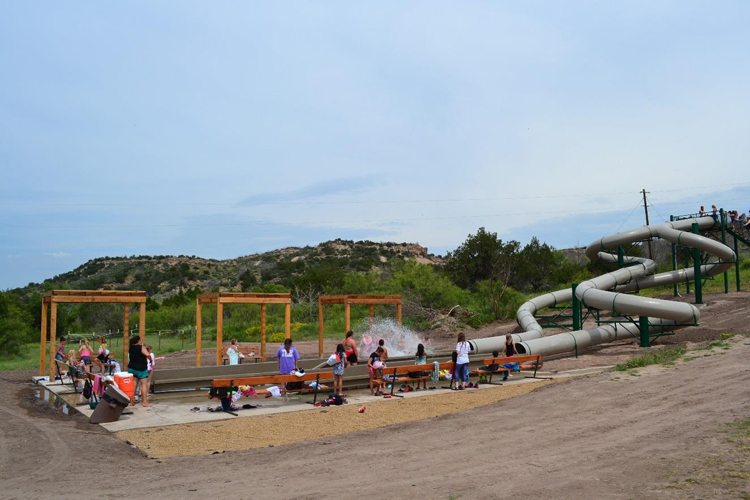

Double Flume Hillside Slide Model: Ceta Canyon Double Flume Hillside Slide Model: Ceta Canyon

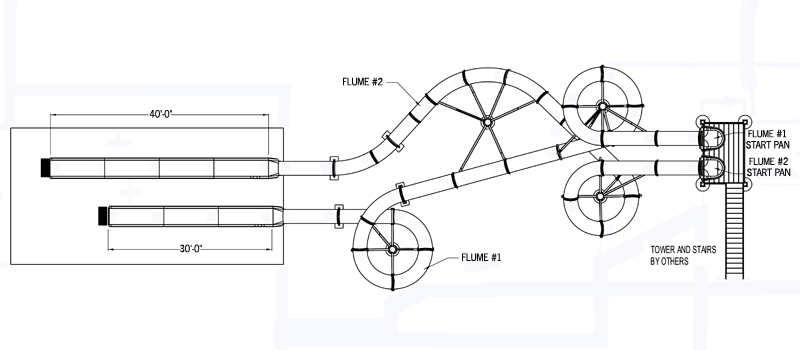

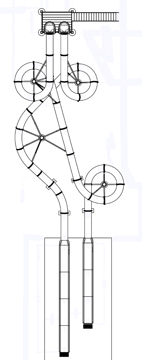

Double Flume Hillside Slide Model: Ceta Canyon plan view

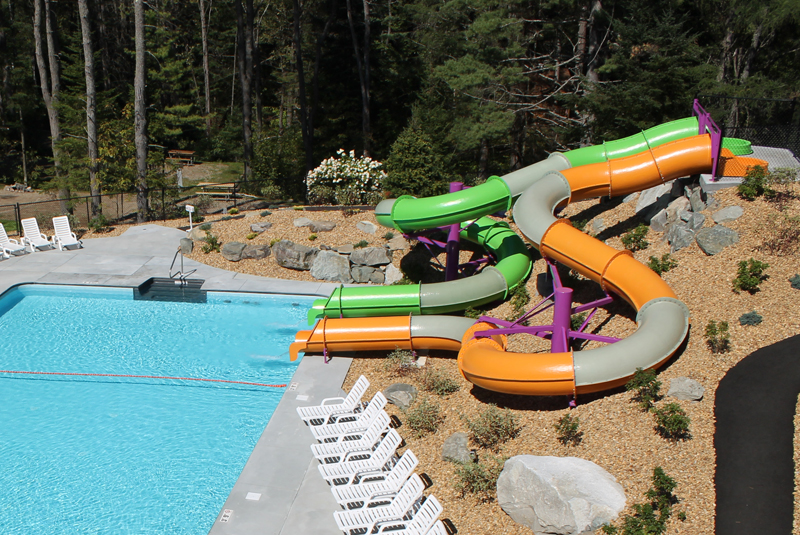

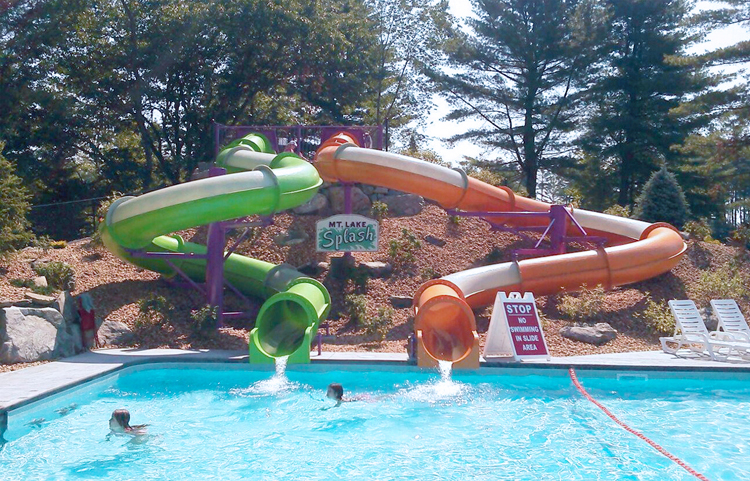

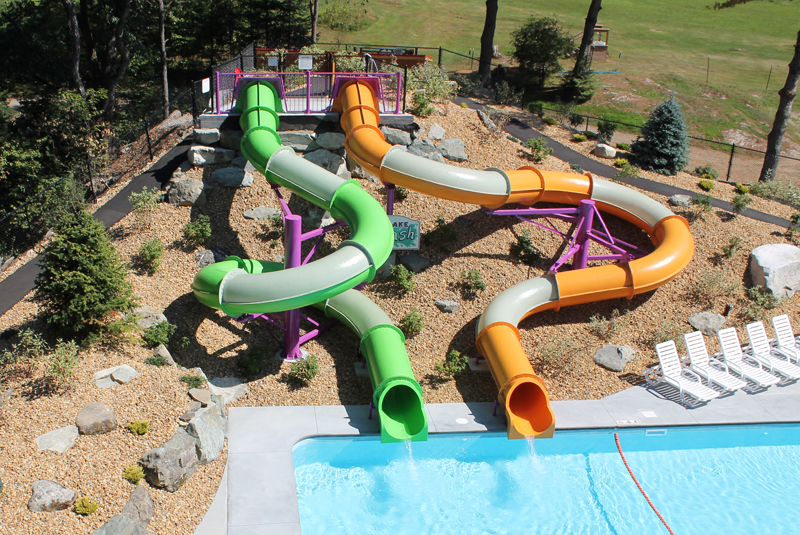

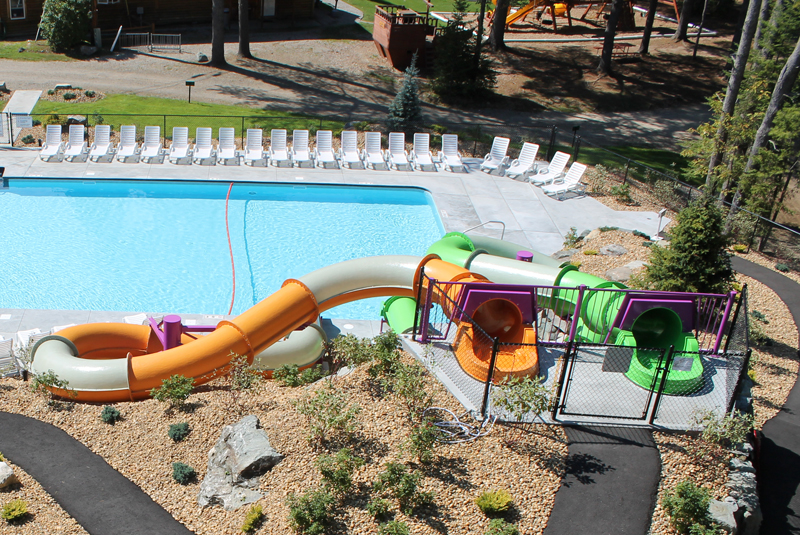

Hillside Slide Model: Mountain LakeDual Closed Flume Fiberglass Water Slide
Model: Mountain Lake

Description: Dual 32” I.D.closed flume fiberglass slides with semi-transparent sections on upper half of flume.
Centerline Run: (1): 76’0” (2): 81’9”
Entry Height: 14' 10"
Platform Size: *Platform done by others.
Space Requirements: 46’0” x 35’9” – Space requirements may vary with options chosen.
  • 32" inside diameter closed flume fiberglass water slides.
  • Flume posts are required in accordance to the elevation.
  • Stairs & platform: available.
  • Water flow required: 40-60 gpm.
  • Splash down dimension: 12' 8" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Hillside Slide Model: Mountain Lake

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Hillside Slide Model: Mountain Lake Hillside Slide Model: Mountain Lake

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

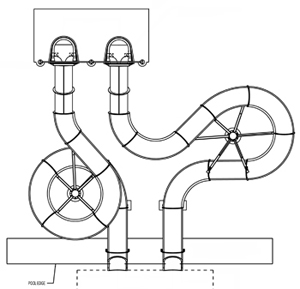

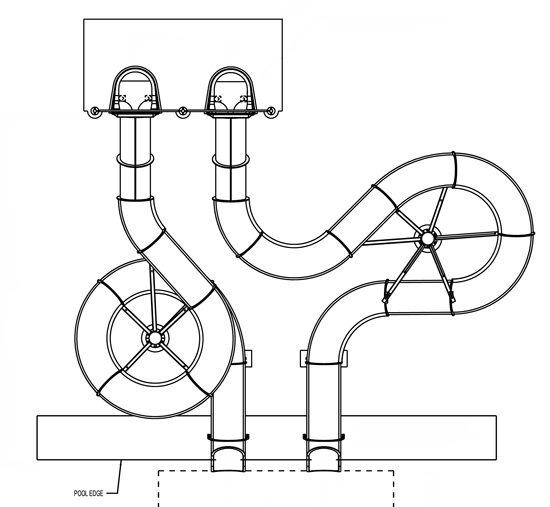

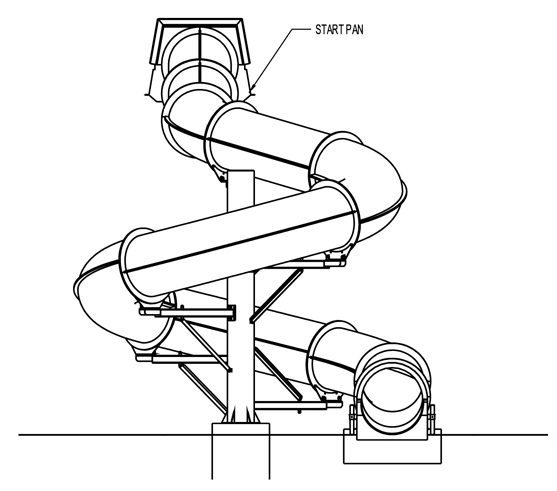

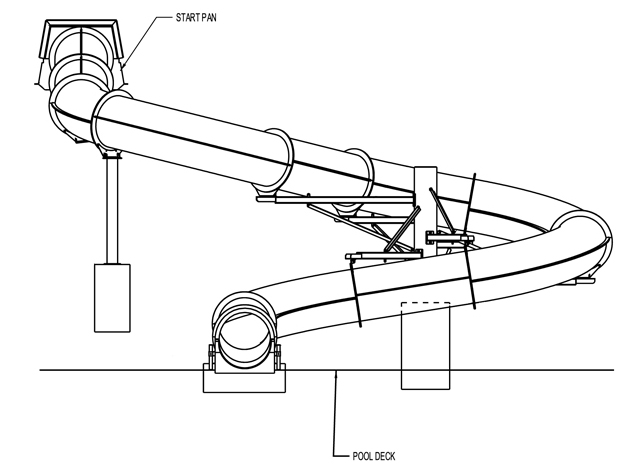

Hillside Slide Model: Mountain Lake Hillside Slide Model: Mountain Lake plan view Hillside Slide Model: Mountain Lake plan view Hillside Slide Model: Mountain Lake plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

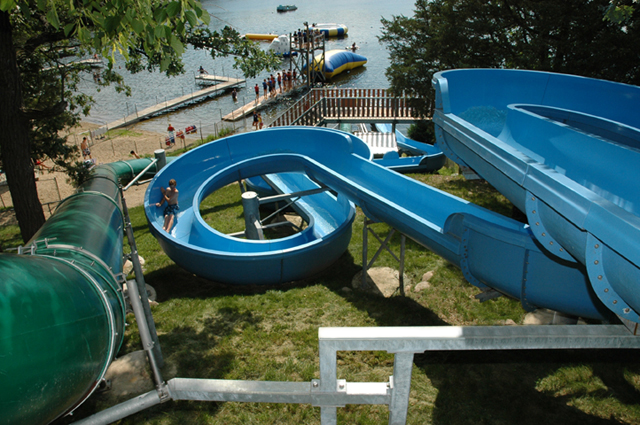

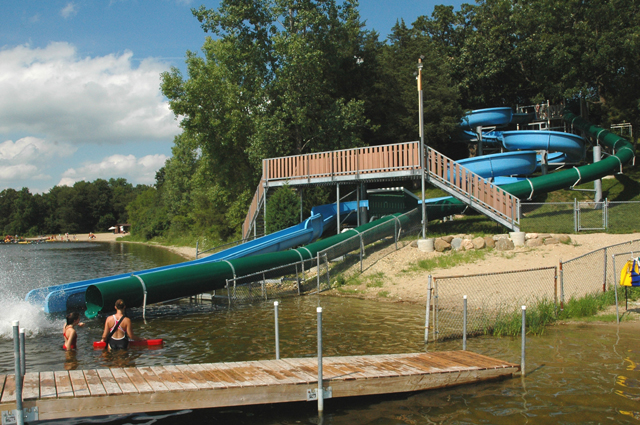

Hillside Slide Model: Timber-leeCombination Flume Hillside Slide
Model: Timber-lee

Description : Double flume slide featuring (1) polyethylene closed flume with speed slide exit and (1) open flume fiberglass slide with (3) 360° circles and various curves to increase the slide excitement.
Slide Runs : Fiberglass: 297' 0" ; Polyethylene: 150' 0
Height above Water Level : 34' 0"
Platform Size : N/A
Space Requirements : 132' 11" x 44' 0" – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume
  • 36" inside diameter fiberglass flume
  • Flume posts are required in accordance to the elevation.
  • Polyethylene flume: 50-150 gpm water flow recommended
  • Fiberglass flume: 600-800 gpm water flow recommended
  • Splash down dimension 23' x 20'
  • Minimum water depth: 3'

click on images to enlarge

Hillside Slide Model: Timber-lee

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Hillside Slide Model: Yogi BearDouble Flume Hillside Slide with Exit Lanes
 Model: Yogi Bear

Description : Double flume polyethylene body slides with fiberglass exit lanes.
Slide Runs : 132' 0" & 175' 0"
Elevation Height : 25' 0"
Slide Entrance Height : 25' 0"
Platform Size : 8' x 12'
Space Requirements : 39' 2" x 128' 2"– Space requirements may vary with options chosen.

Recirculating System
NO POOL REQUIRED!
  • 30" inside diameter polyethylene flume
  • Flume posts are required in accordance to the elevation.
  • Platform: Aqua-Plast coated textured aluminum surface.
  • Stairs: 7” rise, 11” tread, 36” wide;
    Aqua-Plast coated textured aluminum surface; closed risers.
  • Fiberglass exit lanes
  • 50 gpm water flow (each flume) recommended; 30 to 60 gpm required

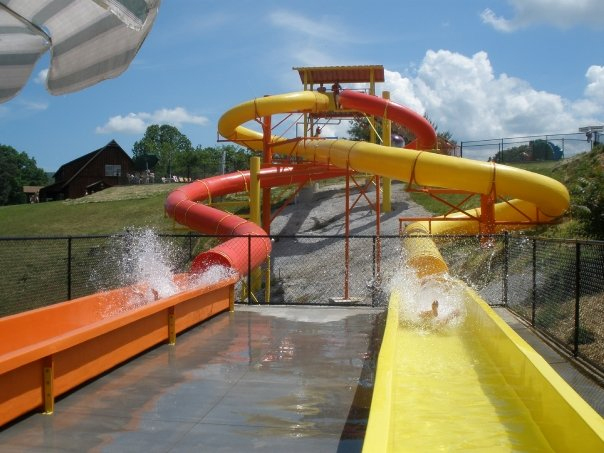

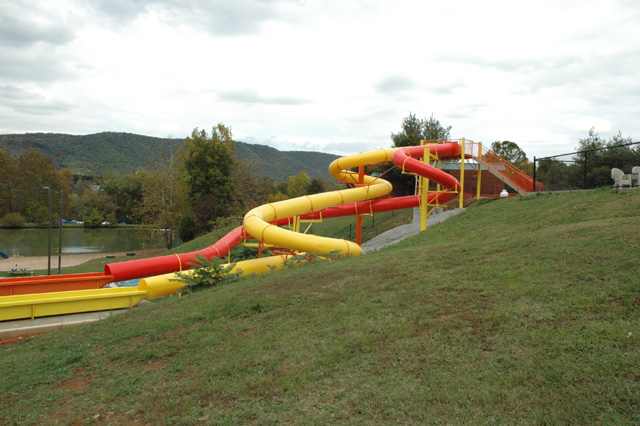

Hillside Slide Model: Yogi Bear

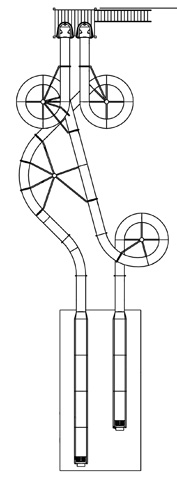

Hillside Slide Plan View Model: Yogi Bear

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

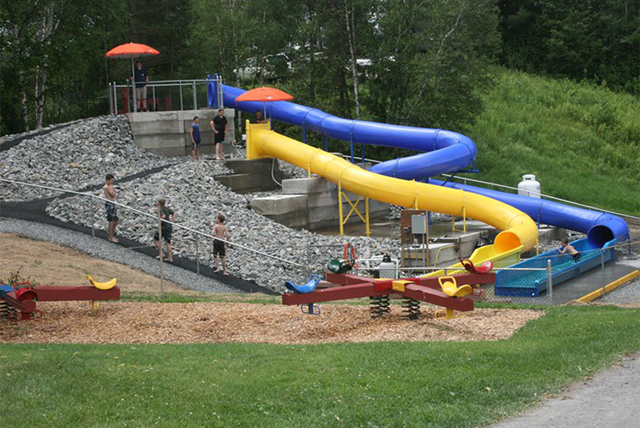

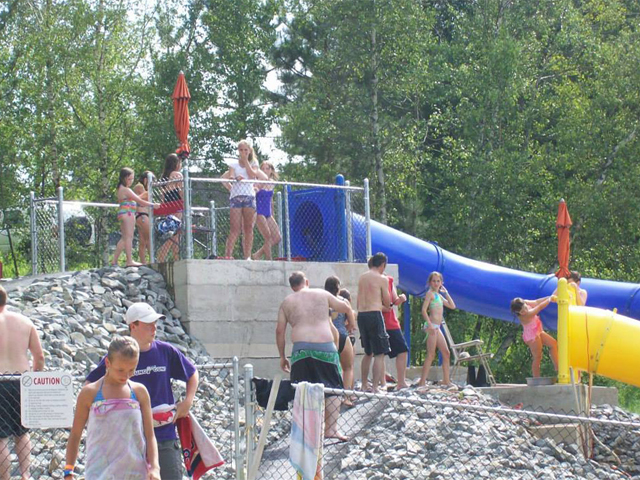

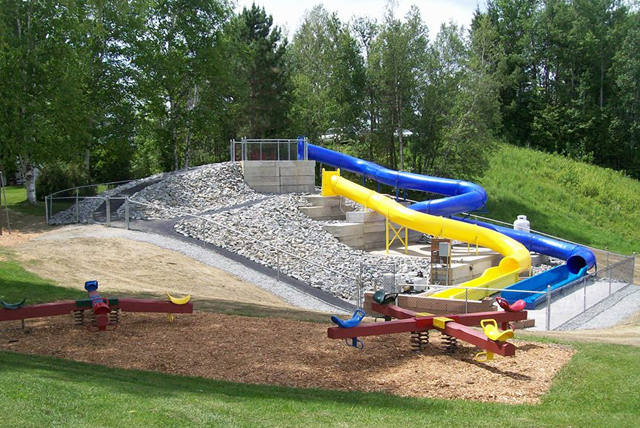

Hillside Slide Models: 1682 & 1686Polyethylene Flume Hillside Slides with Exit Lanes
 Models: 1682 & 1686

Description: Polyethylene body slides with fiberglass exit lanes.
Model 1682: Yellow Flume
Model 1686: Blue Flume
Centerline Runs: 45' 4" (Model 1682) & 93' 9" (Model 1686)
Slide Entrance Heights: 11' 0" & 16' 6"
Platform Size: Platform and stairs done by others
Space Requirements: 52' 3" & 57' 10"– Space requirements may vary with options chosen.

Recirculating System
NO POOL REQUIRED!

  • 30" inside diameter polyethylene flume
  • Flume posts are required in accordance to the elevation
  • Stairs & platform: available.
  • Fiberglass exit lanes
  • 20 to 40 gpm water flow (each flume) required

click on images to enlarge

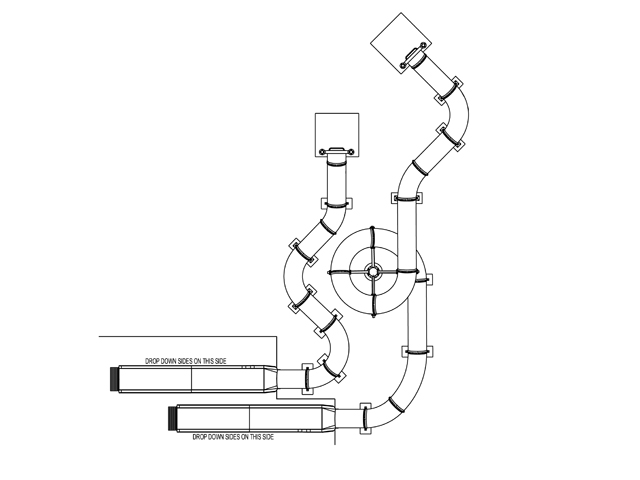

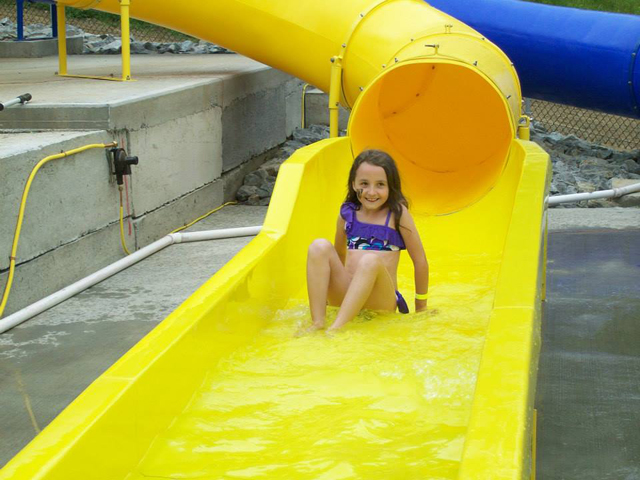

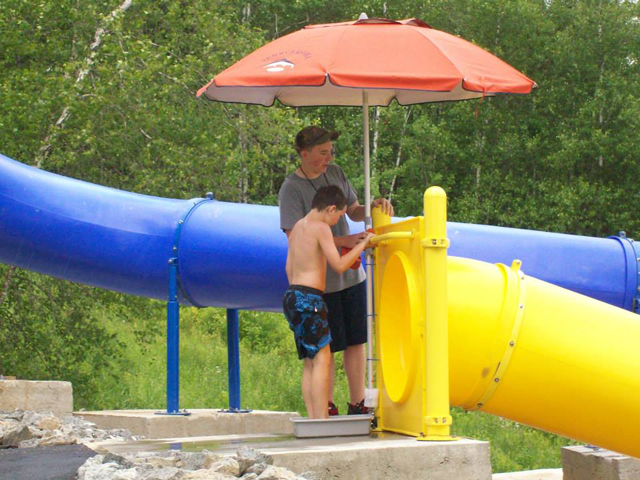

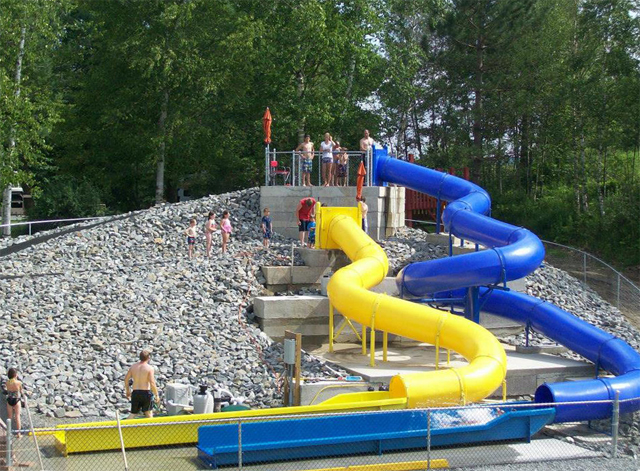

Hillside Slide Models: 1682 & 1686 Hillside Slide Models: 1682 & 1686 Entrance Hillside Slide Model: 1682 Hillside Slide Model: 1682 Hillside Slide Models: 1682 & 1686 Hillside Slide Plan View Models: 1682 & 1686 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

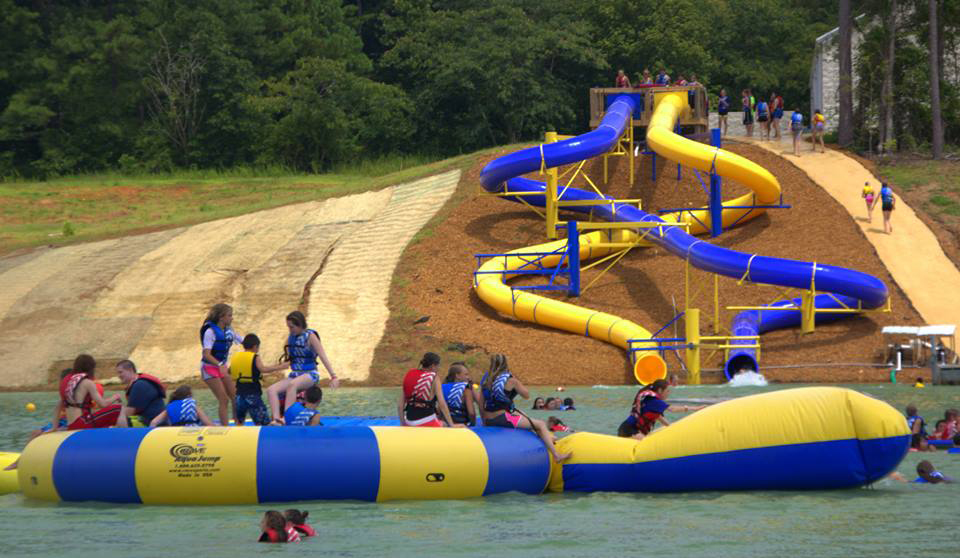

Hillside Slide Model: 1683Double Flume Hillside Slide
 Model: 1683

Description: Double flume polyethylene body slides.
Centerline Runs: 178' 3" & 146' 7"
Entry Height: 30' 2" above waterline.
Platform Size: Tower and stairs done by others
Space Requirements: 94' 8" & 41' 0"– Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume.
  • Flume posts are required in accordance to the elevation.
  • Stairs & platform: available.
  • 50 gpm water flow (each flume) recommended; 30 to 60 gpm required.
  • Splash down dimension 12' 6" x 20' 0"
  • Minimum water depth: 5'

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

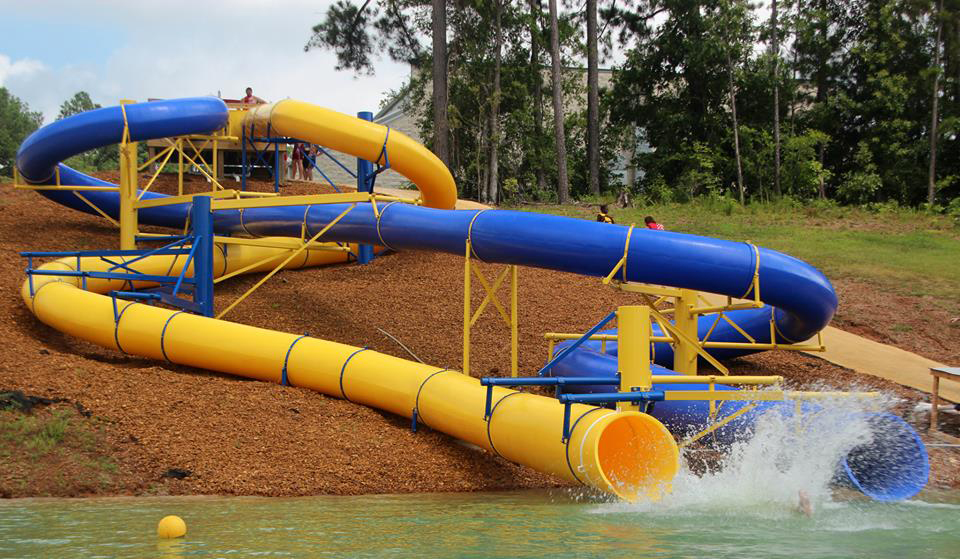

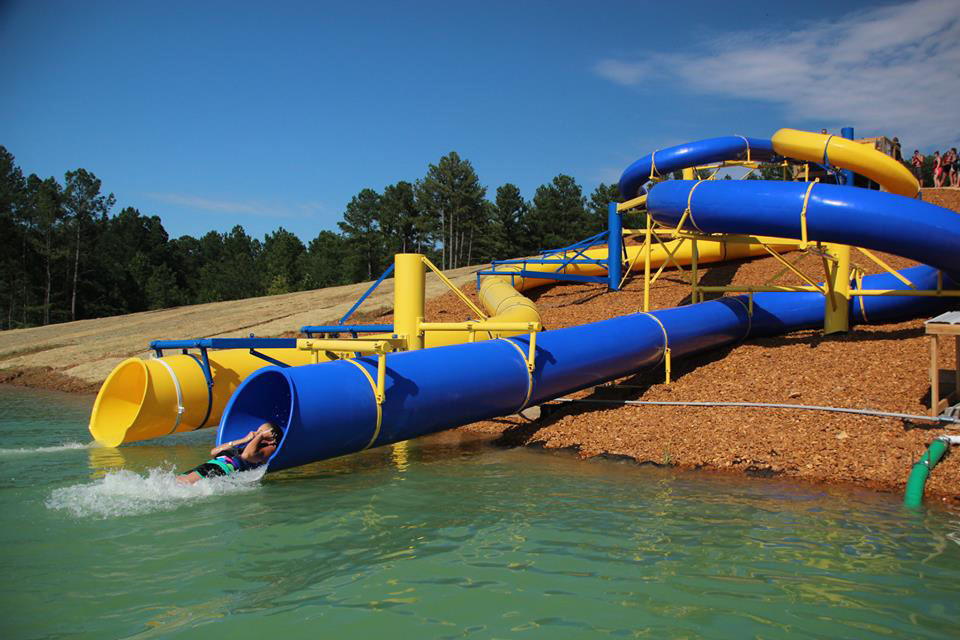

Hillside Slide Model: 1683Hillside Slide Model: 1683

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

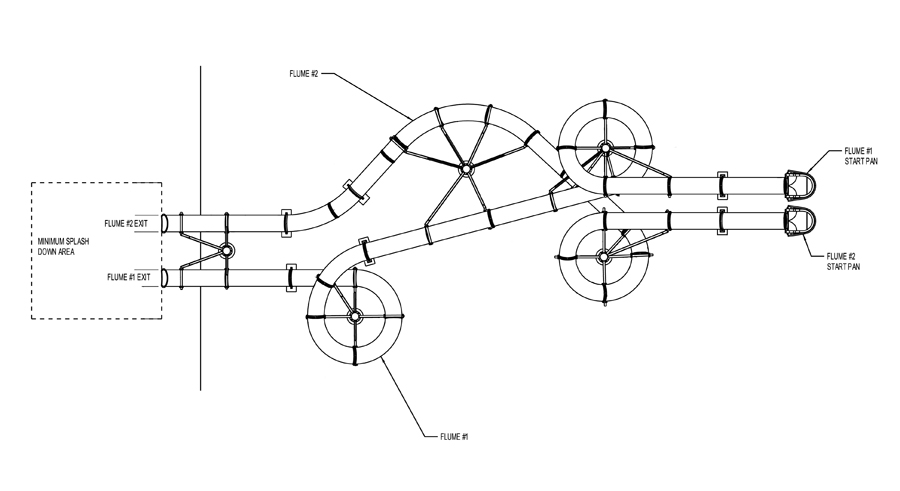

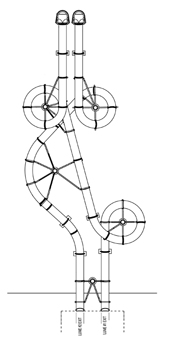

Hillside Slide Plan View Model: 1683 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

USA flag   Manufactured with Pride in the U.S.A.

Related Links

Model List: Slides
Model List: Spray
Pool & Water Slide Reference Guide
Recent Aquatic Additions to Website

Color Charts
*Polyethelene Flume Colors
*Polyethelene Base Plate Escutcheon Cover Colors
*Fiberglass Flume Colors
*Aqua-Plast Colors
*Powder Coat Colors

*Requires Adobe Acrobat

Site Map

Double Flume Landscape & Hillside Slides

Add Fun and Excitement
Landscape slides are an excellent way to increase the aesthetic value of your surroundings, while providing an exciting and fun water slide experience.

Slides are available in open or closed flume that can meander around the hillside for a range of 20' to 300' plus. Factory assistance is available in determining the slide elevation, location, and radius.

Features:

  • 30" inside diameter polyethylene water slide flume
  • 32", 36", 42" and 54" inside diameter fiberglass water slide flume
  • Polyethylene Water Slide Flume: color impregnated UV stabilized
  • Fiberglass Water slide Flume: ultra violet stabilized gel coat
  • Body, speed, raft, drop & exit lane water slides
  • Single, double or triple flumes
  • Place in shallow or deep water
  • Water Depth: 3' minimum or deeper
  • 20-800 gpm water flow required
  • Flume posts are required in accordance to the elevation
  • Stairs & platform: available
  • Platform: Aqua-Plast coated textured aluminum surface
  • Stairs: 7” rise, 11” tread, 36” wide; Aqua-Plast coated textured aluminum surface; closed risers.
  • Stainless steel base plates, hardware and anchor bolts
  • Low maintenance
  • Designed with flexibility to allow for sloping pool decks
  • Designs for your unique application and budget requirements.
  • Over 70 standard models available
  • Increase pool attendance
  • Variety of colors available
  • USA made

Options:

  • Deluxe Series: Stainless steel polyester powder coated except tower and flume posts which are mild steel with chemical resistant Aqua-Kote undercoating and polyester powder coat topcoat.
    Note: Platform and stair treads are textured Aqua-Plast coated aluminum
  • North Star Series: Mild steel with chemical resistant Aqua-Kote undercoating and polyester powder coat topcoat.
    Note: Platform and stair treads are textured Aqua-Plast coated aluminum.
  • Hot dipped galvanized available
  • Stairs: (a) 48” width; (b) Inner handrails (if applicable); (c) Spiral stairs
  • Stair Configurations: Many variations available
  • Narrow Deck Configurations
  • Gates: Locking gate to flume entrance.
  • Flag and banner holders.
  • Tower Roof: (a) Steel; (b) Wood; (c) Fabric; (d) Tongue & groove decking with the wood or steel roofs.
  • Water pumps & covers
  • Perimeter Fencing
  • Factory installation or on-site technical assistance.

Now standard for all stairs:
  Closed risers
  Handrail vertical slats
