Quality Since 1971!       Design-Engineer-Manufacture-Install

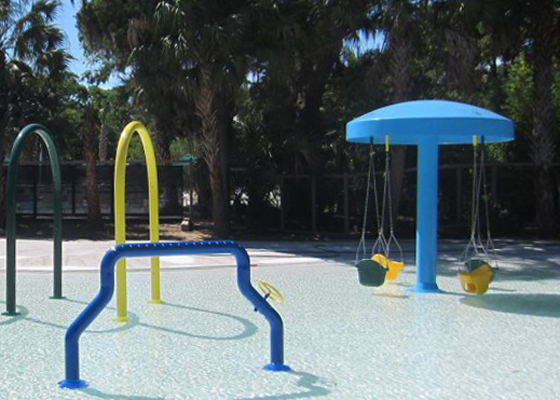

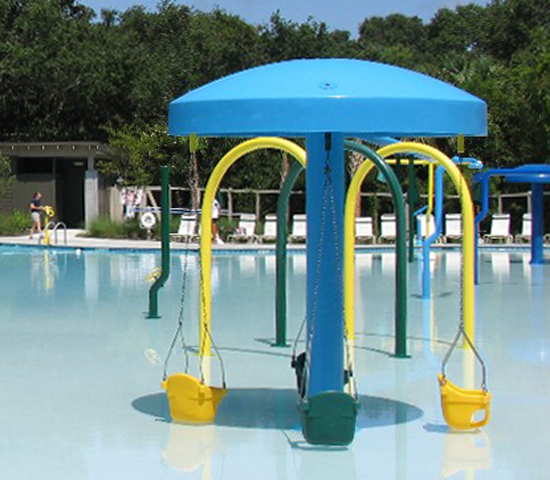

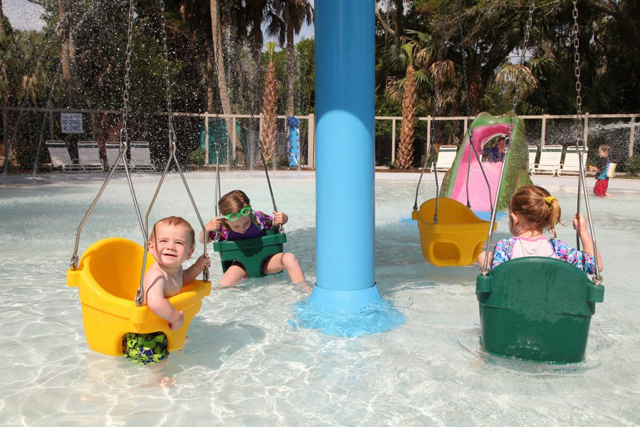

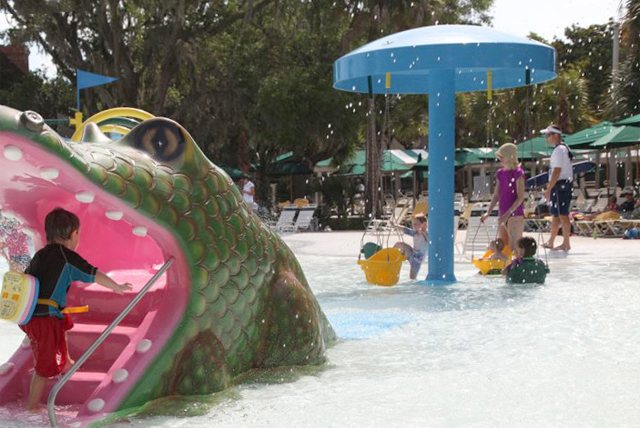

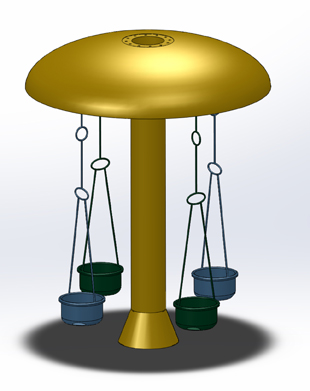

Baby Bouncer

Model 1800-67
Dimensions:  7' 6" wide x 9' 9" high

• 7’ 6” diameter
• Fiberglass dome
• 10” Fiberglass stem
• (4) Baby bouncer seats
• No water required
• Optional Cylindrical Water Curtain effect:
  90-400 gpm water flow required
• Variety of colors

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

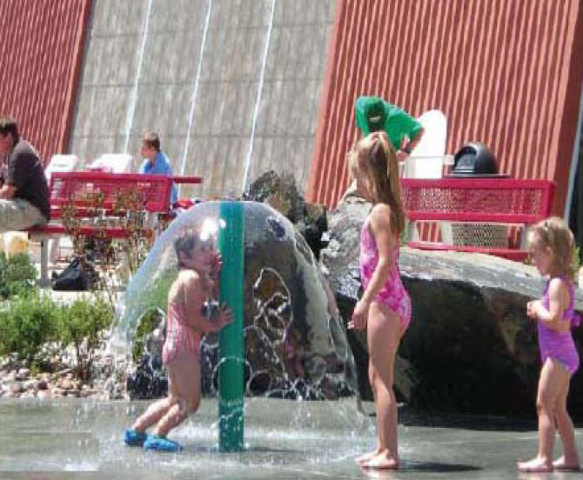

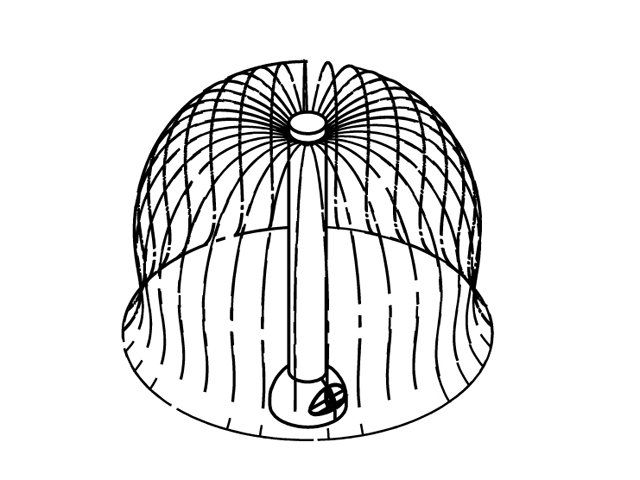

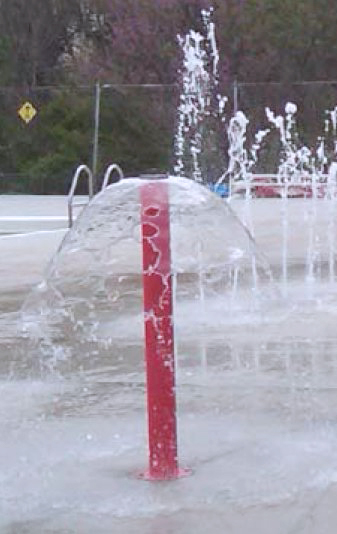

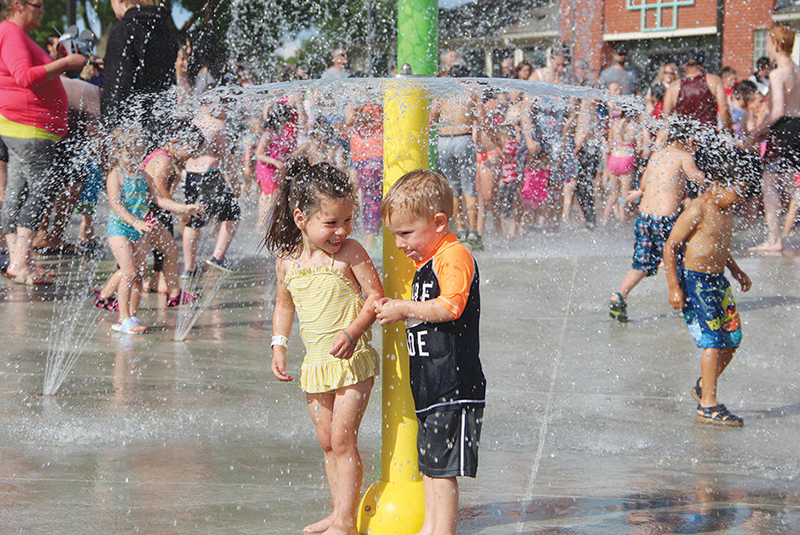

Bubble Tent

Model 1800-61
Dimensions: 3' 2-1/2" high x 1' 0" wide

• 4 1/2” OD stainless steel pipe frame
• Spray Diameter: 6' to 8'
• Water volume: 20 gpm

Download Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

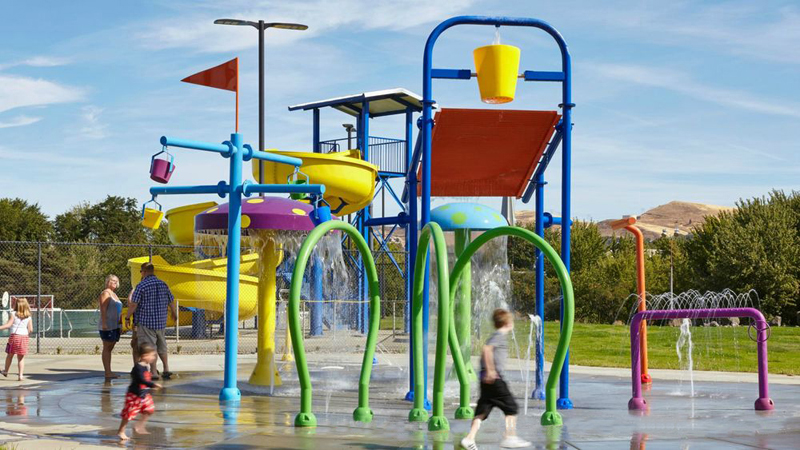

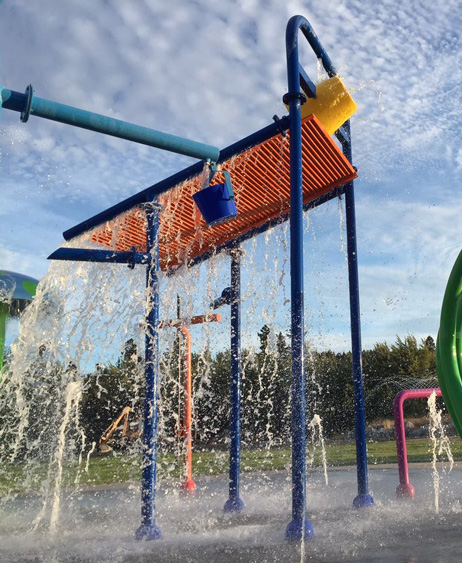

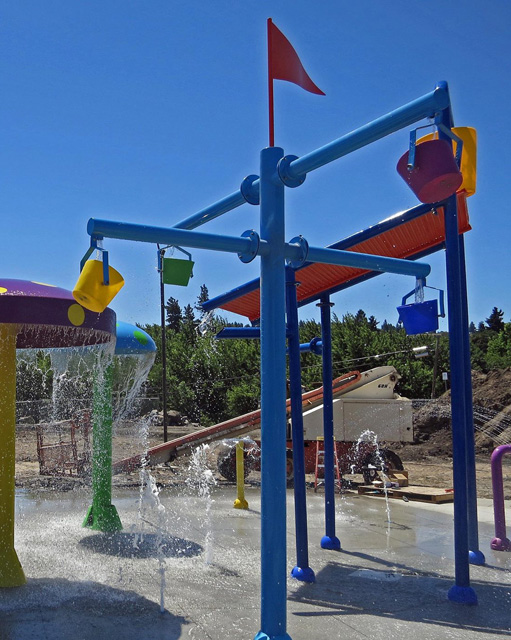

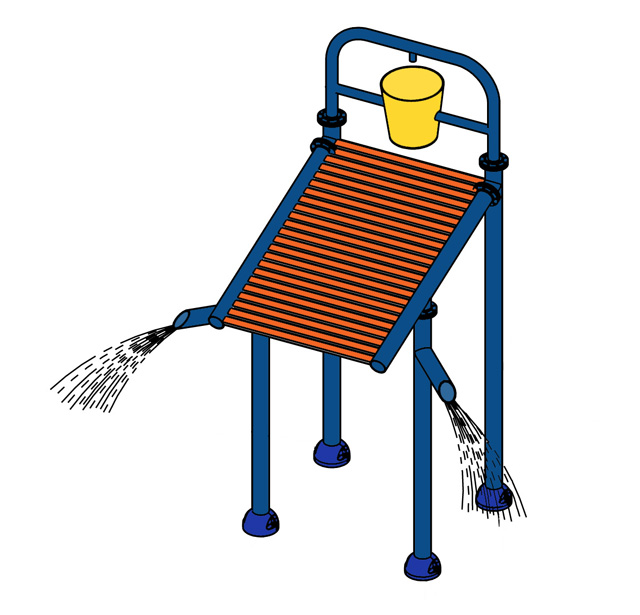

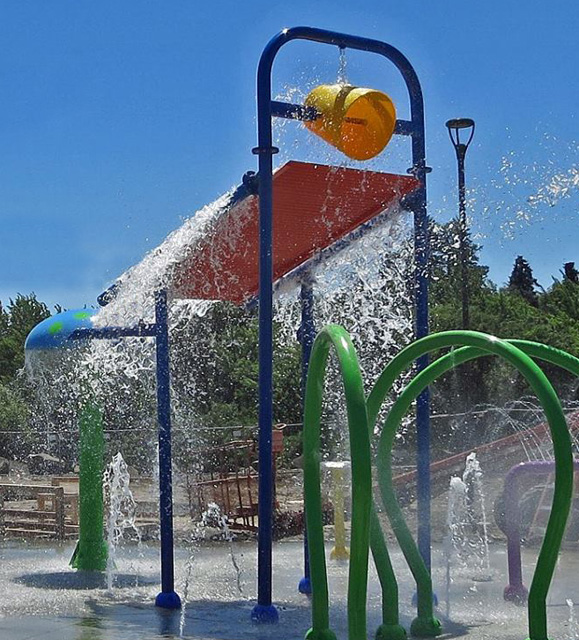

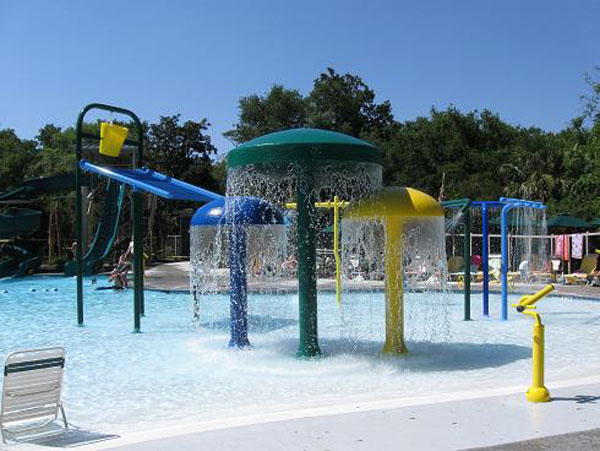

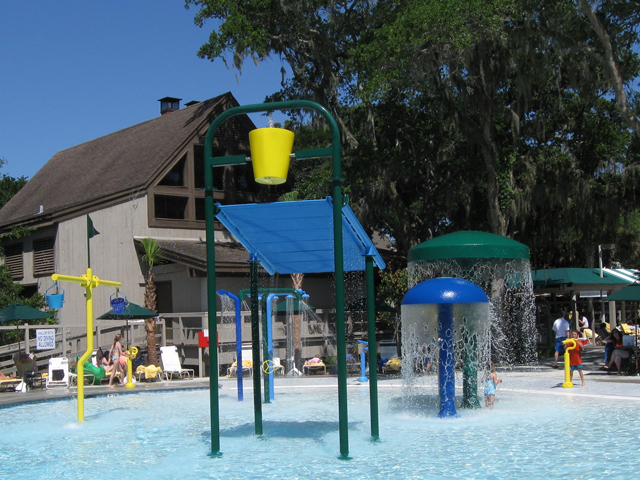

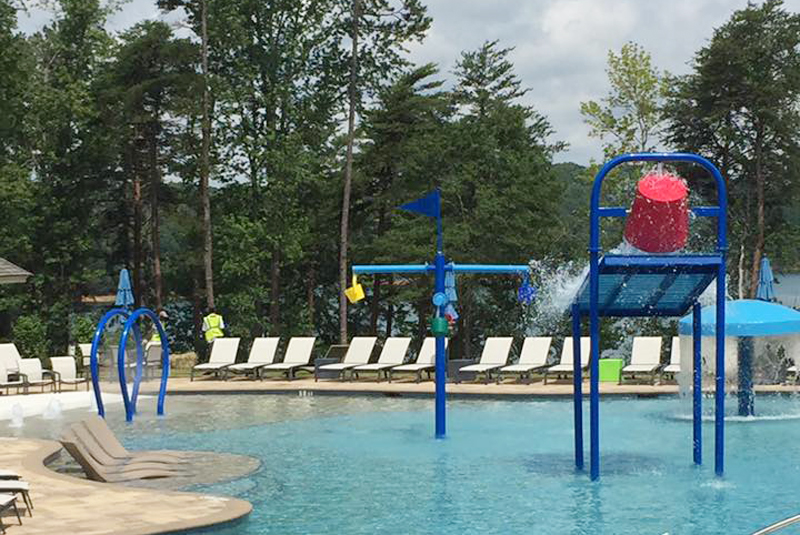

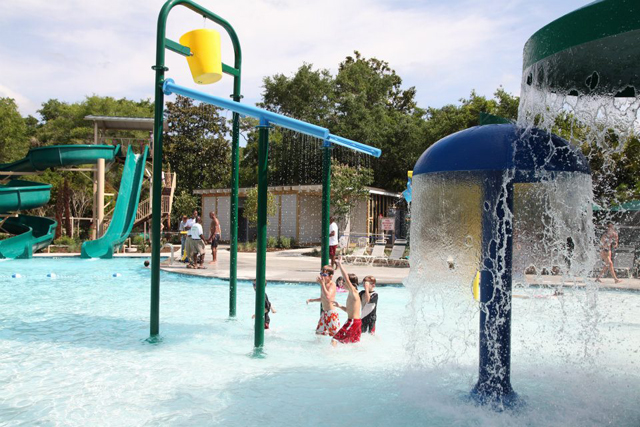

Bucket Tower

Model 1800-45-1: 30 gallon dump bucket with pipe waterfalls (shown)
Model 1800-45-1: 30 gallon dump bucket (shown)

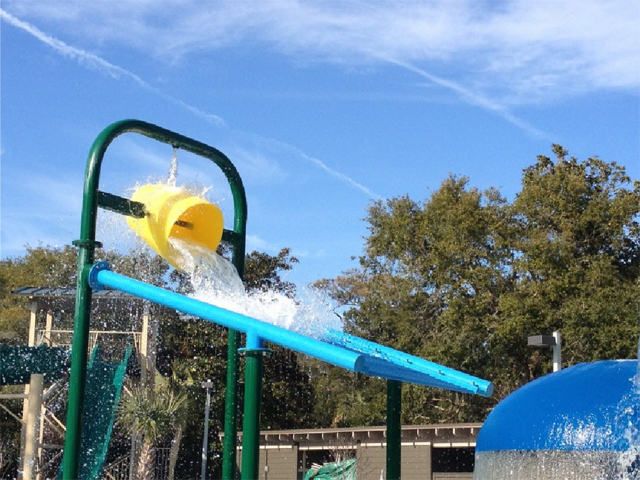

Model 1800-45-2: 75 gallon dump bucket with pipe waterfall
Model 1800-45-3: 75 gallon dump bucket (shown)

• 4 1/2” OD stainless steel pipe frame
• 30 or 75 Gallon, molded polyethylene dump bucket

• Stainless steel formed sheet

Download Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

Download Spec Sheet
 Requires Adobe Acrobat

Download Spec Sheet
 Requires Adobe Acrobat

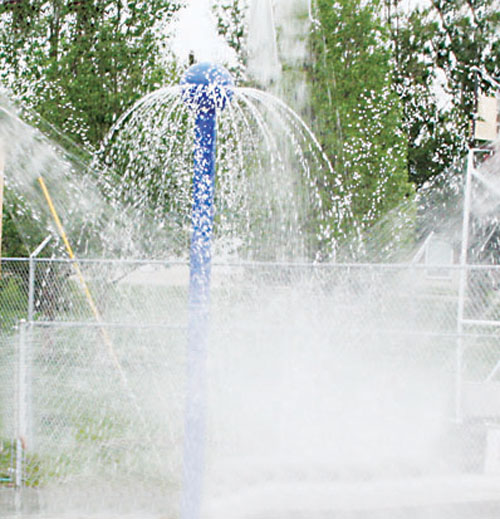

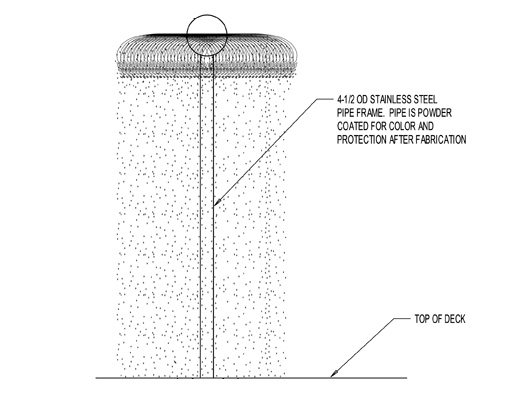

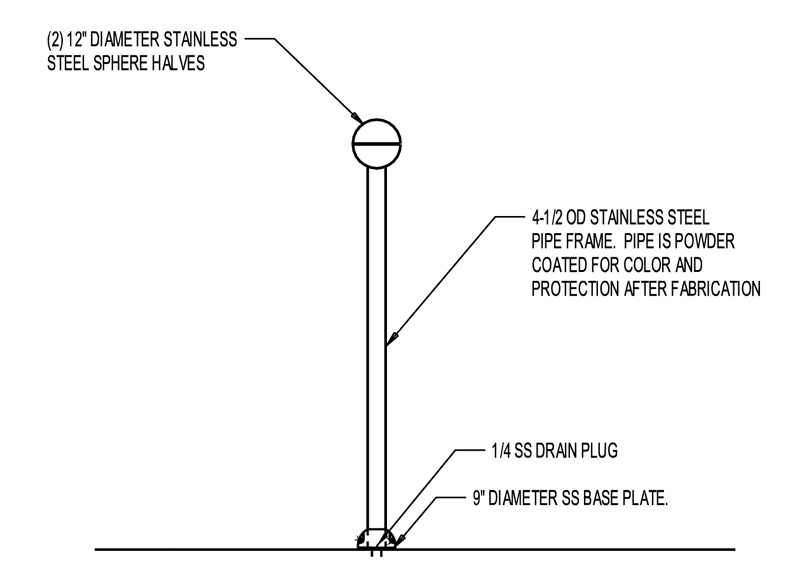

Crystal Dome Spray Feature

Model 1800-90
Dimensions: 8' 6" high

• 4 1/2" OD stainless pipe
• Water volume: 10-20 gpm

Picture from older model. Current model has slits for easier cleaning & maintenance.

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

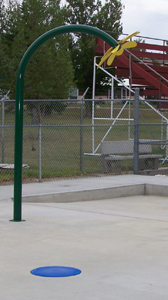

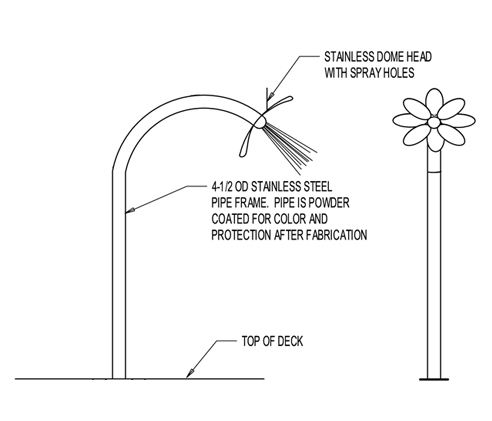

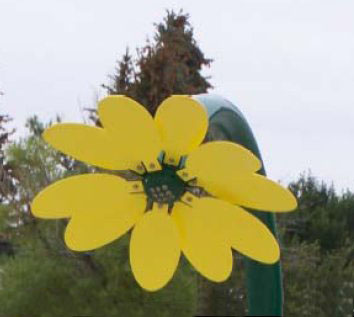

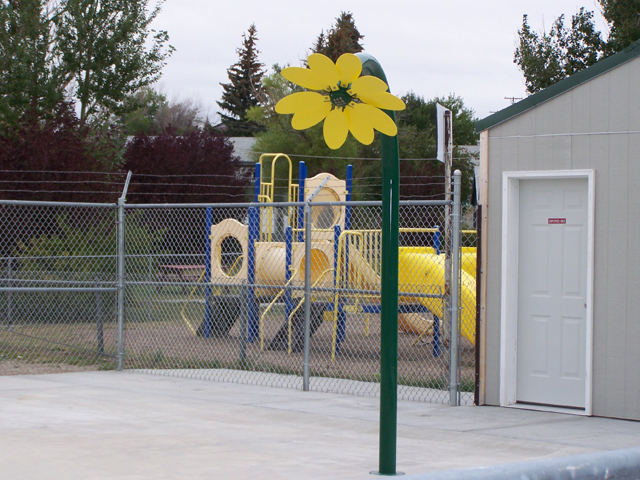

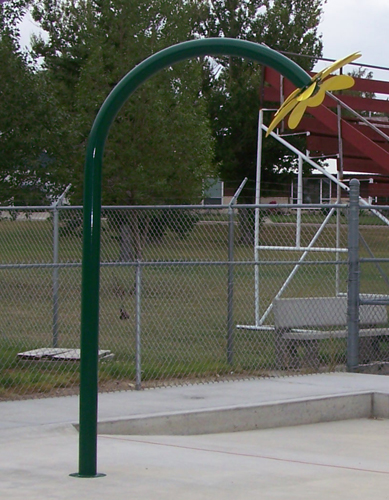

Daisy Spray Pole

Model 1800-30
Dimensions: 8' 2" high x 4' 6" wide
Space Requirements: 4’ 6” x 0’ 9"

• 4 1/2" OD stainless pipe
• Water volume: 3 - 15 gpm
• Spray Distance:
  • 5 feet requires 3.3 gpm
  • 8 feet requires 7.9 gpm

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

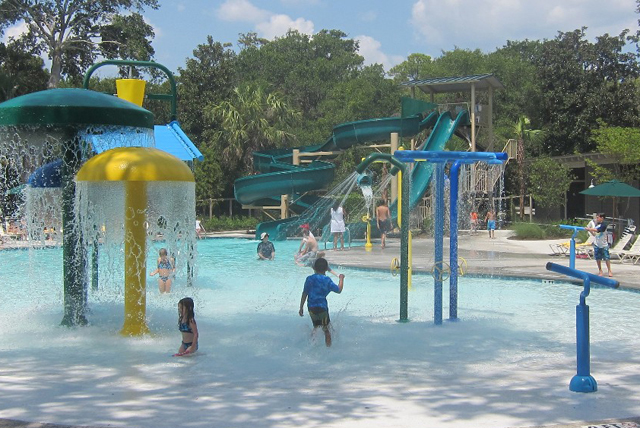

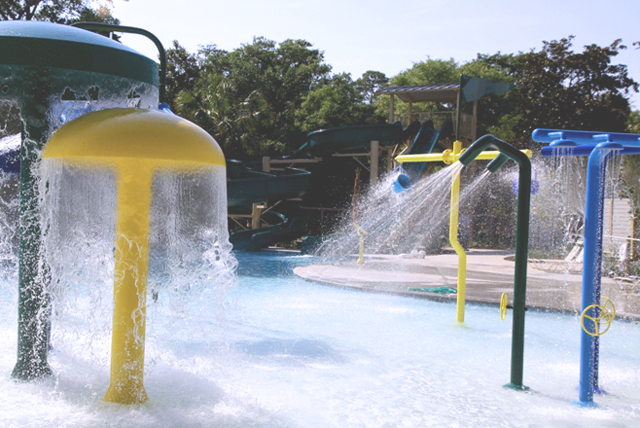

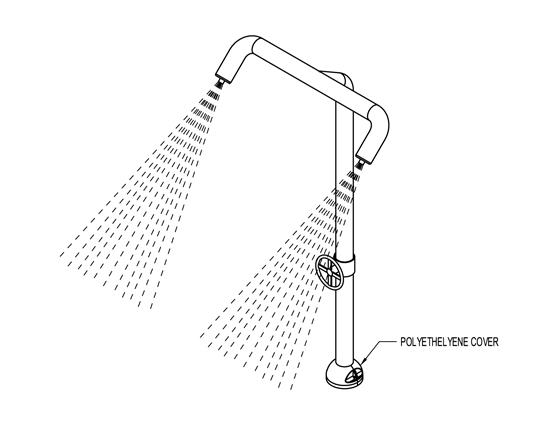

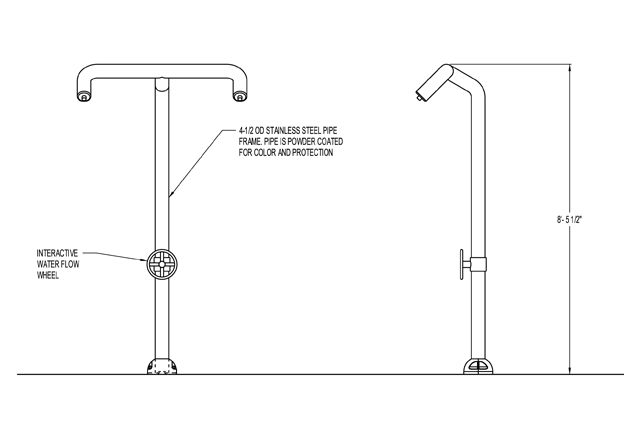

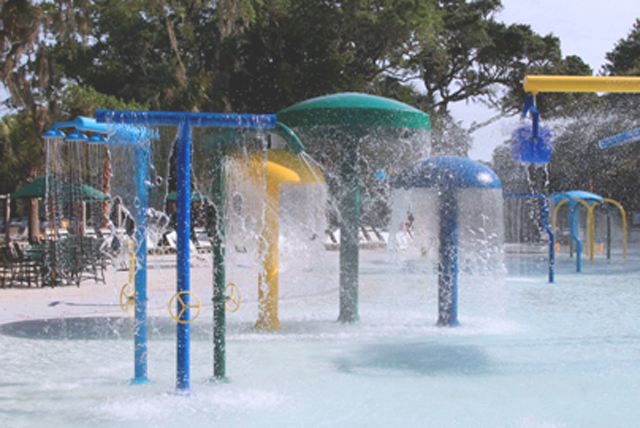

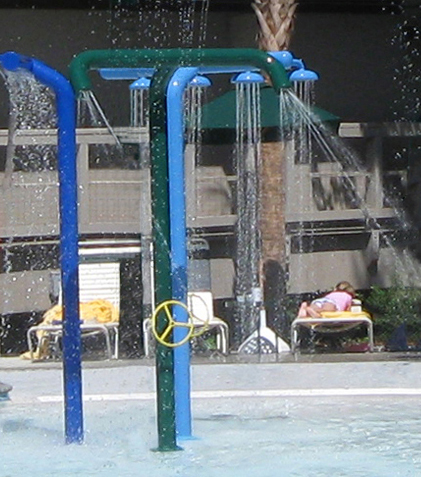

Double Shooter

Model 1800-56
Dimensions: 8' 5- 1/2 " high x 4’ 7-1/2" wide
Clearance: 7’ 5-9/16”

• 4 1/2" OD stainless pipe
• Water volume: 20-40 gpm

Options Shown: 1800-wheel: Interactive water flow wheel

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

Download Spec Sheet
 Requires Adobe Acrobat

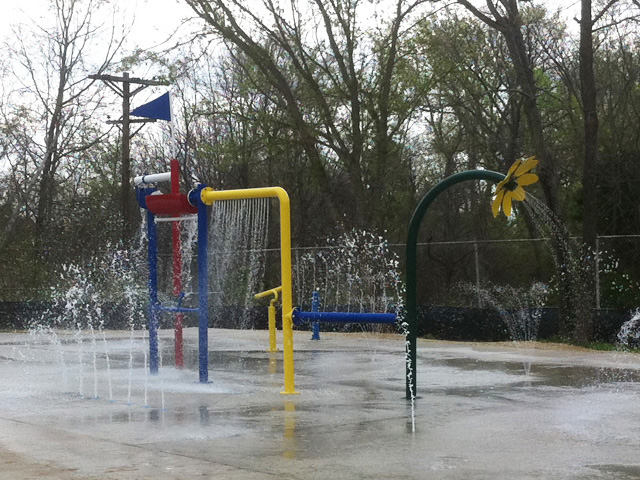

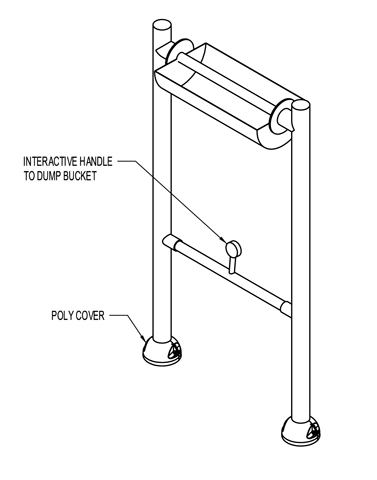

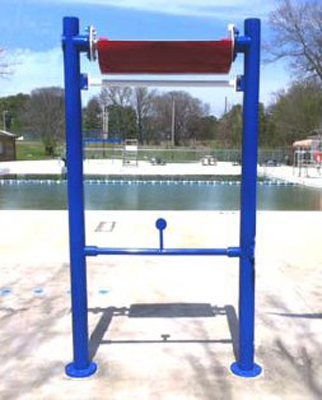

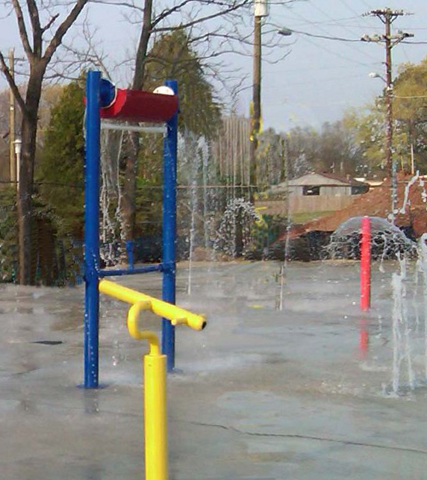

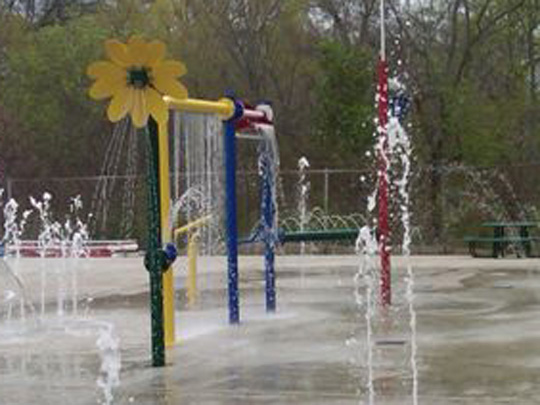

Large Dumping Bucket

Model 1800-49
Dimensions: 8' 4-1/2" high x 4' 1" wide
Space Requirements: 4’ 1" x 0’ 9"

• 4 1/2” OD stainless steel pipe frame

• 15 Gallon dump bucket, polyethylene
• Water volume: 15-30 gpm

  • 15 gpm fills bucket every 1 minute

  • 30 gpm fills bucket every 30 seconds

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat Adobe Acrobat

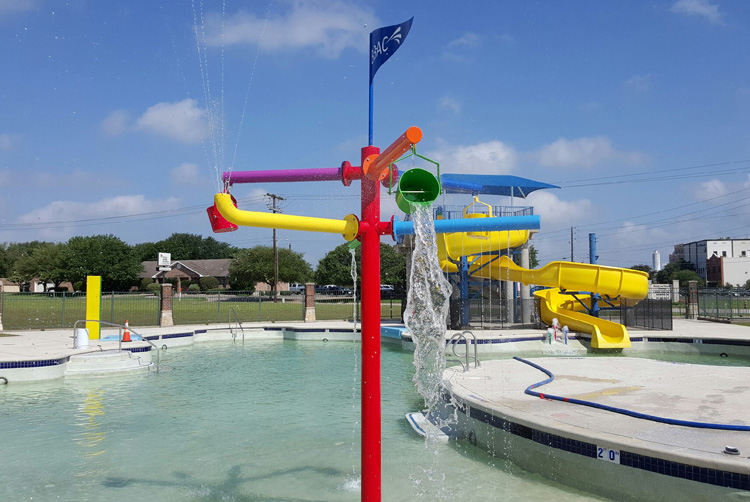

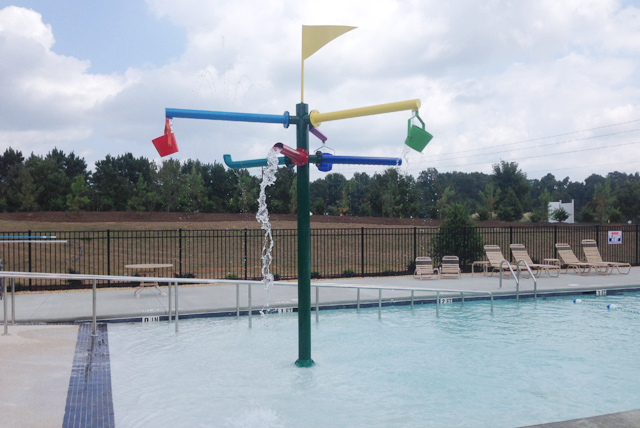

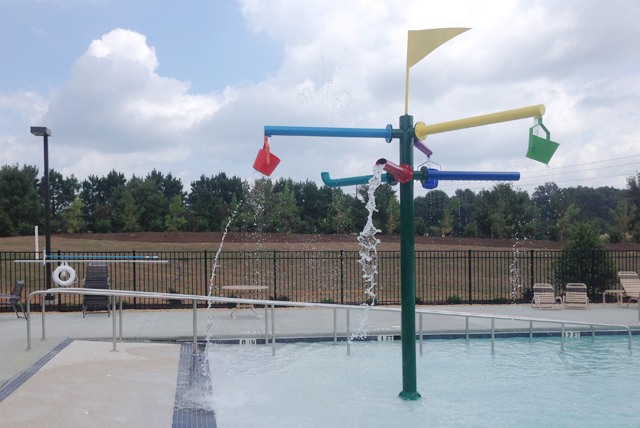

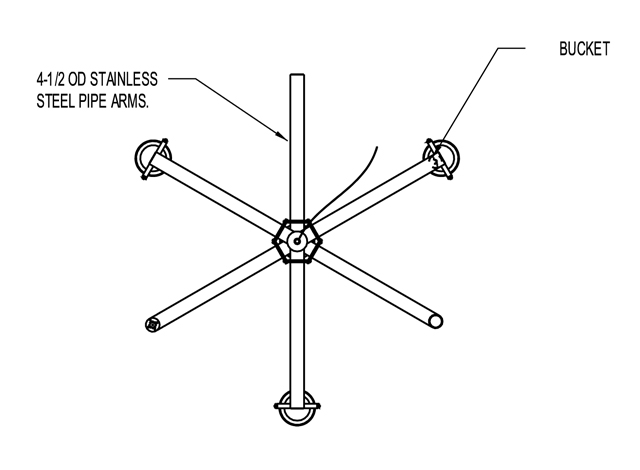

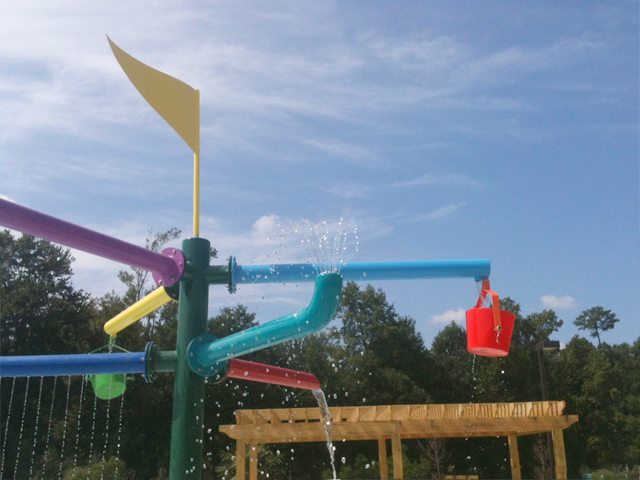

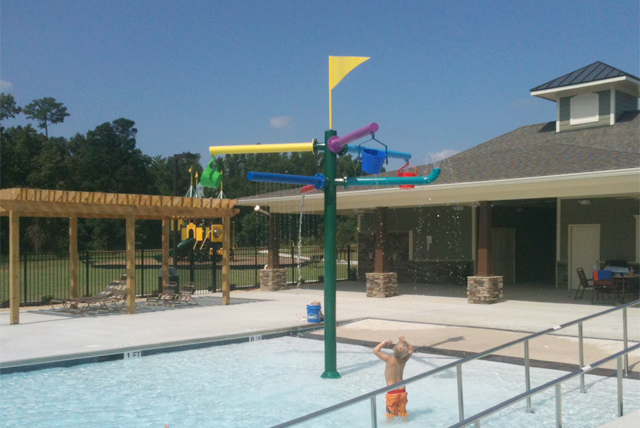

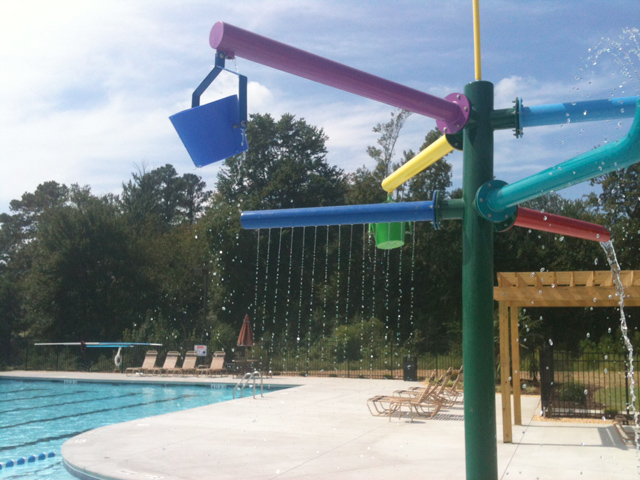

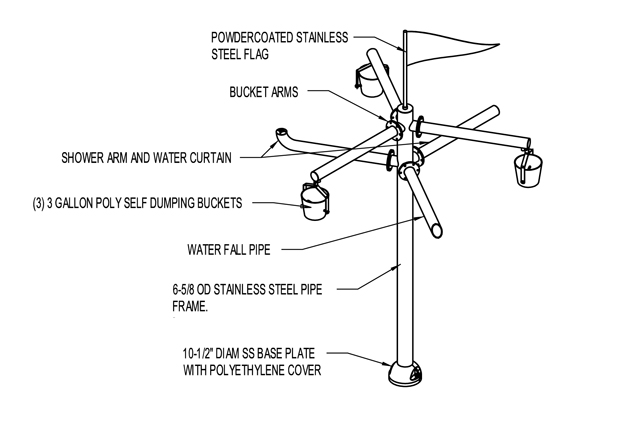

Mistical Super Splash

Model 1800-101
Dimensions: 15' 2” high x 10’ 1” wide
Space Requirements: 10’ 1” x 10’ 1”

• 4-1/2" OD stainless steel pipe
• (3) 3-gallon self-dumping buckets, polyethylene
• Water curtain
• Pipe waterfall
• Shower spray
• Water volume: 30-50 gpm

Download Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Misty Sprays

Model 1800-69-4 Misty Spray with Bent pipe and Interactive Water Flow Wheel

Model 1800-69-4 Misty Spray withInteractive Water Flow Wheel

Model 1800-96 Misty Spray Circle with Interactive Water Flow Wheel

Click to Visit

Mushroom Spray Fountains

Available in 2 different sizes

Model 1800-17
Diameter: 7' 6"

Model 1800-18
Diameter: 5'

Click to Visit

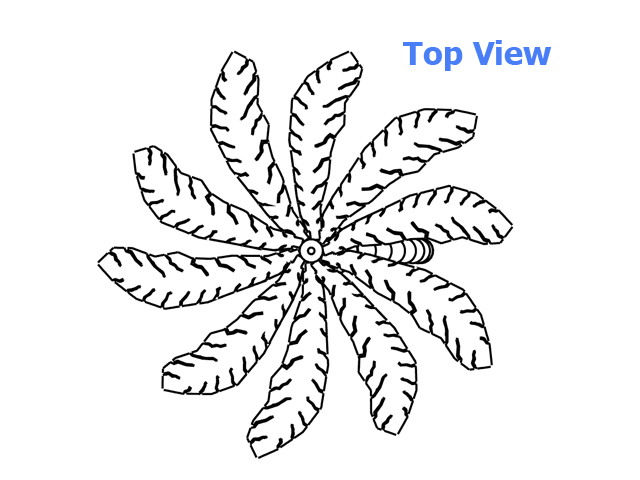

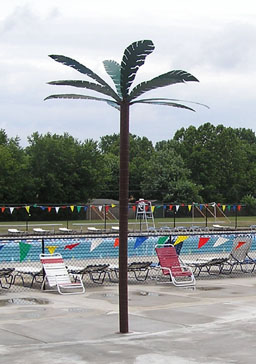

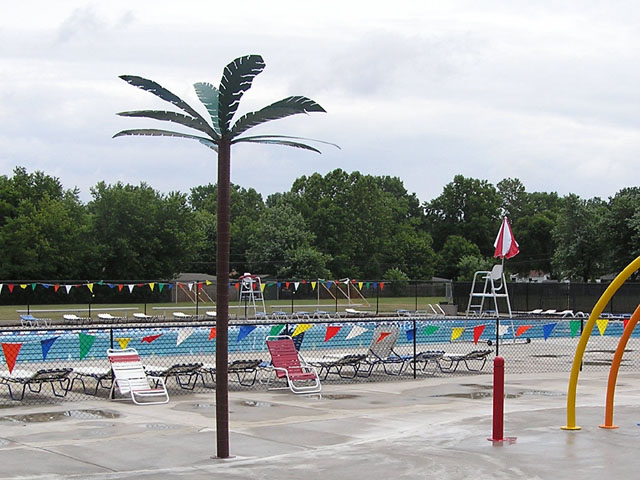

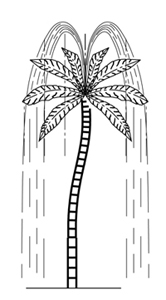

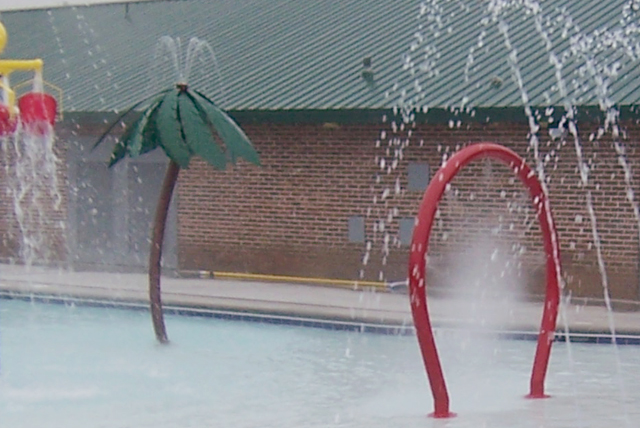

Palm Tree Spray
Model 1800-77

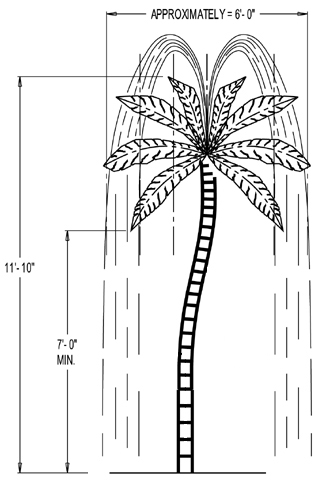

Model 1800-77-1: light curve stem
Dimensions:  11' 10" high x 7' 6" wide

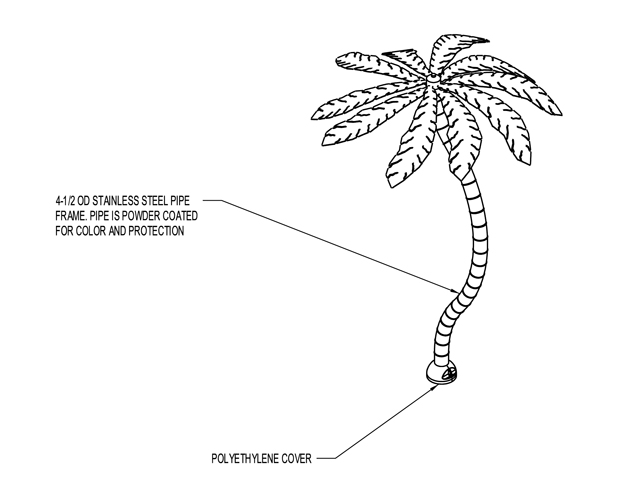

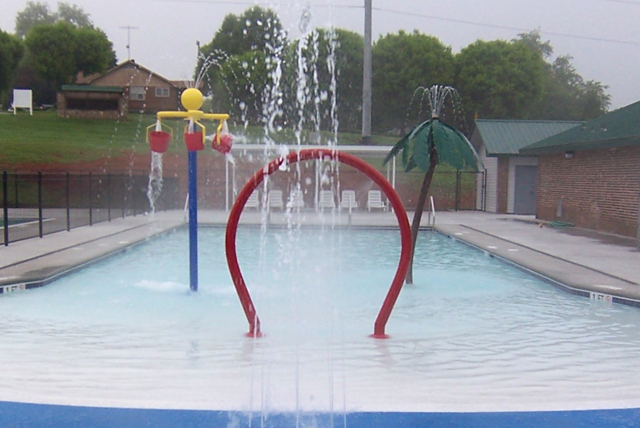

Model 1800-77-2: umbrella palm, heavy curve stem
Dimensions:  9' 7-1/2" high x 6' 8" wide

• Spray nozzles at top
• Leaves: powder coated stainless steel
• Trunk: powder coated stainless steel
• Water volume: 10 gpm
• Shower Spray (Optional)

Optional Shower Spray

click on images to enlarge

Model 1800-77-1

Download Spec Sheet
 Requires Adobe Acrobat

Model 1800-77-2

Download Spec Sheet
 Requires Adobe Acrobat

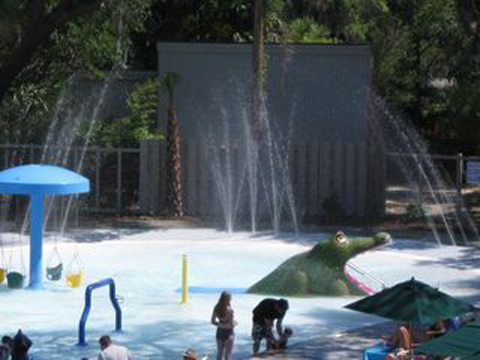

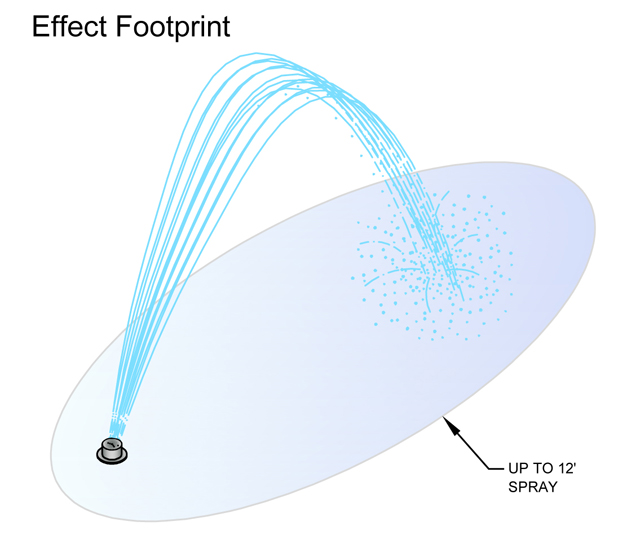

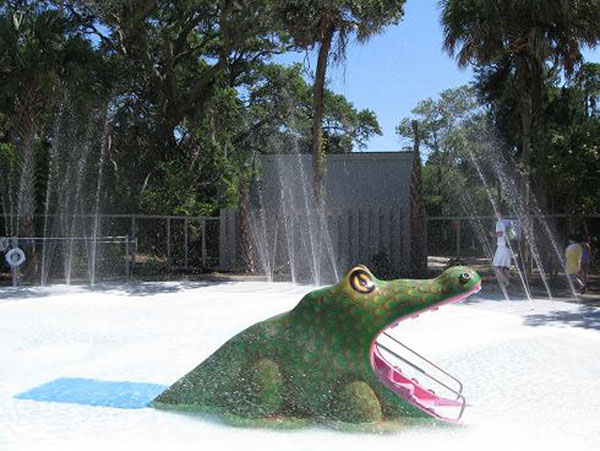

Rooster Tail Deck Jet

Model 1800-112

• Polyester powder coat finish

• Water volume: 8 gpm
• Mounting:
  • Top of nozzles are flush with finished surface.
  • Body is completely buried in concrete.

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

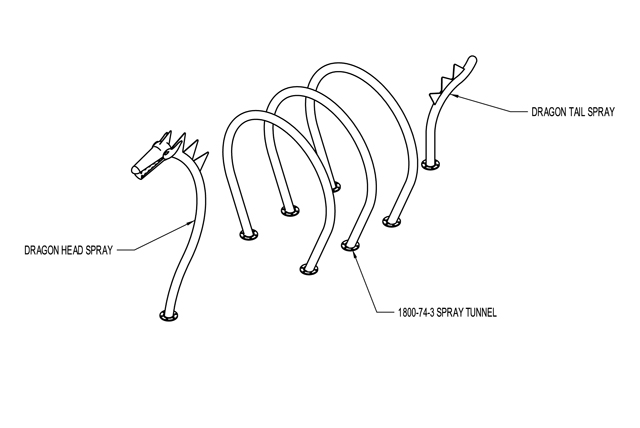

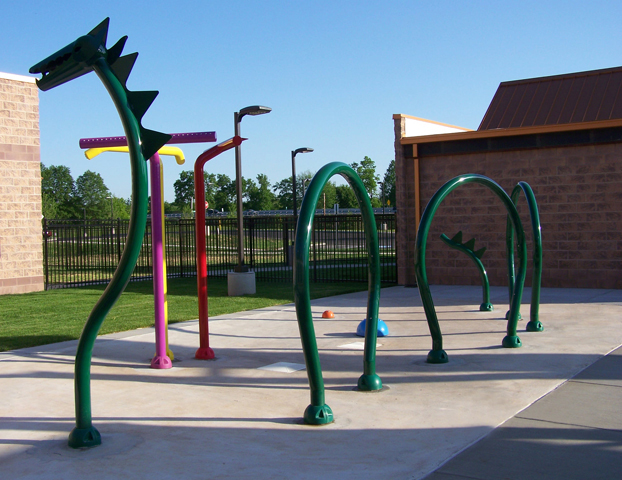

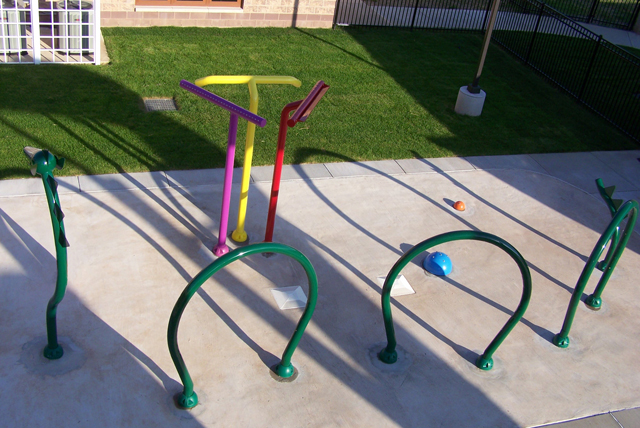

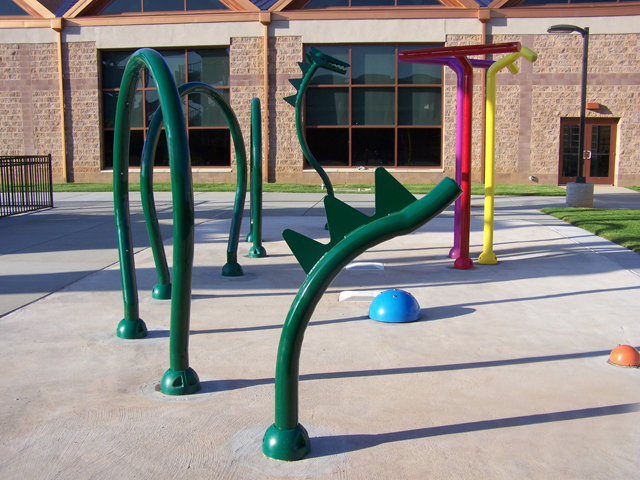

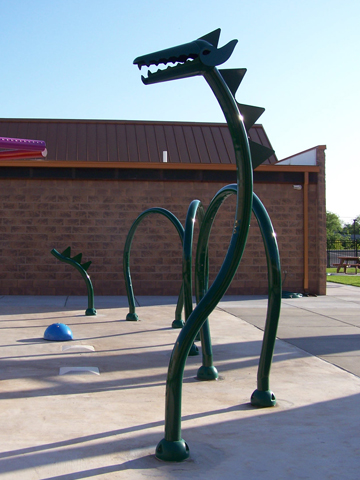

Sea Dragon Spray

Model 1800-51
Dimensions: Varies

• 4 1/2" OD stainless pipe
• Water volume: 26-37 gpm

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

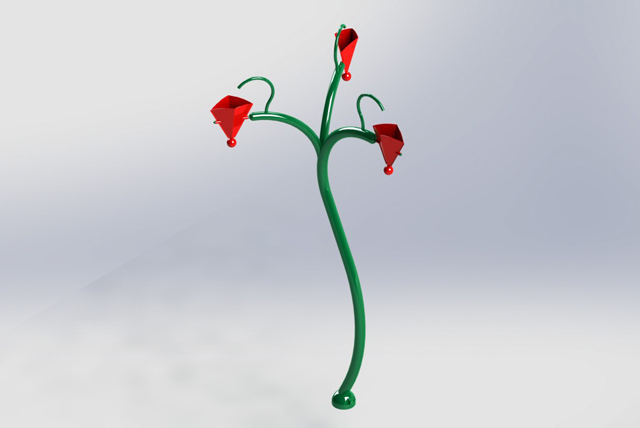

Silver Falls

Model 1800-133
Dimensions: 13' 8" high x 8' 0" wide

• 4-1/2" OD stainless steel pipe
• Water volume: 5-27 gpm

click on image to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

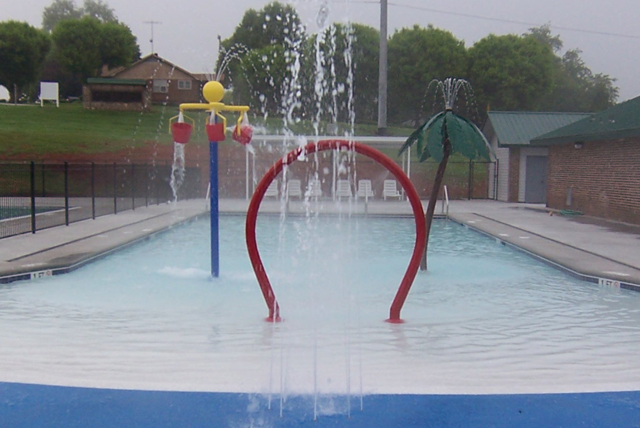

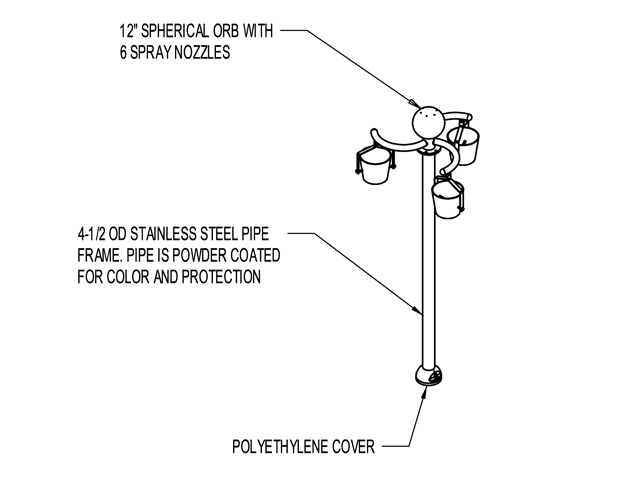

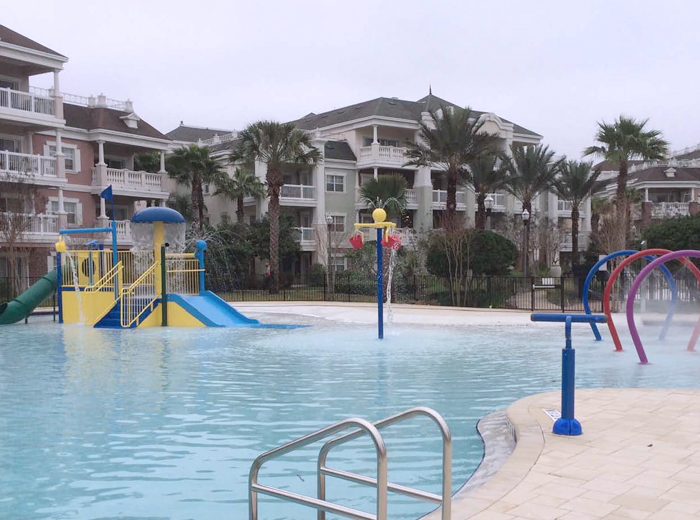

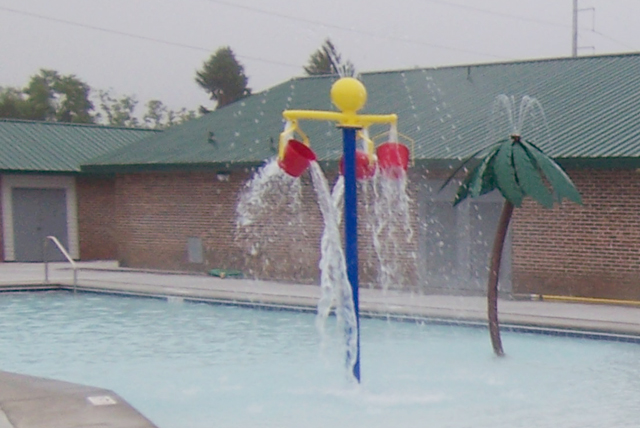

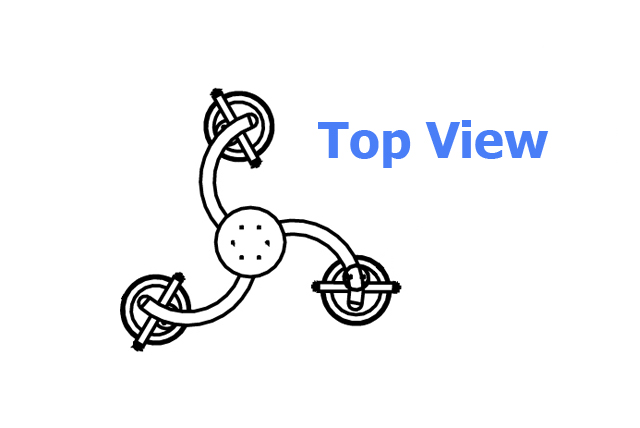

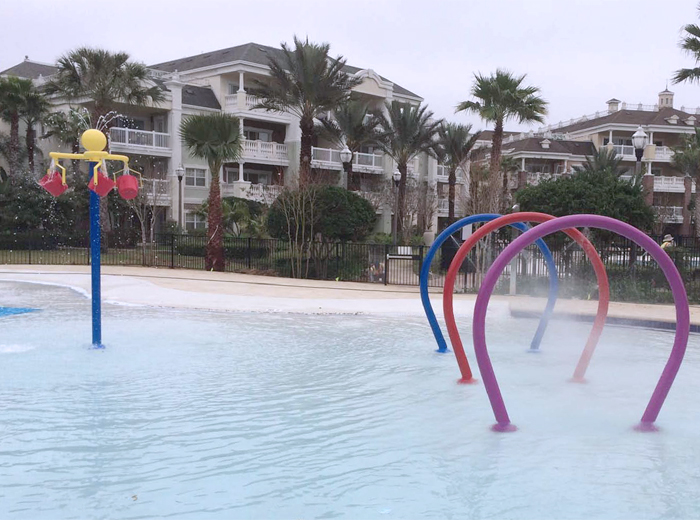

Splash & Spray Trio

1800-43
Dimensions: 10' 2" high x 4' 0" wide
Space Requirements: 4’ 0” x 4’ 0”

• 4-1/2" OD stainless steel pipe
• 12" Spherical Orb with 6 spray nozzles
• (3) 3-gallon self-dumping buckets, polyethylene
• Water volume: 10-35 gpm

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

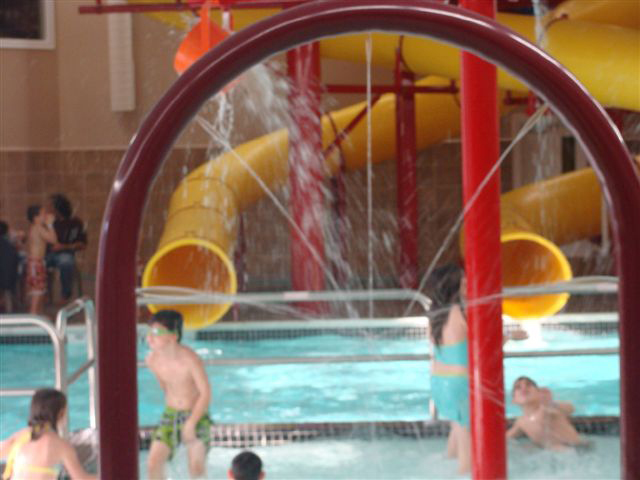

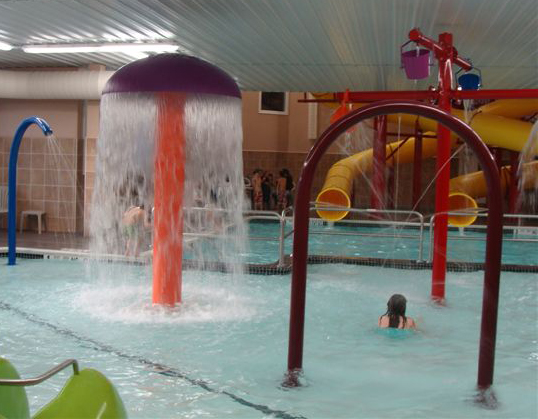

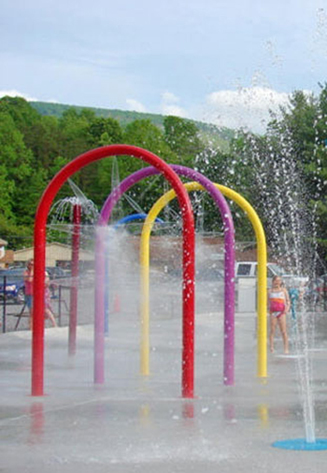

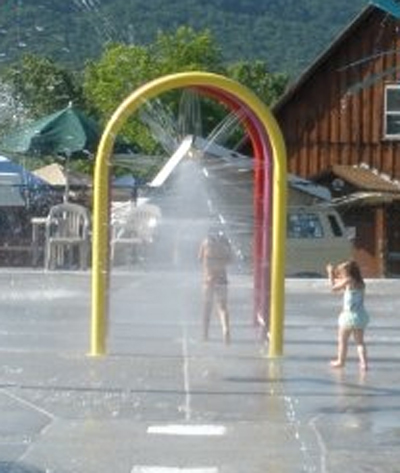

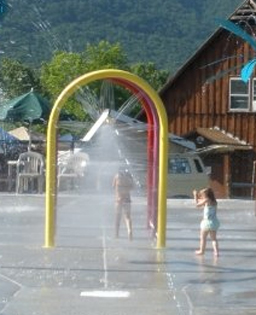

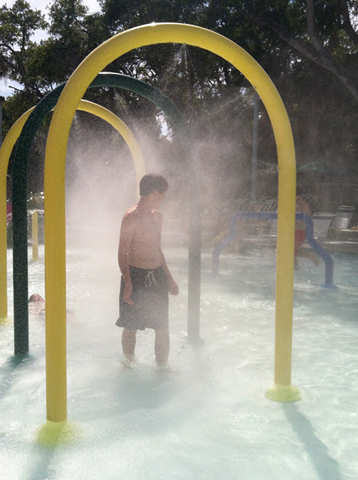

Spray Arch

Model 1800-72
Dimensions: 8' 2" high x 5' wide

Available as a Single or in Groups

• 4 1/2" OD stainless pipe
• (9) Stainless steel flat spray nozzles, capable of adjustable alignment
• Water volume: 10 gpm each

Options Shown: Group of 3 Spray Tunnels

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

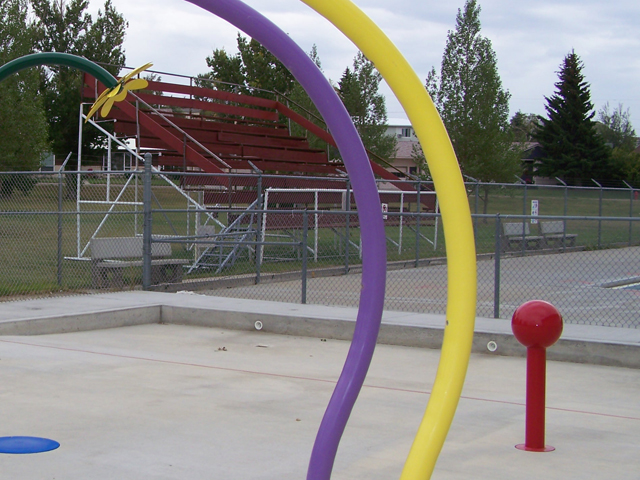

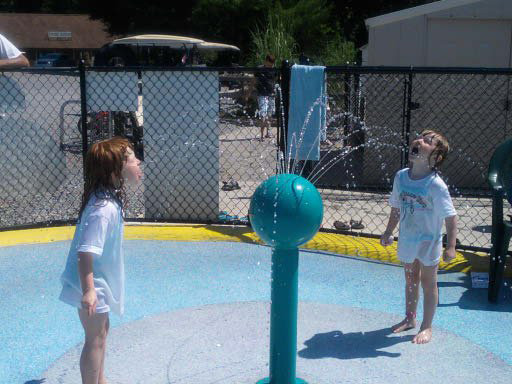

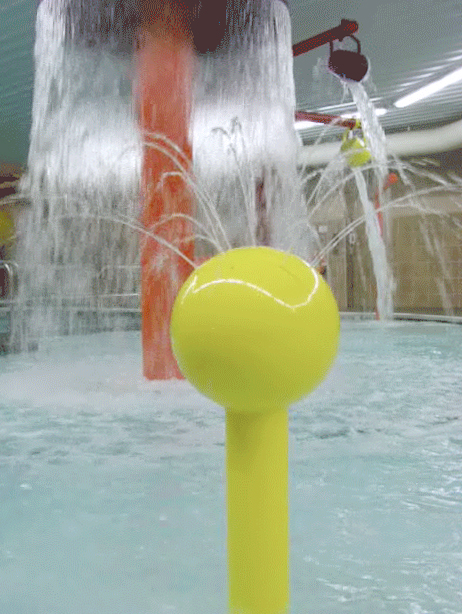

Spray Orb

Model 1800-87

Orb:
• 12” diameter
• Stainless steel with 17 spray holes

Frame:
• 4 1/2” OD stainless pipe
• Polyester powder coated finish

Spray Diameter (DIM. D):
• 33 feet requires 29.2 gpm
• 10 feet requires 11.7 gpm
• 8 feet requires 10.0 gpm

No Footing Required

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

Spray Poles

Fun spray poles: straight, angled, with bends, and interactive (you control the water flow).

Model 1800-86 Angled Spray Pole

Model 1800-86 with Bent Pipe and Interactive Water Flow Wheel

Model 1800-78 with Bent Pipe and Interactive Water Flow Wheel

Click to Visit

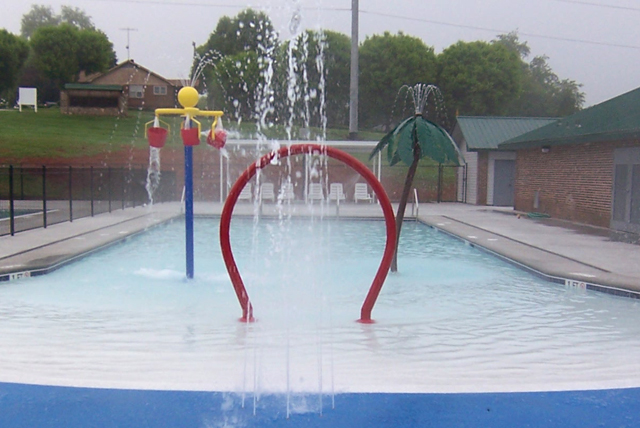

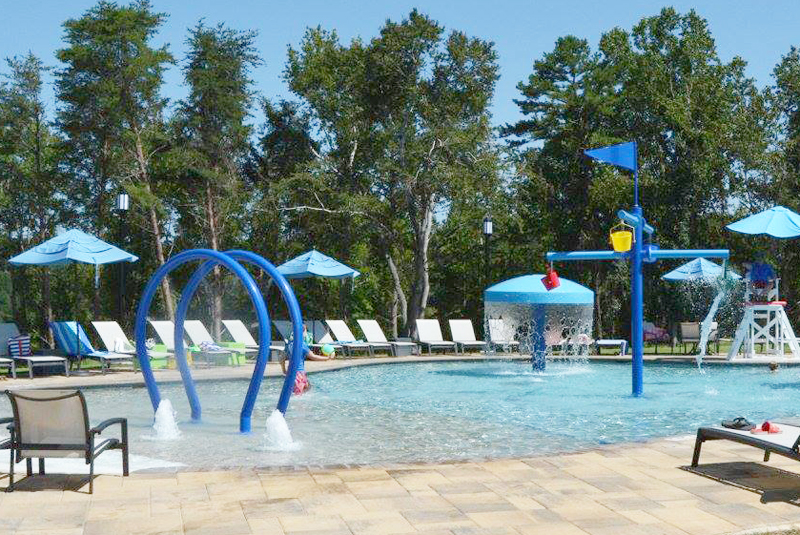

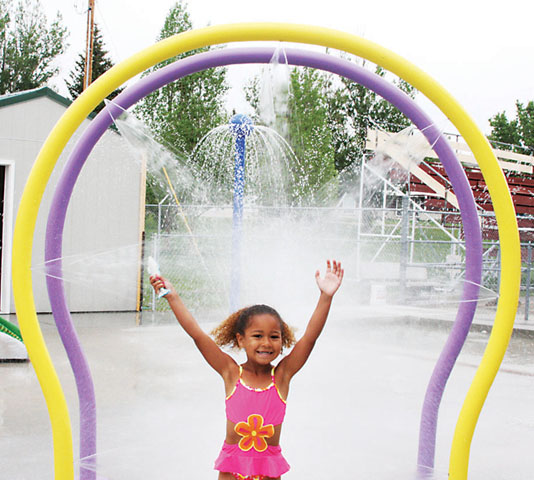

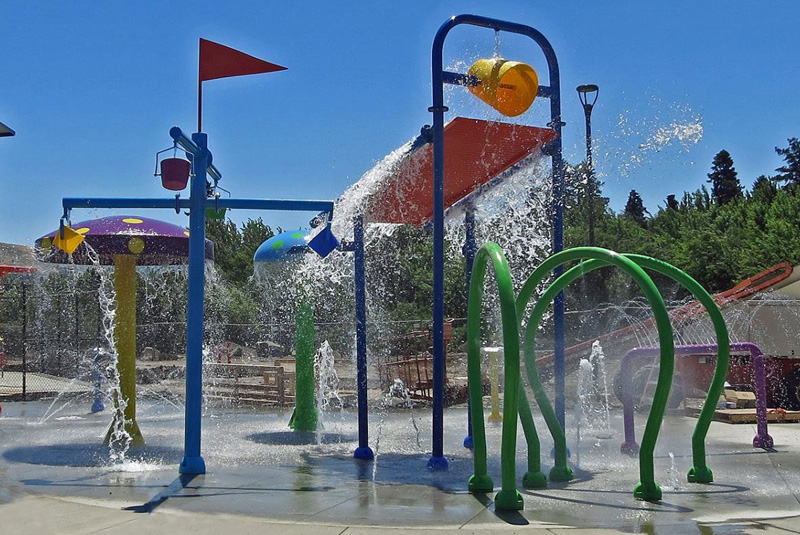

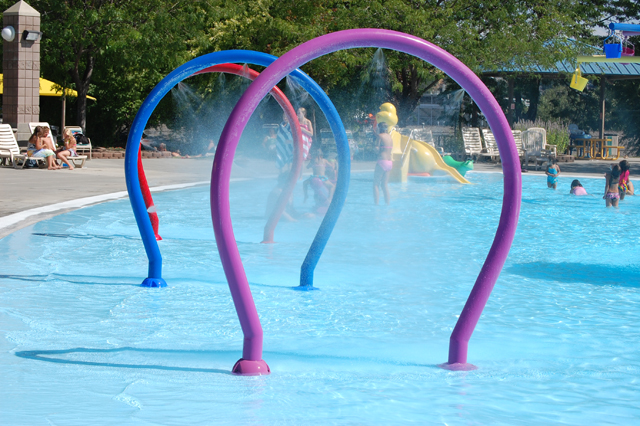

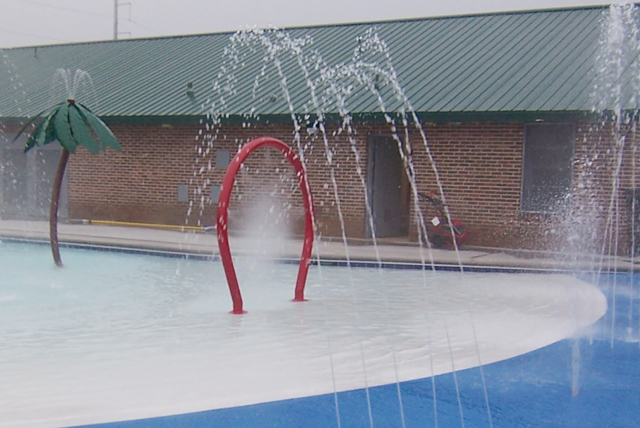

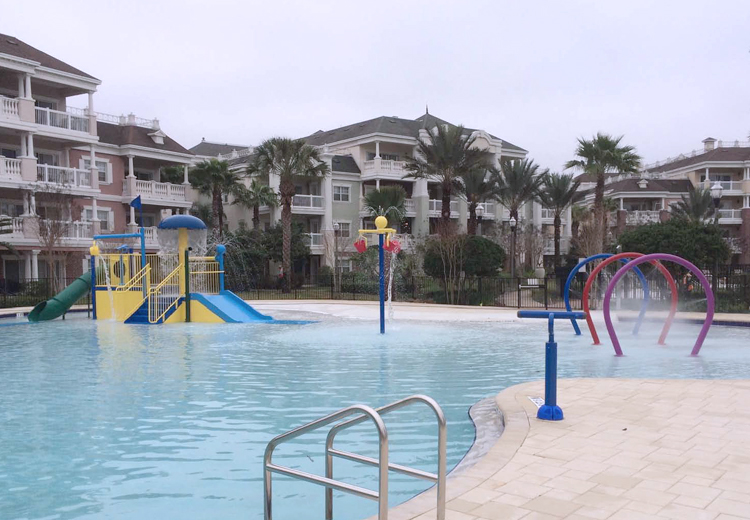

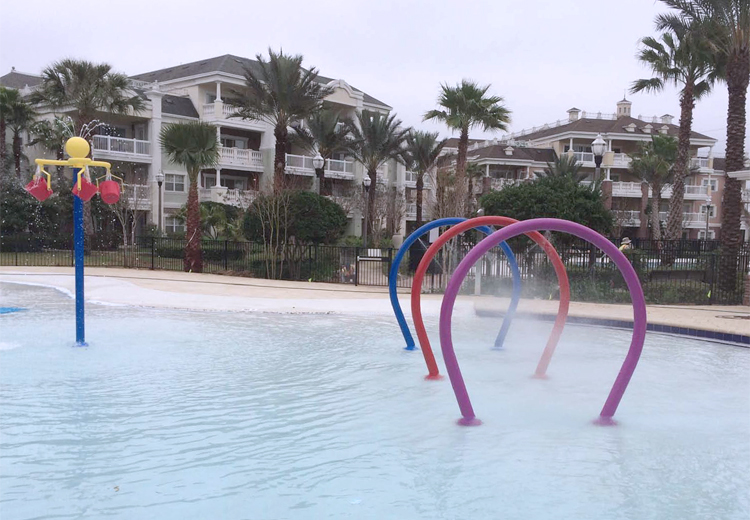

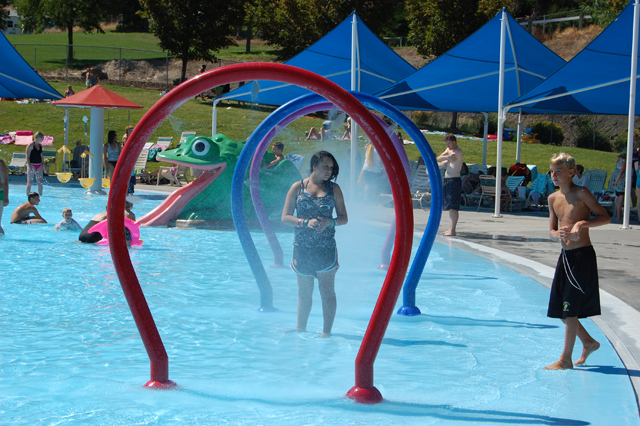

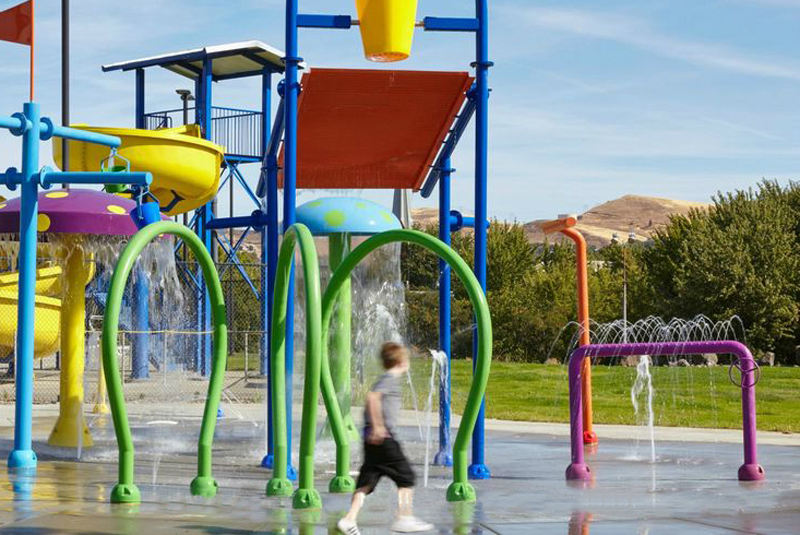

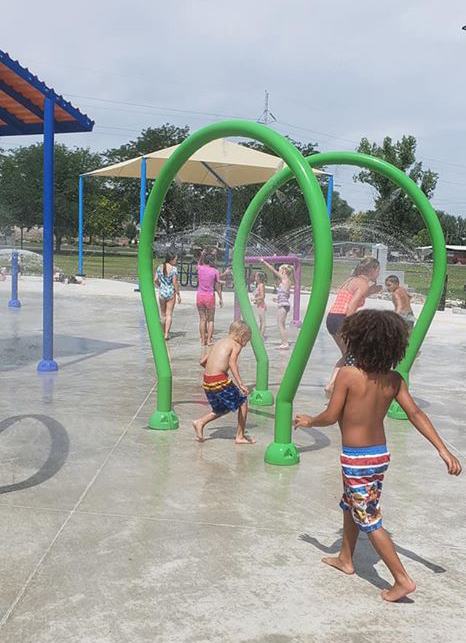

Spray Tunnel

Model 1800-73
Dimensions: 8' high x 5' wide

Available as a Single or in Groups

• 4 1/2" OD stainless pipe
• (7) Stainless steel flat spray nozzles, capable of adjustable alignment

• Water volume: 10 gpm each

Options Shown:
• Group of 2 Spray Tunnels
• Group of 3 Spray Tunnels

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

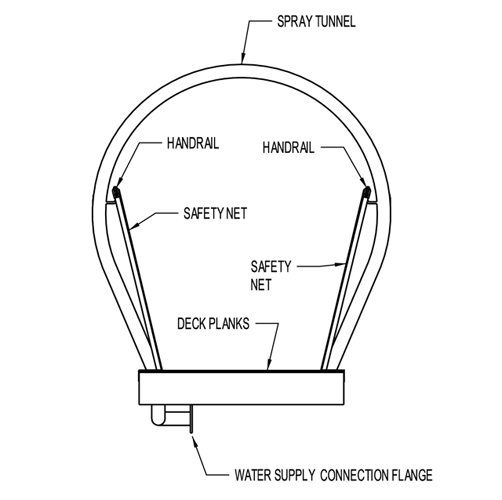

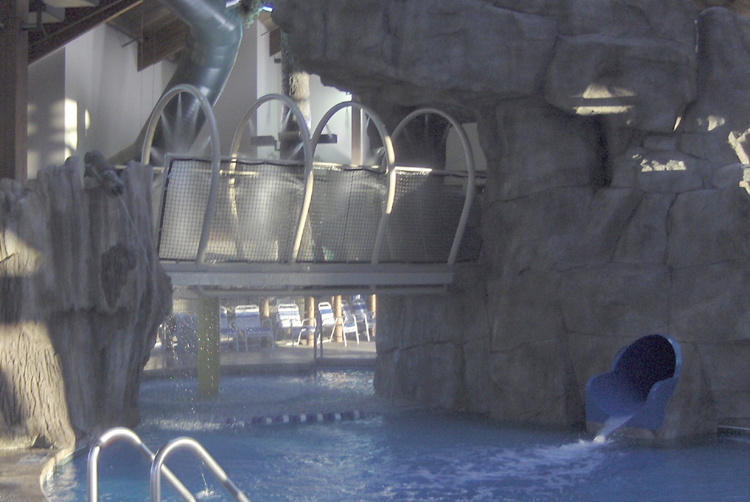

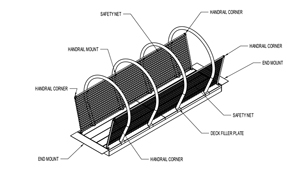

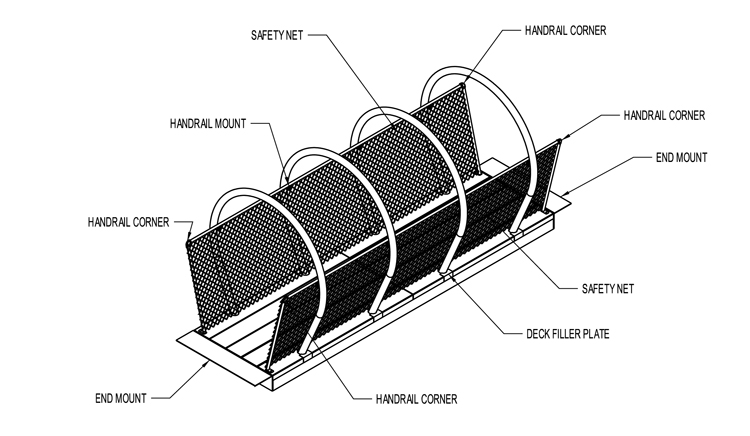

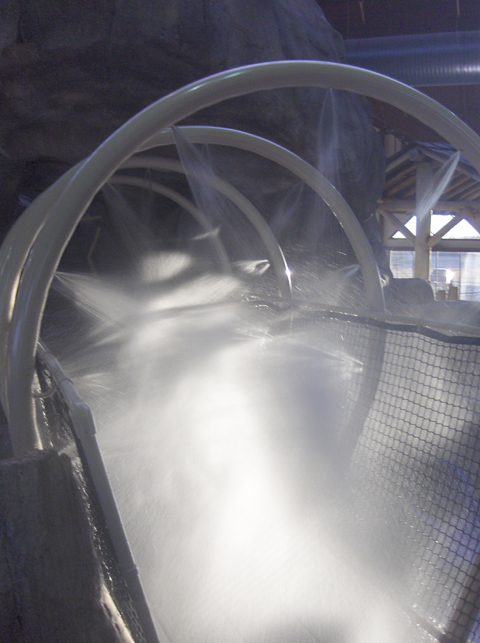

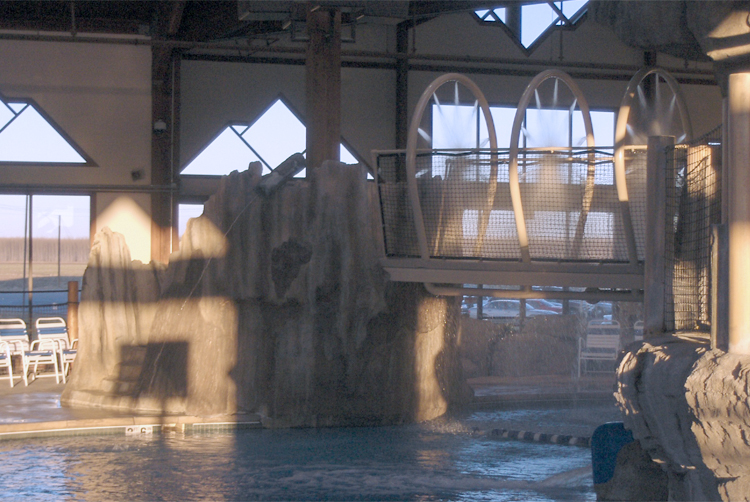

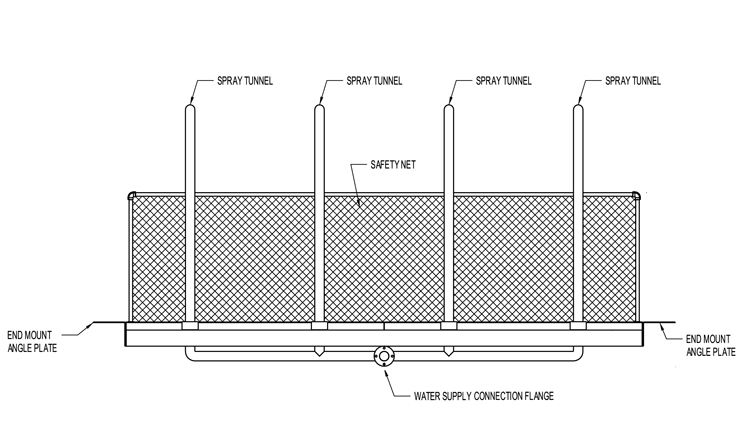

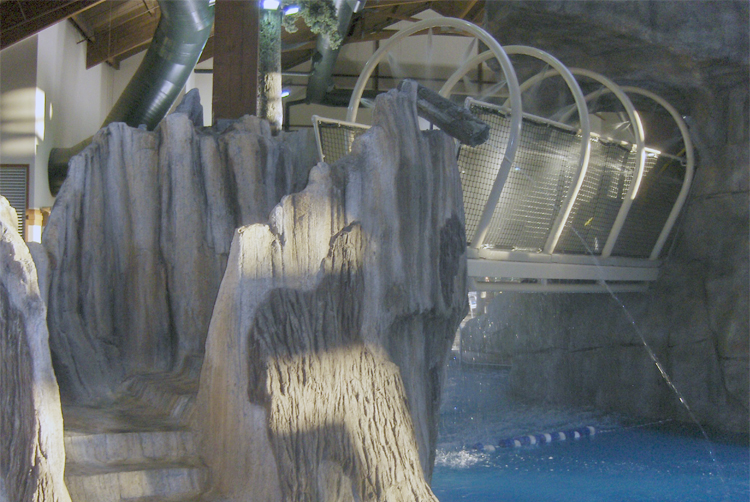

Spray Tunnel Bridge

Model 1800-137
Dimensions: 18' 0" high x 6' 6-1/2" wide

• 4 1/2" OD stainless pipe
• (7) Stainless steel flat spray nozzles, capable of adjustable alignment
• Water volume: 10 gpm each; 40 gpm total

Download Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

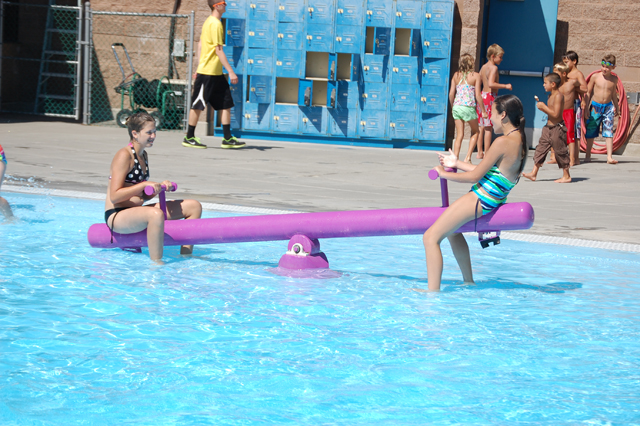

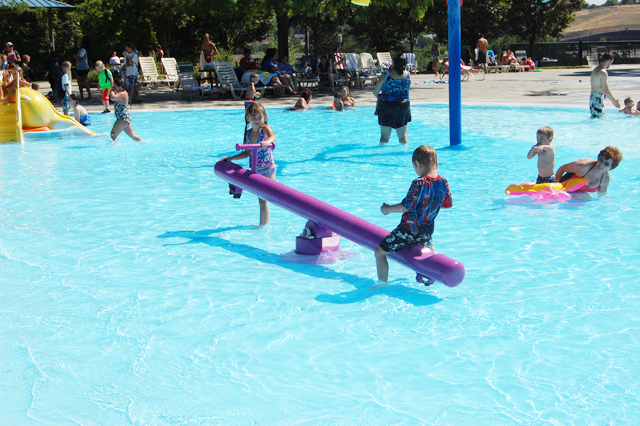

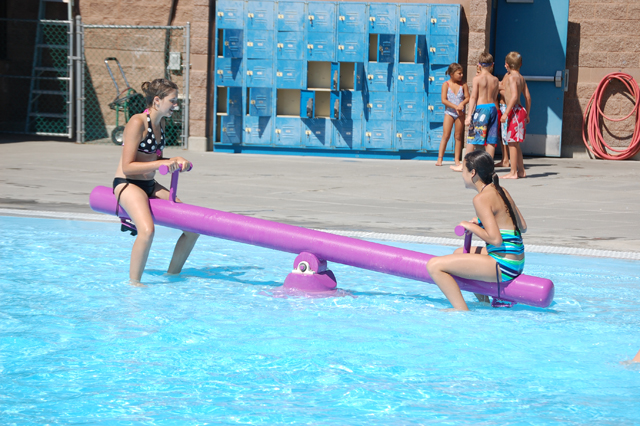

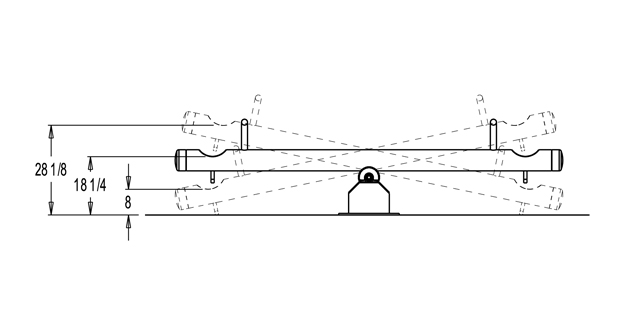

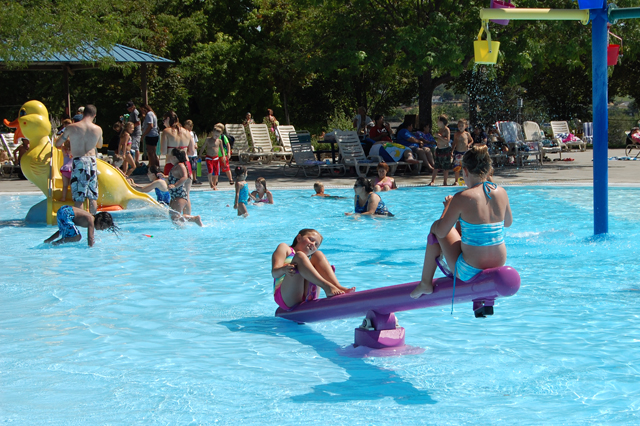

Teeter Totter

Model 1800-99
Dimensions: 7' 1/4" wide x 9' 8" long x 18 1/4" high

• Maintenance-free polyester mounted ball bearing (1 each side)
• Stainless steel pipe construction
• Teeter: from 8" (low) to 28 1/8" (high)
• Water flow: Optional
• Variety of colors

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

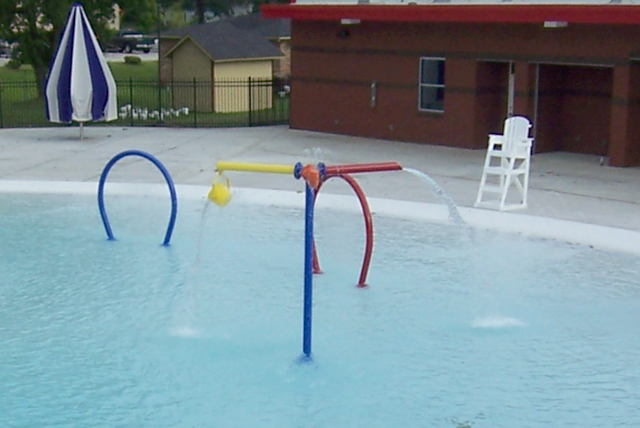

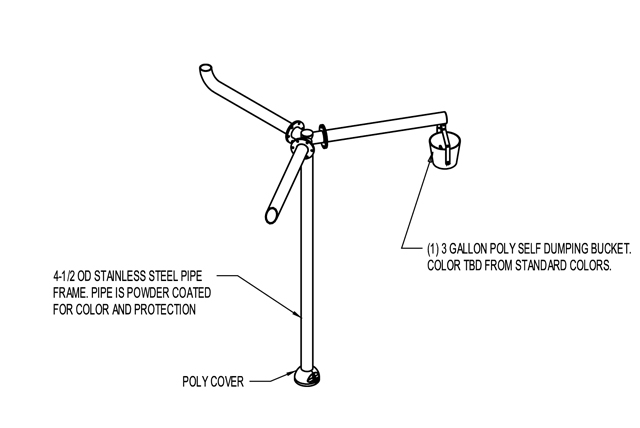

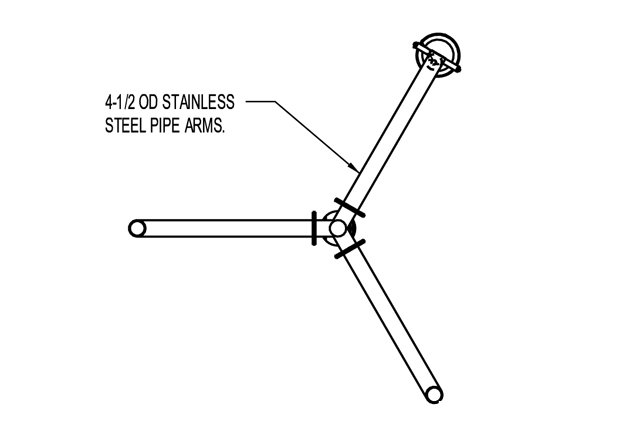

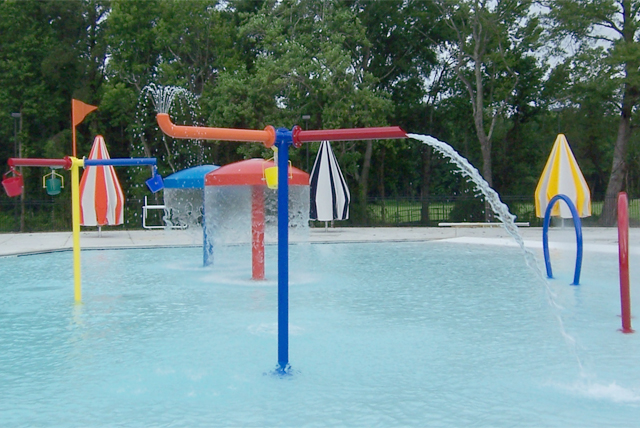

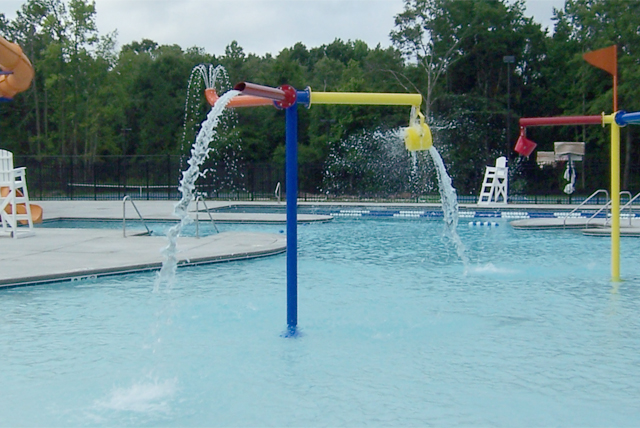

Thrilling Splash Trio
Model 1800-123

Trio arms feature:
   • (1) 3-gallon self-dumping bucket, polyethylene
   • Pipe waterfall
   • Shower

Dimensions: 9’ 10-5/16” high x 8’ 5” wide
Space Requirements: 8’ 5” x 8’ 5”

• 4-1/2" OD stainless steel pipe
• Polyester powder coated finish
• Polyethylene base plate cover
• Stainless steel base plates and anchor system
• Universal spray flange assembly
• Water volume: 25-30 gpm

Download Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

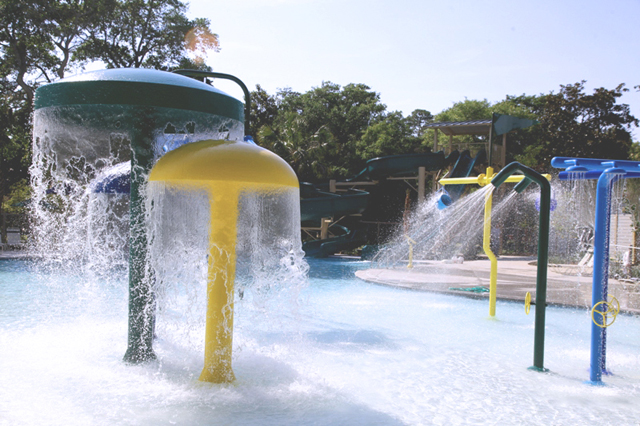

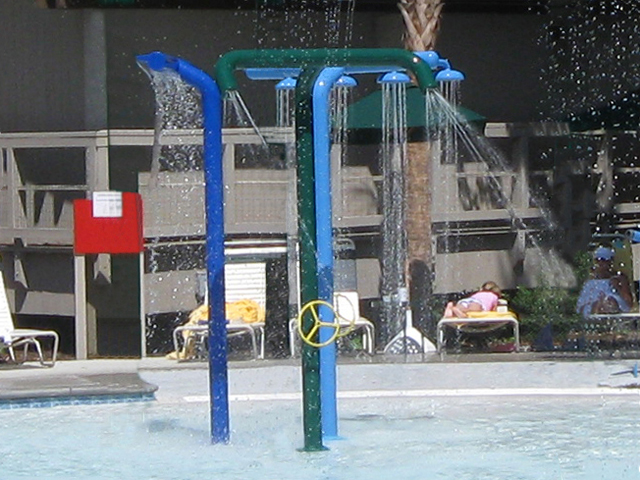

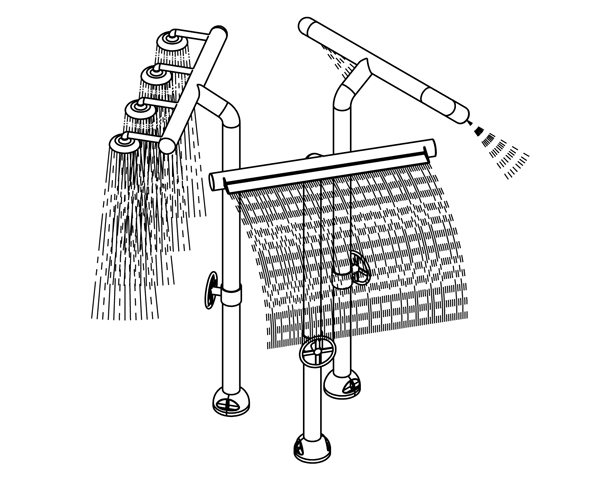

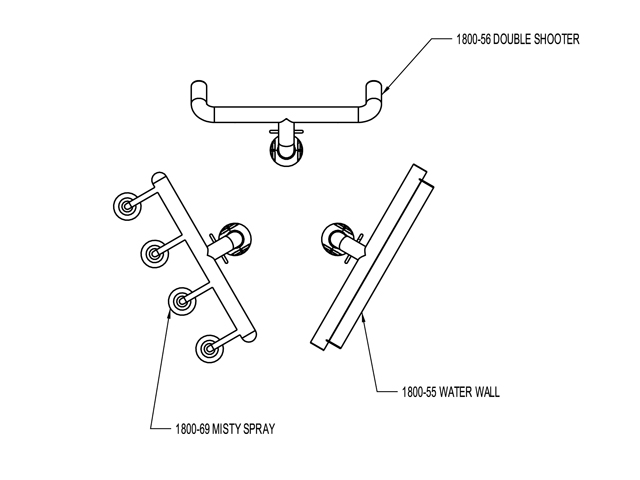

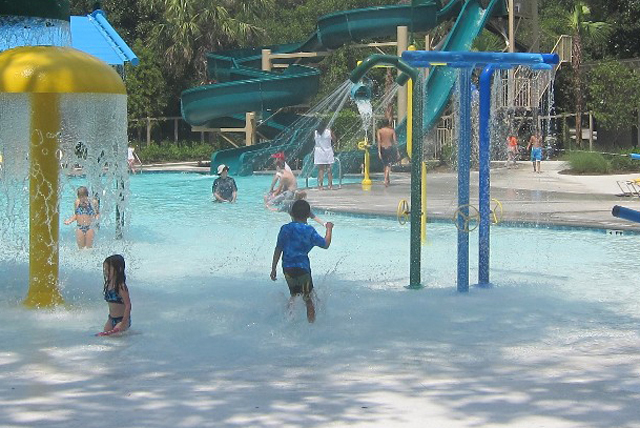

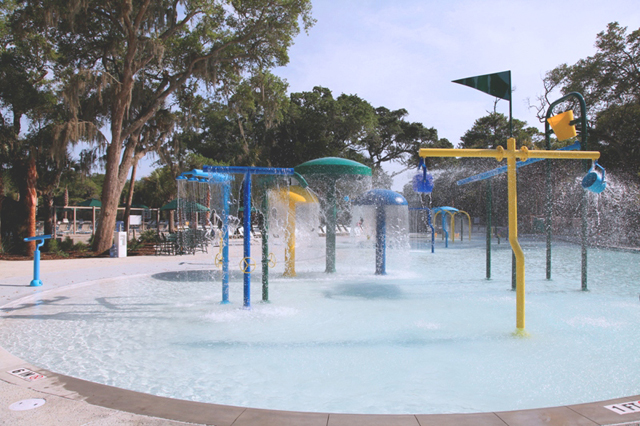

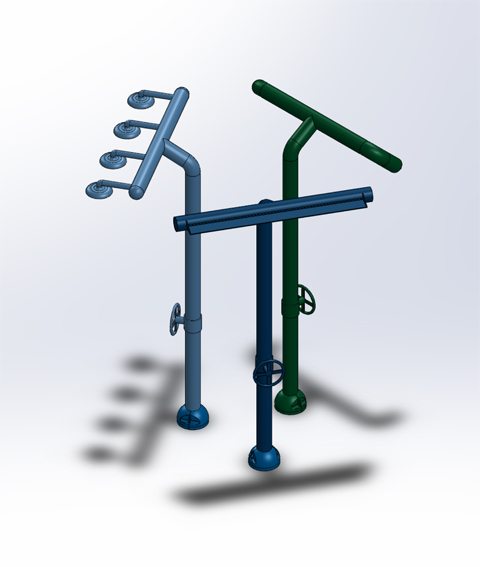

Trio of Fun
Model 1800-94

Individual Models:
All with Interactive Water Flow Wheels

Model 1800-55: Water Wall
• Dimensions: 8' 5-1/2 " high x 5’ 4-1/4" wide
• Water volume: 55-65 gpm

Model 1800-56: Double Shooter
• Dimensions: 8' 5-1/2 " high x 4’ 7-1/2" wide
• Water volume: 20-40 gpm

Model 1800-69-4: Misty Spray
• Dimensions: 8' 5-1/2 " high x 4’ 8-1/2" wide
• Water volume: 40-60 gpm

• 4 1/2" OD stainless pipe
• Water volume: 115-165 gpm

Options Shown: 1800-wheel: Interactive water flow wheel

Download Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Tumbling Buckets - Model 1800-50

1, 2, 3, 4 or 6 Bucket models available

Model 1800-50-2
2 Bucket Model

Model 1800-50-3
3 Bucket Model

Model 1800-50-4
4 Bucket Model

Model 1800-50-6
6 Bucket Model

Click to Visit

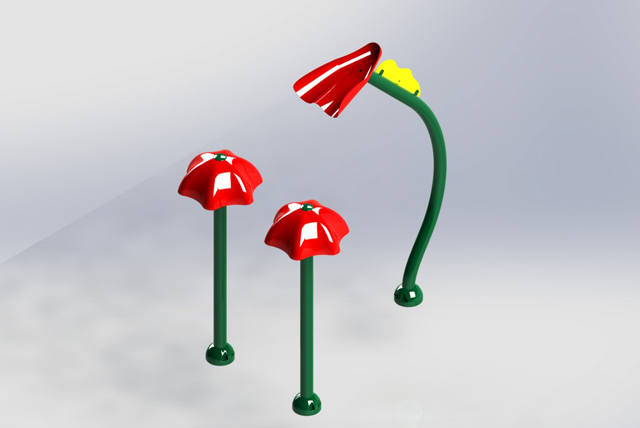

Urban Rainforest

Model 1800-134
Dimensions: 9' 7" high

• 4-1/2" OD stainless steel pipe
• Water volume: 40 gpm

click on image to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

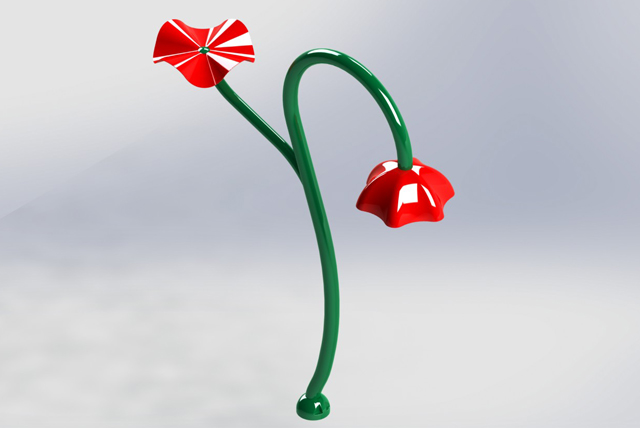

Urban Rain Series II

Model 1800-135
Dimensions: 11' 2-3/4" high x 9' 6" wide

• 4-1/2" OD stainless steel pipe
• Water volume: 10-25 gpm

click on image to enlarge

Download Spec Sheet
 Requires Adobe Acrobat

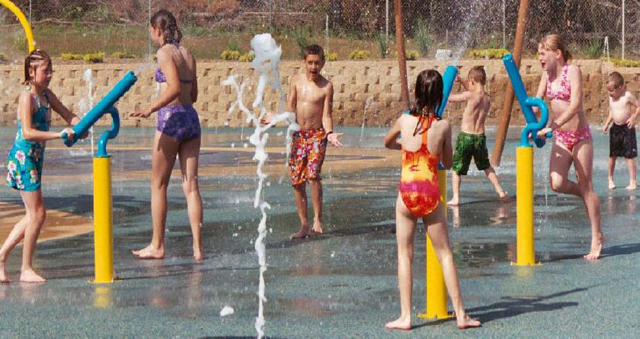

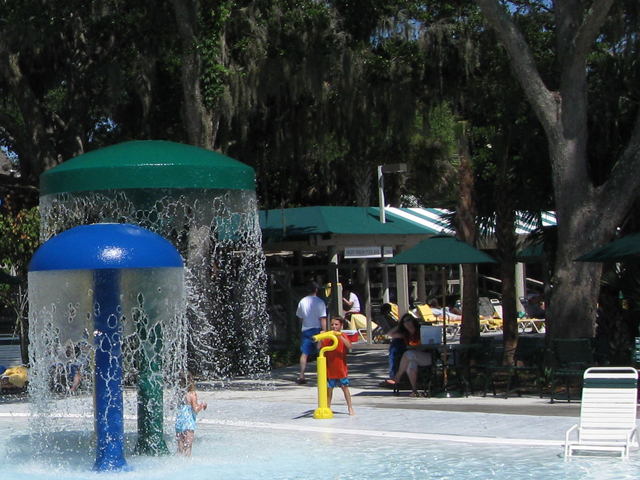

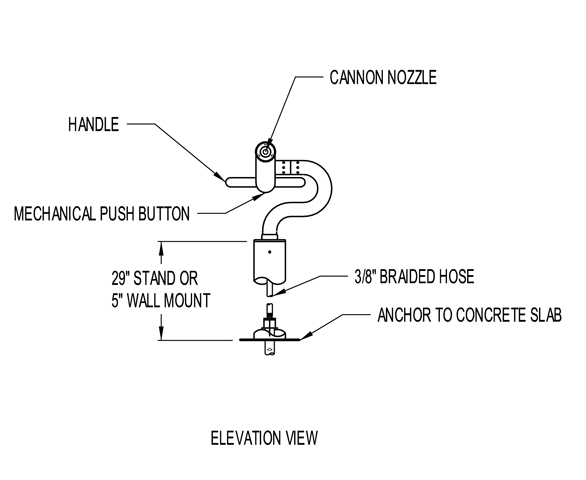

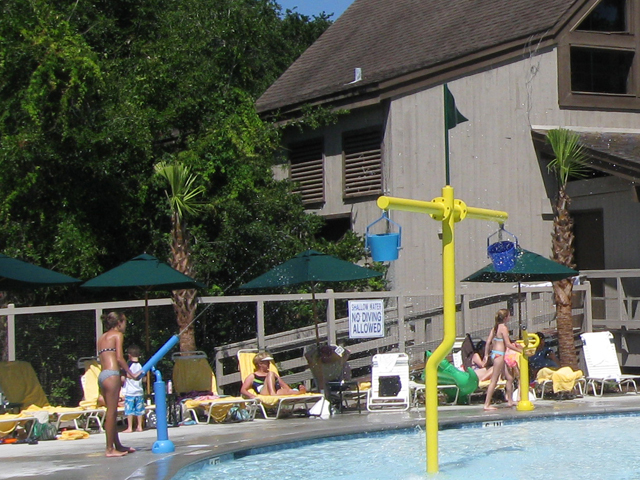

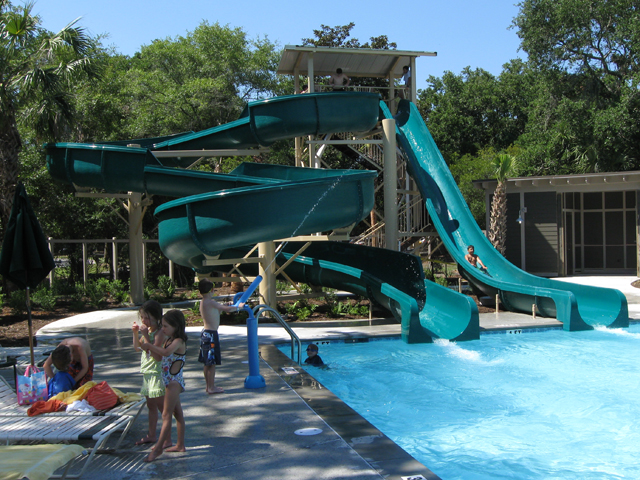

Water Cannon

Model 1800-20
Model 1800-20-A: Gentle stream for small children
Model 1800-20-B: Higher pressurized stream for older children

• Stainless steel construction

• 2-way swivel action to direct spray

• Button activated on/off operation

• Pressure regulated to assure safety
• Polyester powder coated finish
• Surface mount to buried footing flange
• Circuit breaker with 24-hour timer control
• Electrically bonded to anchor footing
• Spray Distance: Shoots 20' to 30'
• Water volume: 2-5 gpm required
• Mounting:
  • Surface Mount (shown)
  • Wall Mount

click on images to enlarge

Shoots 20 to 30 feet !!

Download Spec Sheet
 Requires Adobe Acrobat

Water Curtains

Many ways to Enjoy - Spray curtains: straight, angled, with bends, and interactive (you control the water flow). Available in singles or in groups.

Model 1800-68 Spray Curtain

Model 1800-70-1 Water Curtain

Model 1800-70-2 Water Curtain with Bend

Model 1800-71 Water Curtain Tunnel

Model 1800-95 Double Spray Curtain

Click to Visit

Water Towers

Model 1800-22
Water Spray Tower

Model 1800-122
Water Tower

Model 1800-122
Water Tower with 3 Spray Features mounted to tower legs

Click to Visit

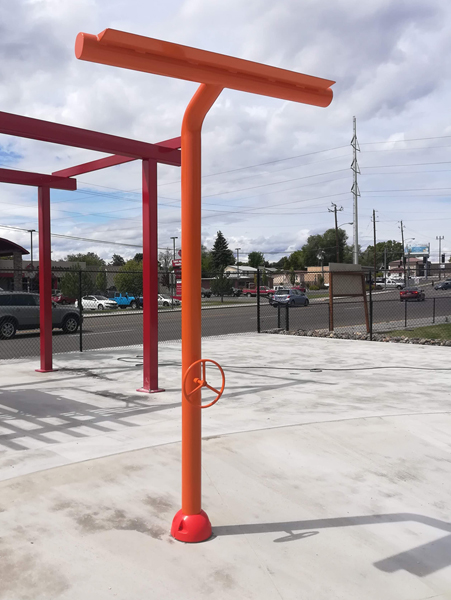

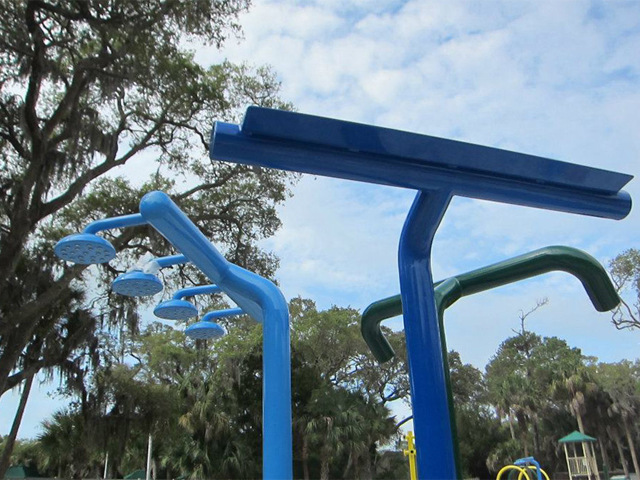

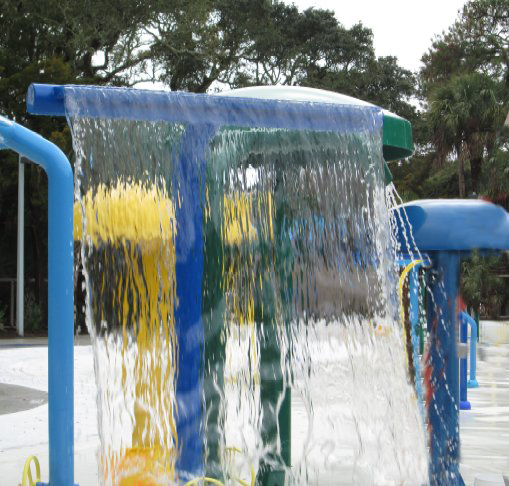

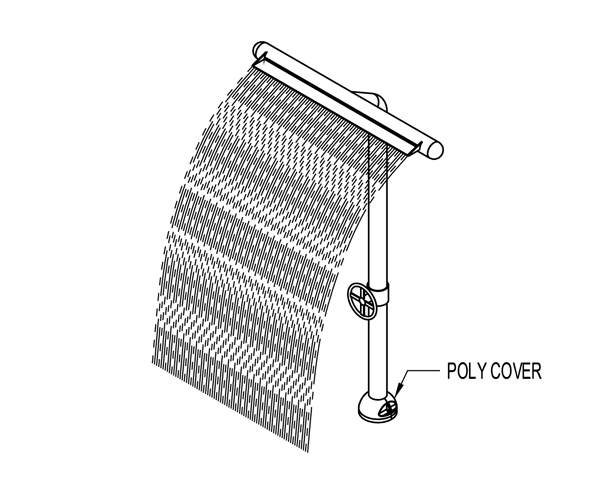

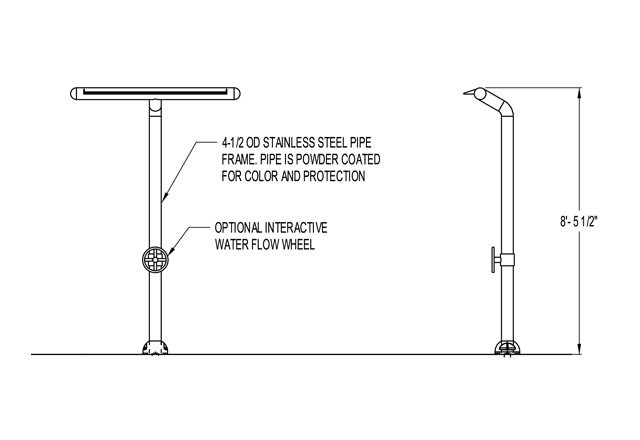

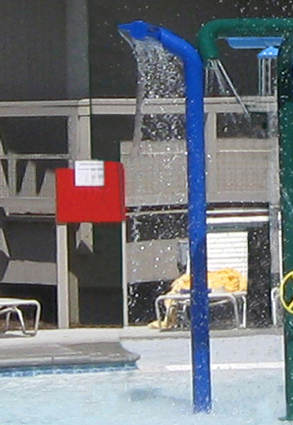

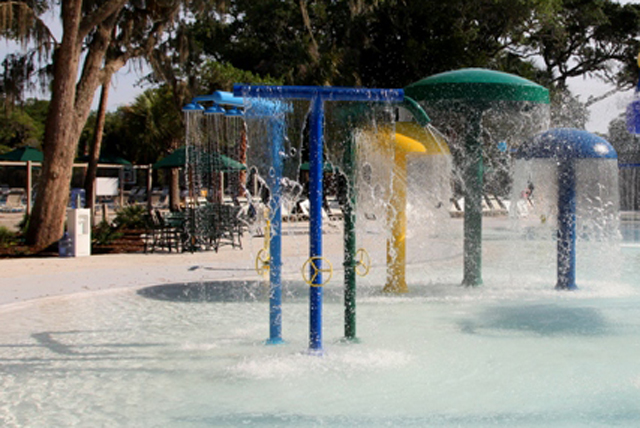

Water Wall

Model 1800-55
Dimensions: 8' 5-1/2 " high x 5’ 4-1/4" wide

• 4 1/2" OD stainless pipe
• Water volume: 55-65 gpm

Options Shown: 1800-wheel: Interactive water flow wheel

click on images to enlarge

Download Spec Sheet
 Requires Adobe Acrobat
