Quality Since 1971!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • 1617 Exit Lane
    Polyethylene Flume Water Slide Model 1617
  • 1854
    Dual Fiberglass Flume Speed Slide Water Slides Model 1854
  • 1900
    Double Fiberglass Flume Water Slide Model 1900
  • 1901
    Double Fiberglass Flume Water Slide Model 1901
  • 1955
    Fiberglass Flume Water Slide Model 1888
  • 1888
    Fiberglass Flume Water Slide Model 1888
  • 2046
    Closed Flume Fiberglass Water Slide Model 2046

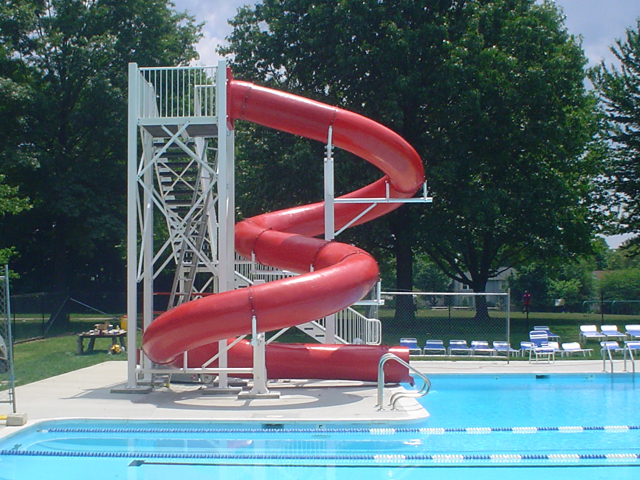

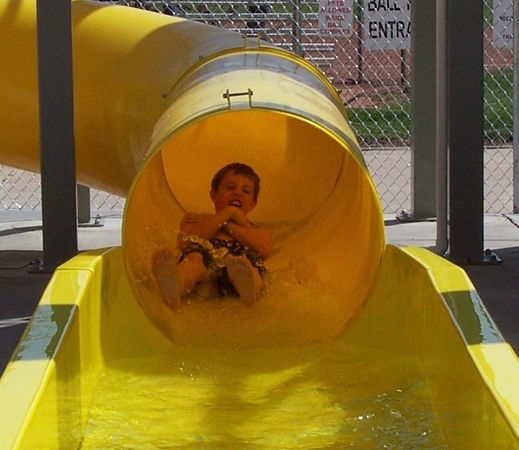

Polyethylene Flume Water Slide Model 1617 with Exit Lane Polyethylene Flume Water Slide with Fiberglass Exit Lane
Model 1617

Description: Single 30" I.D. flume water slide
in a figure 8.
Centerline Run: 90' 8"
Entry Height: 18' 0"
Platform Size: 6' x 6'
Space Requirements: Vary with options chosen.- 39’ 9-½” x 39’ 0-½"

A favorite for those who love the excitement of the reverse curve.

  • 30" inside diameter polyethylene water slide flume
  • Exit Lane
  • Self-enclosed recirculating system (no pool required)
  • 20 to 40 gpm required

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

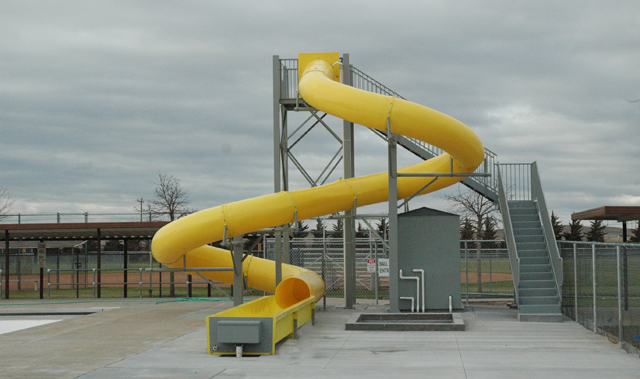

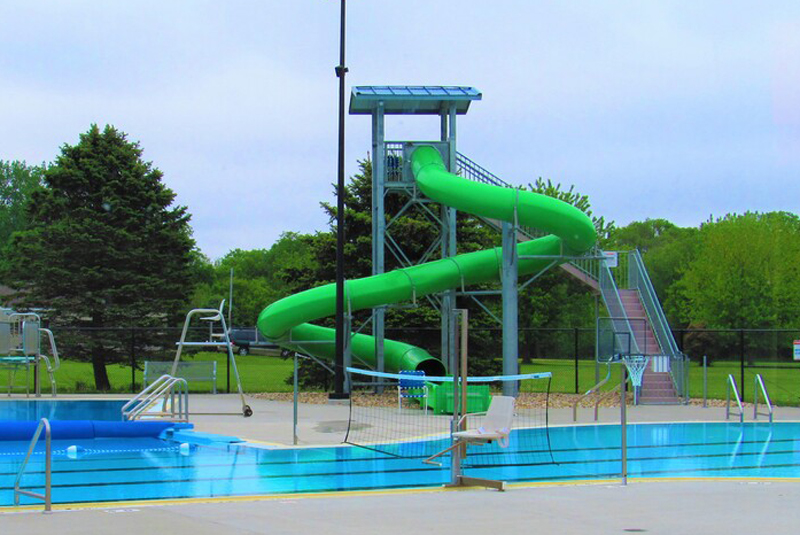

Polyethylene Flume Water Slide Model 1617 with Exit Lane

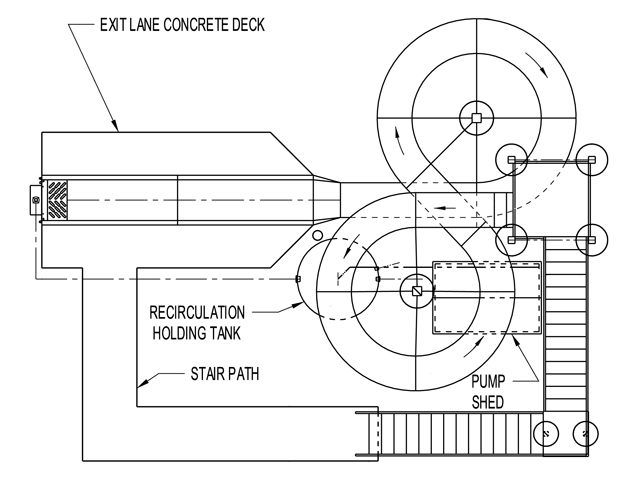

Polyethylene Flume Water Slide Model 1617 with Exit Lane plan view

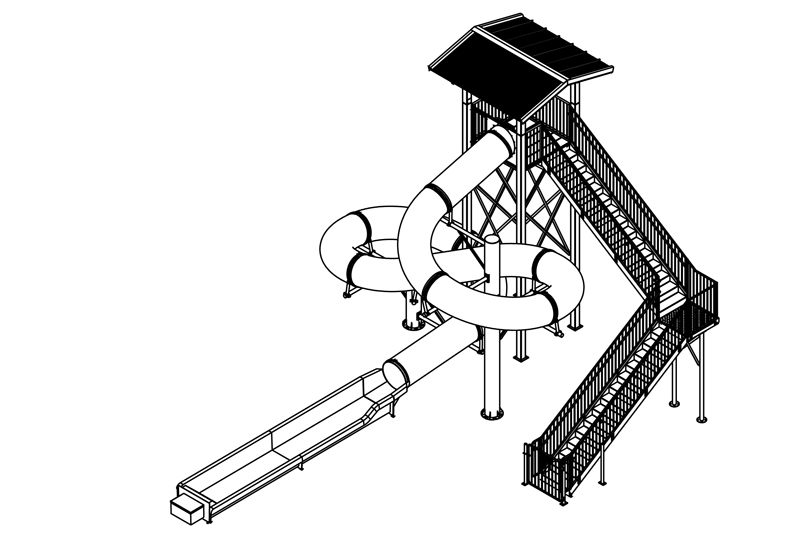

Polyethylene Flume Water Slide Model 1617 with Exit Lane plan viewPolyethylene Flume Water Slide Model 1617 with Exit Lane

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

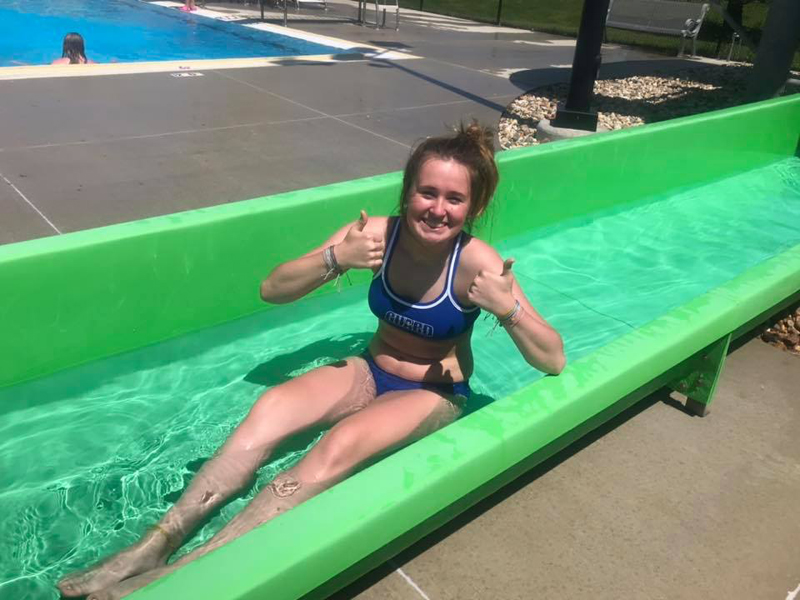

Polyethylene Flume Water Slide Model 1617 with Exit LanePolyethylene Flume Water Slide Model 1617 with Exit Lane

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Dual Fiberglass Flume Speed Slide Water Slides Model 1854Dual Fiberglass Flume Speed Slide Water Slides
Model: 1854

Description: Dual open flume fiberglass speed slides.
Centerline Run: 49' 7"
Entry Height: 18' 1"
Platform Size: 8' x 8'
Space Requirements: 43’ 1” x 13’ 10” * – Space requirements may vary with options chosen.

  • Dual 36" inside diameter fiberglass open flume water slides
  • Platform: N/A *Platform done by others.
  • Stairs: N/A *Stairs done by others.
  • 150-200 gpm water flow required
  • Splash down dimension: 22' 1' x 30' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

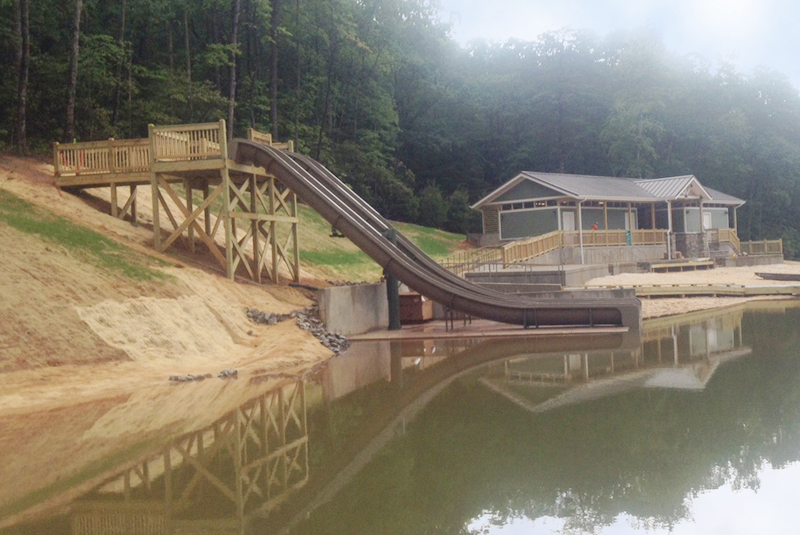

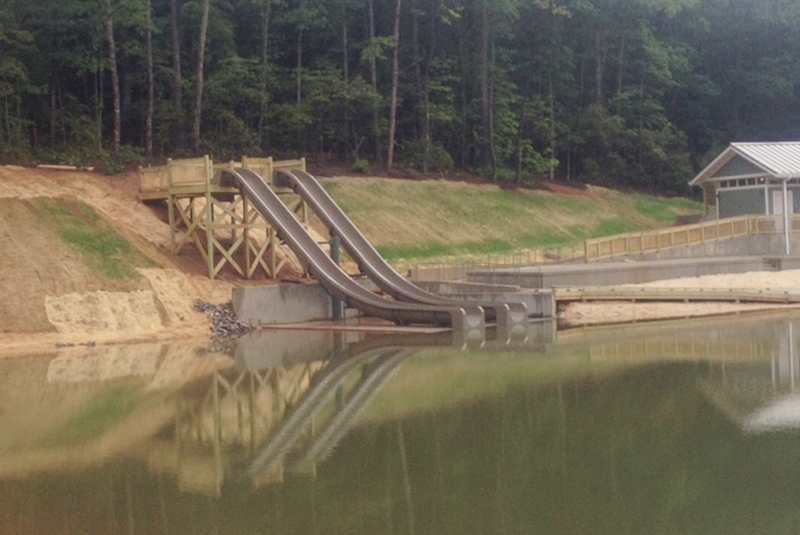

Dual Fiberglass Flume Speed Slide Water Slides Model 1854

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

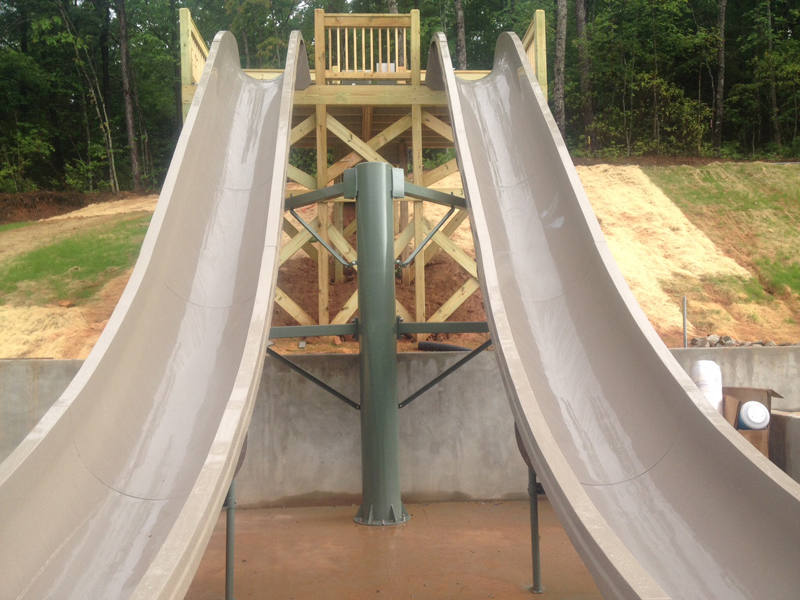

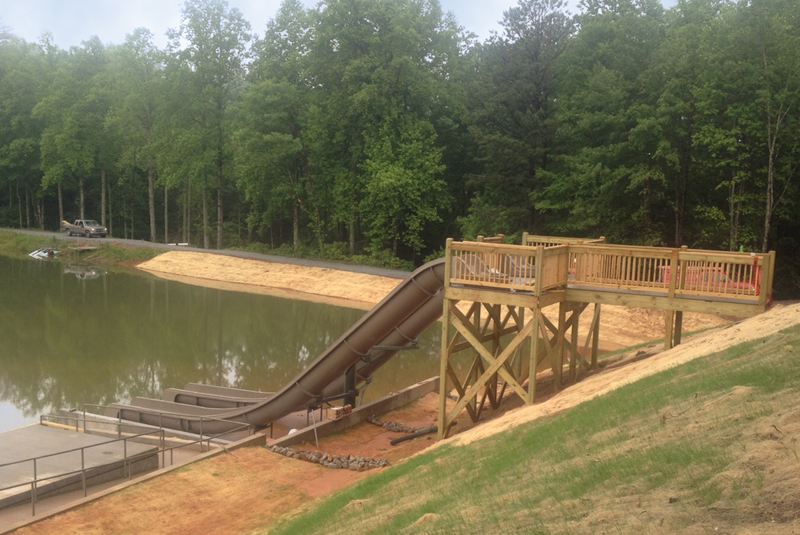

Dual Fiberglass Flume Speed Slide Water Slides Model 1854

Dual Fiberglass Flume Speed Slide Water Slides Model 1854

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

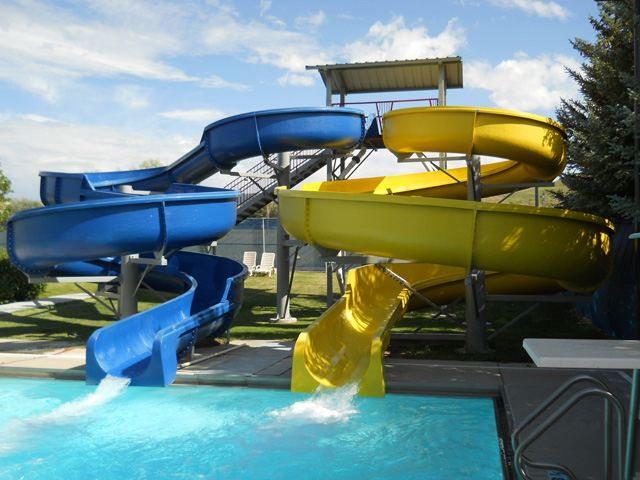

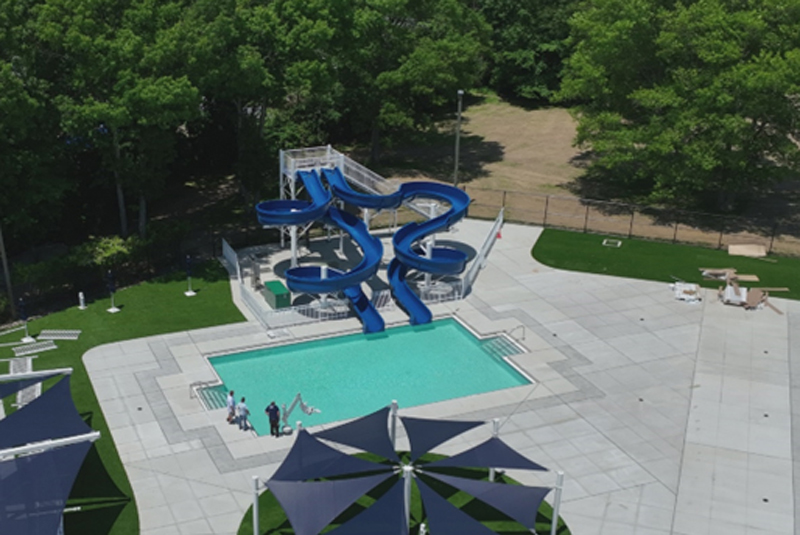

Double Fiberglass Water Slide Model 1900Double Flume Fiberglass Water Slide
Model: 1900

Description : Double open flume fiberglass water slide featuring "S" and 360° curves.
Centerline Run : 131' 0" & 126' 11"
Entry Height : 18' 1"
Platform Size : 8' x 12'
Space Requirements: 53' 0" x 46' 10" –Space requirements may vary with options chosen.

Double the flume - Double the action!

  • 36" inside diameter fiberglass water slide flume
  • Water flow required (each flume):
    600-800 gpm
  • Splash down dimension: 24' x 20'
  • Minimum water depth: 3'

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

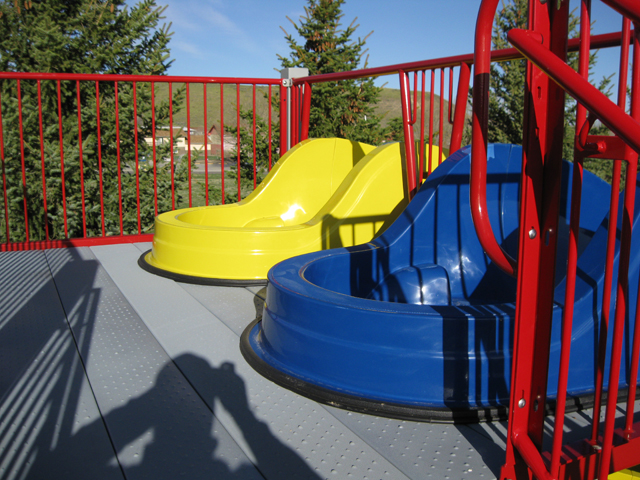

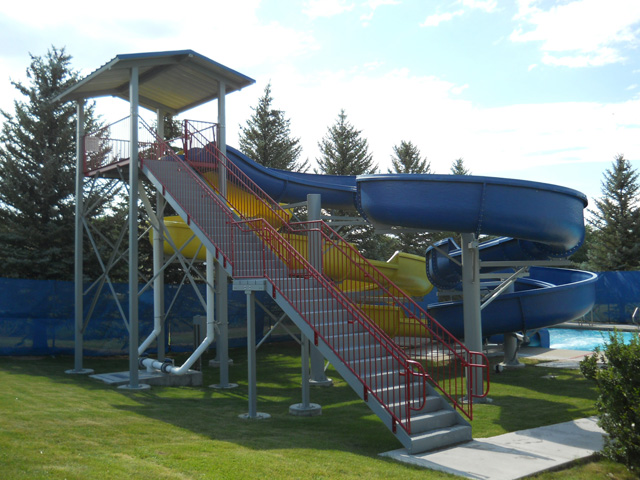

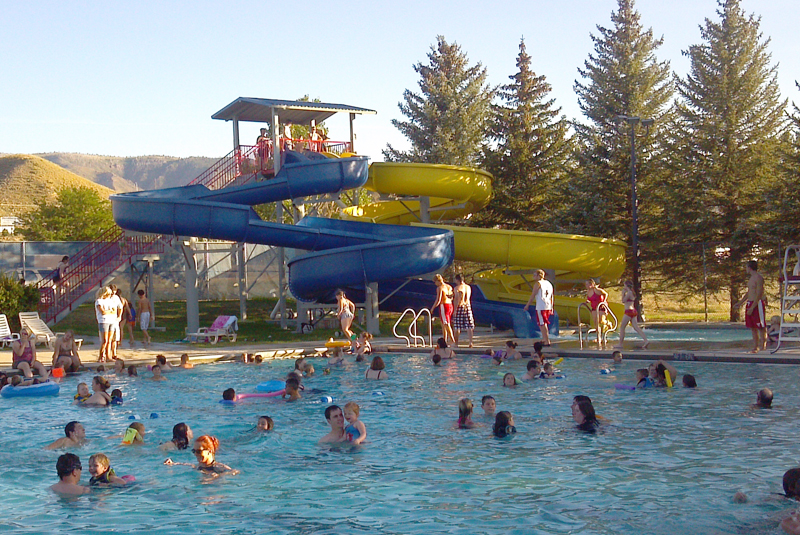

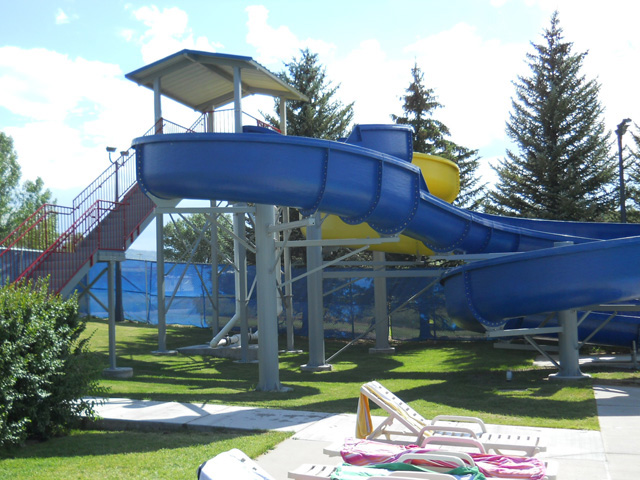

Double Fiberglass Water Slide Model 1900Double Fiberglass Water Slide Model 1900Double Fiberglass Water Slide Model 1900Double Fiberglass Water Slide Model 1900Double Fiberglass Water Slide Model 1900 Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

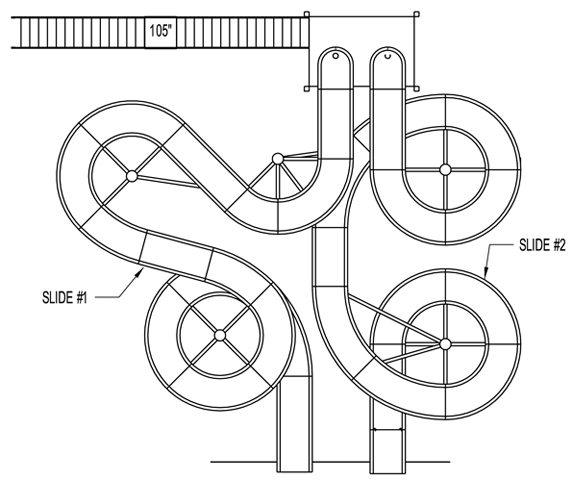

Double Fiberglass Water Slide Model 1900 Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

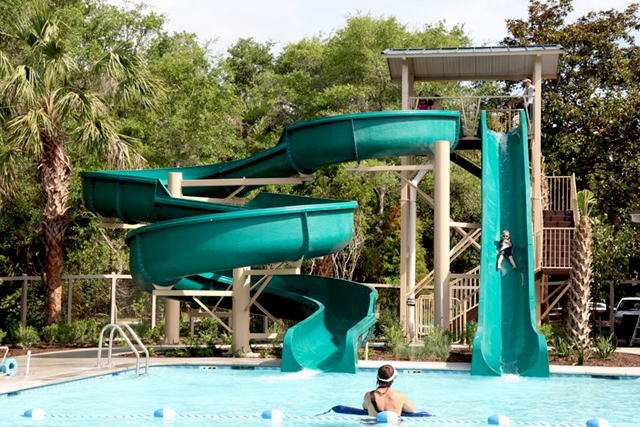

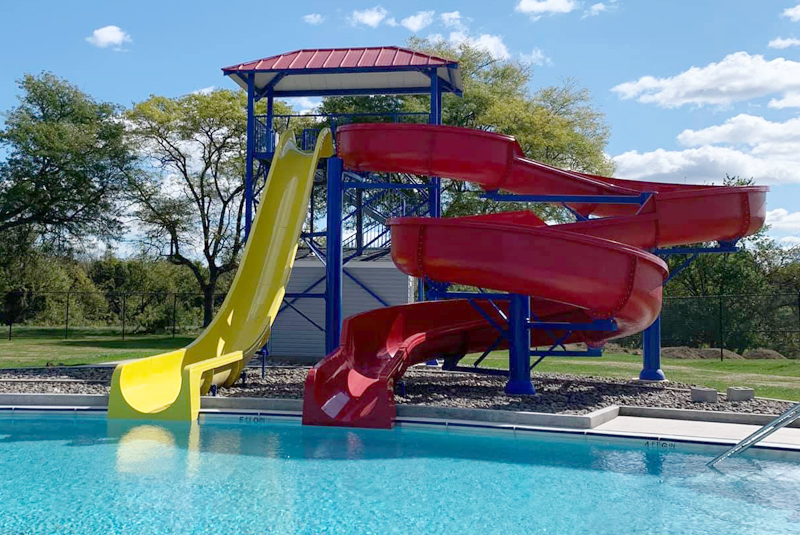

Fiberglass Water Slide Model 1901Fiberglass Water Slide
Model: 1901

Description: Single open flume fiberglass body slide featuring “S” and 360° curves and fiberglass speed slide.
Centerline Runs:
° Red/Yellow Flumes: Body: 131' 0"; Speed: 49' 7"
° Green & Red/Blue Flumes: Body: 131' 0"; Speed: 49' 8"
° Orange/Blue Flumes: Body: 131' 0"; Speed: 50' 3"
Entry Height : 18' 1"
Platform Sizes:
° Red/Yellow Flumes: 8' x 16'
° Green & Red/Blue Flumes: 8' x 12'
° Orange/Blue Flumes: 16' x 16'
Space Requirements: -Vary with options chosen.
° Red/Yellow Flumes: 45' 7" x 53' 11"
° Green & Red/Blue Flumes: 41' 1" x 50' 3"
° Orange/Blue Flumes: 40' 2" x 55' 3"

  • 36" inside diameter fiberglass water slide flume
  • Water flow required: Body: 600-800 gpm; Speed: 150-200 gpm
  • Splash down dimension: 23' x 35'
  • Minimum water depth: Body: 3' 0"; Speed: 3' 6"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

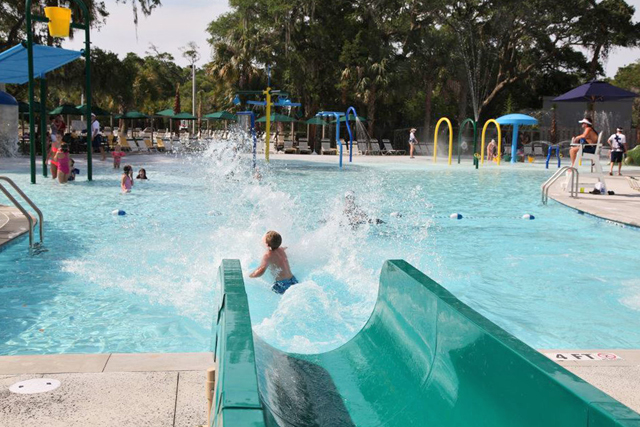

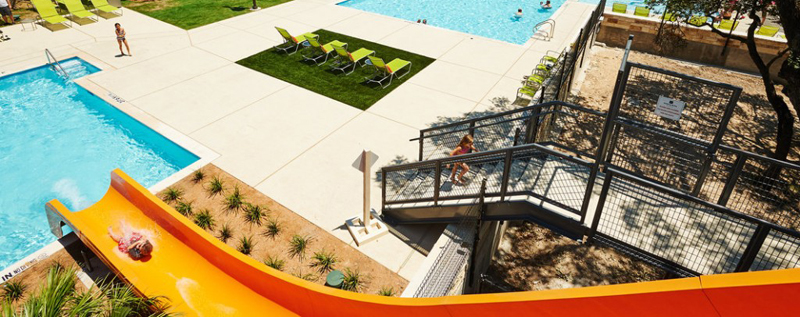

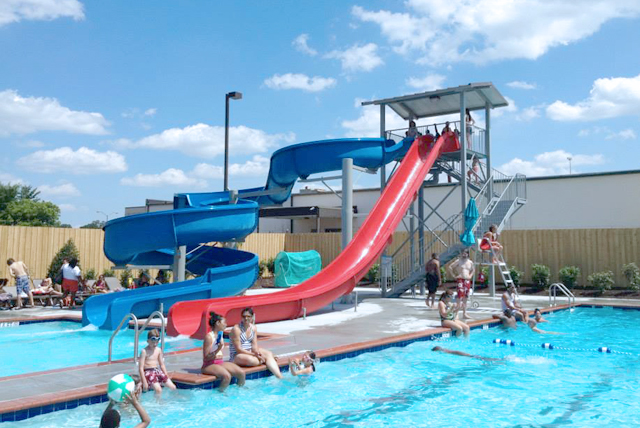

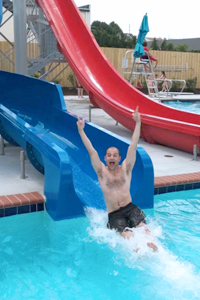

Fiberglass Water Slide Model 1901Fiberglass Water Slide Model 1901Fiberglass Water Slide Model 1901Fiberglass Water Slide Model 1901 Fiberglass Water Slide Model 1901 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

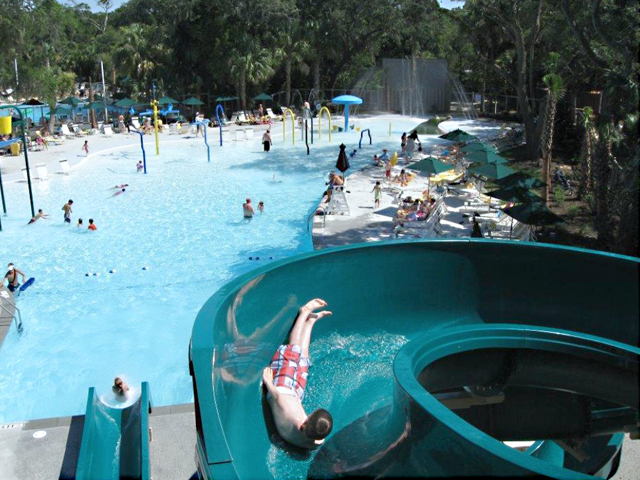

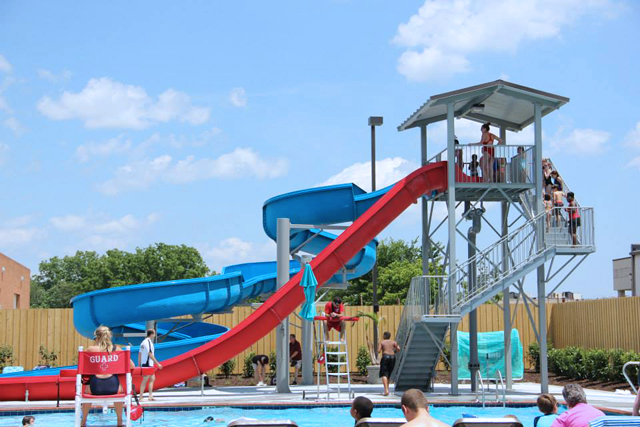

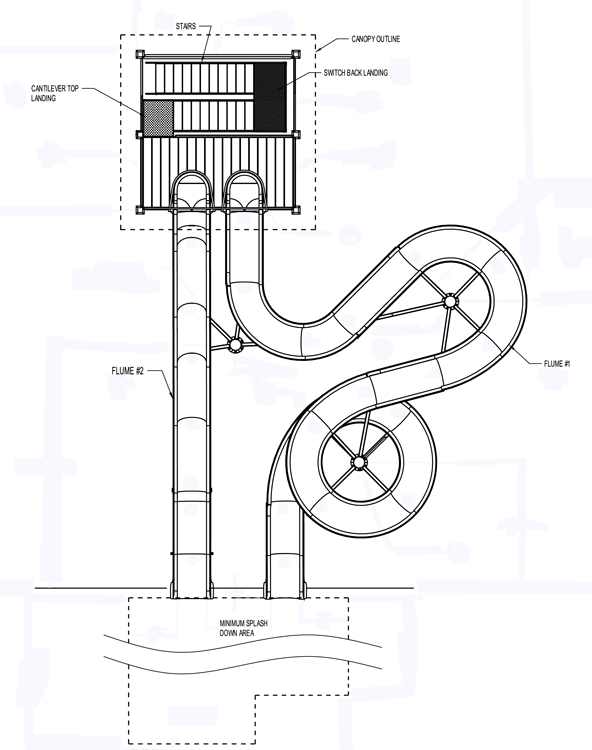

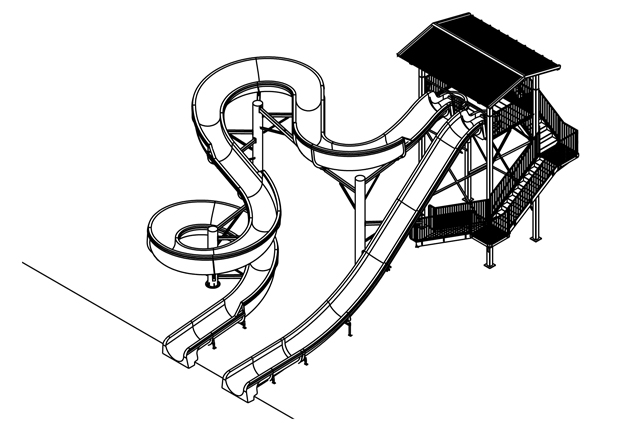

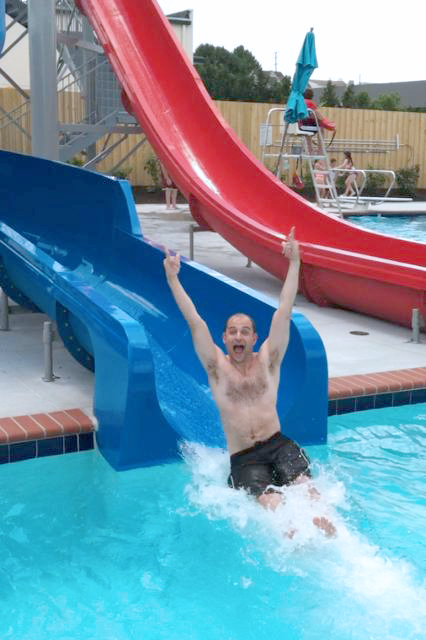

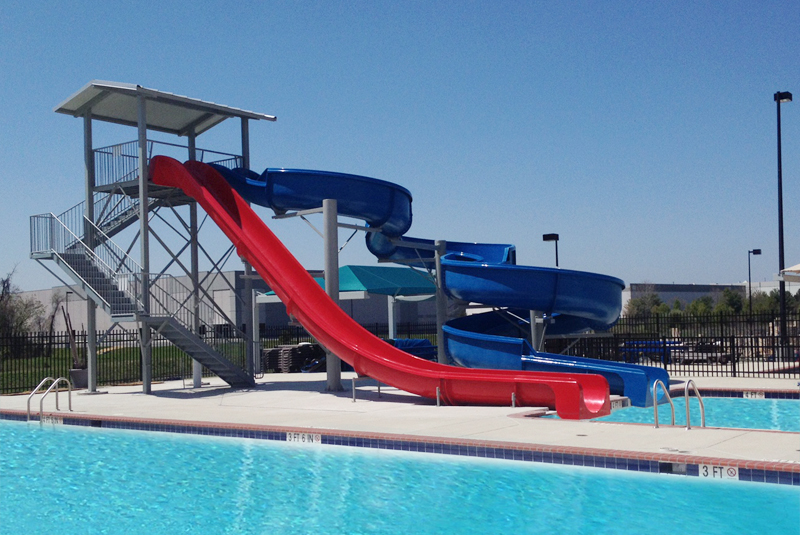

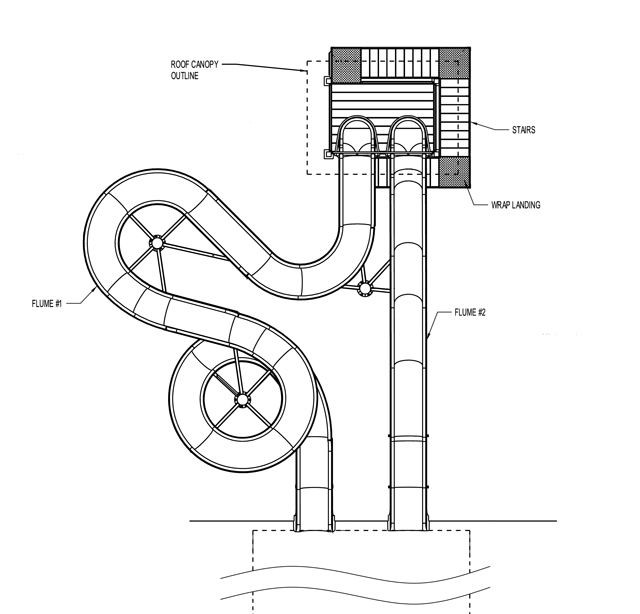

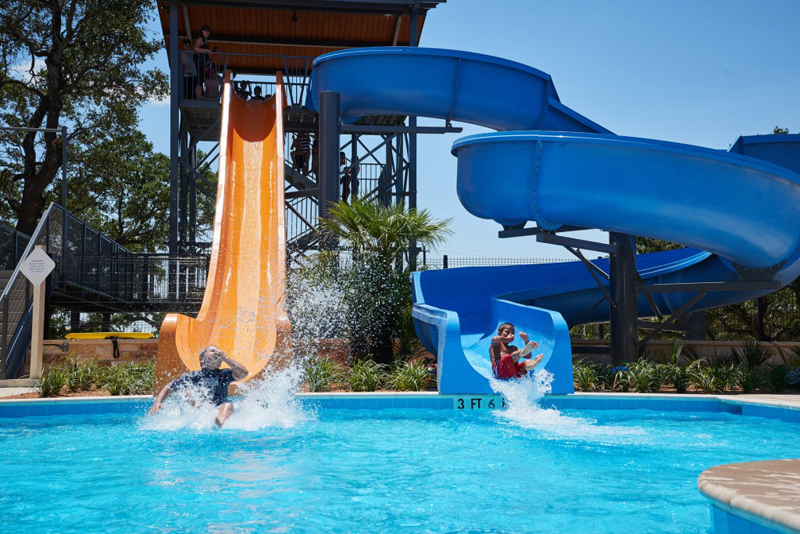

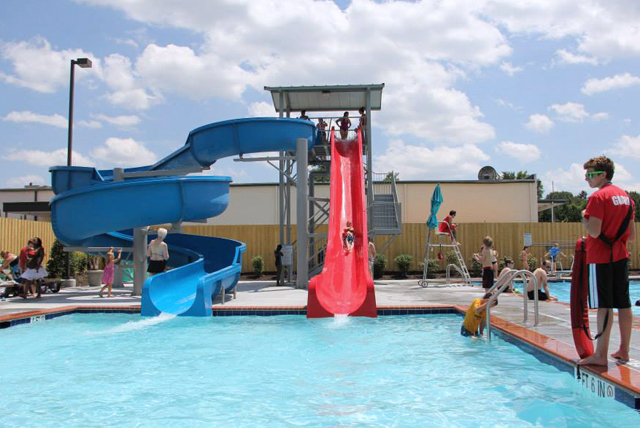

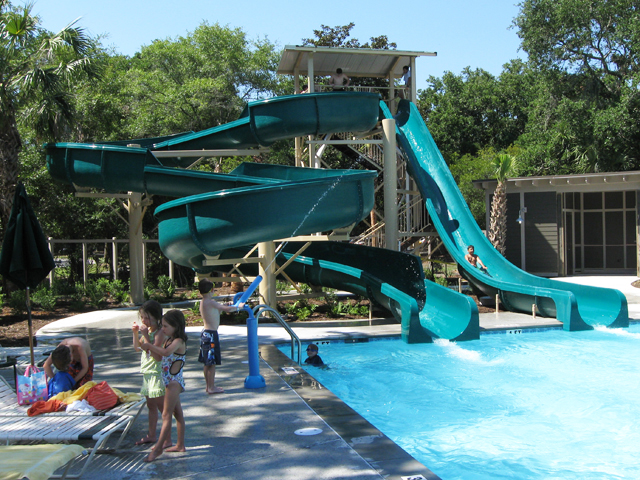

Double Fiberglass Flume Water Slide Model 1901Double Fiberglass Flume Water Slide Model 1901 Double Fiberglass Flume Water Slide Model 1901Fiberglass Water Slide Model 1901 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

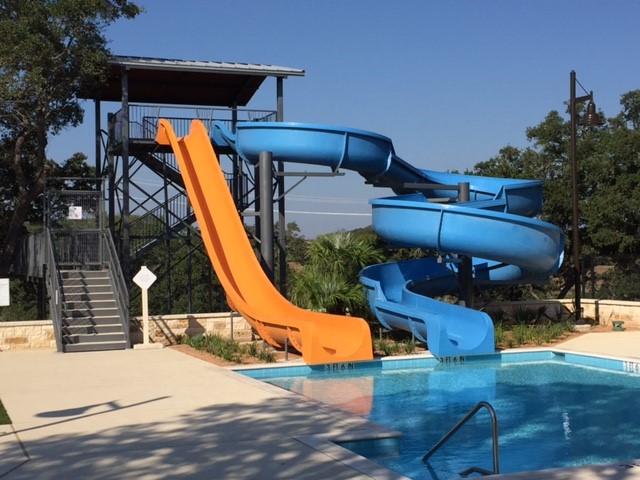

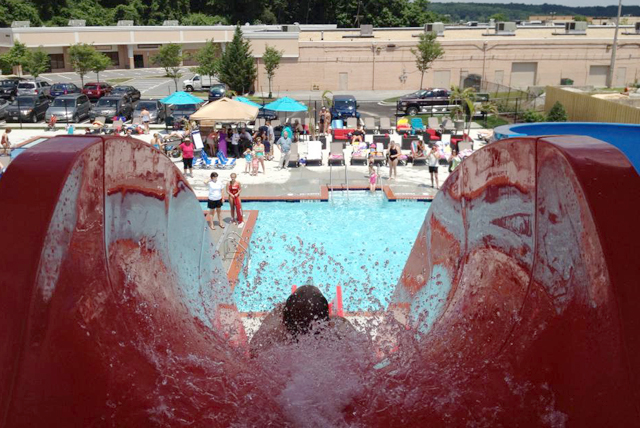

Fiberglass Water Slide Model 1901Fiberglass Water Slide Model 1901Fiberglass Water Slide Model 1901 Fiberglass Water Slide Model 1901 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

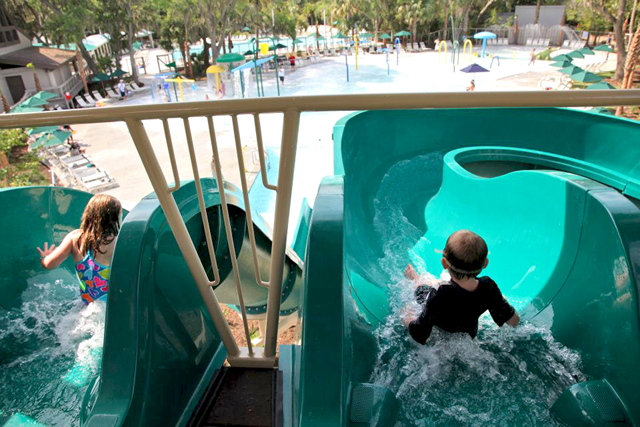

Fiberglass Water Slide Model 1901Fiberglass Water Slide Model 1901

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Fiberglass Water Slide Model 1901

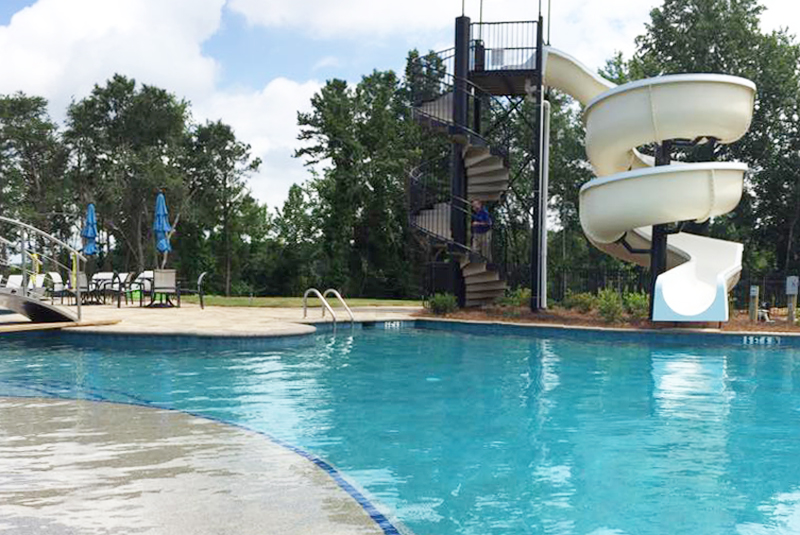

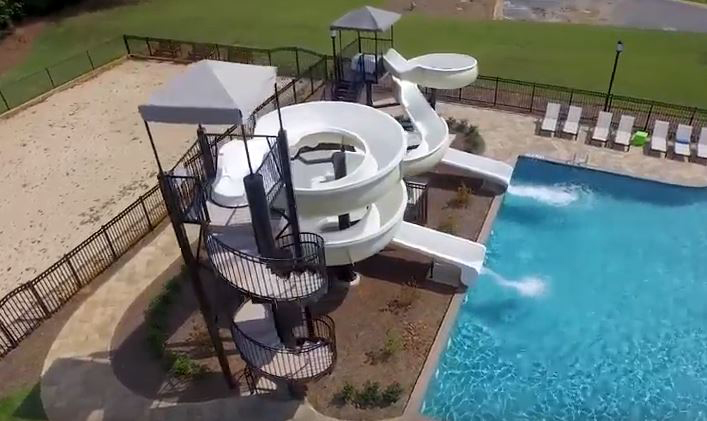

Fiberglass Water Slide Model 1955Fiberglass Water Slide
Model: 1955

Description : Single open flume fiberglass slide with 2¼ spiral turns.
Centerline Run : 89' 7"
Entry Height : 18' 1"
Platform Size : 6' x 6'
Space Requirements: 25' 11" x 18' 6" - Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • 500-700 gpm water flow required
  • Splash down dimension 13' 0" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

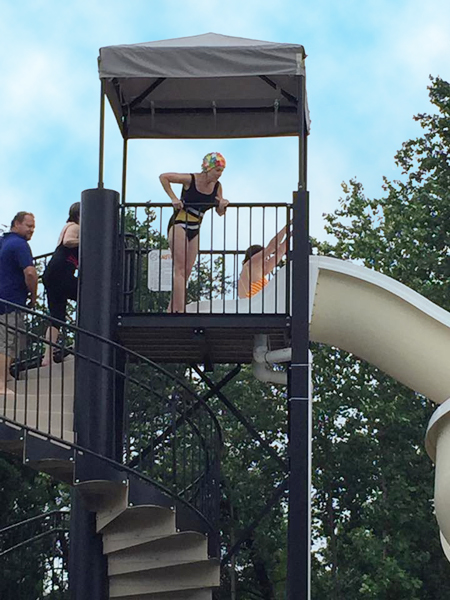

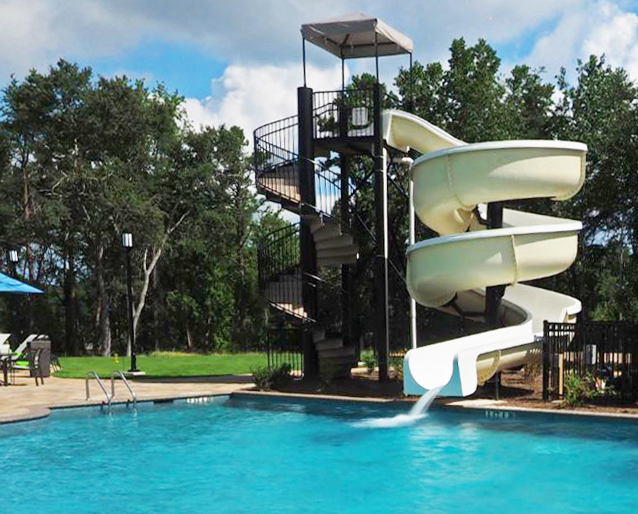

Fiberglass Water Slide Model 1955Fiberglass Water Slide Model 1955Fiberglass Water Slide Model 1955

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Fiberglass Water Slide Model 1888Fiberglass Water Slide
Model: 1888

Description: Single open flume fiberglass water slide featuring one (1) 1¼ turn
and one (1) 1½ turn.
Centerline Run: 142' 11"
Entry Height: 18' 8"
Platform Size: Blue: 6' x 8'; Tan: 12' x 12'
Space Requirements: Varies with options chosen.
   ° Blue: 46' 11" x 30' 0"
   ° Tan: 40' 2" x 30' 4"

  • 36" inside diameter fiberglass open flume water slide
  • 600- 800 gpm water flow required
  • Splash down dimension: 13' x 20'
  • Minimum water depth: 3'

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

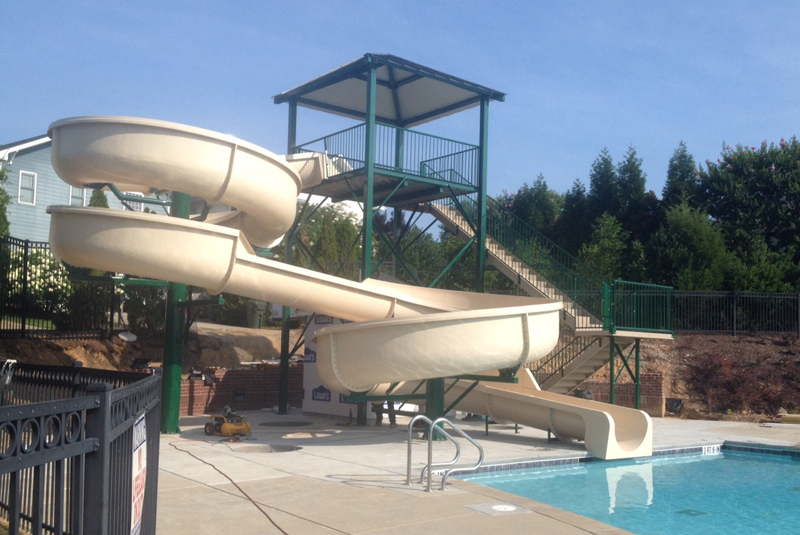

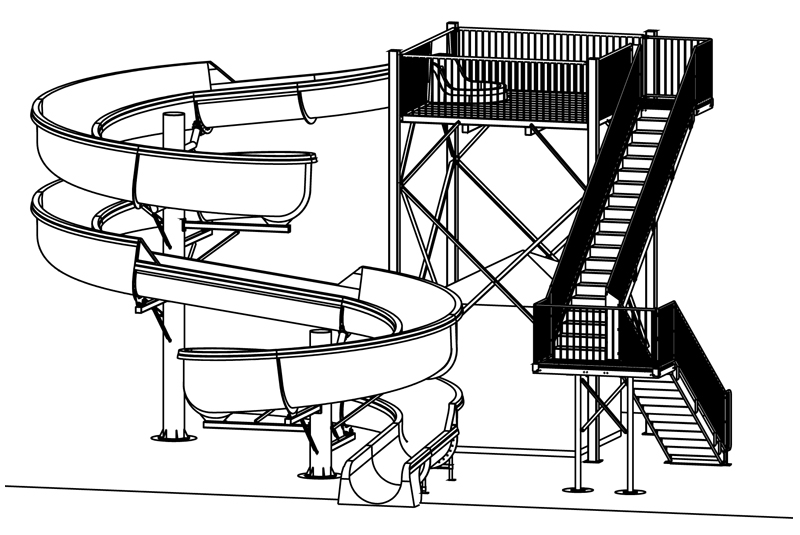

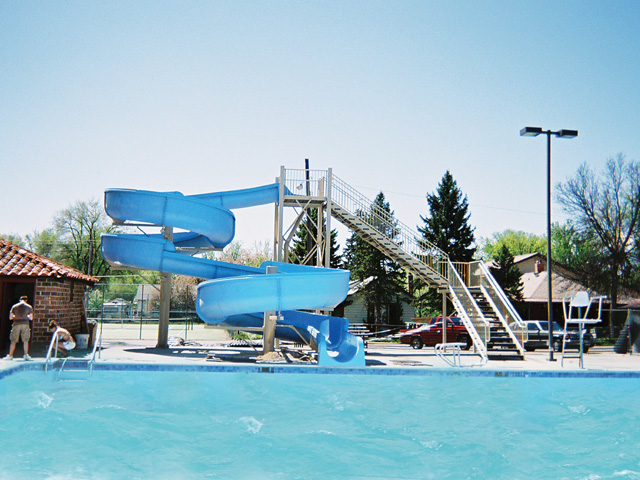

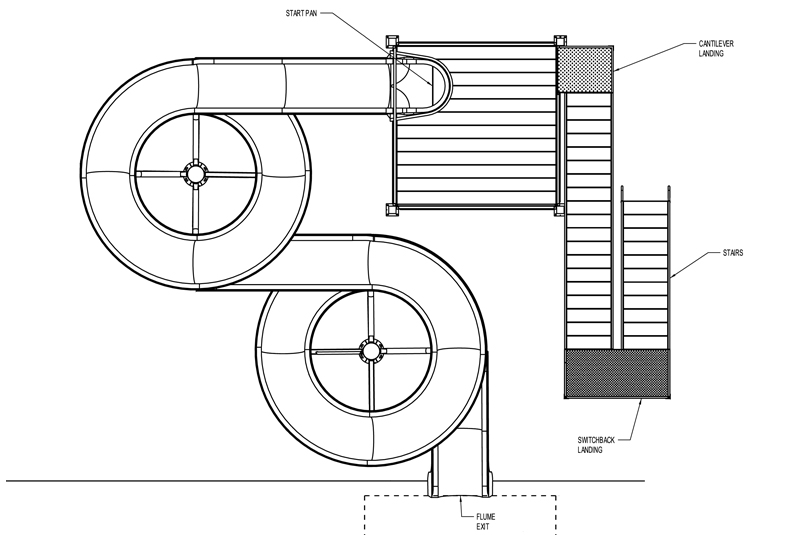

Fiberglass Water Slide Model 1888Fiberglass Water Slide Model 1888 plan viewFiberglass Water Slide Model 1888 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

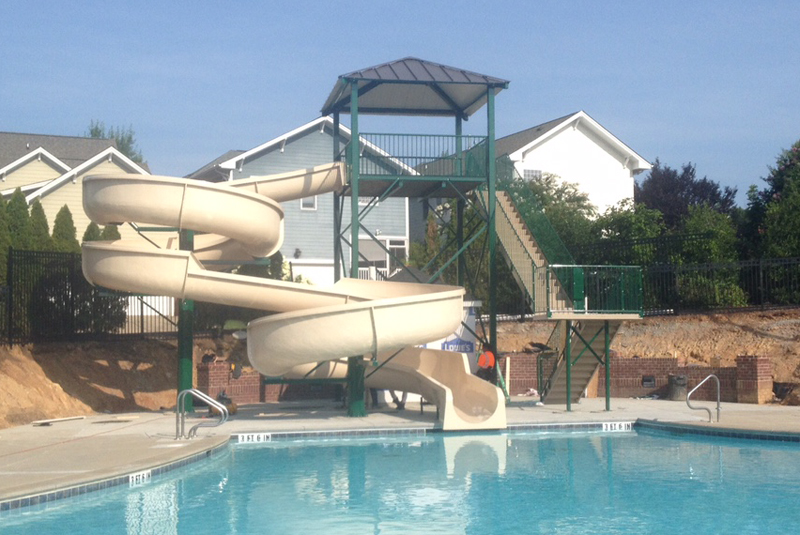

Fiberglass Water Slide Model 1888Fiberglass Water Slide Model 1888 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

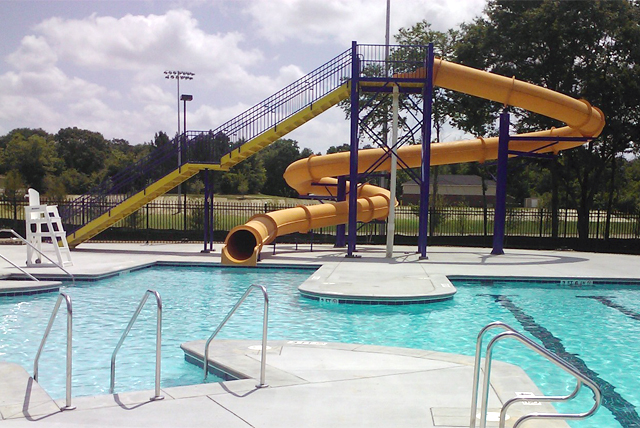

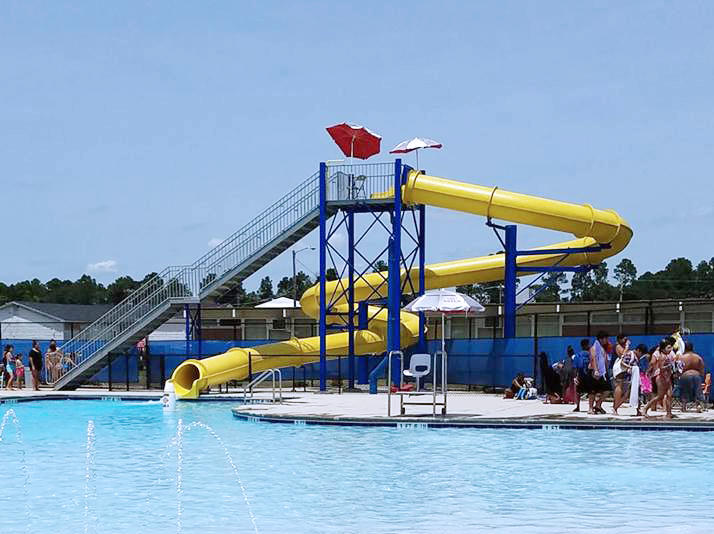

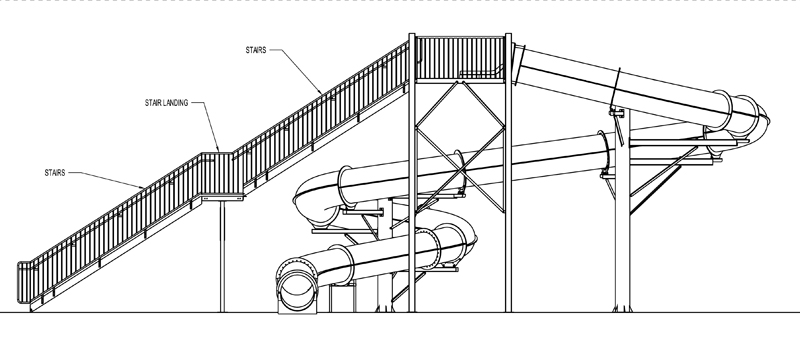

Closed Flume Fiberglass Water Slide Model 2046Closed Flume Fiberglass Water Slide
Model 2046

Description : Single 32" I.D. closed fiberglass flume water slide.
Centerline Run: 129' 1"
Entry Height: 18' 8"
Platform Size: 8' x 10'.
Space Requirements: 60' 5" x 41' 3" - Vary with options chosen.

  • 32" inside diameter closed fiberglass flume water slide
  • 600-800 gpm water flow required
  • Splash down dimension: 13' 0" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

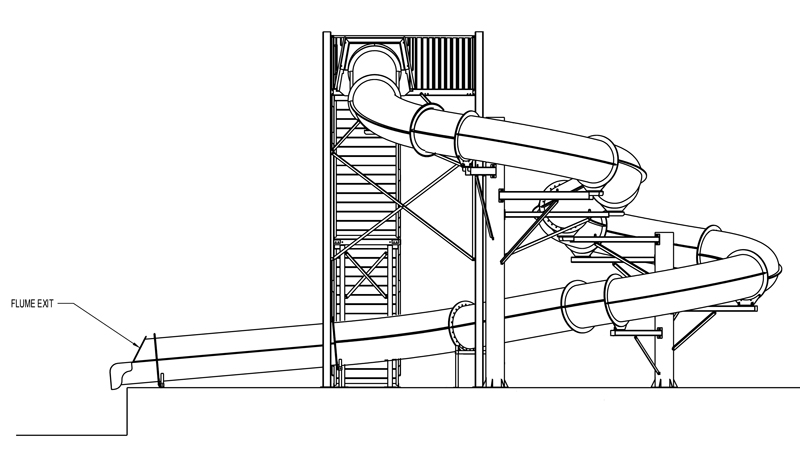

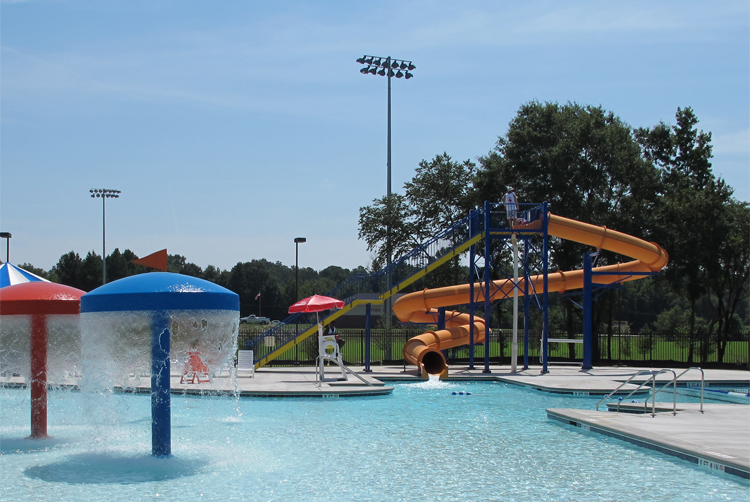

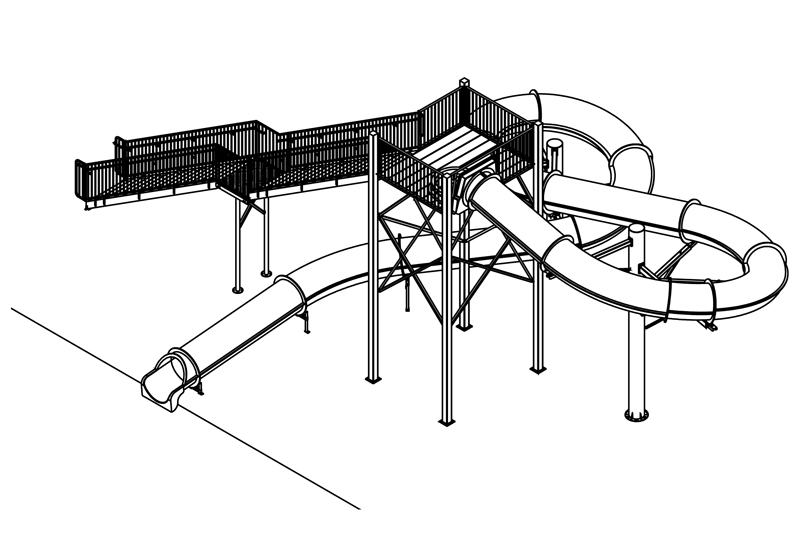

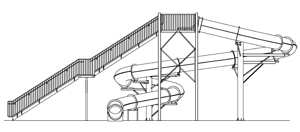

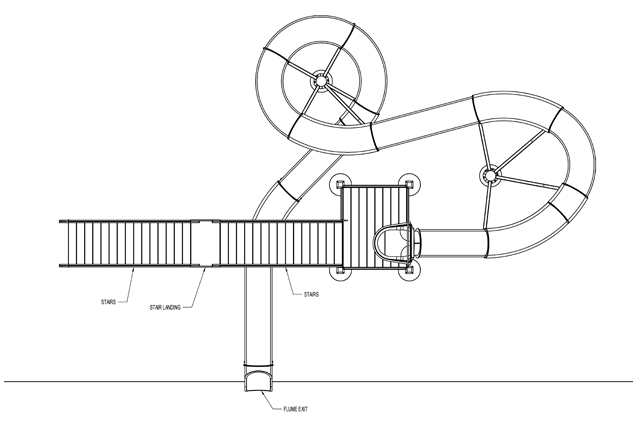

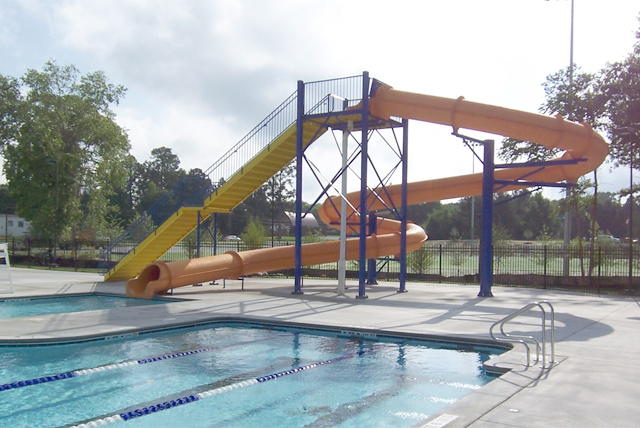

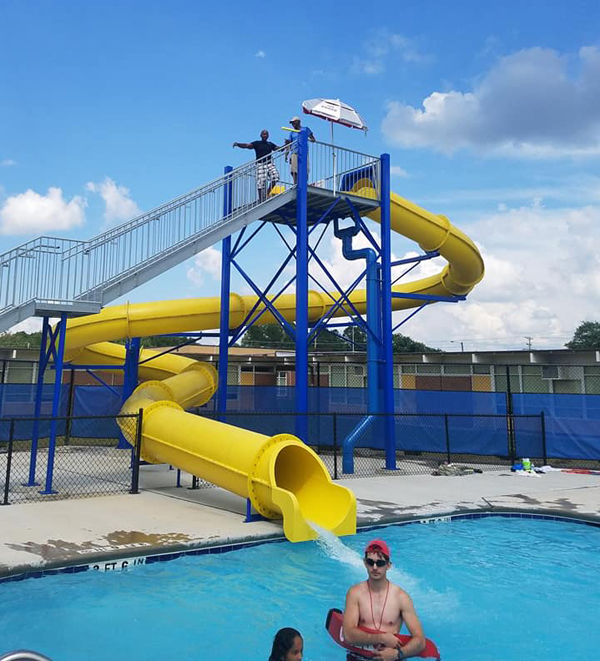

Closed Flume Fiberglass Water Slide Model 2046Closed Flume Fiberglass Water Slide Model 2046 Closed Flume Fiberglass Water Slide Model 2046 Closed Flume Fiberglass Water Slide Model 2046 Closed Flume Fiberglass Water Slide Model 2046 plan viewClosed Flume Fiberglass Water Slide Model 2046 plan viewClosed Flume Fiberglass Water Slide Model 2046 plan view Closed Flume Fiberglass Water Slide Model 2046 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

USA flag   Manufactured with Pride in the U.S.A.

Related Links

Model List: Slides
Model List: Spray
Pool & Water Slide Reference Guide
Recent Aquatic Additions to Website

Color Charts
*Polyethelene Flume Colors
*Polyethelene Base Plate Escutcheon Cover Colors
*Fiberglass Flume Colors
*Aqua-Plast Colors
*Powder Coat Colors

*Requires Adobe Acrobat

Site Map

Water Slides:
Entry Height 18 feet

Now standard for all stairs:
  Closed risers
  Handrail vertical slats

Features:

  • 30" inside diameter polyethylene water slide flume
  • 32", 36", 42" and 54" inside diameter fiberglass water slide flume
  • Polyethylene Water Slide Flume: color impregnated UV stabilized
  • Fiberglass Water slide Flume: ultra violet stabilized gel coat
  • Body, speed, raft, drop & exit lane water slides
  • Single, double or triple flumes
  • Place in shallow or deep water
  • Water Depth: 3' minimum or deeper
  • 20-800 gpm water flow required
  • Platform: Aqua-Plast coated textured aluminum surface
  • Stairs: 7” rise, 11” tread, 36” wide; Aqua-Plast coated textured aluminum surface; closed risers.
  • Stainless steel base plates, hardware and anchor bolts
  • Low maintenance
  • Designed with flexibility to allow for sloping pool decks
  • Designs for your unique application and budget requirements.
  • Over 70 standard models available
  • Increase pool attendance
  • Variety of colors available
  • USA made

Options:

  • Deluxe Series: Stainless steel polyester powder coated except tower and flume posts which are mild steel with chemical resistant Aqua-Kote undercoating and polyester powder coat topcoat.
    Note: Platform and stair treads are textured Aqua-Plast coated aluminum
  • North Star Series: Mild steel with chemical resistant Aqua-Kote undercoating and polyester powder coat topcoat.
    Note: Platform and stair treads are textured Aqua-Plast coated aluminum.
  • Hot dipped galvanized available
  • Stairs: (a) 48” width; (b) Inner handrails (if applicable); (c) Spiral stairs
  • Stair Configurations: Many variations available
  • Narrow Deck Configurations
  • Gates: Locking gate to flume entrance.
  • Flag and banner holders.
  • Tower Roof: (a) Steel; (b) Wood; (c) Fabric; (d) Tongue & groove decking with the wood or steel roofs.
  • Water pumps & covers
  • Perimeter Fencing
  • Factory installation or on-site technical assistance.
