Natural Structures: Drop Slide Pool Slides

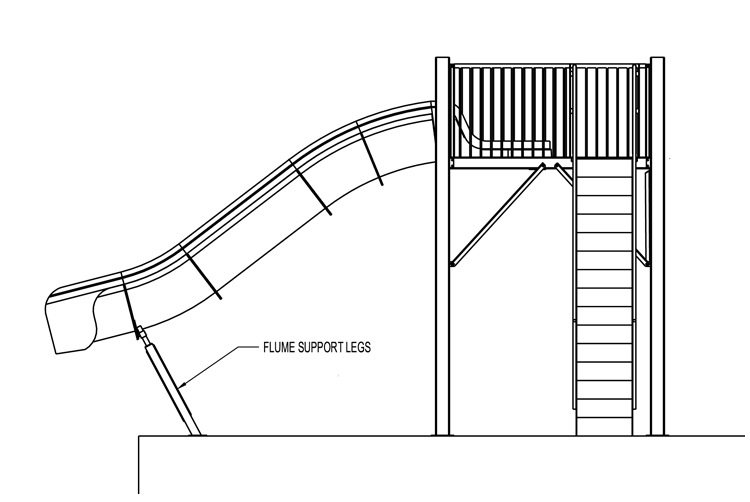

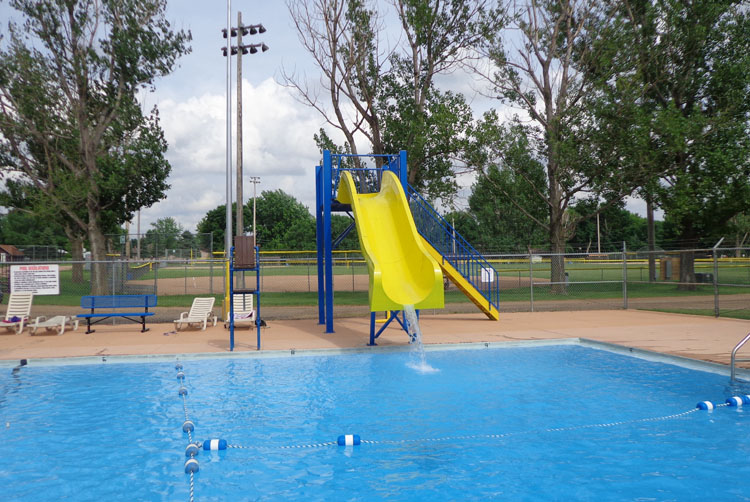

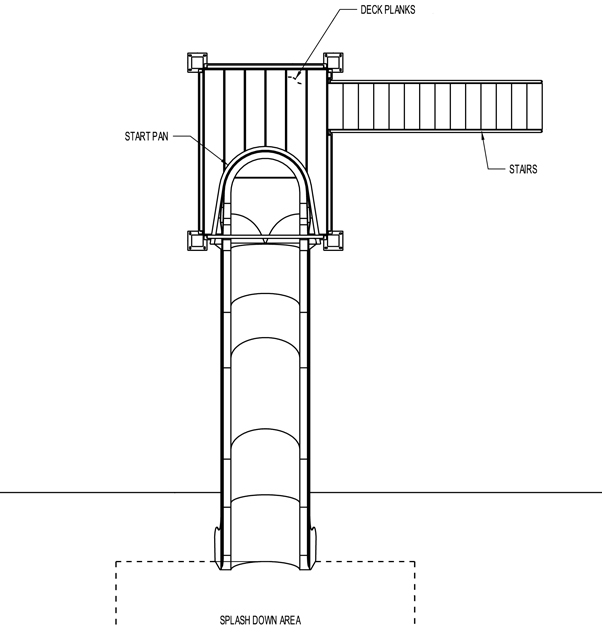

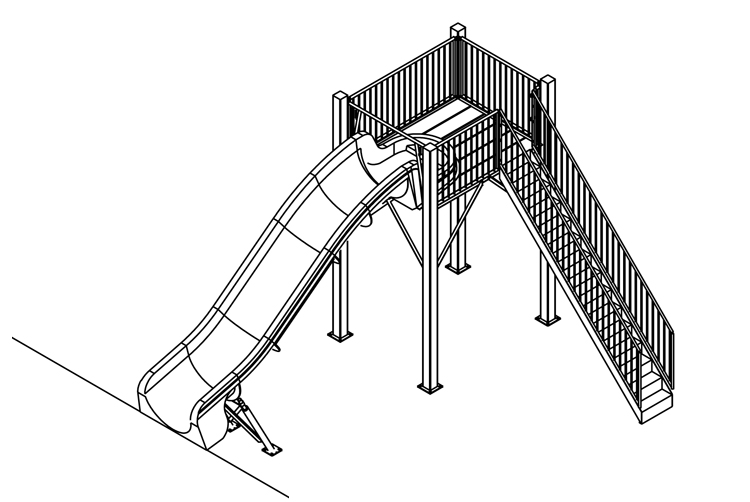

Open Flume Fiberglass Drop Slide

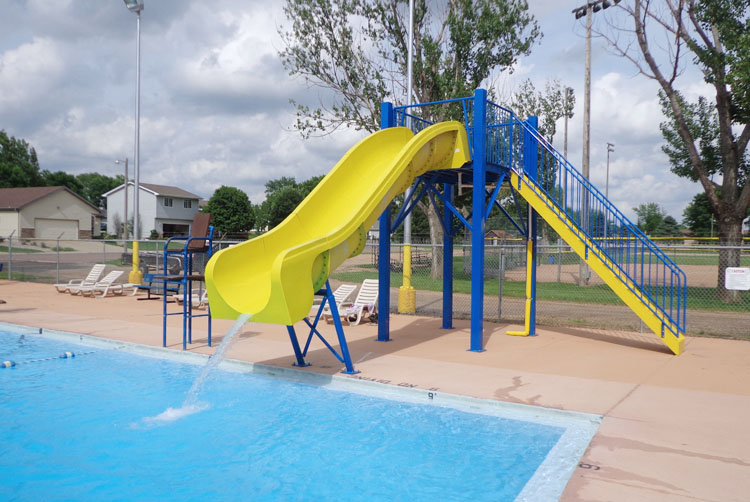

Model: 1801

Description : Single 36" I.D. open flume fiberglass drop slide pool slide.
Centerline Run: 19' 8"
Entry Height: 10' 0"
Exit Height (drop): 3’ 0-¼”
Platform Size: 6' x 8'
Space Requirements: 15' 5" x 19' 1½ " - Vary with options chosen.

36" inside diameter fiberglass water slide flume
Stairs: 8" rise, 8" tread, 24" wide; Aqua-Plast coated textured aluminum surface; closed risers.
20-40 gpm water flow required
Splash down dimension: 13' 0" x 20' 0"
Minimum water depth: 9' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Drop Slide

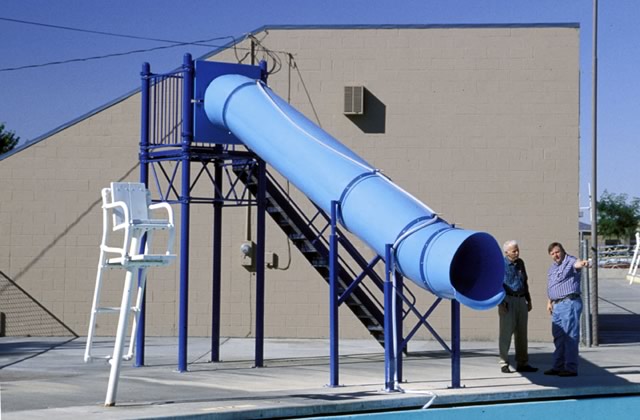

Model 5006

Description: 30" I.D. single flume drop slide.
Centerline Run: 19' 2"
Entry Height: 10' 6"
Exit Height (drop): 3’ 6"
Platform Size: 4' x 4'
Deck Space Requirements: 4' 0" x 31' 1" – Space requirements may vary with options chosen.

30" Inside diameter polyethylene flumes
Stairs: 8" rise, 8" tread, 24" wide; Aqua-Plast coated textured aluminum surface.
14-20 gpm water flow recommended; 8 to 40 gpm required.
Splash down dimension: 12' 6" x 20' 0"
Minimum water depth: 9'

click on image to enlarge

Download Spec Sheet
Requires Adobe Acrobat

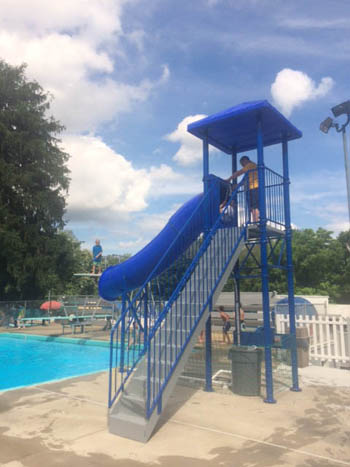

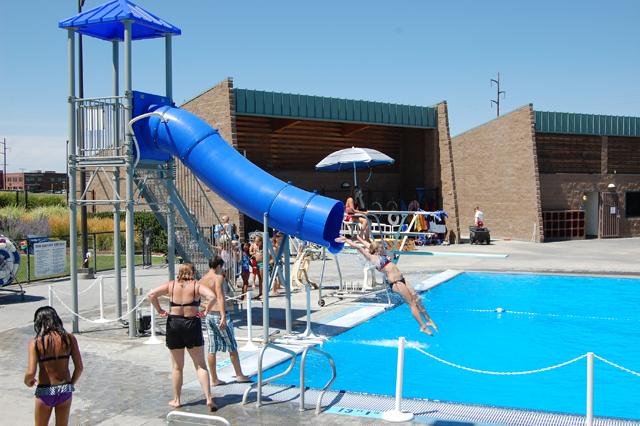

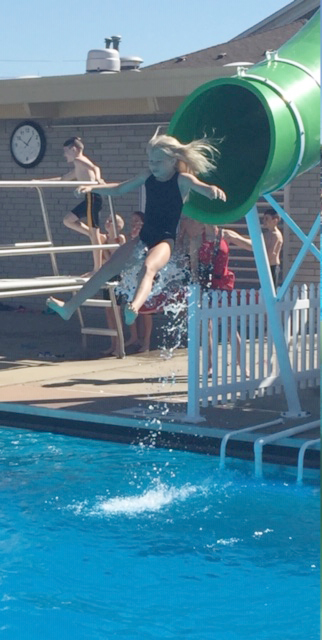

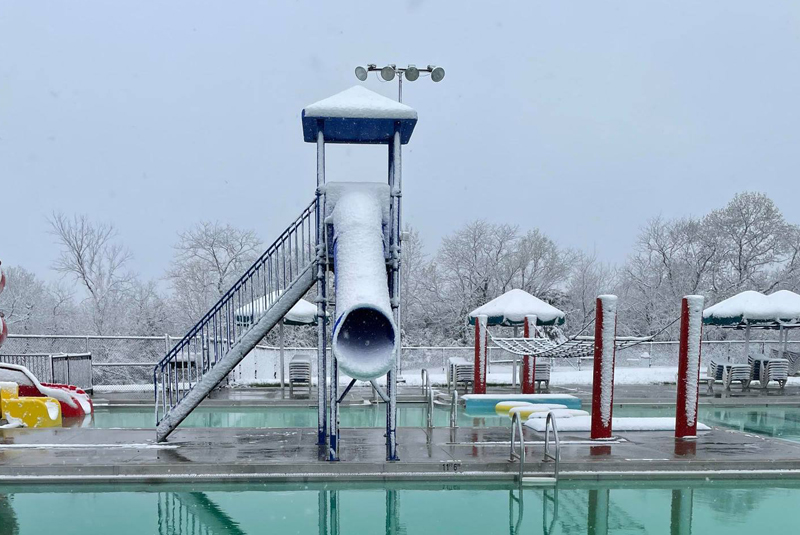

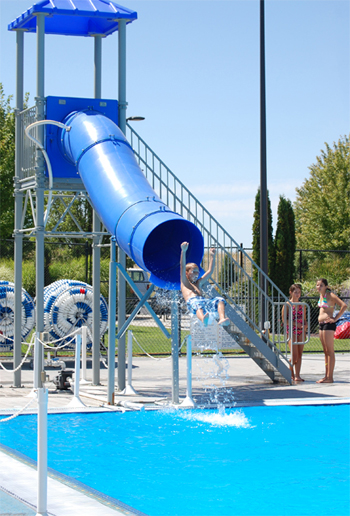

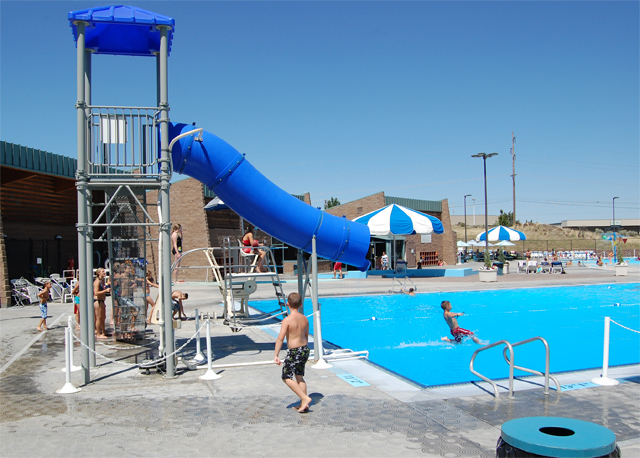

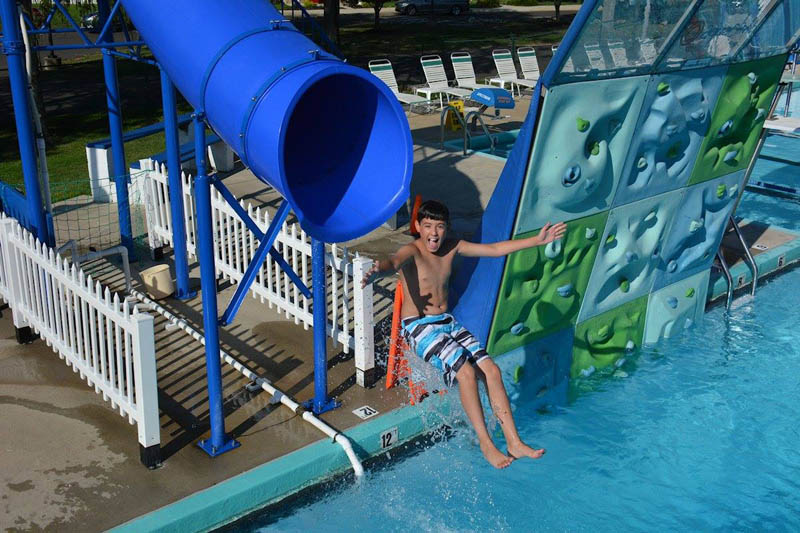

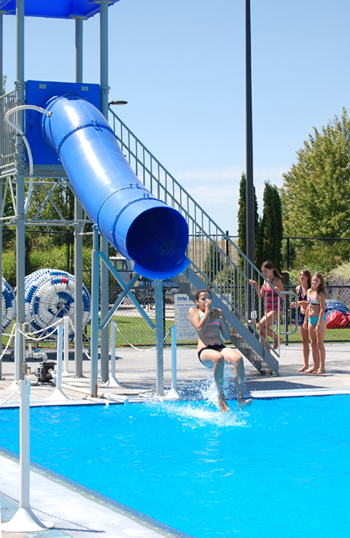

Drop Slide

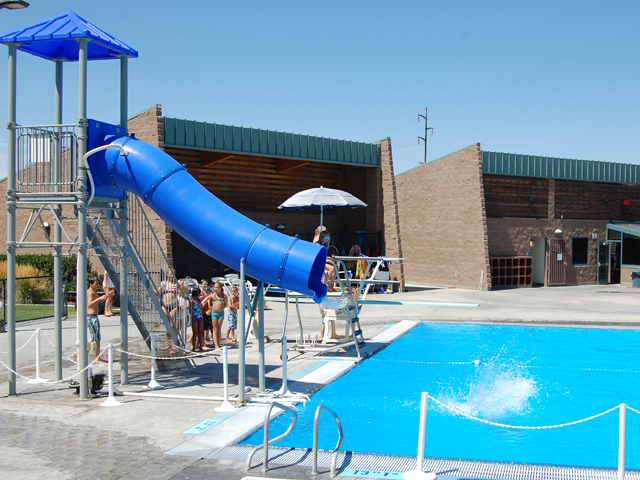

Model 5008

Description: 30" I.D. single flume drop slide.
Centerline Run:13' 7"
Entry Height:10' 6"
Exit Height (drop): 4' 10"
Platform Size: 4' x 4'
Water Depth: 12' (within 42"-60" of water level)
Deck Space Requirements: Varies with options chosen.
• 1' Overhang: 14' 9" x 15’ 2"
• 3' Overhang: 14' 9" x 13’ 2"

Features:

30" Inside diameter polyethylene flumes
Stairs: 8" rise, 8" tread, 24" wide; Aqua-Plast coated textured aluminum surface.
14-20 gpm water flow recommended; 8 to 40 gpm required.
Splash down dimension: 12' 6" x 20' 0"
Minimum water depth: 9' - 12'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

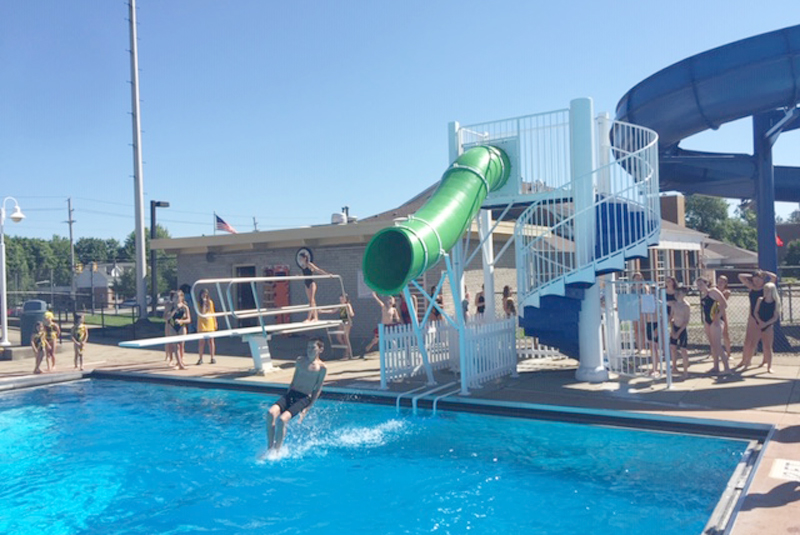

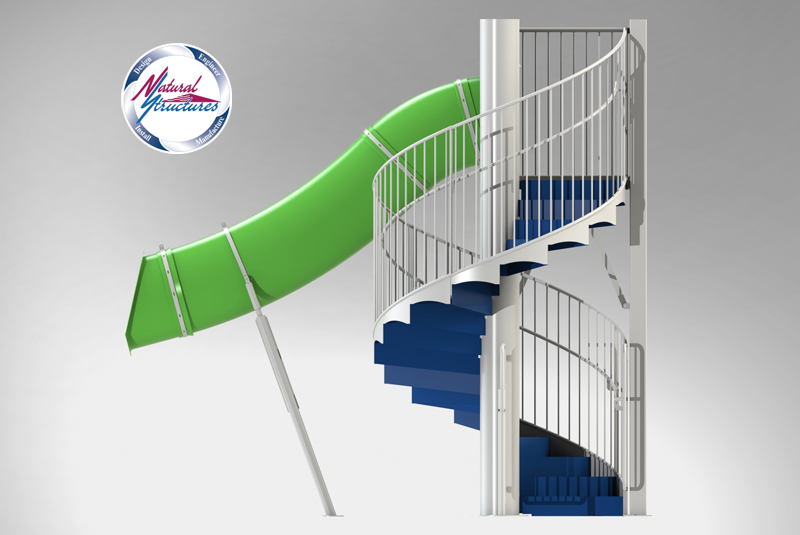

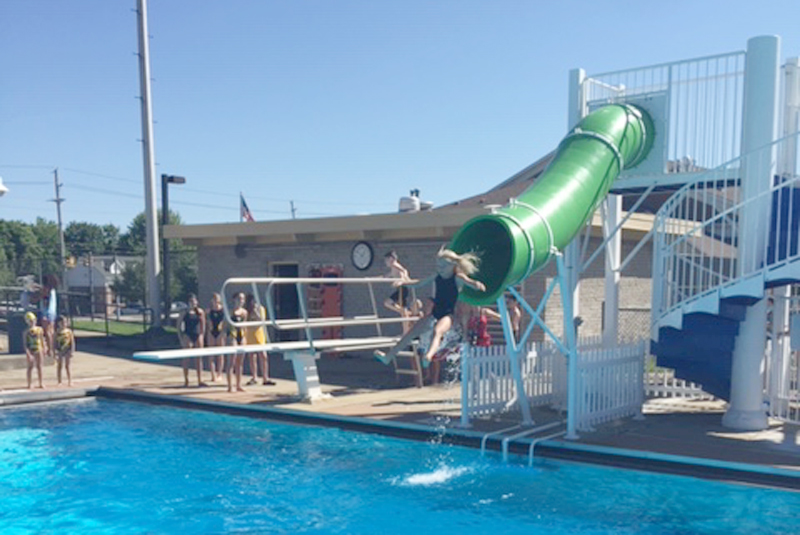

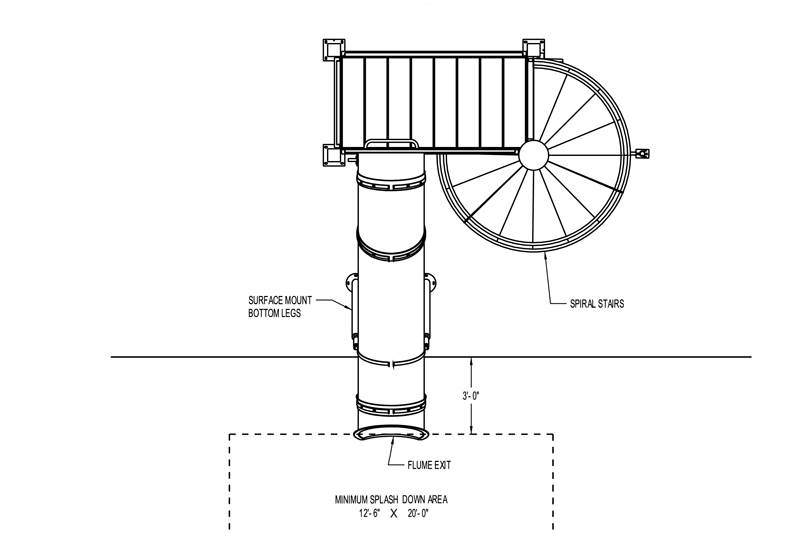

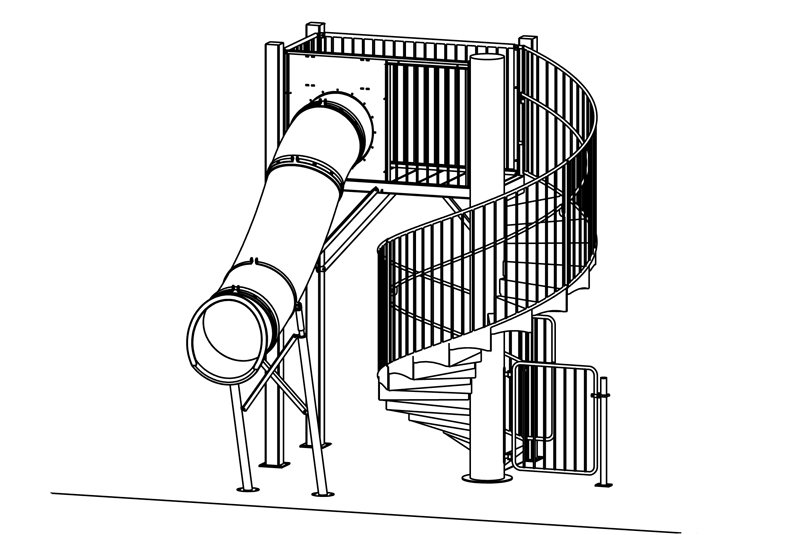

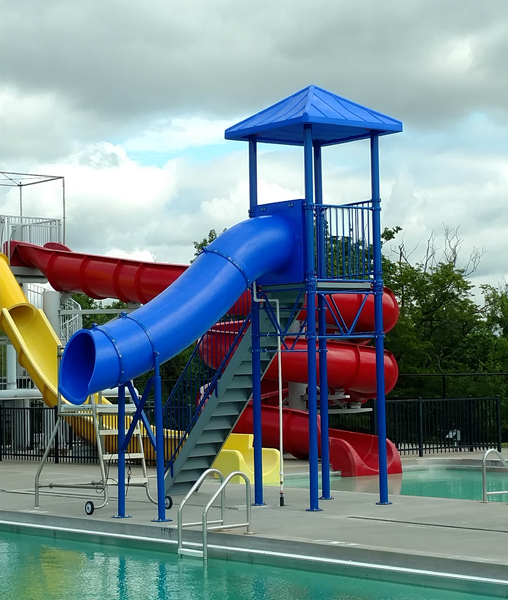

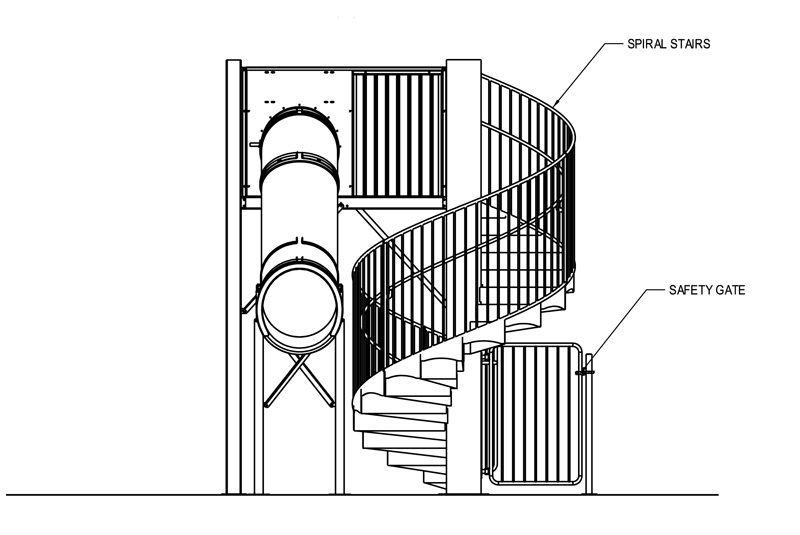

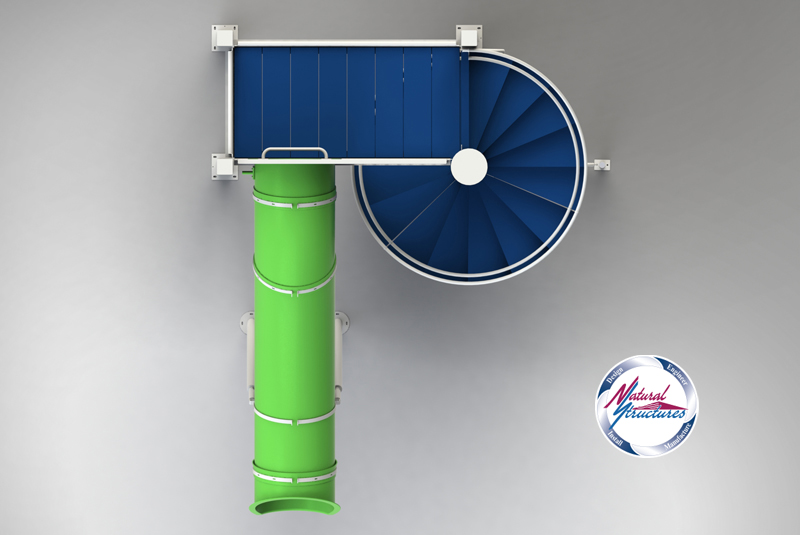

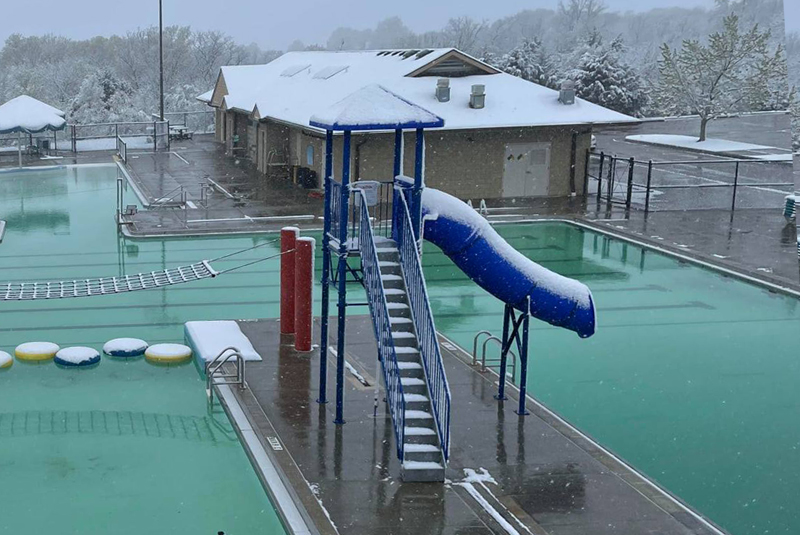

Drop Slide

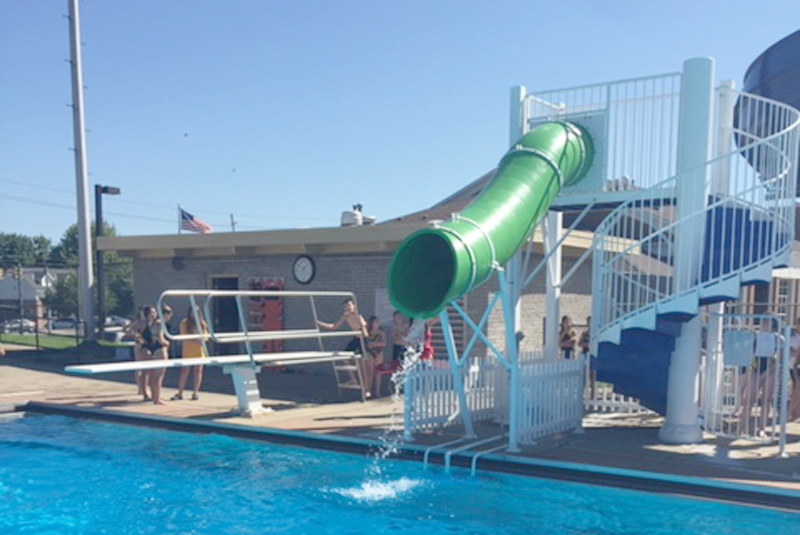

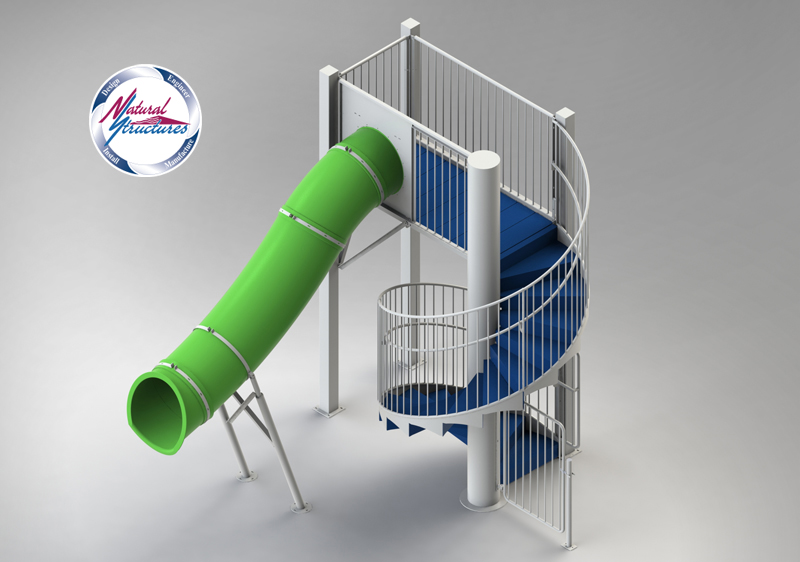

Model 5008

Description: 30" I.D. single flume drop slide.
Centerline Run:12' 7"
Entry Height:10' 6"
Exit Height (drop): 4' 11-5/16"
Platform Size: 4' x 4'
Water Depth: 12' (within 42"-60" of water level)
Space Requirements: 19' 0" x 13' 0" - Vary with options chosen

Features:

30" Inside diameter polyethylene flumes
Spiral stairs: 7" rise, 11" tread, 36" wide; Aqua-Plast coated textured aluminum surface; closed risers.
14-20 gpm water flow required.
Splash down dimension: 12' 6" x 20' 0"
Minimum water depth: 12' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Download Spec Sheet
Requires Adobe Acrobat

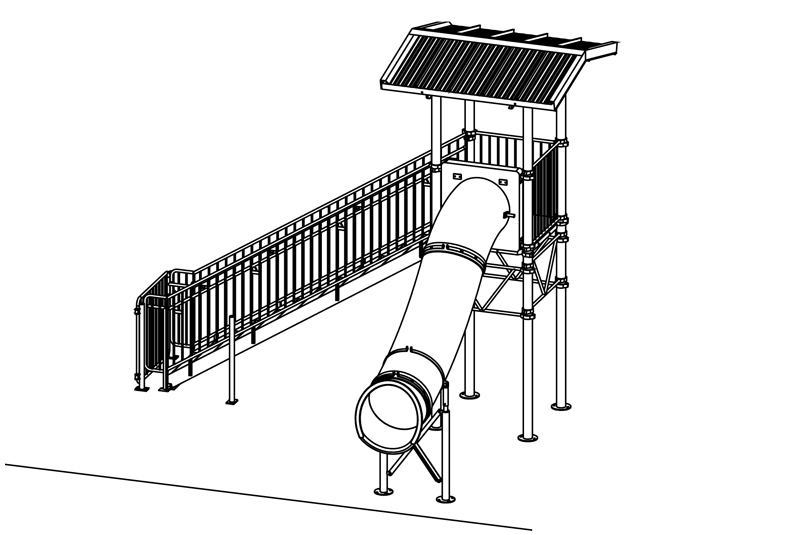

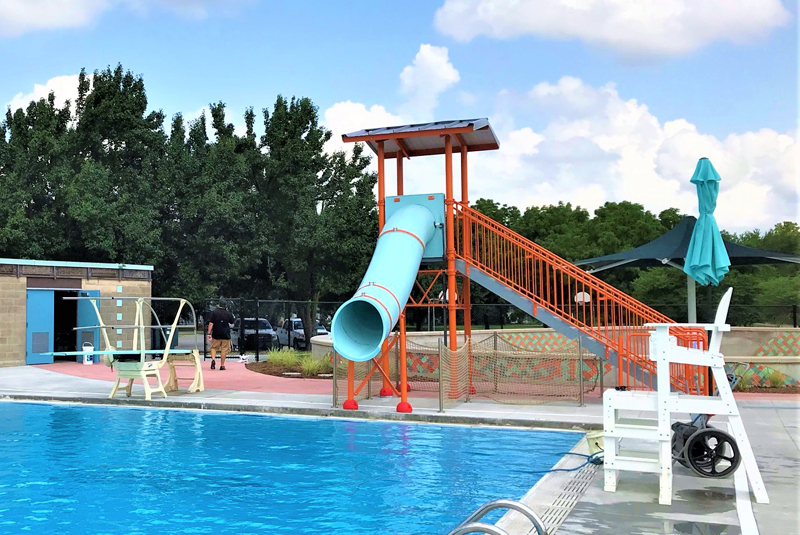

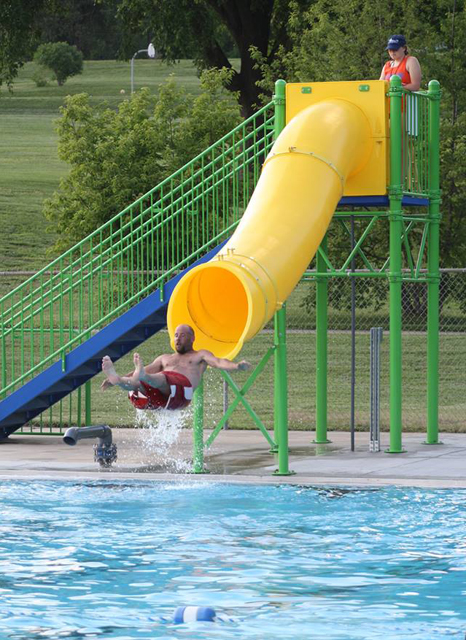

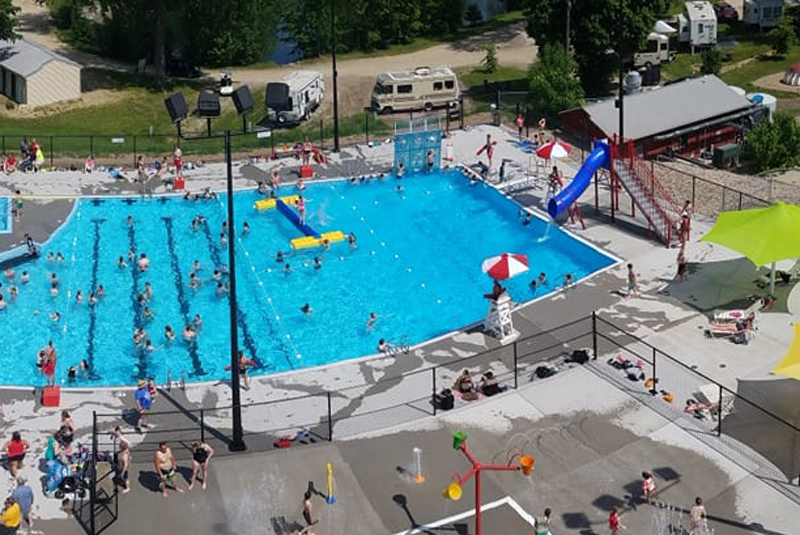

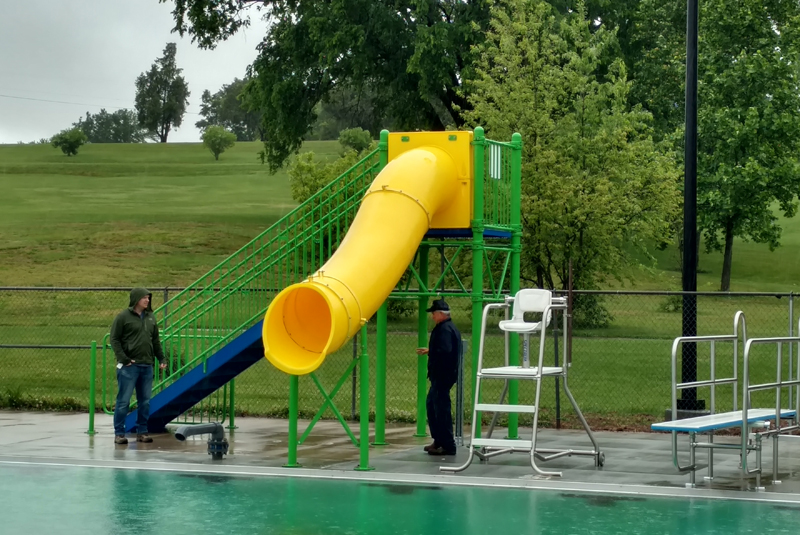

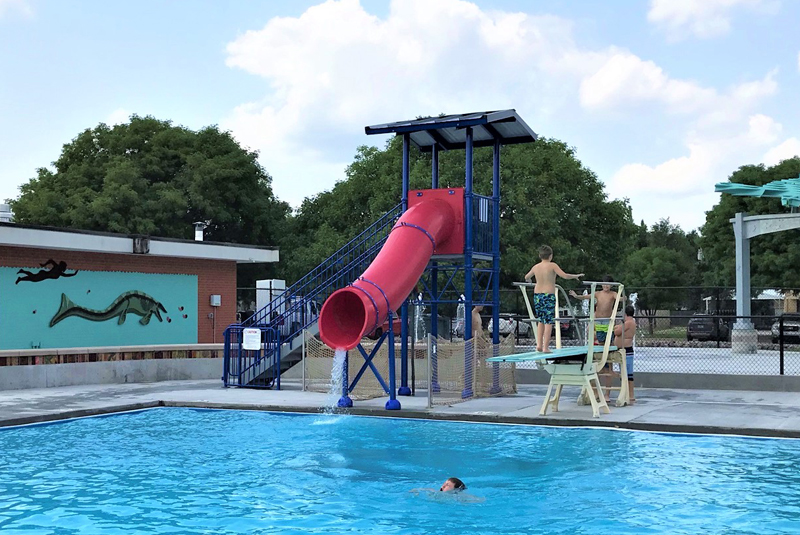

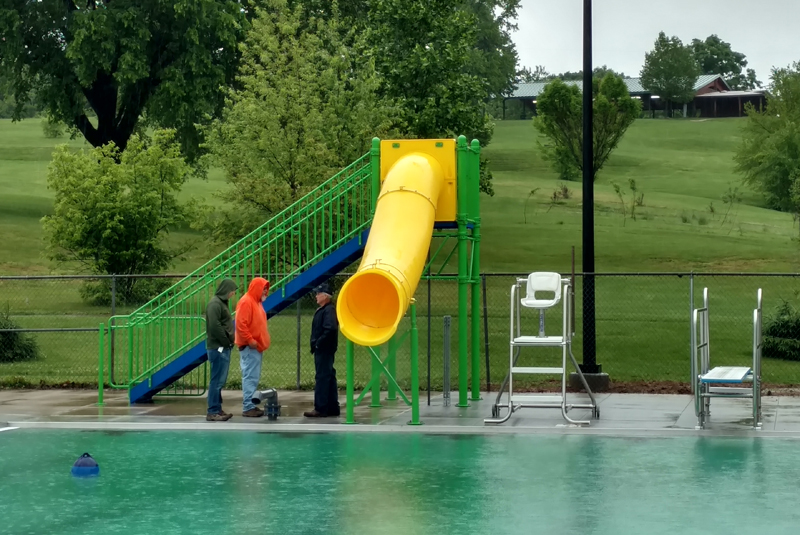

Drop Slide

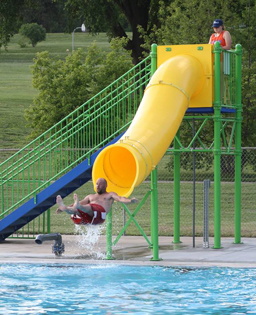

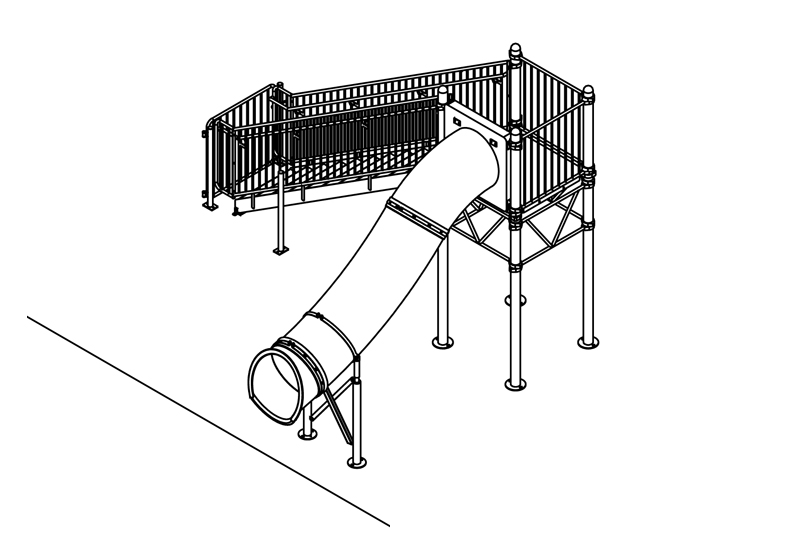

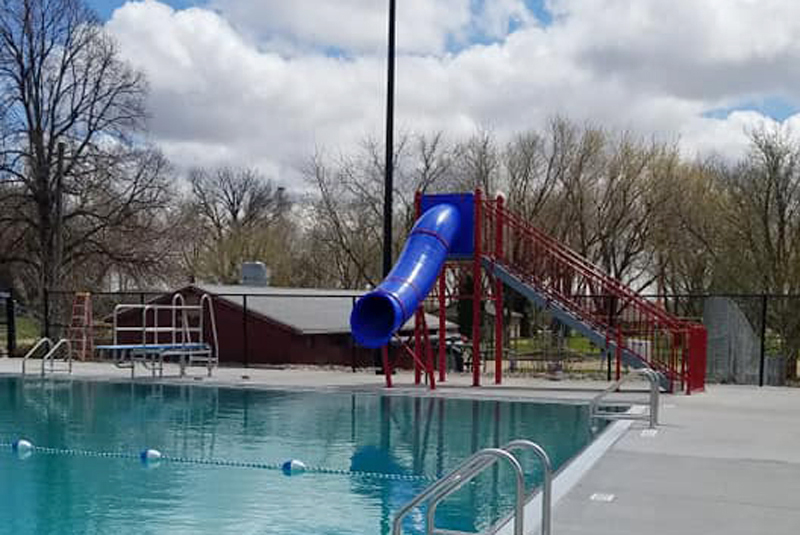

Model 5009

Description: 30" I.D. single flume drop slide.
Centerline Run: 13' 1"
Entry Height: 8' 8"
Exit Height (drop): 3' 1-3/16"
Platform Size: 4' x 4'
Water Depth: 9' (within 24"-42" of water level)
Deck Space Requirements: Varies with options chosen.
• 2' Overhang: 14' 9" x 20’ 9"

Features:

30" Inside diameter polyethylene flumes
Stairs: 8" rise, 8" tread, 24" wide; Aqua-Plast coated textured aluminum surface.
14-20 gpm water flow recommended; 8 to 40 gpm required.
Splash down dimension: 12' 6" x 20' 0"
Minimum water depth: 9' - 12'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

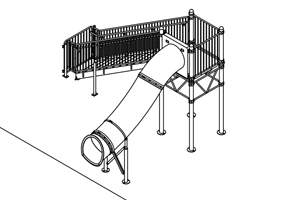

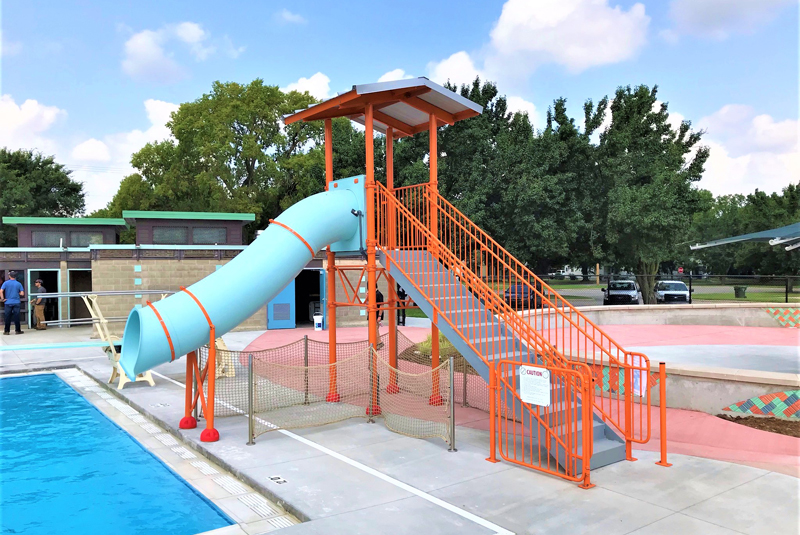

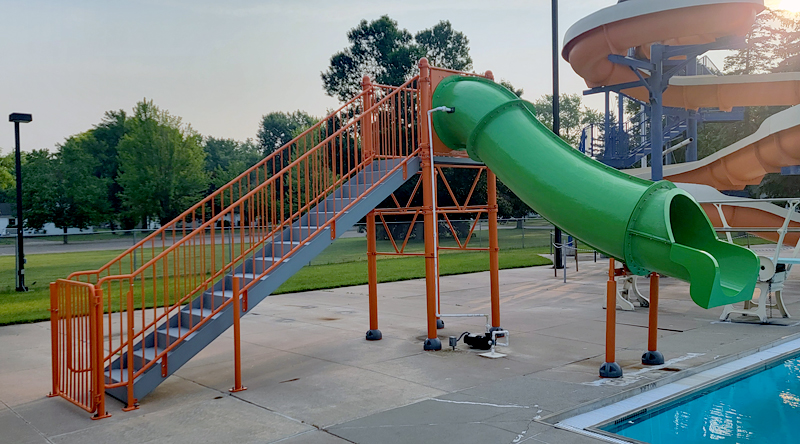

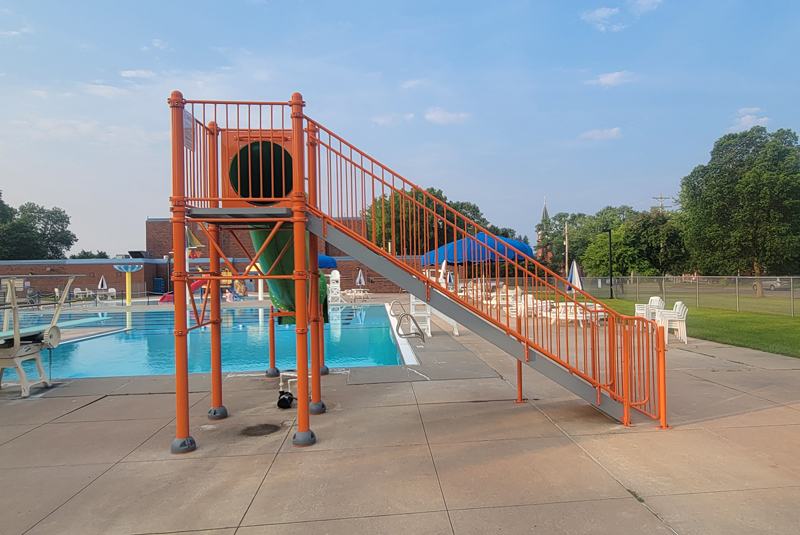

Drop Slide

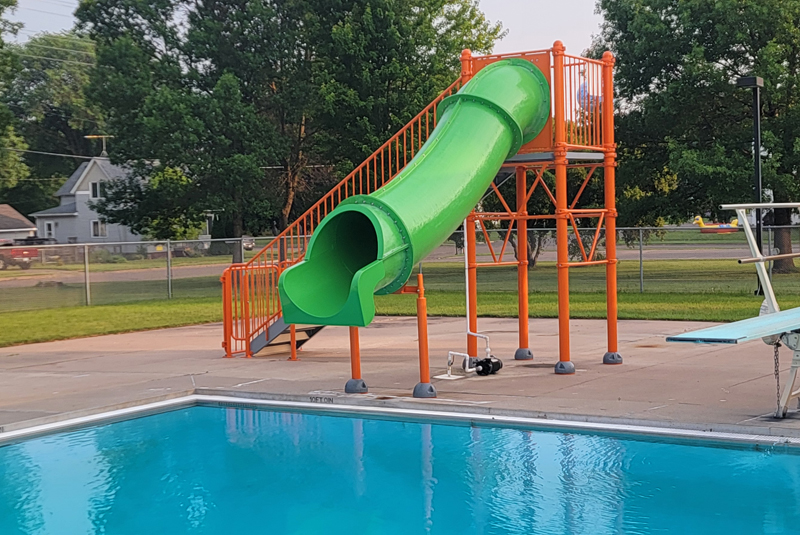

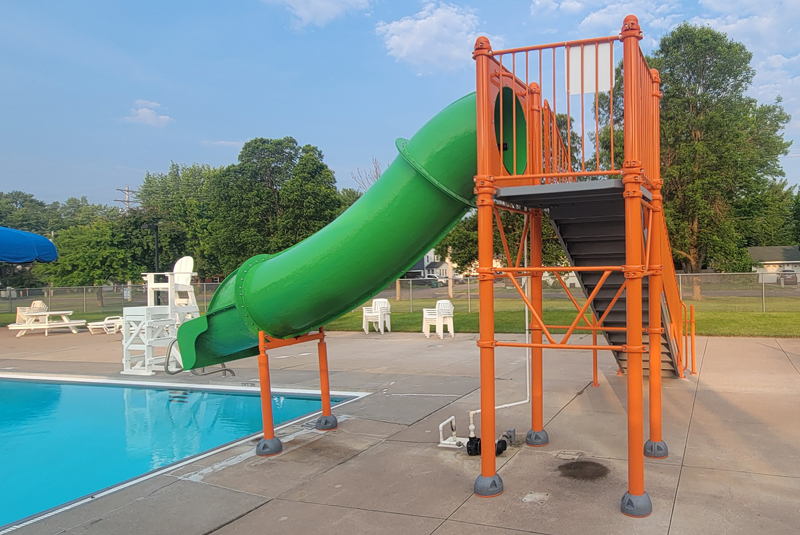

Model 5009

Description: 30" I.D. single flume drop slide.
Centerline Run: 12' 7"
Entry Height: 8' 8"
Exit Height (drop): 3' 1-3/16"
Platform Size: 4' x 4'
Water Depth: 9' (within 24"-42" of water level)
Deck Space Requirements: Varies with options chosen.
• 17' 2" x 12' 11"
• With 2' 9" water overhang: 17' 2" x 15' 8"

Features:

30" Inside diameter polyethylene flumes
Stairs: 8" rise, 8" tread, 24" wide; Aqua-Plast coated textured aluminum surface.
14-20 gpm water flow recommended; 8 to 40 gpm required.
Splash down dimension: 12' 6" x 20' 0"
Minimum water depth: 9' - 12'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

"Sliding into the new season!"
Watch video on Sibley Outdoor Aquatic Center's Facebook page

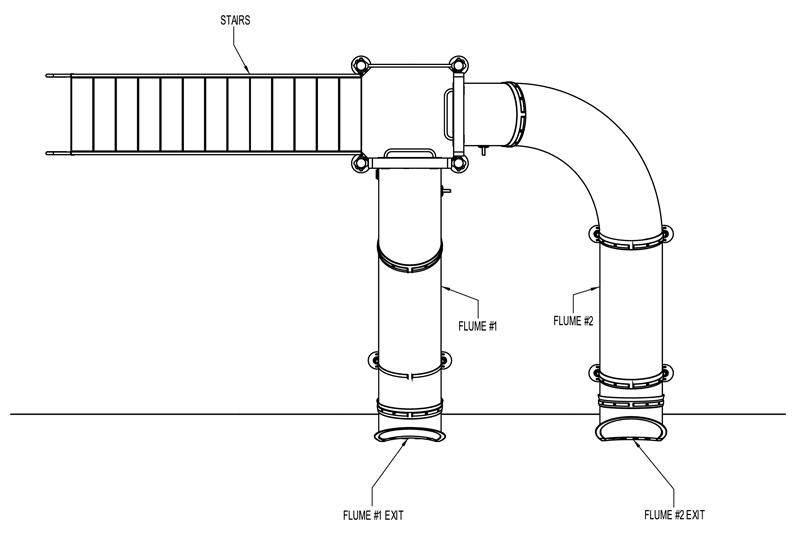

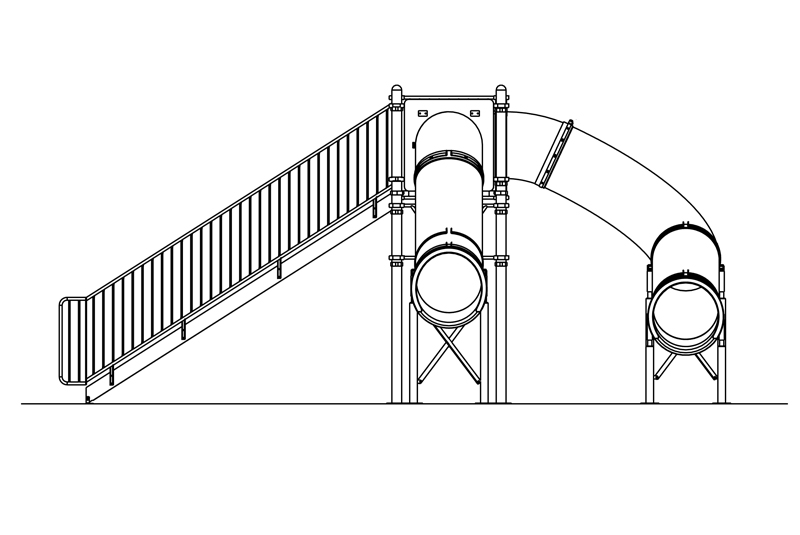

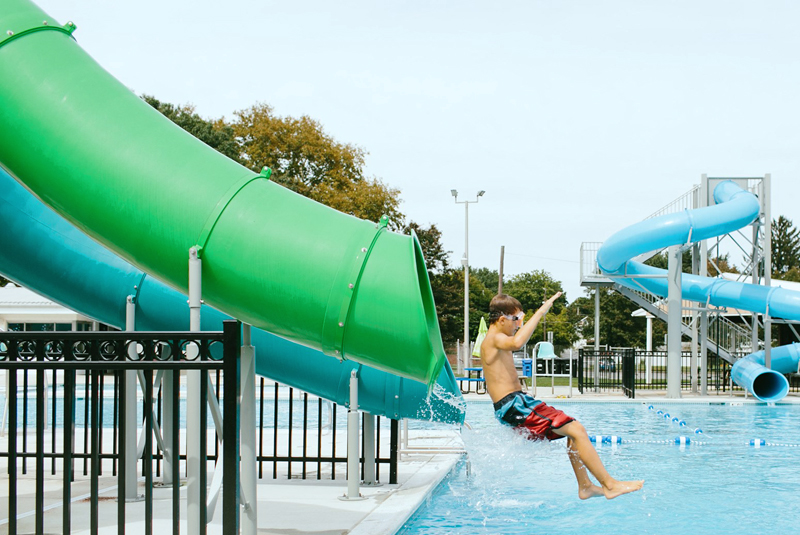

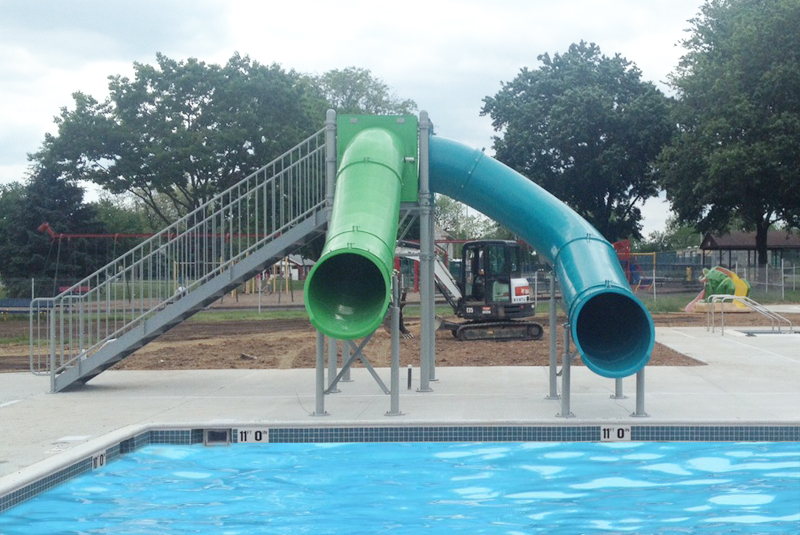

Double Flume Drop Slide Pool Slide

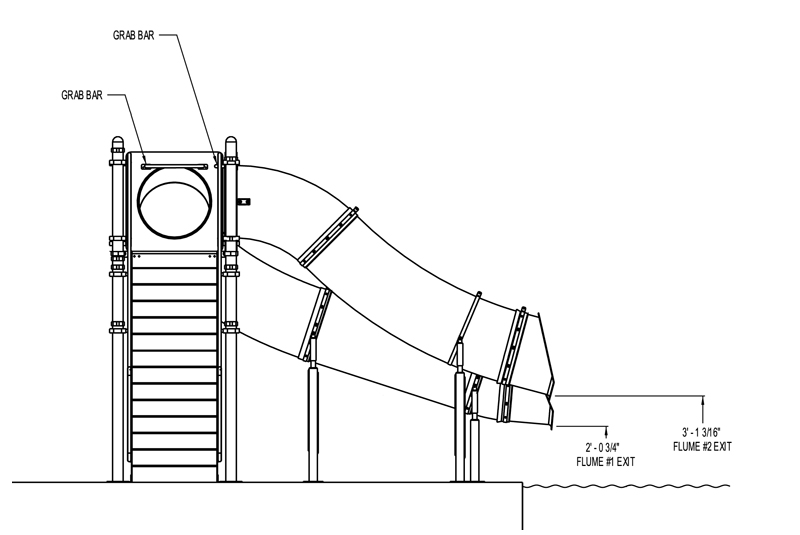

Model 5019

Description: 30" I.D. double flume drop slide.
Centerline Runs: 12' 7" & 19' 3"
Entry Height: 8' 8"
Exit Heights (drop): 2’ 0-¾” & 3’ 1-3/16”
Platform Size: 4' x 4'
Space Requirements: Vary with options chosen. - 25' 9" x 14' 9"

30" Inside diameter polyethylene flumes.
Stairs: 7” rise, 11” tread, 36” wide; Aqua-Plast coated textured aluminum surface; closed risers.
14-20 gpm water flow required.
Splash down dimension: 12' 7" x 20' 0"
Minimum water depth: 9' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

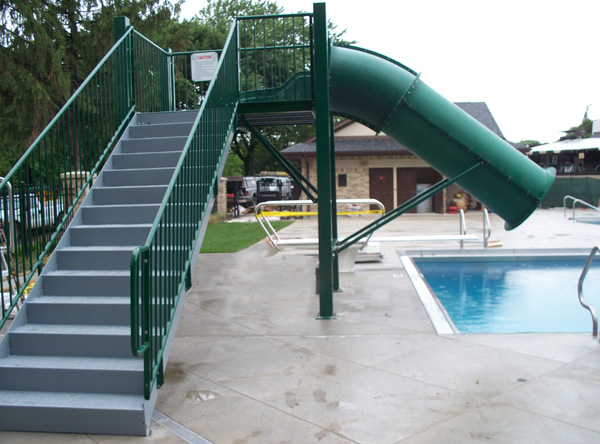

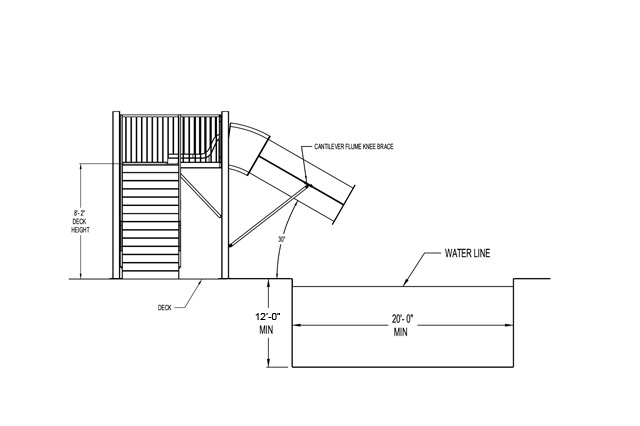

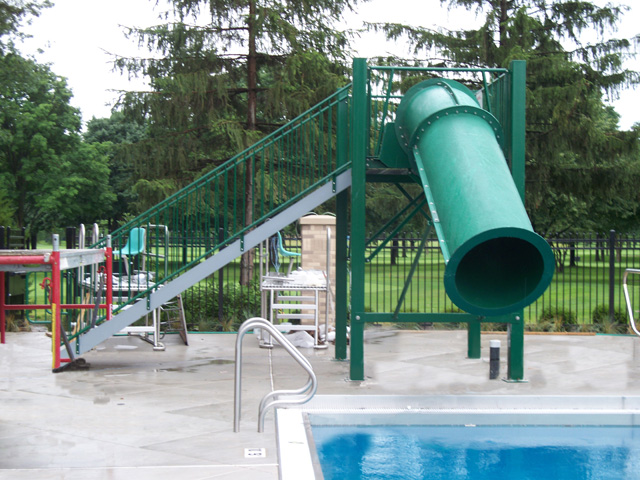

Closed Flume Fiberglass Drop Slide
Model 5020

Description : Single 32" I.D. closed flume fiberglass drop slide.
Centerline Run: 12' 10"
Entry Height: 8' 2"
Exit Height (drop): 4’ 1-7/16"
Platform Size: 6' x 8'
Space Requirements: 19' 0" x 13' 0" - Vary with options chosen.

32" inside diameter fiberglass water slide flume
20-40 gpm water flow required
Splash down dimension: 13' x 20'
Minimum water depth: 12'
Deep end required

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

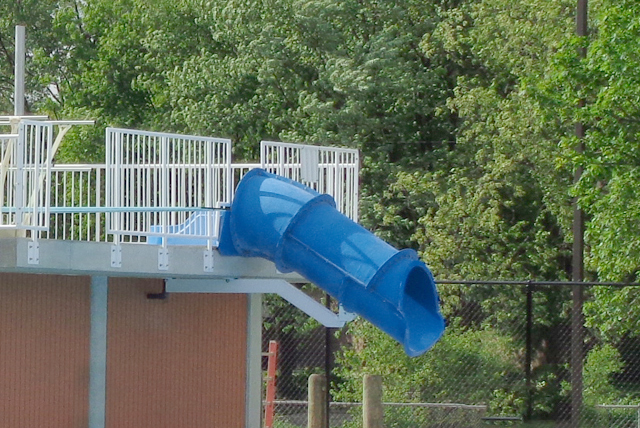

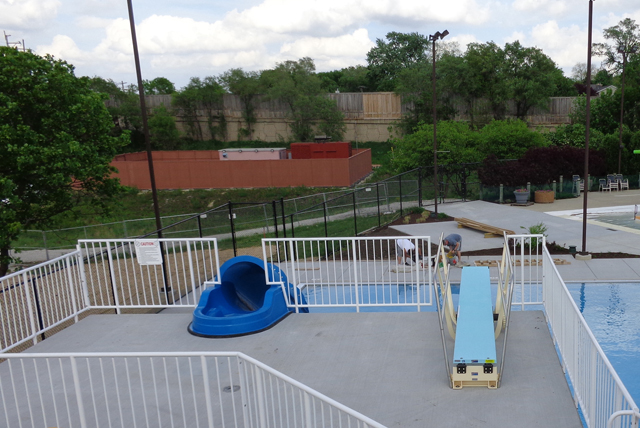

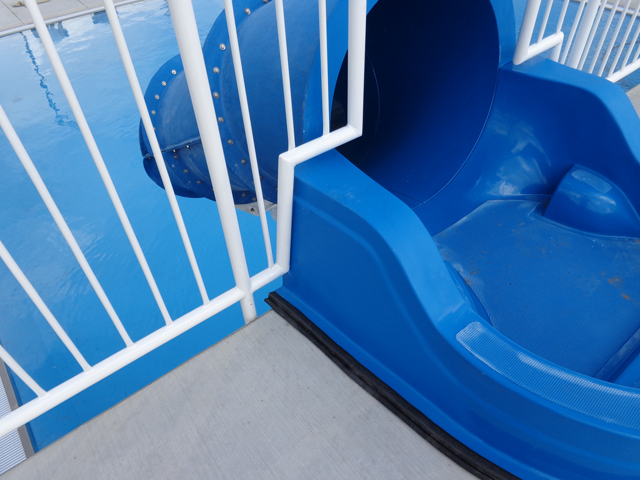

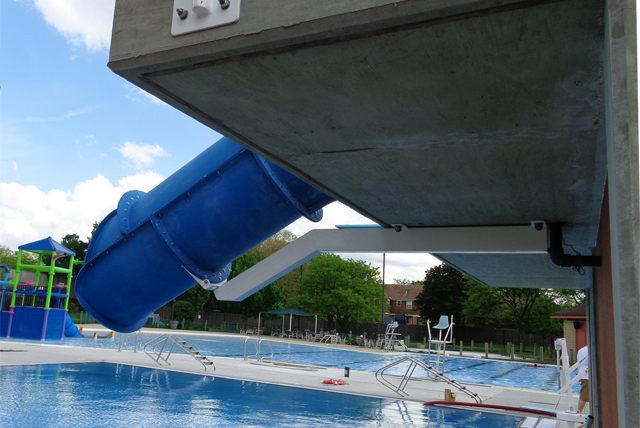

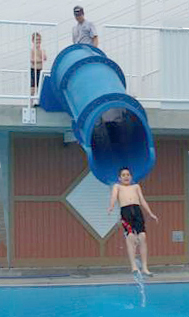

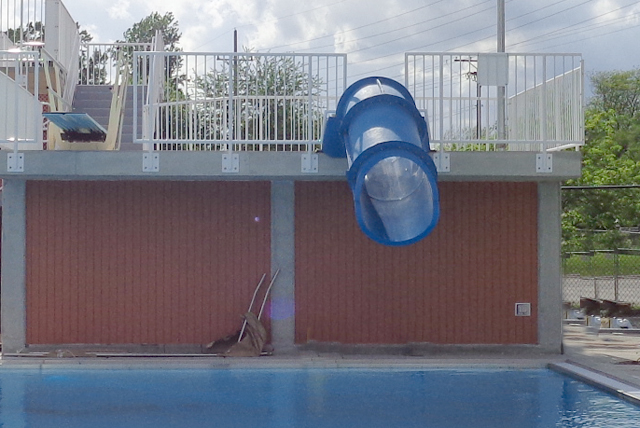

Closed Flume Fiberglass Drop Slide

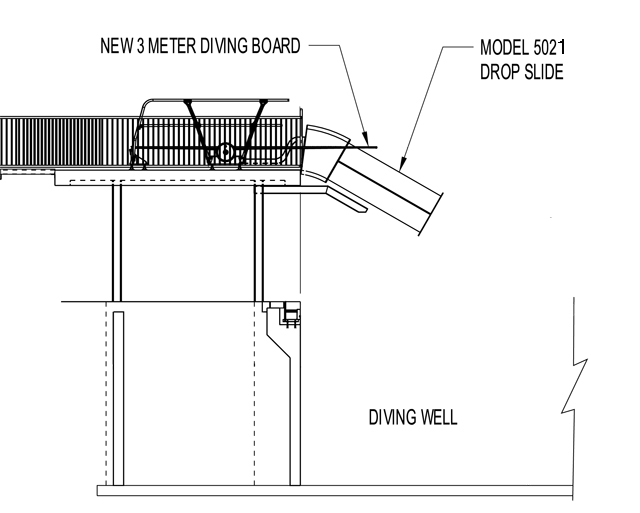

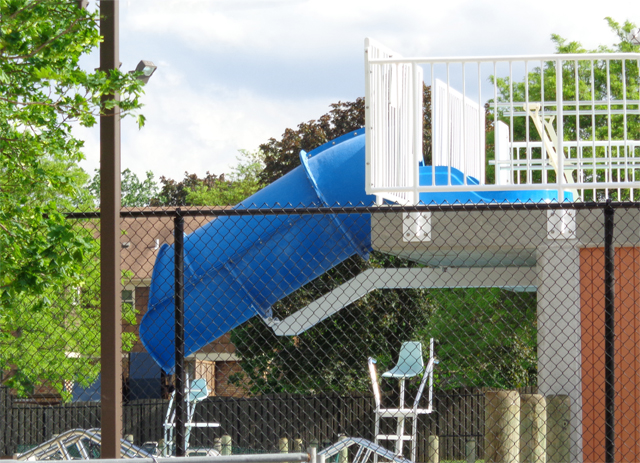

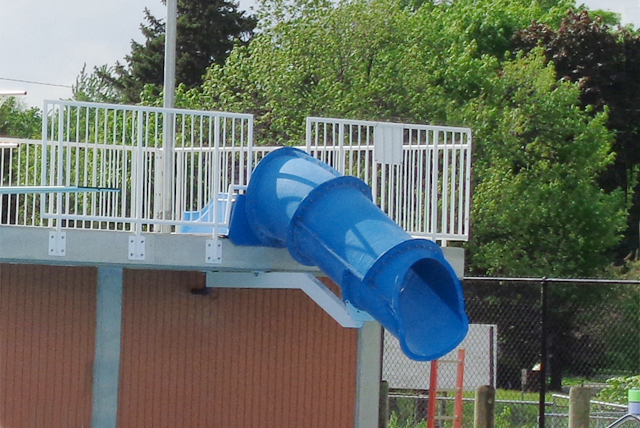

Model 5021

Description : Single 32" I.D. closed flume fiberglass drop slide.
Centerline Run: 11' 10"
Entry Height: 8' 7"
Exit Height (drop): 4’ 11-1/16”
Platform Size: N/A
Space Requirements: 4' 9" x 11' 4" - Vary with options chosen.

32" inside diameter fiberglass water slide flume
20-40 gpm water flow required
Splash down dimension: 13' x 20'
Minimum water depth: 12'
Deep end required

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Double Flume Drop Slide Pool Slide
Model 5022

Description: 30" I.D. double flume drop slide.
Centerline Runs: 20' 0"& 18' 10"
Entry Height: 10' 6"
Exit Heights (drop): 3’ 0", 2' 0"
Platform Size: 4' x 4'
Space Requirements: Vary with options chosen.
Tan & Green flumes: 23' 0" x 22' 1"
Yellow & Orange flumes: 21’ 2” x 28’ 5”

30" Inside diameter polyethylene flumes
Stairs: 8" rise, 8" tread, 24" wide; Aqua-Plast coated textured aluminum surface.
14-20 gpm water flow recommended; 8 to 40 gpm required.
Splash down dimension: 12' 6" x 20' 0"
Minimum water depth: 9' 0"

Options Shown: Fabric Roof (Tan & Green flumes)

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

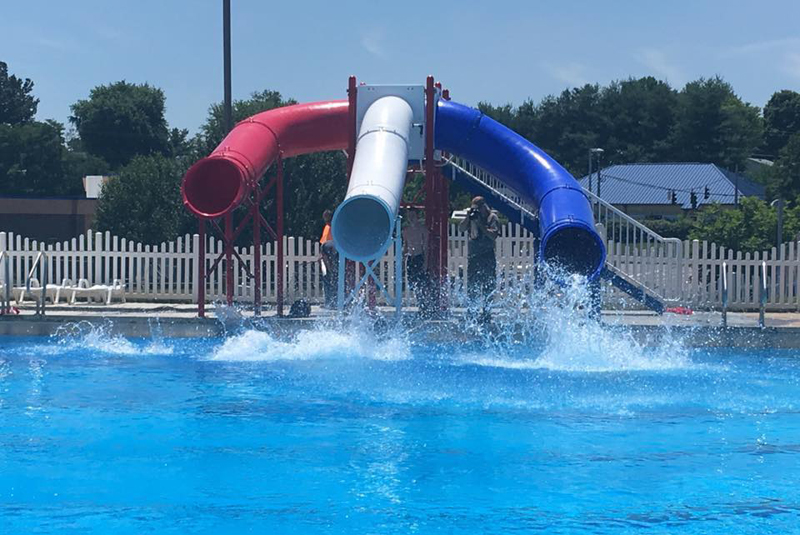

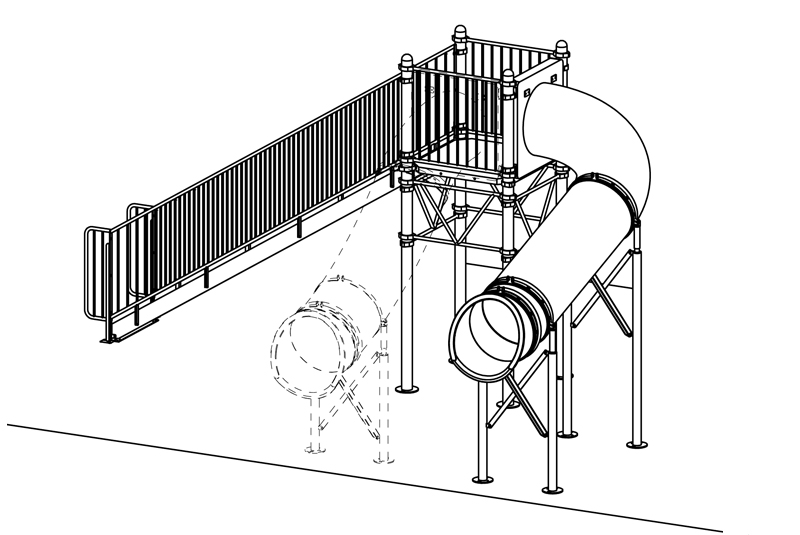

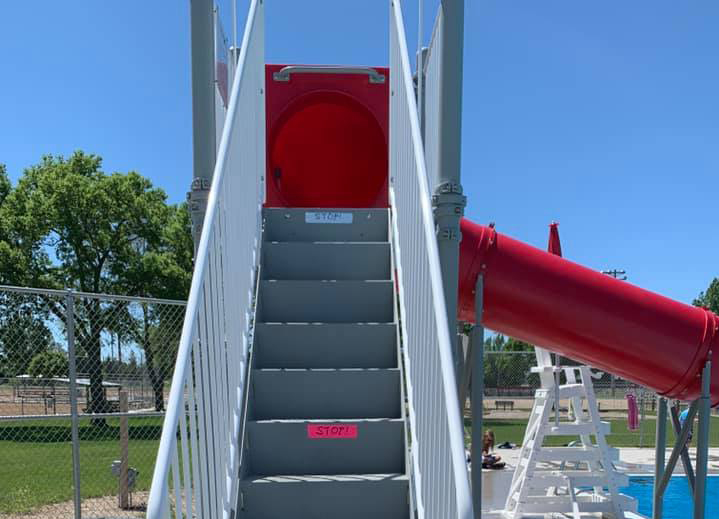

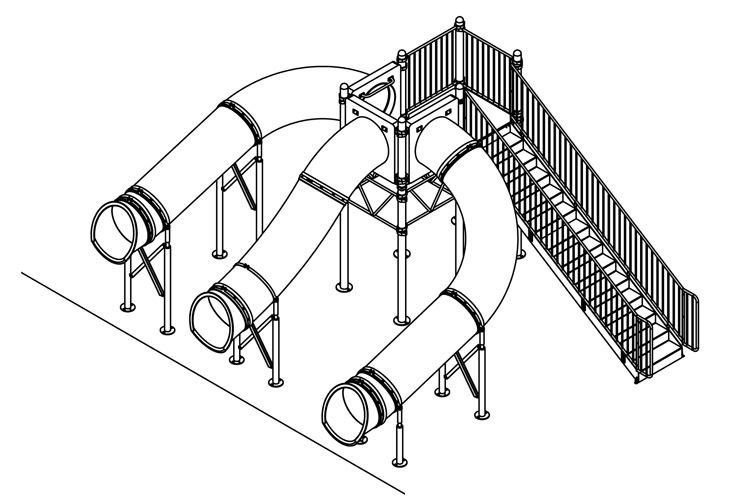

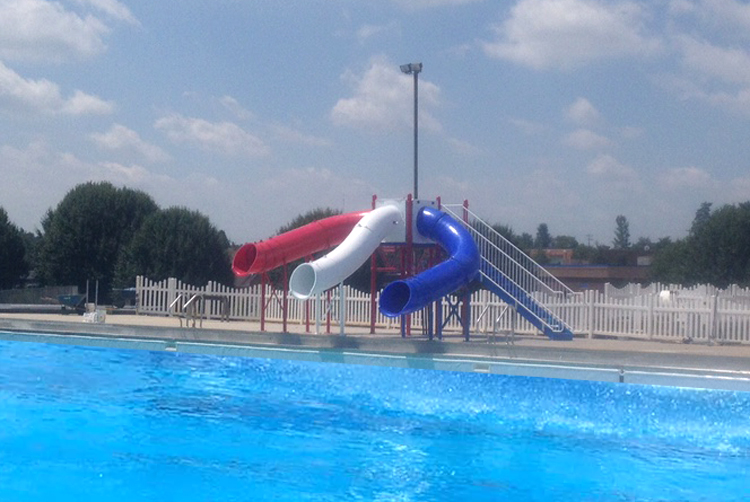

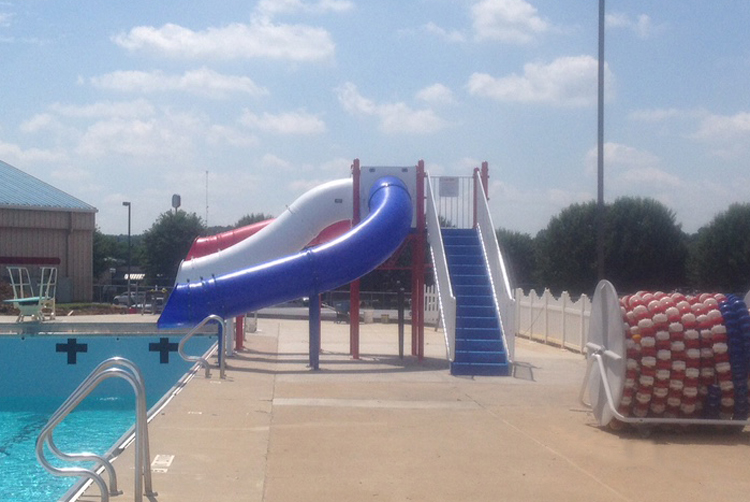

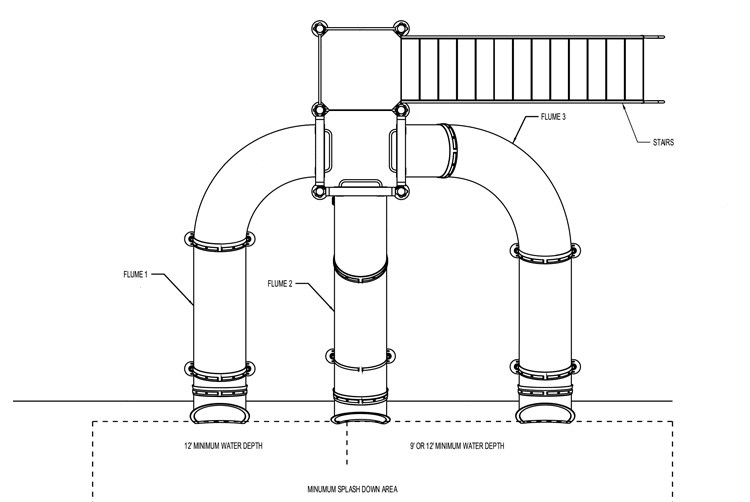

Triple Flume Drop Slide Pool Slide

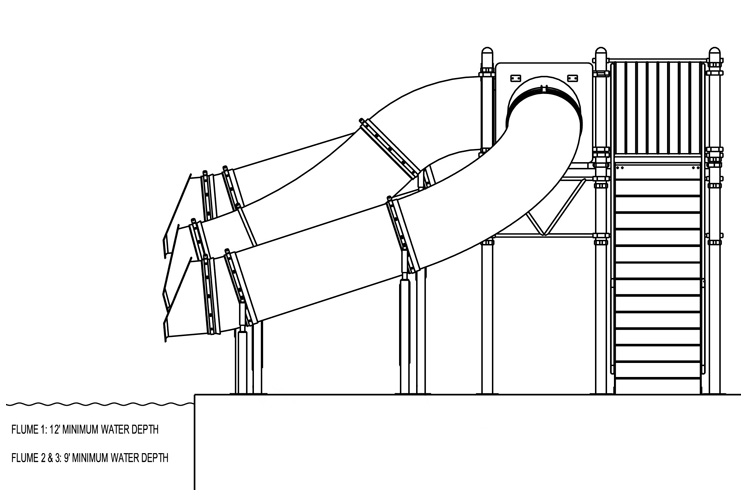

Model 5023

Description: 30" I.D. closed polyethylene triple flume drop slide .
Centerline Runs: 16’ 11”, 12’ 7” & 19’ 3”
Entry Height: 8' 8"
Exit Heights (drop): 5’ 0”, 3’ 1-3/16”, 2’ 0-¾”
Platform Size: 4' x 8'
Space Requirements: 23’ 8” x 18’ 9” – Space requirements may vary with options chosen.

30" Inside diameter polyethylene flumes.
Stairs: 7” rise, 11” tread, 36” wide; Aqua-Plast coated textured aluminum surface; closed risers.
14-20 gpm water flow recommended; 8 to 40 gpm required.
Splash down dimension: 28' 6" x 20' 0"
Minimum water depth: Flume 1: 12’ 0”; Flumes 2 & 3: 9’ 0”"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Drop Slide

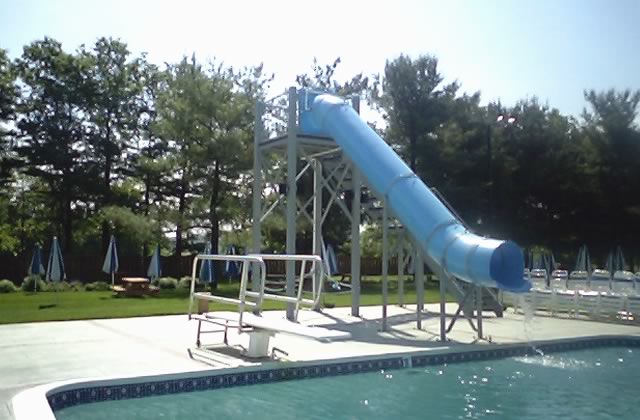

Model 8011

Description: Single 30" I.D. flume slide, with 3' 6" drop.
Centerline Run: 22' 10"
Entry Height: 14' 8"
Exit Height (drop): 2' 8"
Platform Size: 6' x 6'
Space Requirements: 29' 0" x 19' 8" – Space requirements may vary with options chosen.

30" Inside diameter polyethylene flumes
Stairs: 7” rise, 11” tread, 36” wide; Aqua-Plast coated textured aluminum surface.
14-20 gpm water flow recommended; 8 to 40 gpm required.
Splash down dimension: 12' 6" x 20' 0"
Minimum water depth: 12' 0"

click on image to enlarge

Download Spec Sheet
Requires Adobe Acrobat
