Natural Structures: Water Slides: Entry Height 11' to 13'

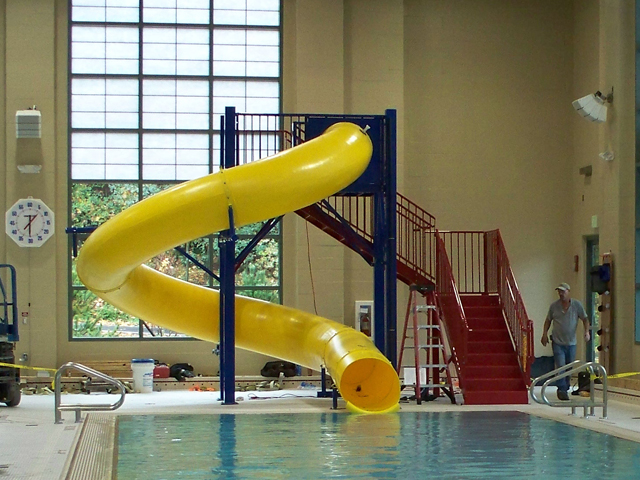

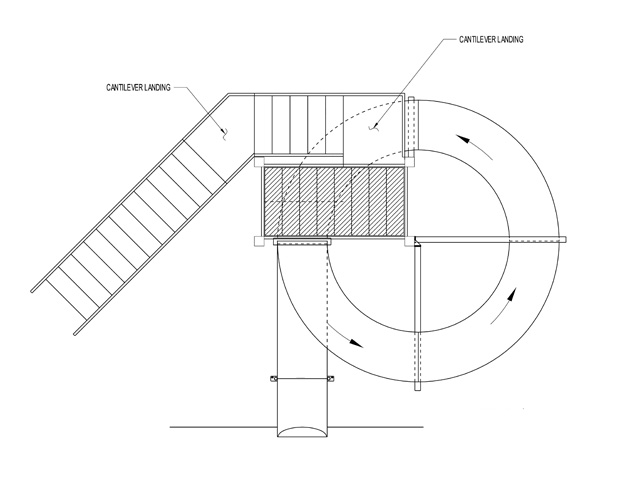

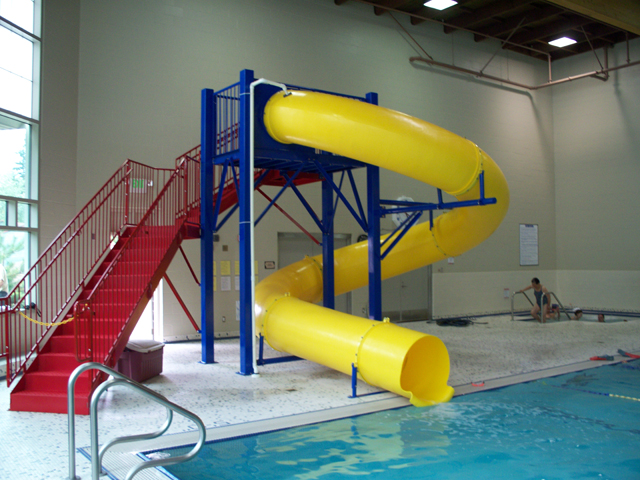

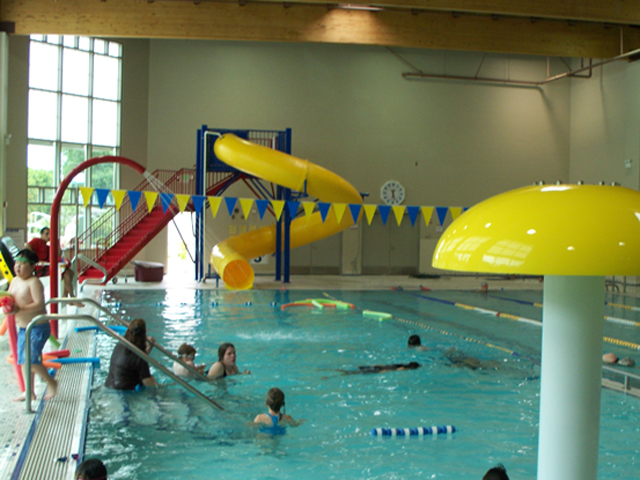

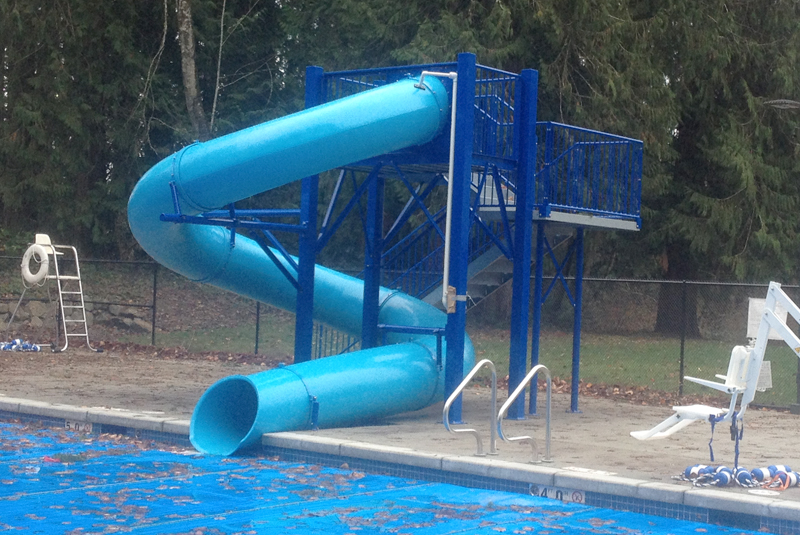

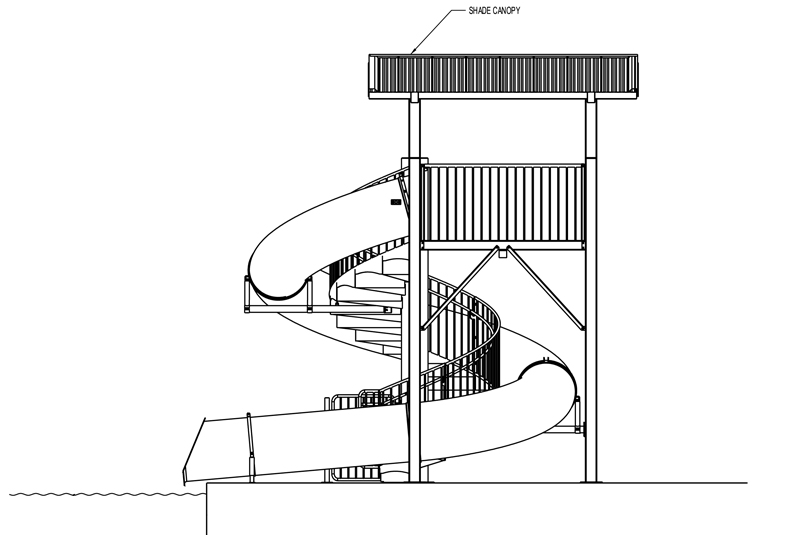

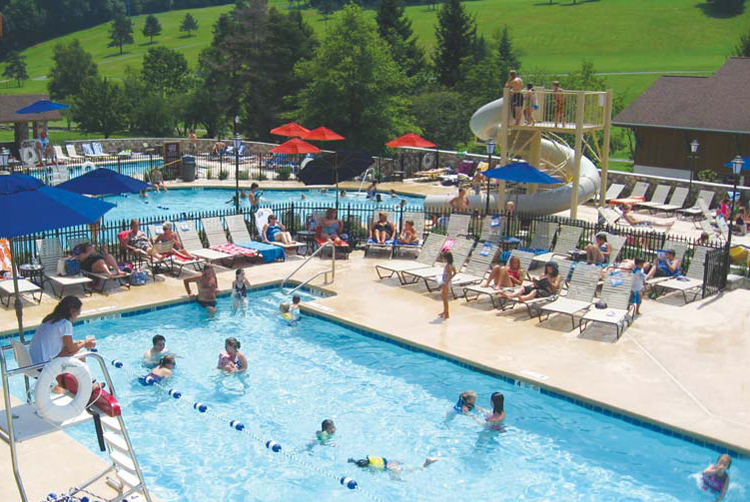

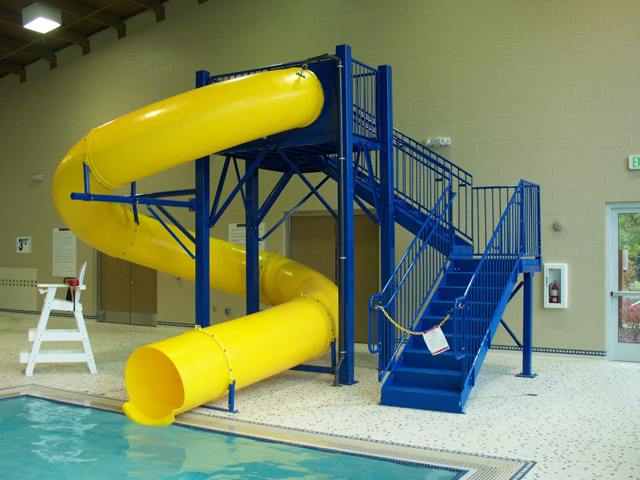

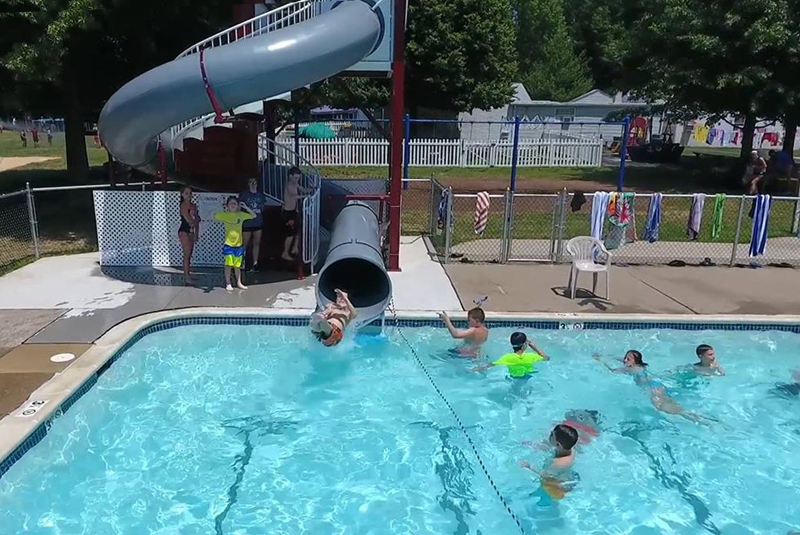

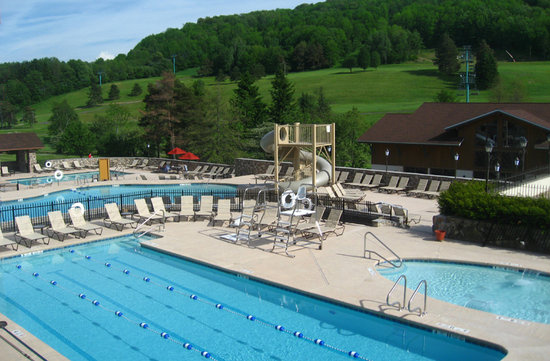

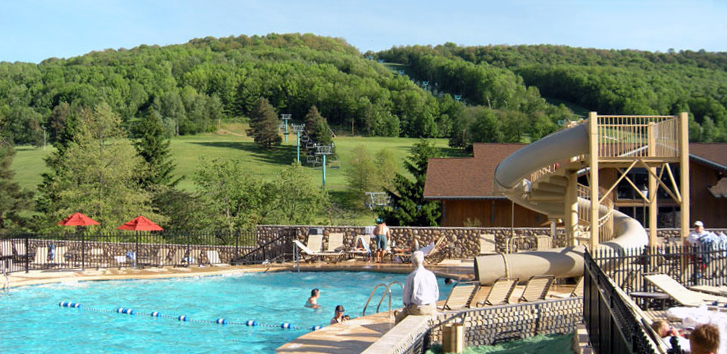

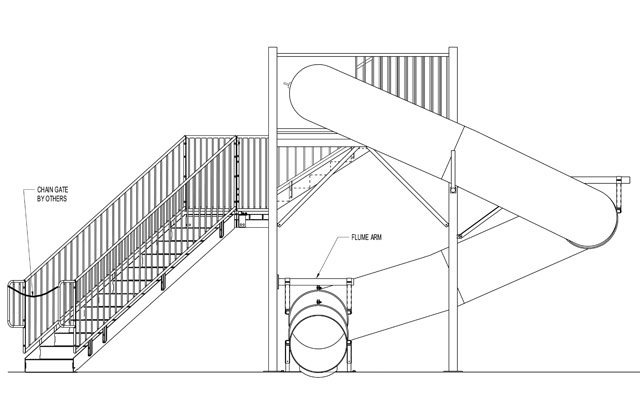

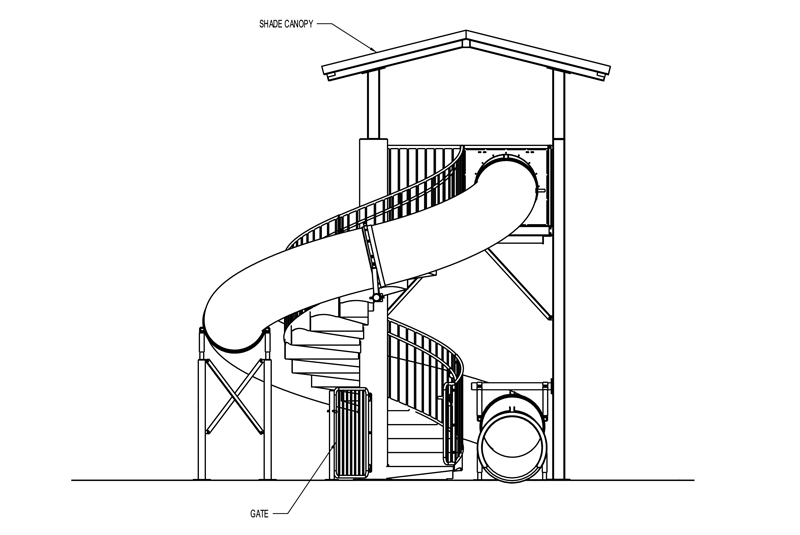

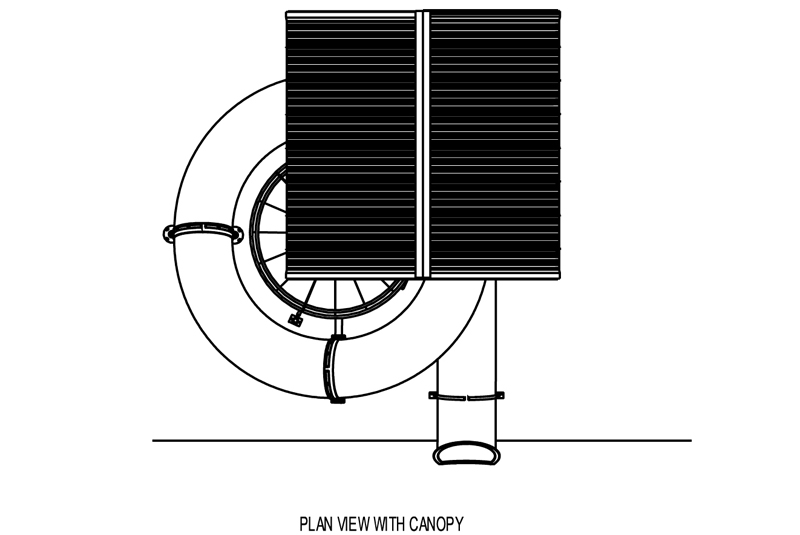

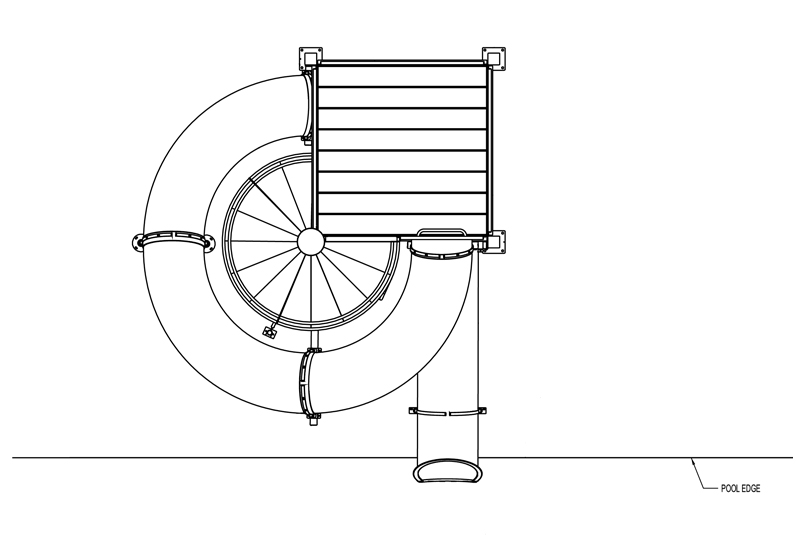

Water Slide
Model 1655

Description: Single 30" I.D. flume water slide with one 360° turn.
Centerline Run: 48' 7"
Entry Height: 11' 0"
Platform Size: 4' x 8'
·Spiral Stairs: 8' x 8'
Space Requirements: 17' 3" x 27' 8"
·Spiral Stairs: 15' 9" x 18' 2"
Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20'
Minimum water depth: 3'

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

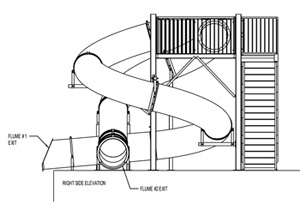

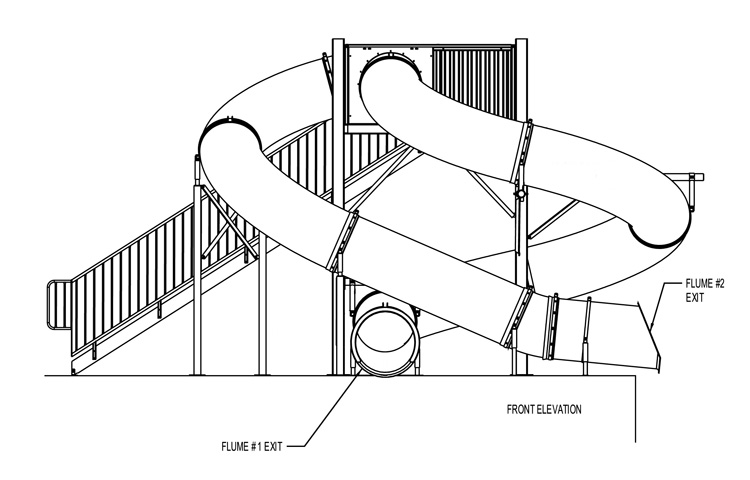

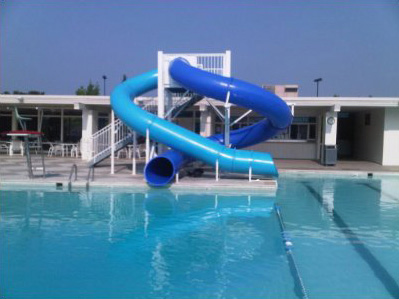

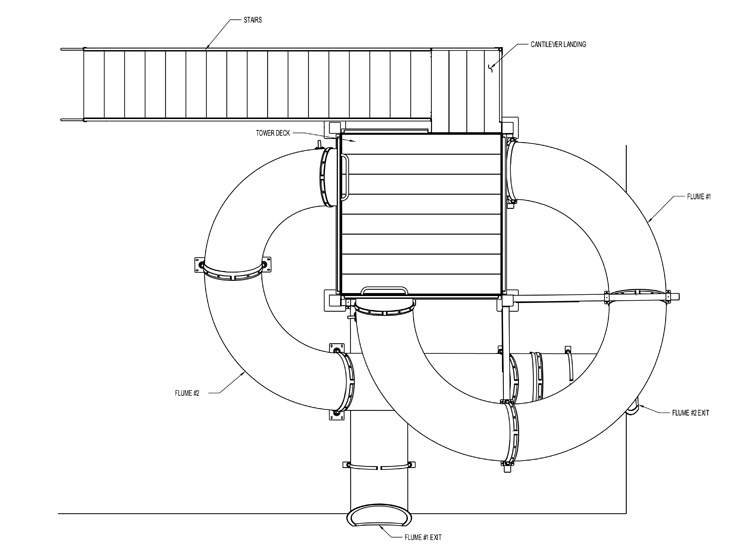

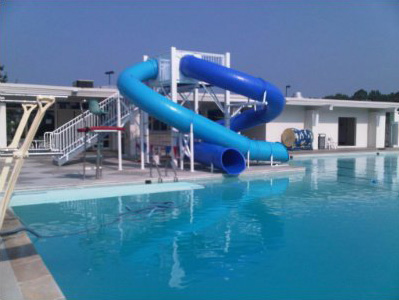

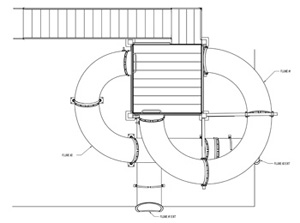

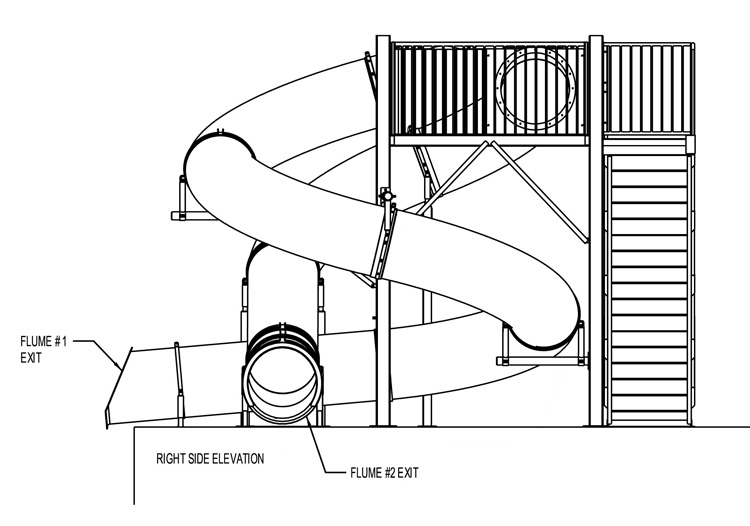

Double Flume Water Slide
Model 1678

Description : Double flume 30" I.D. polyethylene water slide, one 360 °
and one 180 ° turn.
Centerline Run : 48' 6" & 29' 5"
Entry Height : 11' 0"
Platform Size : 8' x 8'
Space Requirements : 25' 5" x 20' 11" – Space requirements may vary with options chosen.

Double the flume - Double the action!

30" inside diameter polyethylene water slide flumes
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20' 0" (each flume)
Minimum water depth: 3' 0"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

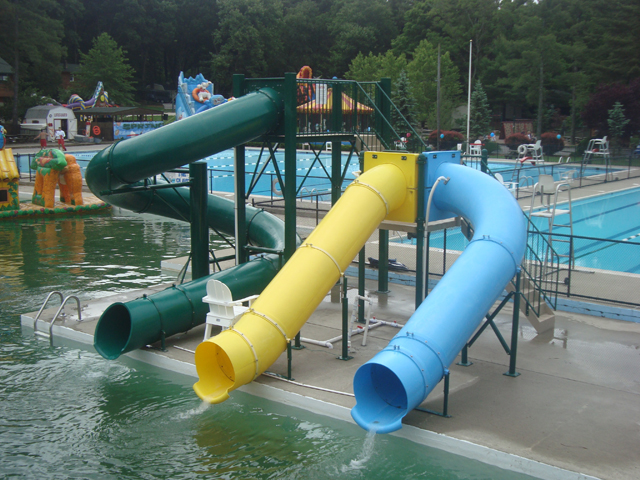

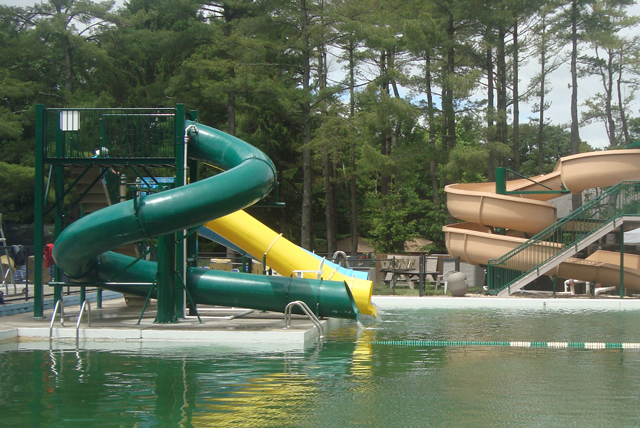

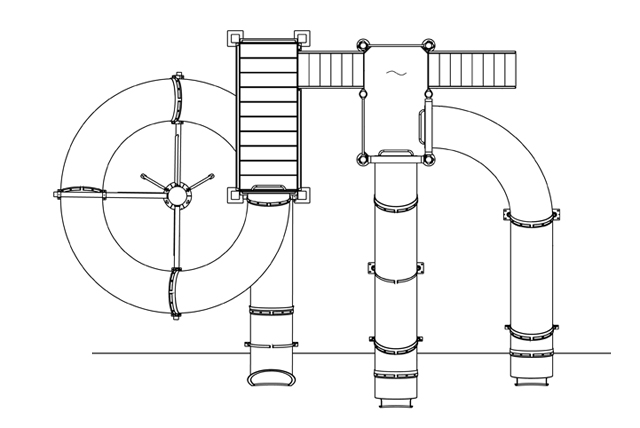

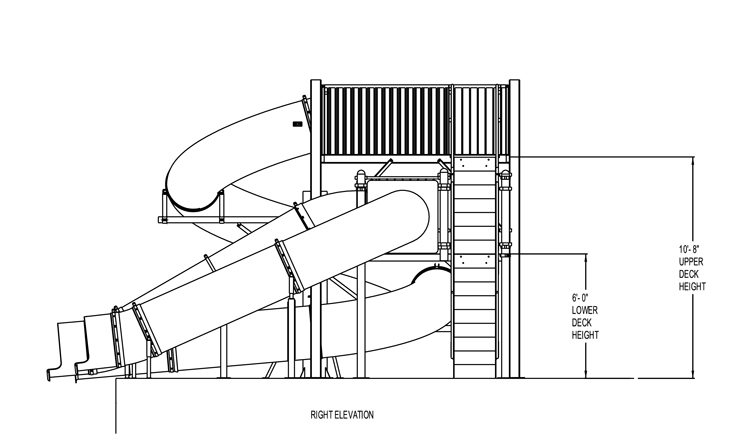

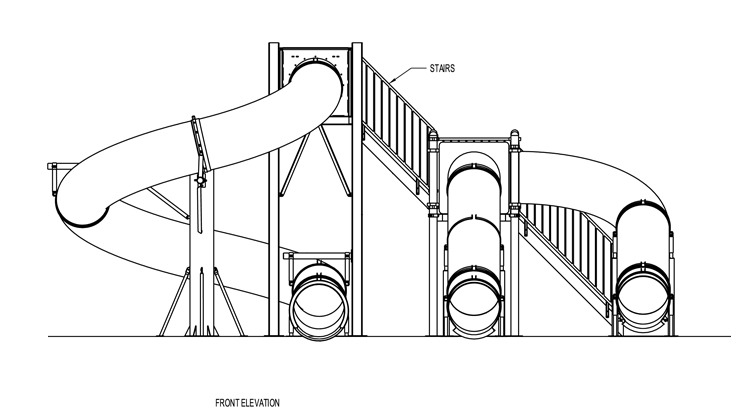

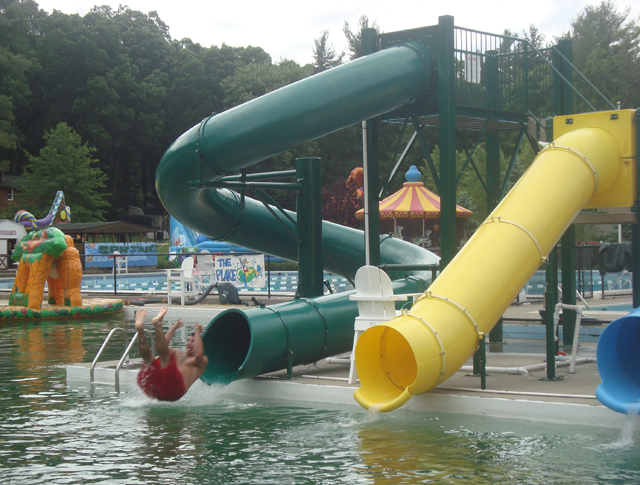

Triple Flume Water Slide
Model 9120

Description : Triple 30” I.D. polyethylene flume water slide.
Centerline Run : 49’ 2”, 16’ 5” and 20’ 5”
Entry Height : 11' 0" and 6' 6"
Platform Size : 4' x 10' and 4' x 6"
Space Requirements : 30’ 11” x 19’ 9” – Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flumes
Deck top mounted
Water flow required (each flume):
20 gpm recommended; 20 to 40 gpm required.
Splash down dimensions: 12’ 6” x 20’ 0"
Minimum water depth: 3' 6"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

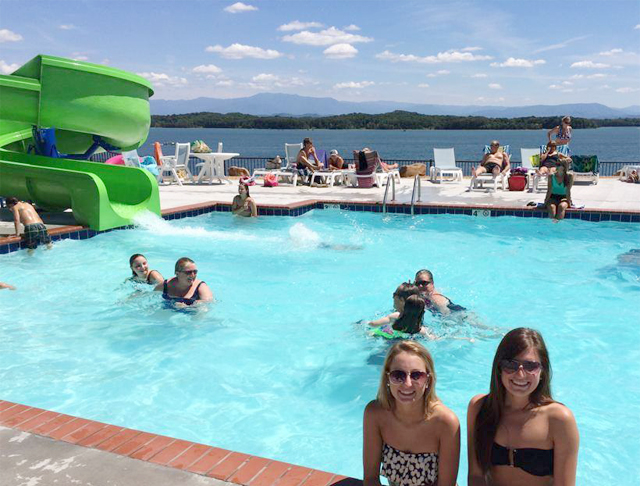

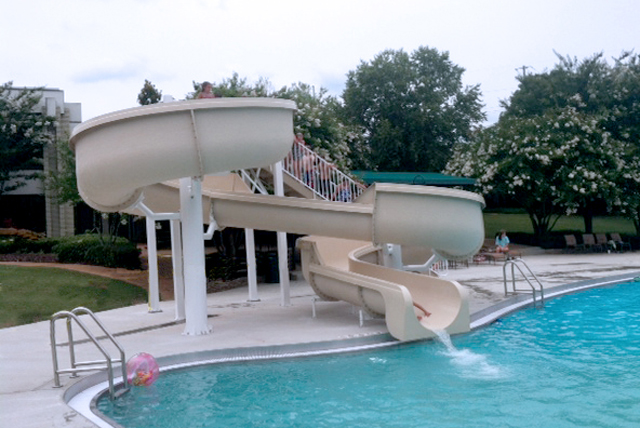

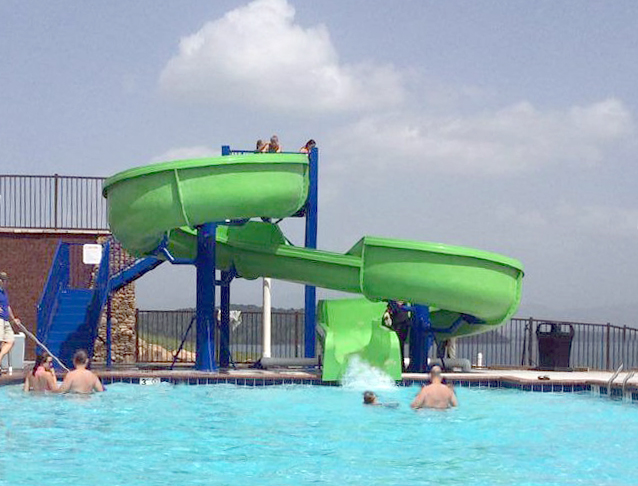

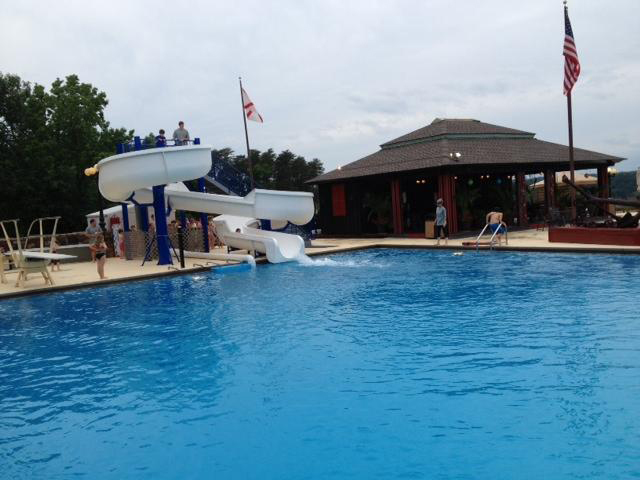

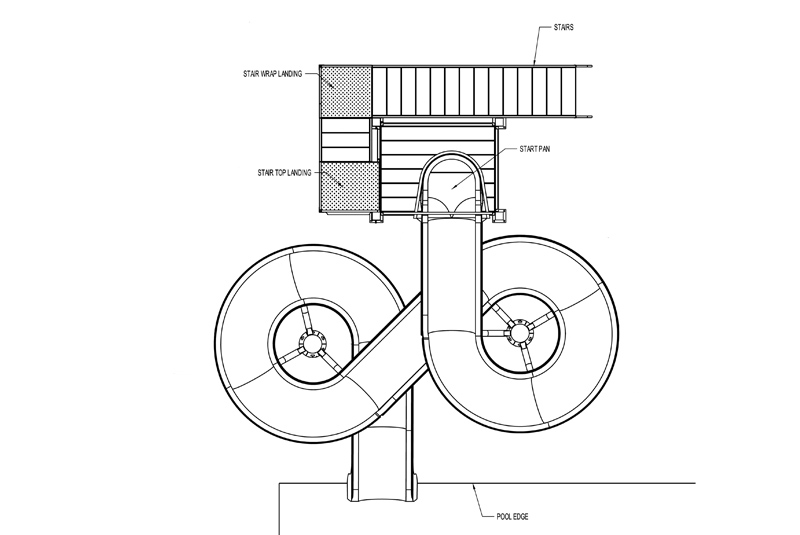

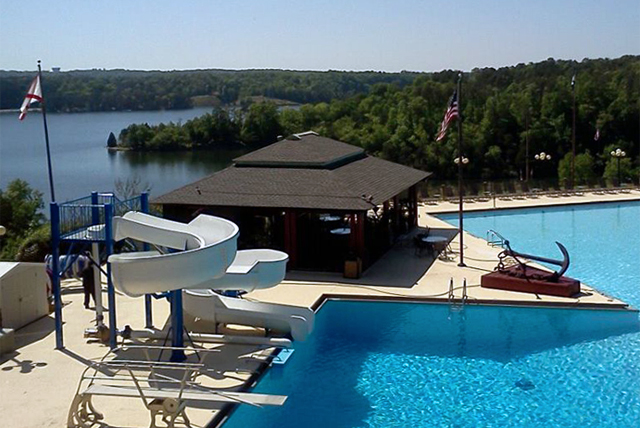

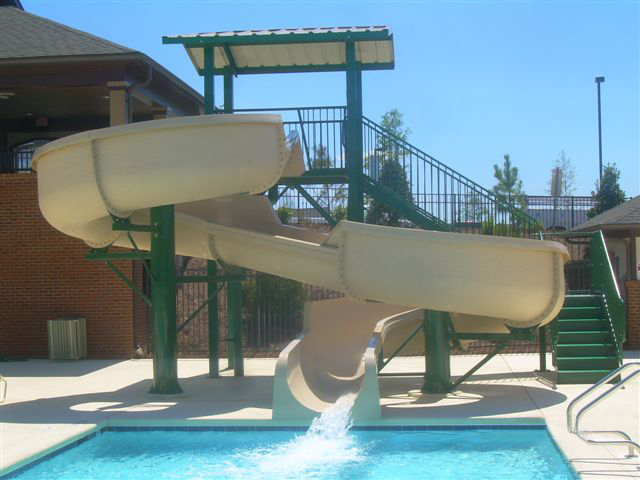

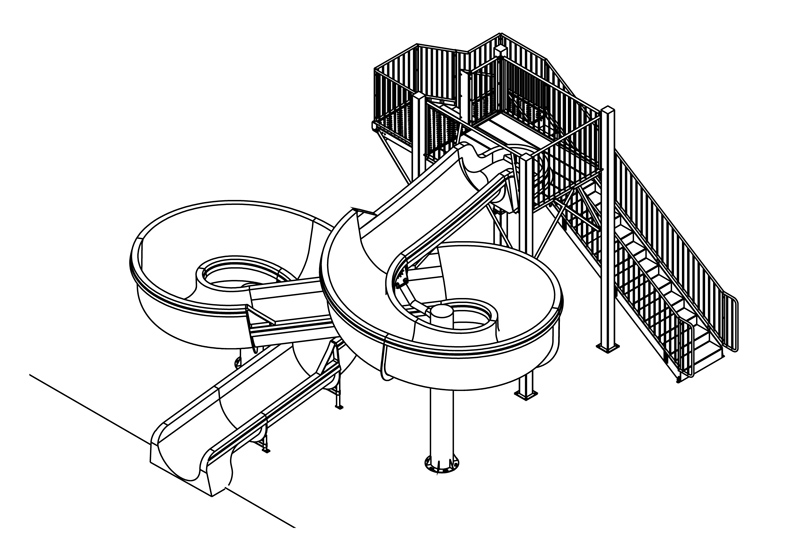

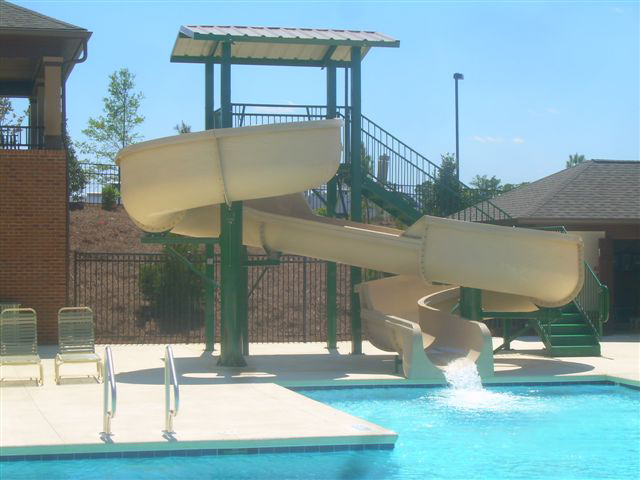

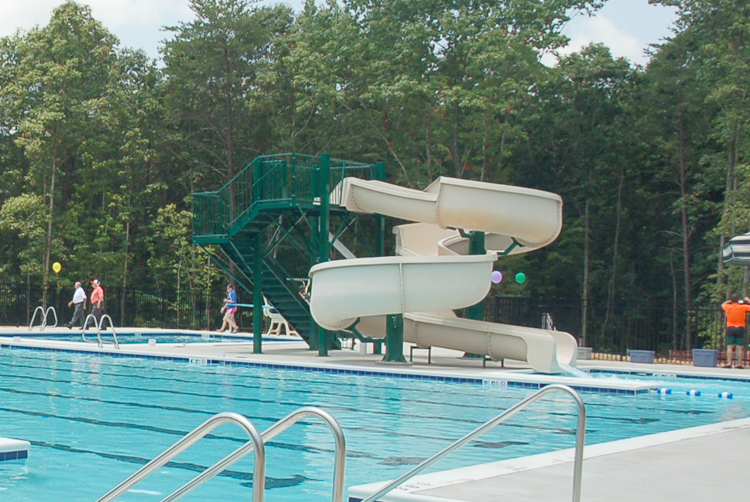

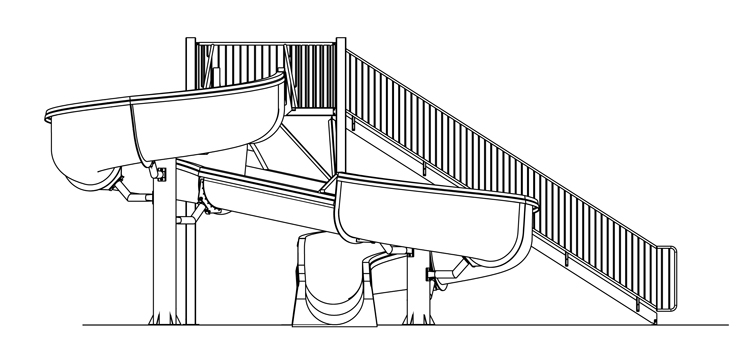

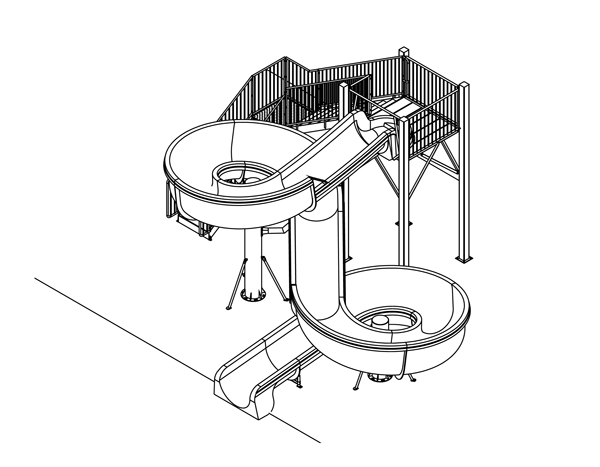

Fiberglass Water Slide
Model: 1820

Description : Single open flume fiberglass water slide featuring (2) 360° reverse curves.
Centerline Run : 78' 10"
Entry Height : 11' 1"
Platform Size : 6' x 6' or 6' x 8' (standard)
Space Requirements : 29' x 23' 1" – Space requirements may vary with options chosen.

36" inside diameter fiberglass water slide flume
600-800 gpm water flow required
Splash down dimension 13' x 20'
Minimum water depth: 3'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

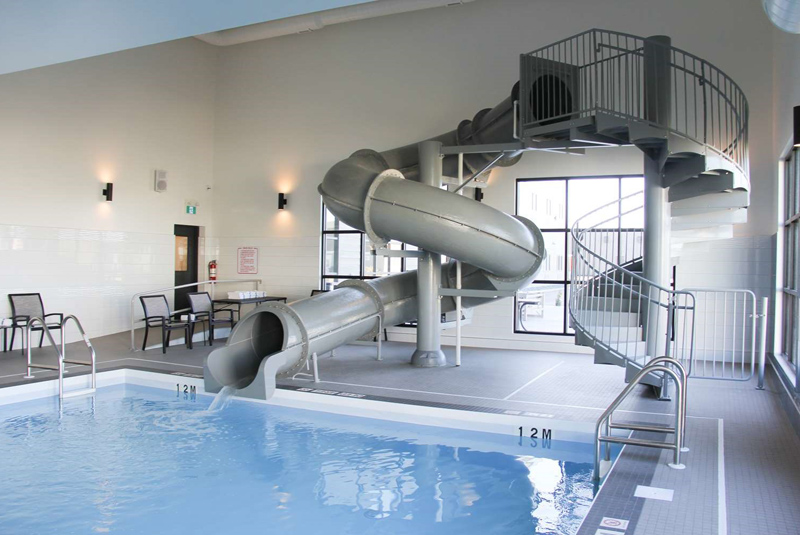

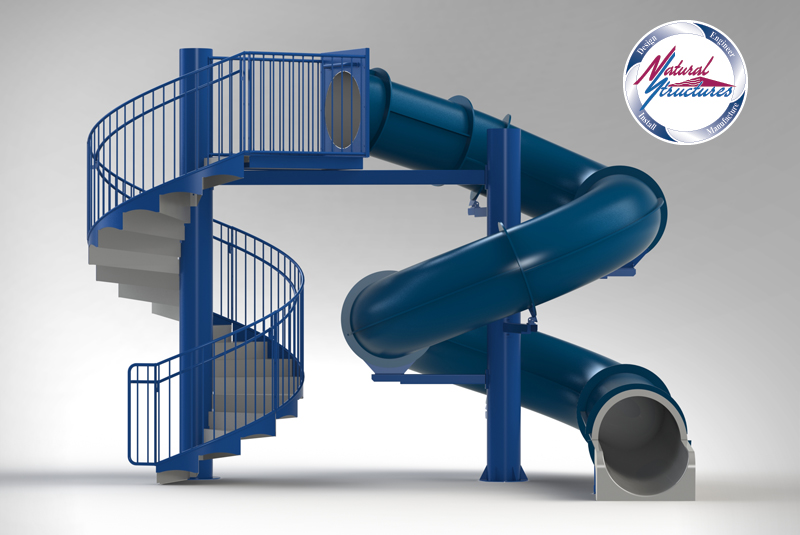

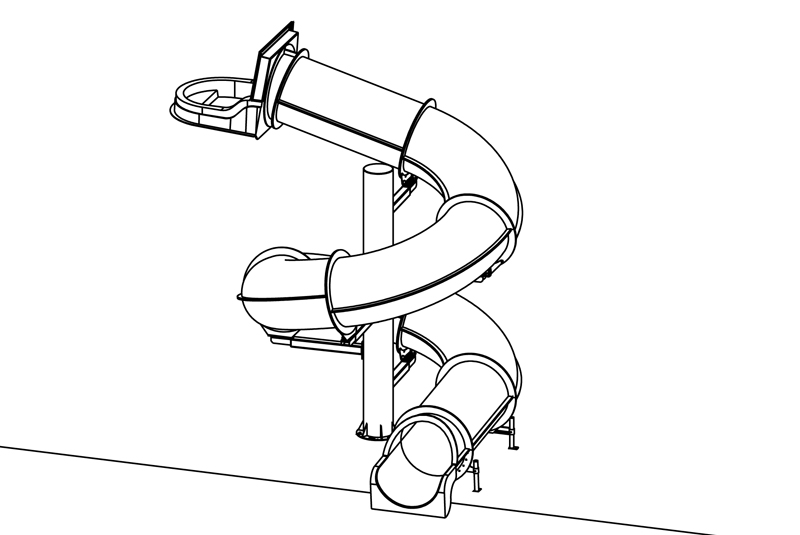

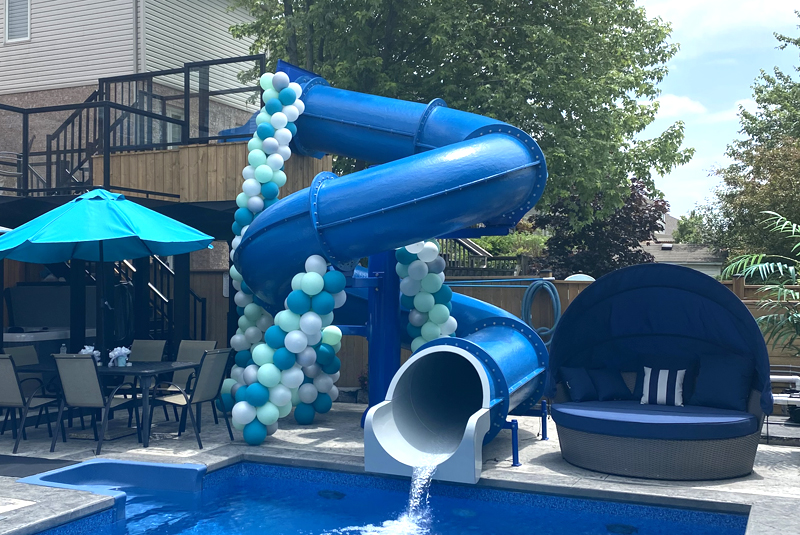

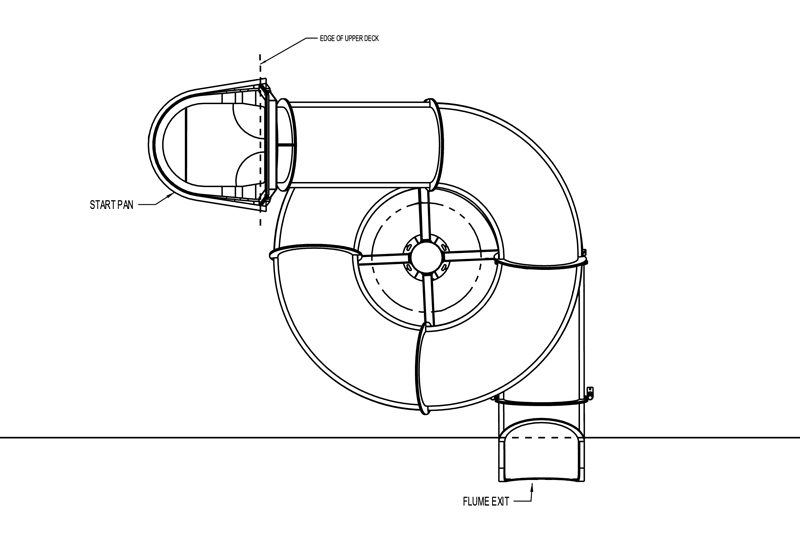

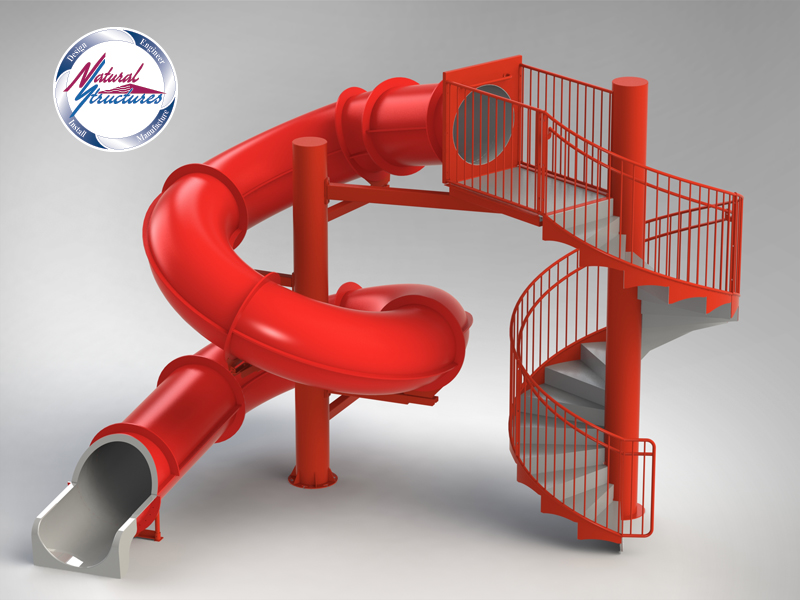

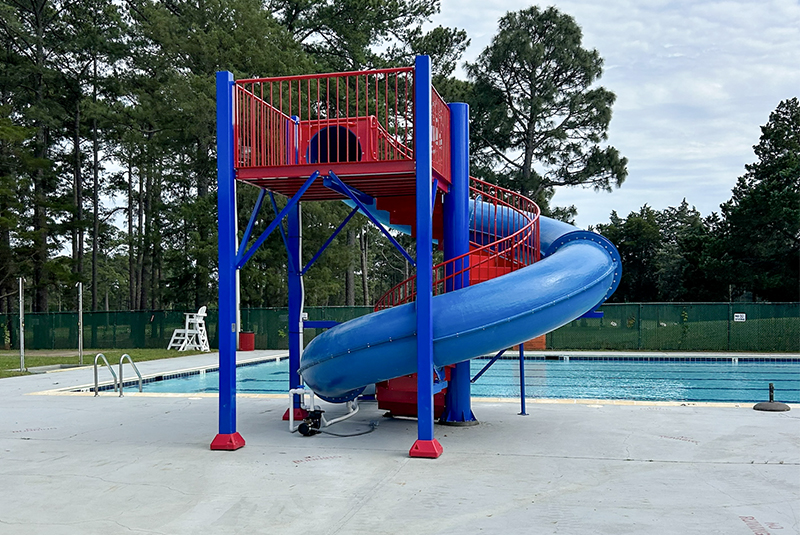

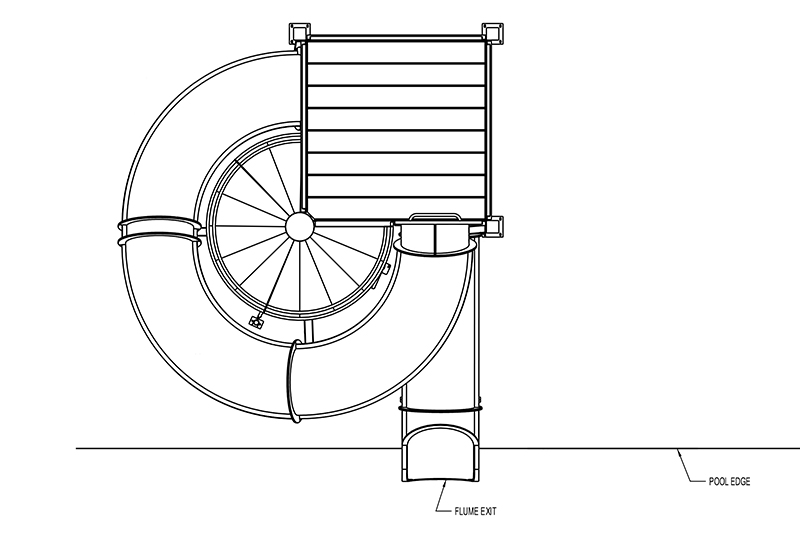

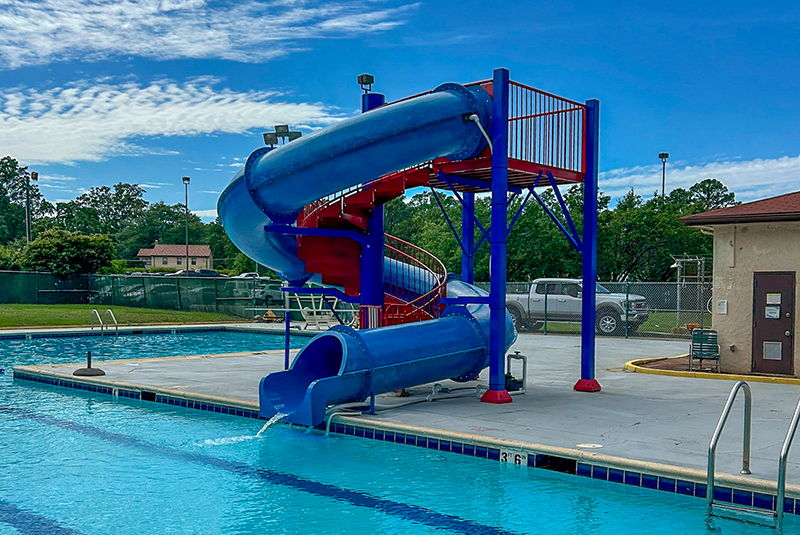

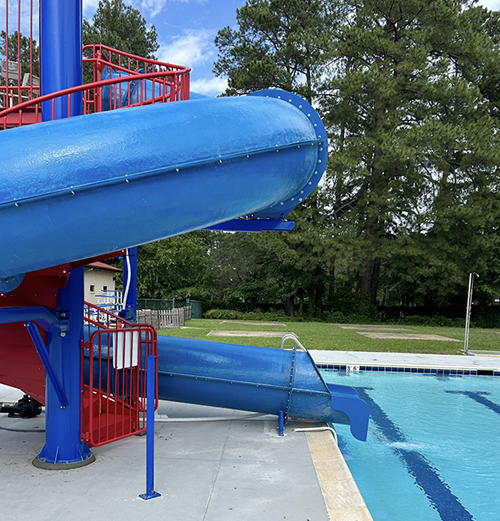

Closed Fiberglass Flume Water Slide
Model: 1930-32

Description: 32” I.D. closed fiberglass flume water slide featuring 1-¼ turns.
Centerline Run: 50' 11"
Entry Height: 11' 1"
Space Requirements: 15' 11” x 13' 0” – Space requirements may vary with options chosen.

32" inside diameter closed fiberglass flume water slide.
50-150 gpm water flow required
Splash down dimension: 12' 8" x 20' 0"
Minimum water depth: 3' 0" (within 6" of water level)

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

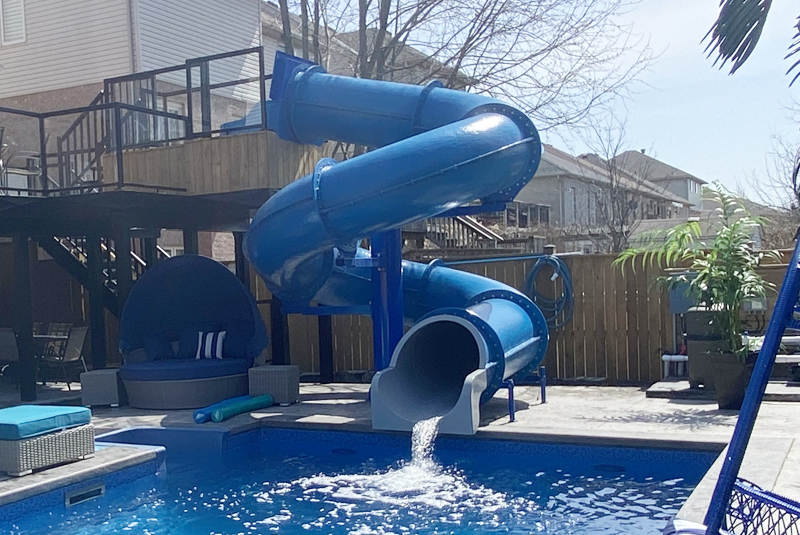

Closed Fiberglass Flume Water Slide
Model: 1930-32

Description: 32” I.D. closed fiberglass flume water slide featuring 1-¼ turns.
Centerline Run: 49' 9"
Entry Height: 11' 3"
Space Requirements: 21' 0” x 14' 9” – Space requirements may vary with options chosen.

32" inside diameter closed fiberglass flume water slide.
50-150 gpm water flow required
Splash down dimension: 13' 1" x 20' 0"
Minimum water depth: 3' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

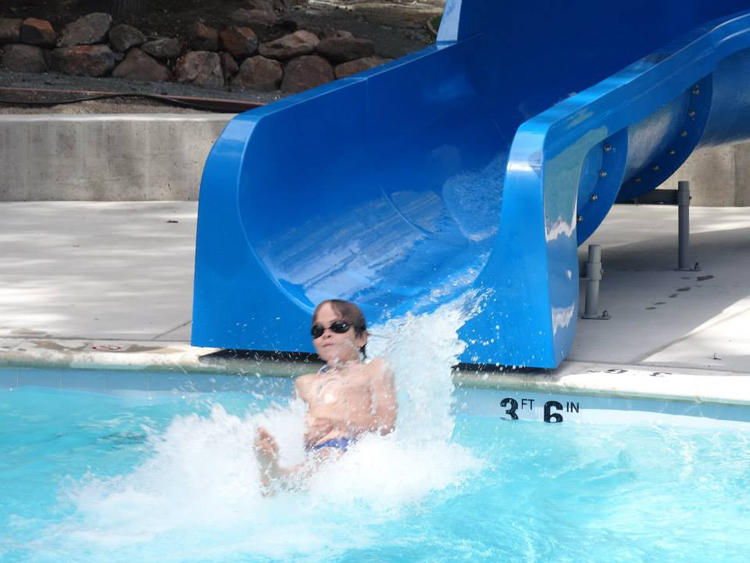

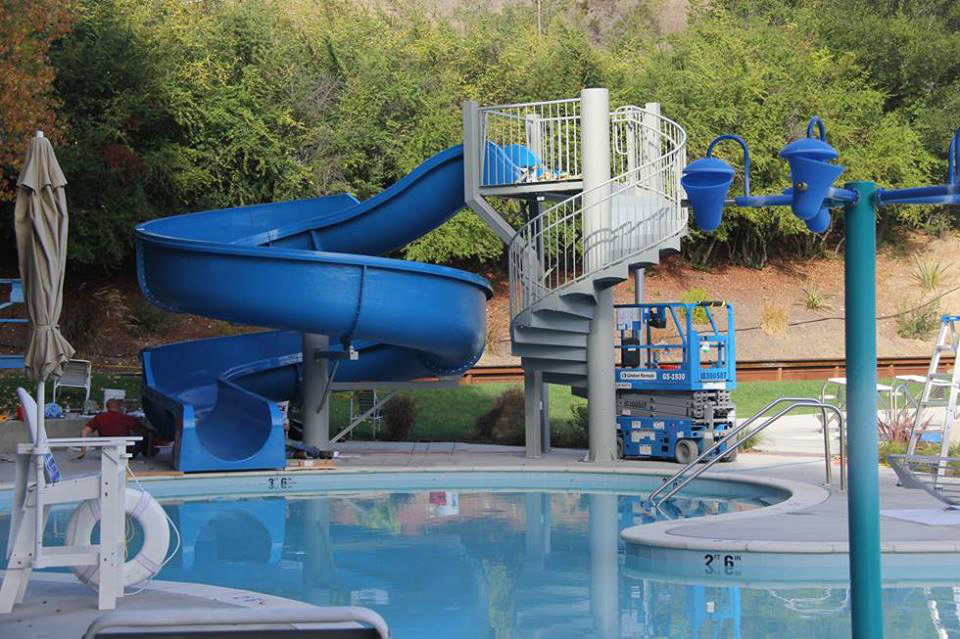

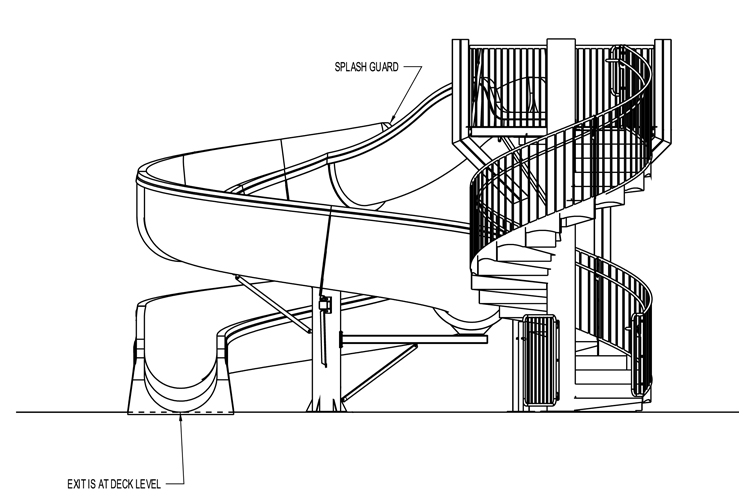

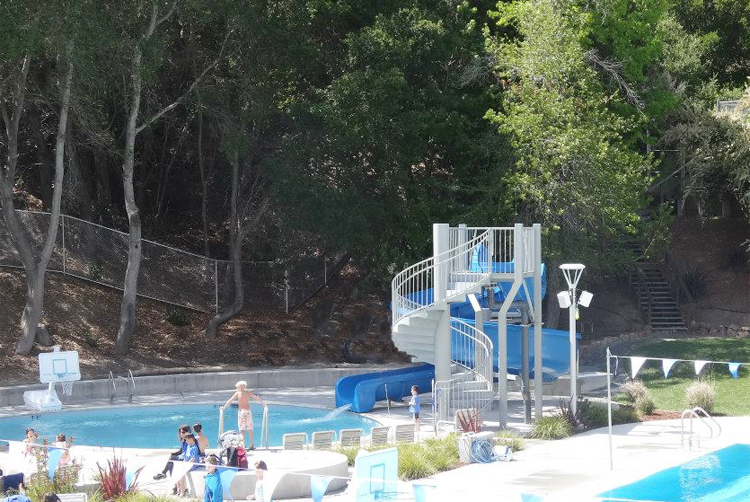

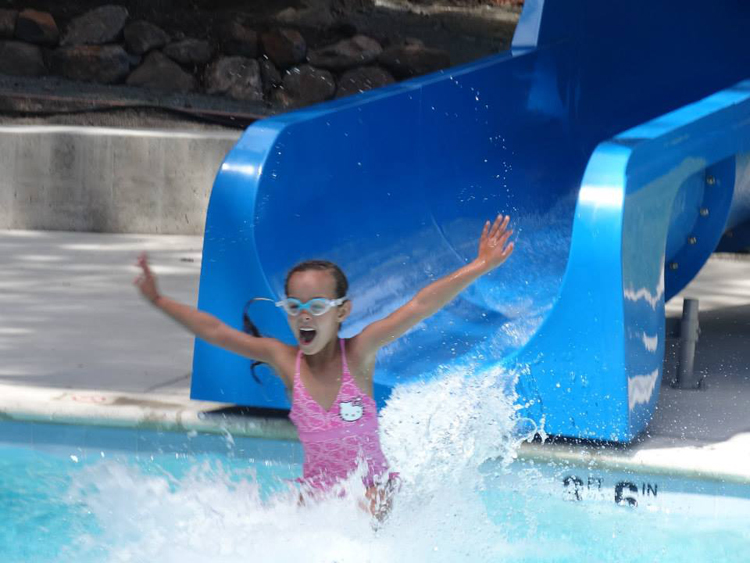

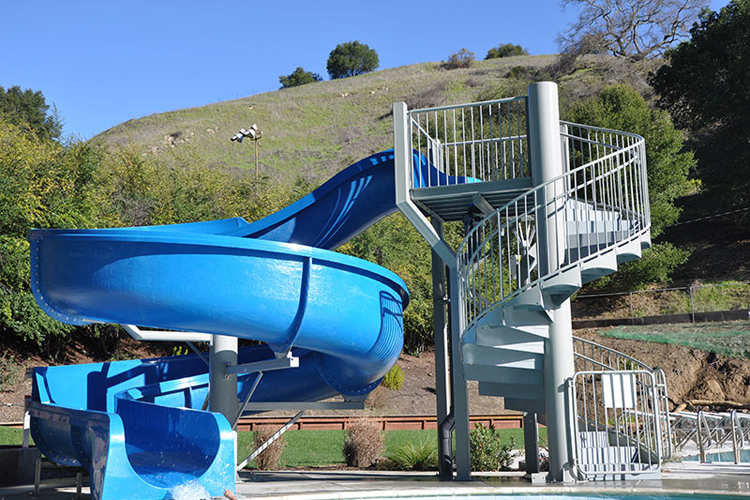

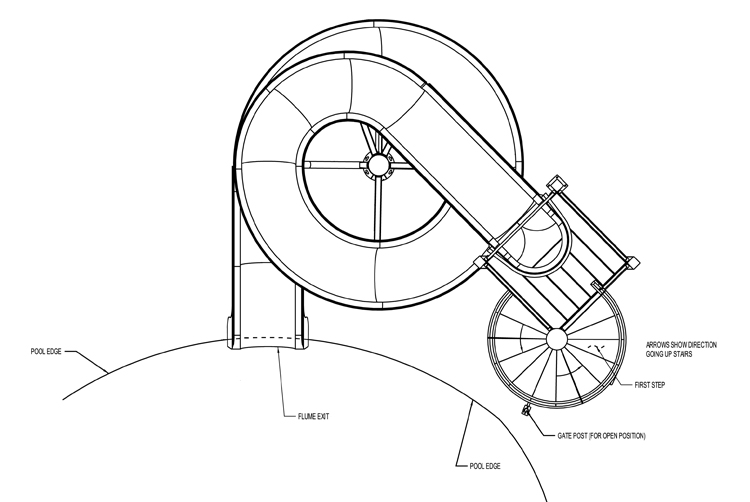

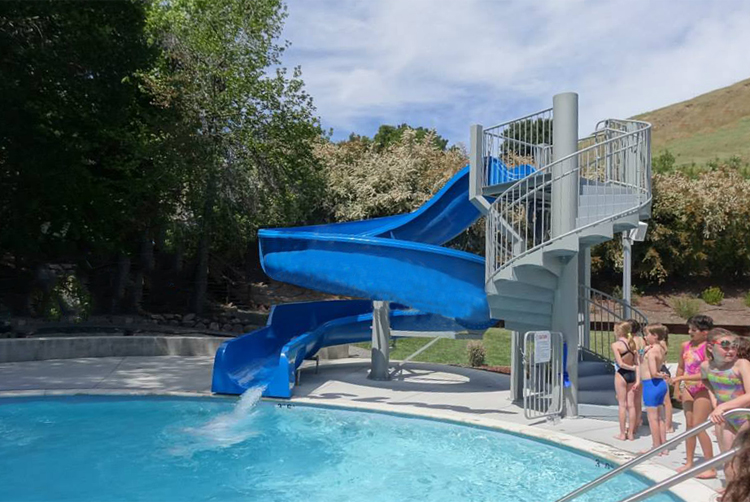

Fiberglass Water Slide
Model: 1921

Description : Single open flume fiberglass water slide featuring 1¾ turns.
Centerline Run : 69' 7"
Entry Height : 11' 8"
Platform Size : 6' x 6'
Space Requirements : 22' 2" x 17' 3" – Space requirements may vary with options chosen.
