Natural Structures: Water Slides: Entry Height 11' to 13'

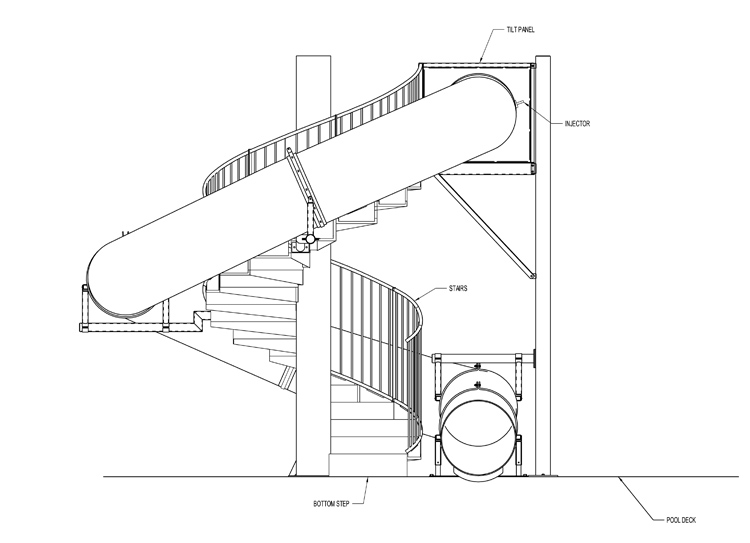

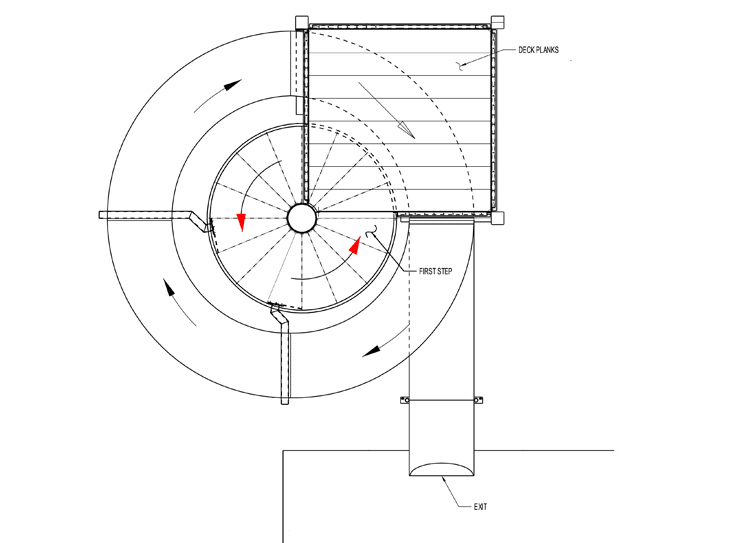

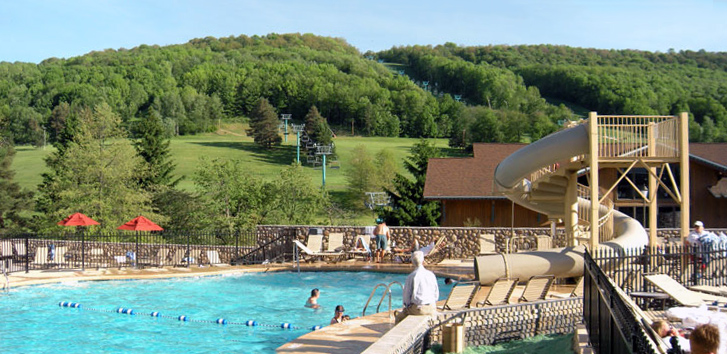

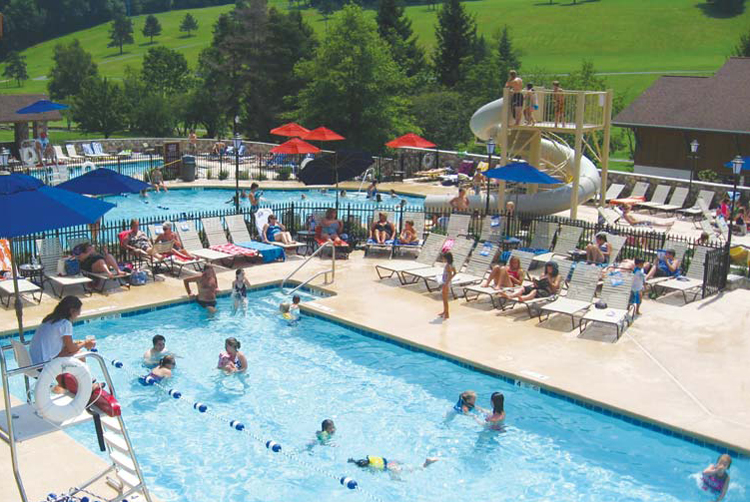

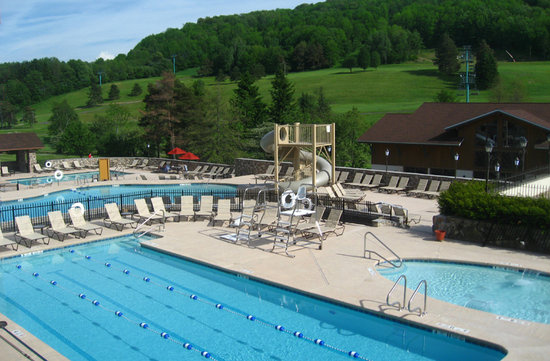

Water Slide
Model 1655

Description : Single 30" I.D. flume water slide with one 360° turn.
Centerline Run : 48' 7"
Entry Height : 11' 0"
Platform Size : 4' x 8'
·Spiral Stairs : 8' x 8'
Space Requirements: 17' 3" x 27' 8"
·Spiral Stairs : 15' 9" x 18' 2"
Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20'
Minimum water depth: 3'

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

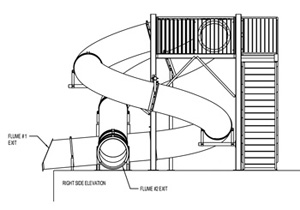

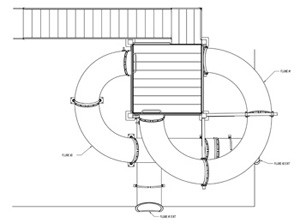

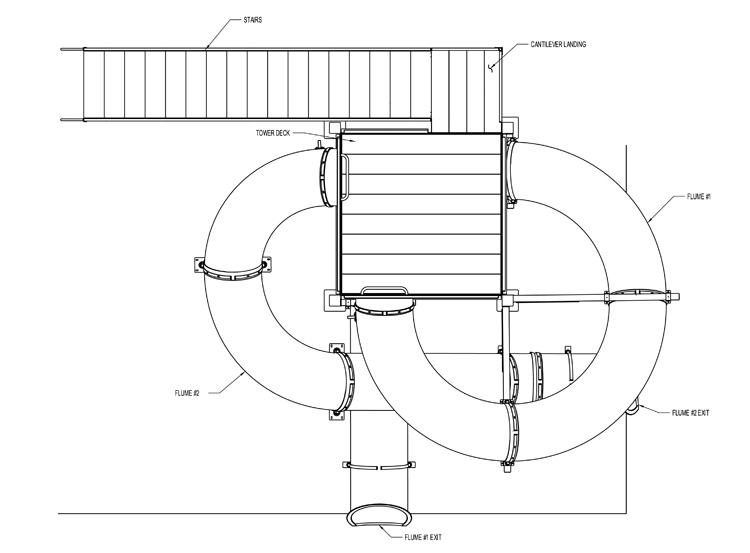

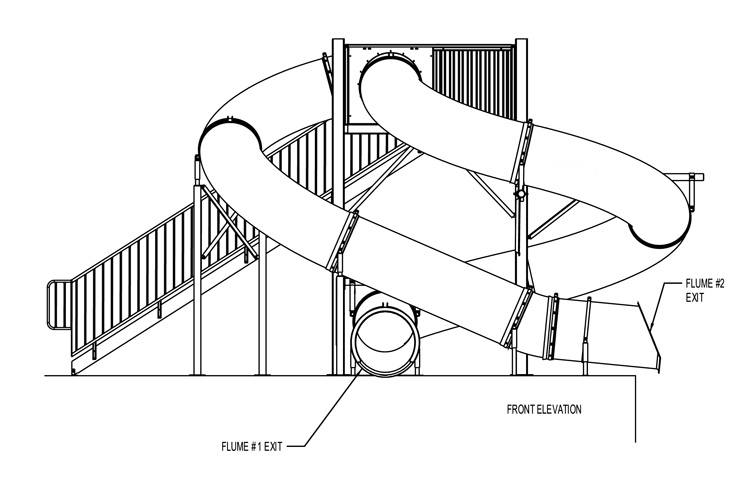

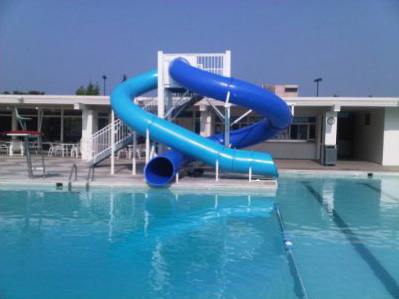

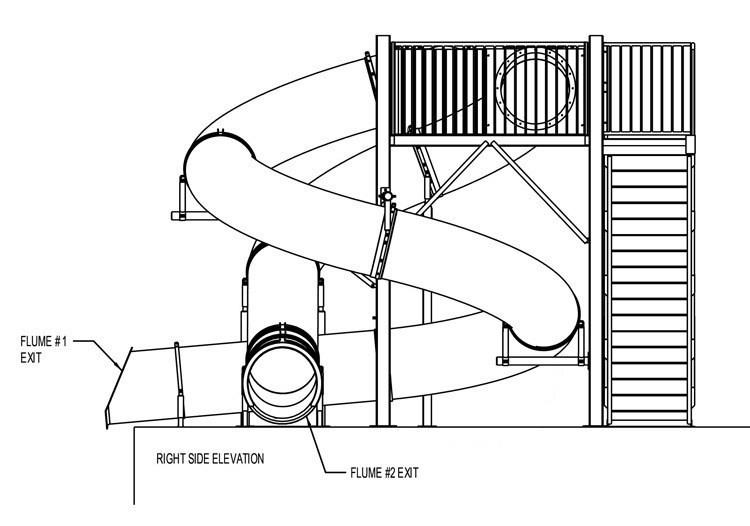

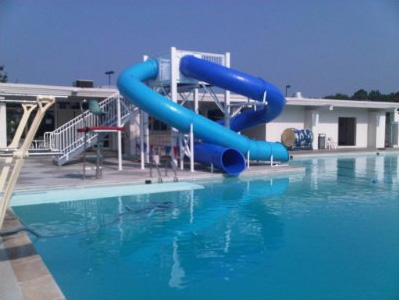

Double Flume Water Slide
Model 1678

Description : Double flume 30" I.D. polyethylene water slide, one 360 °
and one 180 ° turn.
Centerline Run : 48' 6" & 29' 5"
Entry Height : 11' 0"
Platform Size : 8' x 8'
Space Requirements : 25' 5" x 20' 11" – Space requirements may vary with options chosen.

Double the flume - Double the action!

30" inside diameter polyethylene water slide flumes
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20' 0" (each flume)
Minimum water depth: 3' 0"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

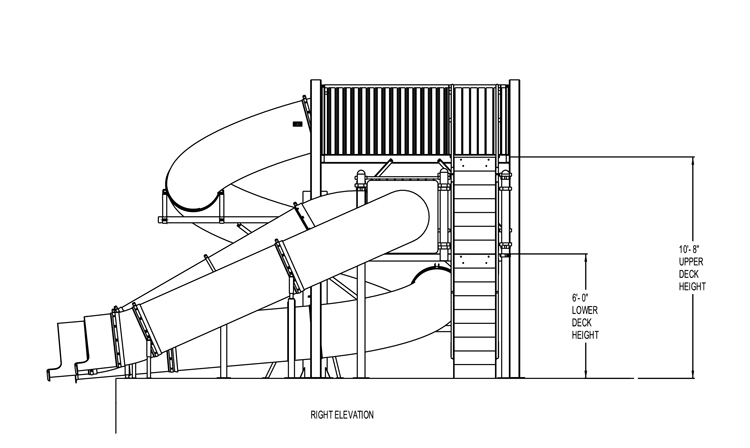

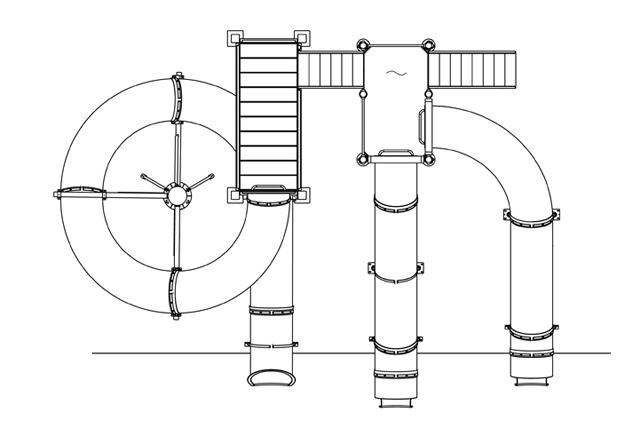

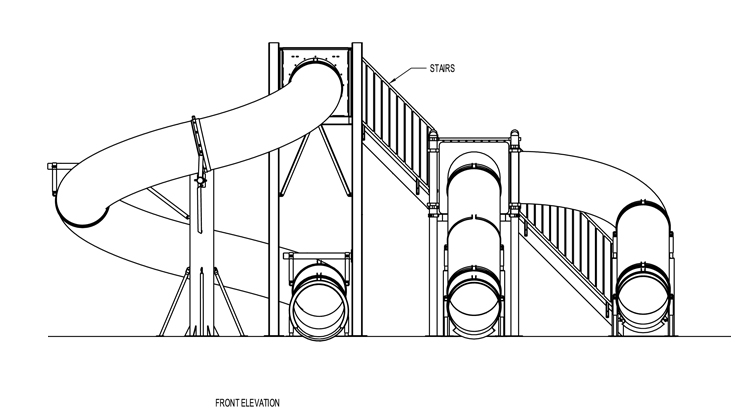

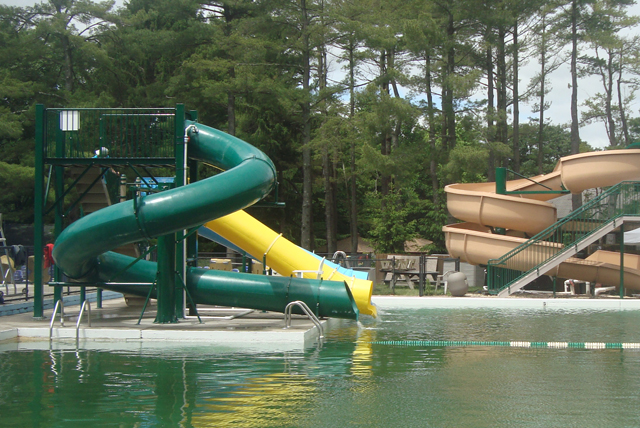

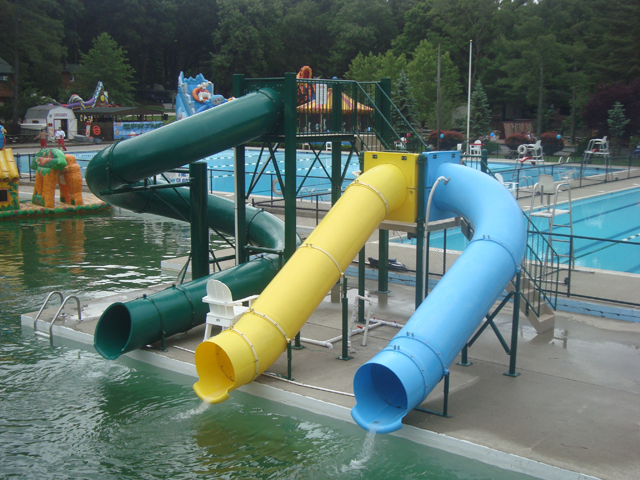

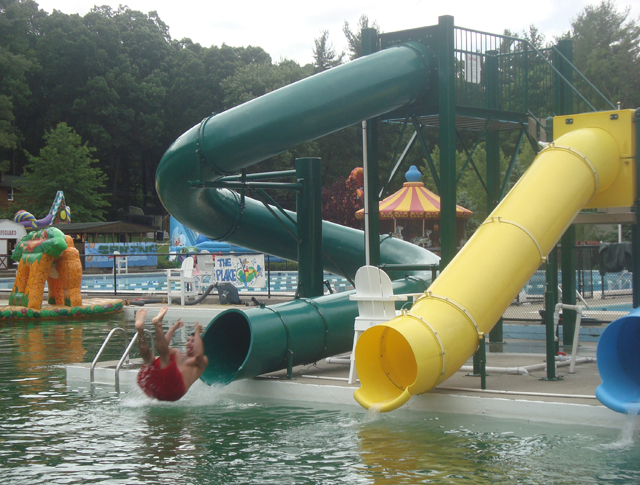

Triple Flume Water Slide
Model 9120

Description : Triple 30” I.D. polyethylene flume water slide.
Centerline Run : 49’ 2”, 16’ 5” and 20’ 5”
Entry Height : 11' 0" and 6' 6"
Platform Size : 4' x 10' and 4' x 6"
Space Requirements : 30’ 11” x 19’ 9” – Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flumes
Deck top mounted
Water flow required (each flume):
20 gpm recommended; 20 to 40 gpm required.
Splash down dimensions: 12’ 6” x 20’ 0"
Minimum water depth: 3' 6"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

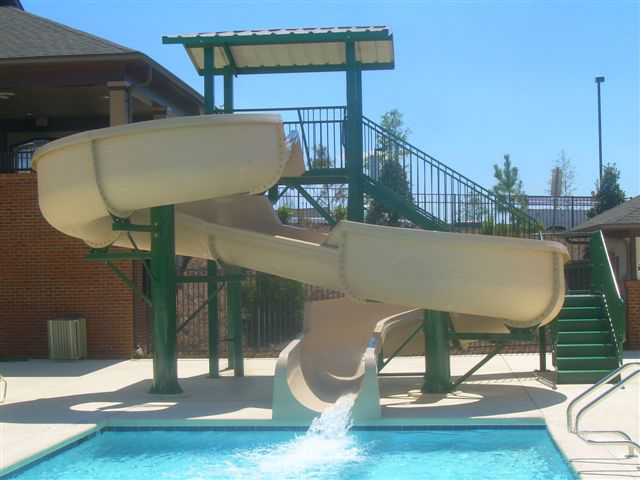

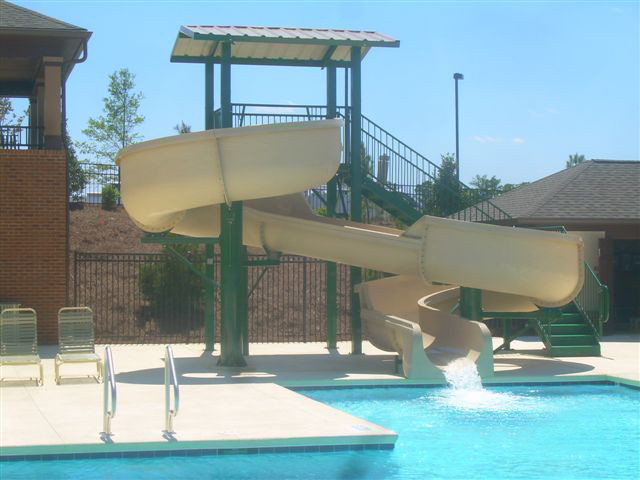

Fiberglass Water Slide
Model: 1820

Description : Single open flume fiberglass water slide featuring (2) 360° reverse curves.
Centerline Run : 78' 10"
Entry Height : 11' 1"
Platform Size : 6' x 6' or 6' x 8' (standard)
Space Requirements : 29' x 23' 1" – Space requirements may vary with options chosen.

36" inside diameter fiberglass water slide flume
600-800 gpm water flow required
Splash down dimension 13' x 20'
Minimum water depth: 3'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Fiberglass Water Slide
Model: 1921

Description : Single open flume fiberglass water slide featuring 1¾ turns.
Centerline Run : 69' 7"
Entry Height : 11' 8"
Platform Size : 6' x 6'
Space Requirements : 22' 2" x 17' 3" – Space requirements may vary with options chosen.

36" inside diameter fiberglass water slide flume
250-500 gpm water flow required
Splash down dimension 15' x 20'
Minimum water depth: 3'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

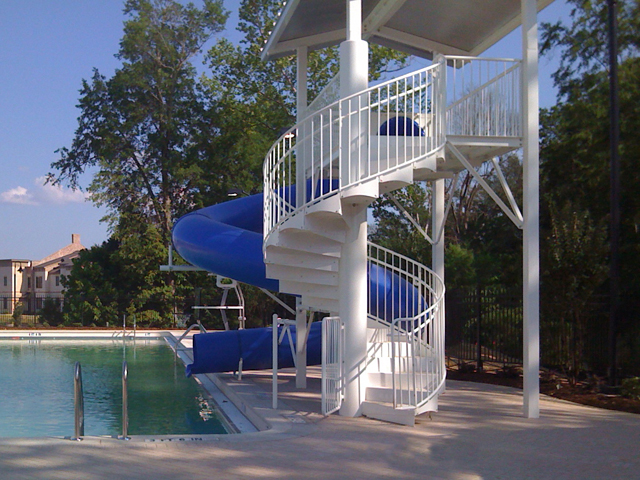

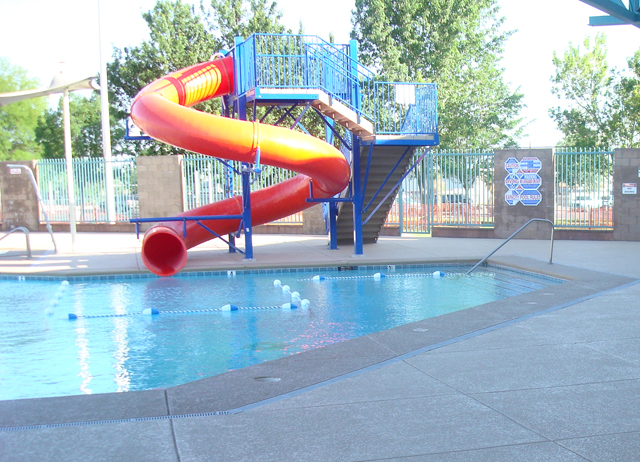

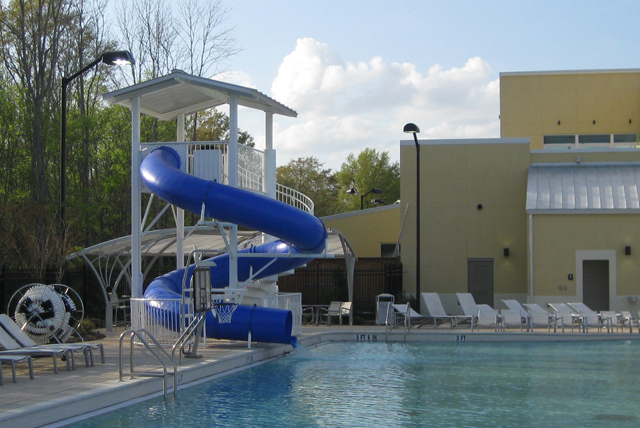

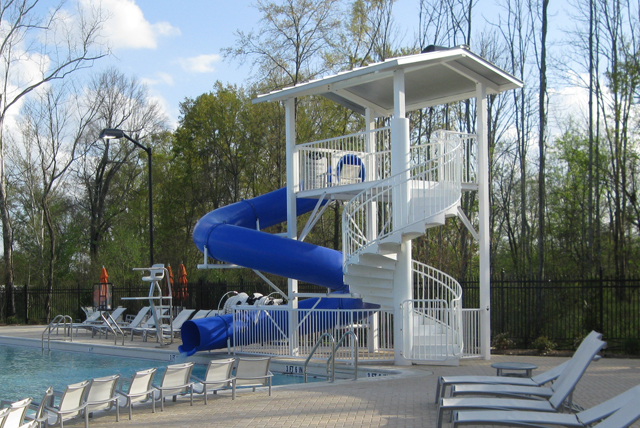

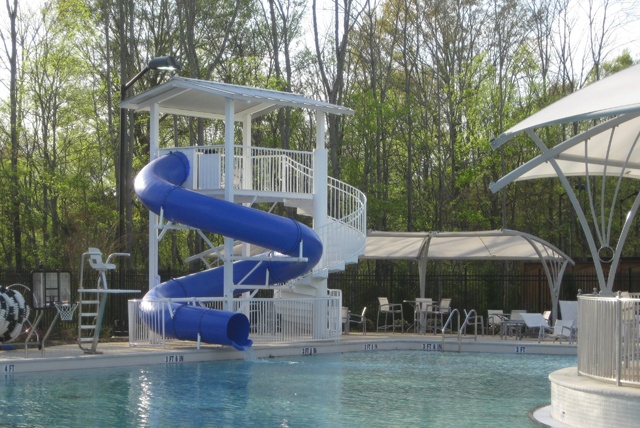

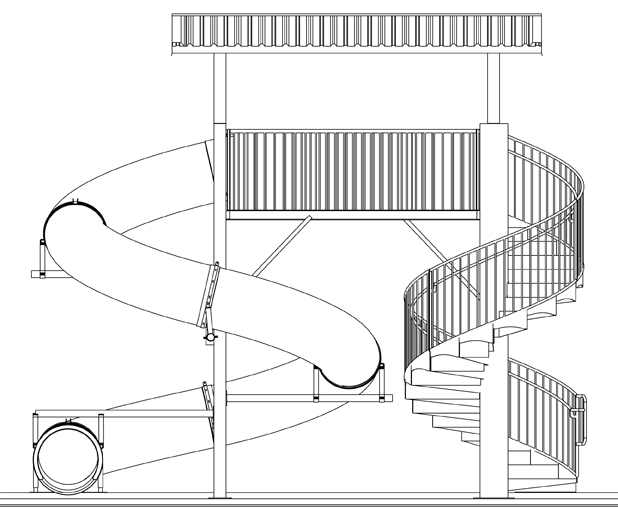

Sea Cobra Water Slide
Model 1616

Description : Single 30" I.D. flume water slide
with 1¼ turns.
Centerline Run : 53' 2"
Entry Height : 11' 7" or 12' 2"
Platform Size :4' x 8' or 8' x 8'
Space Requirements: 16' 3 " x 15' 10" – Space requirements vary with options chosen.

30" inside diameter polyethylene water slide flume
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20'
Minimum water depth: 3'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

48" wide stairs

Download Spec Sheet
Requires Adobe Acrobat

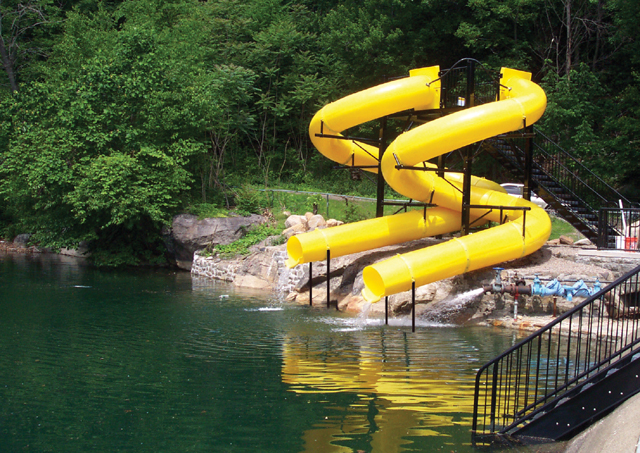

Double Flume Water Slide
Model 9433

Description : Double flume 30" I.D. polyethylene water slide, one 360 °
and one 1¼ turn.
Centerline Run : 64' 11" & 58' 2"
Entry Height : 12' 2 "
Platform Size : 8' x 12'
Space Requirements : 31' 9 " x 19' 10 " – Space requirements may vary with options chosen.

Double the flume - Double the action!

30" inside diameter polyethylene water slide flumes
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Splash down dimension 27' 6" x 20'
Minimum water depth: 3'

click on image to enlarge

Download Spec Sheet
Requires Adobe Acrobat

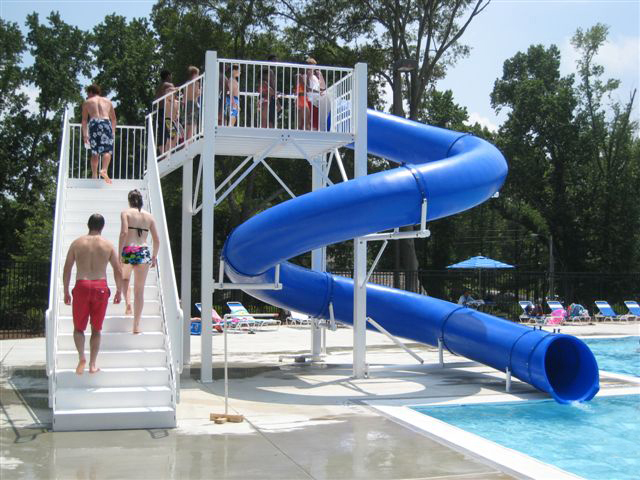

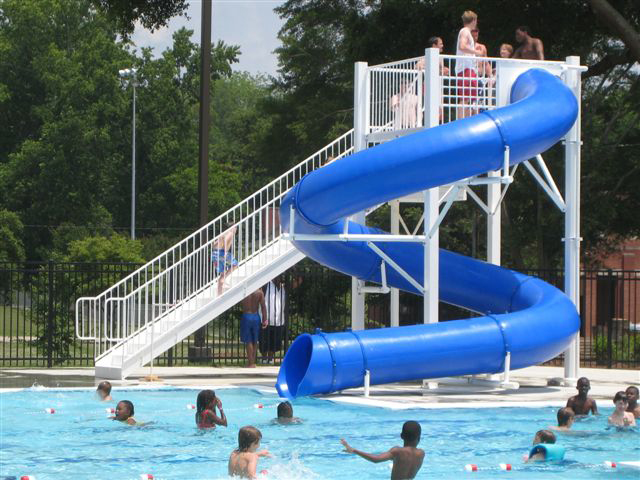

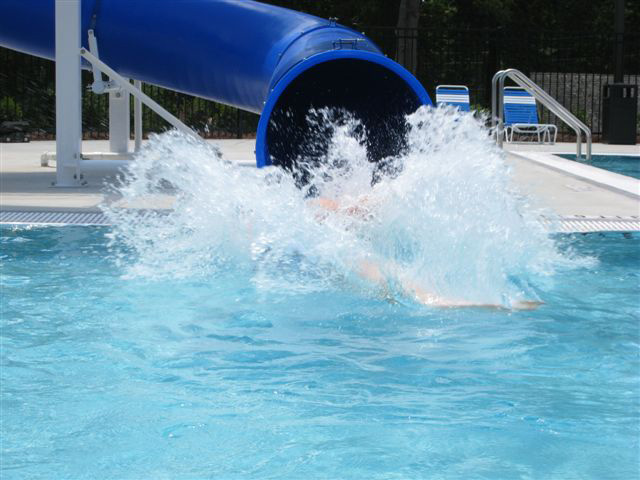

Water Slide
Model 1615

Description : Single 30" I.D. flume water slide
with 1¼ turns.
Centerline Run : 58' 2"
Entry Height : 12' 9"
Platform Size :
  · 48" wide stairs: 8' x 8'
  · 36" wide stairs: 4' x 8'
Space Requirements: Vary with options chosen.
  · 48" wide stairs: 20’ 6” x 21’ 11”
  · 36" wide stairs: 15' 3" x 22' 9"

"The pool and the slide are a huge hit. We are averaging over 300 a day during the week! Last year we averaged about 20-30 at the old pool."
C. Phillips, Newnan, GA
Director of Community Development

30" inside diameter polyethylene water slide flume
Optional 48" wide stairs
Deck top mounted
20 gpm water flow recommended; 20 to 40 gpm required
Splash down dimension 12' 6" x 20'
Minimum water depth: 3'

click on images to enlarge

48" wide stairs

Download Spec Sheet
Requires Adobe Acrobat

36" wide stairs

Download Spec Sheet
Requires Adobe Acrobat

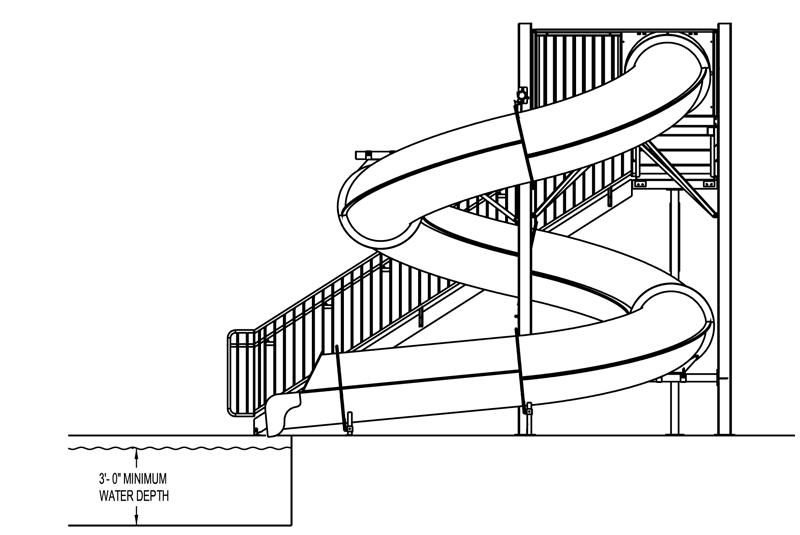

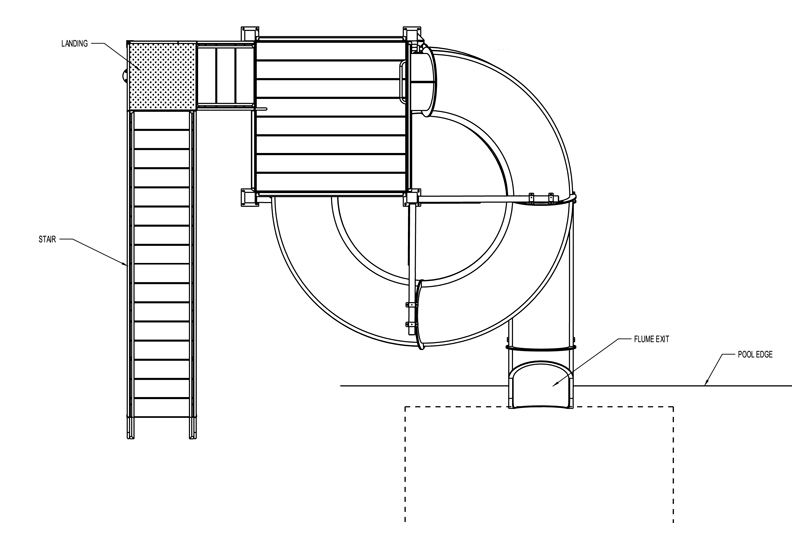

Closed Fiberglass Flume Water Slide
Model 1615-32

Description : Single 32" I.D.closed fiberglass flume water slide with 1¼ turns.
Centerline Run : 56' 8"
Entry Height : 12' 9"
Platform Size : 8' x 8'
Space Requirements: 21' 8" x 17' 2" - Varies with options chosen.

32" inside diameter closed fiberglass flume
40-60 gpm water flow required
Splash down dimension 12' 8" x 20' 0"
Minimum water depth: 3' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

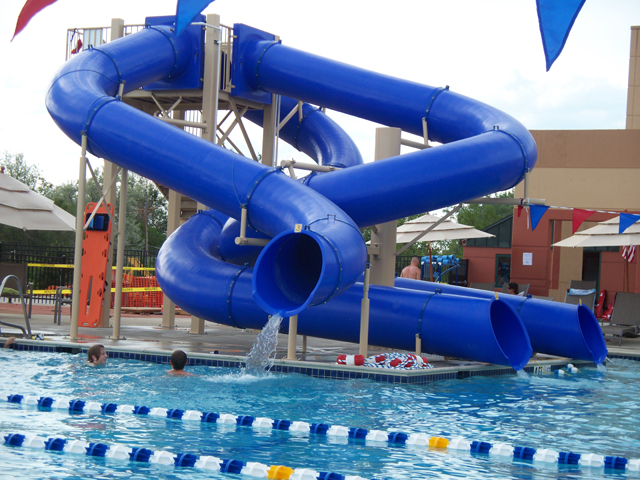

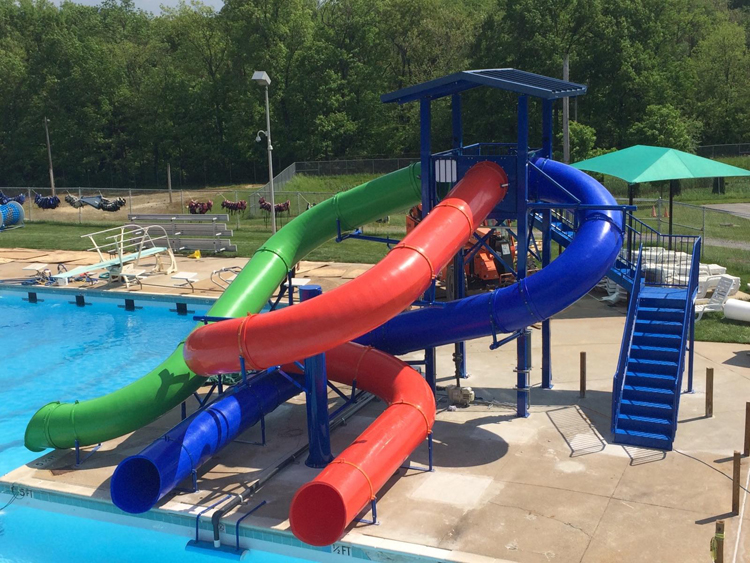

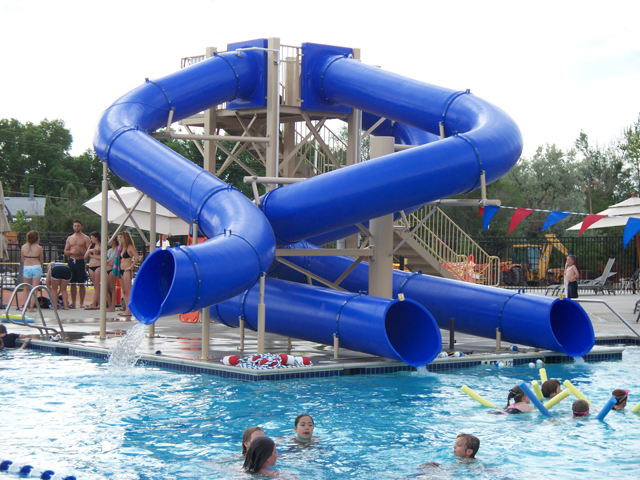

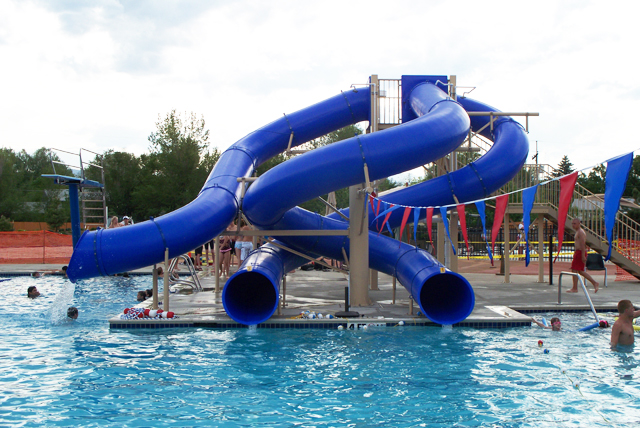

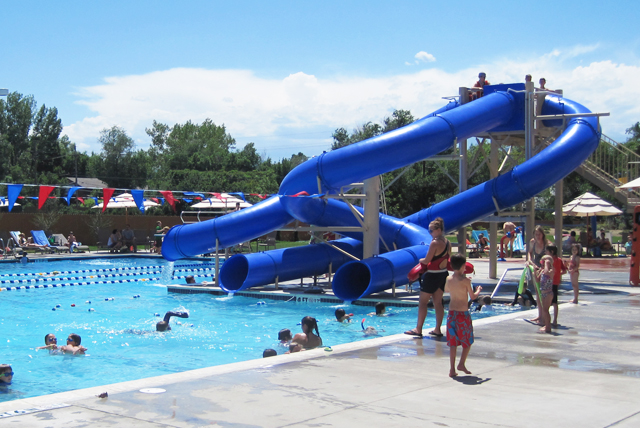

Triple Flume Water Slide
Model 1666

Description : Triple flume 30” I.D. polyethylene water slide, (1) 360°, (1) 180° and (1) 90° curves.
Centerline Run :
Blue flumes : 59’ 9”, 48’ 6” and 34’ 3”
Tri-color flumes : 57’ 5”, 44’ 11” and 33’ 8”
Entry Height : 12' 9"
Platform Size : 6' x 6'
Space Requirements : 33’ 2” x 28’ 7” – Space requirements may vary with options chosen.

CAN BE INSTALLED IN 3 PHASES !

30" inside diameter polyethylene water slide flumes
Deck top mounted
Water flow required (each flume):
20 gpm recommended; 20 to 40 gpm required.
Splash down dimensions:
Flumes 1 & 2: 20’ 1” x 20’ 0"; Flume 3: 12’ 6” x 20’ 0"
Minimum water depth:
Flumes 1 & 2: 3' 0";
Flume 3: Blue flume: 5' 6" or 9' 0"; Green flume: 5' 0"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Double Flume Water Slide
Model 1667

Description : Double flume 30" I.D. polyethylene water slide, one 360 °
and one "S" turn.
Centerline Run : 57' 5" & 44' 11"
Entry Height : 12' 9"
Platform Size : 8' x 8'
Space Requirements : 24' 10" x 28' 8-3/8" – Space requirements may vary with options chosen.

Double the flume - Double the action!

30" inside diameter polyethylene water slide flumes
20 gpm water flow (each flume) recommended; 20 to 40 gpm required
Splash down dimension 23' 2" x 20' 0"
Minimum water depth: 3' 0"

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Double Flume Water Slide
Model 1687

Description : Double 30” I.D. polyethylene flume water slide.
Centerline Run : 36’ 7” & 25’ 5”
Entry Height : 12’ 9” and 9’ 3”
Platform Size : 6’ x 8’ and 6’ x 6’
Space Requirements : 35’ 7” x 28’ 9” – Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flumes
Deck top mounted
Water flow required (each flume):
20 gpm recommended; 20 to 40 gpm required.
Splash down dimensions (each flume): 12’ 6” x 20’ 0"
Minimum water depth: 5' 6"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Double Polyethylene Flume Water Slide Model 1687 plan view

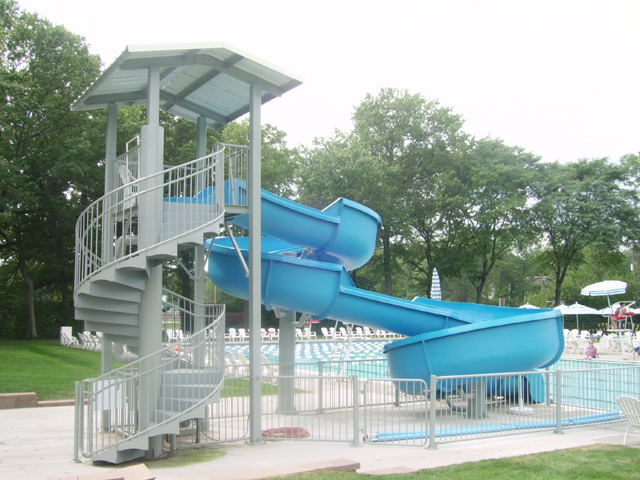

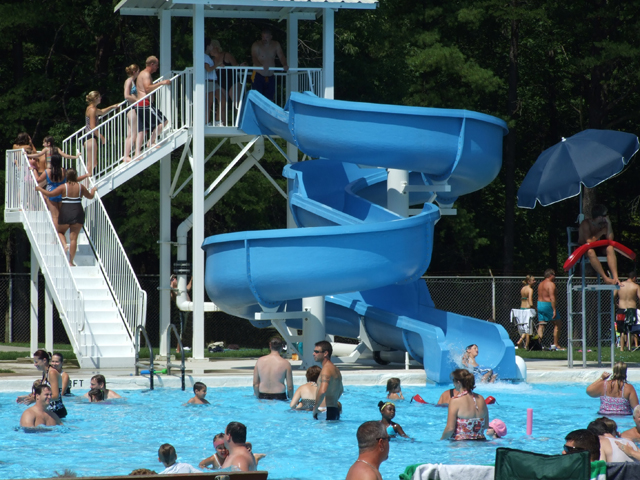

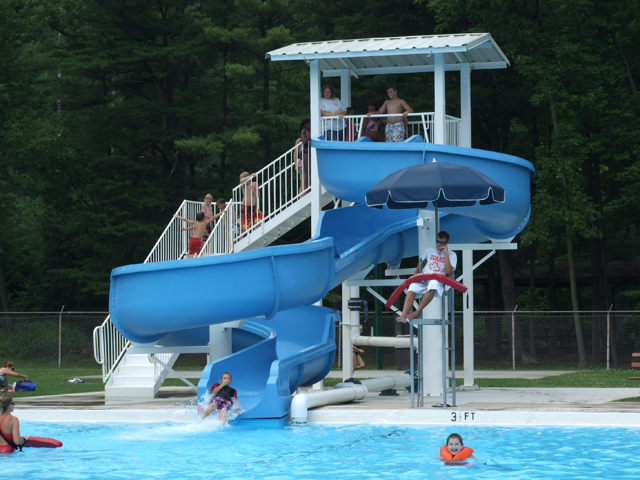

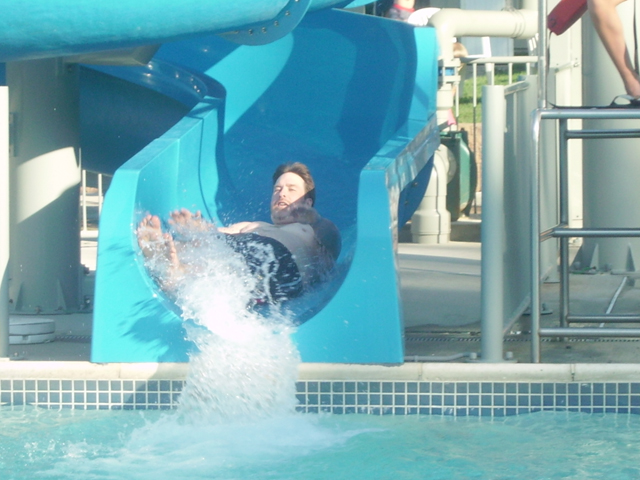

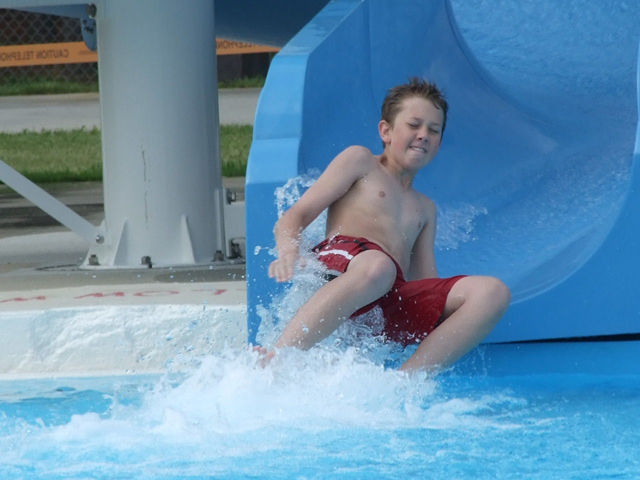

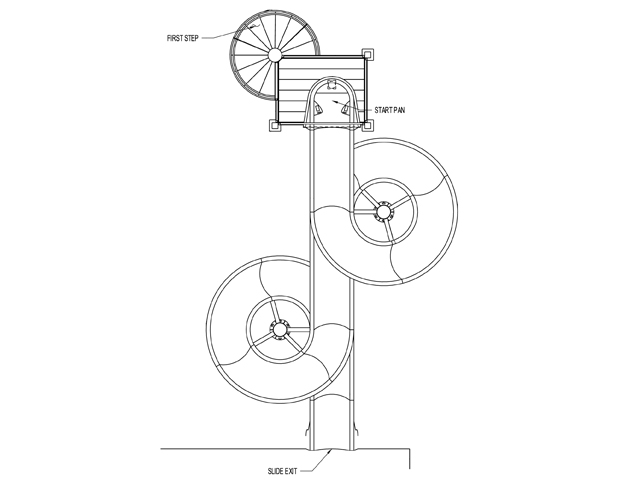

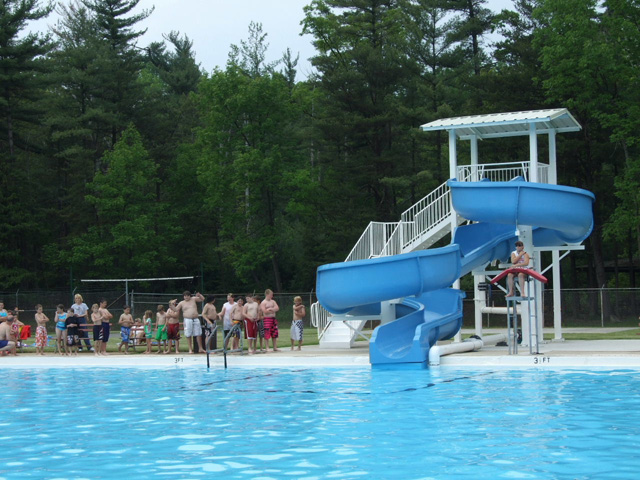

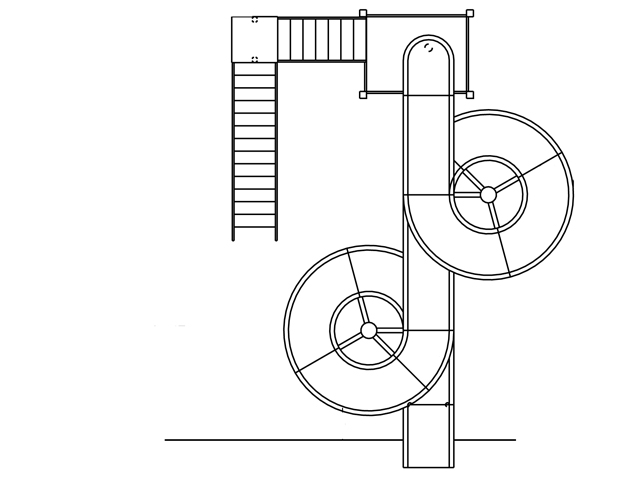

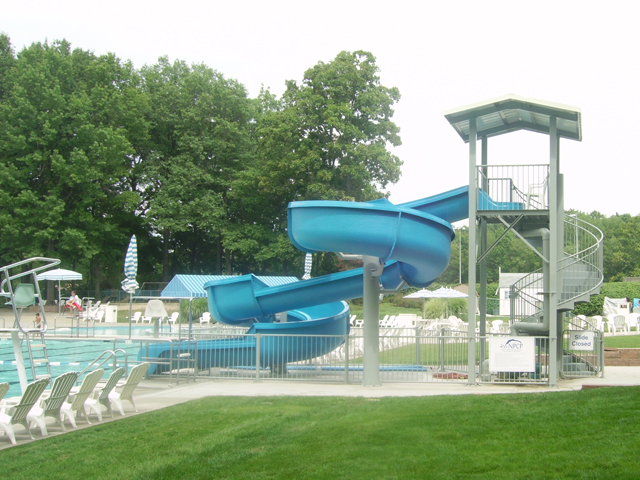

Fiberglass Water Slide
Model: 1822

Description : Single fiberglass open flume water slide with (2) 360° reverse curves.
Centerline Run : 85' 4 "
Entry Height : 12' 10 "
Platform Size : 6' x 8'
Deck Space Requirement: Varies with options chosen.
   "L" Stairs: 24' 10 " x 31' 3"
   "U" Stairs: 23' 10 " x 31' 8"
   "Spiral" Stairs: 21' 0" x 36' 9"

36" inside diameter fiberglass water slide flume
600-800 gpm water flow required
Splash down dimension 13' x 20'
Minimum water depth: 3'

click on images to enlarge

Download Spec Sheet
Requires Adobe Acrobat

Double Fiberglass Flume Water Slide
Model: 1860

Description : Double fiberglass flume water slide featuring: 36” I.D. open fiberglass flume (Flume 1) and 32” I.D. closed fiberglass flume (Flume 2).
Centerline Run : (1): 85’ 4” (2): 53’ 5”
Entry Height : (1): 12’ 3” (2): 12’ 10”
Platform Size : 6' x 10'
Space Requirements : 27' 4 " x 39' 7 "–Space requirements may vary with options chosen.

32" inside diameter closed fiberglass flume
36" inside diameter open fiberglass flume
Water flow required (each flume):
Open (Flume 1): 600-800 gpm;
Closed (Flume 2): 20 to 40 gpm required.
Splash down dimension 28' 0"x 20' 0"
Minimum water depth: 3' 0"

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Water Slide Model 1860 Combination Flume Water Slide
Model: 1860

Description : Double flume water slide featuring (1) polyethylene closed flume with 90° curve and (1) fiberglass open flume water slide with (2) 360° spirals.
Centerline Run : Fiberglass (open) 85' 4 "
Poly (closed) 55' 1"
Entry Height : 12' 10 "
Platform Size : 6' x 8'
Space Requirements : 25' 10 " x 31' 9 "–Space requirements may vary with options chosen.

30" inside diameter polyethylene water slide flume
36" inside diameter fiberglass water slide flume
Water flow required (each flume):
Open: 600-800 gpm;
Closed: 20 gpm water flow recommended; 20 to 40 gpm required.
Splash down dimension 27' x 20'
Minimum water depth: 3'

Download Spec Sheet
Requires Adobe Acrobat

click on images to enlarge

Fiberglass Water Slide
Model: 1922

Description : Single, open flume fiberglass slide with 1½ spiral turns.
Centerline Run : 93' 3"
Entry Height : 13' 5"
Platform Size : 5' x 5'
Space Requirements: 25' 7" x 24' 8" - Varies with options chosen.
