Quality Since 1976!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • 1845
    Fiberglass Flume Water Slide Model 1845
  • 1881
    Combination Flume Water Slide Model 1881
  • 1837
    Double Fiberglass Flume Water Slide Model 1837
  • 1873
    Double Fiberglass Flume Water Slide Model 1873
  • 1644
    Triple Flume Water Slide Model 1644
  • 1884
    Combination Flume Water Slide Model 1884
  • 1636
    Polyethylene Flume Water Slide Model 1636
  • 1641
    Double Flume Water Slide Model 1641
  • 1914
    Combination Flume Water Slide Model 1914
  • 1918
    Combination Flume Water Slide Model 1918
  • 1632
    Polyethylene Flume Water Slide Model 1632
  • 2047
    Triple Flume Fiberglass Water Slide with Exit Lanes Model 2047
  • 1850
    Fiberglass Speed Slide Water Slide Model 1850
  • 1841
    Double Fiberglass Flume Water Slide Model 1841
  • 1851
    Fiberglass Speed Slide Water Slide Model 1851
  • 1896
    Combination Flume Water Slide Model 1896

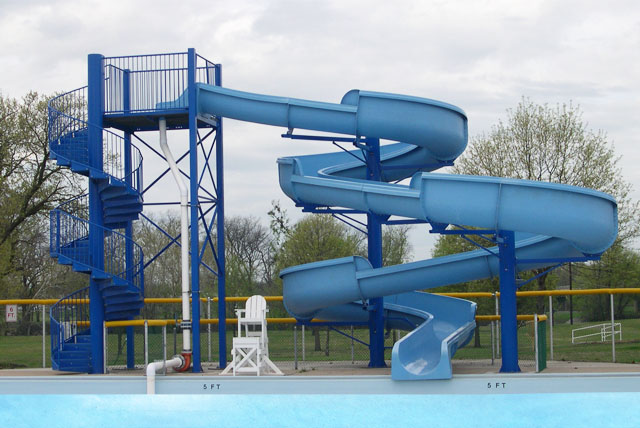

Fiberglass Water Slide Model 1845Fiberglass Water Slide
Model: 1845

Description : Single open flume fiberglass water slide featuring (3) 270° reverse curves.
Centerline Run : 144' 8"
Entry Height : 20' 5"
Platform Size : 8' x 8'
Space Requirements : 44' 1" x 22' 0" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • 600-800 gpm water flow required
  • Splash down dimension: 13' x 20'
  • Minimum water depth: 3'
  • USA Made

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

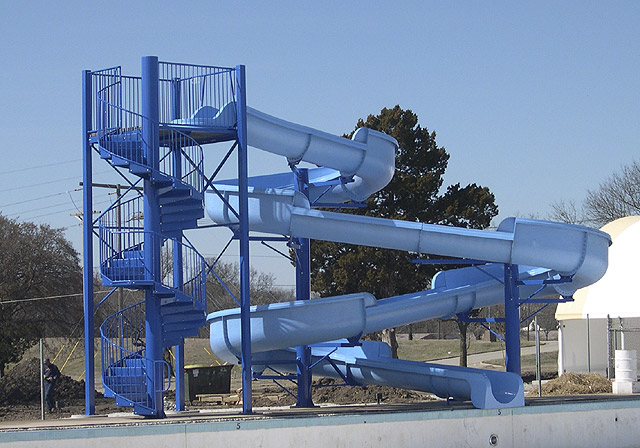

Fiberglass Water Slide Model 1845

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

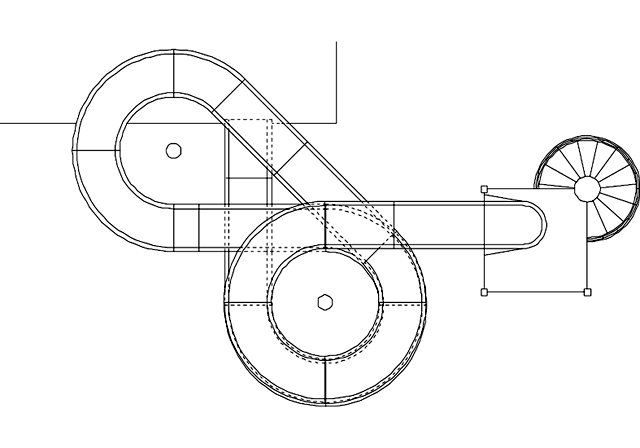

Fiberglass Water Slide Model 1845 plan view

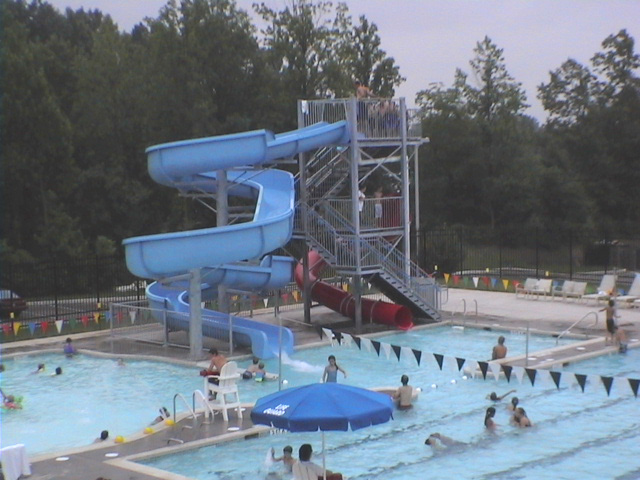

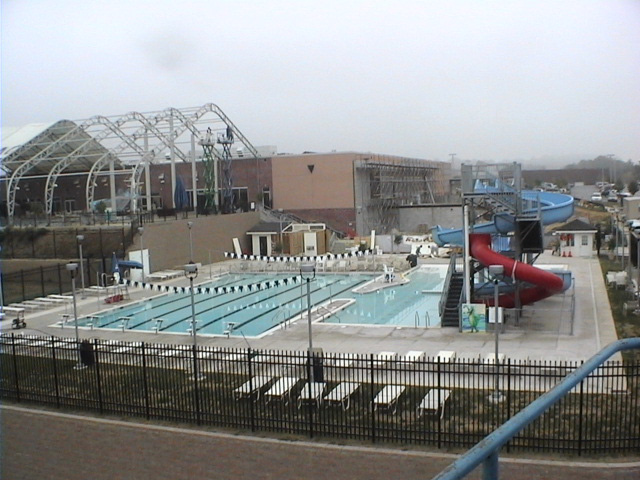

Combination Flume Water Slide Model 1881Combination Flume Water Slide
Model: 1881

Description : Double flume 36" fiberglass water slide and 30" polyethylene I.D. combination water slide featuring (3) 270° reverse curves (fiberglass) and (1) 270° turn (poly).
Centerline Run : Fiberglass (open) 145' 9"
Poly (closed) 42' 11"
Entry Height : Poly: 10' 6" Fiber: 20' 5"
Platform Size : 8' x 8'
Space Requirements : 21' 2 " x 53' 3" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass open flume water slide
  • 30" inside diameter polyethylene closed flume water slide
  • Water flow required: Open: 600-800 gpm; Closed: 20 gpm water flow recommended; 20 to 40 gpm required.
  • Splash down dimension: 43' 5" x 20'
  • Minimum water depth: 3'

click on images to enlarge

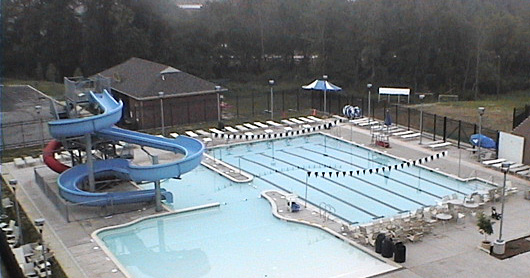

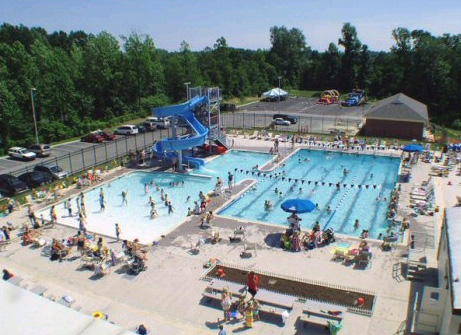

Combination Flume Water Slide Model 1881Combination Flume Water Slide Model 1881 Combination Flume Water Slide Model 1881

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

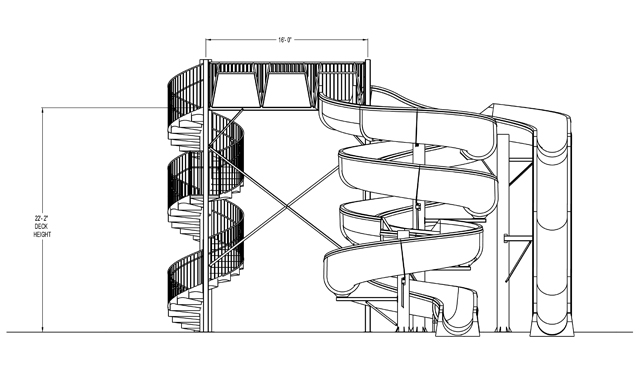

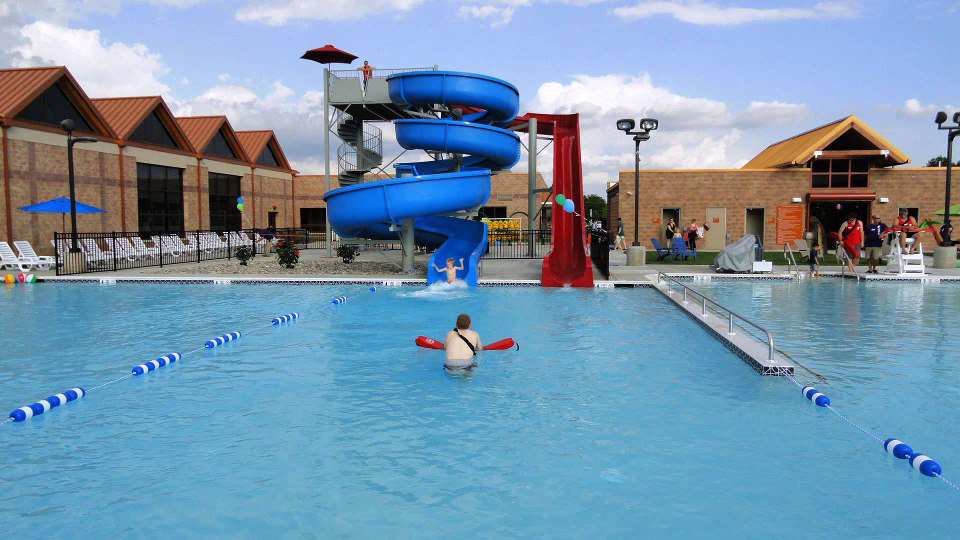

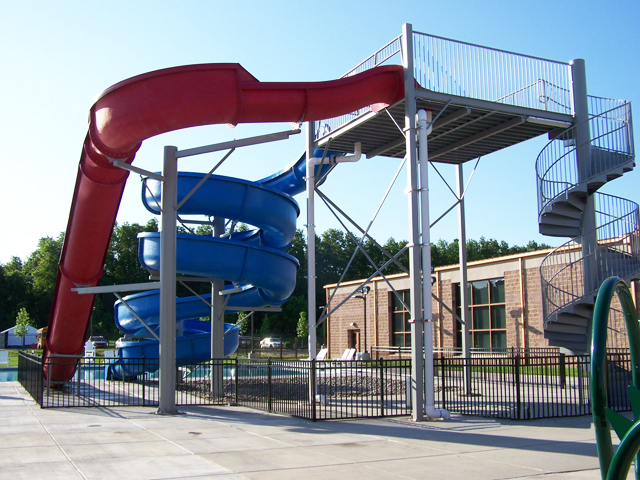

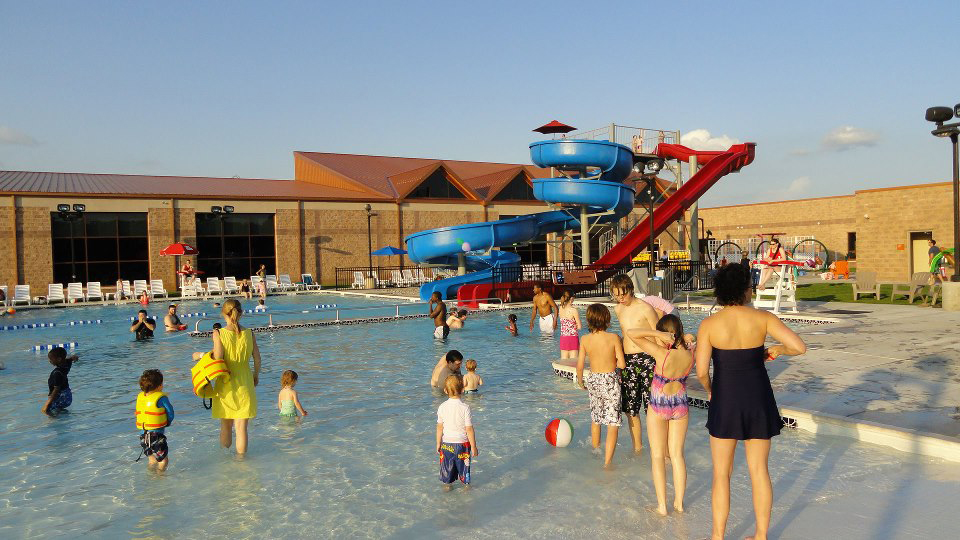

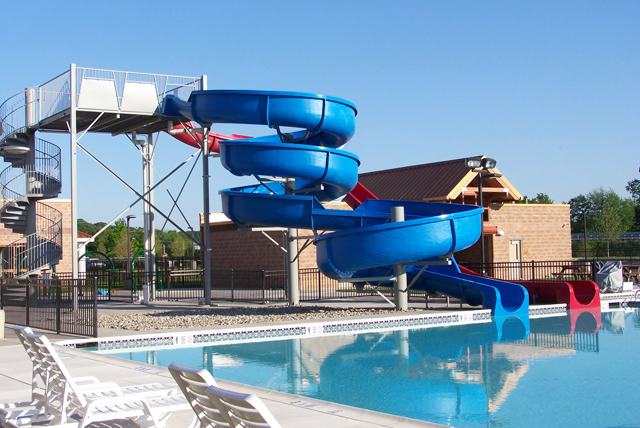

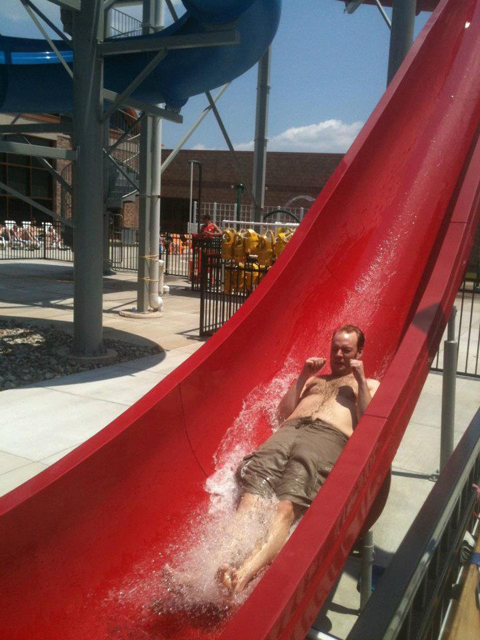

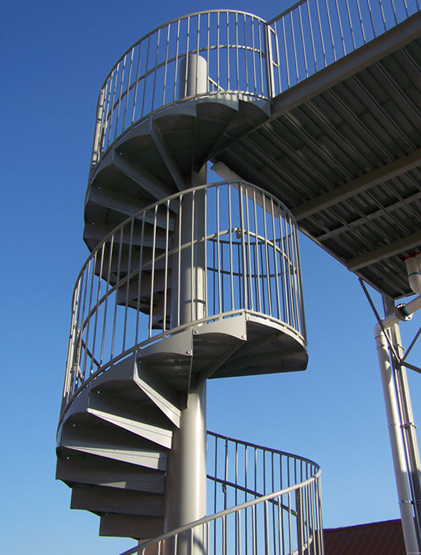

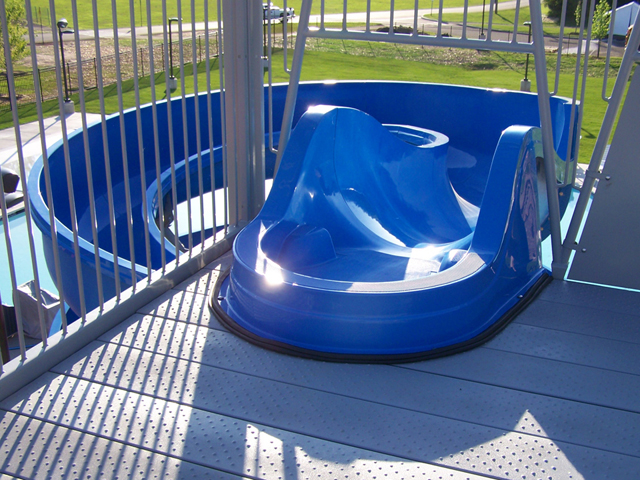

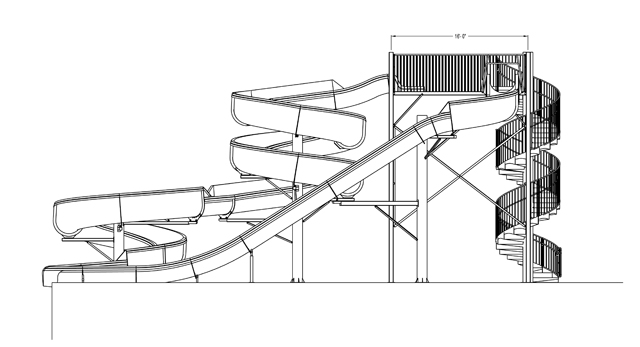

Double Fiberglass Water Slide Model 1837 Spiral StairsFiberglass Water Slide
Model: 1837

Description : Open flume body slide featuring figure 8, 360° curves and open flume 90° speed slide.
Centerline Run : Body 160' 11"; Speed 76' 5"
Entry Height : 22' 2"
Platform Size : 16' x 16'
Space Requirements : Vary with options chosen.
    Phase 1: 39' 11" x 59' 6" (shown)
    Phase 2: 49'   1" x 59' 6"

  • 36" inside diameter fiberglass water slide flumes
  • Water flow required: Body: 600-800 gpm; Speed: 150-200 gpm
  • Splash down dimension: Phase 1: 22' 3' x 20' 0"; Phase 2: 56' 2" x 20' 0"
  • Minimum water depth: 3'

click on images to enlarge

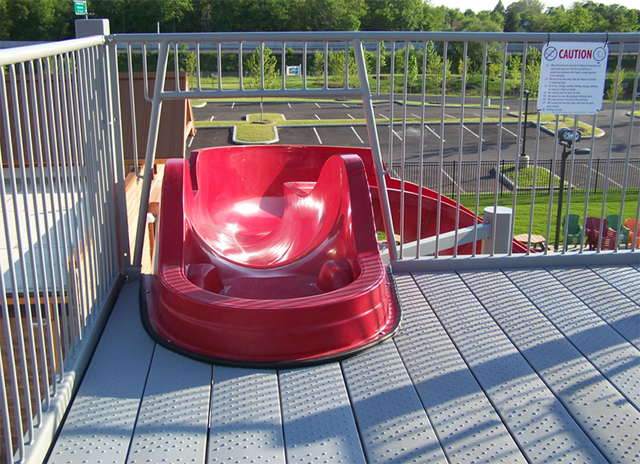

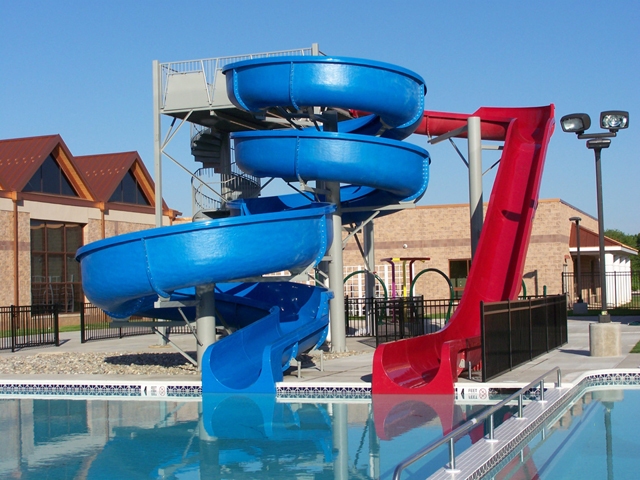

Double Fiberglass Water Slide Model 1837 Double Fiberglass Water Slide Model 1837 Double Fiberglass Water Slide Model 1837 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

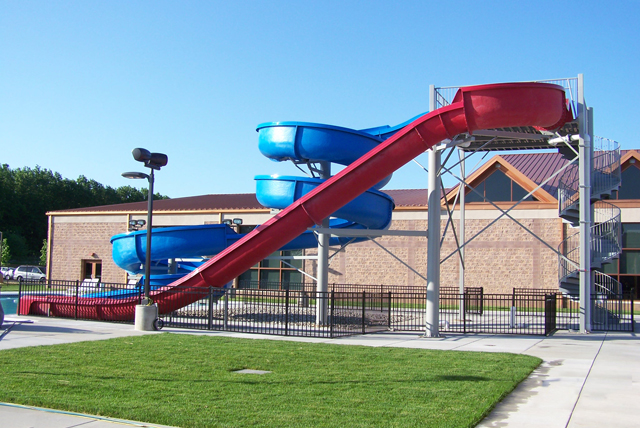

Double Fiberglass Water Slide Model 1837 Double Fiberglass Water Slide Model 1837 Double Fiberglass Water Slide Model 1837 Double Fiberglass Water Slide Model 1837 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

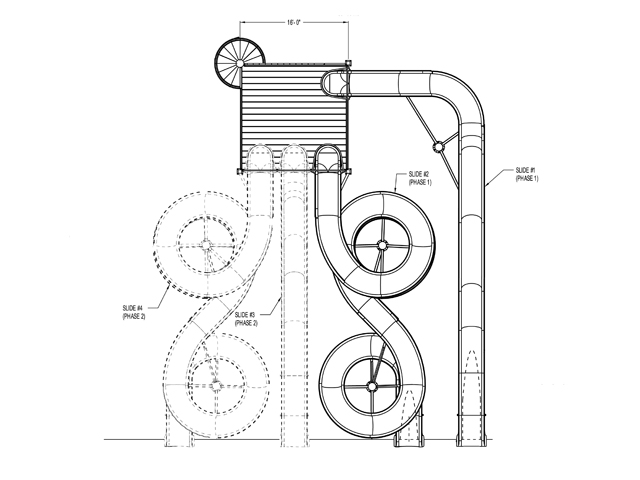

Double Fiberglass Water Slide Model 1837Double Fiberglass Water Slide Model 1837Double Fiberglass Water Slide Model 1837Double Fiberglass Water Slide Model 1837Double Fiberglass Water Slide Model 1837 plan view

CAN BE INSTALLED IN 2 PHASES !

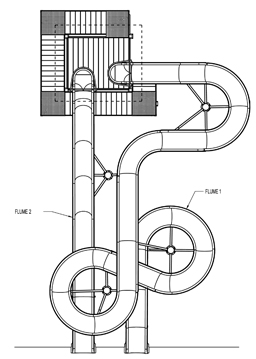

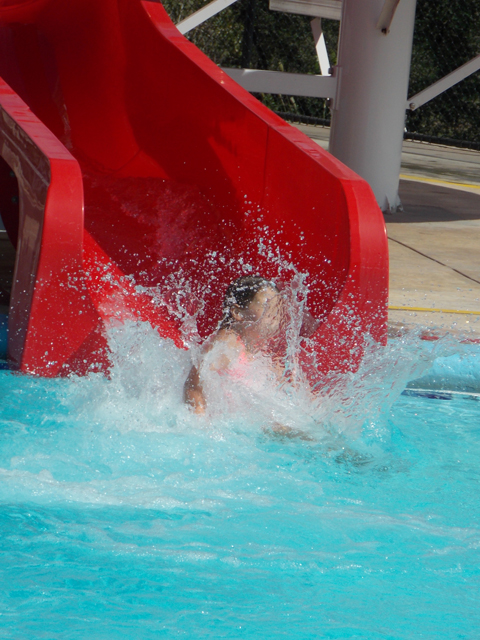

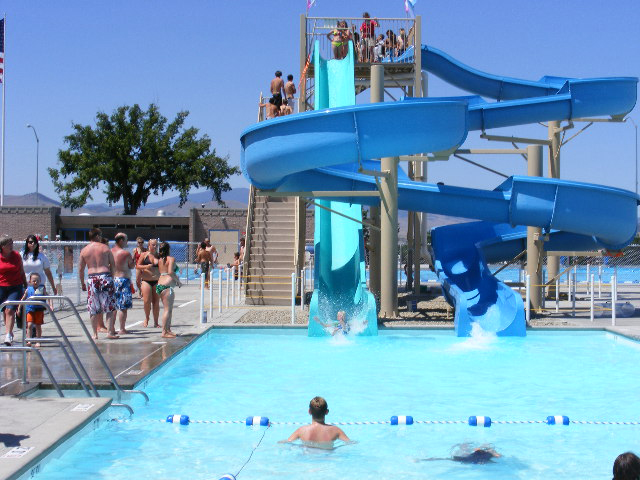

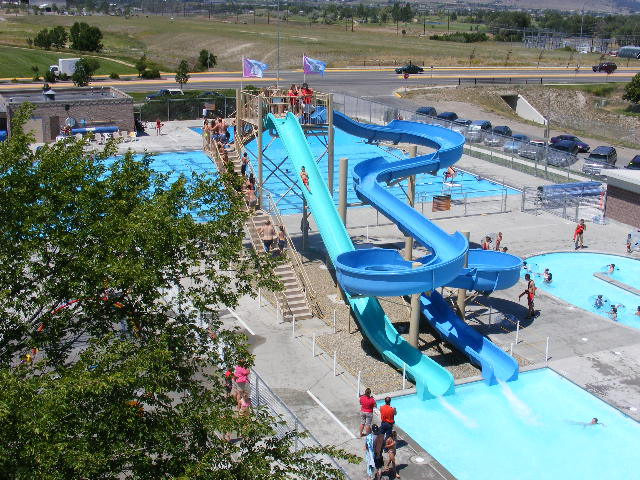

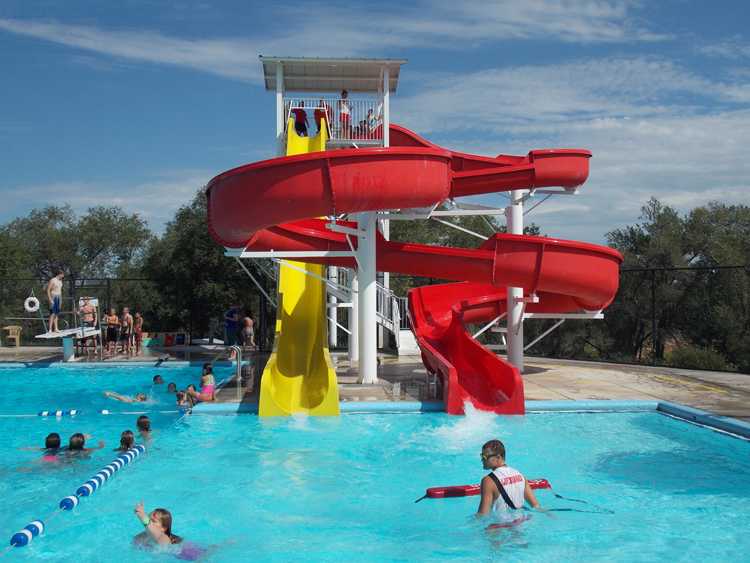

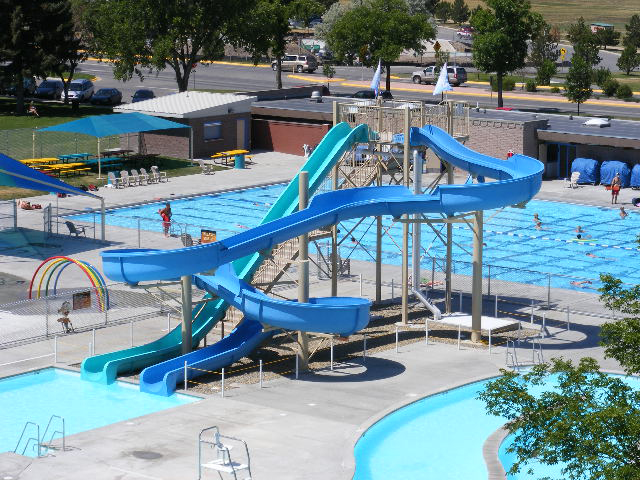

Fiberglass Water Slide Model 1873Fiberglass Water Slide Model 1873Fiberglass Water Slide
Model: 1873

Description : Single open flume fiberglass body water slide featuring featuring (1) 180° and (2) 360° reverse curves and fiberglass speed slide water slide.
Centerline Run : Body 164' 10"; Speed 59' 0"
Entry Height : 22' 9"
Platform Size : 10' x 12'
Space Requirements : 36' 10" x 60' 2 " – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • Water flow required: Body: 600-800 gpm; Speed: 150-200 gpm
  • Splash down dimension: 23' x 35'
  • Minimum water depth: 3'

click on images to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

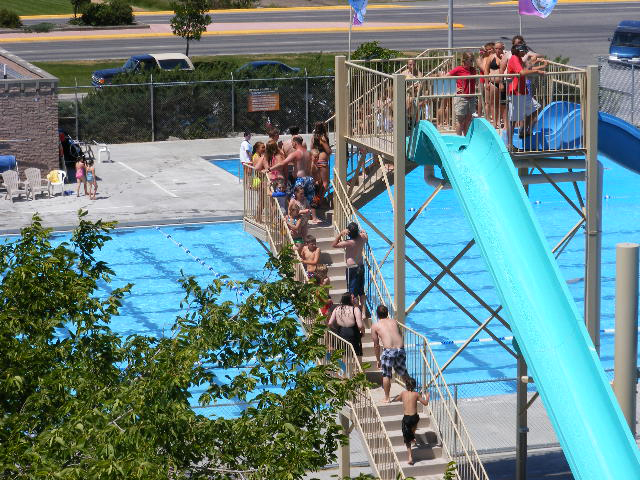

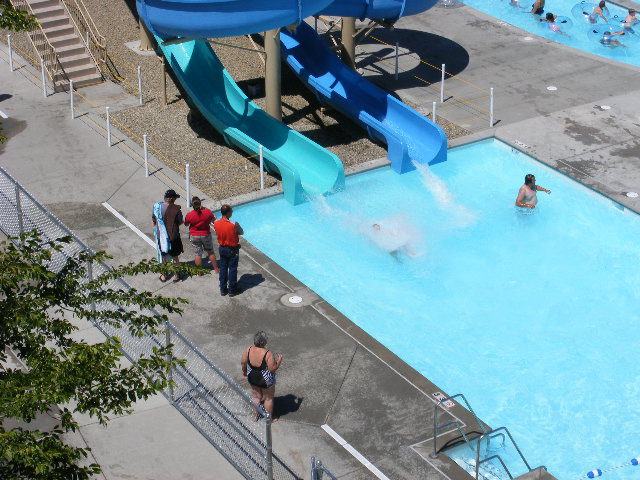

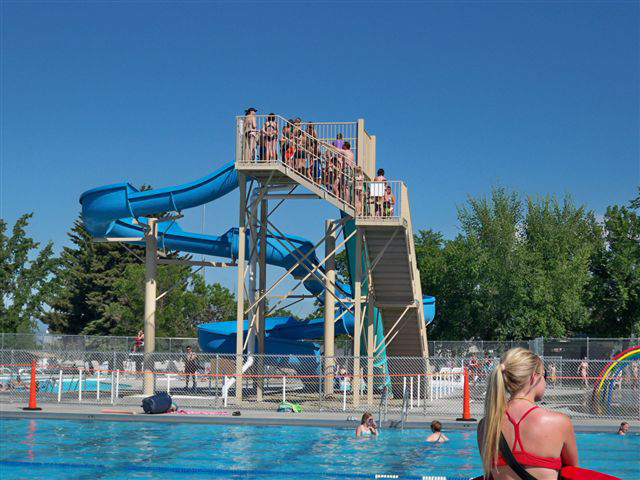

Fiberglass Water Slide Model 1873 Fiberglass Water Slide Model 1873

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

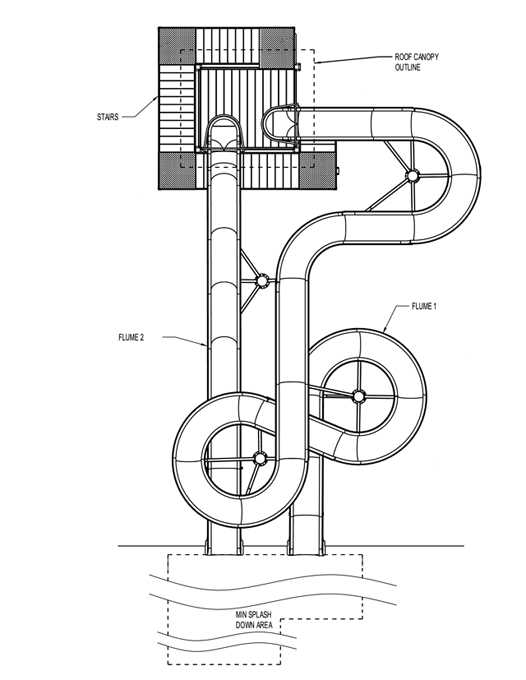

Fiberglass Water Slide Model 1873 Fiberglass Water Slide Model 1873Fiberglass Water Slide Model 1873 Fiberglass Water Slide Model 1873 Fiberglass Water Slide Model 1873 Fiberglass Water Slide Model 1873 Fiberglass Water Slide Model 1873 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

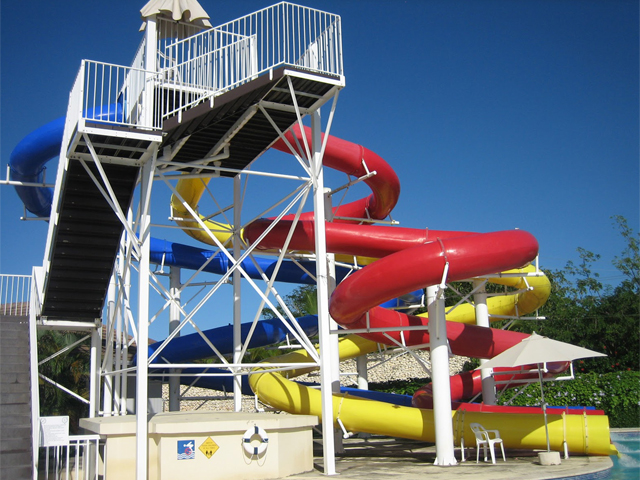

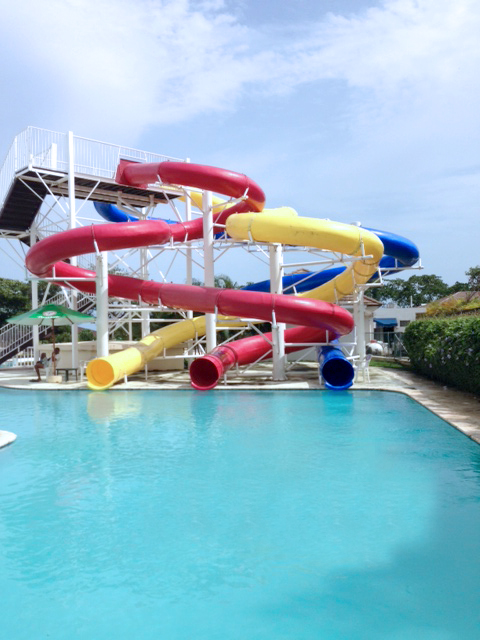

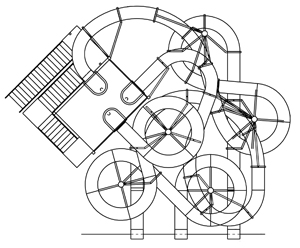

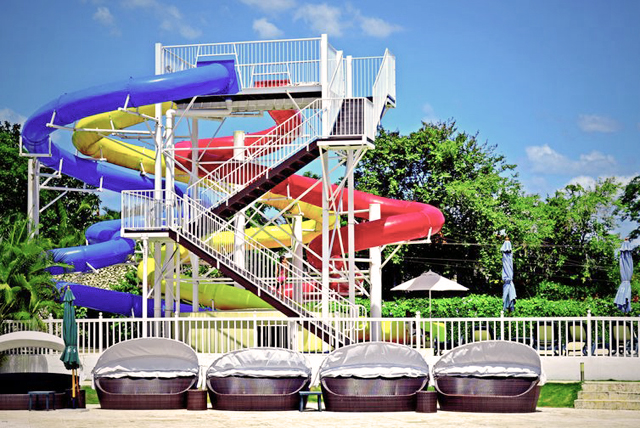

Triple Flume Water Slide Model 1644Triple Polyethylene Flume Water Slide
Model 1644

Description : Triple flume 30” I.D. polyethylene slide featuring Cloverleaf, Switchback and Figure 8 curves.
Centerline Run : 144’ 3”, 130’ 11” and 160’ 0”
Entry Height : 23' 11"
Platform Size : 8' x 12'
Water Depth : 3’ 0” (within 6” of water level)
Space Requirements : Vary with options chosen.
     • 1' Overhang: 58' 7" x 46’ 10"
     • 3' Overhang: 58' 7" x 44’ 10"

  • 30" inside diameter polyethylene water slide flume
  • 50 gpm water flow (each flume) recommended.
  • Splash down dimension: 22’ 5” x 20’ 0”
  • Minimum water depth: 3’ 0” (within 6” of water level)

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

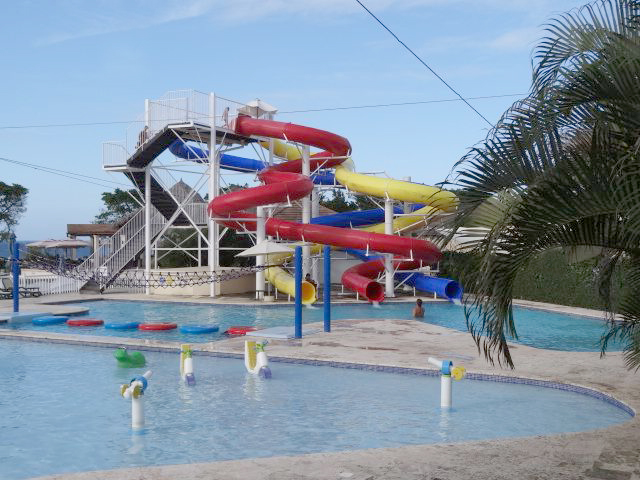

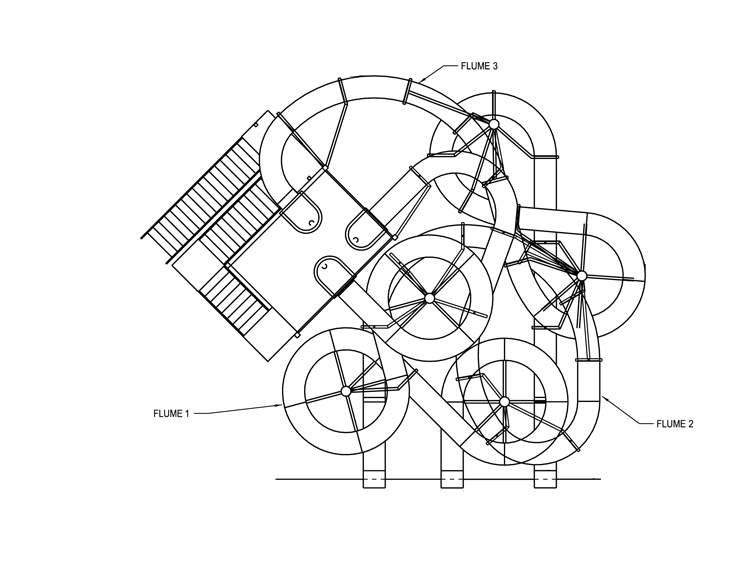

Triple Flume Water Slide Model 1644 Triple Flume Water Slide Model 1644 Triple Flume Water Slide Model 1644 Triple Flume Water Slide Model 1644 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

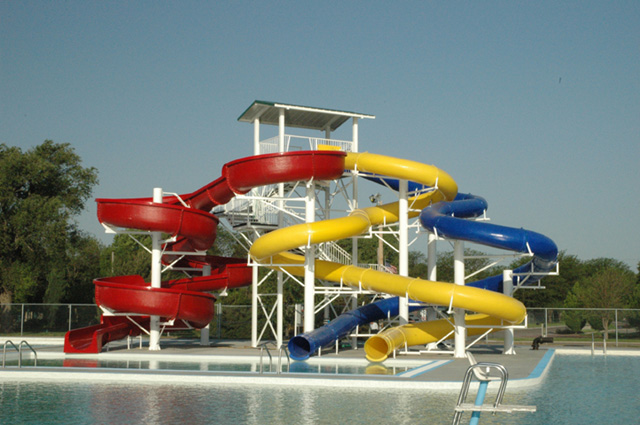

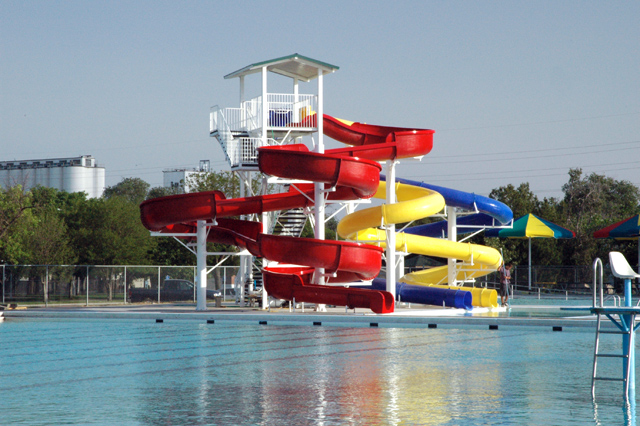

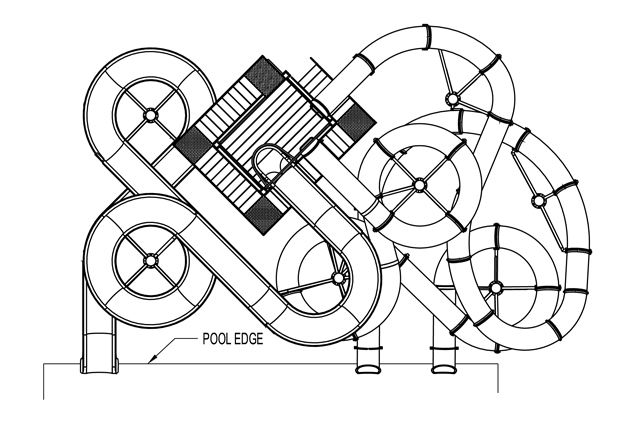

Combination Flume Water Slide Model 1884Combination Flume Water Slide
Model: 1884

Description : Triple flume fiberglass water slide and polyethylene combination water slide.
Centerline Run : Fiberglass (open) 186' 0"'
Poly (closed) (1) 145' 0"; (2) 130' 10"
Entry Height : 23' 11"
Platform Size : 8' x 12'
Space Requirements : 57' 7" x 41' 3 "– Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass open flume water slide
  • 30" inside diameter polyethylene closed flume water slide
  • Water flow required (each flume):
    Open: 600-800 gpm; Closed: 50 gpm recommended; 30 to 60 gpm required
  • Splash down dimension: 42' x 20'
  • Minimum water depth: 3'

click on images to enlarge

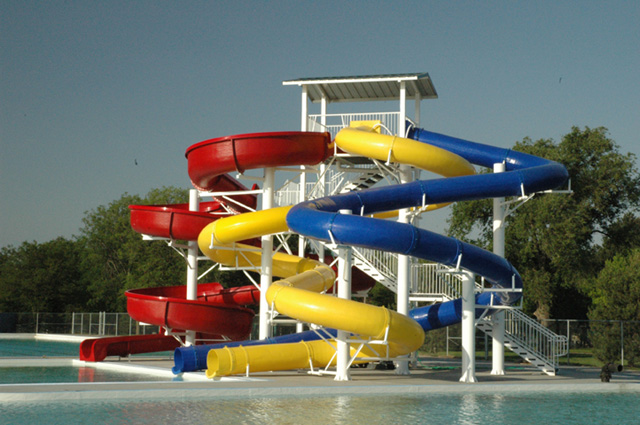

Combination Flume Water Slide Model 1884 Combination Flume Water Slide Model 1884 Combination Flume Water Slide Model 1884 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

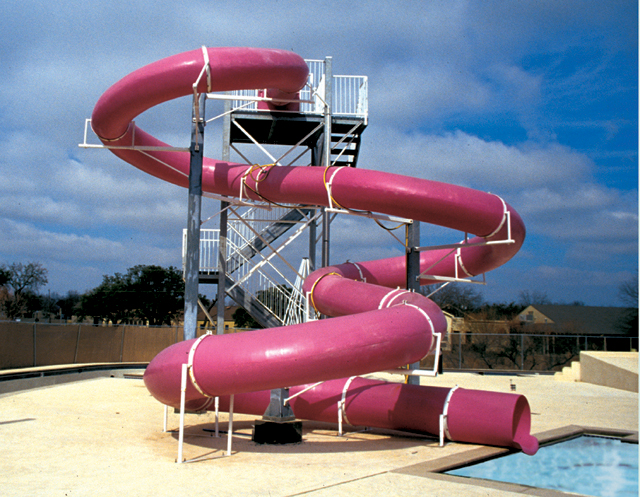

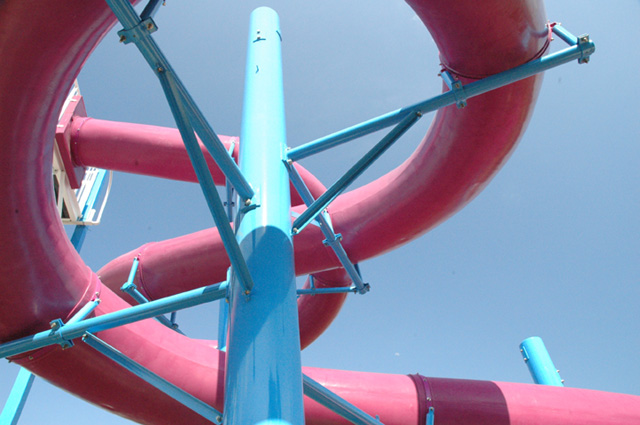

Polyethylene Flume Water Slide Model 1636Shamrock Water Slide
Model 1636

Description : Single 30" I.D. flume water slide with three turns in a cloverleaf.
Centerline Run : 145' 0"
Entry Height : 24' 5"
Platform Size : 8' x 8'
Space Requirements : 38' 4" x 34' 7" – Space requirements may vary with options chosen.

Can be ordered as phase 1 of Water Slide Model 1641 or Water Slide Model 1884.

  • 30" inside diameter polyethylene water slide flume
  • 50 gpm water flow recommended; 30 to 60 gpm required
  • Self-enclosed recirculating system (no pool required)
  • Exit Lanes
  • Pool application also available
  • Splash down dimension: 12' 6" x 20' (when used in pool application without exit lanes)
  • Minimum water depth: 3' (for pool applications)

click on images to enlarge

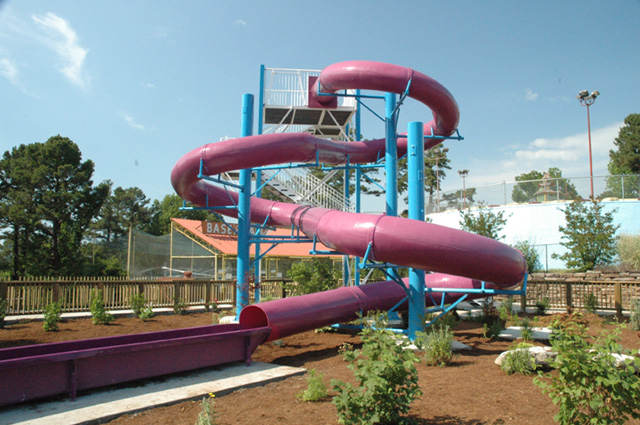

Polyethylene Flume Water Slide Model 1636

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Polyethylene Flume Water Slide Model 1636

Recirculating System - NO POOL REQUIRED!

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

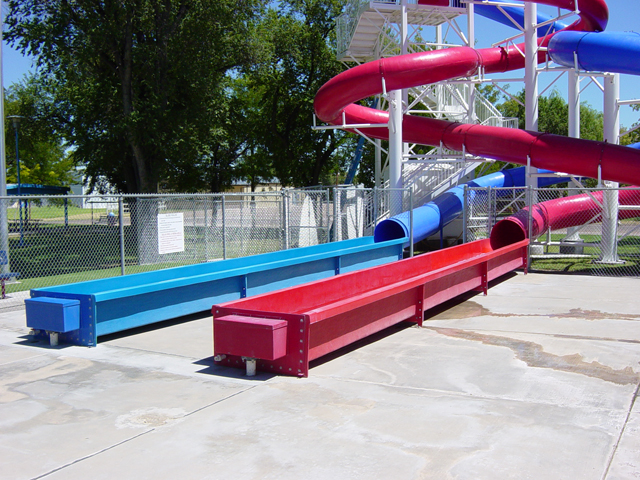

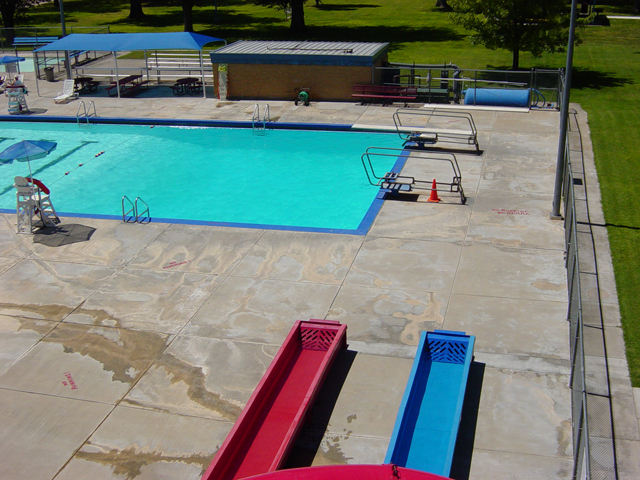

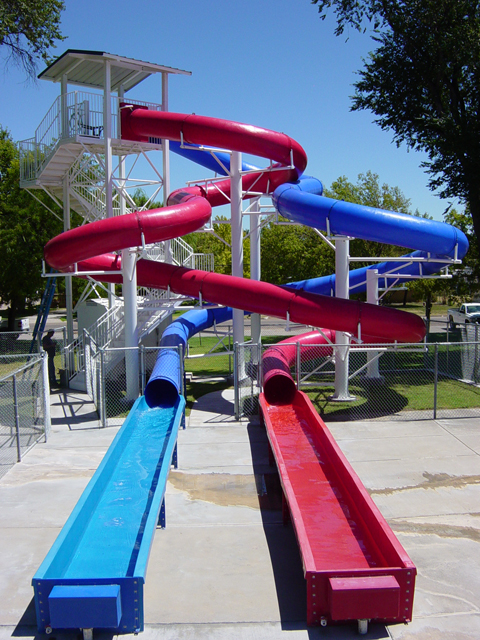

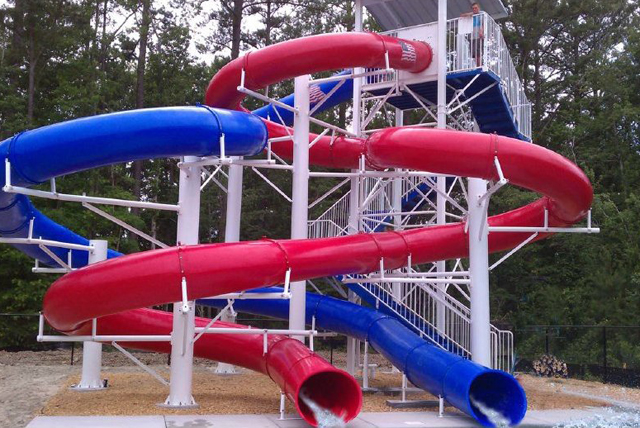

Double Polyethylene Flume Water Slide Model 1641Double Polyethylene Flume Water Slide
Model 1641

Description : Double 30" I.D. flume waterslides combining “S" curves and 360 ° turns, with fiberglass exit lanes.
Centerline Run : 145' 0" & 130' 11"
Entry Height : 24' 5"
Platform Size : 8' x 8'
Space Requirements : Vary with options chosen.
    With Exit Lanes: 43' 6" x 69' 11"
    Pool Application : 42' 1" x 38' 8"

  • 30" inside diameter polyethylene water slide flume
  • 50 gpm water flow (each flume) recommended; 30 to 60 gpm required
  • Self-enclosed recirculating system (no pool required)
  • Exit lanes
  • Pool application also available
  • Splash down dimension: 21' x 20' (for pool applications)
  • Minimum water depth: 3' (for pool applications)

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

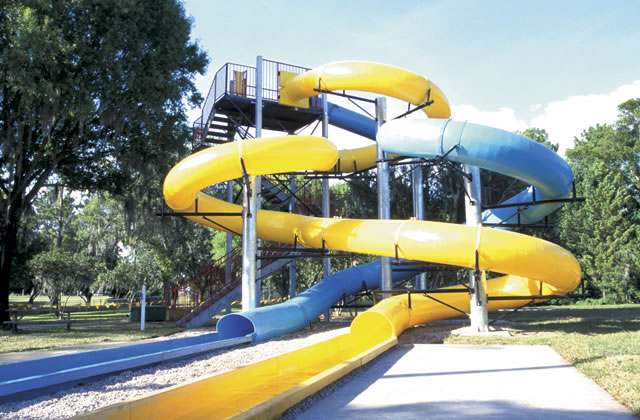

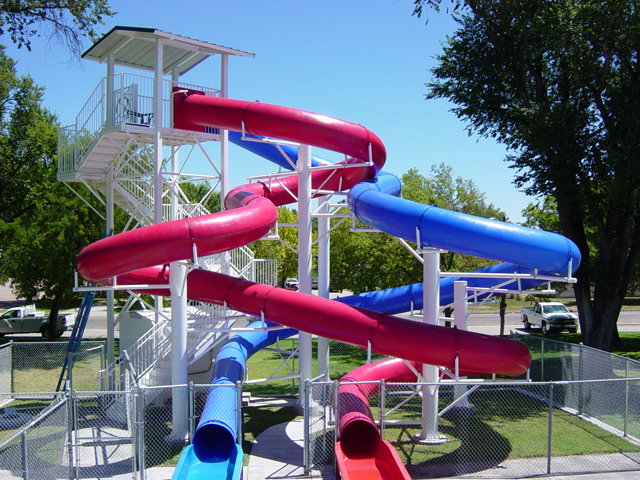

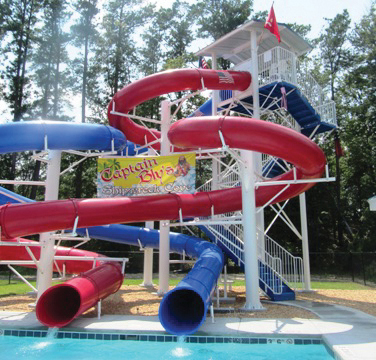

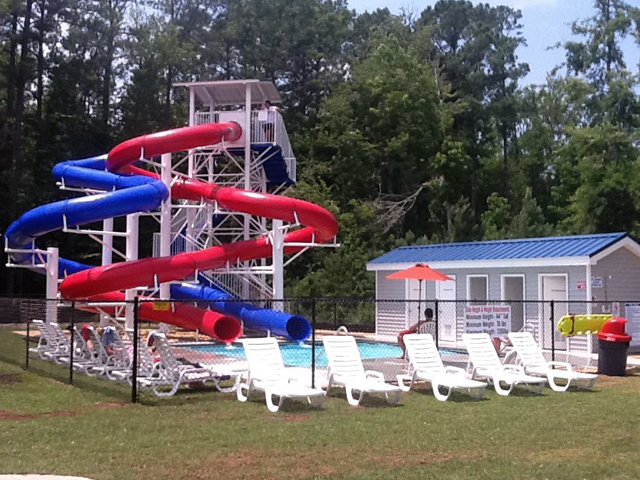

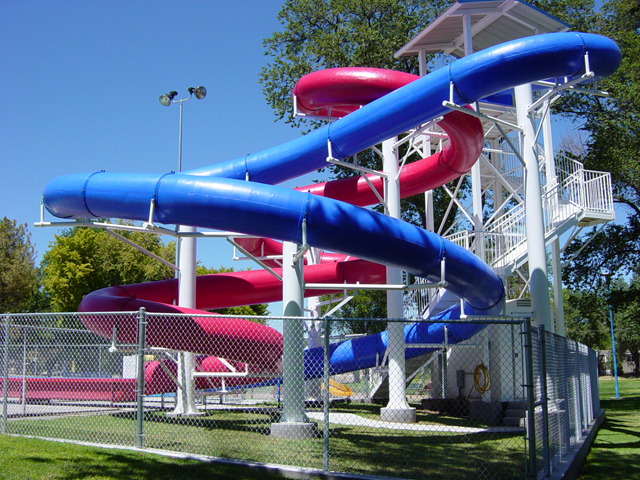

Double Polyethylene Flume Water Slide Model 1641

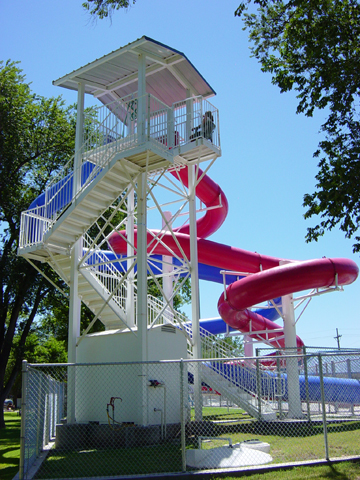

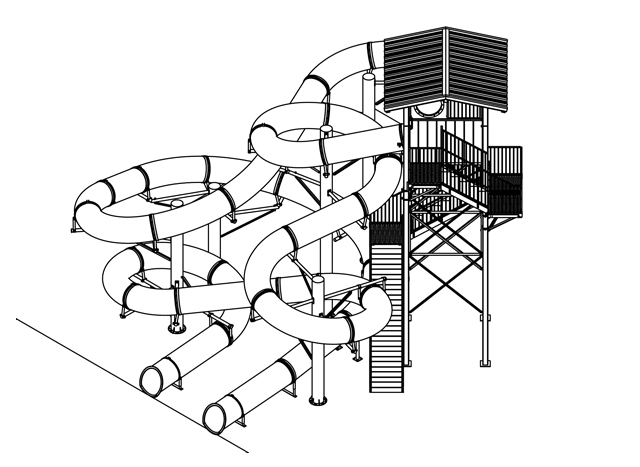

Double Polyethylene Flume Water Slide Model 1641 Double Polyethylene Flume Water Slide Model 1641

Double Polyethylene Flume Water Slide Model 1641Double Polyethylene Flume Water Slide Model 1641

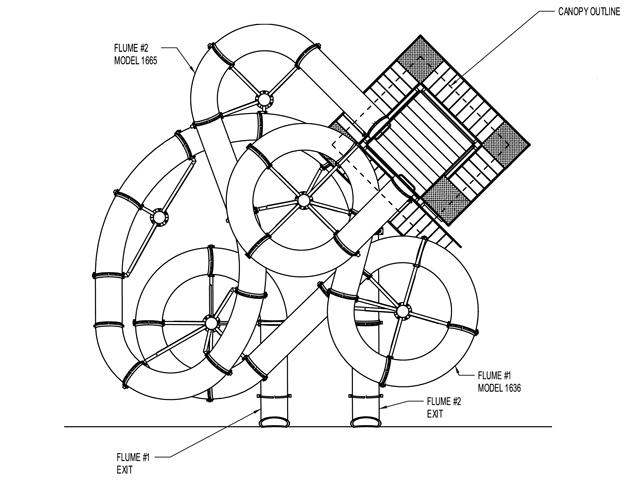

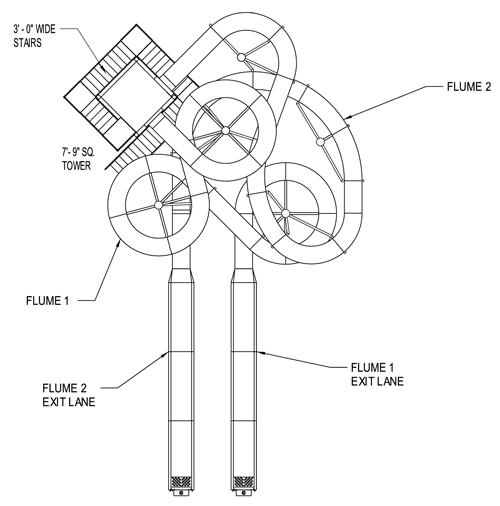

Double Polyethylene Flume Water Slide Model 1641 plan view

Double Polyethylene Flume Water Slide Model 1641

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Double Polyethylene Flume Water Slide Model 1641 Double Polyethylene Flume Water Slide Model 1641 Double Polyethylene Flume Water Slide Model 1641 Double Polyethylene Flume Water Slide Model 1641 plan view Double Polyethylene Flume Water Slide Model 1641 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

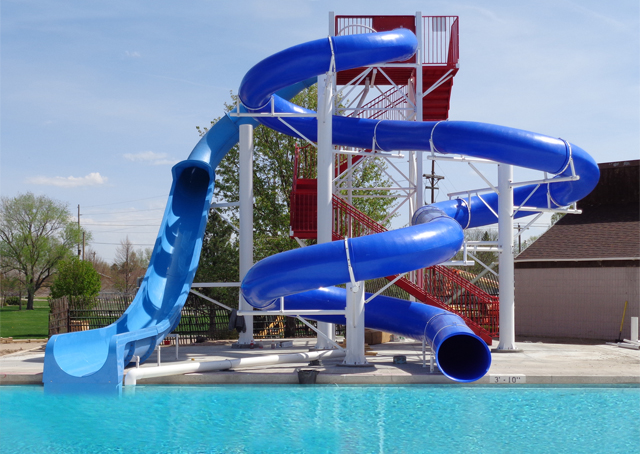

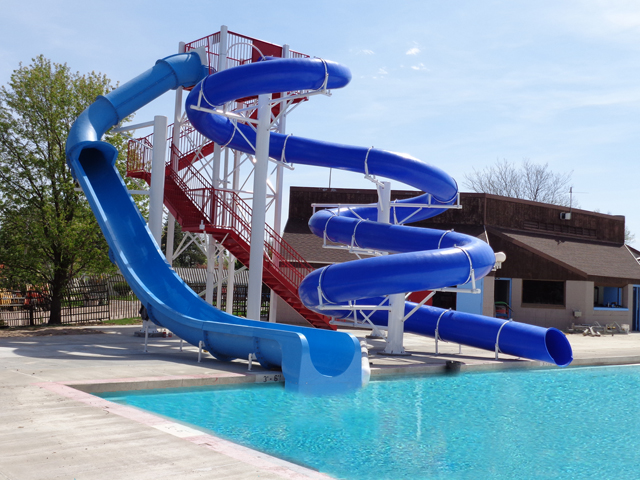

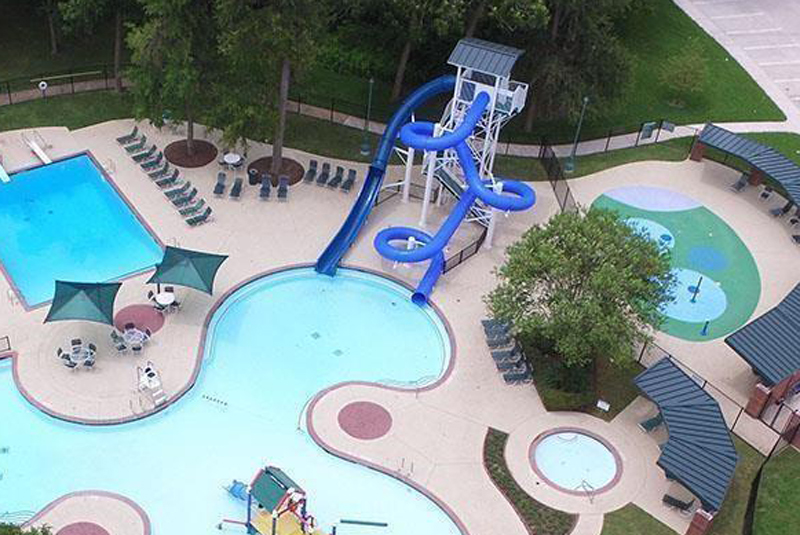

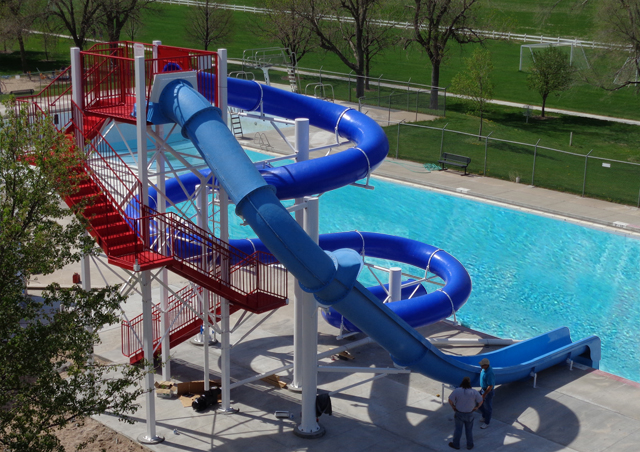

Combination Flume Water Slide Model 1914Combination Fiberglass and Polyethylene Water Slide
Model: 1914

Description : Combination flume water slide featuring: (1) polyethylene flume with (3) 270° curves & (2) 32” I.D. closed & 36” I.D. open fiberglass flume.
Centerline Run : (1): 148’ 11” (2): 60’ 6”
Entry Height :(1): 25’ 0” (2): 24’ 6”
Platform Size : 8' x 8'
Space Requirements : 35’ 6” x 42’ 7” – Space requirements may vary with options chosen.

  • 32” inside diameter closed flume fiberglass.
  • 36” inside diameter fiberglass flume.
  • 30” inside diameter polyethylene flume.
  • Water flow required: Fiberglass: 150-200 gpm; Polyethylene: 30-60 gpm
  • Splash down dimension: 33’ 3” x 30’ 0”
  • Minimum water depth: 3'

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

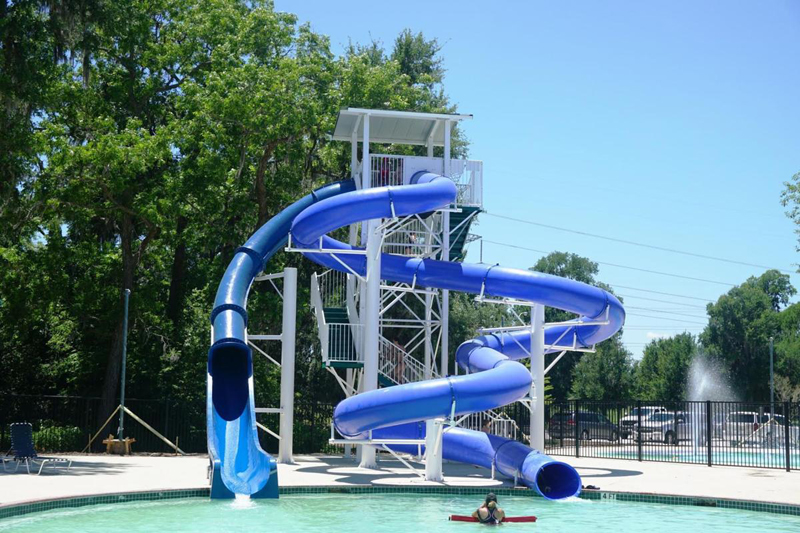

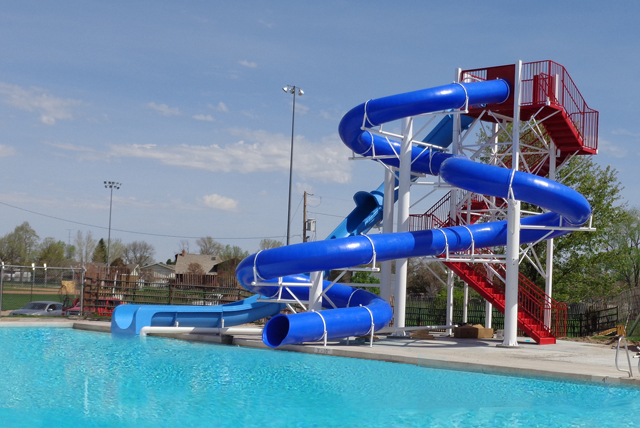

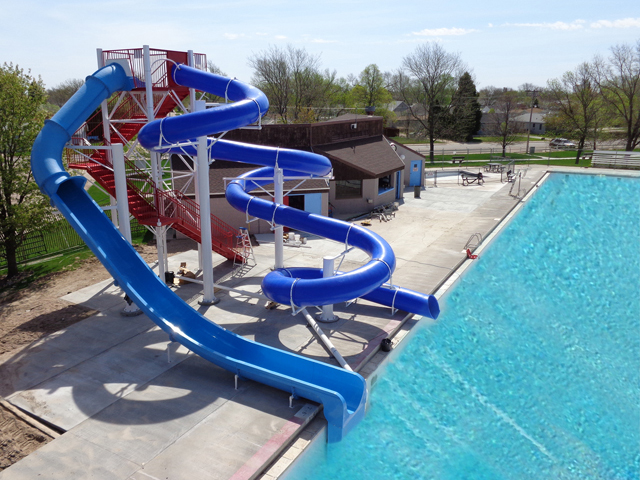

Combination Flume Water Slide Model 1914 Combination Flume Water Slide Model 1914

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Combination Flume Water Slide Model 1914 Combination Flume Water Slide Model 1914

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

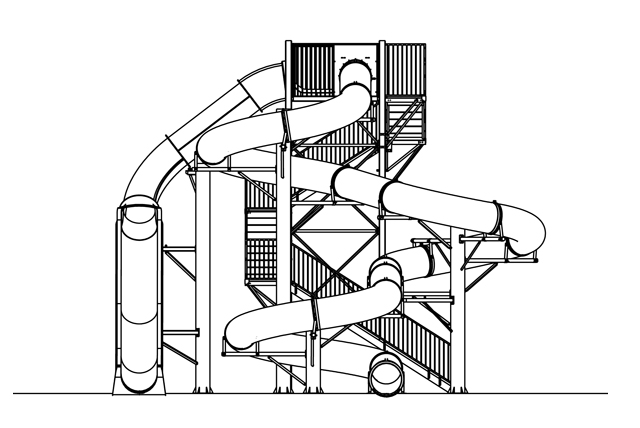

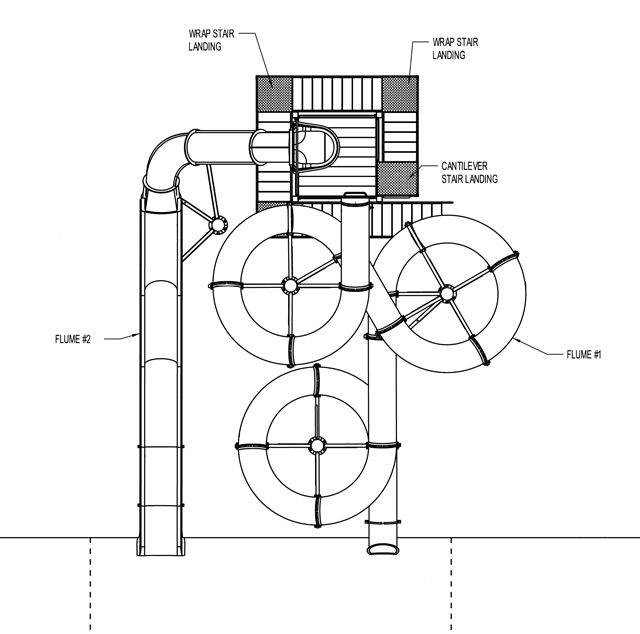

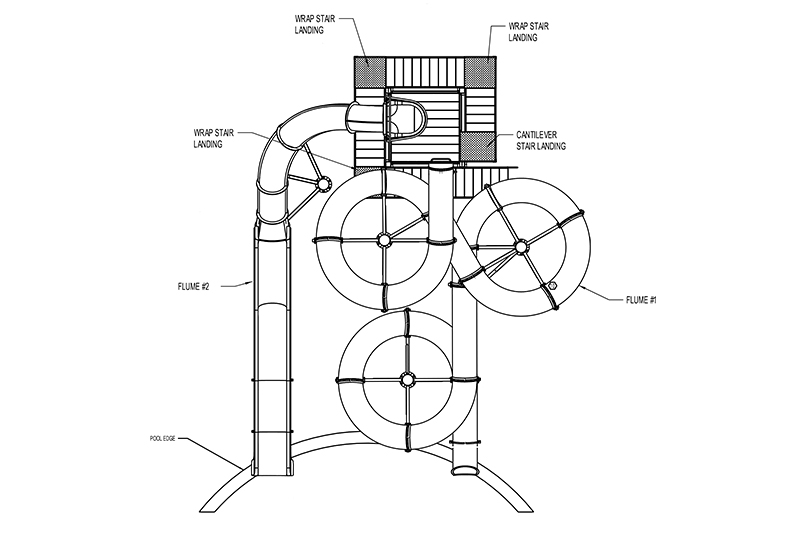

Combination Flume Water Slide Model 1914 Plan View Combination Flume Water Slide Model 1914 Plan View

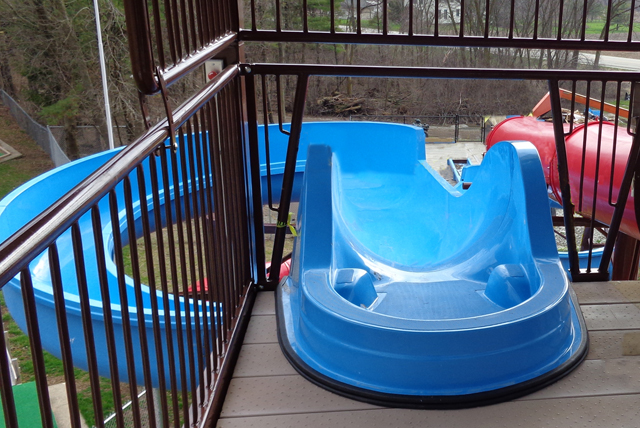

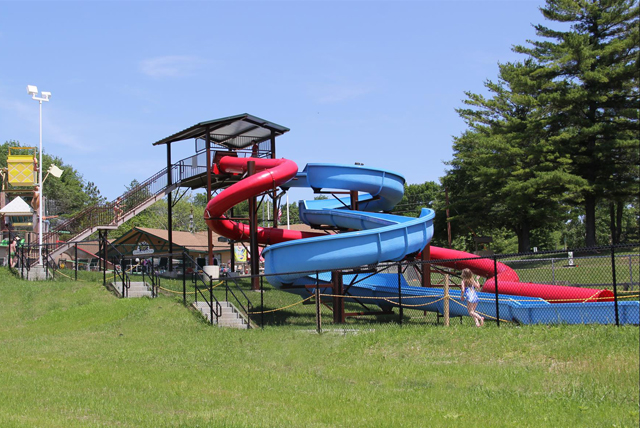

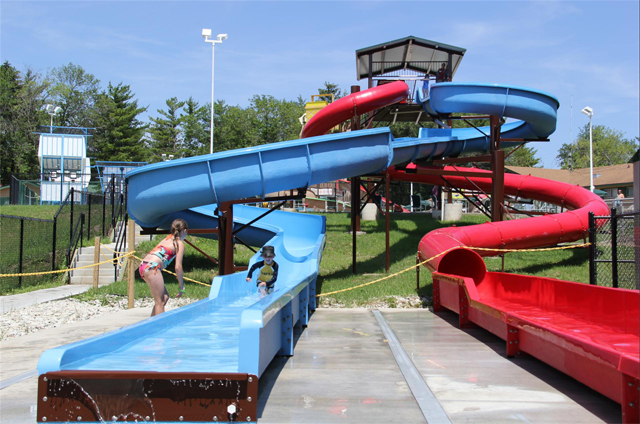

Combination Flume Water Slide Model 1918Combination Fiberglass and Polyethylene Water Slide
Model: 1918

Description : Double loop fiberglass flume and polyethylene flume water slide with fiberglass exit lanes.
Centerline Run : Poly (closed) 133' 4"
Fiberglass (open) 163' 5-1/2"
Entry Height : 25' 0"
Platform Size : 12' x 16'
Space Requirements : 50' 6" x 142' 11"– Space requirements may vary with options chosen.

Recirculating System
NO POOL REQUIRED!
  • 36" inside diameter fiberglass open flume water slide
  • 30" inside diameter polyethylene closed flume water slide
  • Self-enclosed recirculating system (no pool required)
  • Fiberglass exit lanes
  • Pool application also available
  • Water flow required: Open: 600-800 gpm; Closed: 50 gpm recommended; 30 to 60 gpm required.

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

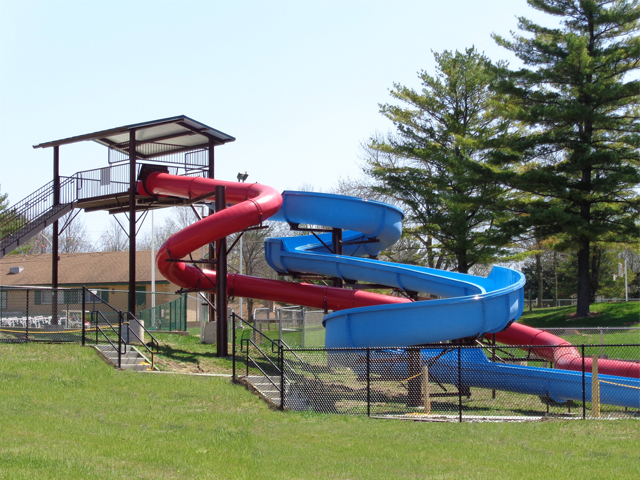

Combination Flume Water Slide Model 1918 Combination Flume Water Slide Model 1918Combination Flume Water Slide Model 1918Combination Flume Water Slide Model 1918

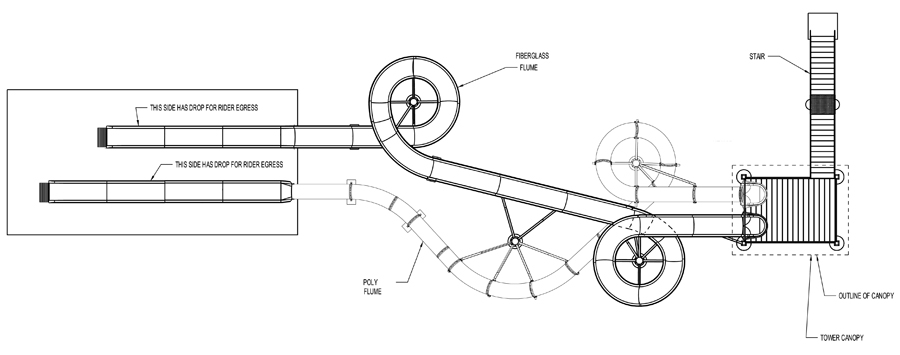

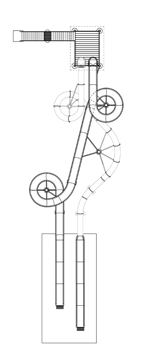

Combination Flume Water Slide Model 1918 Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

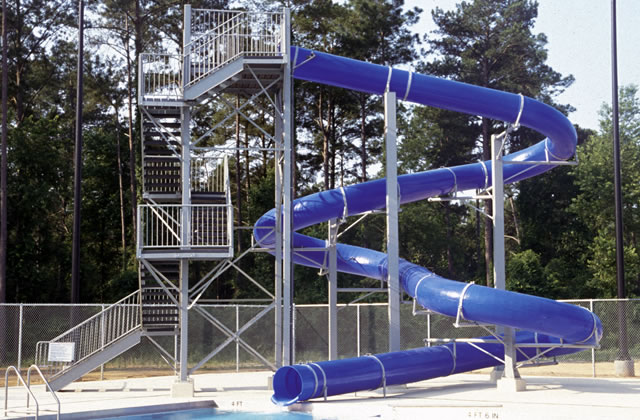

Polyethylene Flume Water Slide Model 1632Water Slide
Model 1632

Description : Single 30" I.D. flume water slide with reverse “S" curves.
Centerline Run : 158' 0"
Entry Height : 26' 9"
Platform Size : 8' x 8'
Space Requirements : 43' 11" x 38' 4" – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene water slide flume
  • 50 gpm water flow recommended; 30 to 60 gpm required
  • Splash down dimension: 12' 6" x 20'
  • Minimum water depth: 3'

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

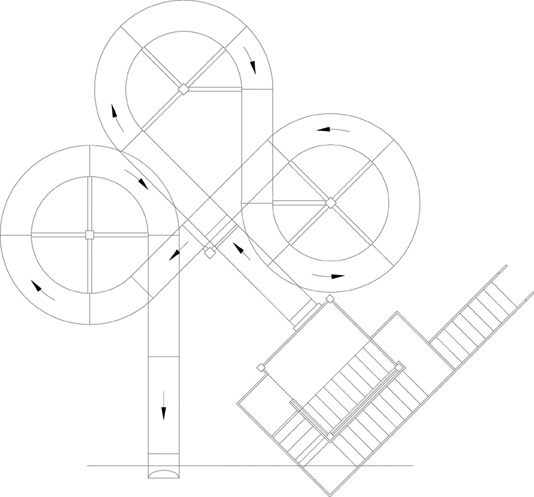

Polyethylene Flume Water Slide Model 1632 Plan View

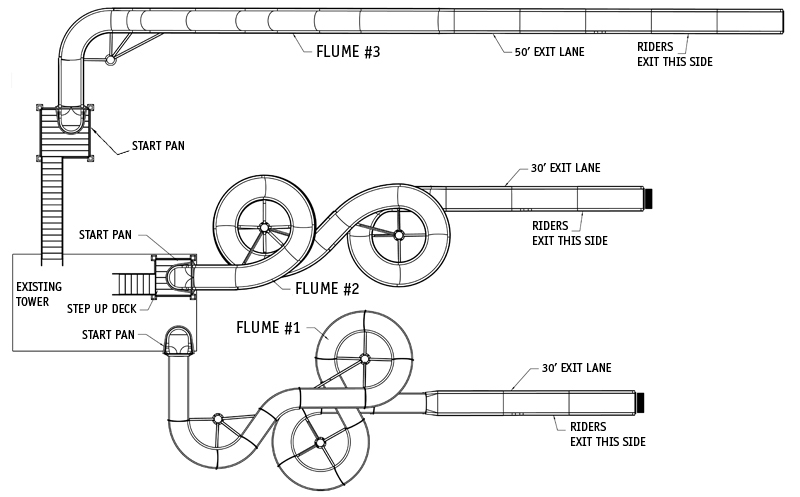

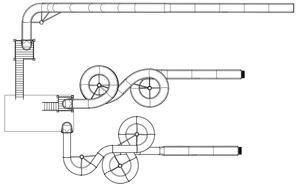

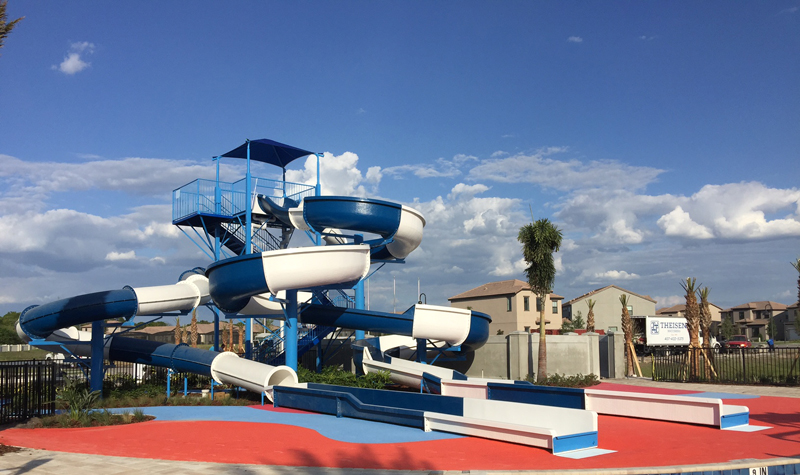

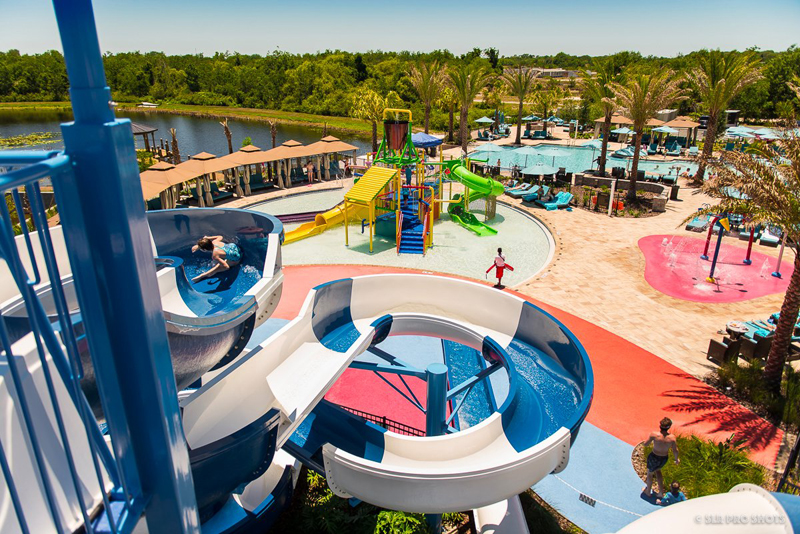

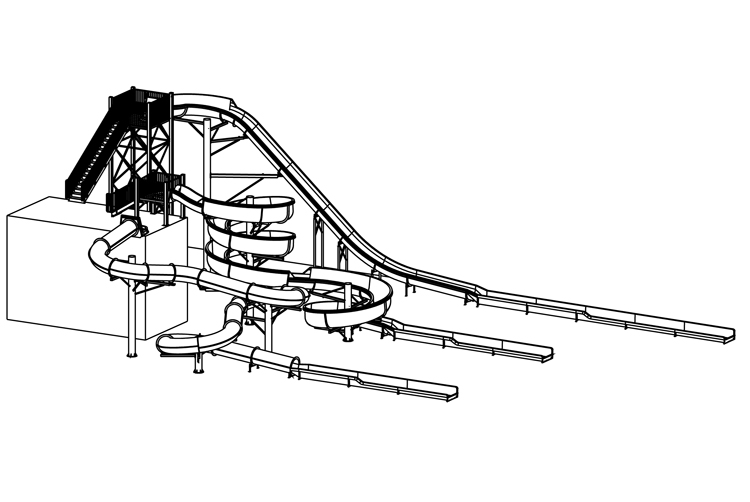

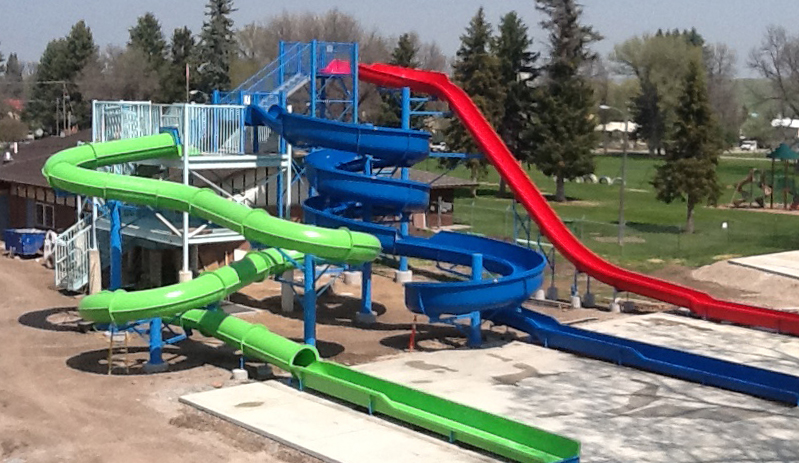

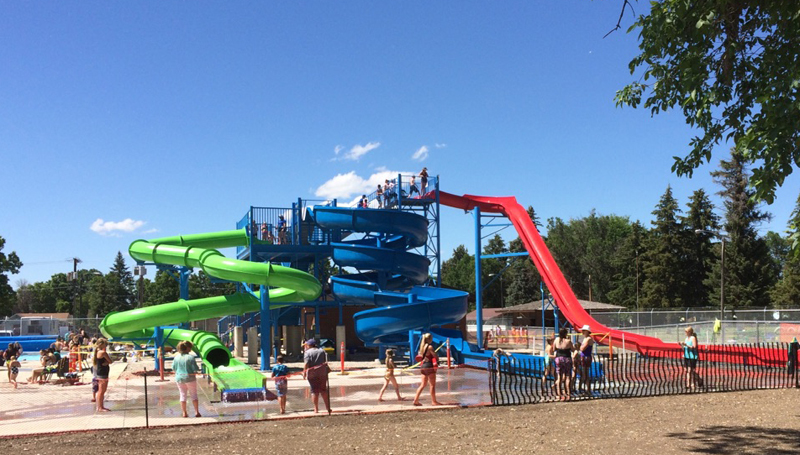

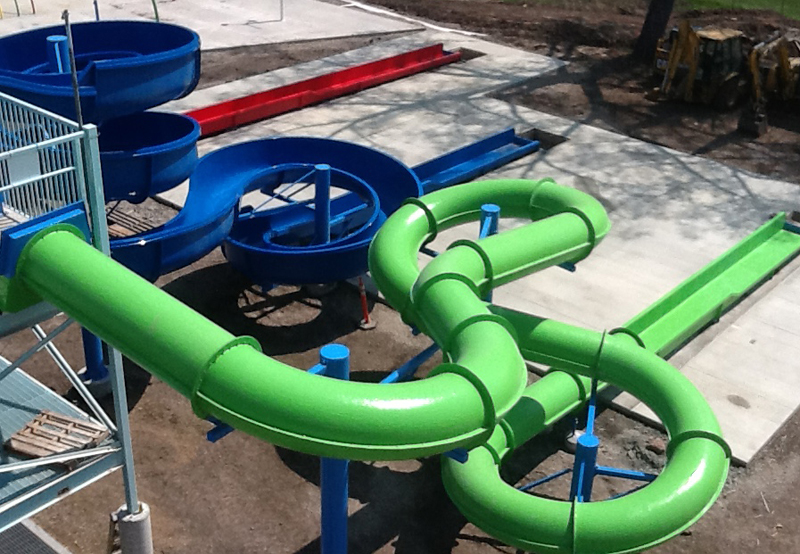

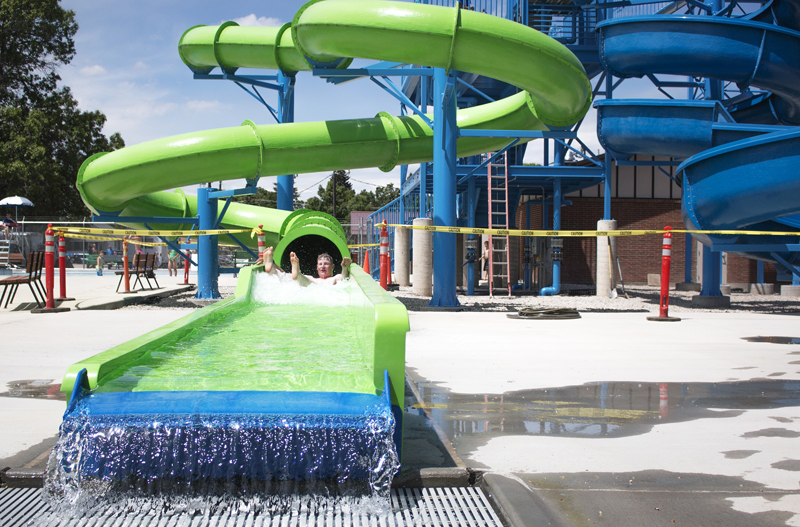

Triple Flume Fiberglass Water Slide with Exit Lanes Model 2047Triple Flume Fiberglass Water Slide with Exit Lanes
Model: 2047

Description : Triple fiberglass flume water slide with fiberglass exit lanes .
Centerline Run : Green Flume 137’ 5”; Blue Flume 158’ 11”; Red Flume 80’ 7”
Entry Height : Green Flume 18’ 10”; Blue Flume 22’ 11”; Red Flume 29’ 4”
Platform Size : 7’ 9” x 7’ 9” and 6’ 0" x 6’ 0"
Space Requirements : 113’ 0” x 73’ 3”– Space requirements may vary with options chosen.

Recirculating System
NO POOL REQUIRED!
  • 36" inside diameter open fiberglass flume water slide
  • 32” inside diameter closed fiberglass flume water slide
  • Self-enclosed recirculating system (no pool required)
  • Fiberglass exit lanes
  • Pool application also available
  • Water flow required: Green Flume 500-700 gpm; Blue Flume 600-800 gpm; Red Flume 150-200 gpm

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

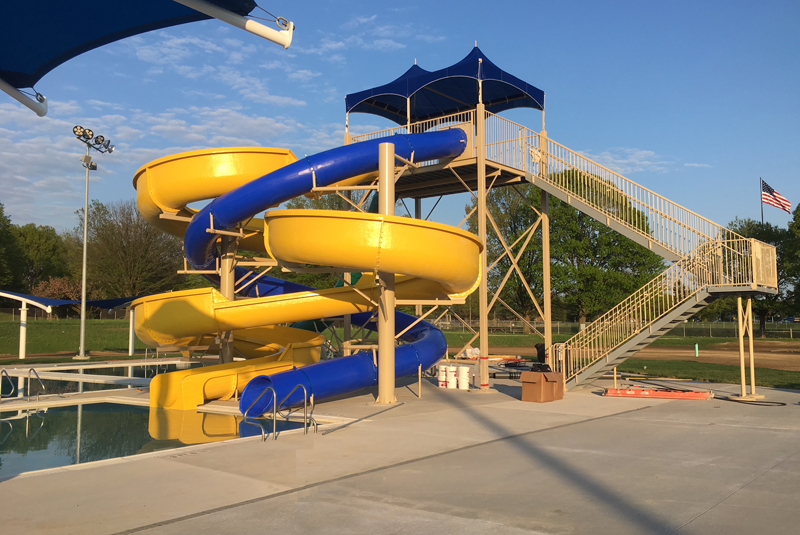

Triple Flume Fiberglass Water Slide with Exit Lanes Model 2047Triple Flume Fiberglass Water Slide with Exit Lanes Model 2047 Triple Flume Fiberglass Water Slide with Exit Lanes Model 2047

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

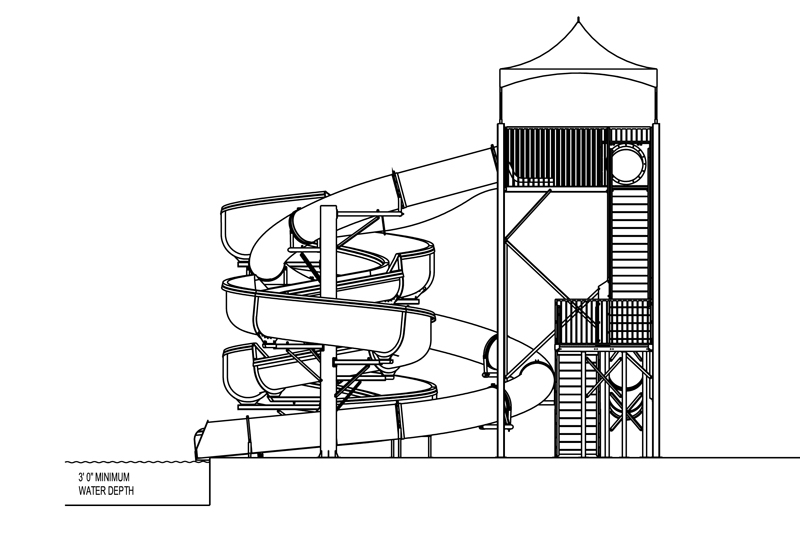

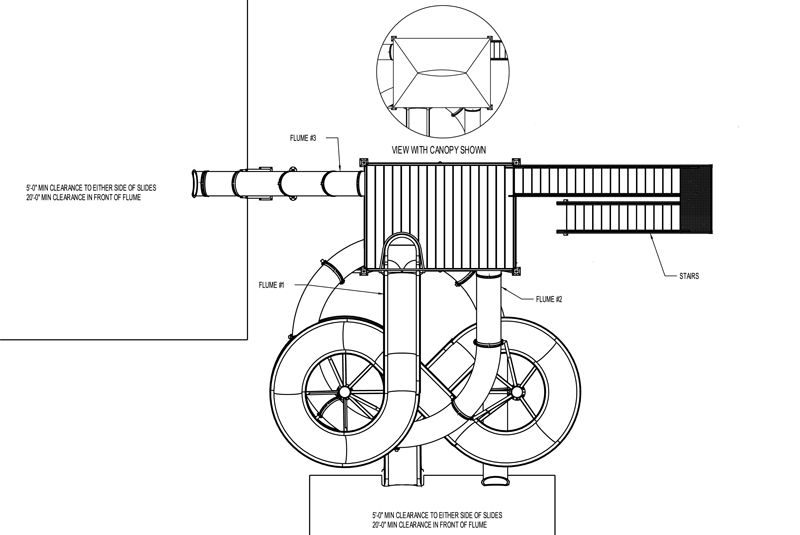

Triple Flume Fiberglass Water Slide with Exit Lanes Model 2047 plan view Triple Flume Fiberglass Water Slide with Exit Lanes Model 2047 plan view

Fiberglass Speed Slide Model 1850 Top ViewFiberglass Speed Slide Water Slide
Model: 1850

Description : Speed slide water slide
Centerline Run : 65 3"
Entry Height : 30' 8½"
Platform Size : abstract size, approximately 6’ 5” x 7’ ½”'
Space Requirements : 14' 5" x 102' 0" – Space requirements may vary with options chosen.

  • 32” inside diameter closed flume fiberglass
  • 36” inside diameter fiberglass flume
  • Self-enclosed recirculating system (no pool required)
  • Fiberglass exit lane
  • Pool application also available
  • 150-200 gpm water flow required

Recirculating System
NO POOL REQUIRED!

click on images to enlarge

Fiberglass Speed Slide Model 1850 Fiberglass Speed Slide Model 1850 Fiberglass Speed Slide Model 1850Fiberglass Speed Slide Model 1850 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Fiberglass Water Slide Model 1841Fiberglass Water Slide
Model: 1841

Description : Single open flume fiberglass body water slide featuring (4) 270° reverse curves and fiberglass speed slide water slide.
Centerline Run : Body 229' 4"; Speed 72' 9"
Entry Height : 31' 6"
Platform Size : 10' x 16'
Space Requirements : 44' 6" x 73' 1 " – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • Water flow required: Body: 600-800 gpm; Speed: 150-200 gpm
  • Splash down dimension: 37' x 41'
  • Minimum water depth: 3'

click on images to enlarge

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

#1841M
Fiberglass Water Slide Model 1841 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841 plan view

Fiberglass Speed Slide Model 1851 Top ViewFiberglass Speed Slide Water Slide
Model: 1851

Description : Speed slide water slide
Centerline Run : 73' 3"
Entry Height : 31' 6"
Platform Size : 8' x 8'
Space Requirements : 27' 2" x 65' 8" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • 150-200 gpm water flow required
  • Splash down dimension: 13' x 41'
  • Minimum water depth: 3'

click on images to enlarge

Fiberglass Speed Slide Model 1851Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Combination Flume Water Slide Model 1896Fiberglass Water Slide with exit lanes
Model: 1896

Description : Single 32” I.D. closed flume
slide featuring (1) full figure 8 and (1) 360° turn and open flume speed slide water slide.
Centerline Run : Closed: 228' 0"
Speed (open): 69' 3"
Entry Height : 31' 6"
Platform Size : 10' x 16'
Space Requirements : 49' 0" x 129' 0"– Space requirements may vary with options chosen.

Recirculating System
NO POOL REQUIRED!
  • 36" inside diameter fiberglass open flume water slide
  • 32" inside diameter fiberglass closed flume water slide
  • Self-enclosed recirculating system (no pool required)
  • Exit Lanes
  • Pool application also available
  • Water flow required: Closed: 600-800 gpm; Speed: 150-200 gpm

click on images to enlarge

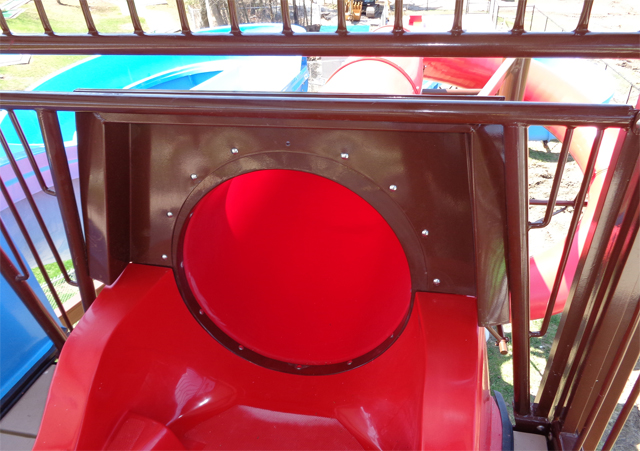

Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896

Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896 Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

USA flag   Manufactured with Pride in the U.S.A.
