Click on thumbnails below to see specifications and photos of each model

  • 0083
    Pool Slide Model 0083
  • 0085
    Pool Slide Model 0085
  • 1800-81
    Double Flume Pool Slide Model 1800-81
  • 5022
    Double Flume Drop Slide Pool Slide Model 5022
  • 9006
    Pool Slide Model 9006
  • 9012
    Pool Slide Model 9012
  • 9113
    Pool Slide Model 9113
  • 9305
    Pool Slide Model 9305
  • 9308
    Pool Slide Model 9308
  • 9409
    Pool Slide Model 9409
  • 9410
    Pool Slide Model 9410

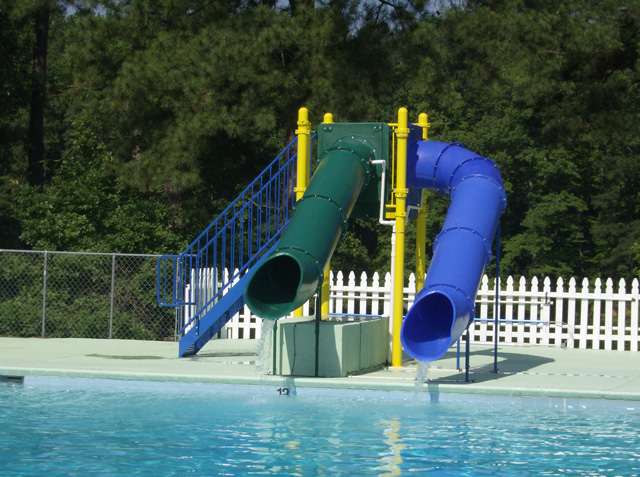

Double Flume Pool Slide Model 0083Pool Slide Water Slide
Model 0083

Description: Double 24" O.D. flume slide, one with a 90° elbow.
Centerline Run: 12' 8" & 16' 3"
Entry Height: 7' 0"
Platform Size: 4' x 4'
Space Requirements: 13' 5" x 14’ 2”– Space requirements may vary with options chosen.

  • 24" Outside diameter polyethylene flumes
  • 14-20 gpm water flow (each flume) recommended; 8 to 40 gpm required.
  • Splash down dimension: 17' 2" x 20' 0"
  • Minimum water depth: 4'

click on images to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

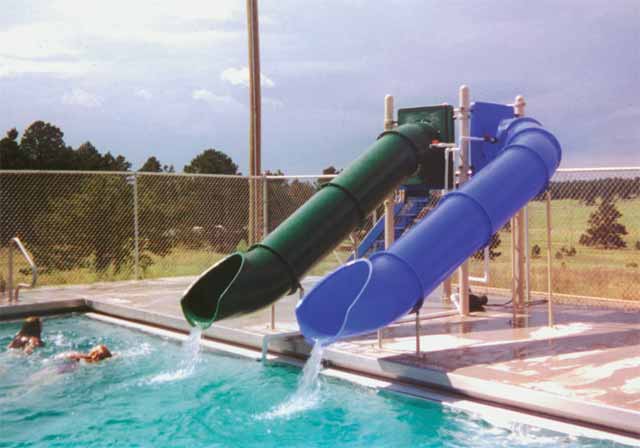

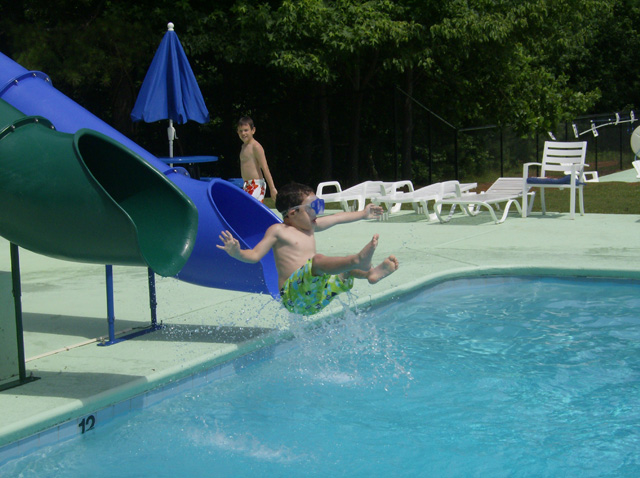

Double Flume Pool Slide Model 0083Double Flume Pool Slide Model 0083

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Double Flume Pool Slide Model 0085Pool Slide Water Slide
Model 0085

Description: Double flume slide, one 30" I.D. flume and one 24" O.D. flume.
Centerline Run: 21' 0" & 16' 7"
Entry Height: 7' 0"
Platform Size: 4' x 4'
Space Requirements: 17' 0" x 17' 2" – Space requirements may vary with options chosen.

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

  • 30" Inside & 24" Outside diameter polyethylene flumes
  • 14-20 gpm water flow (each flume) recommended; 8 to 40 gpm required.
  • Splash down dimension: 22' 4" x 20" 0"
  • Minimum water depth: 3' 6"

click on images to enlarge

Double Flume Pool Slide Model 0085

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Double Fiberglass Flume Model 1800-81Double Flume Pool Slide
Model: 1800-81

Description : Double fiberglass flume slide.
Slide Runs : 12' 0" & 12' 6"
Dimensions : 13' 0" long x 14' 0" wide

  • All fiberglass construction
  • 10-20 gpm water flow recommended

click on images to enlarge

Double Fiberglass Flume Model 1800-81

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

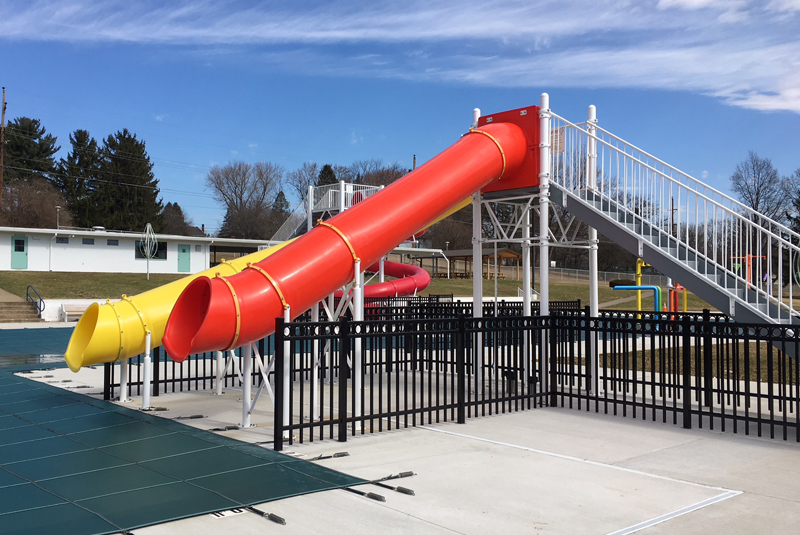

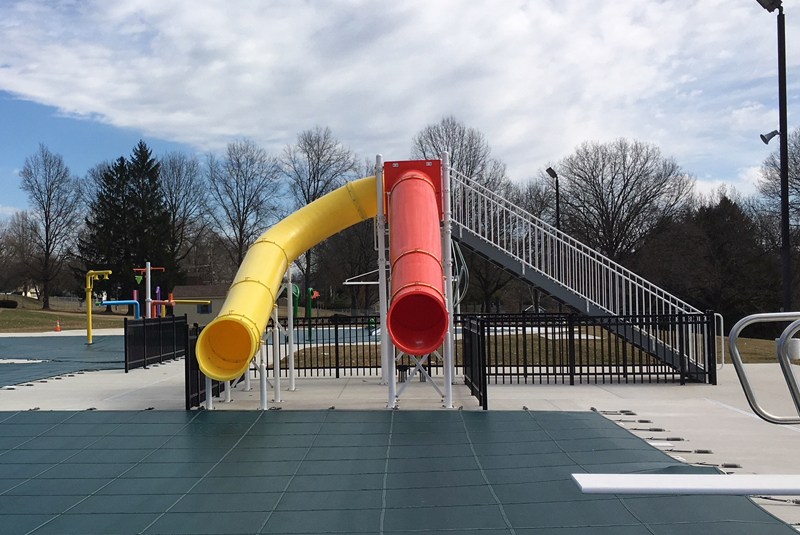

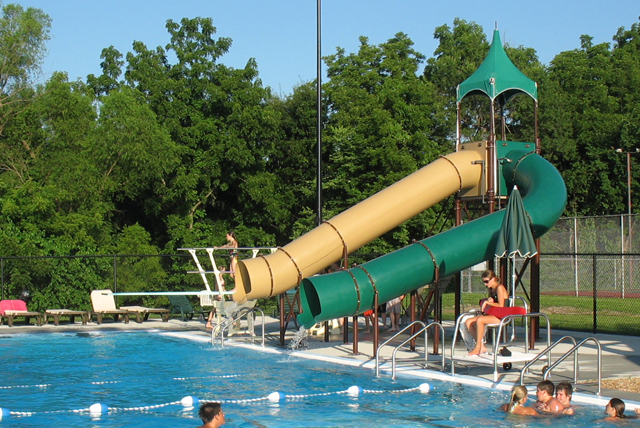

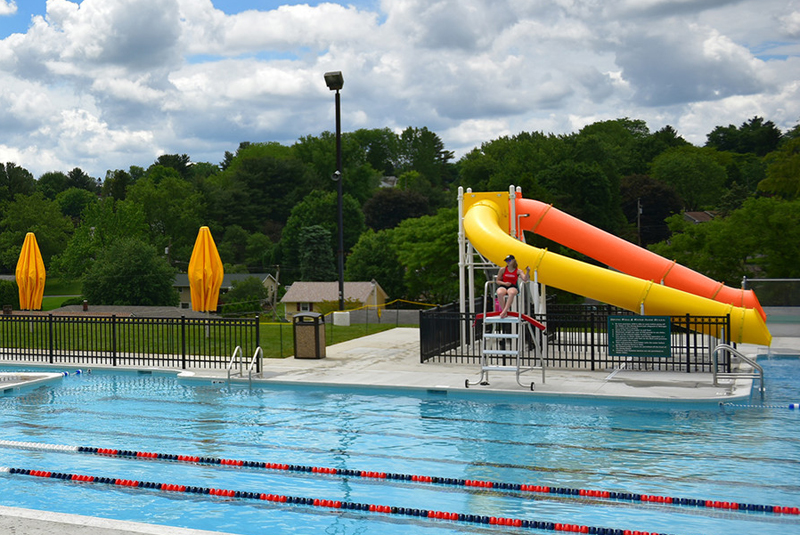

Double Flume Drop Slide Pool Slide Model 5022Double Flume Drop Slide Pool Slide
Model 5022

Description: 30" I.D. double flume drop slide.
Centerline Runs: 20' 0"& 18' 10"
Entry Height: 10' 6"
Platform Size: 4' x 4'
Space Requirements: 23' 0" x 22' 1" – Space requirements may vary with options chosen.

  • 30" Inside diameter polyethylene flumes
  • Stairs: 8" rise, 8" tread, 24" wide; Aqua-Plast coated textured aluminum surface.
  • 14-20 gpm water flow recommended; 8 to 40 gpm required.
  • Splash down dimension: 12' 6" x 20' 0"
  • Minimum water depth: 9' 0"

Options Shown: Fabric Roof

click on image to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Double Flume Pool Slide Model 9006Pool Slide Water Slide
Model 9006

Description: Double 30" I.D. flume slide, each with a 90° curve.
Centerline Run: 20' 6" each
Entry Height: 6' 6"
Platform Size: 4' x 4'
Deck Space Requirement: 19' 0" x 19' 5" – Space requirements may vary with options chosen.

  • 30" Inside diameter polyethylene flumes
  • 14-20 gpm water flow (each flume) recommended; 8 to 40 gpm required.
  • Splash down dimension: 29' x 20'
  • Minimum water depth: 3' 6" (within 6” of water level)

click on images to enlarge

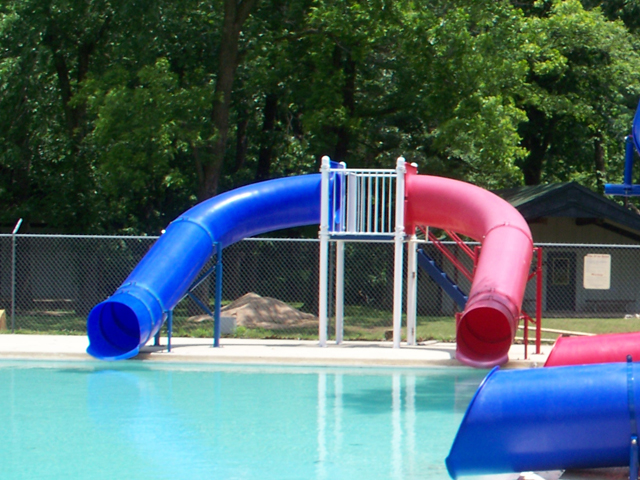

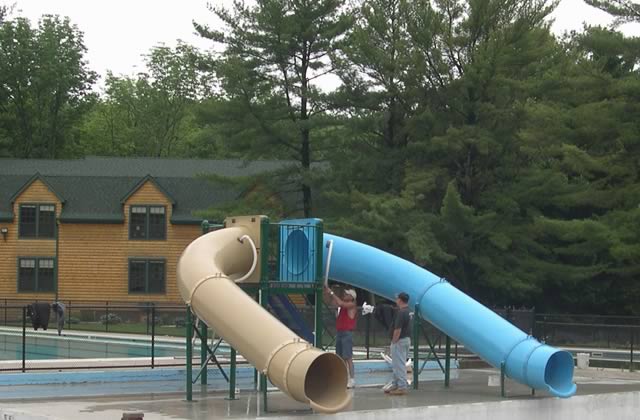

Double Flume Pool Slide Model 9006

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

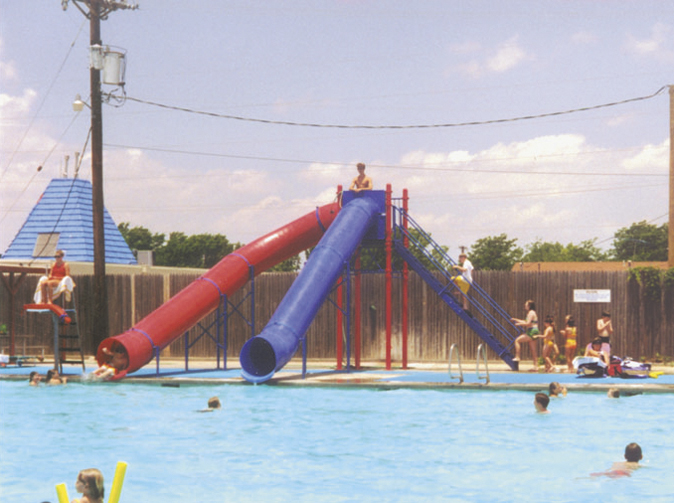

Double Flume Pool Slide Model 9012Pool Slide Water Slide
Model 9012

Description: Double 30" I.D. flume slide, one 90° curve, one straight.
Centerline Run: 29' 6" and 22' 11"
Entry Height: 10' 6"
Platform Size: 4' x 4'
Deck Space Requirement: 22' 3" x 26' 2" – Space requirements may vary with options chosen.

  • 30" Inside diameter polyethylene flumes
  • 14-20 gpm water flow (each flume) recommended; 8 to 40 gpm required.
  • Splash down dimension: 22' x 20'
  • Minimum water depth: 5' 6" (within 6” to 24" of water level)

click on image to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

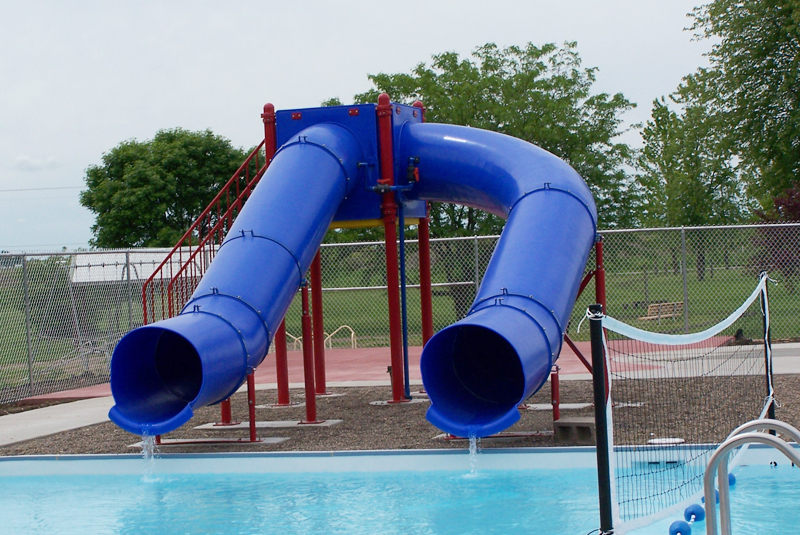

Double Flume Pool Slide Model 9113Pool Slide Water Slide
Model 9113

Description: Double 30" I.D. flume slide, one 90° curve, one straight.
Centerline Run: 23' 9" and 17' 11"
Entry Height: 6' 6"
Platform Size: 4' x 4'
Deck Space Requirement: 19' 0" x 20' 10" – Space requirements may vary with options chosen.

  • 30" Inside diameter polyethylene flumes
  • 14-20 gpm water flow (each flume) recommended; 8 to 40 gpm required.
  • Splash down dimension: 21' x 20'
  • Minimum water depth: 3' (within 6” of water level)

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

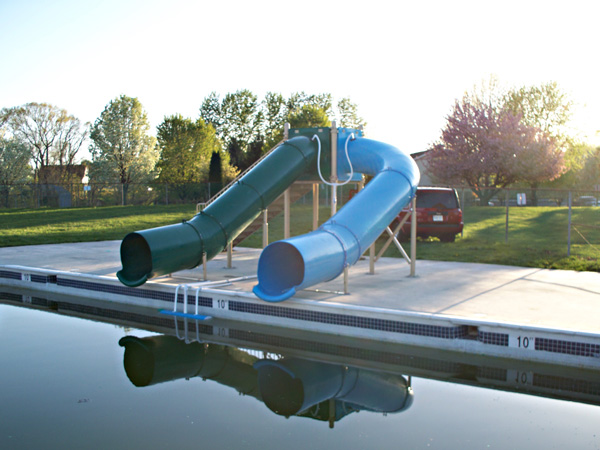

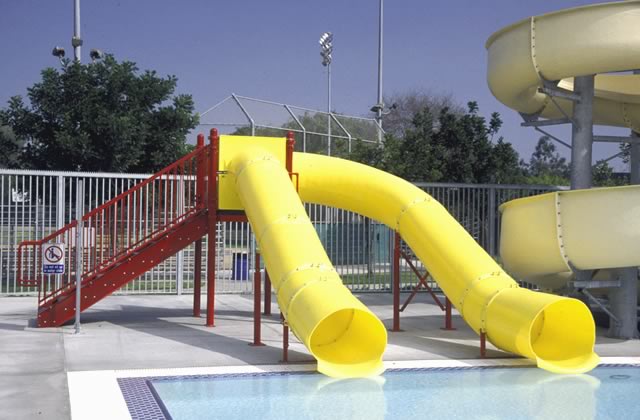

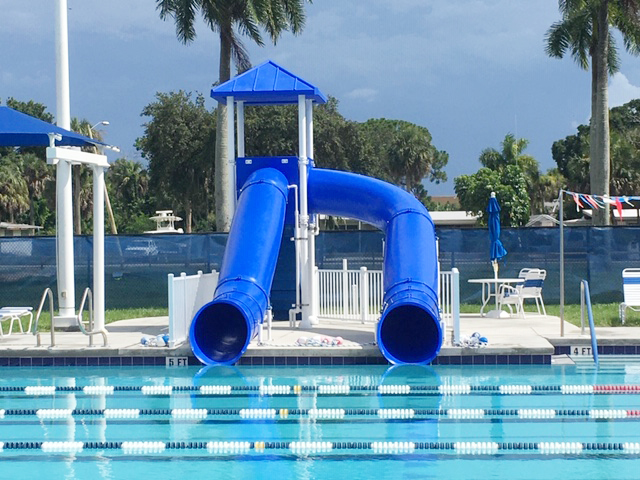

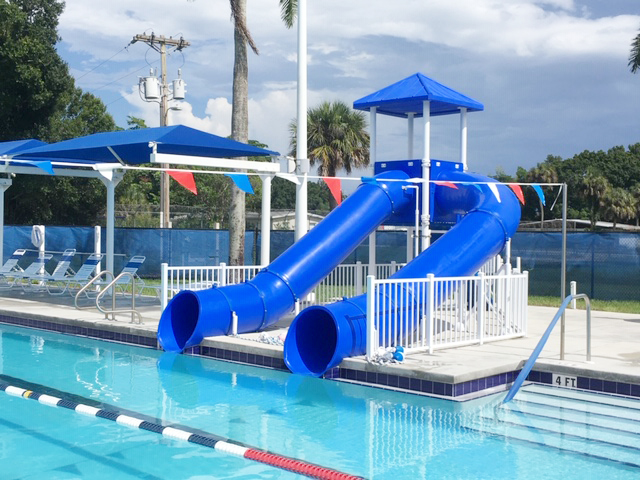

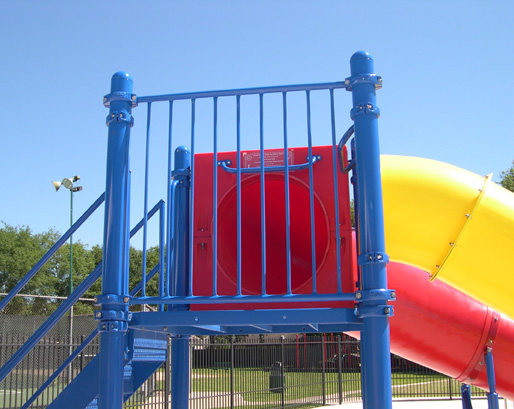

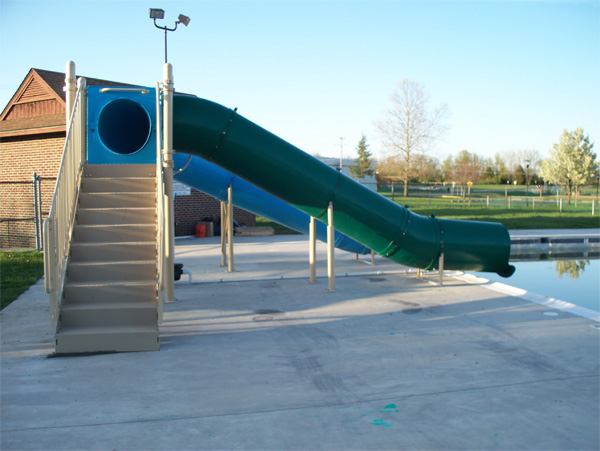

Double Flume Pool Slide Model 9113

Double Flume Pool Slide Model 9113 Double Flume Pool Slide Model 9113

click on images to enlarge

Double Flume Pool Slide Model 9305Pool Slide Water Slide
Model 9305

Description: Double 30" I.D. flume slide with 90° curves.
Centerline Run: 17' 6" and 15' 10"
Entry Height: 6' 6"
Platform Size: 4' x 4'
Space Requirements: 29' 10" x 11' 2" – Space requirements may vary with options chosen.

  • 30" Inside diameter polyethylene flumes
  • 14-20 gpm water flow recommended; 8 to 40 gpm required.
  • Splash down dimension: 12' 6" x 20' 0"
  • Minimum water depth: 4'

click on images to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

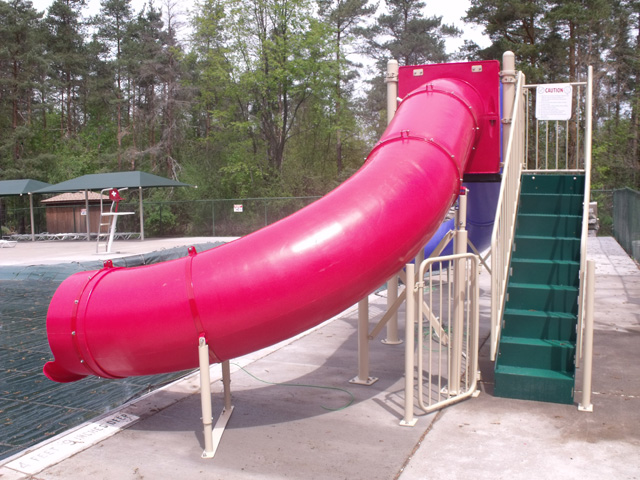

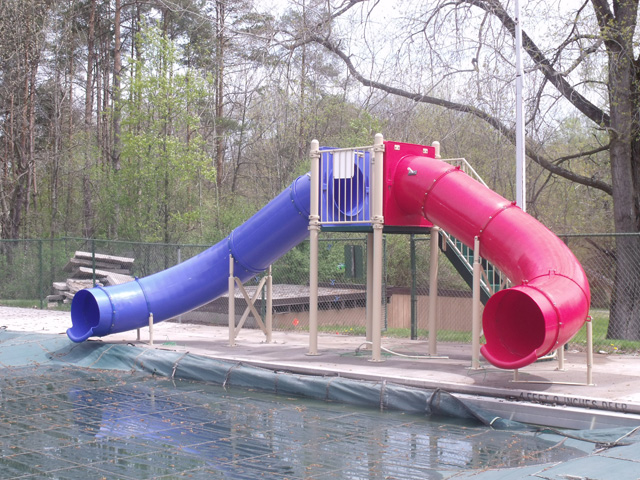

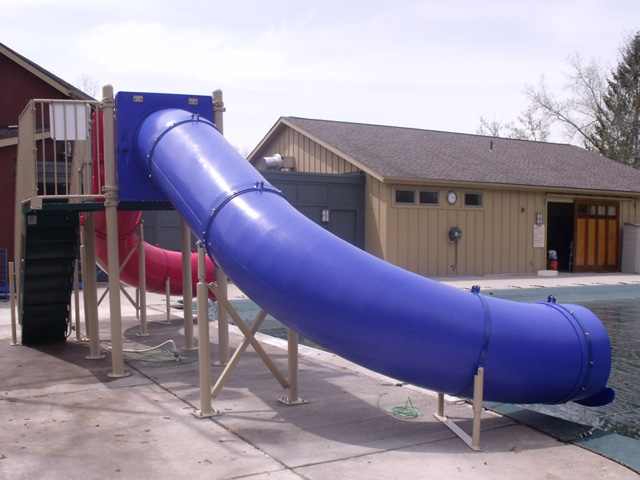

Double Flume Pool Slide Model 9305Double Flume Pool Slide Model 9305

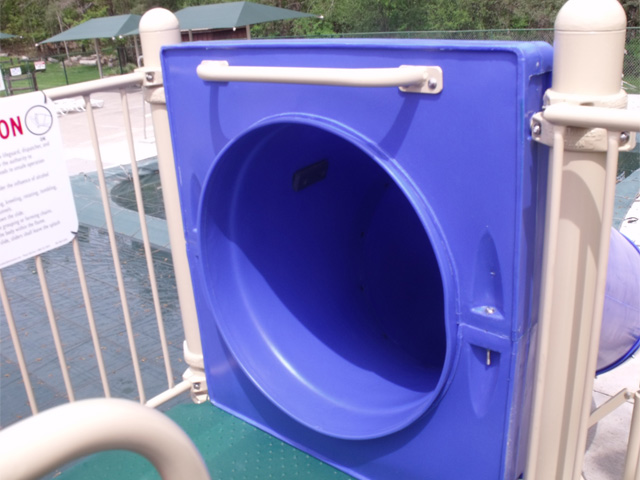

Double Flume Pool Slide Model 9305 Security Gate open Double Flume Pool Slide Model 9305 Security Gate closed

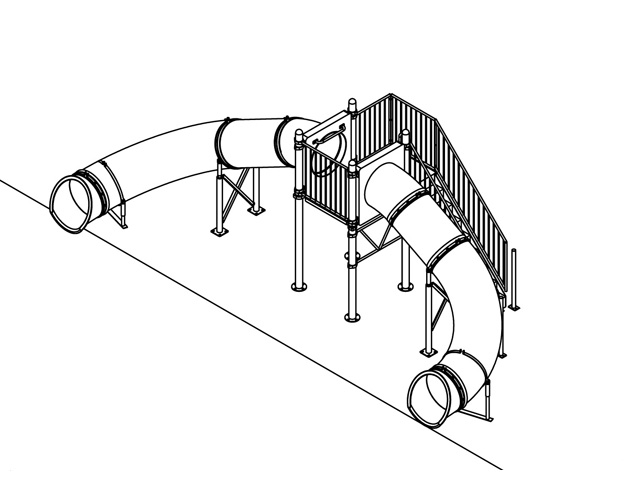

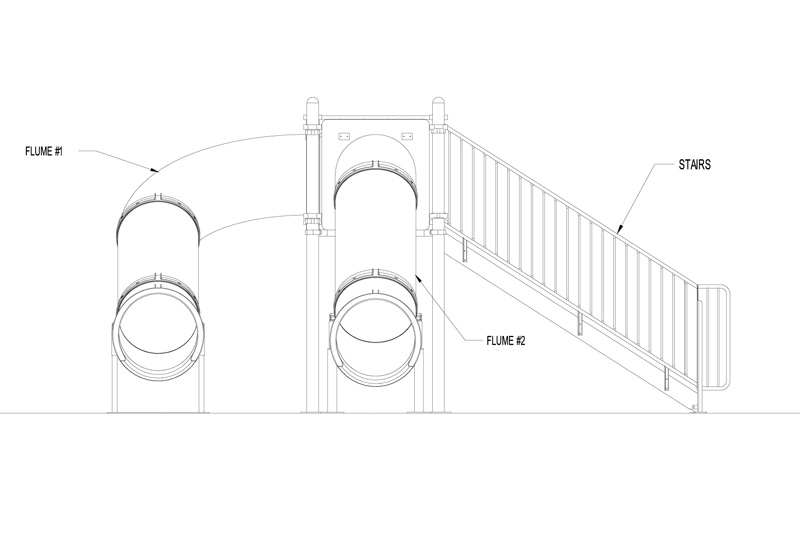

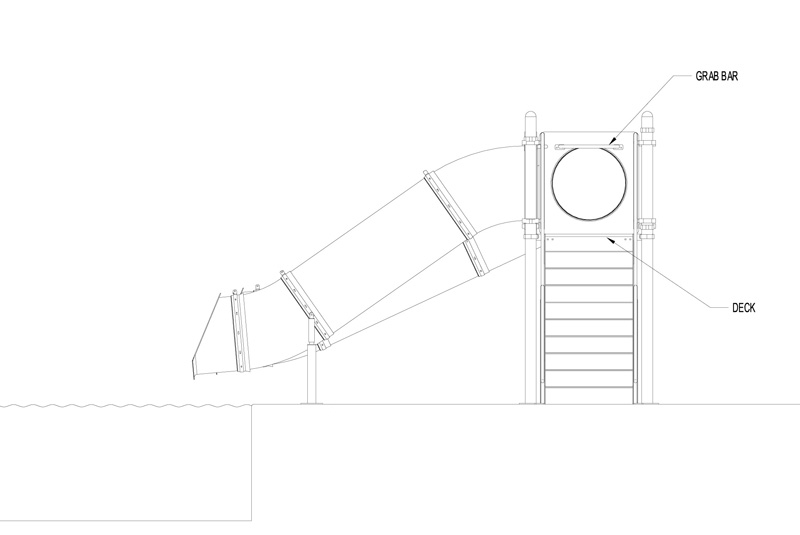

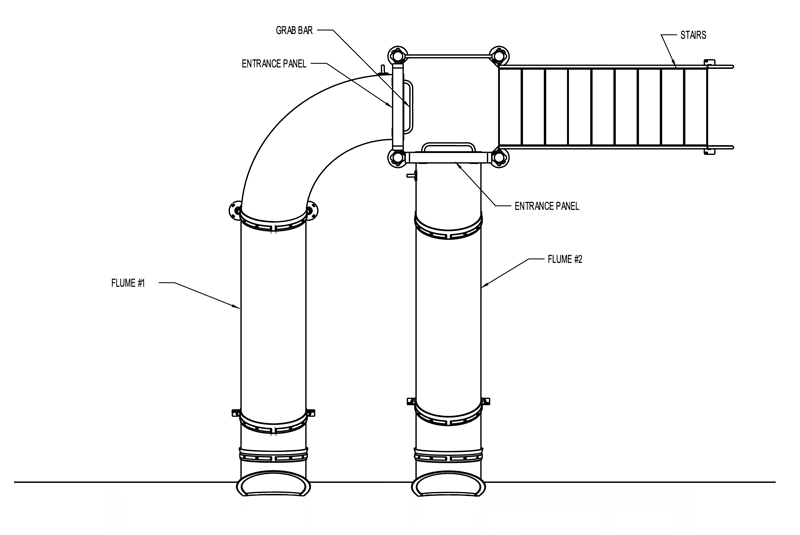

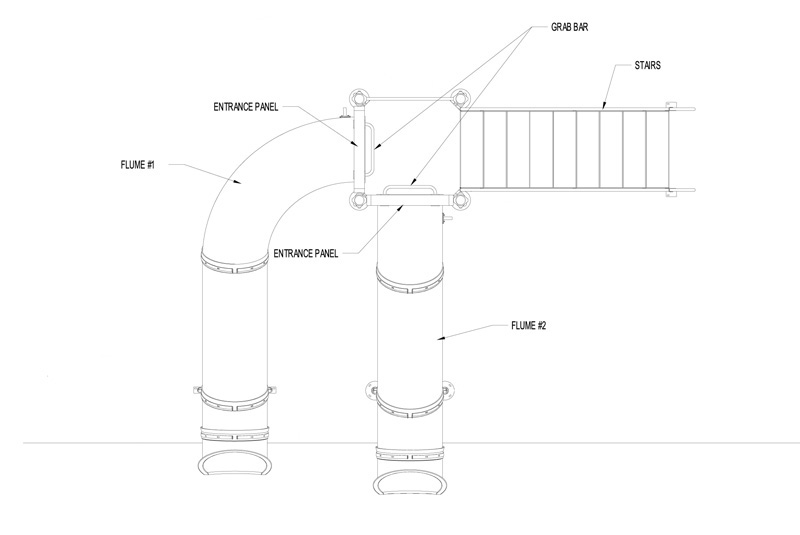

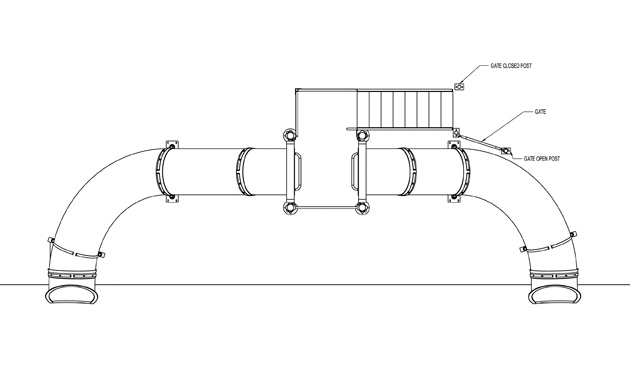

Double Flume Pool Slide Model 9305 plan view Double Flume Pool Slide Model 9305 plan view

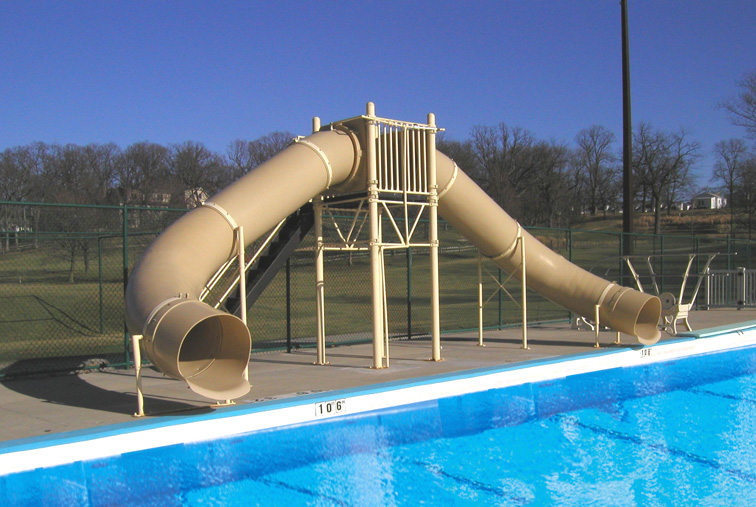

Double Flume Pool Slide Model 9308Pool Slide Water Slide
Model 9308

Description: Double 30" I.D. flume slide, each with a 90° curve.
Centerline Run: 20' 2" each
Entry Height: 8' 6"
Platform Size: 4' x 4'
Space Requirements: 31' 10" x 12' 2" – Space requirements may vary with options chosen.

  • 30" Inside diameter polyethylene flumes
  • 14-20 gpm water flow (each flume) recommended; 8 to 40 gpm required.
  • Splash down dimension: 41' 10" x 20' 0"
  • Minimum water depth: 5' 6"

click on image to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

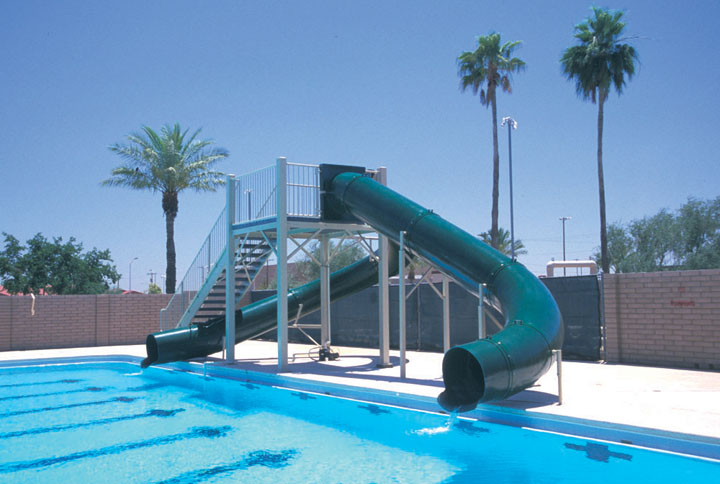

Double Flume Pool Slide Model 9409Pool Slide Water Slide
Model 9409

Description: Double 30" I.D. flume slide, (1) 90° curve; (1) 180° curve.
Centerline Run: 31' 6" and 32'  6"
Entry Height: 10' 5"
Platform Size: 8' x 8'
Space Requirements: 45' 11" x 20' 0" – Space requirements may vary with options chosen.

  • 30" Inside diameter polyethylene flumes
  • Stairs: 7” rise, 11” tread, 36” wide;
    Aqua-Plast coated textured aluminum surface; closed risers.
  • 14-20 gpm water flow (each flume) recommended; 8 to 40 gpm required.
  • Splash down dimension: 47' 9" x 20' 0"
  • Minimum water depth: 3'

click on image to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

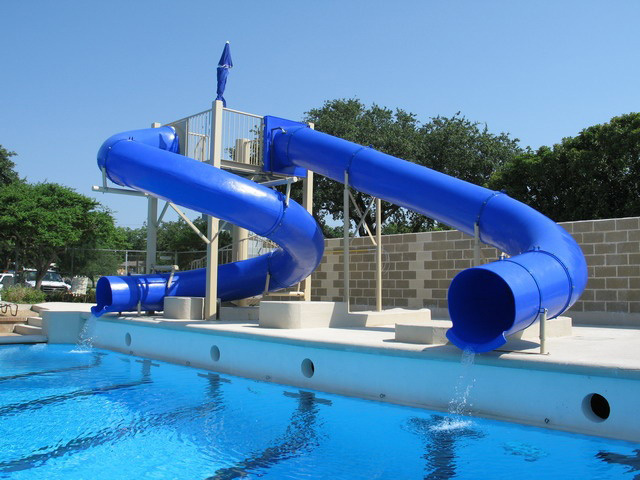

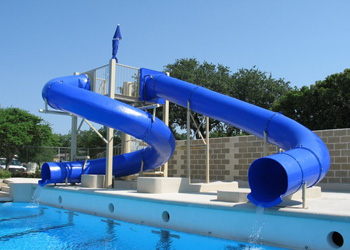

Double Flume Pool Slide Model 9410Pool Slide Water Slide
Model 9410

Description: Double 30” I.D. polyethylene water slide with one (1) 90° curve and one (1) 360° turn.
Centerline Run: 31' 6" and 43' 1"
Entry Height: 10' 5"
Platform Size: 8' x 8'
Space Requirements: 33' 9" x 15' 2" – Space requirements may vary with options chosen.

  • 30" Inside diameter polyethylene flumes
  • Stairs: Spiral Stairs  7” rise, 11” tread, 36” wide;
    Aqua-Plast coated textured aluminum surface; closed risers.
  • 20 gpm water flow (each flume) recommended; 20 to 40 gpm required.
  • Splash down dimension: 41' 10" x 20' 0"
  • Minimum water depth: 3'

click on image to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat
