  • 2048
    Closed Flume Fiberglass Water Slide Model 2048
  • 1684
    Custom Polyethylene Flume Water Slide Model 1684
  • 1855
    Fiberglass Flume Water Slide Model 1855
  • 1868
    Combination Flume Water Slide Model 1868
  • 1940
    Fiberglass Flume Water Slide Model 1940
  • 1634
    Polyethylene Flume Water Slide Model 1634
  • 1865
    Combination Flume Water Slide Model 1865
  • 1865-32
    Combination Flume Water Slide Model 1865
  • 1925
    Fiberglass Flume Water Slide Model 1919
  • 1927
    Quadruple Fiberglass Flume Water Slide Model 1927
  • 2057
    Closed Flume Fiberglass Water Slide with exit lane Model 2057

Closed Flume Fiberglass Water Slide Model 2048Closed Flume Fiberglass Water Slide
Model 2048

Description : Single 32" I.D. closed flume fiberglass water slide.
Centerline Run: 104' 1"
Entry Height: 19' 1"
Platform Size: N/A *Platform and stairs done by others.
Space Requirements: 23' 9" x 40' 3" - Vary with options chosen.

  • 32" inside diameter fiberglass water slide flume
  • Platform: N/A *Platform done by others.
  • Stairs: N/A *Stairs done by others.
  • 40-60 gpm water flow required
  • Splash down dimension: 12' 8" x 20' 0"
  • Minimum water depth: 3'

click on images to enlarge

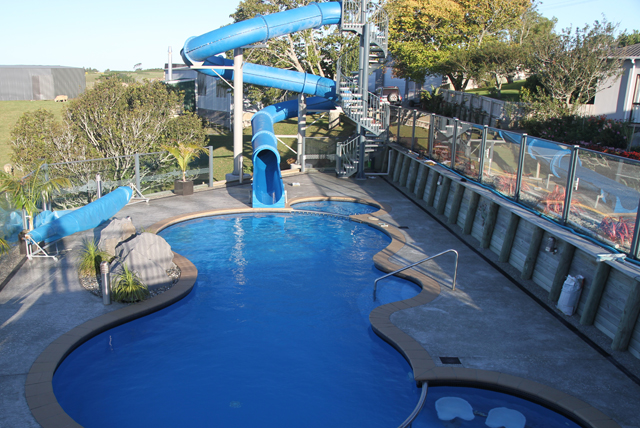

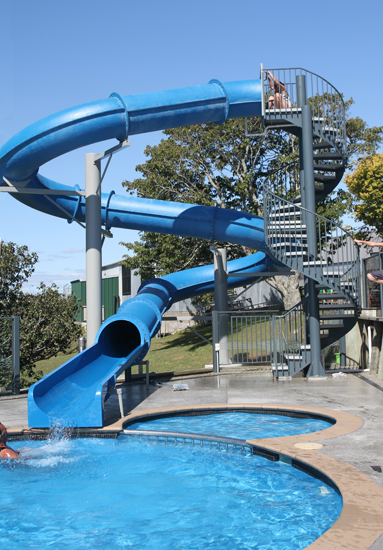

Closed Flume Fiberglass Water Slide Model 2048

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

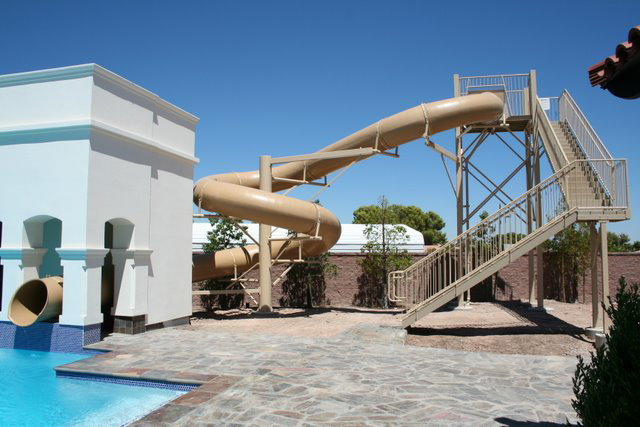

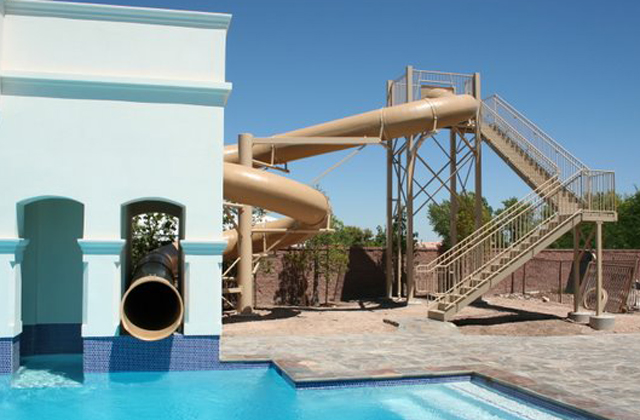

Custom Polyethylene Flume Water Slide Model 1684Water Slide
Model 1684

Description : Single 30" I.D. flume water slide with a 360° turn..
Centerline Run : 105' 0"
Entry Height : 19' 3"
Platform Size : 6' x 8'
Space Requirements : 37' 8" x 35' 4" – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene water slide flume
  • 40-80 gpm water flow required
  • Splash down dimension 12' 6" x 20'
  • Minimum water depth: 5'

click on images to enlarge

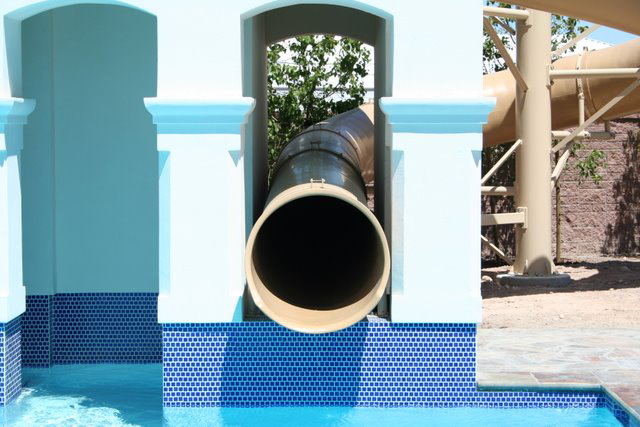

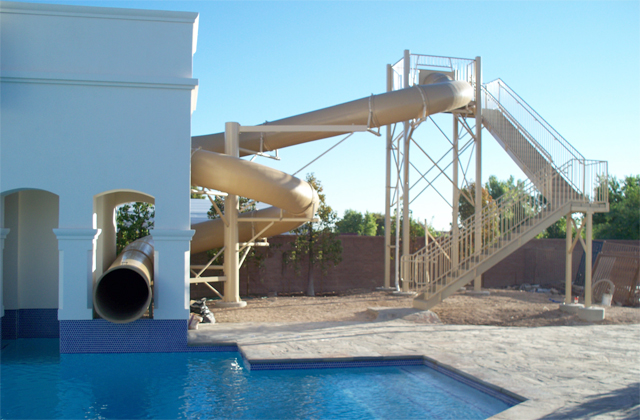

Custom Polyethylene Flume Water Slide Model 1684 Custom Polyethylene Flume Water Slide Model 1684 Custom Polyethylene Flume Water Slide Model 1684

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

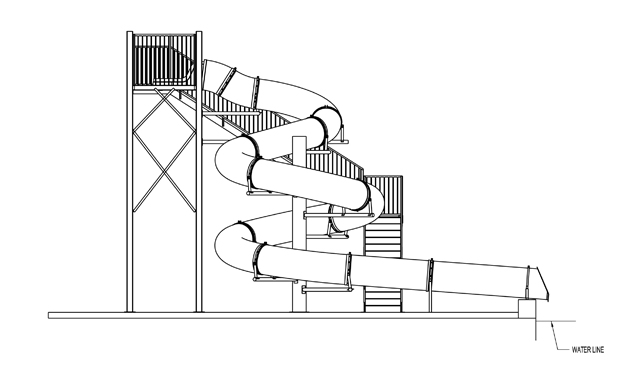

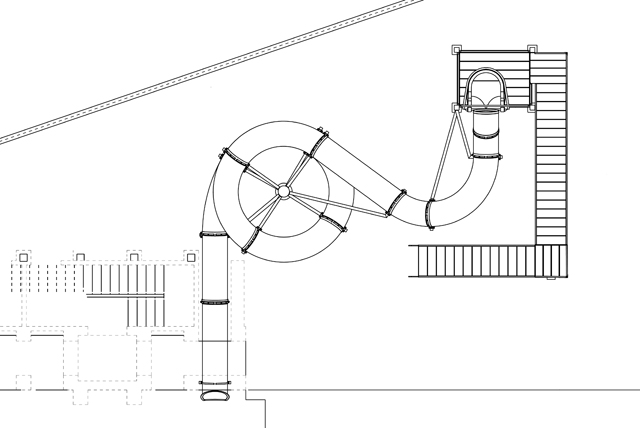

Custom Polyethylene Flume Water Slide Model 1684 1634 Plan View Custom Polyethylene Flume Water Slide Model 1684 1634 Plan View

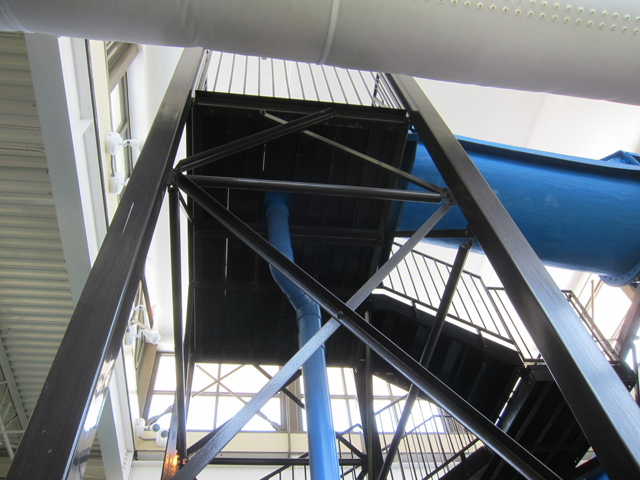

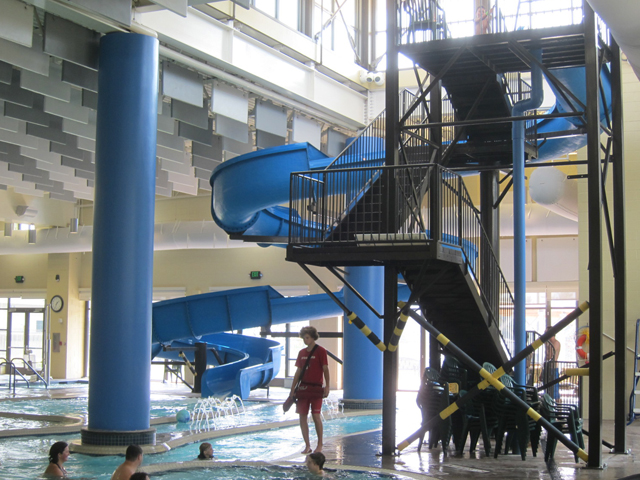

Fiberglass Water Slide Model 1855Fiberglass Water Slide Model 1855Fiberglass Water Slide
Model 1855

Description : Single open flume fiberglass water slide featuring "S" and 360° curves.
Centerline Run: 131' 10"
Entry Height: 19' 3"
Platform Size: 6' x 10'
Space Requirements : 52' 4" x 40' 10" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • 600-800 gpm water flow required
  • Splash down dimension: 13' x 20'
  • Minimum water depth: 3'

click on images to enlarge

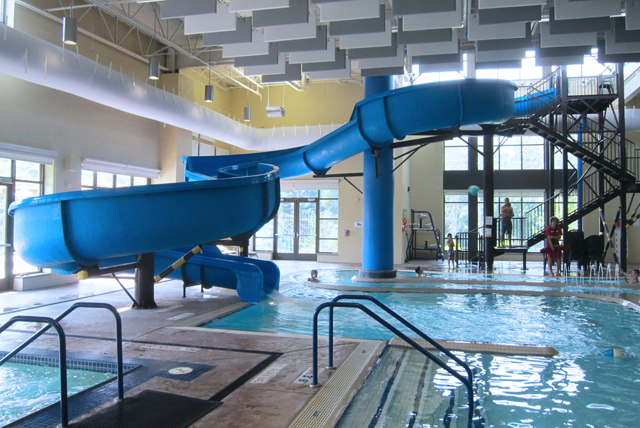

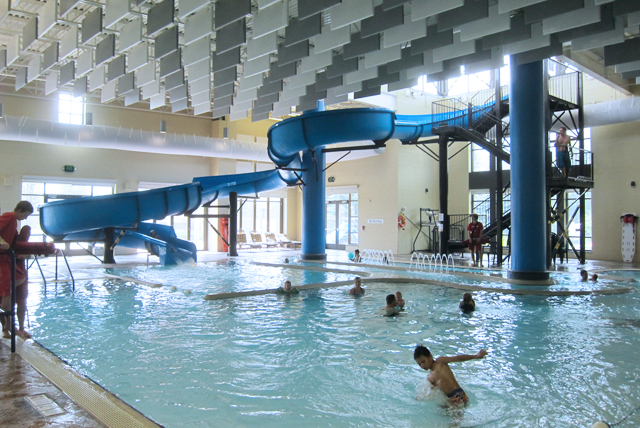

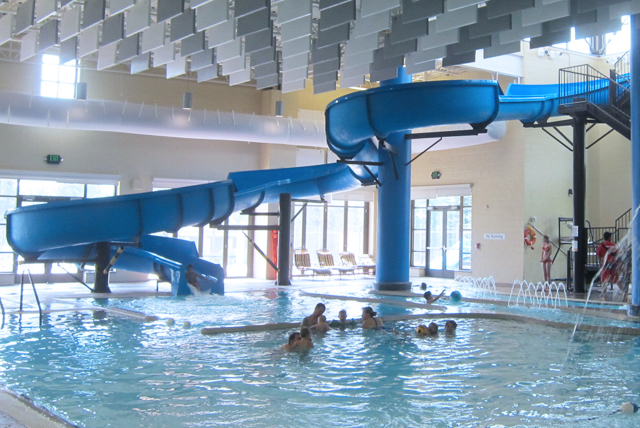

Fiberglass Water Slide Model 1855Fiberglass Water Slide Model 1855

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Fiberglass Water Slide Model 1855

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

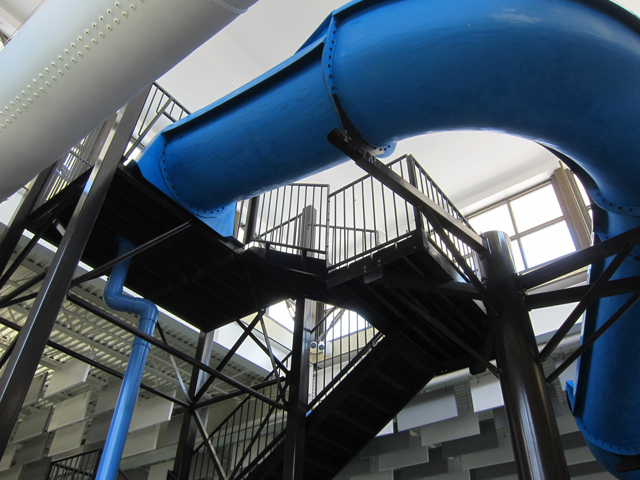

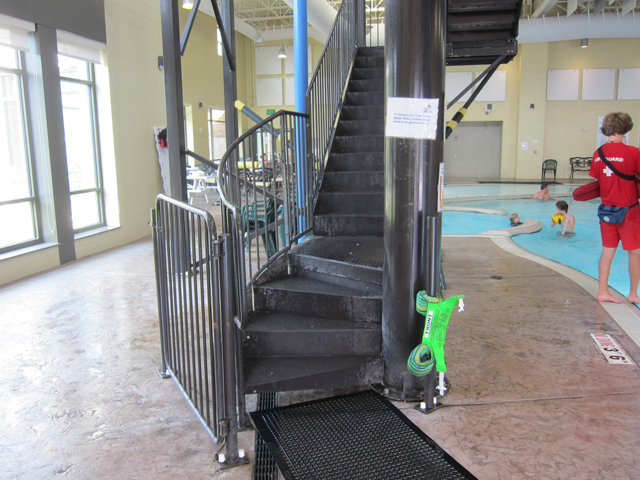

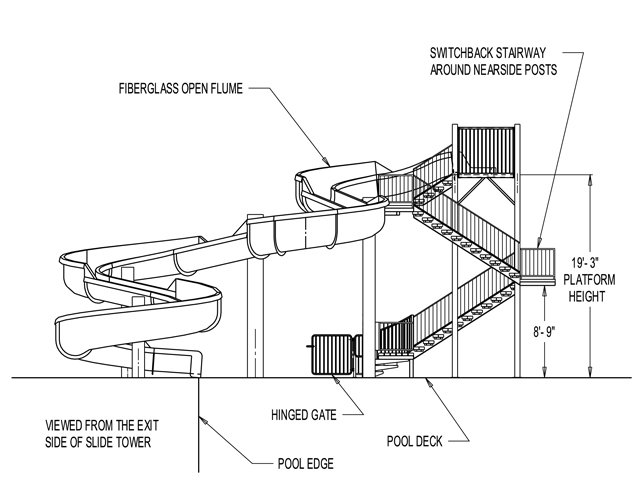

Fiberglass Water Slide Model 1855Fiberglass Water Slide Model 1855 - Stair view, Security Gate OpenFiberglass Water Slide Model 1855 plan view

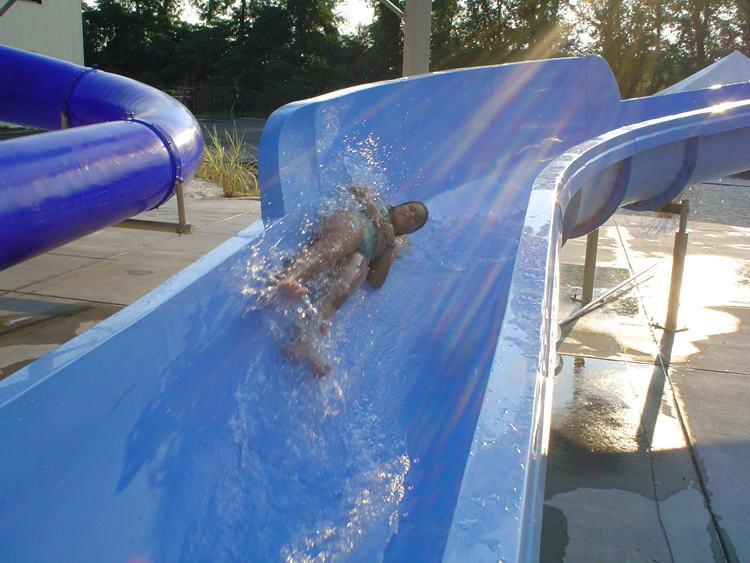

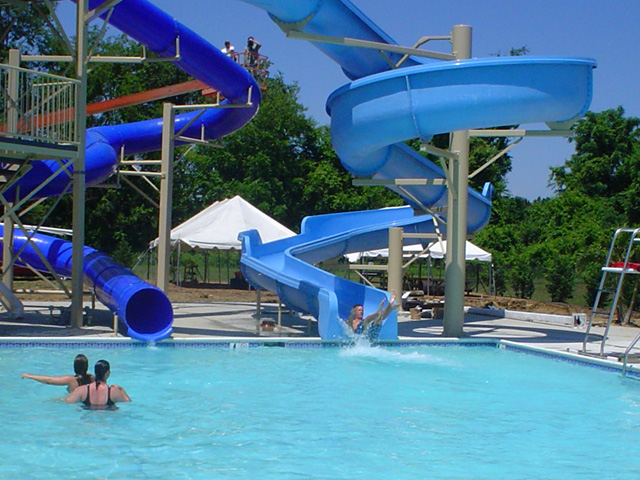

Combination Flume Water Slide Model 1868Combination Flume Water Slide Model 1868Combination Fiberglass and Polyethylene Water Slide
Model: 1868

Description : Double flume combination fiberglass water
slide and 30” I.D. polyethylene water slide, each featuring one and ¾ turns.
Centerline Run : Fiberglass (open): 141' 6";
Poly (closed) 112' 10"
Entry Height : 19' 3"
Platform Size : 8' x 8'
Deck Space Requirement : 50' 9 " x 36' 9 " – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass open flume water slide
  • 30" inside diameter polyethylene closed flume water slide
  • Water flow required: Open: 600-800 gpm; Closed: 50 gpm water flow recommended; 30 to 60 gpm required
  • Splash down dimension: 25' x 20'
  • Minimum water depth: 3'

click on images to enlarge

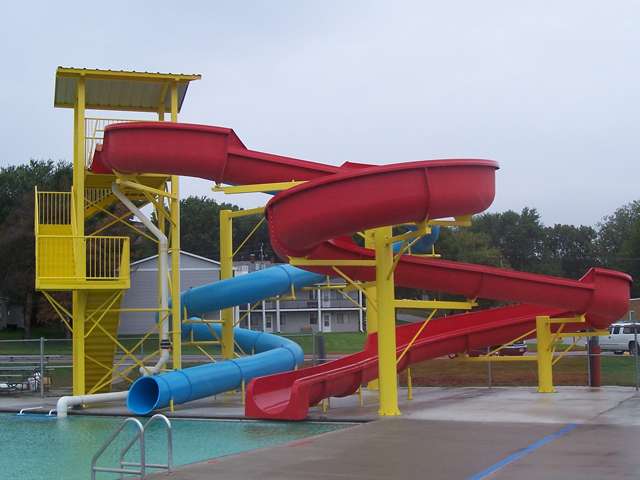

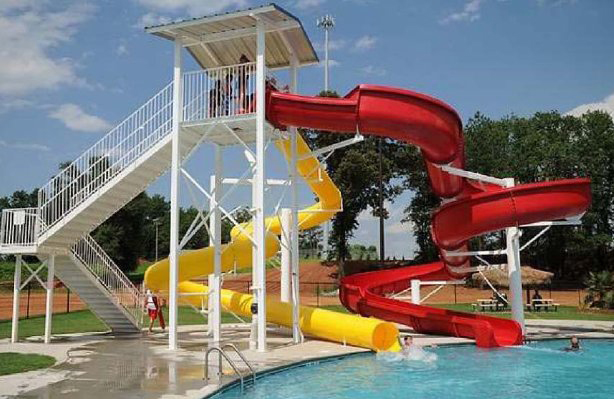

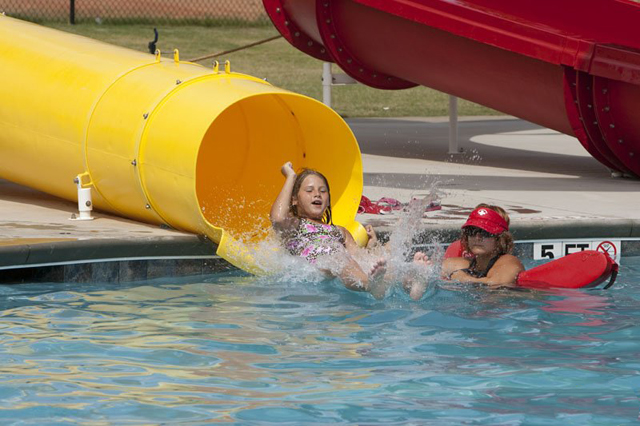

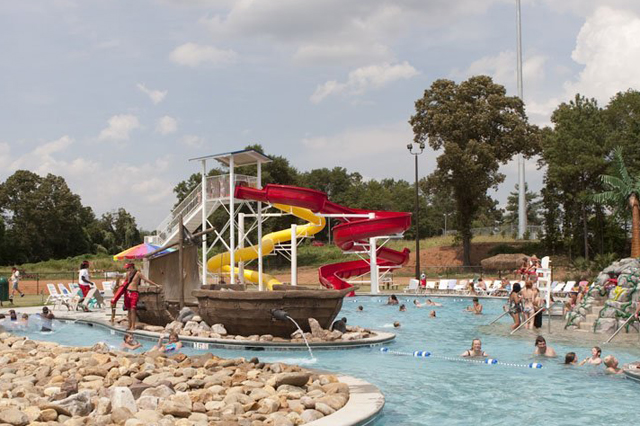

Combination Flume Water Slide Model 1868Combination Flume Water Slide Model 1868

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

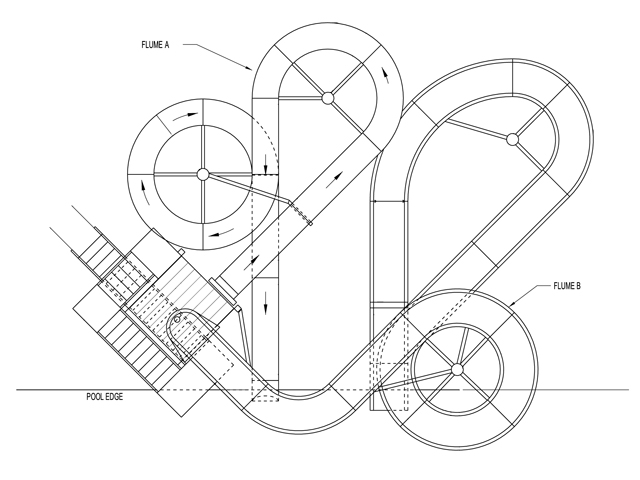

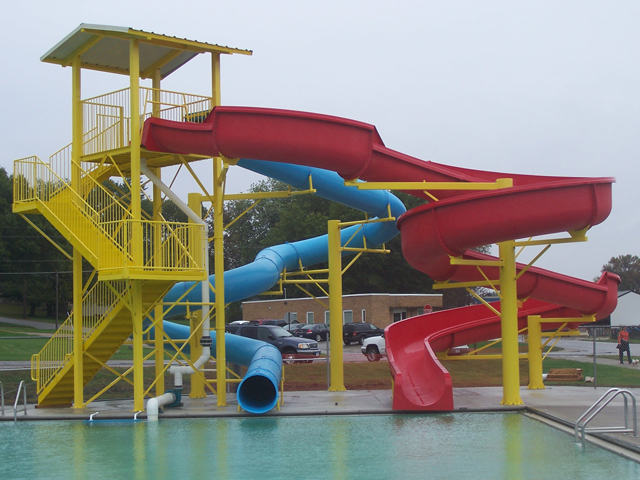

Combination Flume Water Slide Model 1868 Combination Flume Water Slide Model 1868 Combination Flume Water Slide Model 1868

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

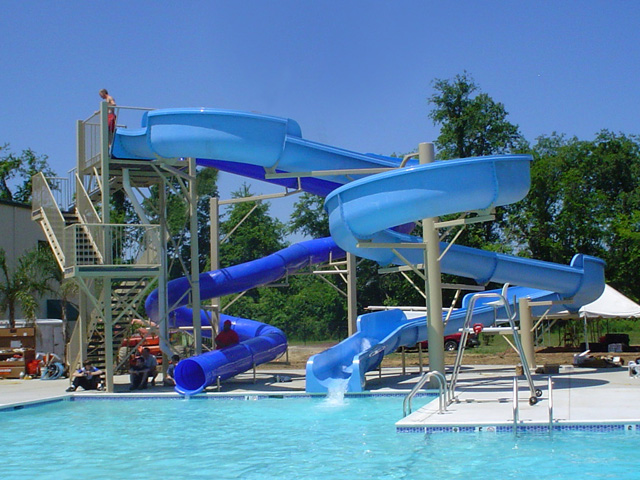

Combination Flume Water Slide Model 1868 Combination Flume Water Slide Model 1868Combination Flume Water Slide Model 1868 plan view

Fiberglass Water Slide Model 1940Fiberglass Water Slide
Model 1940

Description : Single open flume fiberglass water slide featuring (3) 360° reverse curves.
Centerline Run: 146' 4"
Entry Height: 19' 3"
Platform Size: 8' x 8'
Space Requirements : 46' 8" x 31' 1" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • 600-800 gpm water flow required
  • Splash down dimension: 13' 0" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

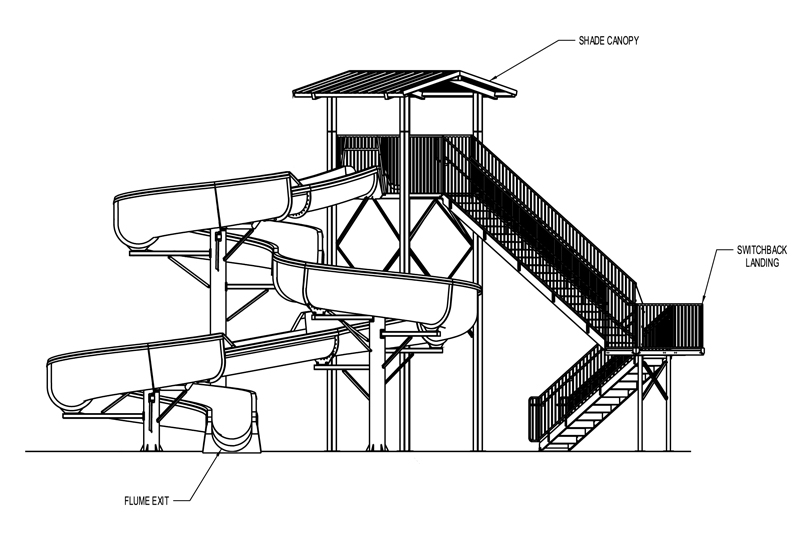

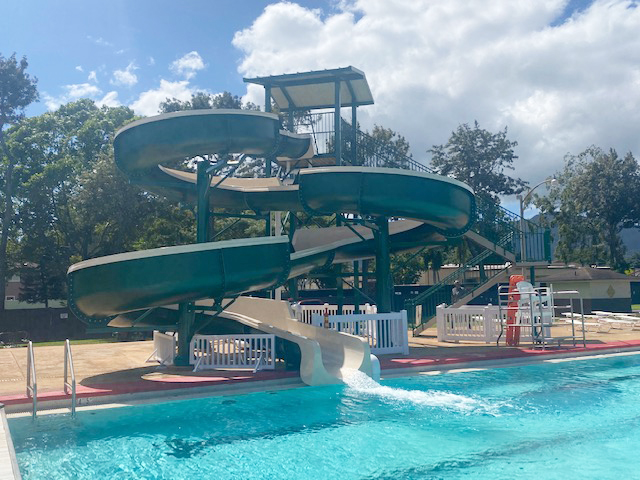

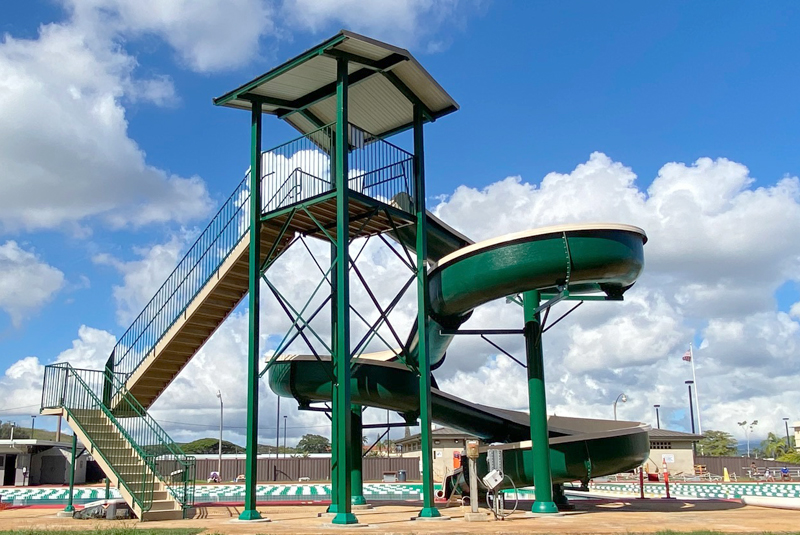

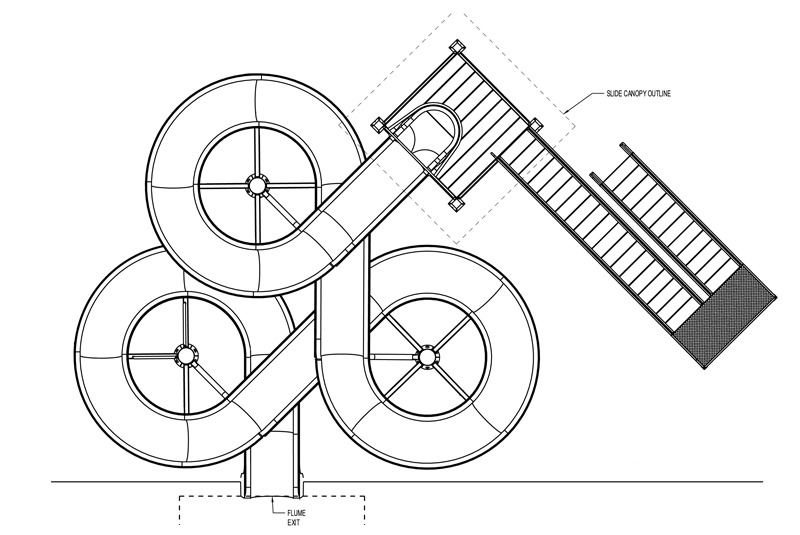

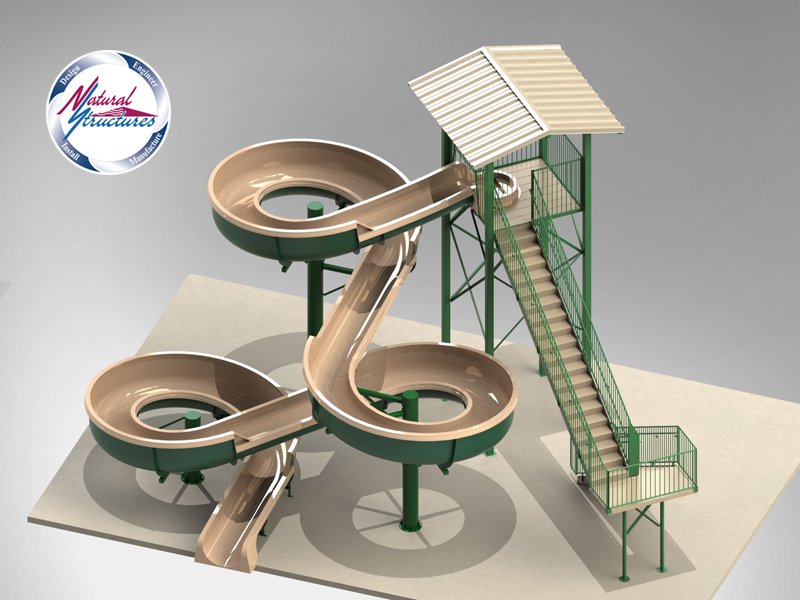

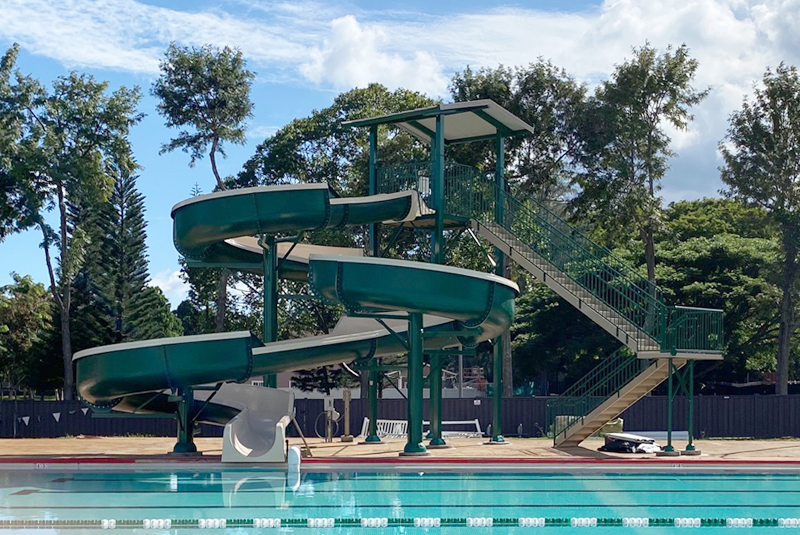

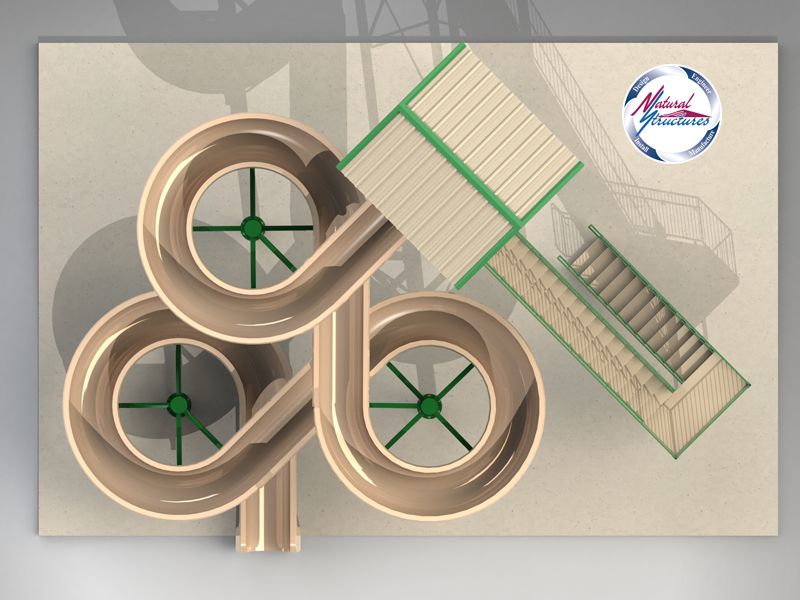

Fiberglass Water Slide Model 1940 Fiberglass Water Slide Model 1940 Fiberglass Water Slide Model 1940 Fiberglass Water Slide Model 1940

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Polyethylene Flume Water Slide Model 1634"Jaws" Water Slide
Model 1634

Description : Single 30" I.D. flume water slide with one and ¾ turns.
Centerline Run : 112' 10"
Entry Height : 19' 9"
Platform Size : 8' x 8'
Space Requirements : 32' 0" x 36' 3" – Space requirements may vary with options chosen.

The name “Jaws" is provided by Northwest Swim Club, Ohio.
  • 30" inside diameter polyethylene water slide flume
  • 50 gpm water flow recommended; 30 to 60 gpm required
  • Splash down dimension 12' 6" x 20'
  • Minimum water depth: 3'

click on images to enlarge

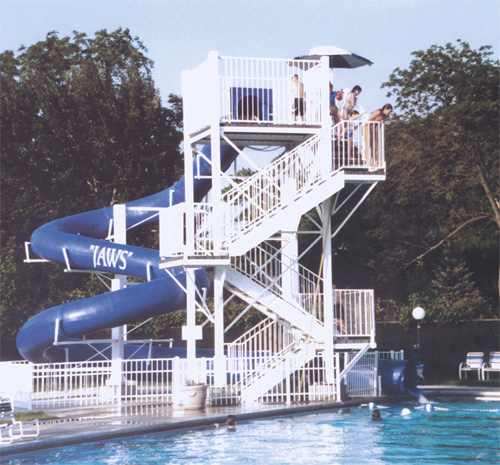

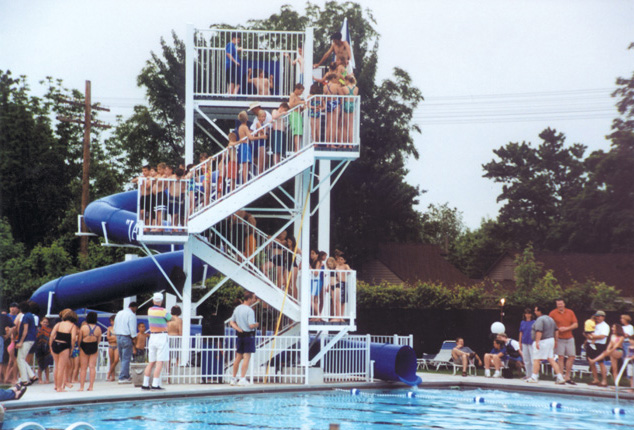

Polyethylene Flume Water Slide Model 1634

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

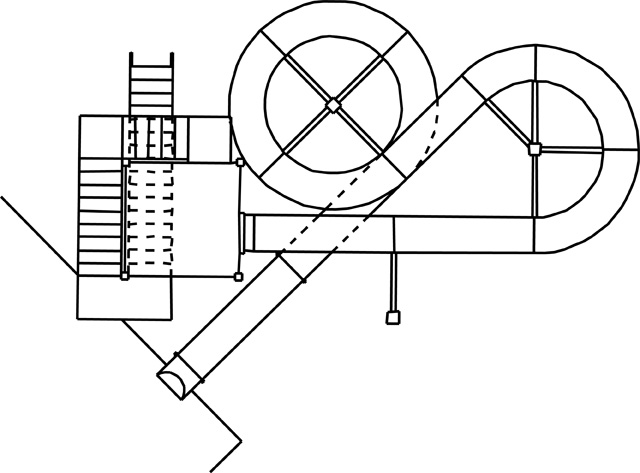

Polyethylene Flume Water Slide Model 1634 Plan View

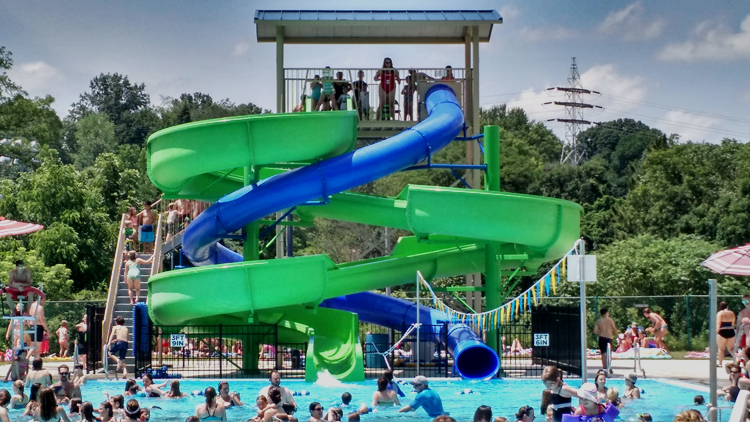

Combination Flume Water Slide Model 1865Combination Flume Water Slide
Model: 1865

Description : Double flume fiberglass and polyethylene combination water slide featuring (3) 270° reverse curves.
Centerline Run : Fiberglass (open) 145' 4";
Poly (closed) 88' 6"
Entry Height : 19' 10"
Platform Size : 16' x 8'
Space Requirements : 36' 1" x 34' 2" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass open flume water slide
  • 30" inside diameter polyethylene closed flume water slide
  • Water flow required (each flume):
    Open: 600-800 gpm; Closed: 50 gpm recommended; 30 to 60 gpm required
  • Splash down dimension: 22' x 20'
  • Minimum water depth: 3'

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

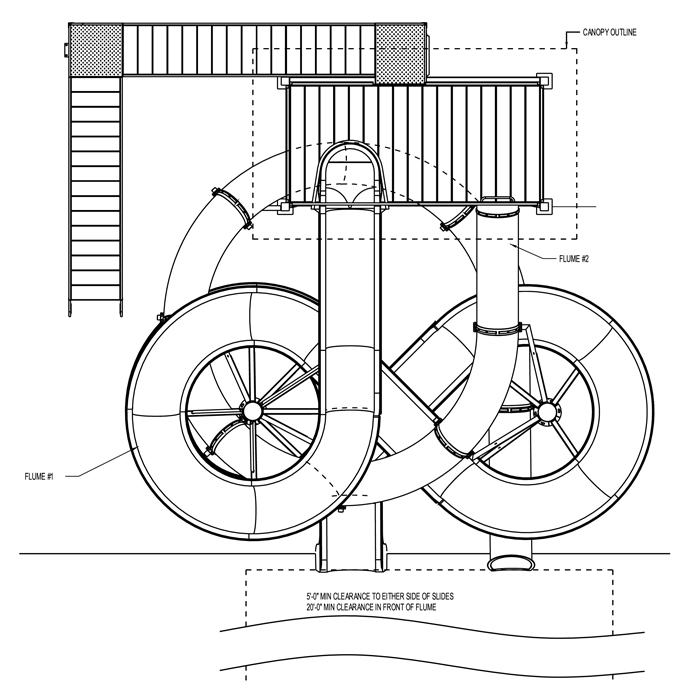

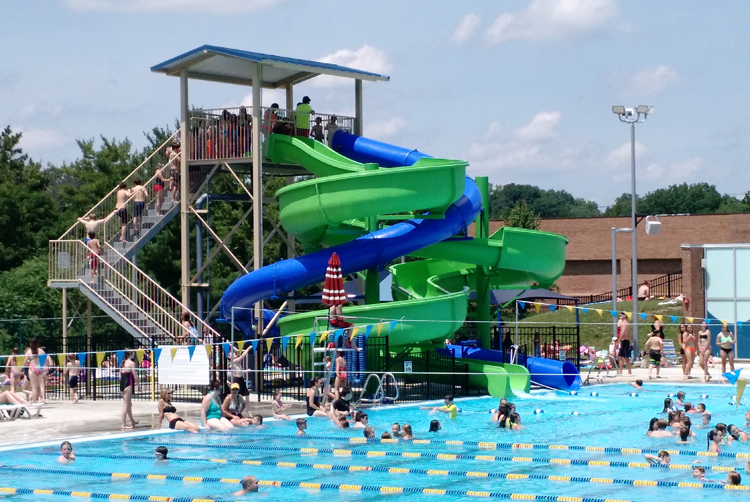

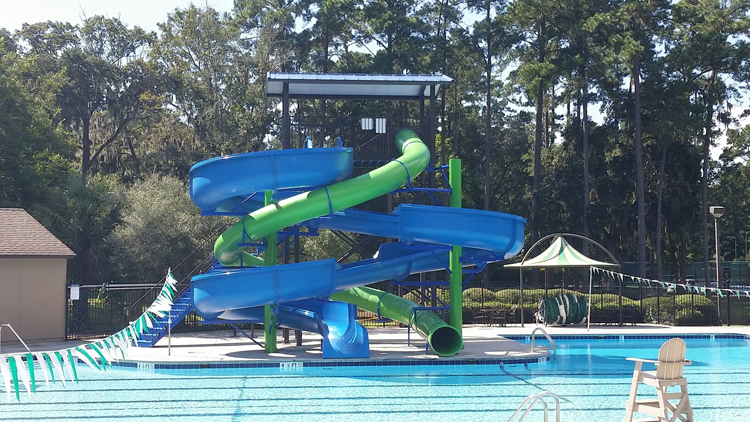

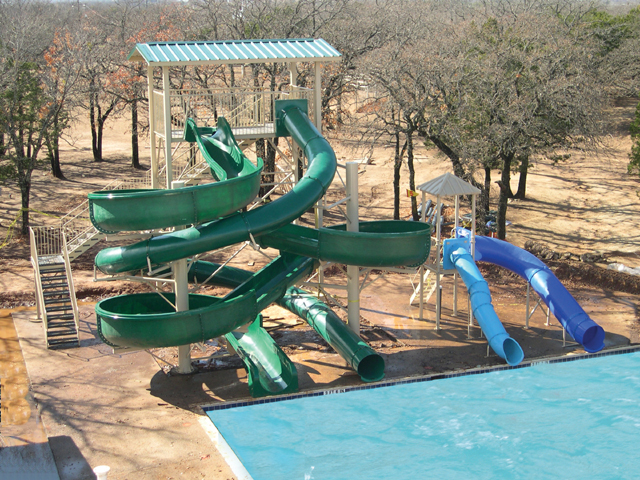

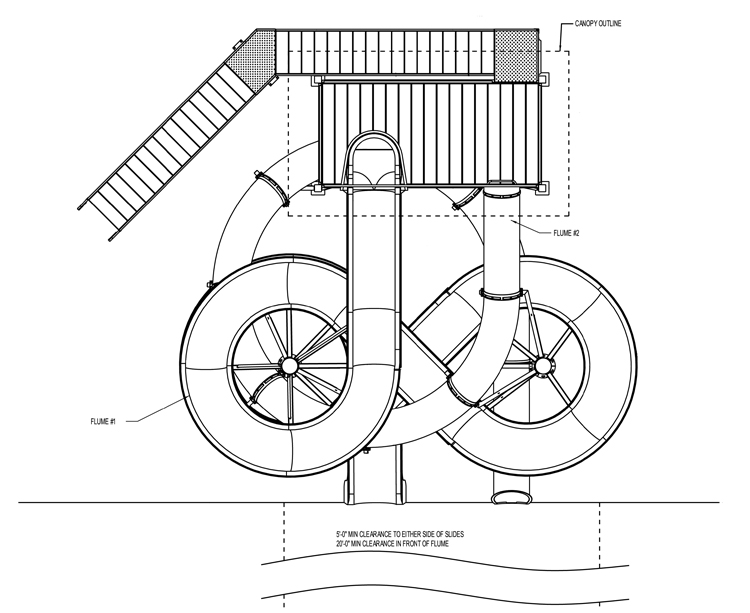

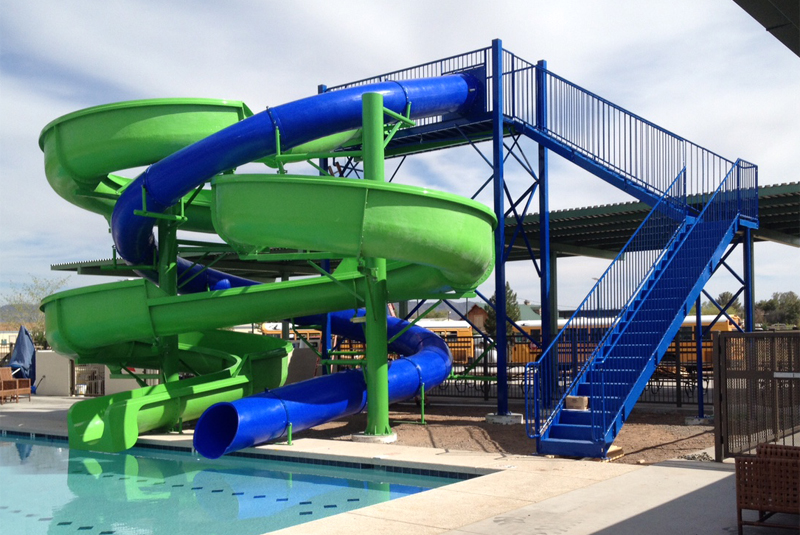

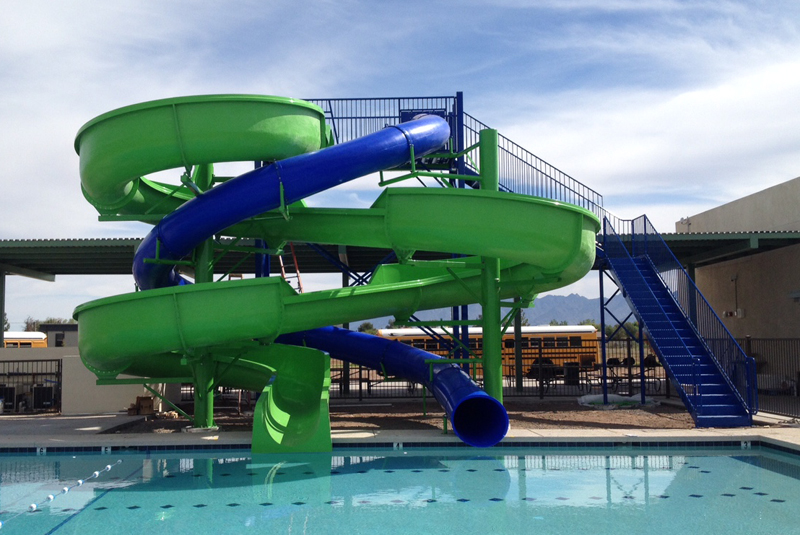

Combination Flume Water Slide Model 1865 Combination Flume Water Slide Model 1865 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

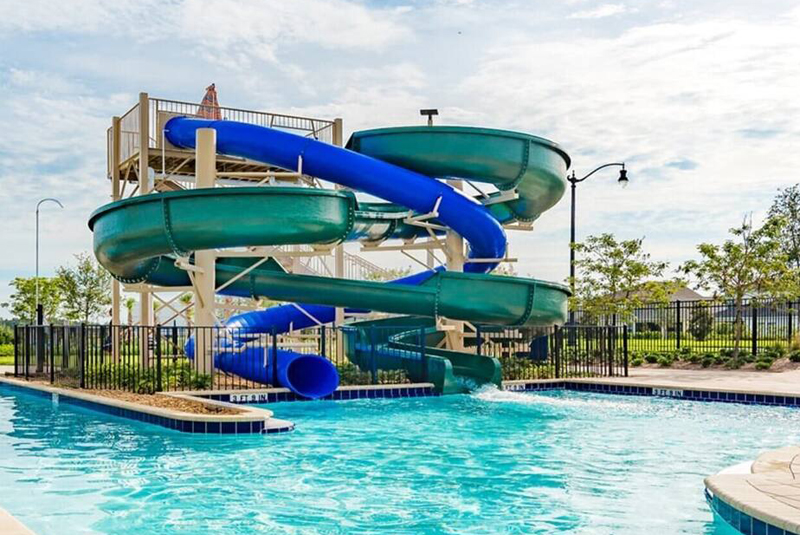

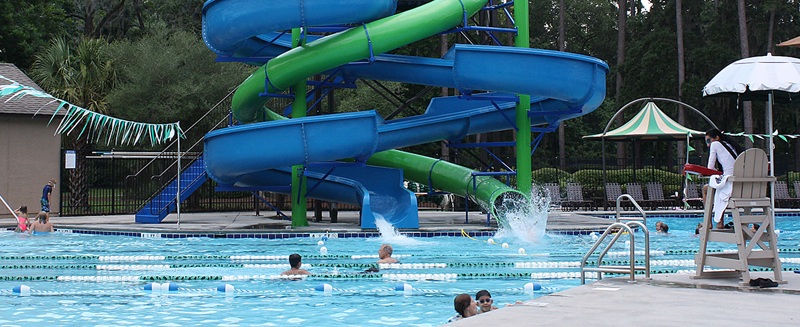

Combination Flume Water Slide Model 1865

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

*Small slide is Pool Slide Model 0085

Combination Flume Water Slide Model 1865 Combination Flume Water Slide Model 1865 Combination Flume Water Slide Model 1865 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Combination Flume Water Slide Model 1865Combination Flume Water Slide Model 1865 Combination Flume Water Slide Model 1865

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

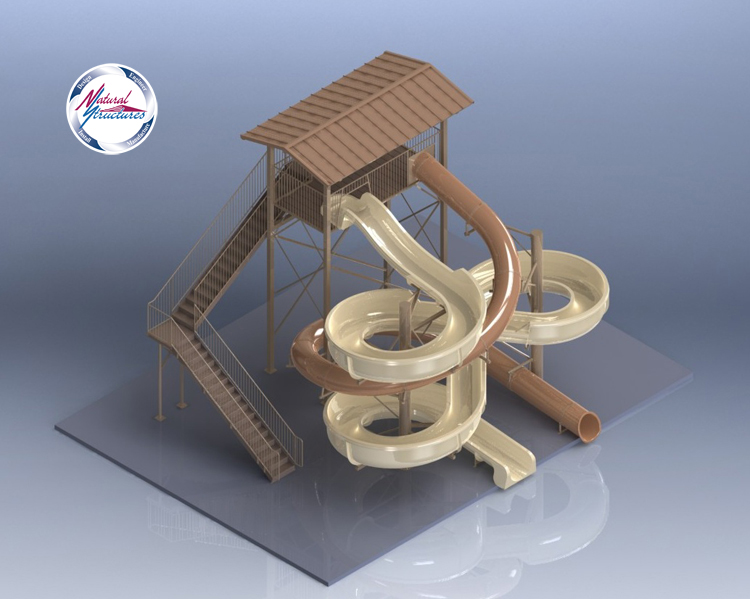

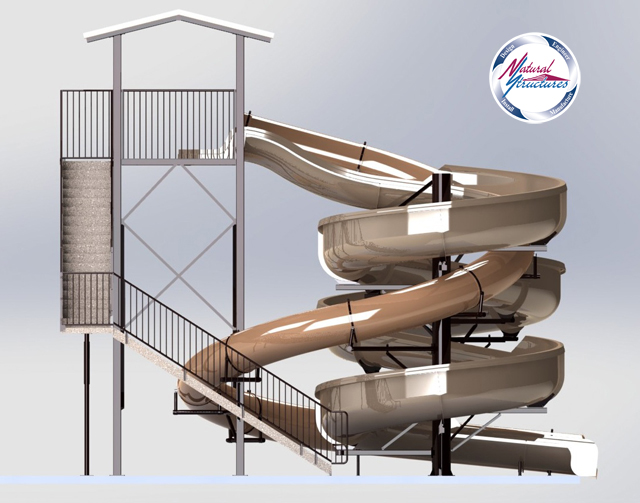

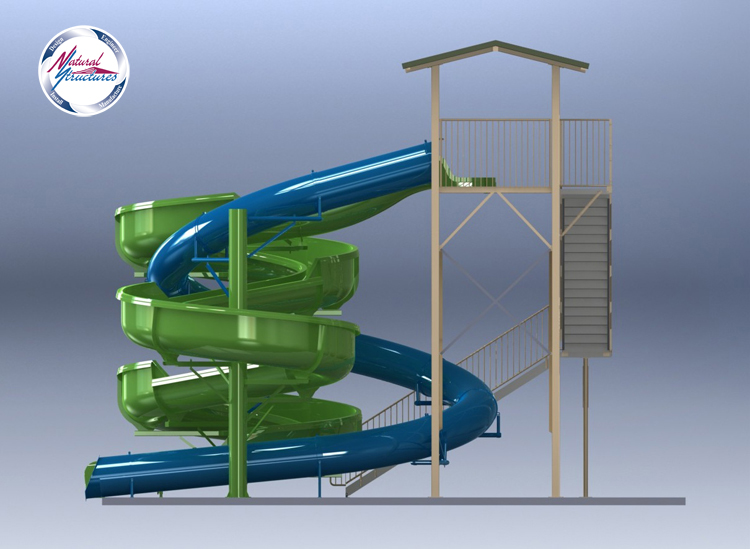

Combination Flume Water Slide Model 1865 3D Combination Flume Water Slide Model 1865 3D Combination Flume Water Slide Model 1865 3D

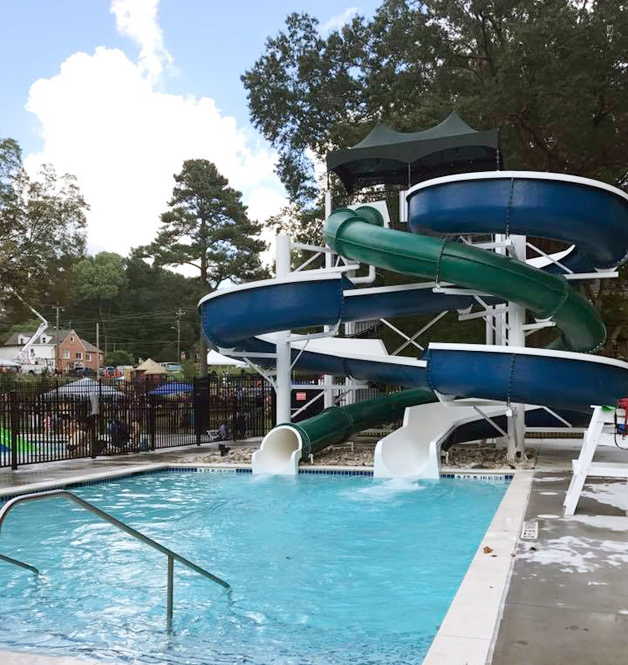

Double Fiberglass Flume Water Slide Model 1865-32Double Fiberglass Flume Water Slide
Model: 1865-32

Description : Double fiberglass flume water slide featuring: 36” I.D. open fiberglass flume (Flume 1) and 32” I.D. closed fiberglass flume (Flume 2).
Centerline Run : (1): 145’ 4” (2): 90’ 4”
Entry Height : 19’ 10”
Platform Size : 8' x 16'
Space Requirements : 32' 8 " x 33' 8 "–Space requirements may vary with options chosen.

  • 32" inside diameter closed fiberglass flume
  • 36" inside diameter open fiberglass flume
  • Spiral Stairs
  • Water flow required (each flume):
    - Open (Flume 1): 600-800 gpm;
    - Closed (Flume 2):150-200 gpm
  • Splash down dimension 21' 10" x 20' 0"
  • Minimum water depth: 3' 0"

click on images to enlarge

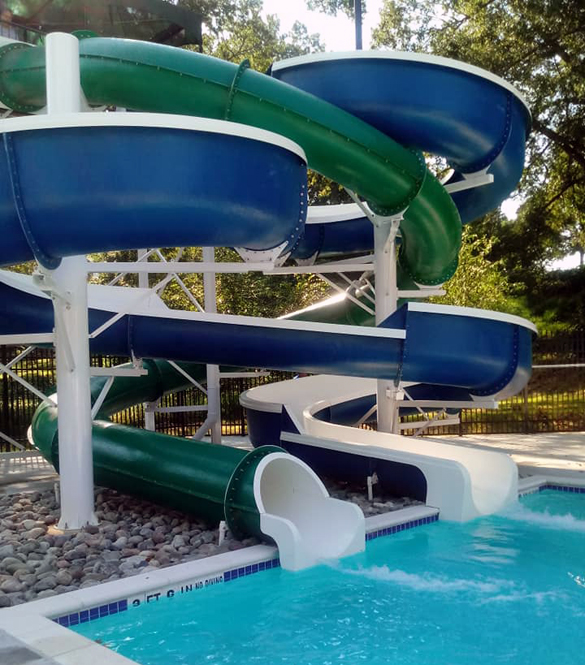

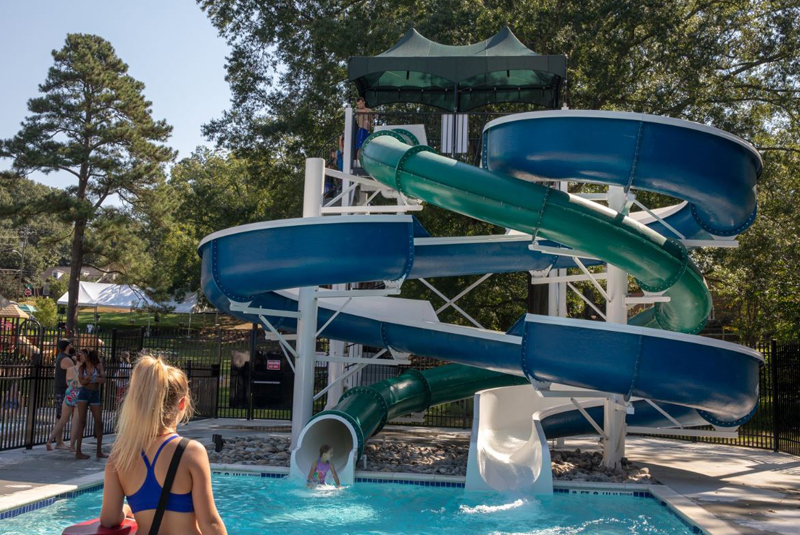

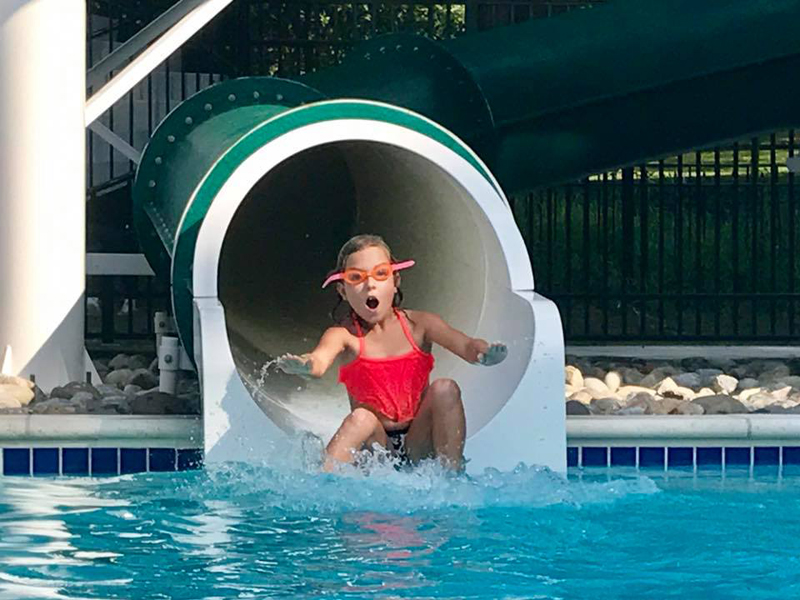

Double Fiberglass Flume Water Slide Model 1865-32Double Fiberglass Flume Water Slide Model 1865-32Double Fiberglass Flume Water Slide Model 1865-32

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

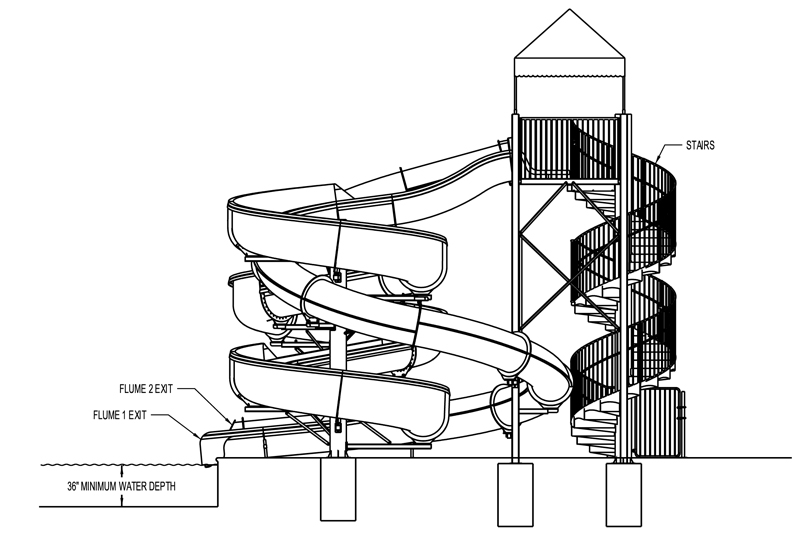

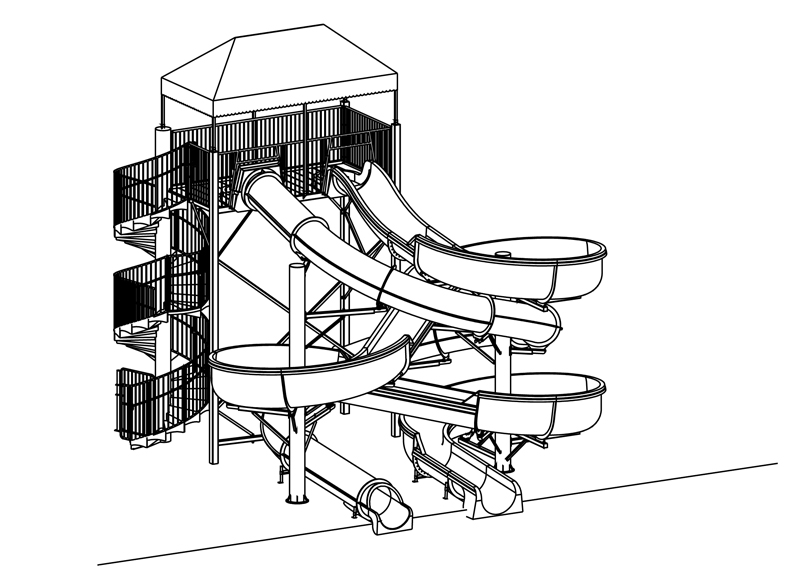

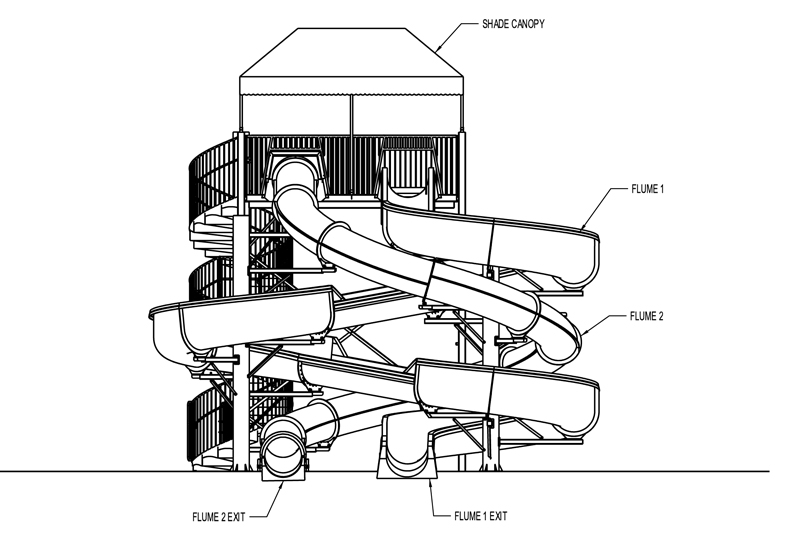

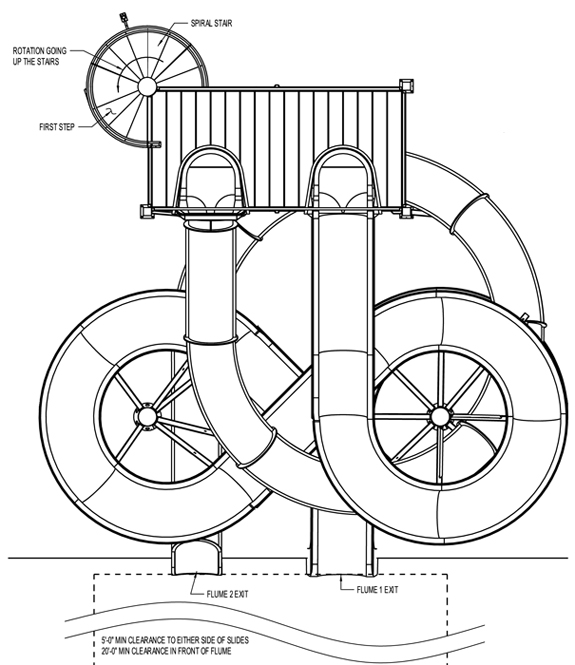

Double Fiberglass Flume Water Slide Model 1865-32 plan viewDouble Fiberglass Flume Water Slide Model 1865-32 plan viewDouble Fiberglass Flume Water Slide Model 1865-32 plan viewDouble Fiberglass Flume Water Slide Model 1865-32 plan view

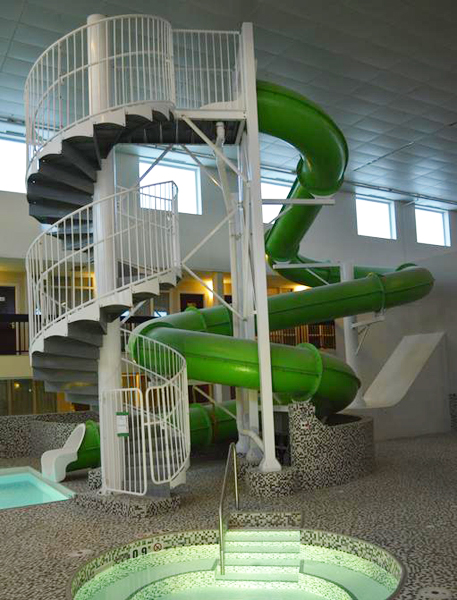

Closed Flume Fiberglass Water Slide Model 1925Closed Flume Fiberglass Water Slide
Model 1925

Description : Description: Single 32” I.D. closed flume fiberglass water slide.
Centerline Run: 114' 0"
Entry Height: 19' 10"
Platform Size: 4' x 8'.
Space Requirements: 33' 7" x 21' 8" - Vary with options chosen.

  • 32” inside diameter closed fiberglass flume water slide
  • 250-500 gpm water flow required
  • Splash down dimension, each flume: 12’ x 20’
  • Minimum water depth: 3' 0"

click on images to enlarge

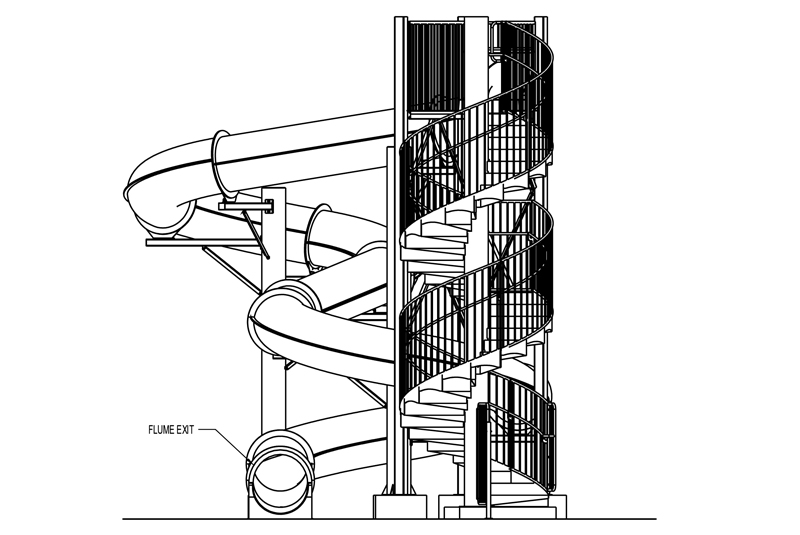

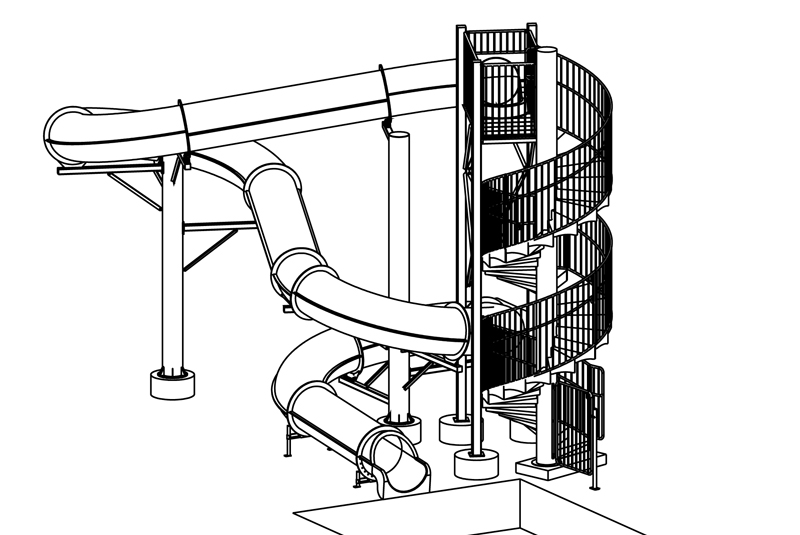

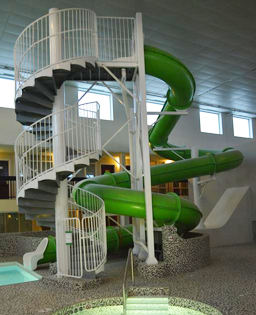

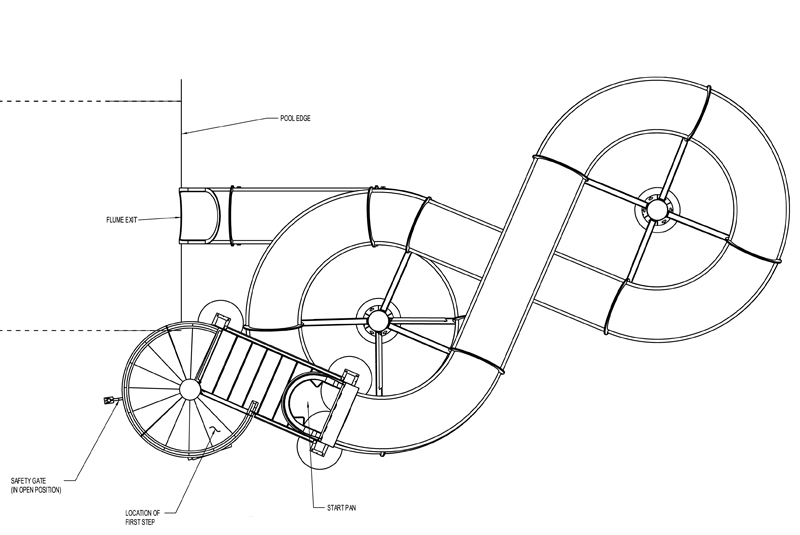

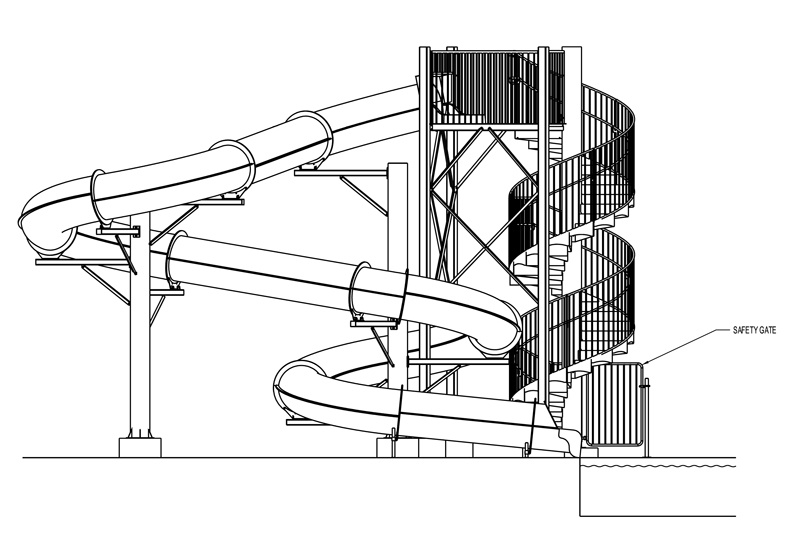

Closed Flume Fiberglass Water Slide Model 1925Closed Flume Fiberglass Water Slide Model 1925 plan view Closed Flume Fiberglass Water Slide Model 1925 plan view Closed Flume Fiberglass Water Slide Model 1925 plan view Closed Flume Fiberglass Water Slide Model 1925 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

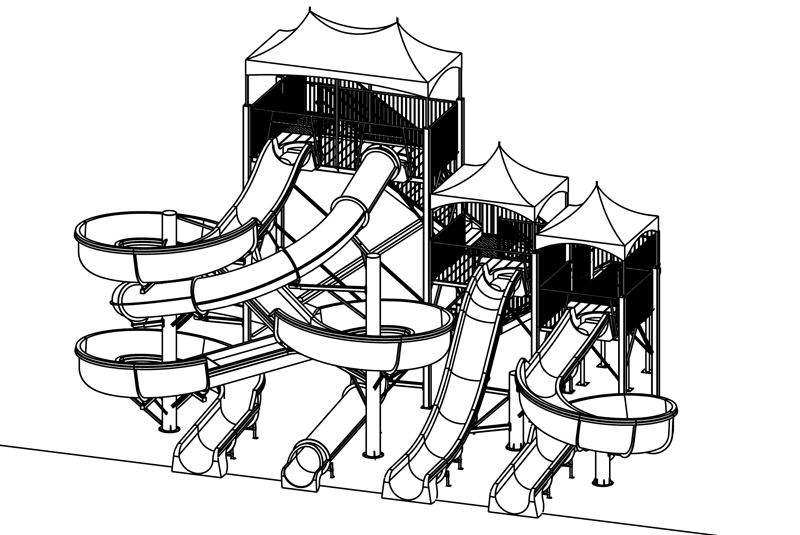

Quadruple Fiberglass Flume Water Slide Model 1927Quadruple Fiberglass Flume Water Slide
Model: 1927

Description: Quadruple Fiberglass flume water slide featuring: (3) 36” I.D. open fiberglass flumes (Flumes 1, 3, & 4) and (1) 32” I.D. closed fiberglass flume (Flume 2).
Centerline Run: (1): 145’ 4” (2): 91’ 5” (3): 29’ 1” (4): 53’ 0”
Entry Height: (1 & 2): 19’ 10” (3): 11’ 1” (4): 8’ 2”
Platform Size
: Upper Deck: 7’ 9” x 16’; Middle Deck: 7’ 9” x 9’ 7”; Lower Deck: 7’ 9” x 7’ 9”
Space Requirements: 52’ 6” x 37’ 6” –Space requirements may vary with options chosen.

  • (3) 36” inside diameter open fiberglass flumes.
  • (1) 32” inside diameter closed fiberglass flume.
  • Water flow: Flume (1): 600-800 gpm; Flume (2 & 3): 150-200 gpm; Flume (4): 500-700 gpm
  • Splash down dimension: 28' x 20'
  • Minimum water depth: 3'

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

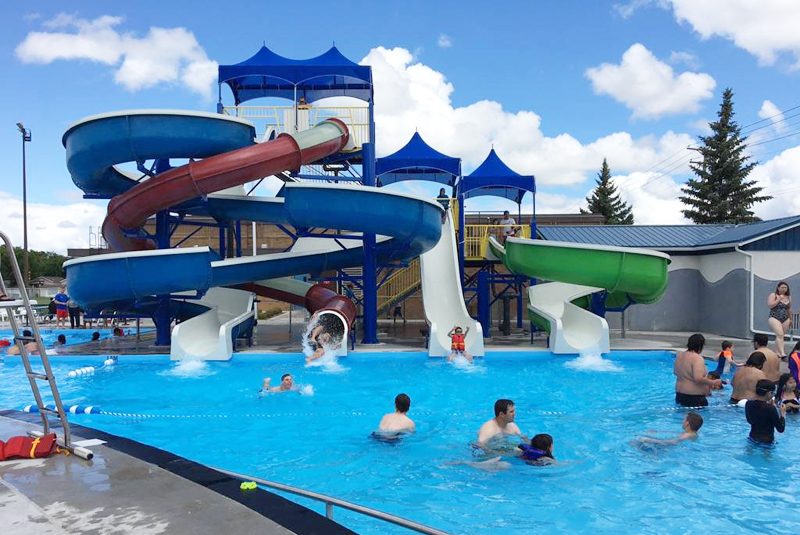

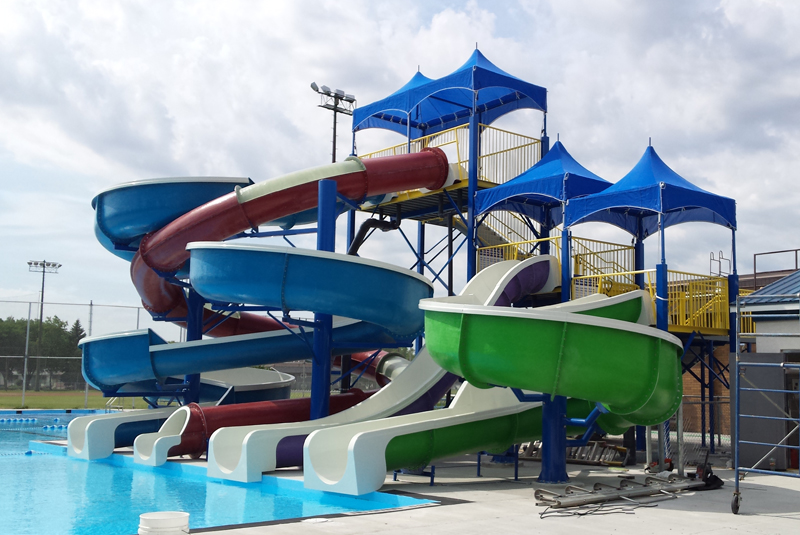

Quadruple Fiberglass Flume Water Slide Model 1927

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

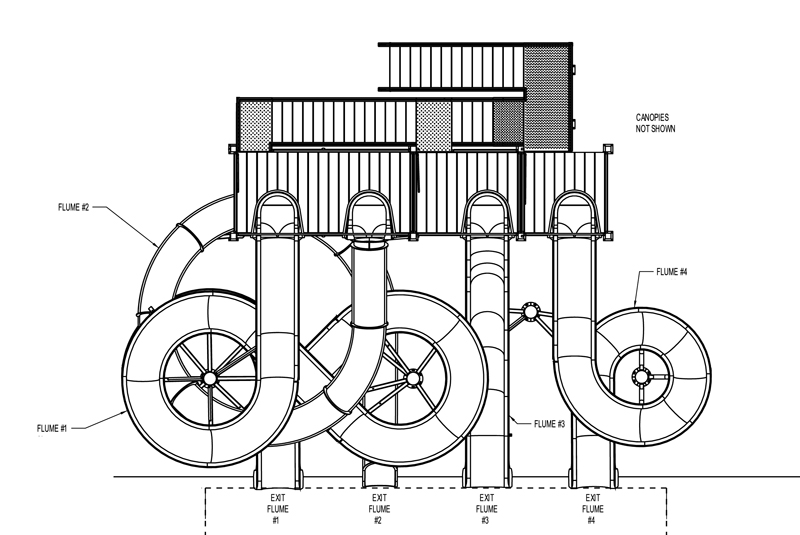

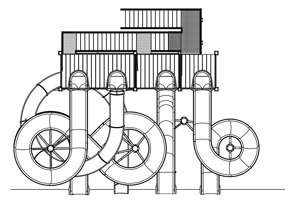

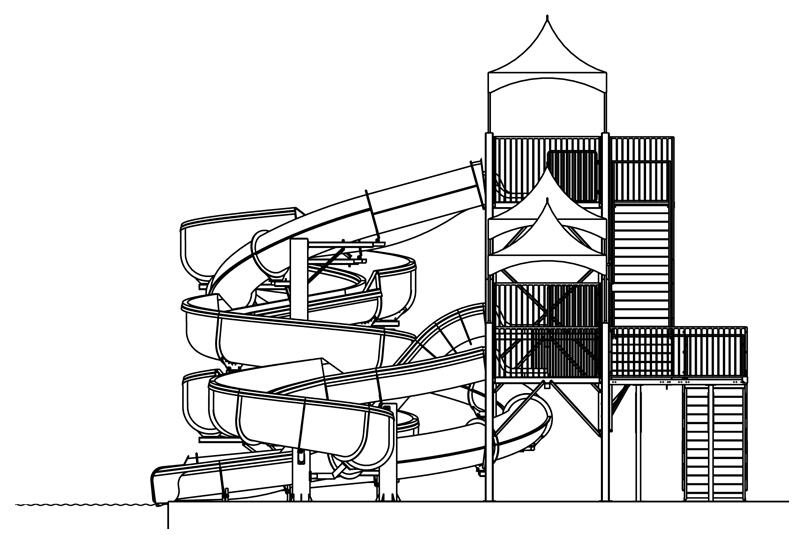

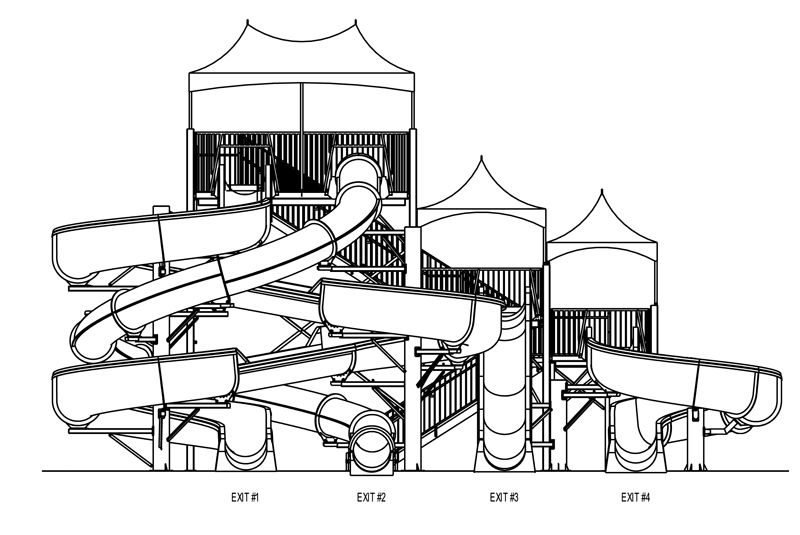

Quadruple Fiberglass Flume Water Slide Model 1927 plan view Quadruple Fiberglass Flume Water Slide Model 1927 plan view Quadruple Fiberglass Flume Water Slide Model 1927 plan viewQuadruple Fiberglass Flume Water Slide Model 1927 plan view

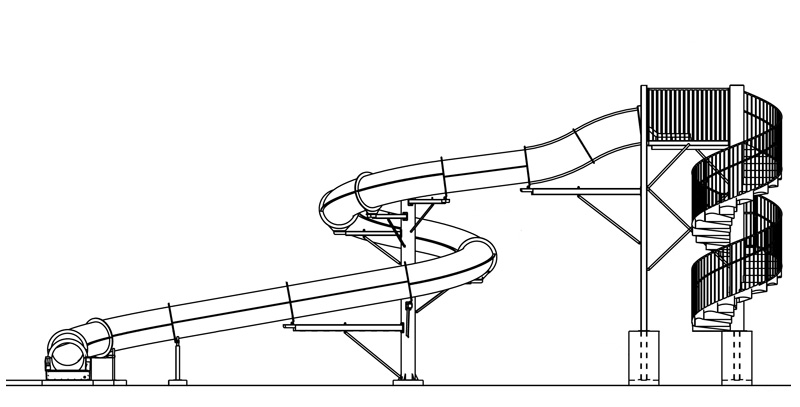

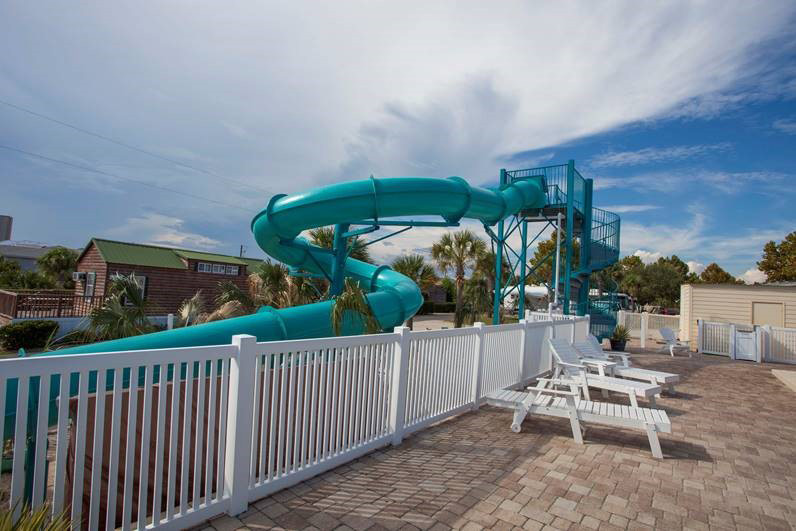

Closed Flume Fiberglass Water Slide with exit lane Model 2057Closed Flume Fiberglass Water Slide
Model 2057

Description : Description: Single 32” I.D. closed flume fiberglass water slide with exit lane.
Centerline Run: 104' 8"
Entry Height: 19' 10"
Platform Size: 8' x 8'.
Space Requirements: 36' 7" x 17' 8" - Vary with options chosen.

Recirculating System
NO POOL REQUIRED!
  • 32” inside diameter closed fiberglass flume water slide
  • Self-enclosed recirculating system (no pool required)
  • Fiberglass exit lane
  • Pool application also available
  • 30-60 gpm water flow required

click on images to enlarge

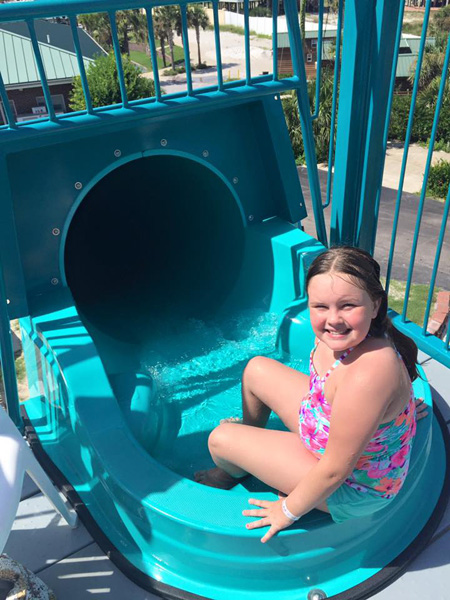

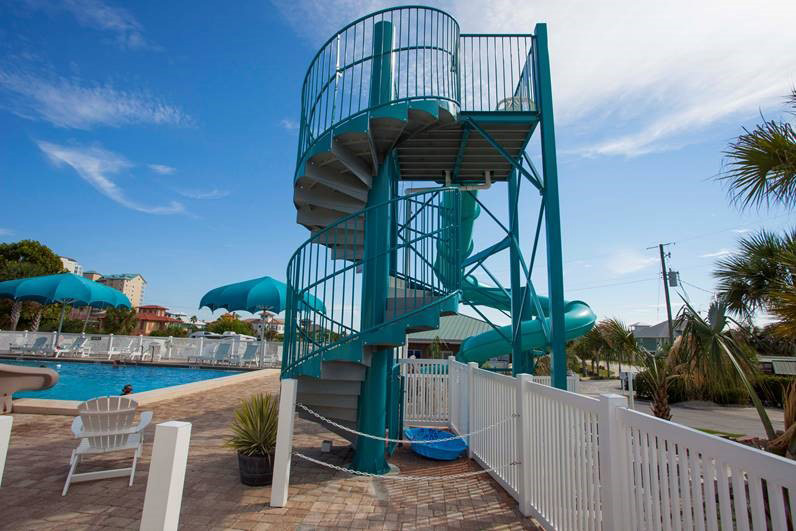

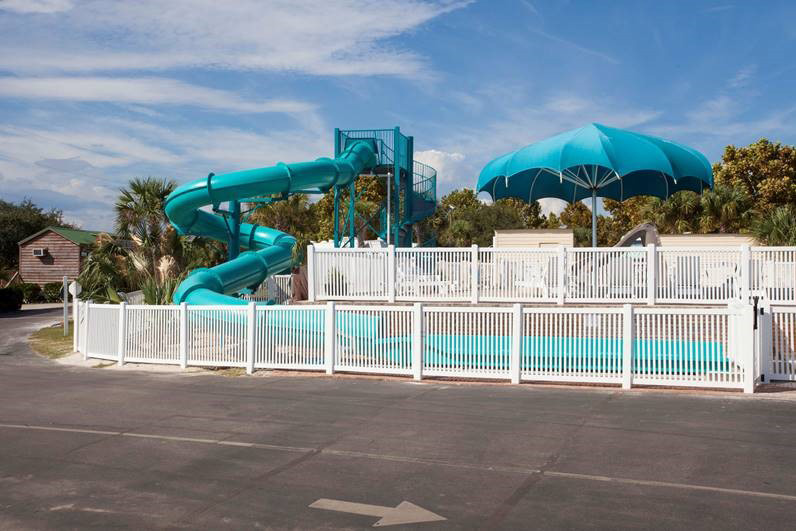

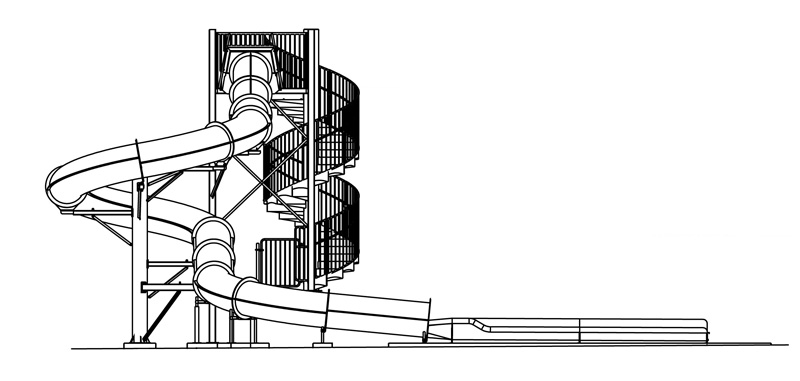

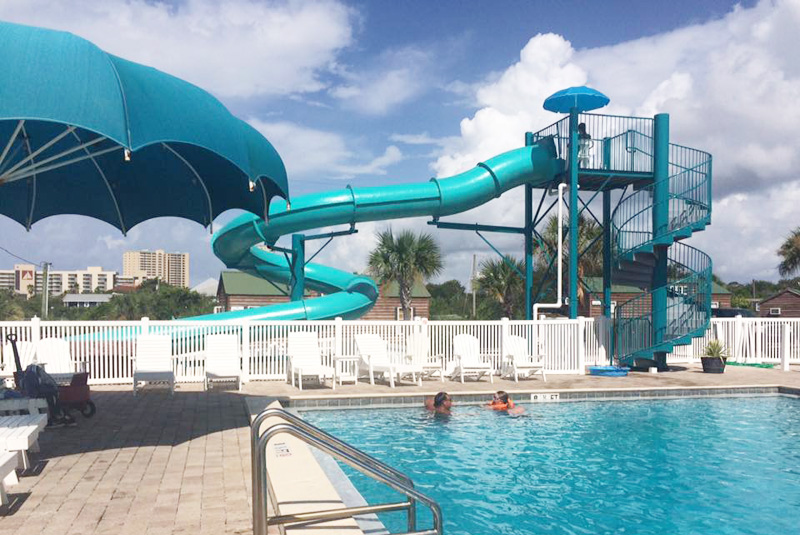

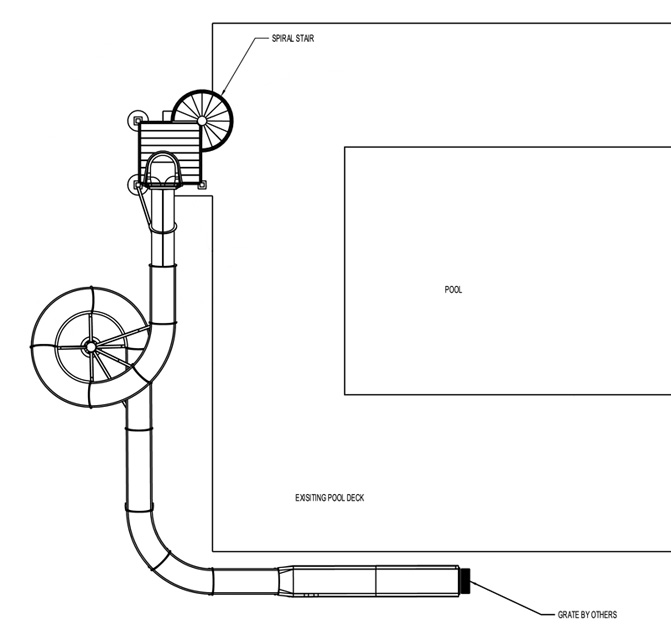

Closed Flume Fiberglass Water Slide with exit lane Model 2057Closed Flume Fiberglass Water Slide with exit lane Model 2057Closed Flume Fiberglass Water Slide with exit lane Model 2057Closed Flume Fiberglass Water Slide with exit lane Model 2057Closed Flume Fiberglass Water Slide with exit lane Model 2057Closed Flume Fiberglass Water Slide with exit lane Model 2057Closed Flume Fiberglass Water Slide with exit lane Model 2057

DownloadDownload Spec Sheet
 Requires Adobe Acrobat
