Quality Since 1976!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • Brasada
    Landscape & Hillside Slide Model: Brasada
  • Chervin
    Landscape & Hillside Slide Model: Chervin
  • Edwards
    Landscape & Hillside Slide Model: Edwards
  • Gorden
    Landscape & Hillside Slide Model: Gorden
  • Ocala
    Landscape & Hillside Slide Model: Ocala
  • Tyler Hill
    Hillside Slide Model: Tyler Hill

Landscape & Hillside Slide Model: BrasadaFiberglass Flume Landscape & Hillside Slide
Model: Brasada

Description : Single open fiberglass flume designed for hillside and landscape applications.
Slide Run : 108'
Slide Entrance Height : 12' 3"
Elevation : 11'
Space Requirements : 59' 6" x 29' 10" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass flume
  • 600-800 gpm water flow required
  • Splash down dimension 13' x 20'
  • Minimum water depth: 3'

click on images to enlarge

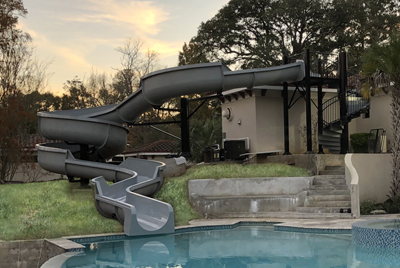

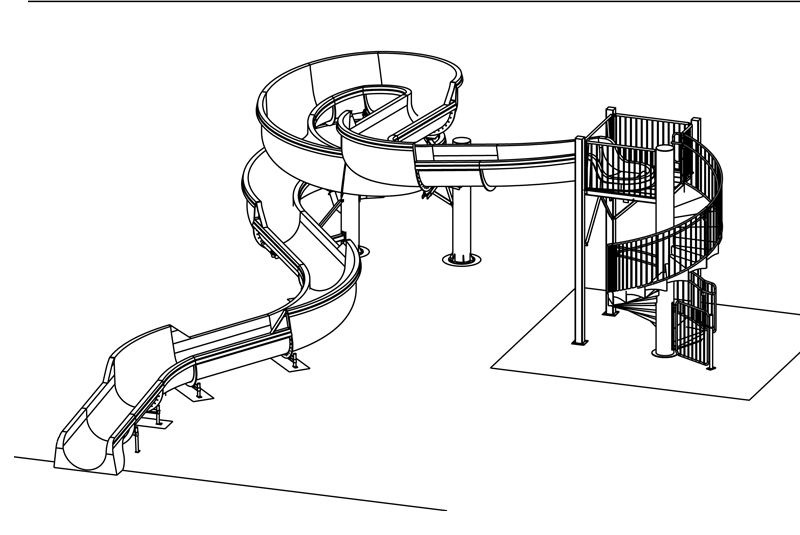

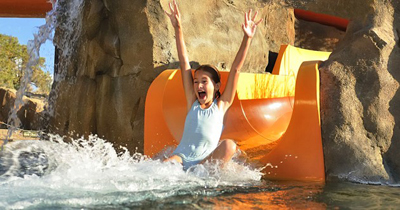

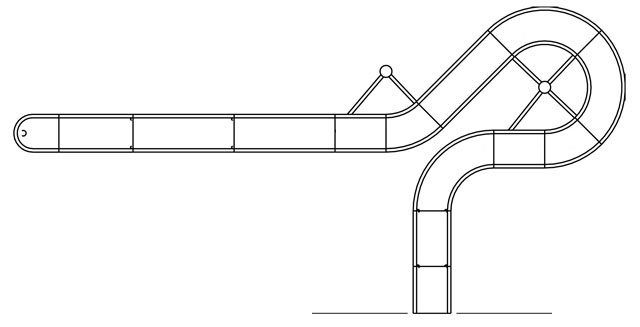

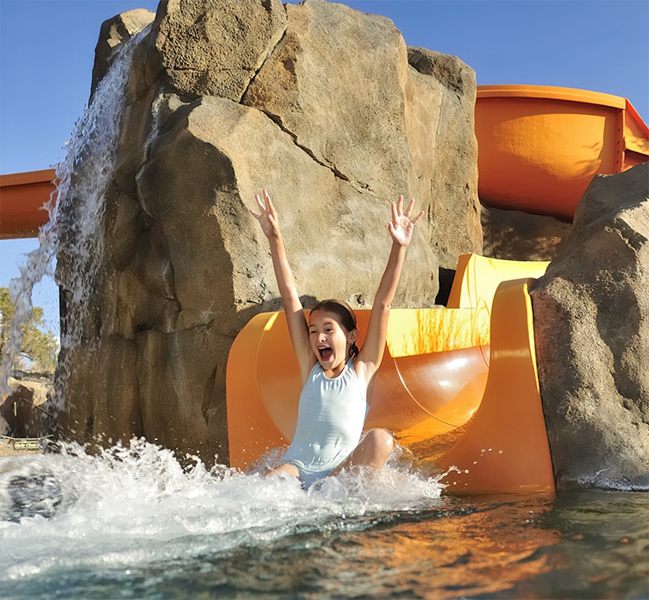

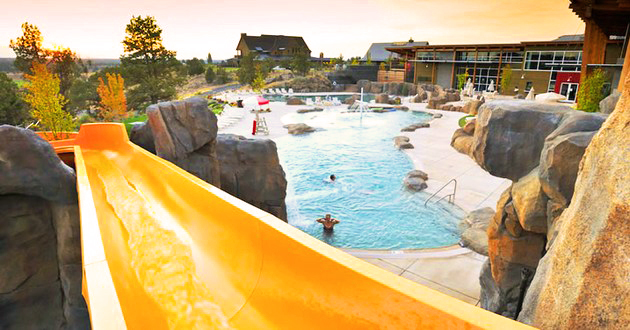

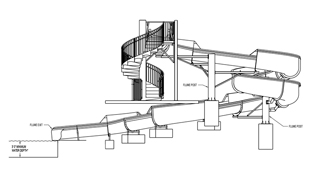

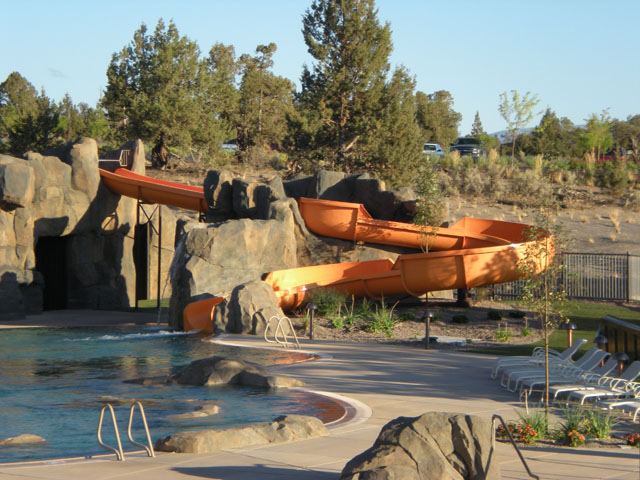

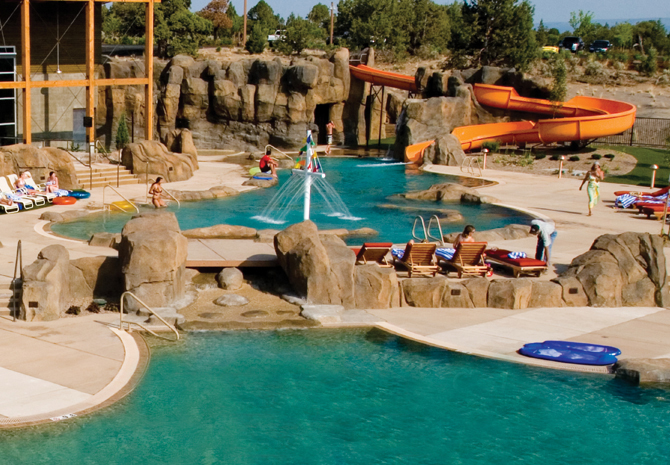

Landscape & Hillside Slide Model: Brasada Landscape & Hillside Slide Model: Brasada Landscape & Hillside Slide Model: Brasada Landscape & Hillside Slide Model: Brasada Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Landscape & Hillside Slide Model: ChervinFiberglass Flume Landscape & Hillside Slide
Model: Chervin

Description : Single open fiberglass flume designed for hillside and landscape applications.
Slide Run : 92' 0"
Centerline Run : 78' 3"
Slide Entrance Height : 10' 3"
Space Requirements : 20' 4" x 45' 3" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass flume
  • 600-800 gpm water flow required
  • Splash down dimension 13' x 20'
  • Minimum water depth: 3'
Landscaping designed by I.Q. Landscape Architects, P.C., New York

click on images to enlarge

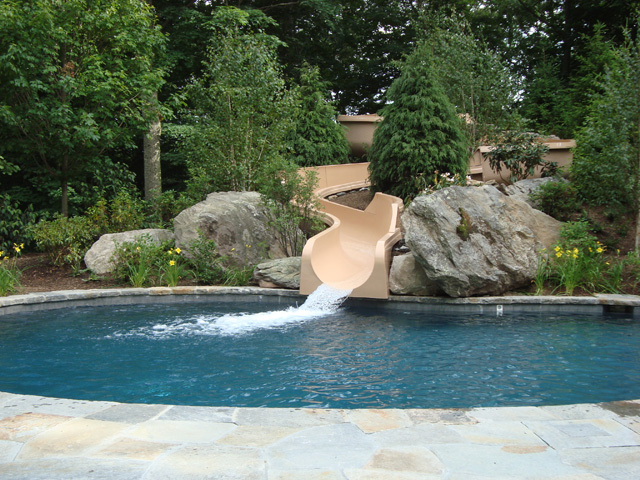

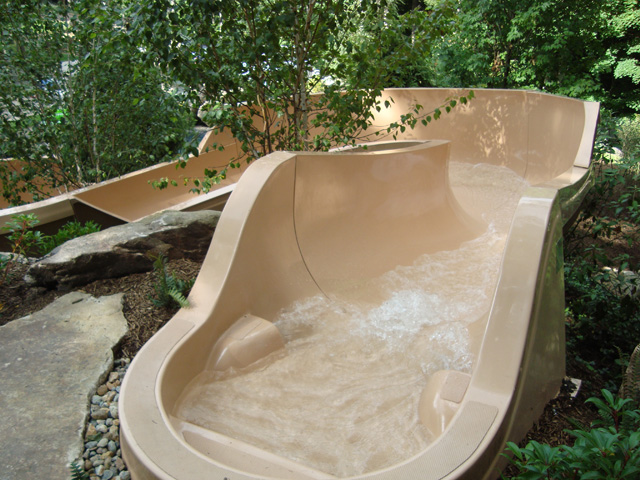

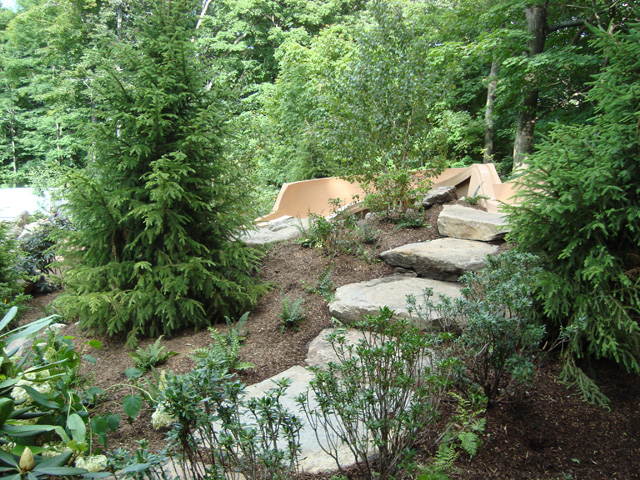

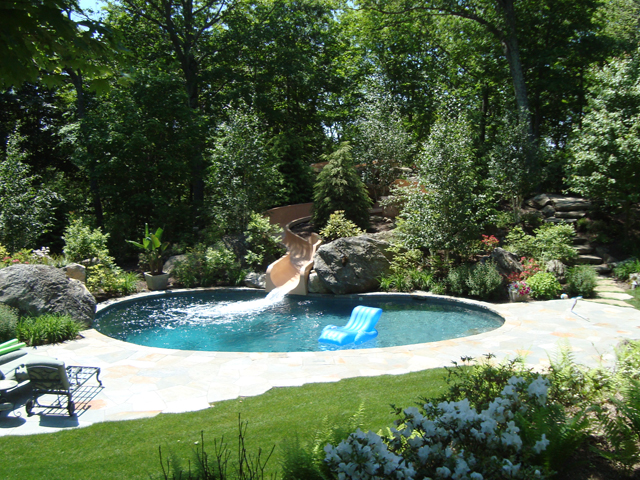

Landscape & Hillside Slide Model: Chervin Landscape & Hillside Slide Model: Chervin

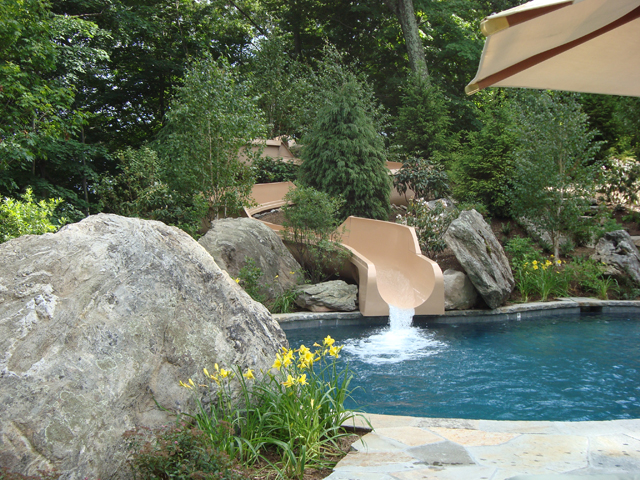

Landscape & Hillside Slide Model: ChervinLandscape & Hillside Slide Model: Chervin

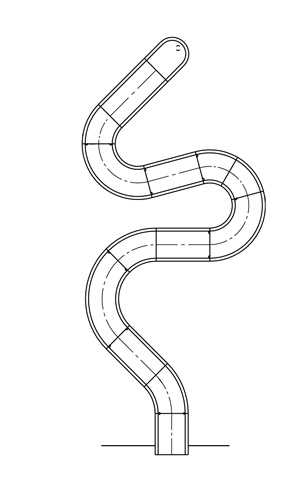

Landscape & Hillside Slide Model: Chervin Plan View Landscape & Hillside Slide Model: Chervin Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Landscape & Hillside Slide Model: EdwardsFiberglass Flume Landscape & Hillside Slide
Model: Edwards

Description : Single open fiberglass flume designed for hillside and landscape applications.
Centerline Run : 92' 5"
Slide Entrance Height : 13' 5"
Space Requirements : 36' 4" x 26' 4" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass flume
  • 600-800 gpm water flow required
  • Splash down dimension 13' x 20'
  • Minimum water depth: 5' 6"

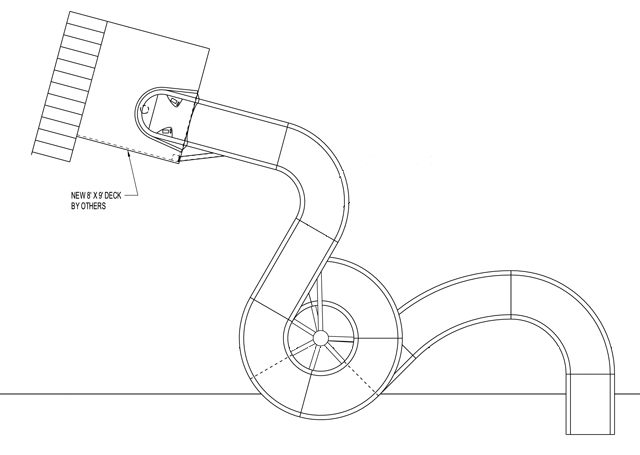

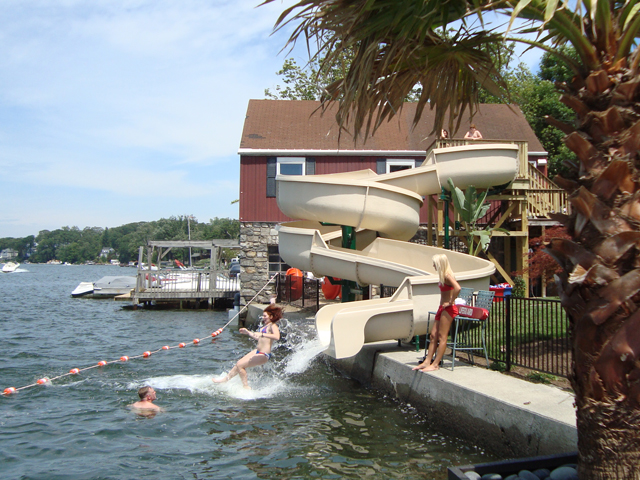

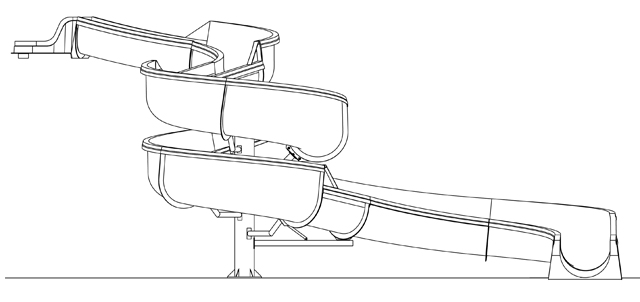

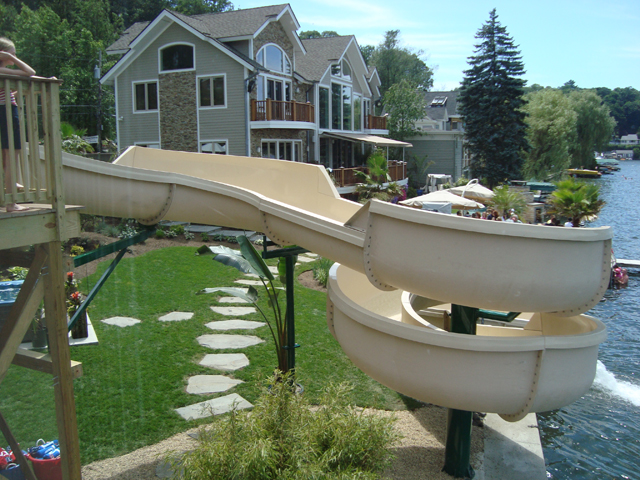

Landscape & Hillside Slide Model: Edwards Landscape & Hillside Slide Model: Edwards Plan View Landscape & Hillside Slide Model: Edwards Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

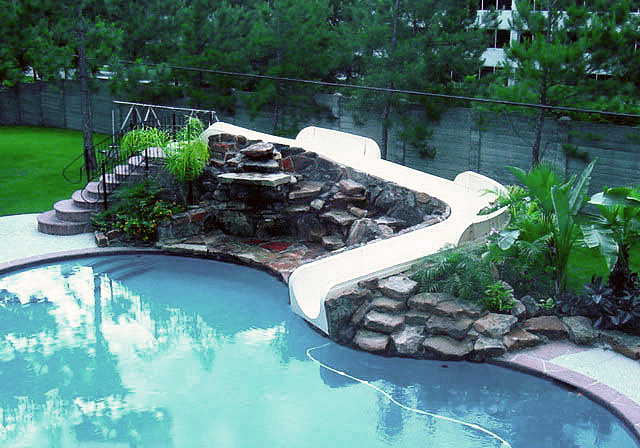

Landscape & Hillside Slide Model: GordenFiberglass Flume Landscape & Hillside Slide
Model: Gorden

Description : Single fiberglass flume designed for hillside and landscape applications.
Slide Run : 42'
Height above Water Level : 6'
Platform Size : N/A

  • 36" inside diameter fiberglass flume
  • 600-800 gpm water flow recommended
  • Splash down dimension 13' x 20'
  • Minimum water depth: 3' .

click on image to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Landscape & Hillside Slide Model: OcalaFiberglass Flume Landscape & Hillside Slide
Model: Ocala

Description : Single fiberglass flume designed for hillside and landscape applications.
Slide Run : 53' 8"
Slide Elevaton Height: 8'
Platform Size : N/A
Space Requirements : 24' 10" x 17' 9" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass flume
  • 600-800 gpm water flow required
  • Splash down dimension 13' x 20'
  • Minimum water depth: 3'

click on images to enlarge

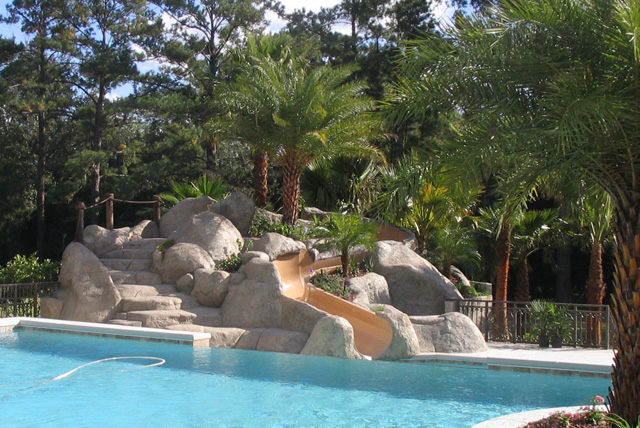

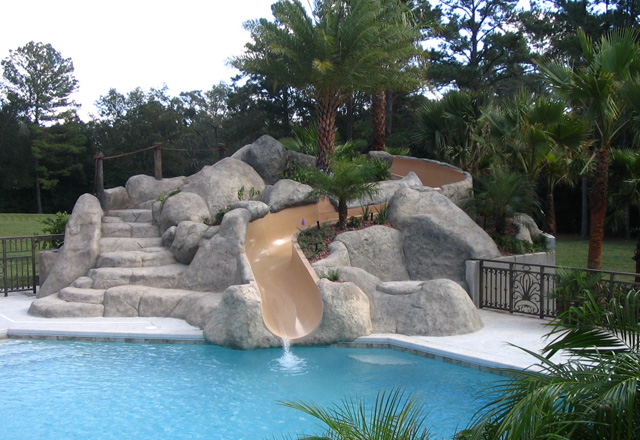

Landscape & Hillside Slide Model: Ocala

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Fiberglass Hillside Slide Model: Tyler HillFiberglass Flume Hillside Slide
Model: Tyler Hill

Description : Fiberglass flume slide featuring (2) 360° curves.
Centerline Run : 194' 5"
Slide Entrance Height : 25' 8"
Space Requirements : 41' 0" x 74' 7" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass flume
  • 600-800 gpm water flow required
  • Splash down dimension 13' x 20'
  • Minimum water depth: 9'

click on images to enlarge

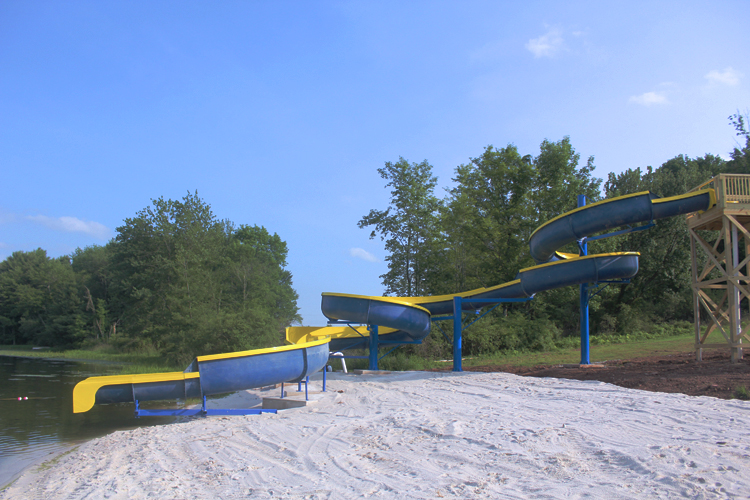

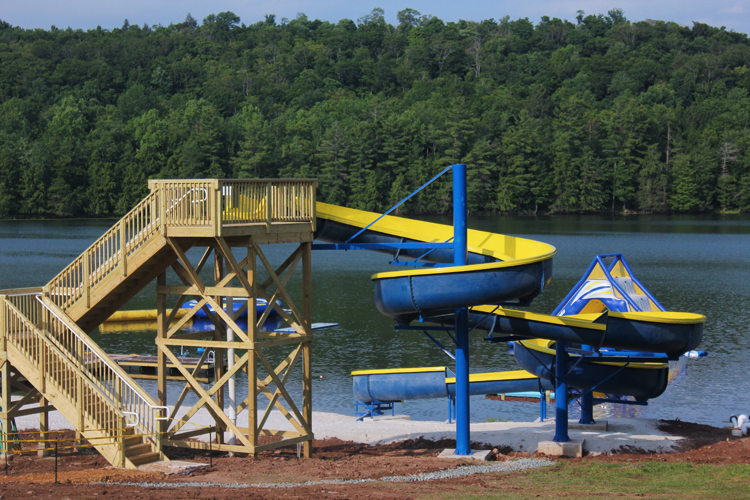

Fiberglass Hillside Slide Model: Tyler Hill

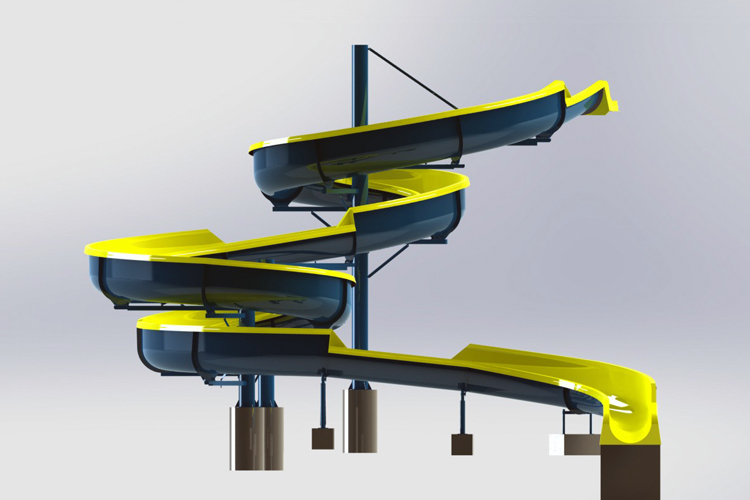

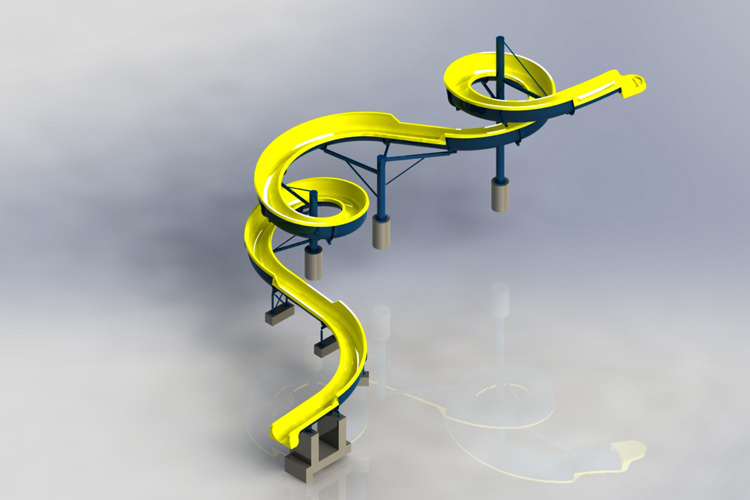

Fiberglass Hillside Slide Model: Tyler Hill 3D view

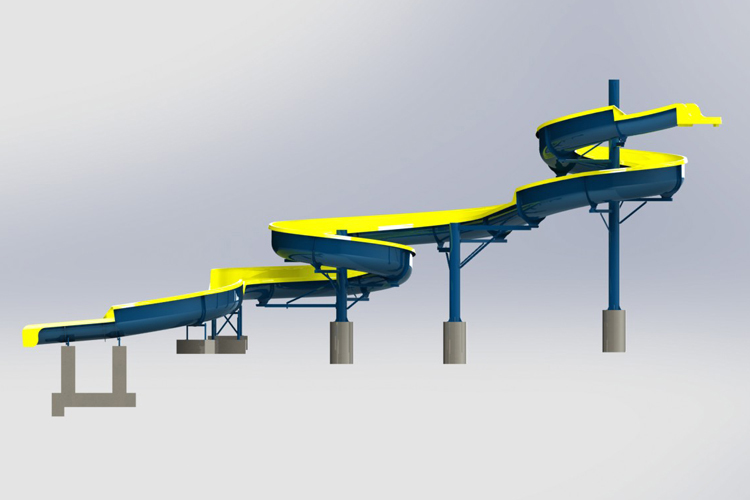

Fiberglass Hillside Slide Model: Tyler Hill 3D view

Fiberglass Hillside Slide Model: Tyler Hill 3D view

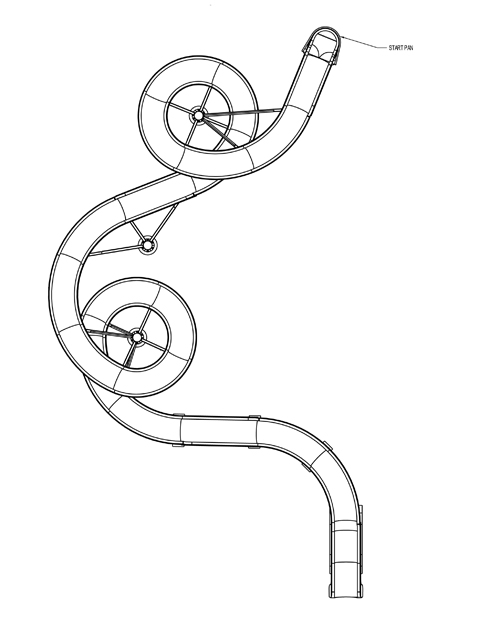

Fiberglass Hillside Slide Model: Tyler Hill plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat
