Quality Since 1976!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • Spray Curtain
    Interactive Spray Curtain
  • Water Curtain
    Water Curtain
  • Water Curtain - Bent
    Water Curtain with Bend
  • Curtain Tunnel
    Water Curtain Tunnel
  • Double Spray
    Interactive Double Spray Curtain

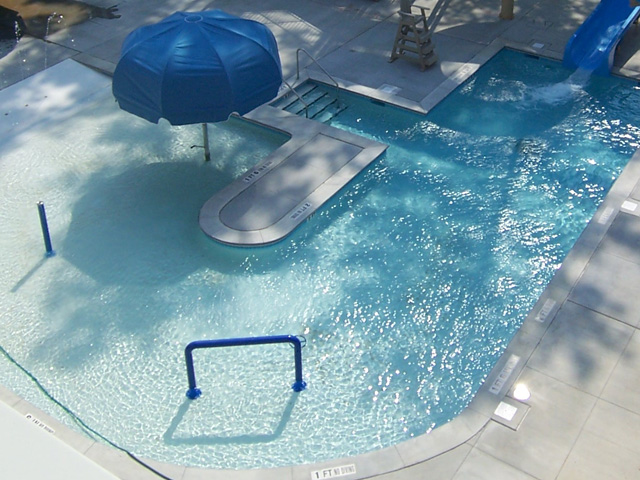

Spray Curtain Model 1800-68_wheelSpray Curtain

Model 1800-68
Dimensions: 3' 11 " high x 5' 5" wide
Space Requirements: 3’ 11" x 0’ 9"

  • 4 1/2" OD stainless pipe
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Water volume: 20-40 gpm

Options Shown: 1800-wheel: Interactive water flow wheel

click on images to enlarge

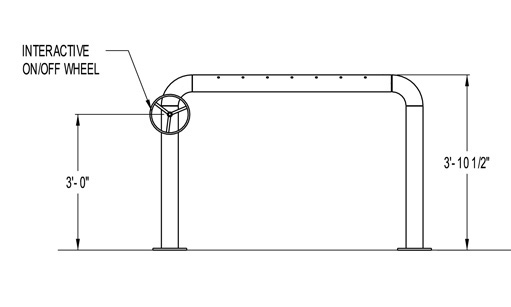

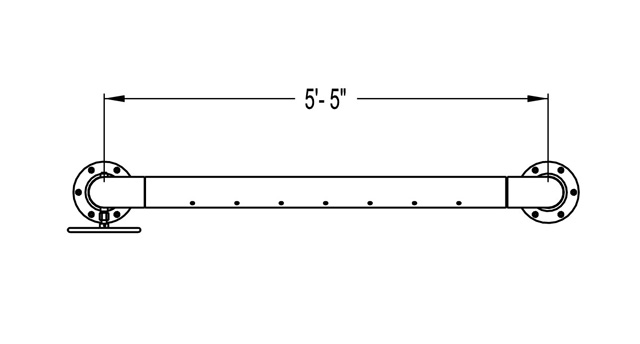

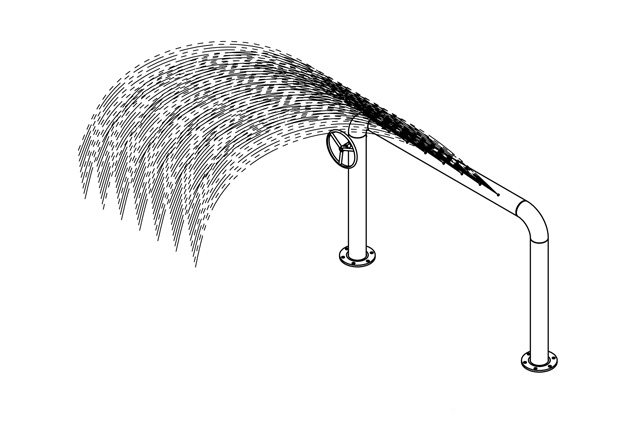

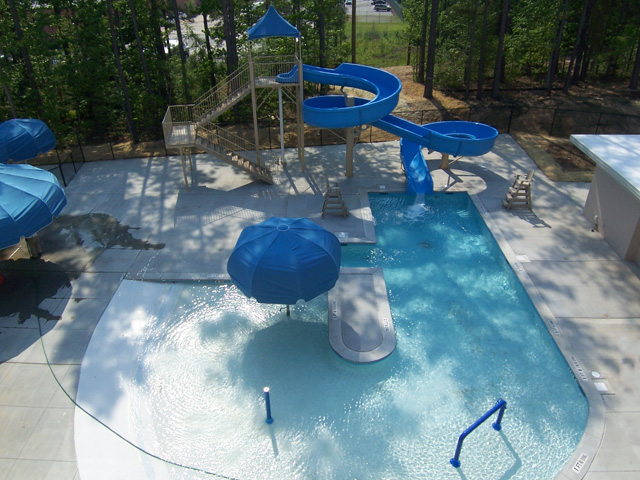

Spray Curtain Model 1800-68_wheel Spray Curtain Model 1800-68_wheel Spray Curtain Model 1800-68_wheel plan view Spray Curtain Model 1800-68_wheel plan view Spray Curtain Model 1800-68_wheel top view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

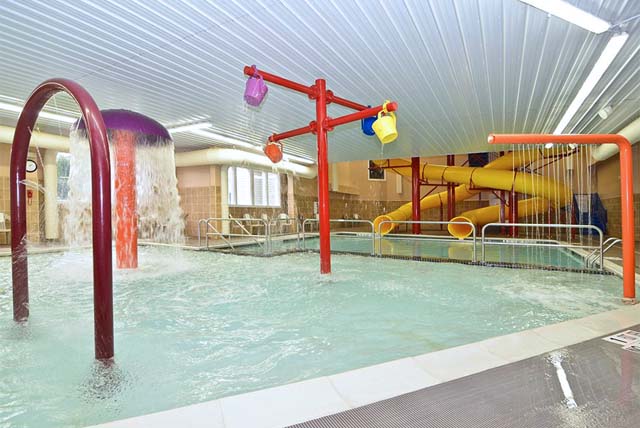

Water Curtain Model 1800-70-1Water Curtain

Model: 1800-70
• Model 1800-70-1:
5’ 10” wide (shown)
• Model 1800-70-2:
6’ 7” wide (ideal to mount on pool decks)
Dimensions:
• Model 1800-70-1: 8’ high x 5’ 10” wide
• Model 1800-70-2: 8’ high x 6’ 7” wide
Options:
• 1800-bent: Bent pipe
• 1800-wheel: Interactive water flow wheel

  • 4 1/2" OD stainless pipe
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Water volume: 10-20 gpm

click on images to enlarge

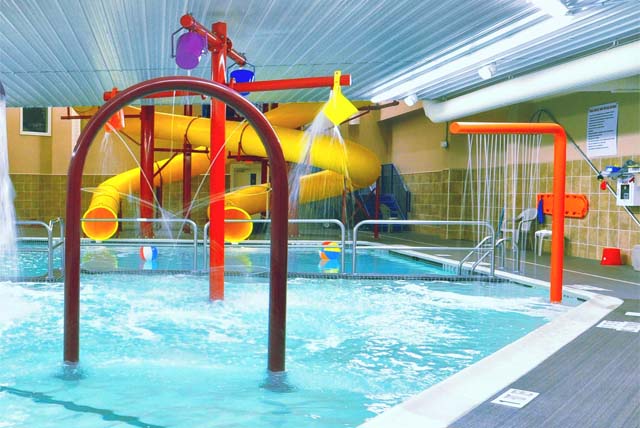

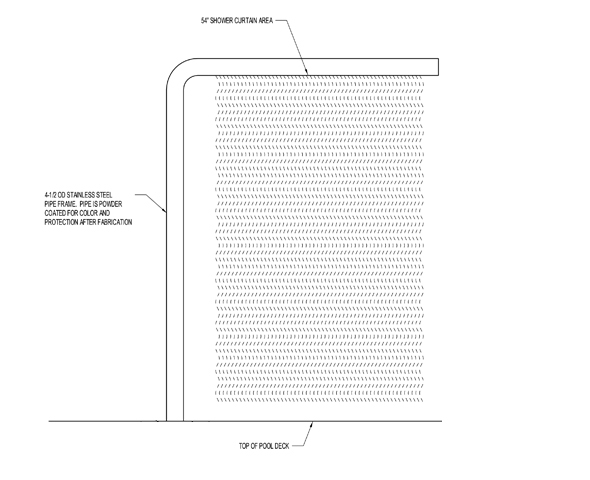

Water Curtain Model 1800-70-1Water Curtain Model 1800-70-1 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

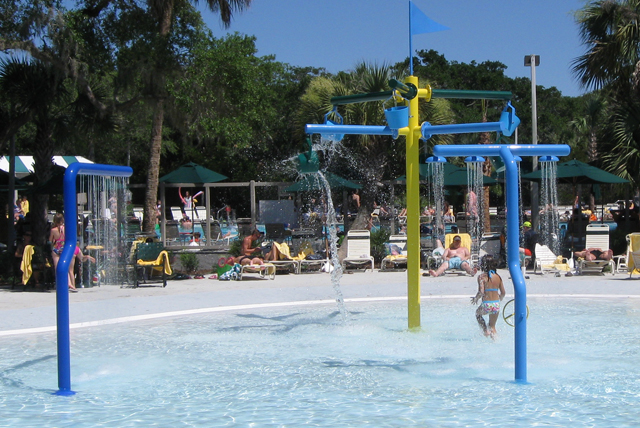

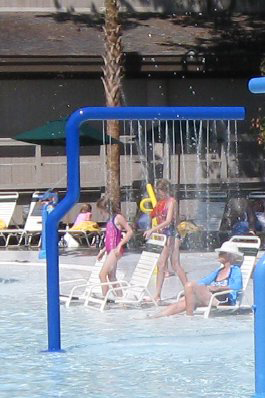

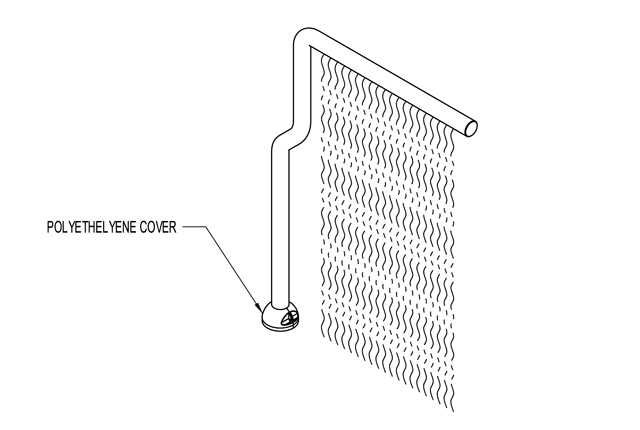

Water Curtain - Bent  Model 1800-70-2_bentWater Curtain

Model: 1800-70
• Model 1800-70-1:
5’ 10” wide
• Model 1800-70-2:
6’ 7” wide (ideal to mount on pool decks) (shown)
Dimensions:
• Model 1800-70-1: 8’ high x 5’ 10” wide
• Model 1800-70-2: 8’ high x 6’ 7” wide
Options:
• 1800-bent: Bent pipe
• 1800-wheel: Interactive water flow wheel

  • 4 1/2" OD stainless pipe
  • Stainless steel base plates and anchor system
  • Polyethylene base plate cover
  • Polyester powder coated finish
  • Water volume: 15-25 gpm

Options Shown: 1800-bent: Bent pipe

click on images to enlarge

Water Curtain - Bent  Model 1800-70-2_bent Water Curtain - Bent  Model 1800-70-2_bent plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

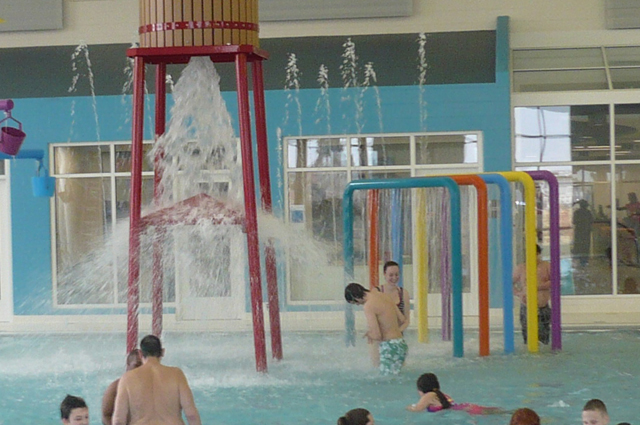

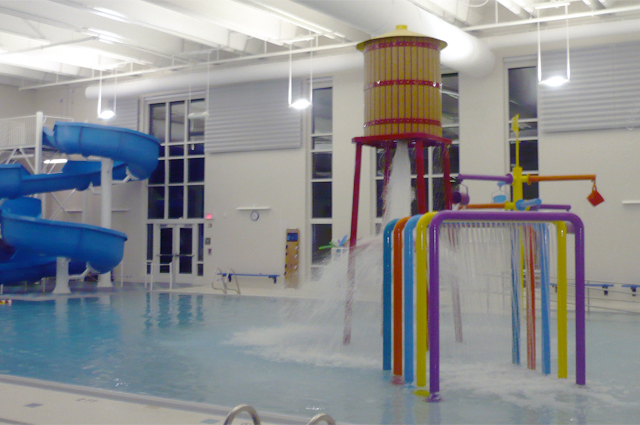

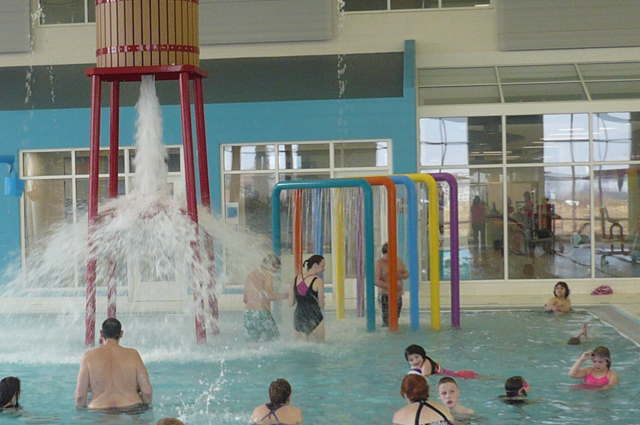

Water Curtain Tunnel Model 1800-71 Water Curtain Tunnel

Model 1800-71
Dimensions: 8' high x 6' wide, 48" shower area
Space Requirements: 8’ x 0’ 9"

  • 4 1/2" OD stainless pipe
  • Stainless steel base plates and anchor system
  • Polyethylene base plate cover
  • Polyester powder coated finish
  • Water volume: 10-20 gpm

click on images to enlarge

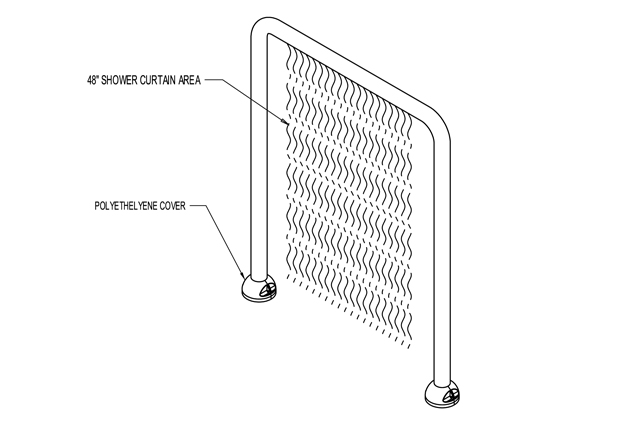

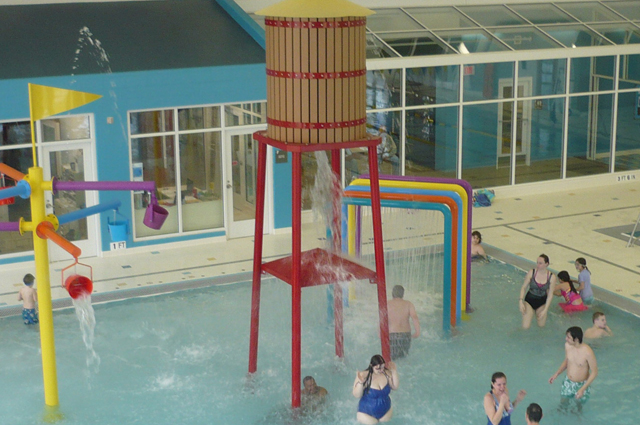

Water Curtain Tunnel Model 1800-71 Water Curtain Tunnel Model 1800-71 Water Curtain Tunnel Model 1800-71 Water Curtain Tunnel Model 1800-71 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

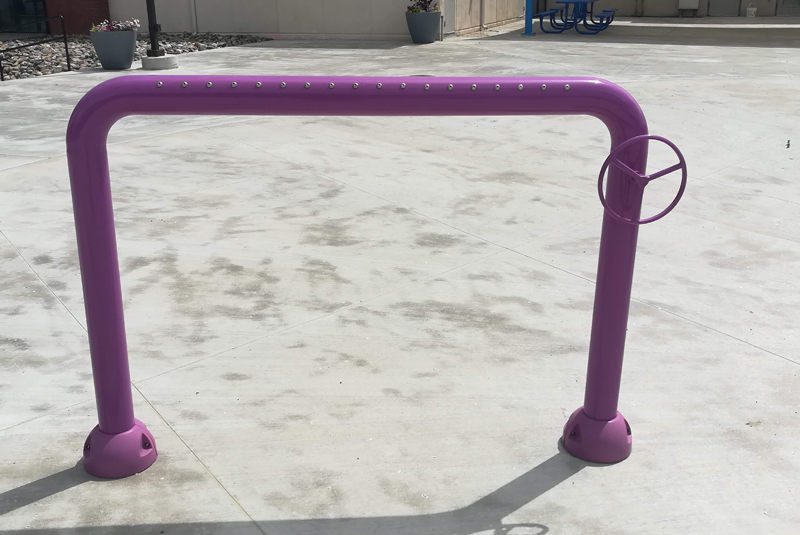

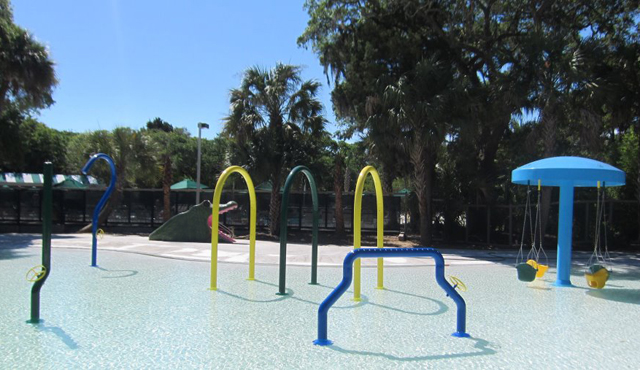

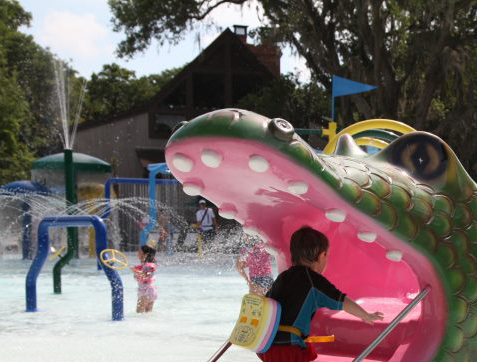

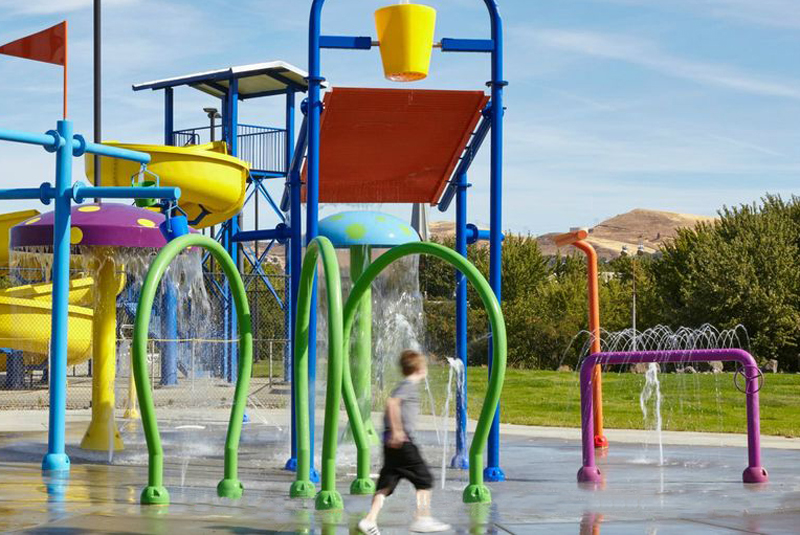

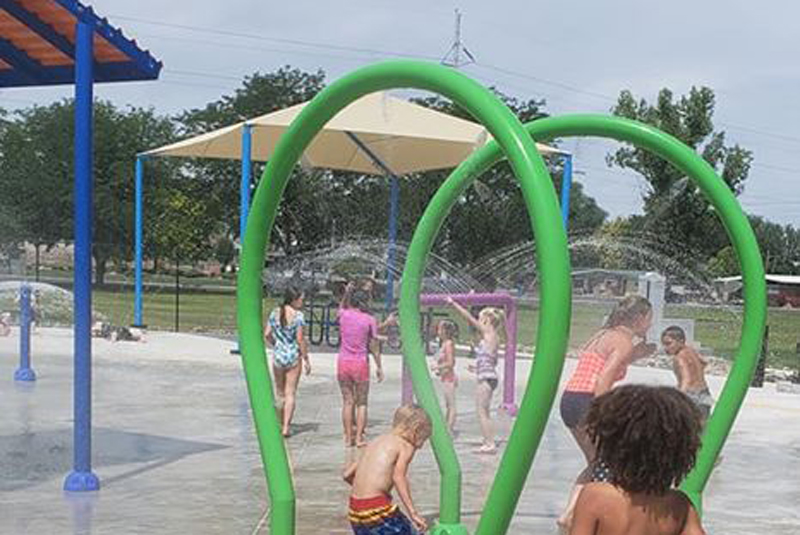

Double Spray Curtain Model 1800-95_bent_wheelDouble Spray Curtain

Model 1800-95
Dimensions: 4’ 2-1/4”' high x 6’ 4-1/2” wide

  • 4 1/2" OD stainless pipe
  • Stainless steel base plates and anchor system
  • Polyethylene base plate cover
  • Polyester powder coated finish
  • Water volume: 25-42 gpm

Options Shown:

  • 1800-bent: Bent pipe
  • 1800-wheel: Interactive water flow wheel

click on images to enlarge

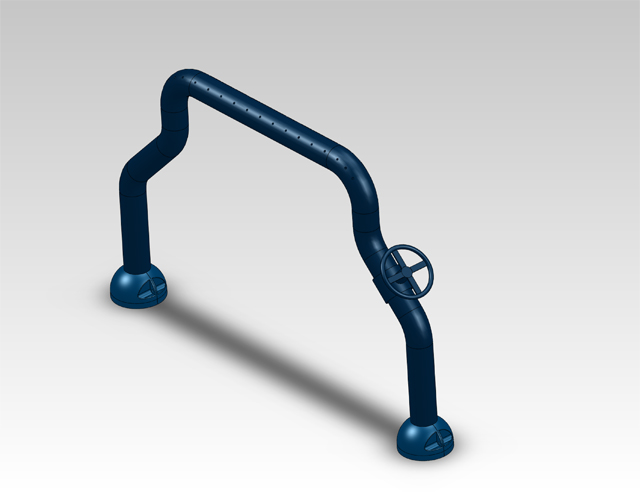

Double Spray Curtain Model 1800-95_bent_wheel Double Spray Curtain Model 1800-95_bent_wheel 3D view Double Spray Curtain Model 1800-95_bent_wheel plan view Double Spray Curtain Model 1800-95_bent_wheel plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat
